Greentouch SCOTT LIVING Series User manual

( 48-IN W x 22-IN D- 35-IN H)
48-IN Vanity Base and Top
Date Purchased _______________________
TM
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service department at
1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday.
www.greentouchhome.com
Durham Bathroom Vanity

1328VT-48-902 48" Dark Gray Top
1328VB-48-220 48" Chocolate Finish Vanity Base & Sink
1328VB-48-236 48" Espresso Finish Vanity Base & Sink
1328VB-48-241 48" White Oak Finish Vanity Base & Sink
1328VB-48-242 48" Light Gray Finish Vanity Base & Sink
1328VT-48-900 48" Carrara Marble Top
1328VT-48-901 48" White Engineered Top
MODEL NUMBER DESCRIPTION
1328VT-48-904 48" Black Granite Top
2
TM

3
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• Some steps are more easily handled with 2 adults.
CAUTION
• Use care when assembling the vanity; take your time and follow the assembly instructions closely.
PART DESCRIPTION QUANTITY
A Vanity 1
B Top 1
C Backsplash 1
D Sink 1
E 1
FRight Door 1
Left Door
G 1
H Large Drawer
Small Drawer
1
I 8
CARTON
Box 2 of 2
Box 1 of 2
Box 2 of 2
Shelf
C
B
D
G
AA BB CC DD EE
Washer
Qty. 4
Sink Clamp
Qty. 4
Touch Up Pen
Qty. 1
Lock Washer
Qty. 4
Bolt
Qty. 4
A
I
H
E
F

4

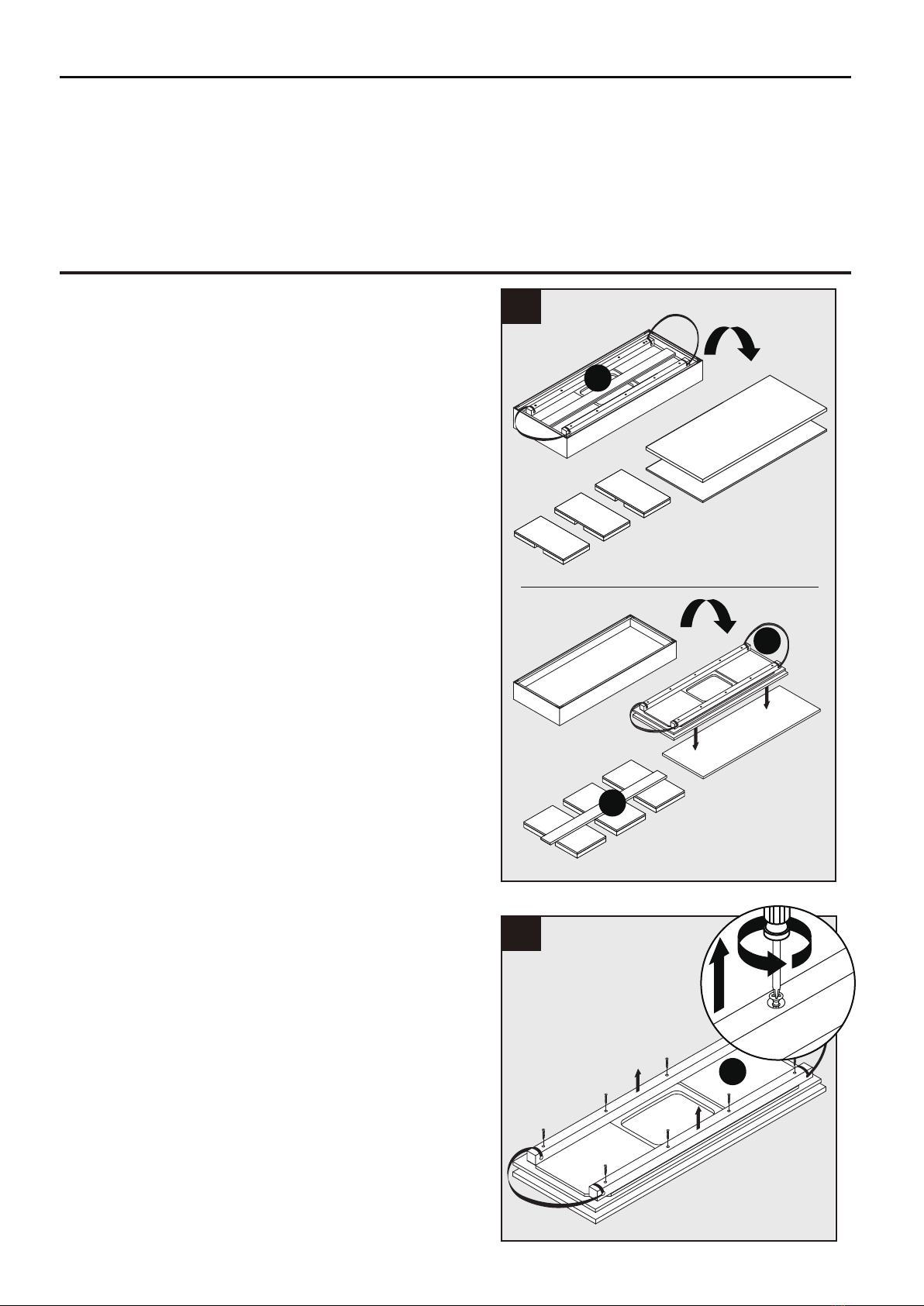

INSTALLATION INSTRUCTIONS
1. Place T
op (B) and Backsplash (C) face down
onto a scratch free surface such as a
foam sheet that came in the packaging.
2. Remove wood panels under top (B) by
unscrewing the screws.
1
B
Foam
Sheet
C
Foam
Sheet
2
1
Foam
Sheet
MDF
C
2
B
2
1
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for adhesive to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, adhesive,
power drill with drill bit, measuring tape, level

INSTALLATION INSTRUCTIONS

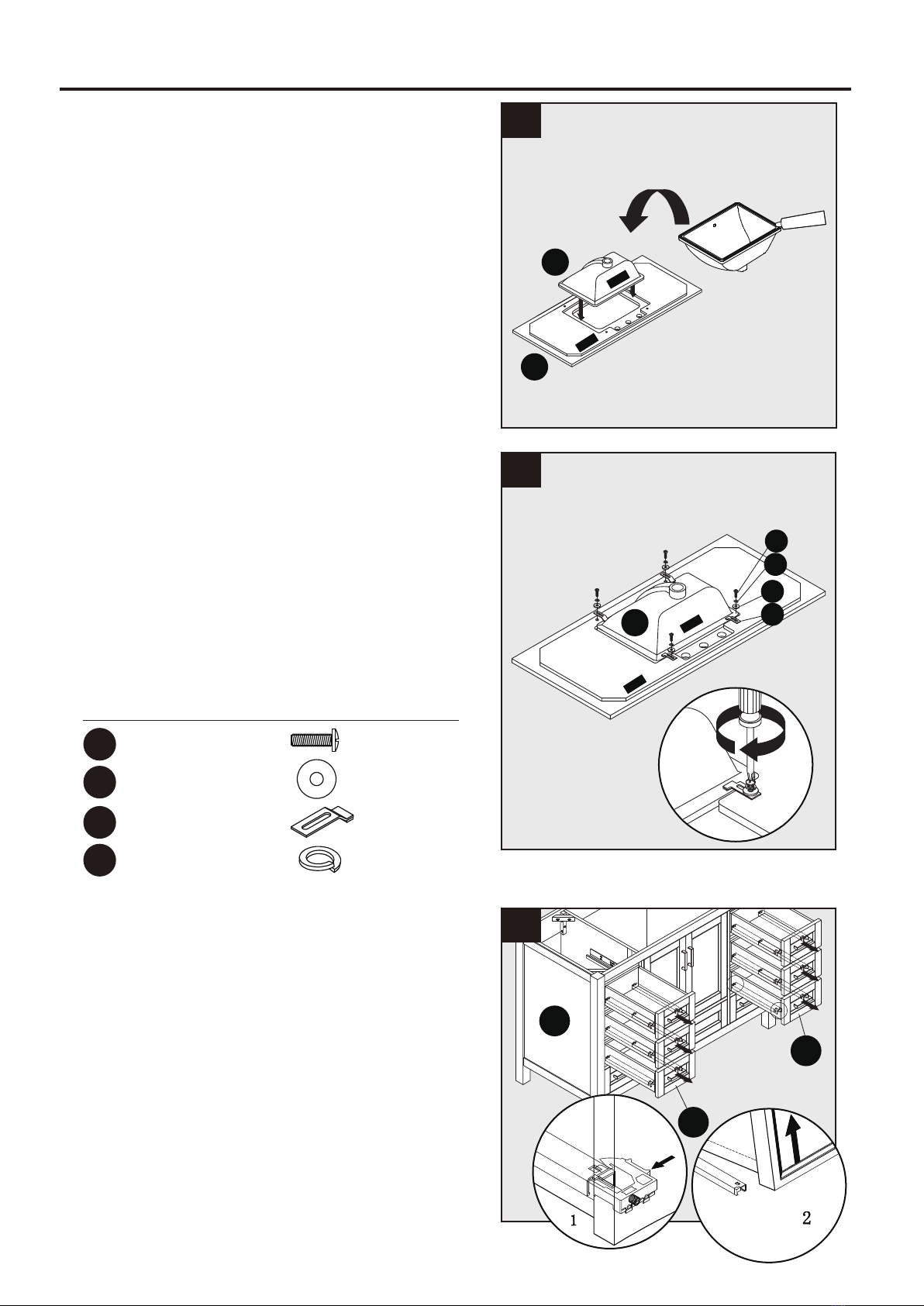

Hardware Used
AA Bolt x 4
BB Washer x 4
x 4
DD Sink Clamp
EE Lock Washer x 4
4. Place the sink clamps (DD) in the proper position
above the pre-threaded holes in the stone top.
Using Bolts (AA) Lock Washers (EE) and
Washers (BB) secure Sink Clamps (DD) to the
bottom of the Stone Top (B).
Tip: check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
adhesive to dry. If the sink is not centered well
unscrew sink clamps, readjust the sink position
and re-tighten the sink clamps.
5
5. To remove small drawers (I) preassembled in
vanity (A), fully extend drawers. Locate
plastic levers under drawer box on metal
glide tracks at left and right sides of drawer
box. To
disengage drawer box from glides,
push on plastic levers. Then, gently lift drawer
up to remove it from vanity (A).
3. Apply silicone adhesive (not included) to
the top edge of Sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top. Make sure the sink
over-flow hole is facing the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Note: To install the sink onto top correctly,
ensure the two “Back” stamps on the sink and
on the sub-top frame are on the same side,
and also make sure that the lines marked on
the sink and on the sub-top frame line up.
I
I
A
5
3
2
1
D
B
BACK
BACK
44
AA
EE
BB
DD
D
BACK
BACK

6
6. Clean area where the vanity (A) will be
permanently located prior to beginning
installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed Vanity
Cabinet Assembly to its final location. Adjust
the height of the Vanity Cabinet (A) by
twisting the adjustable leveler foot pins on the
bottom of each leg. Twist clockwise to
decrease height or twist counter-clockwise to
increase vanity height.
Using hardware appropriate for your wall type
(not included), secure Vanity Cabinet (A) to
two wall studs anywhere through the Vanity
Mounting Plates. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
INSTALLATION INSTRUCTIONS
7. Apply silicone adhesive to the top edge of the
wood cabinet. With the help of another adult,
gently lower the stone top with assembled sink
onto the cabinet. Make sure the stone top is flush
with the back side of the wood cabinet and the
stone overhang is equal on both sides over the
wood cabinet left and right side walls. Remove
any excess adhesive before allowing to dry.
Tip: it may be easier to install the faucet and/or
drain assembly (not included) before
securing the stone top to the wood cabinet.
A
B
2
2
7
6
A
Mounting
Plate

7
INSTALLATION INSTRUCTIONS

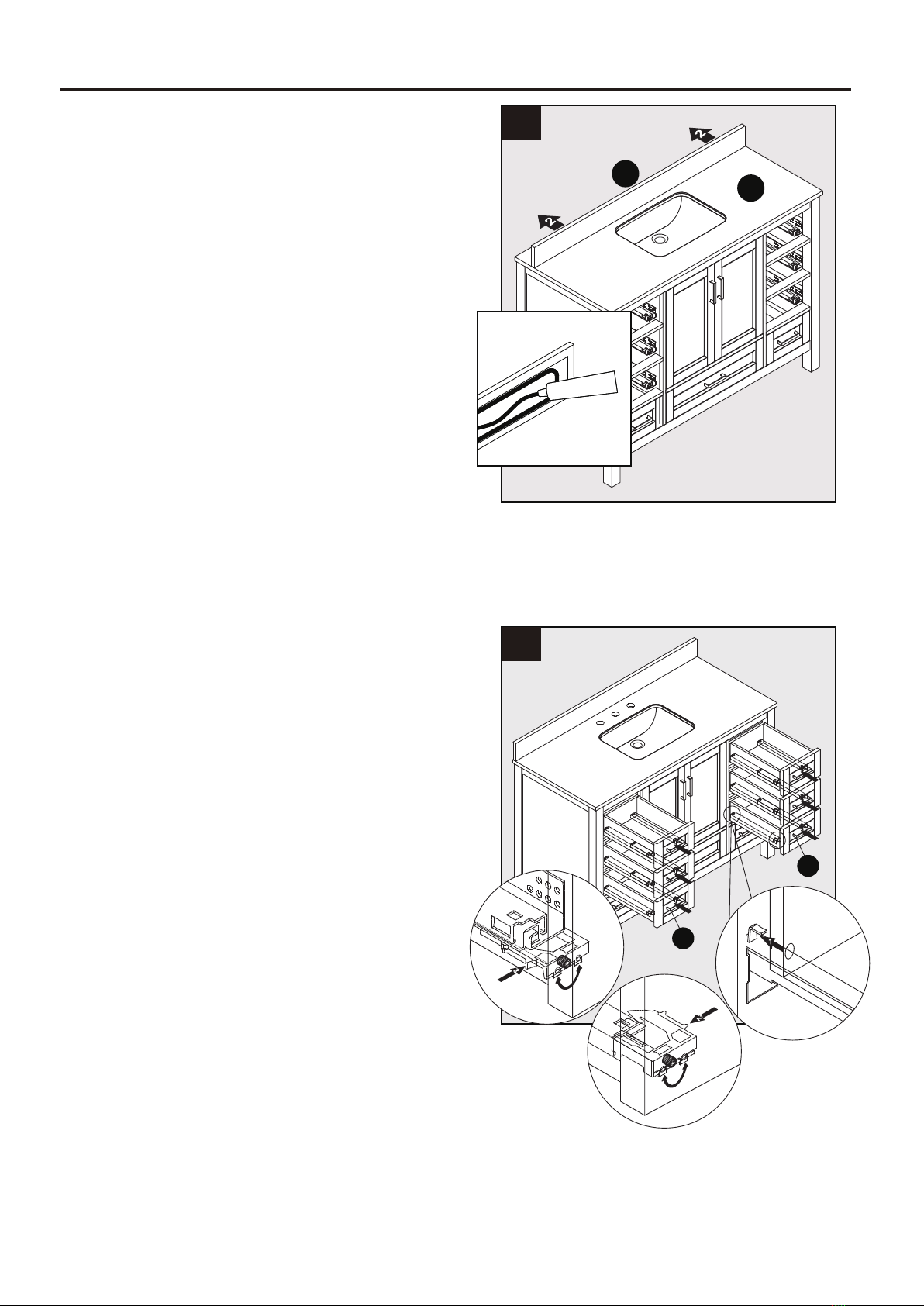

8. Apply adhesive (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess adhesive before allowing
to dry.
9. Locate small drawers (I) and set aside. Fully
extend lower drawer glide tracks. With the help
of another adult, hold the extended glide in one
hand and the drawer in the other. Gently
place the back of the drawer box into the
metal hook located on the back of the drawer
track. Once the glide hook has been slid into
the hole in the back of the drawer box, gently
lower the drawer box down onto the extended
glide tracks. At the same time depress both of
the glide handles and allow the drawer box to
fully rest on the glide tracks. Test to see if the
drawer box is fully engaged. If the drawer box
can still be lifted off the glide track then start
again from the beginning. Never force
anything or else damage to the drawer or
glide hardware could result. Repeat for
remaining drawers. The drawers location can
be adjusted slightly up or down by twisting the
adjuster knob next to the glide handles.
B
C
8
1
9
I
I

8
INSTALLATION INSTRUCTIONS
10. Place shelf (G) on top of shelf pins (FF).
11.
If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in or out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
11
a
3
a
1
b
1
1
c
1
c
3
Assembly is now complete. Install desired faucet and drain assemblies (neither included) per
the manufacturers’ instructions to complete the installation.
A
G
10

9
CARE AND MAINTENANCE
WARRANTY
IMPORTANT
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The ceramic sink can be cleaned using standard ceramic cleaning agents available at your local
supplier.
• Tips for using touch-up pen (CC): For scratches, stroke in direction of scratch; for worn areas,
stroke in direction of wood grain. Rub off excess colorant promptly with a soft cloth.
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity Manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
The manufacturer warrants this item against defects in materials and workmanship for a period of
one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer will not be held liable for damages caused from cleaners or soaps that etch or stain
the stone top. The manufacturer is not accountable whatsoever for product installation during the
warranty period. There is no further expressed warranty. The manufacturer shall not be legally
responsible for incidental, consequential or special damages arising at or in connection with
product use or performance except as may otherwise be accorded by law. The manufacturer
disclaims any and all implied warranties.

10

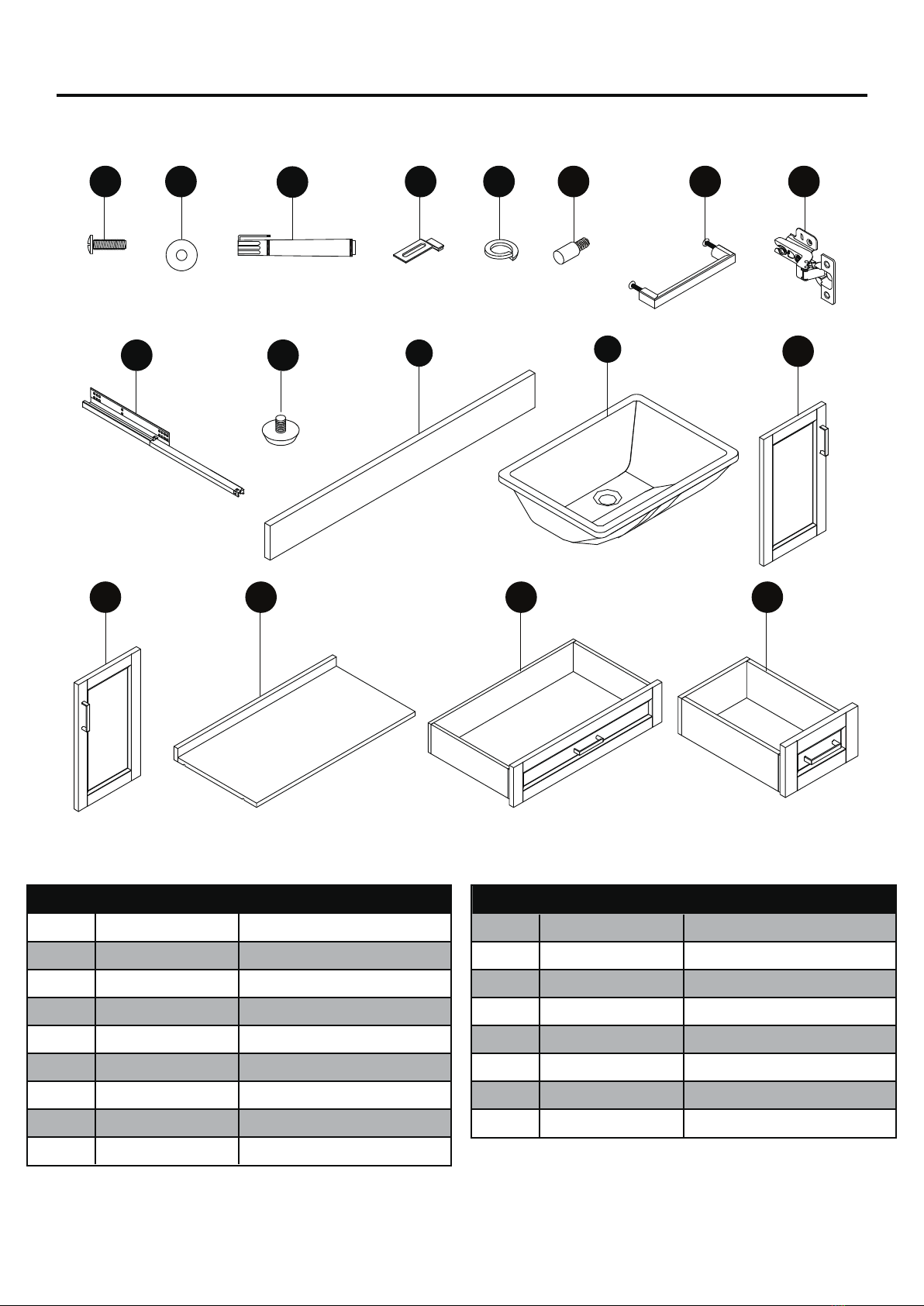

REPLACEMENT PARTS FOR 1328VB-48-220
For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
C Backsplash PU17-48EW-BS
D Sink PU17-420*310-Rect-S
ELeft Door 1328VB-48-220-001
FRight Door 1328VB-48-220-002
GShelf 1328VB-48-220-003
HLarge Drawer 1328VB-48-220-004
I Small Drawer 1328VB-48-220-005
AA Bolt BTSET-2INx12
BB Washer BTSET-2INx12
PART DESCRIPTION PART #
CC Touch Up Pen OX-0610
DD Sink Clamp PU17-65x20-SB
EE Lock Washer PU16-8-SW
FF Shelf Pin PU17-SP-002
GG Handle CF-96-003-BN
HH Hinge C-90-107
II Drawer Glide PU16-14x3-GS
JJ Leveler T-1007
II D
C
JJ E
BB EE
CC DDAA FF GG HH
F G H I

11
REPLACEMENT PARTS FOR 1328VB-48-236
For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
C Backsplash PU17-48BGrte-BS
D Sink PU17-420*310-Rect-S
ELeft Door 1328VB-48-236-001
FRight Door 1328VB-48-236-002
GShelf 1328VB-48-236-003
I Small Drawer 1328VB-48-236-005
HLarge Drawer 1328VB-48-236-004
AA Bolt BTSET-2INx12
BB Washer BTSET-2INx12
PART DESCRIPTION PART #
CC Touch Up Pen W3504A
DD Sink Clamp PU17-65x20-SB
EE Lock Washer PU16-8-SW
FF Shelf Pin PU17-SP-002
GG Handle CF-96-003-BN
HH Hinge C-90-107
II Drawer Glide PU16-14x3-GS
JJ Leveler T-1007
II D
C
JJ E
BB EE
CC DDAA FF GG HH
F G H I

12
REPLACEMENT PARTS FOR 1328VB-48-241
For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
C Backsplash PU17-48DGR-BS
D Sink PU17-420*310-Rect-S
ELeft Door 1328VB-48-241-001
FRight Door 1328VB-48-241-002
GShelf 1328VB-48-241-003
I Small Drawer 1328VB-48-241-005
HLarge Drawer 1328VB-48-241-004
AA Bolt BTSET-2INx12
BB Washer BTSET-2INx12
PART DESCRIPTION PART #
CC Touch Up Pen OF-0010
DD Sink Clamp PU17-65x20-SB
EE Lock Washer PU16-8-SW
FF Shelf Pin PU17-SP-002
GG Handle CF-96-003-BN
HH Hinge C-90-107
II Drawer Glide PU16-14x3-GS
JJ Leveler T-1007
II D
C
JJ E
BB EE
CC DDAA FF GG HH
F G H I

13
REPLACEMENT PARTS FOR 1328VB-48-242
For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
C Backsplash PU17-48CAR-BS
D Sink PU17-420*310-Rect-S
ELeft Door 1328VB-48-242-001
FRight Door 1328VB-48-242-002
GShelf 1328VB-48-242-003
I Small Drawer 1328VB-48-242-005
HLarge Drawer 1328VB-48-242-004
AA Bolt BTSET-2INx12
BB Washer BTSET-2INx12
PART DESCRIPTION PART #
CC Touch Up Pen OF-0120R
DD Sink Clamp PU17-65x20-SB
EE Lock Washer PU16-8-SW
FF Shelf Pin PU17-SP-002
GG Handle CF-96-003-BN
HH Hinge C-90-107
II Drawer Glide PU16-14x3-GS
JJ Leveler T-1007
II D
C
JJ E
BB EE
CC DDAA FF GG HH
F G H I
