Grizzly G0443HEP User manual

COPYRIGHT © FEBRUARY, 2015 BY GRIZZLY INDUSTRIAL, INC. REVISED DECEMBER, 2017 (AB)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MANUFACTURED SINCE 12/17) #BB17222 PRINTED IN TAIWAN
The Model G0443HEP is the same machine as the Model G0443 except for the dual-filtration HEPA filter
system and the included stand. Except for the differences noted in this insert, all other content in the Model
G0443 owner's manual applies to this machine.
: To reduce the risk of serious injury, you MUST read and understand this insert—and
the entire Model G0443 owners manual—BEFORE assembling, installing, or operating this machine!
If you have any further questions about this manual insert or the differences between the Model G0443HEP
and the Model G0443, contact our Technical Support at [phone] or email [email protected].
MODEL G0443HEP
11⁄2HP DUAL-FILTRATION HEPA
CYCLONE DUST COLLECTOR
MANUAL INSERT
(For owner's manual printed March, 2012)
V2.12.17

-2- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
The information contained herein is deemed accurate as of 12/21/2017 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 3
Model G0443HEP
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G0443HEP 1‐1/2 HP DUAL‐FILTRATION HEPA
CYCLONE DUST COLLECTOR
Product Dimensions:
Weight.............................................................................................................................................................. 370 lbs.
Width (side-to-side) x Depth (front-to-back) x Height............................................................... 54-1/2 x 33 x 87-1/2 in.
Footprint (Length x Width)..................................................................................................................... 54-1/2 x 33 in.
Shipping Dimensions:
Carton #1
Type............................................................................................................................ Cardboard Box on Pallet
Content................................................................................................................................................. Machine
Weight.................................................................................................................................................... 227 lbs.
Length x Width x Height............................................................................................................. 54 x 28 x 30 in.
Carton #2
Type........................................................................................................................................... Cardboard Box
Content............................................................................................................................ HEPA Cartridge Filter
Weight...................................................................................................................................................... 84 lbs.
Length x Width x Height............................................................................................................. 45 x 19 x 31 in.
Carton #3
Type........................................................................................................................................... Cardboard Box
Content............................................................................................................................... HEPA Filter Adapter
Weight...................................................................................................................................................... 15 lbs.
Length x Width x Height............................................................................................................. 33 x 10 x 11 in.
Carton #4
Type........................................................................................................................................... Cardboard Box
Content...................................................................................................................................................... Stand
Weight...................................................................................................................................................... 75 lbs.
Length x Width x Height............................................................................................................... 36 x 14 x 7 in.
Electrical:
Power Requirement............................................................................................. 110V or 220V, Single-Phase, 60 Hz
Prewired Voltage.................................................................................................................................................. 110V
Full-Load Current Rating................................................................................................. 18.8A at 110V, 9.4A at 220V
Minimum Circuit Size.......................................................................................................... 30A at 110V, 15A at 220V
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length............................................................................................................................................ 126 in.
Power Cord Gauge......................................................................................................................................... 12 AWG
Plug Included........................................................................................................................................................... No
Recommended Plug Type............................................................................................. L5-30 for 110V, 6-15 for 220V
Switch Type......................................................................... Remote Control Magnetic Switch w/Overload Protection
Voltage Conversion Kit................................................................................................................ P0443004C for 220V

Model G0443HEP (Mfd. Since 12/17) -3-
The information contained herein is deemed accurate as of 12/21/2017 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 3
Model G0443HEP
Motors:
Main
Horsepower............................................................................................................................................. 1.5 HP
Phase............................................................................................................................................ Single-Phase
Amps................................................................................................................................................. 18.8A/9.4A
Speed................................................................................................................................................ 3450 RPM
Type.................................................................................................. TEFC Capacitor-Start Induction (Class F)
Power Transfer ............................................................................................................................... Direct Drive
Bearings..................................................................................................... Shielded & Permanently Lubricated
Main Specifications:
Operation
Dust Collector Type.......................................................................................................... Two-Stage (Cyclone)
Approved Dust Types................................................................................................................................ Wood
Filter Type.......................................................................................................................... Cartridge and HEPA
Airflow Performance..................................................................................................... 1025 CFM @ 2.6 in. SP
Max Static Pressure (at 0 CFM)............................................................................................................. 10.3 in.
Main Inlet Size............................................................................................................................................. 6 in.
Inlet Adapter Included.................................................................................................................................... No
Machine Collection Capacity At One Time....................................................................................................... 2
Maximum Material Collection Capacity................................................................................................ 4.7 cu. ft.
Filtration Rating................................................................................................................ 99.97% @ 0.3 Micron
Filter Surface Area................................................................................................................................ 96 sq. ft.
Bag Information
Number of Lower Bags..................................................................................................................................... 1
Lower Bag Diameter............................................................................................................................ 15-3/4 in.
Canister Information
Number of Canister Filters................................................................................................................................ 1
Canister Filter Diameter....................................................................................................................... 15-3/4 in.
Canister Filter Length.......................................................................................................................... 46-3/4 in.
Collection Drum Size......................................................................................................................... 35 Gallons
Impeller Information
Impeller Type...................................................................................................................................... Radial Fin
Impeller Size........................................................................................................................................ 12-1/2 in.
Construction
Lower Bag...................................................................................................................................... Clear Plastic
Canister............................................................................................................................ Spun Bond Polyester
Frame....................................................................................................................... Steel Sheet Metal (14 ga.)
Impeller....................................................................................................................................................... Steel
Paint Type/Finish....................................................................................................................... Powder Coated
Blower Housing......................................................................................................................... 11-Gauge Steel
Body.......................................................................................................................................... 14-Gauge Steel
Collection Drum.......................................................................................................................................... Steel
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ............................................................................................................. 4 Hours
Serial Number Location .................................................................................................................................. ID Label
Sound Rating ............................................................................................................................................. 75 – 76 dB
ISO 9001 Factory .................................................................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) .......................................................................... No

-4- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Inventory (Figure 1) Qty
A. Intake Cylinder ........................................... 1
B. Cyclone Funnel .......................................... 1
C. Intake Barrel ............................................... 1
D. Canister/Drum Collection Bags .........1 Each
E. Motor/Blower Housing Assembly ............... 1
F. Collection Drum Lid .................................... 1
G. Collection Drum .......................................... 1
H. Hose Clamps 9" ......................................... 2
I. Clear Flexible Hose 9" x 8" ........................ 1
J. Collection Drum Seal ................................. 1
K. Foam Tape Roll 3 x 6mm .......................... 1
L. Casters ....................................................... 4
M. Barrel Gaskets ............................................ 2
N. Outlet Gaskets ............................................ 2
O. HEPA Canister Filter Assembly ................. 1
P. Filter Adapter...............................................1
Q. Hose Clamps 1
1⁄4" ...................................... 2
R. Vacuum Hose 1
1⁄4" x 98" ............................ 1
S. Collection Drum Vacuum Ring ................... 1
T. Cyclone Vacuum Tube ............................... 1
U. Hardware (Not Shown)
—Phillips Head Screws #10-24 x 3⁄8" .......... 6
—Hex Nuts #10-24 ..................................... 6
—Drum Latches ......................................... 3
—Roll of Foam Seal Tape 5 x 50mm ......... 1
—Hex Bolts 5⁄16"-18 x 1" ............................ 24
—Hex Bolts 5⁄16"-18 x 3⁄4" ........................... 20
—Flat Washers 5⁄16" ................................... 60
—Hex Nuts 5⁄16"-18 .................................... 14
—Hex Bolts 3⁄8"-16 x 1" ............................... 8
—Hex Nuts 3⁄8"-16 ....................................... 4
—Lock Nuts 3⁄8"-16 ...................................... 8
—Lock Washers 3⁄8" .................................... 4
—Flat Washers 3⁄8" .................................... 24
Figure 1. Model G0443HEP inventory.
C
B
A
D
IJ
FG
KL
H
S
P
M
N
Q
O
E
RT

Model G0443HEP (Mfd. Since 12/17) -5-
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Figure 2. Contents of stand box.
ABC
D
E
F
Stand Box Contents (Figure 2) Qty
A. Lower Stand Legs ...................................... 4
B. Upper Stand Legs ...................................... 4
C. Upper Stand Braces ................................... 4
D. Lower Stand Braces ................................... 4
E. Collector Mounting Brackets ...................... 4
F. Hardware Bags
—Hex Bolts 5⁄16"-18 x 1" ............................. 8
—Hex Bolts 3⁄8"-16 x 3⁄4" ............................ 67
—Flat Washers 5⁄16" .................................. 16
—Flat Washers 3⁄8" ................................. 134
—Lock Nuts 5⁄16"-18 .................................... 8
—Lock Nuts 3⁄8"-16 ................................... 64
—Hex Nuts 3⁄8"-16 ...................................... 3
—Vacuum Hose Clips ................................ 2

-6- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
The HEPA cyclones are assembled largely the
same way as the regular cyclones but with the
HEPA filter components being installed in place of
the regular canister filter assembly. To assemble
your HEPA cyclone, open the Assembly section
in the Owner's Manual and follow those steps only
when specified below.
There are two options to consider when assem-
bling your HEPA cyclone. You can assemble it
with the included stand, or if shop space is limited,
you can mount it to the wall by purchasing the
optional T27324 Wall-Mount Adapter Kit.
Assembly
To ensure the integrity of the HEPA filtration
system and prevent fine dust from leaking
out before it reaches the filters, we strongly
recommend using a general-purpose sili-
cone sealant on all mating surfaces dur-
ing the assembly process. For those com-
ponents assembled with a rubber gasket
between them, apply the sealant evenly on
both sides of the gasket before assembly.
Tools Needed: Qty
Wrenches or Sockets 9⁄16" .................................. 2
Wrenches or Sockets 1⁄2" ................................... 2
90° Square ........................................................ 1
Strong Helpers for Lifting ...........................2 or 3
To assemble dust collector:
1. Connect upper stand legs with lower braces
using (16) 3⁄8"-16 x 3⁄4" hex bolts, (32) 3⁄8"
flat washers, and (16) 3⁄8"-16 lock nuts (see
Figure 3)—only finger-tighten for now.
Figure 3. Initial assembly of upper stand legs
connected to lower stand braces.
2. Attach upper stand braces to the assembly,
using (16) 3⁄8"-16 x 3⁄4" hex bolts, (32) 3⁄8"
flat washers, and (16) 3⁄8"-16 lock nuts (see
Figure 4). Note: Attach braces to the lower
mounting position unless you have the 55
gallon extension kit.
Assembling with Stand Figure 4. Upper braces attached to stand
assembly.
3. Flip stand assembly upside down and install
lower legs using (24) 3⁄8"-16 x 3⁄4" hex bolts,
(48) 3⁄8" flat washers, and (24) 3⁄8"-16 lock nuts
(see Figure 5).
Figure 5. Lower legs attached to stand
assembly.
x 16
x 16
Lower
Leg
Higher
Mounting
Position
Lower
Mounting
Position
Upper
Stand
Leg
Lower
Brace
Upper
Brace
x 24

Model G0443HEP (Mfd. Since 12/17) -7-
4. Square up the stand, as shown in Figure 6,
and tighten all nuts and bolts.
Figure 6. Squaring stand assembly before
tightening stand hardware.
5. Apply foam seal tape on intake barrel, intake
cylinder, cyclone barrel, and outlet port, as
shown in Figure 7.
Figure 7. Foam seal tape applied to necessary
components.
6. Place motor/blower housing on a large piece
of cardboard to prevent scratches.
7. Attach intake cylinder to bottom of housing,
as shown in Figure 8, using (4) 5⁄16"-18 x 3⁄4"
hex bolts, (4) 5⁄16" flat washers, and (4) 5⁄16"-18
lock nuts.
Note: Because this part of the dust collector
is not accessible after assembly, consider
using Medium Strength Blue Thread Locker
(Grizzly Model T21854) on the bolts that
secure the intake cylinder to the motor/blower
housing assembly to ensure that the fasten-
ers won't come loose with vibration.
8. Attach intake barrel to blower housing, as
shown in Figure 9, with (12) 5⁄16"-18 x 3⁄4" hex
bolts, (12) 5⁄16" flat washers, and (12) 5⁄16"-18
lock nuts.
Figure 9. Securing blower on intake barrel.
90° Square
Foam Tape
Figure 8. Intake cylinder attached to the bottom
of motor housing.
Motor/Blower
Housing
Intake
Cylinder
Thread
Locker
x 4
Intake
Barrel
x 12

-8- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
Figure 10. Cyclone funnel attached to intake
barrel.
10. Attach (4) collector mounting brackets to
intake assembly, as shown in Figure 11,
using (8) 5⁄16"-18 x 1" hex bolts, (16) flat wash-
ers, and (8) lock nuts.
11. Lay stand assembly on its side, on a large
piece of cardboard to prevent scratches,
and slide the collector assembly into stand
assembly.
12. Fasten the collector assembly to the stand
with (8) 3⁄8"-16 x 1" hex bolts, (16) 3⁄8" flat
washers, and (8) 3⁄8"-16 lock nuts, as shown
in Figure 12.
Figure 12. Collector assembly fastened to the
stand.
Figure 13. Lifting the assembly upright.
13. Pivot the dust collector upright by having two
or three strong helpers lift motor end while
one person keeps the stand end from sliding
or rocking.
Cyclone
Funnel
9. Attach cyclone funnel to intake barrel, as
shown in Figure 10, with (12) 5⁄16"-18 x 1" hex
bolts, (24) 5⁄16" flat washers, and (12) 5⁄16"-18
lock nuts.
Note: At the places where you see 3 holes in
a row, only use the center hole for this step.
The two outside holes will be used in the next
step.
x 8
Figure 11. Collector mounting brackets attached
to intake assembly.
Collector
Mounting
Bracket
x 8
x 12

Model G0443HEP (Mfd. Since 12/17) -9-
18. Follow assembly instruction Steps 11–17 in
instruction manual.
19. Attach rubber gasket to top of HEPA filter
housing (see Figure 16), then secure filter
adapter to housing using (8) 5⁄16"-18 x 1" hex
bolts, and (8) 5⁄16" flat washers.
Figure 16. Attaching filter adapter to filter
housing.
Rubber
Gasket
Filter Adapter
Filter
Housing x 8
Figure 17. Attaching HEPA filter assembly to
blower housing.
HEPA Filter
Assembly
20. Attach rubber gasket to blower housing (see
Figure 17), then secure HEPA filter assem-
bly using (8) 3⁄8"-16 x 1" hex bolts, (16) 3⁄8" flat
washers, and (8) 3⁄8" hex nuts.
x 8
Rubber Gasket
14. Pull off front cover of the switch box, remove
remote control and spare grommets, and
push front cover back on.
15. Mount switch on the stand, as shown in
Figure 14, with (2) 3⁄8"-16 x 3⁄4" hex bolts, (2)
3⁄8"-16 lock nuts, and (4) 3⁄8" flat washers.
Figure 14. Switch mounted to stand.
16. Secure vacuum hose inside upper and lower
stand legs with (2) U-shaped clips (see
Figure 15).
Figure 15. Securing vacuum hose to stand legs.
17. Complete Step 11 from the G0443 Owner's
Manual (see Page 18).
U-Shaped
Clips

-10- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
1. Follow the Wall Mounting section, begin-
ning on Page 15 of the Owner's Manual. In
Step 2, use the extended wall-mount bracket
provided with T27324 Wall-Mount Adapter Kit
for HEPA Upgrade for hole pattern. Complete
Step 3.
2. Attach extended wall-mount bracket to the
blower housing using (6) 3⁄8"-16 x 1" hex bolts,
(12) 3⁄8" flat washers, and (6) 3⁄8" hex nuts
(see Figure 20 below).
3. Follow Steps 2–6 in Assembly section,
beginning on Page 17 of Owner's Manual. In
Step 6, replace original intake barrel brace
with extended brace provided with T27324
Wall-Mount Adapter Kit for HEPA Upgrade
(see Figure 20 below).
Assembling with Wall-Mount Option
21. Slip plastic collection bag around opening
under canister filter, and secure with metal
bag clamp (see Figure 18).
Figure 18. Installing collection bag under HEPA
filter.
Bag Clamp
Plastic
Collection
Bag
22. Double-check that all nuts and bolts are
tightened. Congratulations, the assembly is
complete.

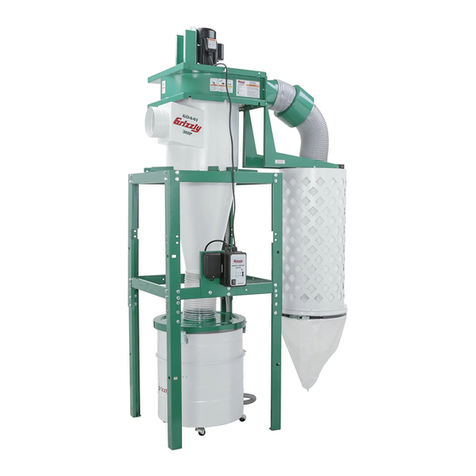

Figure 19. G0443HEP filter system completely
installed.
Figure 20. Included with T27324 wall-mount kit.
Extended
Intake Barrel
Brace
Extended
Wall-Mount
Bracket
x 6

Model G0443HEP (Mfd. Since 12/17) -11-
6. Attach rubber gasket to blower housing (see
Figure 22), then secure HEPA filter assem-
bly using (8) 3⁄8"-16 x 1" hex bolts, (16) 3⁄8" flat
washers, and (8) 3⁄8" hex nuts.
Figure 22. Attaching HEPA filter assembly to
wall-mount adapter.
Rubber
Gasket
HEPA Filter
Assembly
x 8
7. Follow assembly Steps 16–22 and Step 24
in Owner's Manual.
8. Slip plastic collection bag around opening
under canister filter, and secure with metal
bag clamp (see Figure 23).
Figure 23. Installing collection bag under HEPA
filter.
Bag Clamp
Plastic
Collection
Bag
9. Double-check that all nuts and bolts are
tightened. Congratulations, the assembly is
complete.
Figure 24. G0443HEP wall-mount filter system
completely installed.
4. Follow assembly Steps 7–11 in Owner's
Manual.
5. Attach rubber gasket to top of HEPA filter
housing (see Figure 21), then secure filter
adapter to housing using (8) 5⁄16"-18 x 1" hex
bolts, and (8) 5⁄16" flat washers.
Figure 21. Attaching filter adapter to filter
housing (wall-mount).
Rubber
Gasket
Filter Adapter
Filter
Housing x 8

-12- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
Main
95-1
95-2
95-3
95-4
4-1
4-2
4-3
4-4
1-2
1-1
1-4
1-5
1-3
4
95
1
80
9
10
16
13
6
7
19
18
87
11
78
12
20
14
15
17
226 22
223
228
228-1
230-1
230-2
229
230-3
230-5
232A
225
221
230224
221
221
23
76
5
3
2
75
75
227
34
36
35
38
44
45
24
101
104
105
110
110
110
110
7
7
110
7
7
108
107
106
7
7
7
103
103
103
103
109
9
7
745
46
43 47
47
49
94
93
56
57
58
58 51
92
87 88
89 91
33
230-4
86
90
54
53
52
55
48
231
50
51A
45
85 8182
83 84
102
45
41
39
40
42
37
G0443HEP 110V
G0443HEP 220V

Model G0443HEP (Mfd. Since 12/17) -13-
Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0443HEP001 MOTOR 1.5HP 110/220V 1-PH 56 P0443HEP056 HEX NUT 3/8"-16
1-1 P0443HEP001-1 MOTOR FAN COVER 57 P0443HEP057 LOCK WASHER 3/8
1-2 P0443HEP001-2 MOTOR FAN 58 P0443HEP058 FLAT WASHER 3/8
1-3 P0443HEP001-3 S CAPACITOR 300M 125V 1-3/4 X 3-3/8 61 P0443HEP061 SWITCH MOUNTING BRACKET
1-4 P0443HEP001-4 R CAPACITOR 40M 250V 1-3/16 X 2-3/8 74 P0443HEP074 HEX BOLT 3/8-16 X 1
1-5 P0443HEP001-5 JUNCTION BOX 75 P0443HEP075 FLAT WASHER 3/8
2 P0443HEP002 MOTOR CORD 12G 3W 76 P0443HEP076 HEX NUT 3/8-16
3 P0443HEP003 POWER CORD 12G 3W 126" 78 P0443HEP078 EXT TOOTH WASHER 5/16
4 P0443HEP004 REMOTE MAG SWITCH 110V 80 P0443HEP080 MOTOR MOUNT GASKET
4-1 P0443HEP004-1 CONTACTOR NHD C-09D 110V 81 P0443HEP081 CYCLONE VACUUM TUBE
4-2 P0443HEP004-2 OL RELAY NHD NTH-21 17–21A 82 P0443HEP082 FLAT WASHER 5/16
4-3 P0443HEP004-3 CIRCUIT BOARD 110V 83 P0443HEP083 HEX BOLT 5/16-18 X 3/4
4-4 P0443HEP004-4 ON/OFF SWITCH 110/220V 84 P0443HEP084 TUBE PLUG 1-1/4"
5 P0443HEP005 REMOTE CONTROLLER 85 P0443HEP085 FOAM TAPE 3 X 6 X 300MM
6 P0443HEP006 HEX BOLT 3/8-16 X 1-1/4 86 P0443HEP086 VACUUM HOSE 1-1/4" X 98"
7 P0443HEP007 FLAT WASHER 3/8 87 P0443HEP087 COLLECTION DRUM VACUUM TUBE
8 P0443HEP008 LOCK WASHER 3/8 88 P0443HEP088 FLAT WASHER 5/16
9 P0443HEP009 HEX NUT 3/8"-16 89 P0443HEP089 HEX BOLT 5/16-18 X 3/4
10 P0443HEP010 BLOWER COVER 90 P0443HEP090 HOSE CLAMP 1-1/4"
11 P0443HEP011 FENDER WASHER 5/16 91 P0443HEP091 TUBE PLUG 1-1/4"
12 P0443HEP012 HEX BOLT 5/16-18 X 1 92 P0443HEP092 FOAM TAPE 3 X 6 X 300MM
13 P0443HEP013 IMPELLER 12-1/2" 93 P0443HEP093 COLLECTION DRUM VACUUM RING
14 P0443HEP014 IMPELLER FENDER WASHER 5/16 94 P0443HEP094 DRUM COLLECTION BAG 640 X 1000MM
15 P0443HEP015 HEX BOLT 5/16-18 X 3/4 95 P0443HEP095 REMOTE MAG SWITCH 220V
16 P0443HEP016 FOAM TAPE 3 X 6 X 1800MM 95-1 P0443HEP0095-1 CONTACTOR NHD C-09D 220V
17 P0443HEP017 BLOWER HOUSING 95-2 P0443HEP0095-2 OL RELAY NHD NTH-11 8–11A
18 P0443HEP018 FLAT WASHER 5/16 95-3 P0443HEP0095-3 CIRCUIT BOARD 220V
19 P0443HEP019 HEX BOLT 5/16-18 X 3/4 95-4 P0443HEP0095-4 ON/OFF SWITCH 110/220V
20 P0443HEP020 OUTLET GASKET 206 X 206MM 101 P0443HEP101 MOUNTING BRACKET
22 P0443HEP022 HEX BOLT 5/16-18 X 1 102 P0443HEP102 LOCK NUT 5/16-18
23 P0443HEP023 FLAT WASHER 5/16 103 P0443HEP103 LOCK NUT 3/8-16
24 P0443HEP024 HEX NUT 5/16"-18 104 P0443HEP104 UPPER STAND BRACE
33 P0443HEP033 PLASTIC BAG 470 X 600MM 105 P0443HEP105 UPPER STAND LEG
34 P0443HEP034 FOAM TAPE 3 X 6 X 1800MM 106 P0443HEP106 LOWER STAND BRACE
35 P0443HEP035 INTAKE CYCLINDER 9" 107 P0443HEP107 LOWER STAND LEG
36 P0443HEP036 FLAT WASHER 5/16 108 P0443HEP108 STAND SWITCH BRACKET
37 P0443HEP037 HEX BOLT 5/16-18 X 3/4 109 P0443HEP109 VACUUM HOSE CLIP 2-1/2"
38 P0443HEP038 BARREL GASKET 534MM DIA. 110 P0443HEP110 HEX BOLT 3/8-16 X 3/4
39 P0443HEP039 INTAKE BARREL 18" 221 P0443HEP221 FLAT WASHER 1/4
40 P0443HEP040 HEX BOLT 5/16-18 X 3/4 223 P0443HEP223 TAP SCREW M4 X 12
41 P0443HEP041 FLAT WASHER 5/16 224 P0443HEP224 PHLP HD SCR 1/4-20 X 3/4
42 P0443HEP042 BARREL GASKET 534MM DIA. 225 P0443HEP225 HEX NUT 1/4-20
43 P0443HEP043 CYCLONE FUNNEL 18" 226 P0443HEP226 FILTER ADAPTER
44 P0443HEP044 HEX BOLT 5/16-18 X 1 227 P0443HEP227 HEX BOLT 3/8-16 X 1
45 P0443HEP045 FLAT WASHER 5/16 228 P0443HEP228 PULL WIRE RAIL COVER
46 P0443HEP046 HEX NUT 5/16"-18 228-1 P0443HEP228-1 PULL WIRE
47 P0443HEP047 HOSE CLAMP 9" 229 P0443HEP229 HEX BOLT 1/4-20 X 3/4
48 P0443HEP048 CLEAR FLEX PIPE 9" X 260MM 230 P0443HEP230 HEPA FILTER HOUSING
49 P0443HEP049 COLLECTION DRUM LID 230-1 P0443HEP230-1 HEPA OUTER FILTER
50 P0443HEP050 DRUM SEAL TYPE-T 2.1M 230-2 P0443HEP230-2 HEPA FILTER 289 X 595 X 292MM
51A P0443HEP051A COLLECTION DRUM ASSEMBLY 230-3 P0443HEP230-3 HEPA FILTER CAGE 289 X 595, GREEN
51 P0443HEP051 COLLECTION DRUM 35GAL 230-4 P0443HEP230-4 BAG CLAMP 445MM
52 P0443HEP052 DRUM LID LATCH 230-5 P0443HEP230-5 HEPA FILTER BOTTOM PLATE
53 P0443HEP053 PHLP HD SCR 10-24 X 3/8 231 P0443HEP231 DRUM LID PVC RUBBER SEAL 2M
54 P0443HEP054 HEX NUT 10-24 232A P0443HEP232A HEPA FILTER KIT
55 P0443HEP055 CASTER 2"

-14- Model G0442HEP/G0601HEP (Mfd. Since 01/15)Model G0443HEP (Mfd. Since 12/17)
G0443HEP Labels & Cosmetics
307 308
309
311
313
310
301
302
303
304
305
312
315
314
306
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0443HEP301 REMOTE CONTROL LABEL 309 P0443HEP309 ELECTRICITY LABEL 1.4W X 1.2H
302 P0443HEP302 CONTROL PANEL LABEL 310 P0443HEP310 EAR PROTECTION LABEL 1.5W X 2.5H
303 P0443HEP303 MODEL NUMBER LABEL 311 P0443HEP311 MACHINE ID LABEL CSA
304 P0443HEP304 HANDS/DUST COLLECTOR OUTLET LABEL 312 P0443HEP312 GRIZZLY GREEN TOUCH-UP PAINT
305 P0443HEP305 READ MANUAL LABEL 2W X 3.3H 313 P0443HEP313 RETURN RED HANDLE LABEL
306 P0443HEP306 GLASSES/RESPIRATOR DC LABEL 314 P0443HEP314 GRIZZLY PUTTY TOUCH-UP PAINT
307 P0443HEP307 MOTOR WARNING LABEL 315 P0443HEP315 GRIZZLY.COM LABEL
308 P0443HEP308 MOTOR SPEC LABEL

Model G0443HEP (Mfd. Since 12/17) -15-
T27324 Wall-Mount Adapter Kit Parts List
REF
PART # DESCRIPTION
REF
PART # DESCRIPTION
1 PT27324001 WALL MOUNT BRACKET, EXTENDED 4 PT27324004 HEX BOLT 3/8-16 X 1
2 PT27324002 SWITCH MOUNTING BRACKET 5 PT27324005 FLAT WASHER 3/8
3 PT27324003
INTAKE BARREL BRACE, EXTENDED
6 PT27324006 HEX NUT 3/8-16
5
5
4
6
1
3
1
2
17

MODEL G0443
1-1/2 HP CYCLONE
DUST COLLECTOR
OWNER'S MANUAL
(For models manufactured since 11/09)

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.


This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................... 2
 
 
 
 
 
