MODEL T27949
2-DOOR CLOSET
CABINET
INSTRUCTIONS
Introduction
The Model T27949 2-Door Closet Cabinet requires
some assembly. Follow the instructions below for
assembly, operation, and maintenance.
Inventory Qty
• 2-Door Closet Cabinet with Shelves ............ 1
• Cabinet Feet ................................................ 4
• Keys ............................................................. 2
Figure 1. Model T27949.
COPYRIGHT © MARCH, 2017 BY GRIZZLY INDUSTRIAL, INC., REVISED JULY, 2017 (MN)
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
(FOR MODELS MFD. SINCE 10.16) #JH18540 PRINTED IN CHINA V1.07.17
• To reduce risk of crushing injuries from
tool cabinet tipping over on you:
— Do not stand on cabinet.
— Only move or transport cabinet with all
doors closed and locked.
— Push cabinet only (do not pull it) when
moving.
• Do not exceed weight capacities:
— Max individual shelf weight limit
is 325 lbs.
— Max total tool cabinet weight limit
(including contents) is 1300 lbs.
• To prevent accidental tipping, ensure
adjustable feet are down and cabinet
body is level.
• Do not allow children to have unsupervised
access to cabinet.
Assembly
The Model T27949 comes with four adjustable
feet for leveling the cabinet.
To install feet:
1. With help from another person, lay cabinet
upside down on floor (see Figure 2).
Note: We recommend sweeping the floor
clean and laying down a piece of cardboard
or a blanket to prevent scratching the finish
during this step.
2. Install one adjustable foot in each corner (see
Figure 2).
3. To prevent tipping or rocking, level the cabi-
net body by rotating the cabinet feet up or
down as needed.
Figure 2. Location of adjustable feet.
Adjustable Feet

-2- T27949 Tool Cabinet (Mfd. 10/16)
Maintenance
• Use a soft, clean cloth and soapy water (use
regular dish soap) to remove grease, dirt, or
oil. Do not use solvents or flammable clean-
ing liquids.
• Use graphite to lubricate lock annually.
To adjust doors:
1. Close door and visually confirm gap spacing
around door edge is 1⁄8" all the way around
(see Figure 3).
— If door spacing is equal, no adjustments
are needed.
— If door spacing is not equal, proceed to
Step 2.

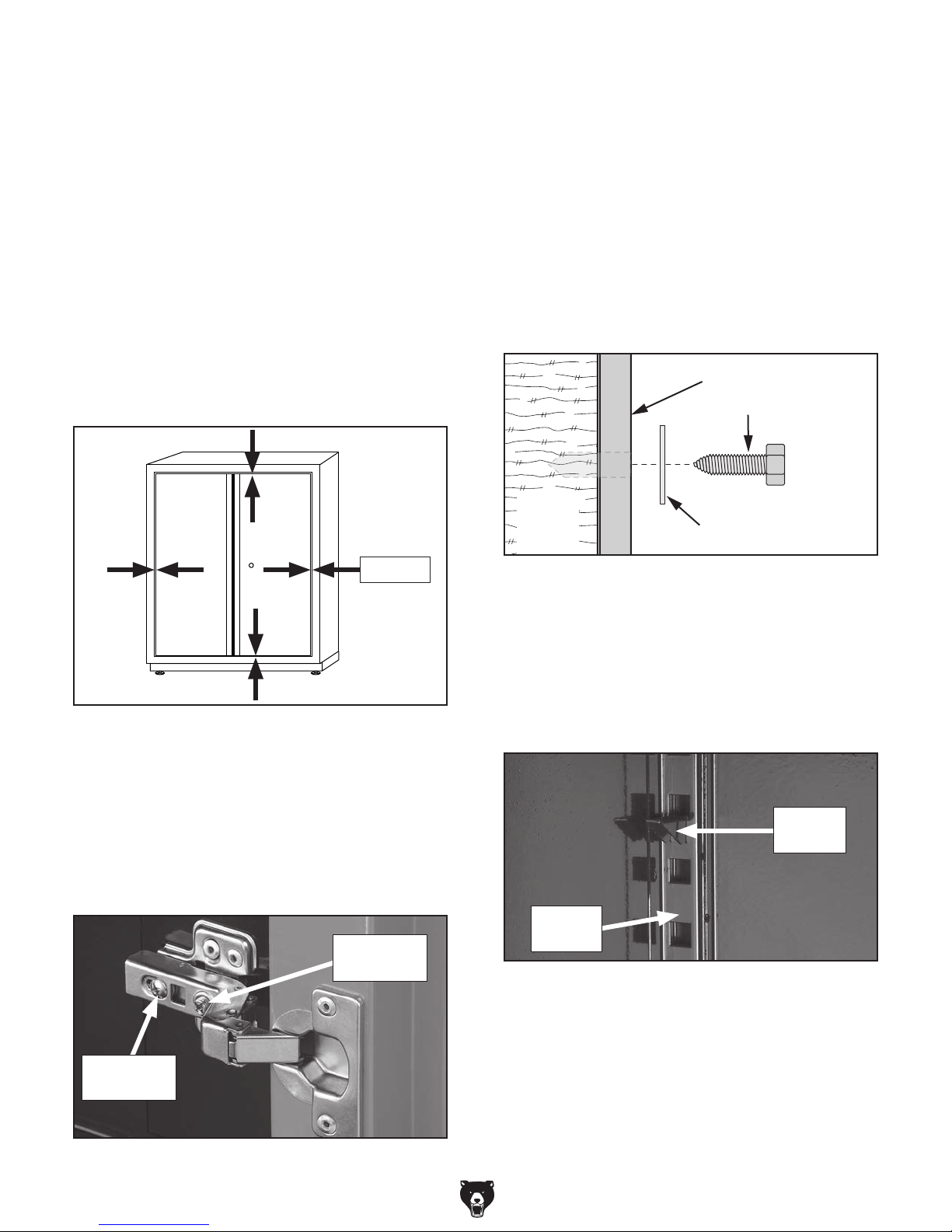

Figure 3. Checking door gap spacing.
1⁄8" Gap
2. Adjust door hinges using screws shown in
Figure 4.
Note: Only small adjustments, such as 1⁄8
or 1⁄4turn at a time, are required to move
door position. Check spacing after each
adjustment.
Figure 4. Hinge adjustments.
In/Out
Adjustment
Right/Left
Adjustment
Installing Shelf Supports
Shelf
Support
Channel
Bracket
Figure 6. Shelf support and channel bracket.
Mounting
To mount, locate wall studs at desired mount-
ing location. Pre-drill (2) 1⁄4" mounting holes into
wall cabinet to align with each stud, and secure
cabinet to the wall (see Figure 5). Due to the load
capacity of the cabinet, always mount directly to
wall studs!
Cabinet Body
Wall
Stud
(1 of 2)
Lag Screw
Flat Washer
Figure 5. Mounting cabinet to wall.
Hardware Needed Qty
• Socket Wrench 3⁄8" ....................................... 1
• Flat Washers 1⁄4" ......................................... 2
• Lag Screw 1⁄4"-20 x 1" .................................. 2
Adjusting Doors
Each 90° soft-close door hinge is riveted in place.
However, the doors may be adjusted inward or
outward, and left or right, as needed.
Each shelf comes with four shelf supports, which
fit into the channel brackets inside the cabinet
(see Figure 6), making the height of each shelf
adjustable. (Shelf supports must be mounted
evenly to function properly.)

T27949 Tool Cabinet (Mfd. 10/16) -3-
Parts Breakdown & List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27949001 CABINET BODY 10 PT27949010 DOOR HANDLE CAP
2 PT27949002 ADJUSTABLE FEET M12-1.75 X 30 11 PT27949011 FLAT HD SCR M4-.7 X 8
3 PT27949003 CABLE GROMMET 12 PT27949012 LOCK W/2 KEYS
4 PT27949004 SHELF SUPPORT 13 PT27949013 TOUCH-UP PAINT, GLOSSY BLACK
5 PT27949005 SHELF 14 PT27949014 TOUCH-UP PAINT, RED
6 PT27949006 HINGE, 90-DEG SOFT-CLOSE 15 PT27949015 WARNING LABEL
7 PT27949007 DOOR (RIGHT) 16 PT27949016 QR CODE LABEL
8 PT27949008 DOOR (LEFT) 17 PT27949017 GRIZZLY.COM LABEL, GOLD
9 PT27949009 DOOR HANDLE
Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here
are available for purchase. Call [phone] or visit our online parts store at www.grizzly.com to check for availability.
Grizzly Cabinet Series
The T27949 2-Door Closet Cabinet is part of our heavy-duty 10-piece storage set. These modular cabinets
will enhance storage and workspace in the shop or garage, and they can be mixed and matched to create
a variety of storage solutions.
T27947 T27952 T27951
T27948
T27953
T27950
T27949
