MODEL T26472Z/G4011Z/T26751Z
3-IN-1 SHEET METAL MACHINE
OWNER'S MANUAL
(For models manufactured since 02/14)
COPYRIGHT © MAY, 2014 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#DMTS16143 PRINTED IN CHINA V1.05.14
G4011Z
T26751Z
T26472Z

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................... 2
Machine Description ...................................... 2
Contact Info.................................................... 2
Manual Accuracy ........................................... 2
Identification ................................................... 3
Machine Data Sheet ...................................... 4
SECTION 1: SAFETY....................................... 5
Safety Instructions for Machinery .................. 5
Additional Safety for 3-in-1 Sheet Metal
Machines ........................................................ 7
SECTION 2: SETUP ......................................... 8
Unpacking ...................................................... 8
Needed for Setup ........................................... 8
Inventory ........................................................ 9
Cleanup ........................................................ 10
Cleaning Fingers .......................................... 10
Site Considerations ...................................... 11
Workbench Load .......................................................11
Placement Location ...................................................11
Bench Mounting ........................................... 12
Assembly ..................................................... 13
SECTION 3: OPERATIONS ........................... 14
Slip Roll Overview ........................................ 14
Slip Roll Tips ................................................ 15
Flat Rolling ................................................... 15
Rolling Curves.............................................. 16
Rolling Cylinders .......................................... 17
Removing Workpiece From Rollers ............. 19
Bending Wire/Rods ...................................... 20
Brake Overview............................................ 21
Bend Allowance ........................................... 21
Bending Sheet Metal ................................... 22
Pan/Box Bending ......................................... 23
Shearing ....................................................... 23
SECTION 4: ACCESSORIES ......................... 25
SECTION 5: MAINTENANCE......................... 26
Schedule ...................................................... 26
Cleaning ....................................................... 26
Lubrication ................................................... 26
SECTION 6: SERVICE ................................... 27
Troubleshooting ........................................... 27
Replacing/Seating Fingers ........................... 28
Reversing/Replacing Shear Blade ............... 29
Adjusting Shear Blade Gap ......................... 30
Checking Shear Blade Gap ......................................30
Adjusting Shear Table ...............................................30
Adjusting Blade Bow (T26472Z) ...............................31
Adjusting Blade Bow (G4011Z & T26751Z) ..............31
Aligning Brake .............................................. 32
SECTION 7: PARTS....................................... 33
G4011Z Breakdown ..................................... 33
T26472Z Breakdown.................................... 35
T26751Z Breakdown.................................... 37
WARRANTY & RETURNS ............................. 41

-2- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
INTRODUCTION
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with the
instruc-
tions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes,
but
our policy of continuous improvement
also
means that
sometimes the machine
you receive
will be slightly different than what is shown in
the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
, check our website
for an updated version. W
e post current
manuals
and
manual updates for free on our website at
www.grizzly.com
.

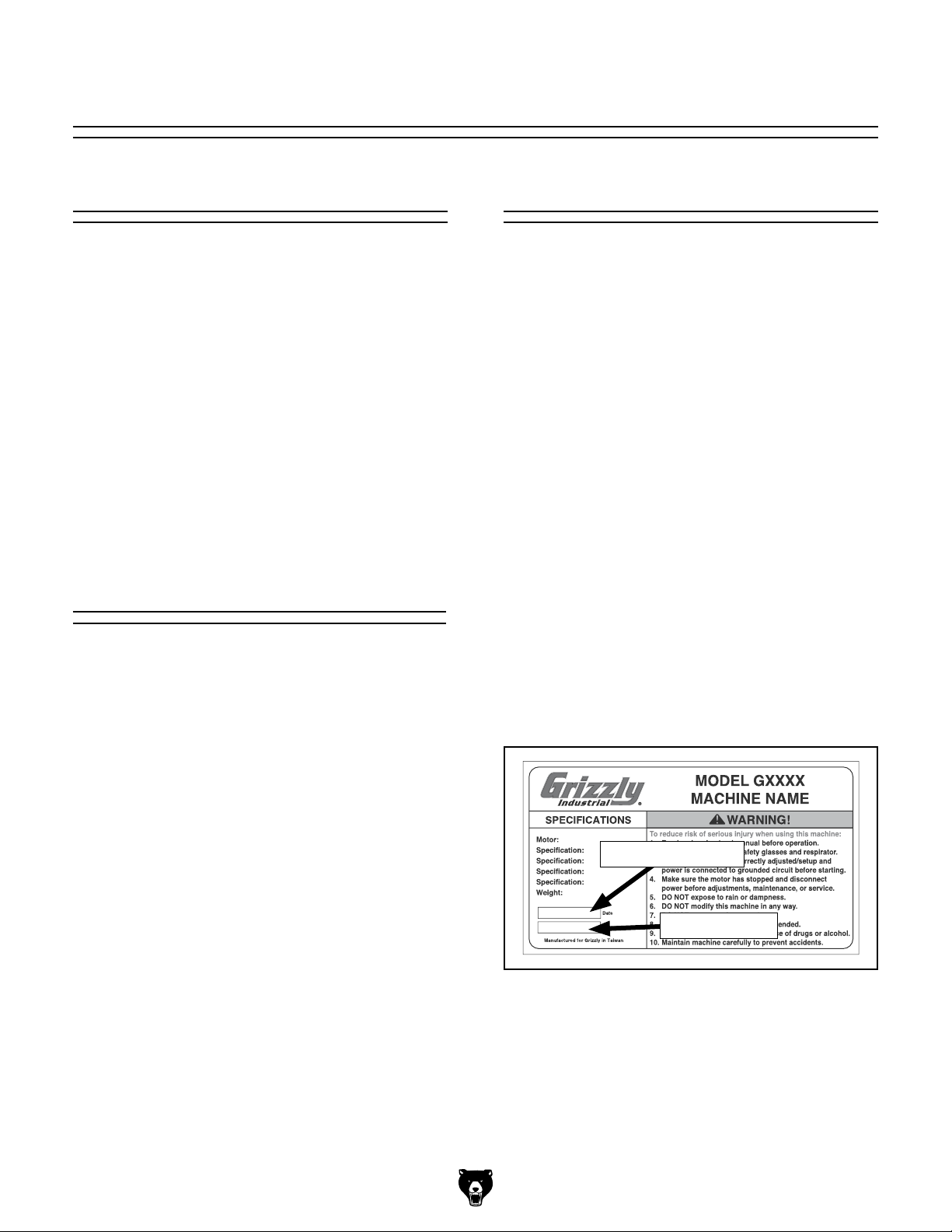

Alternatively, you can call our Technical Support
for help. Before calling, please write down the
Manufacture Date
and Serial Number
stamped
into the machine ID label (see below). This infor-
mation helps us determine if updated documenta-
tion is available for your machine.
Manufacture Date
Serial Number
Manual Accuracy
We stand behind our machines. If you have
any questions or need help, use the information
below to contact us. Before contacting, please get
the serial number and manufacture date of your
machine. This will help us help you faster.
Grizzly Technical Support
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Contact Info
Models T26472Z/G4011Z/T26751Z are designed
to roll, bend, and cut sheet metal. Though each
m a c h i n e c a n c o m p l e t e e a c h o f t h e s e t a s k s ,
the capacities generally increase in relation to the
size of the machine. Additionally, as the machines
increase in size, so do the number of fingers,
creating more available options for box and pan
bending. Refer to the Machine Data Sheet on
Page 4 for individual model specifications.
The slip rollers straighten or form cylinders,
cones, and arcs in sheet metal. The brake creates
bends up to 90° and folds sheet metal into boxes,
pans, or trays. The shear blade moves down past
the fixed table blade to shear the workpiece.
Machine Description

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -3-

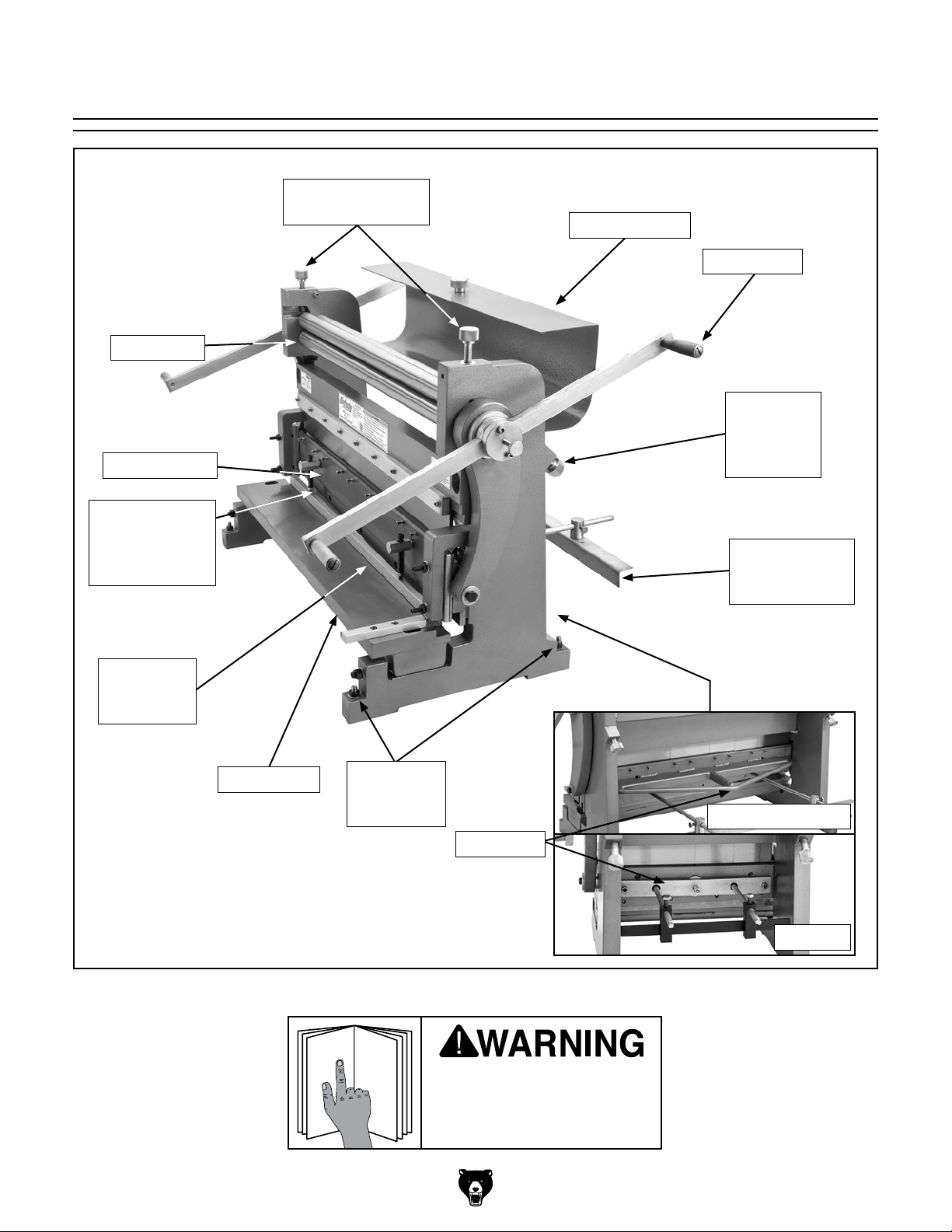

Figure 1. Model T26472Z/ G4011Z/T26751Z identification.
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Slip Roll Cover
Hand Crank
Brake & Shear
Adjustable
Work Stop
Workbench
Mounting
Locations
Brake Finger
Receiver
& Upper Shear
Blade
Shear
Hold-Down
Bar
Brake Fingers
Slip Rollers
T26472Z
G4011Z/T26751Z
Blade Bow
Shear Table
Top Roller
Adjustment Knobs
Rear Roller
Adjustment
Knob
(1 of 2)

-4- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
MODEL G4011Z/T26472Z/T26751Z
3-in-1 Sheet Metal Machines
Model Number T26472Z - 12" G4011Z - 30" T26751Z - 42"
Product Dimensions
Weight 155 lbs. 452 lbs. 690 lbs.
Width (side-to-side)/Depth
(front-to-back)/Height 25" x 161⁄2" x 19" 45" x 28" x 26" 57" x 29" x 28"
Foot Print (Width/Depth) 141⁄2" x 141⁄2" 171⁄2" x 33" 451⁄4" x 201⁄8"
Shipping Dimensions
Type Wood Crate
Weight 175 lbs. 475 lbs. 730 lbs.
Width (side-to-side)/Depth
(front-to-back)/Height 26" x 17" x 23" 20" x 46" x 32" 22" x 59" x 35"
Main Specifications
Maximum Width 12" 30" 42"
Maximum Thickness Mild Steel 20 Gauge 22 Gauge 20 Gauge
Minimum Reverse Bend 3⁄8"1⁄2"1⁄2"
Maximum Height of Pan/Box
Sides 13⁄4" 23⁄8" 13⁄4"
Number of Fingers 4 7 8
Width of Fingers 1", 2", 3", 6" 1", 2", 3", 4", 4", 6", 10" 1", 11⁄2", 2", 21⁄2", 4", 6", 10", 15"
Slip Roll Minimum Cylinder
Diameter 13⁄8" 15⁄8" 13⁄4"
Slip Roll Roller Diameter 11⁄4" 11⁄2" 111⁄16"
Slip Roll Wire Sizes 1⁄8", 3⁄16", 1⁄4"3⁄16", 1⁄4", 5⁄16"3⁄16", 1⁄4", 5⁄16"
Front Stop Scale Range 1⁄2"–7"
Rear Stop Scale Range 1⁄2"–16" 1⁄2"–18" 1⁄2"–18"
Construction
Brake Steel
Frame Steel
Rollers Precision-Ground Hardened Steel
Table Steel
Shear Blades Precision-Ground Hardened Steel
Other Specifications
Country of Origin China
Warranty 1 Year
Serial Number Location Machine ID Label

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -5-
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

-6- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to avoid
accidental slips, which could cause loss of work-
piece control.
HAZARDOUS DUST. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece material,
and always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
CHECK DAMAGED PARTS. Regularly inspect
machine for any condition that may affect safe
operation. Immediately repair or replace damaged
or mis-adjusted parts before operating machine.
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -7-
Additional Safety for 3-in-1
Sheet Metal Machines
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre-
cautions are overlooked or ignored, seri-
ous personal injury may occur.
No list of safety guidelines can be com-
plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip-
ment, or poor work results.
AMPUTATION/PINCHING HAZARD. This
machine can quickly crush or amputate fingers,
hands, or body parts. Never place fingers, hands,
or body parts between or near the rollers, brake
fingers, clamping bar, or shear blades when oper-
ating.
RATED CAPACITY. Only workpieces that are with-
in the rated gauge capacity can be processed with
this machine (refer to the Machine Data Sheet on
Page 4). DO NOT use any sort of “cheater” bar or
pipe on the hand crank.
SHARP METAL EDGES. Sharp edges on sheet
metal workpieces can easily cause deep cuts
while handling. Wear leather gloves to help protect
your hands, and always chamfer and debur sharp
workpiece edges.
USAGE. To avoid personal injury or property
damage, always use each component of machine
for its intended purposes, and DO NOT modify
machine in any way.
Serious injury or death can occur from getting body parts crushed or amputated by shear blades,
brake fingers, or rollers. Severe cuts can occur from contact with workpiece edges. To minimize
the risk of getting hurt or killed, anyone operating this machine MUST completely heed the
hazards and warnings below.
SECURE MACHINE BEFORE USE. Before using,
fasten machine to a sturdy surface that can with-
stand the dynamic forces involved in cutting and
forming sheet metal. Otherwise, machine may
unexpectedly move or fall, causing serious injury
or property damage.
SHEAR BLADES/BRAKE FINGERS. If not prop-
erly aligned, shear blades or brake fingers can
ruin workpieces and machine parts or result in
unexpected movement of workpieces. ALWAYS
keep these parts properly adjusted and in good
working condition for best results and predictable
performance.
STABLE FOOTING. This machine requires opera-
tor to apply moderate force, especially while using
shear. Without stable footing, operator could slip or
fall, resulting in personal injury. Always stand with
both feet comfortably on a non-slip surface during
operation.

-8- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
SECTION 2: SETUP
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately
at [phone]
for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, inventory the contents.
Unpacking
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials shipped with this
machine. Discard immediately.
The following are needed to complete the setup
process, but are not included with this machine.
Description Qty
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rags ............... As Needed
• Forklift ......................................................... 1
• Mounting Hardware (Page 12) ... As Needed
Needed for Setup

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -9-
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Machine Inventory (Figure 2) Qty
A. Shear & Brake Rear Work Stop ................. 1
B. Crank Handles ............................................ 2
C. Crank Handle Lock Knobs ......................... 2
D. Hex Wrenches: (Not Shown)
—4mm ........................................................ 1
—5mm ........................................................ 1
—6mm ........................................................ 1
—8mm (T26751Z Only) .............................. 1
—10mm ...................................................... 1
—12mm (G4011Z Only) .............................. 1
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Figure 2. Component inventory.
A
B
C

-10- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Cleaning Fingers
The brake fingers (see Figure 3) are coated with
rust preventative that should be removed before
beginning operation.
Although the rust preventative was applied only to
the visible surfaces of the fingers, some may have
worked in-between and underneath them. We
recommend that you remove all of the fingers to
thoroughly clean them. In addition to being messy,
the rust preventative effects the precision of finger
adjusting and spacing, which may lead to slight
inaccuracies in finished workpieces.
If you do remove the fingers, make sure you prop-
erly align them as described in the Replacing/
Seating Fingers subsection on Page 28 after
re-installing.
Figure 3. Brake fingers.
Brake
Fingers
Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
•
Disposable Rags
•
Cleaner/degreaser (WD•40 works well)
•
Safety glasses & disposable gloves
•
Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
NOTICE
Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -11-
Site Considerations
Figure 4. Model T26472Z minimum working
clearances.
Workbench Load
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein-
forcement to support the weight of the machine
and workpiece materials.
Consider anticipated workpiece sizes and addi-
tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Placement Location
Figure 5. Model G4011Z minimum working
clearances.
Figure 6. Model T26751Z minimum working
clearances.
25"
17"
441⁄2"
31"
57"
32"
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.

-12- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Bench Mounting
Figure 8. Example of "Direct Mount" setup.
Machine Base
Workbench
Lag Screw
Flat Washer
Another option is a "Direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
The base of this machine has mounting holes
that allow it to be fastened to a workbench or
other mounting surface to prevent it from moving
during operation and causing accidental injury or
damage.
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Machine Base
Workbench
Hex
Bolt
Flat Washer
Flat Washer
Lock Washer
Hex Nut
Figure 7. Example of "Through Mount" setup.
Number of Mounting Holes ............................ 4
Diameter of Mounting Hardware Needed:
G4011Z ........................................................... 3⁄8"
T26472Z......................................................... 1⁄4"
T26751Z ......................................................... 3⁄8"

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -13-
Assembly
Models T26472Z, G4011Z, and T26751Z are all
packaged, shipped, and assembled the same
way. The only difference during assembly is the
size of cap screws used to secure the end cap on
each model. Familiarize yourself with the compo-
nents and fasteners shown in Figure 9 to assist
in machine assembly.
To assemble machine:
1. Remove one cap screw from end cap, loosen
other cap screw, and rotate end cap out of
way. Back pre-installed lock knob out so that
it is flush with end cap.
2. Insert crank arm into slot in crank handle hub,
rotate end cap back into place, re-install cap
screw, then tighten both cap screws.
3. Tighten lock knob.
4. Repeat Steps 1–3 to install remaining crank
handle on other side of machine.
Figure 9. Crank assembly components and
fasteners identification.
Figure 10. Work stop rods secured in shear
mounting holes.
6. Loosen hex bolts threaded into rear support
bracket on work stop bar. Slide work stop bar
onto work stop rods.
7. Position work stop bar parallel with shear
blades and tighten hex bolts to secure it
(see Figure 11).
Figure 11. Workstop bar secured with hex bolts.
Brake Mounting Holes
Shear Mounting
Holes Stop Rods
Work Stop
Bar
Hex Bolts
5. Thread work stop rods into either brake
or shear mounting holes (see Figure 10),
depending on operation to be performed.
Only hand-tighten these rods—over-tighten-
ing will make removal difficult.
End Cap Lock Knob
Crank Handle
Crank Arm
Cap Screw
Hub

-14- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)

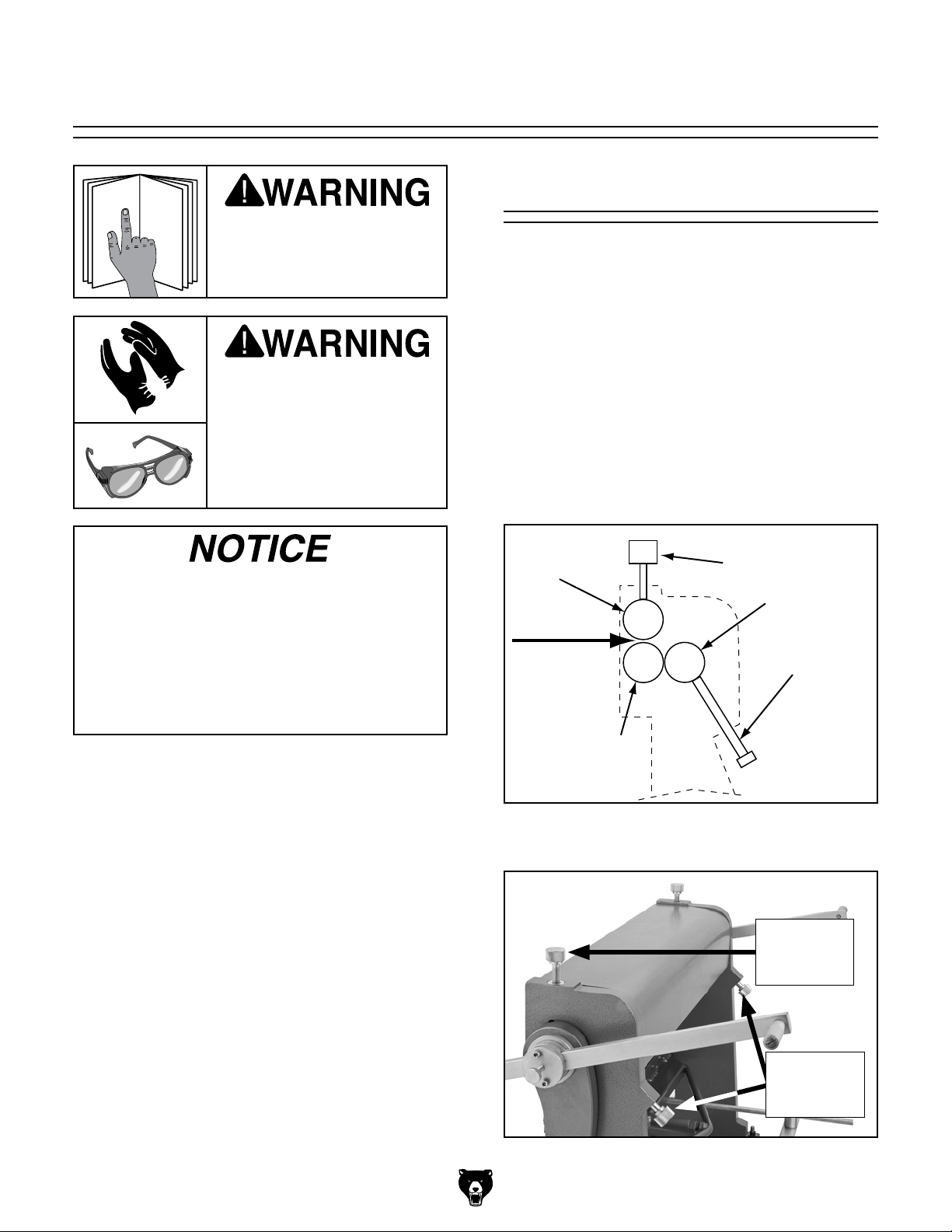

SECTION 3: OPERATIONS
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
If you are not experienced with this type
of machine, WE STRONGLY RECOMMEND
that you seek additional training outside of
this manual. Read books/magazines or get
formal training before beginning any proj-
ects. Regardless of the content in this sec-
tion, Grizzly Industrial will not be held liable
for accidents caused by lack of training.
Slip Roll Overview
The slip roll is used to flatten or form cylinders,
cones, and arcs in mild sheet metal, as well as
wires and rods. Refer to the Machine Data Sheet
on Page 4 for individual machine specifications
and workpiece capacities.
The work of a slip roll is accomplished by feeding
the workpiece between steel rollers to produce
the desired results. Two of the three rollers can
be adjusted by the operator to accept different
workpiece thicknesses and produce a variety of
different work results. Refer to Figures 12–13 for
identification of slip roll components and controls.
Thickness Adjustment
Knob
Top Roller
Bottom
Roller
Rear Roller
Diameter
Adjustment
Knob
Feed
Direction
Figure 12. Identification of slip roll controls and
main components.
Figure 13. Slip roll adjustment controls.
Damage to your eyes and
hands could result from
using this machine with-
out proper protective gear.
Always wear leather gloves
and safety glasses, when
operating this machine.
Eye injury hazard! Always
wear safety glasses when
using this machine.
Thickness
Adjustment
Knobs
Diameter
Adjustment
Knobs

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -15-
Slip Roll Tips
• Due to the many variables of different sheet
metal types, no single configuration of the
rollers will create the same curve on all mate-
rials. Rolling sheet metal to achieve an exact
radius is a trial-and-error process.
• Best results are usually achieved by perform-
ing multiple passes while gradually reducing
the curve radius with each pass—rather than
trying to make the curve in one pass.
• To avoid pitted workpieces and damage to
roller surfaces, always make sure workpiece
and rollers are free of grit and any foreign
material before every use.
• When creating cylindrical workpieces, always
keep the rear roller parallel with front rollers
by rotating the diameter adjustment knobs
same amount. Otherwise, coned workpieces
will be formed that are difficult to straighten
out.
Flat Rolling
The rollers present a seri-
ous pinching hazard.
Always keep hands/fingers
at least 6" away from rollers
during operation. Failure
to follow this warning may
result in fingers, hair, or
clothing being pulled into
the machine, causing per-
sonal injury.
To flat roll a workpiece:
1. Use diameter adjustment knobs to lower rear
roller until it is level with bottom roller, as illus-
trated in Figure 14.
Thickness Adjustment
Knob
Top Roller
Bottom
Roller
Rear Roller
Diameter
Adjustment
Knob
Feed
Direction
Workpiece
Figure 14. Diameter adjustment knob.
This slip roll can be used to "flat roll" sheet metal.
This can be done to straighten sheet metal that is
slightly out of form.
Unless otherwise instructed, make all roller adjust-
ments the same on each side to produce sym-
metrical workpieces.
2. Turn both thickness adjustment knobs coun-
terclockwise until you can insert workpiece
between top and bottom rollers.
3. Evenly lower thickness adjustment knobs
until you feel resistance and workpiece is
held firmly between rollers.
4. Remove workpiece and evenly rotate thick-
ness adjustment knobs 1⁄4 turn clockwise to
create additional pressure on workpiece.
5. Re-insert workpiece and use hand crank to
draw workpiece through machine.
Note: Have an assistant support long
workpieces as they leave machine so they do
not bend from sagging as they exit the rollers.
6. Repeat Steps 3–5 until desired results are
produced.
Note: Once a workpiece has been sharply
creased or bent, it cannot be straightened using
this slip roll.

-16- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Rolling Curves
This machine can easily create symmetrical
or cone shaped curves. To create symmetrical
curves, make equal adjustments with diameter
adjustment knobs. For cones, rotate one adjust-
ment knob more than the other. Refer to the
Machine Data Sheet on Page 4 for the maximum
thickness or gauge of material your particular
model can handle.
The method of creating a specific radius requires
a trial-and-error process. Due to the many vari-
ations among different types of sheet metal
workpieces, no single configuration of the rollers
will reproduce the same curve in all materials. We
recommend testing roller configurations on scrap
pieces that are the same dimension and material
as the final workpiece.
To create a curve in the workpiece:
1. Use diameter adjustment knobs to lower rear
roller until it is even with bottom roller (see
Figure 15). Rotate thickness adjustment
knobs counterclockwise until top roller can be
lifted enough to insert workpiece.
Performing multiple passes while gradu-
ally reducing curve radius produces better
results than trying to make curve in just one
or two passes.
Thickness Adjustment
Knob
Top Roller
Bottom
Roller
Rear Roller
Diameter
Adjustment
Knob
Feed
Direction
Workpiece
Figure 15. Rear roller lowered so it is even with
bottom roller.
2. Insert workpiece between top and bottom
rollers and just over rear roller, as illustrated
in Figure 16.
Thickness Adjustment
Knob
Workpiece
Figure 16. Workpiece inserted between top and
bottom roller and centered over rear roller.
3. Evenly rotate both thickness adjustment
knobs clockwise until workpiece is firmly
secured.
4. Use diameter adjustment knobs to raise rear
roller (see Figure 17).
Workpiece
Diameter
Adjustment
Knob
Figure 17. Rear roller slightly raised to start
curve.

T26472Z/G4011Z/T26751Z (Mfd. Since 02/14) -17-
Workpiece
Initial Flat
Figure 18. Workpiece fed through rollers to
create curved workpiece.
Note: If workpiece has an undesired initial
flat, as illustrated in Figure 18, you can
remove it by flipping workpiece around and
passing it through front of machine so initial
flat enters last.
6. Slightly tighten diameter adjustment knobs in
even amounts, then pass workpiece through
rollers again.
Note: To make a cone, rotate one adjustment
knob more than the other.
7. Repeat Step 5 until you have produced
desired curve.
Rolling Cylinders
This machine can roll flat workpieces into cyl-
inders. Use the formula below to calculate the
length of material needed to create a cylinder from
a piece of flat stock.
C=πD
C=Circumference
(Length of Material Needed)
π=Pi (Approximately 3.14)
D=Diameter
Example: To create a 6" diameter cylinder, use
the above formula as follows:
C=πD
C=3.14 x 6"
C=187⁄8"
The result indicates that you need to start with
a piece of sheet metal approximately 187⁄8" long
in order to create a 6" diameter cylinder (see
Figure 19).
187 ⁄8" Circumference
Workpiece
6" Dia.
C=�D
C=3.14 x 6"
C=187
⁄8"
Figure 19. Calculating circumference example.
5. Pass workpiece through machine using hand
crank to create curve (see Figure 18).
Note: For best results, make first bend
about 25% of final radius and increase bend
approximately 25% each successive pass
until final radius has been achieved.

-18- T26472Z/G4011Z/T26751Z (Mfd. Since 02/14)
Performing multiple passes while gradu-
ally reducing curve radius produces better
results than trying to make curve in just one
or two passes.
To create a cylinder:
1. Use diameter adjustment knobs to lower rear
roller even with bottom roller (see Figure 20).
Rotate thickness adjustment knobs counter-
clockwise until top roller is raised enough to
insert workpiece.
2. Evenly lower thickness adjustment knobs
until you feel resistance and workpiece is
firmly held between rollers.
3. Turn hand crank clockwise to feed workpiece
through machine until it is approximately half
way through top and bottom rollers.
Thickness Adjustment
Knob
Top Roller
Bottom
Roller
Rear Roller
Diameter
Adjustment
Knob
Feed
Direction
Workpiece
Figure 20. Rear roller lowered so it is even with
bottom roller.
4. Turn diameter adjustment knobs clockwise
to lift rear roller until desired bend radius is
reached, as illustrated in Figure 21. Always
turn diameter adjustment knobs in equal
amounts so rear roller remains parallel with
front rollers, or there will be a larger radius
on one end of the workpiece than the other,
resulting in a cone shape.
Note: Always err on the side of making the
radius too large rather than too small. It is
easy to the decrease radius but very difficult
to increase it later.
Workpiece
Diameter
Adjustment
Knob
Figure 21. Making initial bend to create cylinder.
5. Turn hand crank to feed material through
slip roll. Continue turning until workpiece is
completely through top and bottom rollers, as
illustrated in Figure 22.
Feed
Direction
Figure 22. Finishing first pass.
