The Model G0624Z is the same machine as the Model G0624, except the Model G0624Z has a bigger
motor (0.7 HP) and includes a new tailstock handwheel, tool post base, and live and spur centers.
Except for the differences noted in this insert, all other content in the Model G0624 owner's manual applies
to this machine.
: To reduce the risk of serious injury, you MUST read and understand this insert—and
the entire Model G0624 manual—BEFORE assembling, installing, or operating this machine!
If you have any further questions about this manual insert or the differences between the Model G0624 and
the Model G0624Z, contact our Technical Support at [phone] or email [email protected].
MODEL G0624Z
10" BENCHTOP
WOOD LATHE
MANUAL INSERT
V1.12.16

-2- Model G0624Z (Mfd. Since 08/16)
The information contained herein is deemed accurate as of 12/8/2016 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 2
Model G0624Z
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G0624Z 10" BENCHTOP WOOD LATHE
Product Dimensions:
Weight................................................................................................................................................................ 91 lbs.
Width (side-to-side) x Depth (front-to-back) x Height....................................................................... 34 x 8-3/4 x 15 in.
Footprint (Length x Width)....................................................................................................................... 33 x 8-3/4 in.
Shipping Dimensions:
Type............................................................................................................................................................. Cardboard
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 104 lbs.
Length x Width x Height....................................................................................................................... 38 x 12 x 18 in.
Must Ship Upright.................................................................................................................................................... No
Electrical:
Power Requirement........................................................................................................... 120V, Single-Phase, 60 Hz
Full-Load Current Rating.......................................................................................................................................... 8A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length................................................................................................................................................. 6 ft.
Power Cord Gauge......................................................................................................................................... 18 AWG
Plug Included.......................................................................................................................................................... Yes
Switch Type.................................................................................................. Paddle Safety Switch w/Removable Key
Motors:
Main
Type........................................................................................................................................... TEFC Induction
Horsepower............................................................................................................................................. 0.7 HP
Amps.............................................................................................................................................................. 8A
Speed................................................................................................................................................ 1725 RPM
Power Transfer .................................................................................................................................. Belt Drive
Bearings..................................................................................................... Shielded & Permanently Lubricated
Main Specifications:
Operation Information
Swing Over Bed......................................................................................................................................... 10 in.
Swing Over Tool Rest Base.................................................................................................................. 7-1/2 in.
Distance Between Centers........................................................................................................................ 15 in.
Max. Distance Tool Rest to Spindle Center........................................................................................... 3-3/4 in.
No of Spindle Speeds....................................................................................................................................... 6
Spindle Speed Range................................................................................................................ 480–4023 RPM
Floor to Center Height....................................................................................................................... 13-3/16 in.
Spindle Information
Spindle Taper............................................................................................................................................ MT#2
Spindle Thread Size............................................................................................................................ 1" x 8 TPI
Spindle Thread Direction.................................................................................................................. Right Hand
Spindle Bore......................................................................................................................................... 23/64 in.
Type of Included Spindle Center................................................................................................................. Spur

Model G0624Z (Mfd. Since 08/16) -3-
The information contained herein is deemed accurate as of 10/27/2016 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 2
Model G0624Z
Tool Rest Information
Tool Rest Width................................................................................................................................... 6-5/16 in.
Tool Rest Post Diameter........................................................................................................................... 5/8 in.
Tool Rest Post Length......................................................................................................................... 2-9/16 in.
Tool Rest Base Height........................................................................................................................... 1-3/8 in.
Tailstock Information
Tailstock Taper.......................................................................................................................................... MT#2
Type of Included Tailstock Center............................................................................................................... Live
Construction
Bed.......................................................................................................................... Precision-Ground Cast Iron
Frame...................................................................................................................................... Cast Iron & Steel
Stand....................................................................................................................................... Cast Iron & Steel
Tailstock.................................................................................................................................. Cast Iron & Steel
Paint Type/Finish.................................................................................................................................... Enamel
Other Related Information
Bed Width............................................................................................................................................ 8-3/16 in.
Faceplate Size............................................................................................................................................. 3 in.
Other Specifications:
Country of Origin ................................................................................................................................................ China
Warranty ....................................................................................................................................................... One Year
Serial Number Location .................................................................................................................................. ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Accessories Included:
3" Faceplate
Live Rolling Center
Spur Center
Tool Rest

-4- Model G0624Z (Mfd. Since 08/16)
New Parts
The Model G0624Z MT#2 spur center (see Figure
4) and MT#2 live center (see Figure 5) have
integrated index spindles for improved milling
precision.
The Model G0624Z features a more powerful 0.7-
HP motor (see Figure 1).
Figure 1. Model G0624Z motor (bottom view).
The Model G0624Z features a new tool post base
with a squared-off vertical column, and new lock
handles (see Figure 2).
Figure 2. Tool post base and lock handles. The Model G0624Z now uses a strain relief to
attach the power cord (see Figure 6).
The new tailstock handwheel is now solid with a
longer handle (see Figure 3).
Figure 3. Tailstock handwheel and tailstock
handwheel handle.
New Old
Figure 4. Comparison of G0624Z MT#2 spur
center (left) and G0624 tapered index spindle
(right).
New Old
Figure 5. Comparison of MT#2 live centers:
G0624Z (left) and G0624 (right).
New Old
Figure 6. Model G0624Z strain relief and power
cord.

Model G0624Z (Mfd. Since 08/16) -5-
White
Neutral
Black
Hot
Green
Ground
PADDLE SWITCH
(viewed from behind)
MOTOR
Ground
Run
Capacitor
40MFD
250VAC
Bk

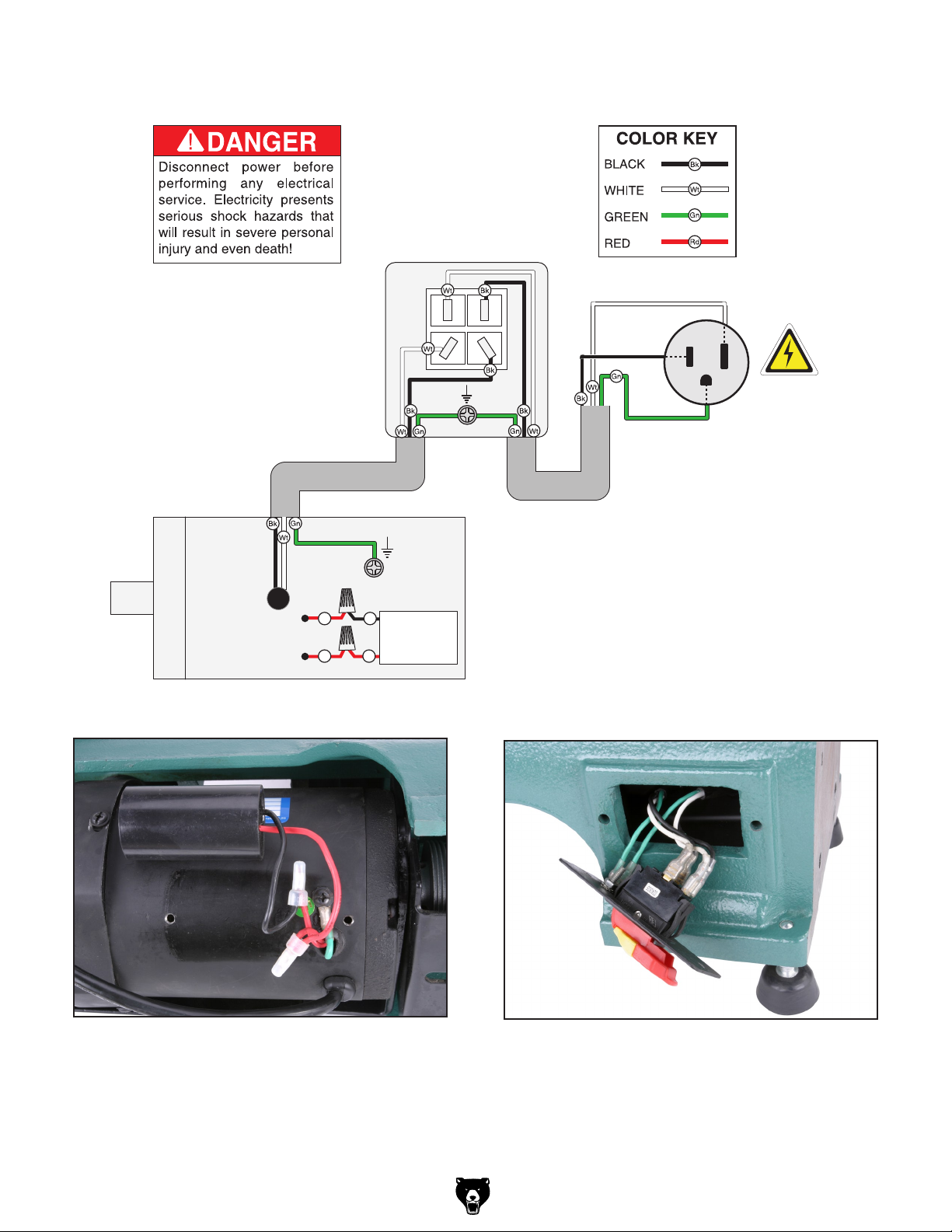

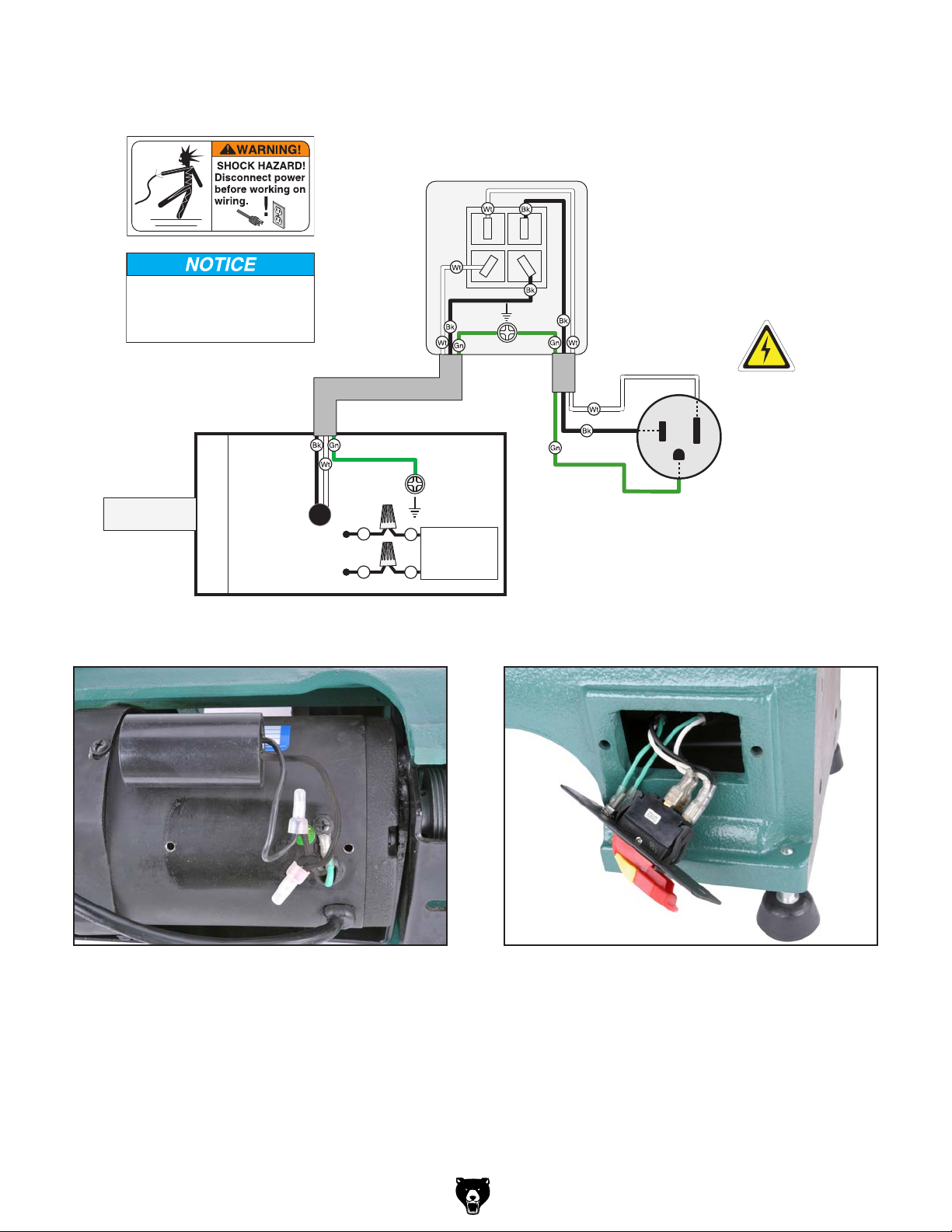

The motor wiring shown here is
current at the time of printing, but it
may not match your machine.
Always use the wiring diagram
inside the motor junction box.
110 VAC
5-15 Plug
(As Recommended)
Bk
Bk
Bk
Figure 7. Motor connections. Figure 8. Switch connections.
Wiring Diagram

-6- Model G0624Z (Mfd. Since 08/16)
Parts Breakdown
1
23
4
567
8
9
10 12
14
38 39
40 41
42
43
44
45
46
47
48 49
50
51
53
54 55 56
57-1
58
59 60
61
62
63
85
65
66
67
68
69
70
71
72
73
73
74
75
76
77
78 79
80
36
35
64
83
57-257-3
57-4
57-5
57-6
68-3
68-1 68-2
68-4
84
52
68-5 68-6
57
95
13
15
16 17
18
19
21
22
20
23
24
25
26
30
31
32
29
28
27
34
33
35
36
37

Model G0624Z (Mfd. Since 08/16) -7-
Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0624Z001 SET SCREW M6-1 X 6 54 P0624Z054 PHLP HD SCR M5-.8 X 10
2 P0624Z002 HEADSTOCK HANDWHEEL 83D X 8B-S 55 P0624Z055 FLAT WASHER 5MM
3 P0624Z003 PULLEY SAFETY COVER 56 P0624Z056 WIRE CLAMP
4 P0624Z004 SET SCREW M4-.7 X 6 57 P0624Z057 SWITCH ASSEMBLY
5 P0624Z005 SPINDLE PULLEY 57-1 P0624Z057-1 PHLP HD SCR 10-24 X 1-1/2
6 P0624Z006 BALL BEARING 6004ZZ 57-2 P0624Z057-2 EXT TOOTH WASHER 5MM
7 P0624Z007 HEADSTOCK CASTING 57-3 P0624Z057-3 SWITCH PLATE
8 P0624Z008 BALL BEARING 6005ZZ 57-4 P0624Z057-4 SWITCH BOX
9 P0624Z009 SPINDLE 57-5 P0624Z057-5 HEX NUT 10-24
10 P0624Z010 SPUR CENTER MT#2 57-6 P0624Z057-6 SAFETY PADDLE SWITCH
12 P0624Z012 FACEPLATE 3" 58 P0624Z058 SET SCREW M6-1 X 6
13 P0624Z013 LIVE CENTER MT#2 59 P0624Z059 MOTOR PULLEY
14 P0624Z014 BEDWAY 60 P0624Z060 LOCK NUT M8-1.25
15 P0624Z015 TAILSTOCK QUILL 61 P0624Z061 PHLP HD SCR M6-1 X 16
16 P0624Z016 TAILSTOCK LEADSCREW 62 P0624Z062 MOTOR PLATE
17 P0624Z017 EXT RETAINING RING 15MM 63 P0624Z063 FLAT WASHER 5MM
18 P0624Z018 FLAT WASHER 15MM 64 P0624Z064 CAP SCREW M5-.8 X 15
19 P0624Z019 RUBBER COLLAR 65 P0624Z065 BELT TENSION BRACKET
20 P0624Z020 TAILSTOCK CASTING 66 P0624Z066 SQUARE HEAD BOLT
21 P0624Z021 ECCENTRIC SHAFT 67 P0624Z067 RUBBER SLEEVE
22 P0624Z022 QUILL LOCK HANDLE M6-1 X 13 X 43 68 P0624Z068 MOTOR 0.7HP 120V 1-PH
23 P0624Z023 HEX NUT M4-.7 68-1 P0624Z068-1 CAPACITOR COVER
24 P0624Z024 CAP SCREW M4-.7 X 16 68-2 P0624Z068-2 R CAPACITOR 40M 250V 1.5" X 2.75"
25 P0624Z025 EXT RETAINING RING 10MM 68-3 P0624Z068-3 MOTOR FAN
26 P0624Z026 ROLL PIN 5 X 30 68-4 P0624Z068-4 MOTOR FAN COVER
27 P0624Z027 TAILSTOCK CLAMP BOLT M10-1.5 X 65 68-5 P0624Z068-5 BALL BEARING 6202ZZ (FRONT)
28 P0624Z028 TAILSTOCK LOCK PLATE 68-6 P0624Z068-6 BALL BEARING 6200ZZ (REAR)
29 P0624Z029 LOCK NUT M10-1.5 69 P0624Z069 DUST GUARD
30 P0624Z030 SET SCREW M6-1 X 6 70 P0624Z070 LOCK SCREW 10-24 X 6
31 P0624Z031 HANDWHEEL TYPE-28 80D X 16B-S X M6-1 71 P0624Z071 EXT RETAINING RING 10MM
32 P0624Z032 HANDLE M6-1 X 60 72 P0624Z072 TOOL POST BASE
33 P0624Z033 TAILSTOCK ECCENTRIC SHAFT 73 P0624Z073 TOOL REST LOCK HANDLE M8-1.25 X 20 X 62
34 P0624Z034 EXT RETAINING RING 16MM 74 P0624Z074 TOOL REST CLAMP BOLT M10-1.5 X 51
35 P0624Z035 TAILSTOCK RELEASE LEVER 110 X 13 75 P0624Z075 TOOL REST LOCK PLATE
36 P0624Z036 LEVER KNOB 3/8-16 X 13/16 X 1-5/8 76 P0624Z076 LOCK NUT M10-1.5
37 P0624Z037 KNOCKOUT BAR 77 P0624Z077 TOOL REST
38 P0624Z038 LOCK HANDLE M8-1.25 X 10 X 58 78 P0624Z078 ROLL PIN 4 X 20
39 P0624Z039 GUARD PLATE 79 P0624Z079 EXT RETAINING RING 14MM
40 P0624Z040 V-BELT 3V X 600L RIBBED 80 P0624Z080 TOOL POST ECCENTRIC SHAFT
41 P0624Z041 COMPRESSION SPRING 0.8 X 36L X 24OD 83 P0624Z083 HEX WRENCH 2.5MM
42 P0624Z042 THREADED SHAFT M8-1.25 X 16 X 87 84 P0624Z084 STRAIN RELIEF 5/16" TYPE-1
43 P0624Z043 HEX NUT M8-1.25 85 P0624Z063-1 LOCK WASHER 5MM
44 P0624Z044 CAP SCREW M8-1.25 X 35 87 P0624Z087 MACHINE ID LABEL
45 P0624Z045 THUMB SCREW M5-.8 X 15 88 P0624Z088 FACE SHIELD LABEL
46 P0624Z046 BELT TENSION LOCK KNOB 89 P0624Z089 ENTANGLEMENT HAZARD LABEL
47 P0624Z047 ROLL PIN 3 X 12 90 P0624Z090 READ MANUAL LABEL
48 P0624Z048 BELT TENSION LOCK SHAFT 12 X 93 91 P0624Z091 ELECTRICITY LABEL
49 P0624Z049 SPACER 18MM 92 P0624Z092 TOUCH-UP PAINT, GRIZZLY GREEN
50 P0624Z050 COMPRESSION SPRING 1.5 X 15L X 16OD 93 P0624Z093 GRIZZLY NAMEPLATE
51 P0624Z051 MOTOR PULLEY ACCESS PLATE 94 P0624Z094 DISCONNECT POWER/SPINDLE SPD. LABEL
52 P0624Z052 HEX NUT 3/8-16 95 P0624Z095 POWER CORD 18G 3W 72" 5-15P
53 P0624Z053 RUBBER FOOT 3/8-16 X 1-1/2

-8- Model G0624Z (Mfd. Since 08/16)
Labels & Cosmetics
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact [phone] or www.grizzly.com.
94
87
88
89
90
93
91
92
REF PART # DESCRIPTION REF PART # DESCRIPTION
87 P0624Z087 MACHINE ID LABEL 91 P0624Z091 ELECTRICITY LABEL
88 P0624Z088 FACE SHIELD LABEL 92 P0624Z092 TOUCH-UP PAINT, GRIZZLY GREEN
89 P0624Z089 ENTANGLEMENT HAZARD LABEL 93 P0624Z093 GRIZZLY NAMEPLATE
90 P0624Z090 READ MANUAL LABEL 94 P0624Z094 DISCONNECT POWER/SPINDLE SPD. LABEL

The following changes were recently made to this machine since the owner's manual was printed:
 
 

 
IMPORTANT: Keep this update with the
owner's manual for future reference.
For questions or help, contact our Tech Support at [phone] or [email protected].
Changed Specifications
Electrical

Motor



WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

Model G0624

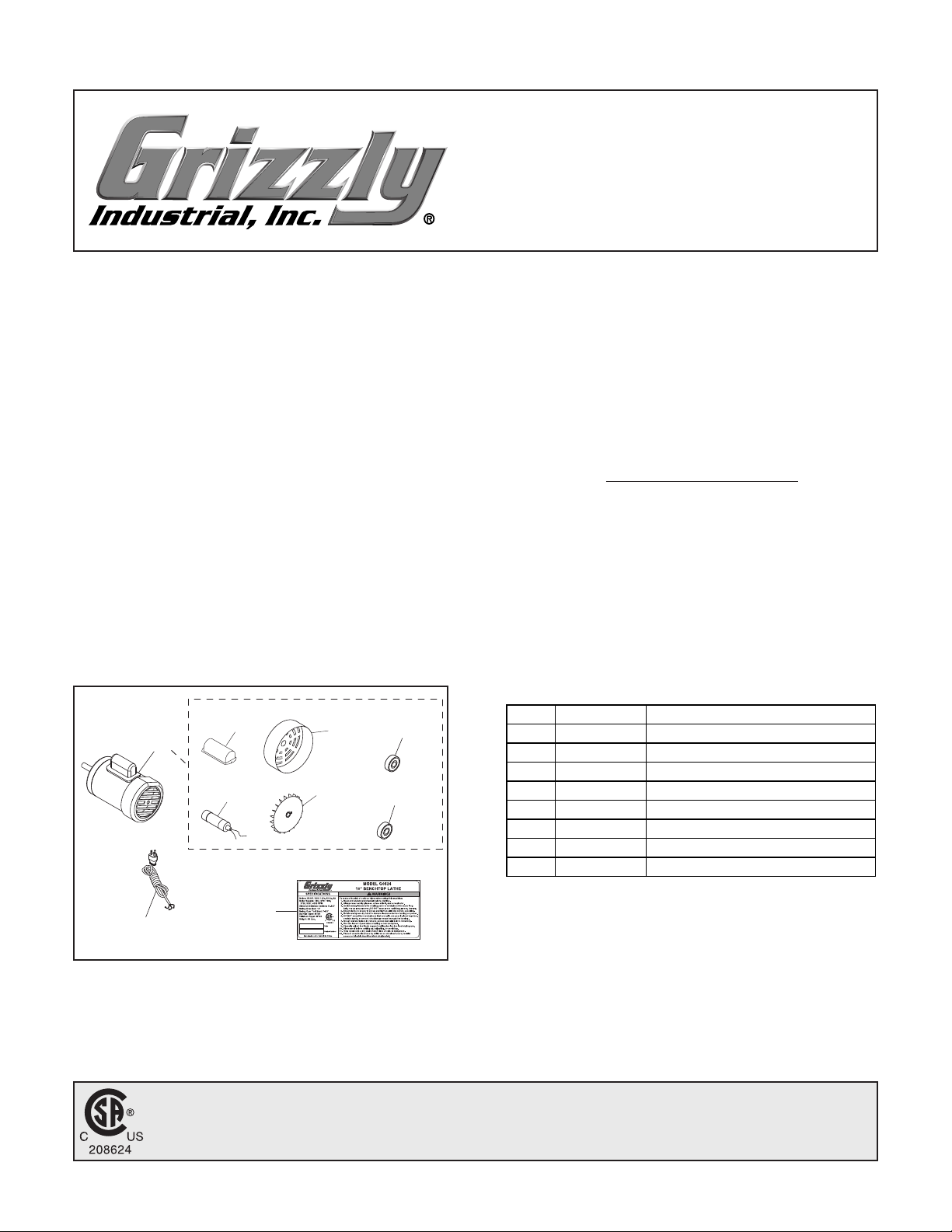

***IMPORTANT UPDATE***
For Machines Mfg. Since August, 2012
and Owner's Manual Printed November, 2006
READ THIS FIRST
+-"(
+-"&
+-
+-"'
+-") +-"*
+-"+
-,K'
.*
New/Revised G0624 Parts
REF PART # DESCRIPTION
68 P0624068 MOTOR 1/2HP 120V 1-PH
68-1 P0624068-1 CAPACITOR COVER
68-2 P0624068-2 R CAPACITOR 25M 250V
68-3 P0624068-3 MOTOR FAN
68-4 P0624068-4 MOTOR FAN COVER
68-5 P6202ZZ BALL BEARING 6202ZZ
68-6 P6200ZZ BALL BEARING 6200ZZ
87V2 P0624087V2 MACHINE ID LABEL CSA V2.08.12
95 P0624095 POWER CORD 18G 3W 72" 5-15P

 
ELECTRICAL EQUIPMENT INJURY RISKS.

    

      


DISCONNECT POWER FIRST.
 




EYE PROTECTION.

       


OWNER’S MANUAL. 

TRAINED OPERATORS ONLY.
         
      
       
      


DANGEROUS ENVIRONMENTS.   



MENTAL ALERTNESS REQUIRED. 



For Your Own Safety, Read Instruction
Manual Before Operating this Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgement.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY
