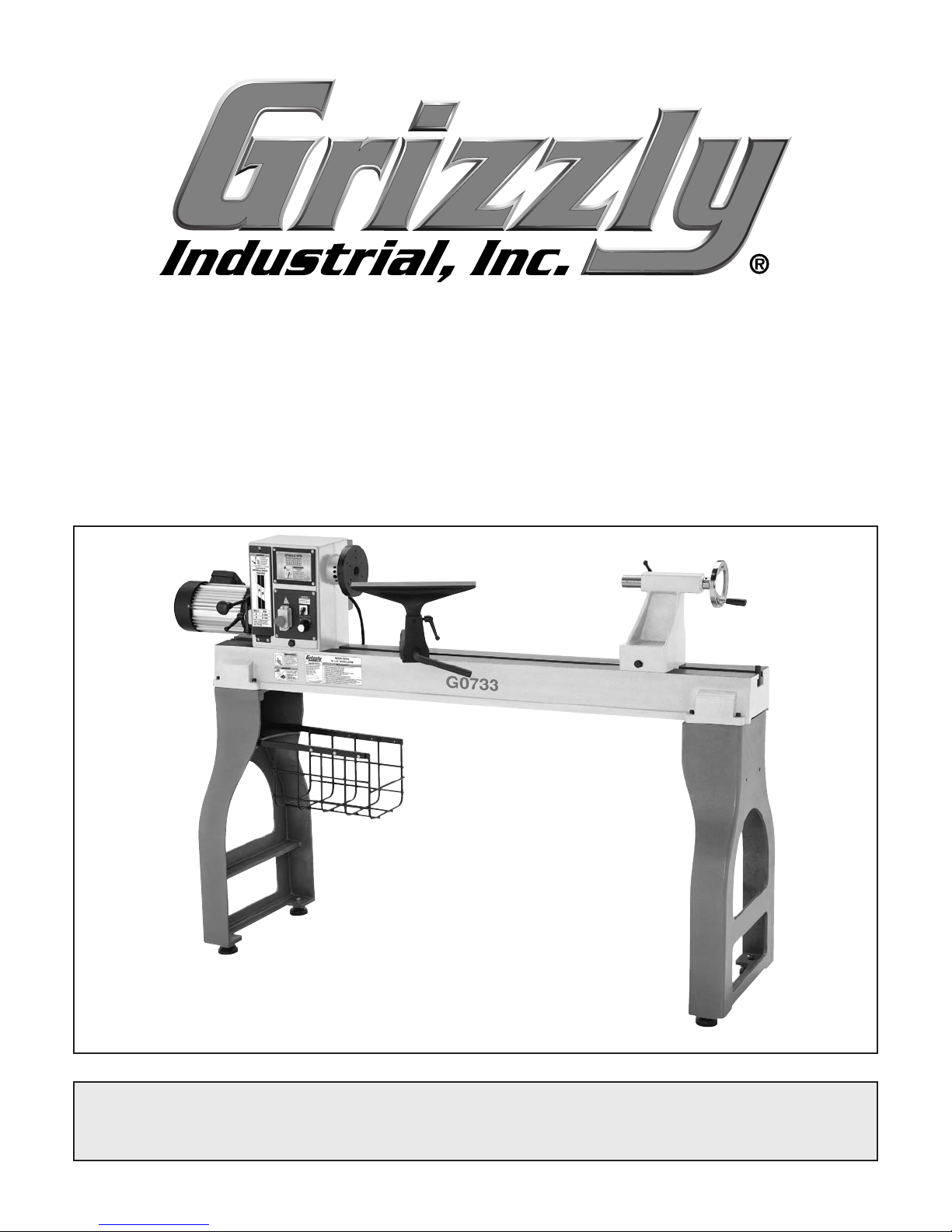

Grizzly G0733 User manual

MODEL G0733
18" X 47" WOOD LATHE
OWNER'S MANUAL
(For models manufactured since 10/11)
COPYRIGHT © NOVEMBER, 2011 BY GRIZZLY INDUSTRIAL, INC., REVISED APRIL, 2013 (ST)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#KN14454 PRINTED IN CHINA

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................... 2
Manual Accuracy ........................................... 2
Contact Info.................................................... 2
Machine Description ...................................... 2
Identification ................................................... 3
Glossary Of Terms ......................................... 4
Machine Data Sheet ...................................... 5
SECTION 1: SAFETY....................................... 7
Safety Instructions for Machinery .................. 7
Additional Safety for Wood Lathes ................ 9
SECTION 2: POWER SUPPLY ...................... 10
Availability .................................................. 10
Full-Load Current Rating ........................... 10
Circuit Information ..................................... 10
Circuit Requirements for 220V .................. 10
Grounding Requirements .......................... 11
Extension Cords ........................................ 11
SECTION 3: SETUP ....................................... 12
Needed for Setup ......................................... 12
Unpacking .................................................... 12
Inventory ...................................................... 13
Site Considerations ...................................... 14
Cleanup ........................................................ 15
Mounting ...................................................... 15
Bolting to Concrete Floors ......................... 15
Assembly ..................................................... 16
Power Connection........................................ 17
Connecting Power ..................................... 17
Disconnecting Power ................................. 17
Test Run ...................................................... 18
SECTION 4: OPERATIONS ........................... 19
Operation Overview ..................................... 19
Basic Controls .............................................. 20
Stock Inspection & Requirements................ 21
Adjusting Headstock .................................... 21
Adjusting Tailstock ....................................... 22
Adjusting Tool Rest ...................................... 22
Installing/Removing Headstock Center ........ 23
Installing the Headstock Center ................ 23
Removing the Headstock Center .............. 23
Installing/Removing Tailstock Center .......... 24
Installing the Tailstock Center ................... 24
Removing the Headstock Center .............. 24
Installing Faceplate ...................................... 25
Changing Speed Ranges ............................. 25
Indexing ....................................................... 27
Spindle Turning ............................................ 27
Spindle Turning Tips: ................................ 29
Faceplate Turning ........................................ 29
Mounting the Workpiece onto the
Faceplate ................................................... 29
Mounting Workpiece to Backing Block ..... 30
Outboard Turning ......................................... 30
Sanding/Finishing ........................................ 31
Selecting Turning Tools ............................... 32
SECTION 5: ACCESSORIES ......................... 33
Recommended Metal Protectants ............. 35
SECTION 6: MAINTENANCE......................... 36
Schedule ...................................................... 36
Cleaning ....................................................... 36
Lathe Bed..................................................... 36
Lubrication ................................................... 36
SECTION 7: SERVICE ................................... 37
Troubleshooting ........................................... 37
Motor & Electrical ...................................... 37
Wood Lathe Operation .............................. 38
Changing Belt .............................................. 39
SECTION 8: WIRING...................................... 40
Wiring Safety Instructions ............................ 40
Wiring Diagram ............................................ 41
Wiring Components ..................................... 42
SECTION 9: PARTS....................................... 43
Stand & Bed Parts Breakdown .................... 43
Headstock Parts Breakdown ....................... 44
Label Placement .......................................... 46
WARRANTY AND RETURNS ........................ 49

-2- Model G0733 (Mfg. Since 10/11)
INTRODUCTION
Machine Description
Manual Accuracy
We are proud to offer this manual with your new
machine! We've made every effort to be exact
with the instructions, specifications, drawings,
and photographs of the machine we used when
writing this manual. However, sometimes we still
make
an occasional mistake.
Also, owing to our policy of continuous improve-
ment, your machine may not exactly match the
manual
.
If you find this to be the case, and the dif-
ference between the manual and machine leaves
you in doubt,
check our website for the latest
manual update or call technical support for help.
Before calling, find the manufacture date of your
machine by looking at the date stamped into the
machine ID label (see below). This will help us
determine if the manual version you received
matches the manufacture date of your machine.
For your convenience, we
post all available man
-
uals and
manual updates for free
on our website
at
www.grizzly.com. Any updates to your
model
of
machine will be reflected in these documents
as soon as they are complete.
Manufacture Date
of Your Machine
Contact Info
We stand behind our machines. If you have
any questions or need help, use the information
below to contact us. Before contacting, please get
the serial number and manufacture date of your
machine. This will help us help you faster.
Grizzly Technical Support
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
The G0733 18" X 47" Wood Lathe is designed
to turn wood stock so the operator can remove
material with a chisel.
The variable speed control allows for infinite
spindle speed adjustment from 0–3200 RPM and
the digital readout provides a precise reading of
the current spindle speed.
The headstock can be positioned anywhere along
the bed for increased flexibility in workpiece
setup.

Model G0733 (Mfg. Since 10/11) -3-
Identification
To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.

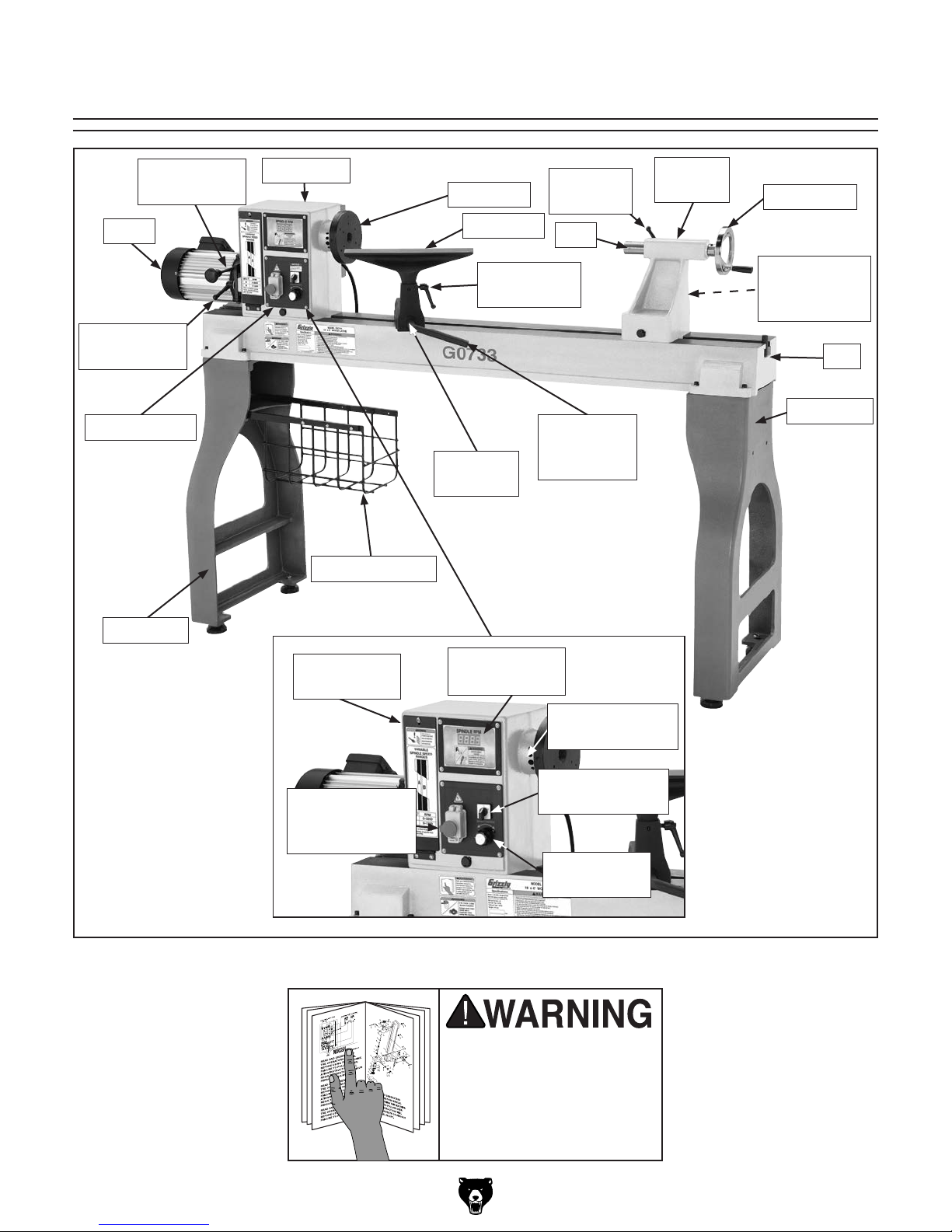

Figure 1. Model G0733 parts and component identification.
Motor
Belt Tension
Lever
Control Panel
Headstock
Faceplate
Tool Rest
Tailstock
Casting
Quill Lock
Lever
Quill
Stand Leg
Stand Leg
Storage Basket
Bed
Belt Access
Cover
Spindle RPM
Readout
Speed
Control Knob
Spindle
Direction Switch
ON/OFF Switch
w/Emergency
STOP Button
Tool Rest
Base
Spindle
Indexing Holes
Tool Rest
Base
Lock Lever
Handwheel
Tool Rest
Lock Handle
Belt Tension
Lock Lever
Tailstock
Lock Lever
(reverse side)

-4- Model G0733 (Mfg. Since 10/11)
The following is a list of common definitions, terms and phrases used throughout this manual as they relate
to this wood lathe and turning in general. Become familiar with these terms for assembling, adjusting or
operating this machine. Your safety is VERY important to us at Grizzly!
Bed: The long, rail-like metal base to which
the tailstock, tool base, and headstock are
attached.
Chuck: A mechanical device that attaches to the
spindle and holds the workpiece.
Faceplate: The metal disc that threads onto the
headstock spindle.
Faceplate Turning: Turning situation in which
the grain of the turning stock is at right angles
to the lathe bed axis.
Backing Block: A sacrificial piece of wood glued
to the base of the workpiece and screwed to
the faceplate. Often used to prevent mount-
ing marks from appearing on the completed
workpiece.
Headstock: The cast metal box to which the
motor is attached and contains the spindle,
bearings, belts, and electrical components for
operating the lathe.
Index head: The mechanism that allows the
headstock spindle to be locked at specific
intervals for layout or other auxiliary tasks.
Offset Turning: A turning situation where the cen-
ter of the workpiece is offset at various stages
of the work to produce different shapes.
Outboard Turning: Turning of workpiece with
the headstock situated at the far end of the
lathe so the work done is not over the bed of
the lathe.
Roughing Out: Taking stock from square billet to
round blank.
Spindle: This term has two meanings. First, it
refers to the threaded shaft in the headstock
to which the faceplate is attached. Second, it
refers to any work that is spindle-turned.
Spindle-Turning: Work performed where the
grain and length of the workpiece are parallel
to the axis of the bed.
Swing: The capacity of the lathe, measured
by doubling the distance from the bed to the
spindle center.
Tailstock: The metal component at the opposite
end of the bed from the headstock containing a
quill and live or dead centers. It maintains pres-
sure on the spindle-turned workpiece.
Tool Base: The movable metal fixture attached
to the bed upon which the tool rest is fixed.
Tool Rest: The adjustable metal arm upon which
the tool rest during a turning operation.
Way: One of the metal rails that make up the bed
of the lathe.
Glossary Of Terms

Model G0733 (Mfg. Since 10/11) -5-
The information contained herein is deemed accurate as of 4/28/2013 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 3Model G0733
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G0733 HEAVY DUTY WOOD LATHE 18" X 47"
Product Dimensions:
Weight.............................................................................................................................................................. 419 lbs.
Width (side-to-side) x Depth (front-to-back) x Height.................................................... 80-3/4 x 19-1/16 x 48-1/16 in.
Footprint (Length x Width)..................................................................................................................... 65-1/2 x 20 in.
Shipping Dimensions:
Type.......................................................................................................................................................... Wood Crate
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 550 lbs.
Length x Width x Height....................................................................................................................... 22 x 69 x 22 in.
Must Ship Upright................................................................................................................................................... N/A
Electrical:
Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz
Prewired Voltage.................................................................................................................................................. 220V
Full-Load Current Rating....................................................................................................................................... 5.3A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length.......................................................................................................................................... 9-1/2 ft.
Power Cord Gauge......................................................................................................................................... 14 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................................ 6-15
Switch Type........................................................................................... ON/OFF Push Button Switch w/Safety Cover
Inverter Type............................................................................................................................................ Delta VFD-M
Inverter Size......................................................................................................................................................... 2 HP
Motors:
Main
Type........................................................................................................................................... TEFC Induction
Horsepower................................................................................................................................................ 2 HP
Phase.................................................................................................................................................... 3-Phase
Amps........................................................................................................................................................... 5.3A
Speed.......................................................................................................................................... 0 – 3560 RPM
Power Transfer .................................................................................................................................. Belt Drive
Bearings..................................................................................................... Shielded & Permanently Lubricated
Main Specifications:
Operation Information
Swing Over Bed......................................................................................................................................... 18 in.
Dist Between Centers................................................................................................................................ 47 in.
Swing Over Tool Rest.......................................................................................................................... 13-3/4 in.
Swing Over Tool Rest Base....................................................................................................................... 14 in.
No of Spindle Speeds............................................................................................................................ Variable
Spindle Speed Range.............................................................................................................. 100 – 3200 RPM
Floor to Center Height......................................................................................................................... 44-7/8 in.
Headstock Rotation....................................................................................................................... 0 or 180 deg.
Machine Data Sheet Machine Data Sheet

-6- Model G0733 (Mfg. Since 10/11)
The information contained herein is deemed accurate as of 4/28/2013 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 3Model G0733
Spindle Information
Spindle Taper............................................................................................................................................ MT#2
Spindle Thread Size.............................................................................................................................. 1-1/4 in.
Spindle TPI................................................................................................................................................ 8 TPI
Spindle Thread Direction.................................................................................................................. Right Hand
Spindle Bore......................................................................................................................................... 0.393 in.
Type of Included Spindle Center................................................................................................................. Spur
Indexed Spindle Increments............................................................................................................. 10, 30 deg.
No of Indexes................................................................................................................................................... 4
Tool Rest Information
Tool Rest Width......................................................................................................................................... 14 in.
Tool Rest Post Diameter......................................................................................................................... 25 mm
Tool Rest Post Length......................................................................................................................... 2-3/16 in.
Tool Rest Base Height......................................................................................................................... 2-1/16 in.
Tailstock Information
Tailstock Taper.......................................................................................................................................... MT#2
Type of Included Tailstock Center............................................................................................................... Live
Construction
Bed.......................................................................................................................... Precision-Ground Cast Iron
Frame................................................................................................................................................... Cast Iron
Stand.................................................................................................................................................... Cast Iron
Base..................................................................................................................................................... Cast Iron
Headstock............................................................................................................................................ Cast Iron
Tailstock............................................................................................................................................... Cast Iron
Paint....................................................................................................................................................... Enamel
Other Related Information
Faceplate Size............................................................................................................................................. 6 in.
Other Specifications:
Country Of Origin ............................................................................................................................................... China
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time .............................................................................................................. 1 Hour
Serial Number Location ........................................................................................................ ID Label on Front of Bed
ISO 9001 Factory .................................................................................................................................................... No
CSA Certified .......................................................................................................................................................... No
Features:
14" wide tool rest (with post size of 2-1/4"H x 1"Ø)
16" swing over tool rest base
Electronic variable speed control with digital spindle speed indicator
Belt drive offers low speed range of 100–1200 RPM and a high speed range of 330–3200 RPM
Headstock can be rotated 180° and positioned anywhere along the bed
Single-phase frequency drive provides three-phase variable speed control without three-phase power
10º indexing using all three indexing holes
30º direct indexing using 1 indexing hole
Tailstock, headstock, and tool rest support have lever action cam locks for quick positioning
Emergency stop switch
Forward/reverse switch

Model G0733 (Mfg. Since 10/11) -7-
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are not approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

-8- Model G0733 (Mfg. Since 10/11)

WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
coverlonghair.Wear non-slipfootweartoavoid
accidentalslips,whichcouldcauselossofwork-
piececontrol.
hAzARdOus dusT. Dust created while using
machinery may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazardsassociatedwitheachworkpiecematerial,
andalwayswearaNIOSH-approvedrespiratorto
reduceyourrisk.
hEARING PROTECTION.Alwayswearhear-
ing protection when operating or observing loud
machinery.Extendedexposuretothisnoise
withouthearing protection cancause permanent
hearingloss.
REMOVE AdJusTING TOOLs. Tools left on
machinerycanbecomedangerousprojectiles
uponstartup.Neverleavechuckkeys,wrenches,
or any other tools on machine. Always verify
removalbeforestarting!
INTENdEd usAGE. Only use machine for its
intendedpurposeandnevermakemodifications
not approved by Grizzly. Modifying machine or
using it differently than intended may result in
malfunctionormechanicalfailurethatcanleadto
seriouspersonalinjuryordeath!
AWKWARd POsITIONs. Keep proper footing
andbalanceatalltimeswhenoperatingmachine.
Donotoverreach!Avoidawkwardhandpositions
that make workpiece control difficult or increase
theriskofaccidentalinjury.
ChILdREN & BYsTANdERs. Keepchildrenand
bystandersatasafedistancefromtheworkarea.
Stopusingmachineiftheybecomeadistraction.
GuARds & COVERs.Guardsandcoversreduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged,andworkingcorrectly.
FORCING MAChINERY.Donotforcemachine.
Itwill do the job safer and better atthe rate for
whichitwasdesigned.
NEVER sTANd ON MAChINE. Serious injury
may occur if machine is tipped or if the cutting
toolisunintentionallycontacted.
sTABLE MAChINE. Unexpectedmovementdur-
ing operation greatly increases risk of injury or
lossofcontrol.Beforestarting,verifymachineis
stableandmobilebase(ifused)islocked.
usE RECOMMENdEd ACCEssORIEs.Consult
thisowner’smanualorthemanufacturerforrec-
ommended accessories. Using improper acces-
sorieswillincreasetheriskofseriousinjury.
uNATTENdEd OPERATION. Toreducethe
risk of accidental injury, turn machine off and
ensure all moving parts completely stop before
walkingaway.Neverleavemachinerunning
whileunattended.
MAINTAIN WIThCARE.Followallmaintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leadingtoseriouspersonalinjuryordeath.
ChECK dAMAGEd PARTs. Regularly inspect
machine for any condition that may affect safe
operation.Immediatelyrepairorreplacedamaged
ormis-adjustedpartsbeforeoperatingmachine.
MAINTAIN POWER CORds. When disconnect-
ing cord-connected machines frompower,grab
andpulltheplug—NOTthecord.Pullingthecord
maydamage the wires inside.Donothandle
cord/plugwithwethands.Avoidcorddamageby
keepingitawayfromheatedsurfaces,hightraffic
areas,harshchemicals,andwet/damplocations.
EXPERIENCING dIFFICuLTIEs. Ifatanytime
youexperiencedifficultiesperformingtheintend-
edoperation,stopusingthemachine!Contactour
TechnicalSupportat(570)546-9663.

Model G0733 (Mfg. Since 10/11) -9-
Additional Safety for Wood Lathes
KEEPING GUARDS IN PLACE. Make sure all
guards are in place and that the lathe sits on a
flat, stable surface.
EYE/FACE PROTECTION. Airborne wood dust
and debris can be hazardous to the eyes/face
and may cause allergies or long-term respiratory
health problems. Always wear eye protection or a
face shield when operating the lathe.
RESPIRATORY PROTECTION. Always wear a
respirator when using this machine. Wood dust
may cause allergies or long-term respiratory
health problems.
MOUNTING WORKPIECE. Before starting, be
certain the workpiece has been properly imbed-
ded on the headstock and tailstock centers and
that there is adequate clearance for the full rota-
tion.
ADJUSTING TOOL REST. Adjust tool rest to
provide proper support for the turning tool you
will be using. Test tool rest clearance by rotating
workpiece by hand before turning lathe ON.
TURNING SPEED. Select the correct turning
speed for your work, and allow the lathe to gain
full speed before using.
USING SHARP CHISELS. Keep lathe chisels
properly sharpened and held firmly in position
when turning.
OPERATING DAMAGED LATHE. Never oper-
ate the lathe with damaged or worn parts.
WORKPIECE CONDITION. Always inspect the
condition of your workpiece. DO NOT turn pieces
with knots, splits, and other potentially dangerous
conditions. Make sure joints of glued-up pieces
have high quality bonds and won't fly apart during
operation.
ADJUSTMENTS/MAINTENANCE. Make sure
your wood lathe is turned OFF, disconnected from
its power source, and all moving parts have come
to a complete stop before starting any inspection,
adjustment, or maintenance procedure.
STOPPING LATHE. DO NOT stop the lathe by
using your hand against the workpiece. Allow the
lathe to stop on its own.
AVOIDING ENTANGLEMENT. Keep long hair
and loose clothing articles such as sleeves, belts,
and jewelry items away from the lathe spindle.
FACEPLATE TURNING. When faceplate turning,
make sure the faceplate is securely attached to
the workpiece and it is properly attached to the
spindle. When faceplate turning, use lathe chisels
on the downward spinning side of the workpiece
only.
SANDING/POLISHING. Remove the tool rest
when performing sanding or polishing operations
on the rotating spindle.
MATERIAL REMOVAL RATE. Attempting to
remove too much material at once may cause
workpiece to fly out of the lathe.
No list of safety guidelines can be complete.
Every shop environment is different. Always
consider safety first, as it applies to your
individual working conditions. Use this and
other machinery with caution and respect.
Failure to do so could result in serious per-
sonal injury, damage to equipment, or poor
work results.
Like all machinery there is potential danger
when operating this machine. Accidents are
frequently caused by lack of familiarity or
failure to pay attention. Use this machine
with respect and caution to lessen the pos-
sibility of operator injury. If normal safety
precautions are overlooked or ignored, seri-
ous personal injury may occur.

-10- Model G0733 (Mfg. Since 10/11)
SECTION 2: POWER SUPPLY
Availability
Before installing the machine, consider the avail-
ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrican or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, or
equipment damage may
occur if machine is not
correctly grounded and
connected to the power
supply.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 220V .. 12.6 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over-
loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the requirements in the following section.
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Note: The circuit requirements listed in this man-
ual apply to a dedicated circuit—where only one
machine will be running at a time. If this machine
will be connected to a shared circuit where mul-
tiple machines will be running at the same time,
consult a qualified electrician to ensure that the
circuit is properly sized for safe operation.
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup-
ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
Circuit Information
Circuit Requirements for 220V
Nominal Voltage .............................. 220V/240V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Power Supply Circuit ......................... 15 Amps
Plug/Receptacle ............................. NEMA 6-15
This machine is prewired to operate on a 220V
power supply circuit that has a verified ground and
meets the following requirements:

Model G0733 (Mfg. Since 10/11) -11-
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec-
essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service per-
sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon-
nect it from power, and immediately replace it with
a new one.
Extension Cords
We do not recommend using an extension cord
with this machine.
If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which may
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
contain a ground wire, match the required plug
and receptacle, and meet the following require-
ments:
Minimum Gauge Size ...........................14 AWG
Maximum Length (Shorter is Better).......50 ft.
Grounding Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.

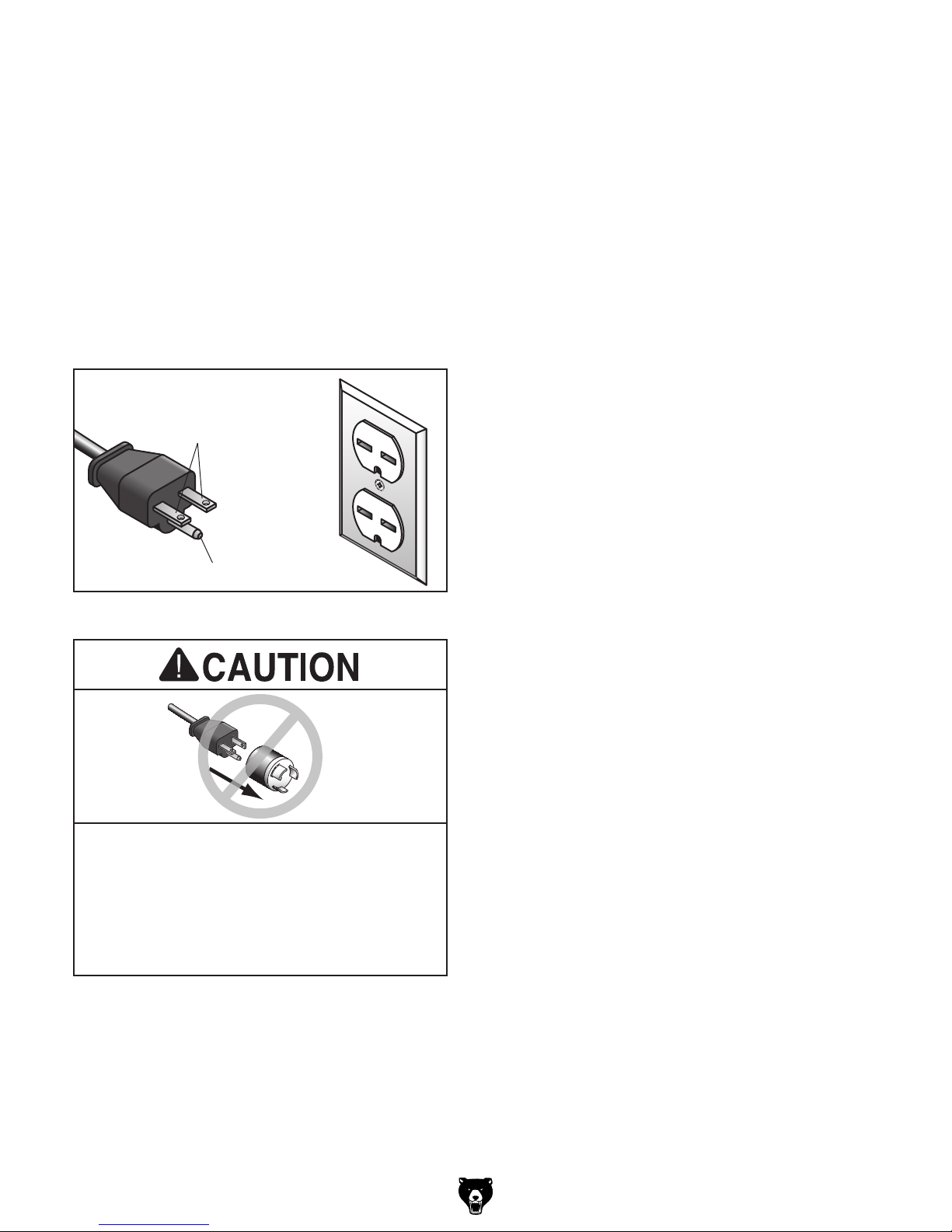

Figure 2. Typical 6-15 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
For 220V operation: This machine is equipped
with a power cord that has an equipment-ground-
ing wire and a grounding plug (see following fig-
ure). The plug must only be inserted into a match-
ing receptacle (outlet) that is properly installed
and grounded in accordance with all local codes
and ordinances.
No adapter should be used with the
required plug. If the plug does not fit the
available receptacle, or the machine must
be reconnected for use on a different type
of circuit, the reconnection must be made
by a qualified electrician and comply with all
local codes and ordinances.

-12- Model G0733 (Mfg. Since 10/11)
Wear safety glasses dur-
ing the entire setup pro-
cess!
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
SECTION 3: SETUP
The G0733 and its com-
ponents are very heavy.
Get lifting help or use
power lifting equipment
such as a fork lift to move
heavy items.
Your machine was carefully packaged for safe
transportation. Remove the packaging materials
from around your machine and inspect it. If you
discover any damage, please call us immediately
at [phone]
for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a freight claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, inventory the contents.
Unpacking
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials shipped with this
machine. Discard immediately.
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rag ................ As Needed
• Additional People ....................... As Needed
• Level ........................................................... 1
Needed for Setup

Model G0733 (Mfg. Since 10/11) -13-
Inventory
After all the parts have been removed from the
shipping containers, you should have the follow-
ing items:
Inventory: (Figures 3–6) Qty
A. Lathe Assembly
—Headstock (mounted) ............................. 1
—Tool Rest Base (mounted) ...................... 1
—Tailstock (mounted) ................................. 1
—Faceplate 6" (installed) ........................... 1
B. Stand Legs ................................................. 2
C. Machine Feet .............................................. 4
D. Tool Rest .................................................... 1
E. Live Center MT#2 ....................................... 1
F. Spur Center MT#2 ...................................... 1
G. Indexing Pin ................................................ 1
H. Hex Wrenches 3, 4, 6, 8mm ..................1 Ea
I. Knockout Tool ............................................. 1
J. Storage Basket ........................................... 1
K. Hardware (not shown)
—Cap Screws M8-1.25 x 35 .................... 10
—Lock Washers 8mm .............................. 10
—Hex Nuts M8-1.25 ................................... 2
If any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
B
C
D
E
F
G
H
J
NOTICE
Some hardware/fasteners on the inventory
list may arrive pre-installed. Check mount-
ing locations before assuming that any
items from the inventory list are missing.
Inventory
Figure 4. Stand legs.
Figure 5. Loose inventory components.
Figure 6. Storage basket.
Figure 3. Lathe assembly.
A
I

-14- Model G0733 (Mfg. Since 10/11)
Site Considerations
Weight Load
Refer to the Machine Data Sheet for the weight
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work-
piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main-
tenance and service described in this manual.
See below for required space allocation.
Physical Environment
The physical environment where the machine is
operated is important for safe operation and lon-
gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi-
cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20–95% (non-condensing); or the
environment is subject to vibration, shocks, or
bumps.
Electrical Installation
Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals,
or other hazards. Make sure to leave access to
a means of disconnecting the power source or
engaging a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.
81"
23
1⁄2"
19
1⁄2"
Figure 7. Minimum working clearances.

Model G0733 (Mfg. Since 10/11) -15-
Cleanup
Although not required, we recommend that you
mount your new machine to the floor. Because
this is an optional step and floor materials may
vary, floor mounting hardware is not included.
Generally, you can either bolt your machine to
the floor or mount it on machine mounts. Both
options are described below. Whichever option
you choose, we recommend leveling your machine
with a precision level.
Bolting to Concrete Floors
Lag shield anchors with lag screw and anchor
studs, as shown in Figure 8, are two popular
methods for anchoring an object to a concrete
floor. We suggest you research the many options
and methods for mounting your machine and
choose the best that fits your specific application.
Mounting
NOTICE
Anchor studs are stronger and more per-
manent alternatives to lag shield anchors;
however, they will stick out of the floor,
which may cause a tripping hazard if you
decide to move your machine.
Figure 8. Typical fasteners for mounting to
concrete floors.
Anchor Studs
Lag Shield Anchor
and Lag Screw
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven
-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac
-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
•
Disposable Rags
•
Cleaner/degreaser (WD•40 works well)
•
Safety glasses & disposable gloves
•
Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreas
-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
NOTICE
Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.

-16- Model G0733 (Mfg. Since 10/11)
Assembly
The G0733 and its com-
ponents are very heavy.
Get lifting help or use
power lifting equipment
such as a forklift to move
heavy items.
4. If bolting the lathe to the floor, skip to
Step 7. Otherwise, move the tailstock, tool
rest assembly, and headstock to one end of
the lathe bed (refer to OPERATIONS section,
beginning on Page 19, for instructions for
moving these components).
5. Use assistants to lift one end of the lathe
onto support blocks and stabilize the lathe
in preparation for installing the machine feet
(see Figure 11).
To assemble your lathe:
1. Position the right and left stand legs upright
approximately 57
3⁄4" apart, and get them
reasonably aligned (see Figure 9).
2. Carefully position the lathe onto the stands
and align the mounting holes.
3. Secure the lathe assembly to the stand legs
with (8) M8-1.25 x 35 cap screws and 8mm
lock washers, as shown in Figure 10.
Figure 10. Securing lathe assembly.
x 8
Figure 9. Supporting legs.
Figure 11. Legs supported for feet installation.
Support Block
6. Remove the top hex nut from the feet, then
insert the feet into the mounting holes of the
leg (see Figure 12). Do not tighten the hex
nuts yet. Remove the supporting block and
repeat Steps 5–6 on the other leg.
Figure 12. Machine feet installed.
57
3⁄4"

Model G0733 (Mfg. Since 10/11) -17-
7. Place the level on the lathe bed and make
necessary adjustments so that the bed is
level from side-to-side and front-to-back.
—If you are using the machine feet, adjust
the top and bottom hex nuts on each leg to
level the bed; then tighten the hex nuts to
secure these adjustments.
—If you are bolting your lathe to the floor, use
shims under the legs to level the bed; then
tighten the mounting fasteners.
8. Insert the tool rest into the tool rest base and
tighten the tool rest lock handle, as shown in
Figure 13.
9. Attach the storage basket to the leg using
the remaining (2) M8-1.25 x 35 cap screws,
(2) 8mm lock washers, and (2) M8-1.25 hex
nuts, as shown in Figure 14.
Figure 14. Attaching basket to leg.
Leg
Basket
Power Connection
After you have completed all previous setup
instructions and circuit requirements, the machine
is ready to be connected to the power supply.
To avoid unexpected startups or property dam-
age, use the following steps whenever connecting
or disconnecting the machine.
Connecting Power
Figure 15. Connecting power.
1. TurnthemachinepowerswitchOFF.
2.
 Insert the power cord plug into a
matching
power supply receptacle. The machine
is
nowconnectedtothepowersource.
Disconnecting Power
Figure 16. Disconnecting power.
1. TurnthemachinepowerswitchOFF.
2.
Graspthemoldedplugandpullit
completely
outofthereceptacle.Donotpullbythe
cord
asthismaydamagethewiresinside.
Figure 13. Tool rest installed on the tool rest
base.
Tool Rest
Tool Rest Base
Tool Rest
Lock Handle

-18- Model G0733 (Mfg. Since 10/11)
Before starting the lathe, make sure you
have performed the preceding assembly
and adjustment instructions, and you have
read through the rest of the manual and
are familiar with the various functions and
safety features on this machine. Failure to
follow this warning could result in serious
personal injury or even death!
Test Run
Once the assembly is complete, test run your
machine to make sure it runs properly and is
ready for regular operation. The test run consists
of verifying the following: 1) The motor powers up
and runs correctly and 2) the STOP button safety
feature works correctly.
If, during the test run, you cannot easily locate
the source of an unusual noise or vibration, stop
using the machine immediately, then review
Troubleshooting on Page 37.
If you cannot find a remedy, contact our Tech
Support at [phone] for assistance.
6. Verify that the machine is operating correctly
by turning the spindle direction switch to the
"R" position, and slowly turn the speed con-
trol knob to the right.
—When operating correctly, the machine
runs smoothly with little or no vibration or
rubbing noises.
— Investigate and correct strange or unusual
noises or vibrations before operating the
machine further. Always disconnect the
machine from power when investigating or
correcting potential problems.
7. Turn the speed control knob all the way
counterclockwise.
8. Turn the spindle direction switch to the "L"
position, and slowly turn the speed control
knob to the right.
—When operating correctly, the machine
runs smoothly with little or no vibration or
rubbing noises.
9. Move the spindle direction switch to the "O"
position, and push in the EMERGENCY
STOP button.
10. WITHOUT opening the EMERGENCY STOP
button, turn the spindle direction switch to the
"R" and "L" positions. The machine should
not start at either position.
—If the machine does not start, the
EMERGENCY stop button safety feature
is working correctly. The Test Run is com-
plete.
—If the machine does start (with the
EMERGENCY stop button pushed in),
immediately disconnect power to the
machine. The EMERGENCY stop button
safety feature is not working correctly. This
safety feature must work properly before
proceeding with regular operations. Call
Tech Support for help.
To test run your lathe:
1. Make sure you understand the safety instruc-
tions at the beginning of the manual and that
the machine is set up properly.
2. Make sure all tools and objects used during
setup are cleared away from the machine.
3. Connect the machine to the power source.
4. Set the spindle direction switch to the neutral
or "O" position and turn the speed control
knob all the way counterclockwise.
5. Squeeze the tab on the side of the
EMERGENCY STOP button in, lift the button
to open the switch cover, and press the green
ON button to start the machine.
