Grizzly T27338 User manual

COPYRIGHT © AUGUST, 2016 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BL18231 PRINTED IN CHINA
MODEL T27338
3-IN-1 FLOORING NAILER
OWNER'S MANUAL
(For models manufactured since 01/15)

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Model T27338 (Mfd. Since 01/15) -1-
SECTION 1: SAFETY
Safety Instructions for Pneumatic Tools
KEEP ALL SAFETY DEVICES IN PLACE
and in working order.
REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are
removed from tool before operation.
KEEP WORK AREA CLEAN. Cluttered
areas and benches invite accidents.
DO NOT USE IN DANGEROUS
ENVIRONMENT. Do not use pneumatic
tools in damp or wet locations, or where
any flammable or noxious fumes may
exist. Keep work area well lighted.
KEEP CHILDREN AND VISITORS
AWAY. All children and visitors should be
kept at a safe distance from work area.
MAKE WORKSHOP CHILD PROOF by
locking the shop and shutting off air
valves.
DO NOT FORCE TOOL. It will do the job
better and safer at the rate for which it was
designed.
USE THE RIGHT TOOL. Do not force tool
or attachment to do a job for which it was
not designed.
DO NOT USE UNDER INFLUENCE OF
DRUGS OR ALCOHOL.
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
The purpose of safety symbols is to attract your attention to possible hazard-
ous conditions. This manual uses a series of symbols and signal words which
are intended to convey the level of importance of the safety messages. The
progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident
prevention measures.
Indicates an imminent hazardous situation which, if
not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
NOTICE

Model T27338 (Mfd. Since 01/15)-2-
USE PROPER AIR HOSE for the tool.
Make sure your air hose is in good condi-
tion and is long enough to reach your work
area without stretching.
WEAR PROPER APPAREL. Do not wear
loose clothing, gloves, neckties, rings,
bracelets, or other jewelry which may get
caught in moving parts. Non-slip footwear
is recommended. Wear a protective hair
covering to contain long hair.
ALWAYS USE SAFETY GLASSES. Also
use a face or dust mask if operation is
dusty. Everyday eyeglasses only have
impact resistant lenses, they are NOT
safety glasses.
WEAR APPROVED HEARING
PROTECTION. Air escaping from pneu-
matic tools can exceed safe exposure
limits and may cause hearing damage
with prolonged exposure.
AWKWARD POSITIONS. Keep proper
footing and balance at all times when
operating tool. Do not overreach! Avoid
awkward hand positions that make work-
piece control difficult or increase the risk
of accidental injury.
REDUCE THE RISK OF
UNINTENTIONAL FIRING. Do not carry
tool with hand on trigger and always dis-
connect from air when not in use.
CHECK FOR DAMAGED PARTS.
Regularly inspect tool for any con-
dition that may affect safe operation.
Immediately repair or replace damaged or
mis-adjusted parts before operating tool.
DISCONNECT TOOLS before servic-
ing, changing accessories, or moving to
another location.
USE RECOMMENDED ACCESSORIES.
Consult this owner’s manual or the manu-
facturer for recommended accessories.
Using improper accessories will increase
the risk of serious injury.
NEVER LEAVE UNATTENDED TOOL
CONNECTED TO AIR. Disconnect the
air hose and do not leave tool until it is
relieved of any built up pressure.
NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL WHILE
UNSUPERVISED.
IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP USING
TOOL. Seek formal training or research
books or magazines that specialize in
pneumatic tools.
BE AWARE OF HOSE LOCATION WHEN
USING PNEUMATIC TOOLS. Hoses can
easily become a tripping hazard when laid
across the floor or spread out in a disorga-
nized fashion.
SECURE WORK. When required, use
clamps or vises to secure workpiece. A
secured workpiece protects hands and
frees both of them to operate the tool.
MAINTAIN TOOLS WITH CARE. Keep
tools lubricated and clean for best and
safest performance. Follow instructions
for lubricating and changing accessories.
Safety Instructions for Pneumatic Tools

Model T27338 (Mfd. Since 01/15) -3-
Additional Safety for Flooring Nailers
HAND AND FOOT INJURIES. Do not
place your hands or feet near or under
the nail point of entry. A nail/staple can
deflect and tear through the surface of the
workpiece, puncturing your hand or foot.
COMPRESSED AIR RATING. Do not
connect the nailer to compressed air that
exceeds 115 PSI.
ACTUATING MECHANISM. Be careful
not to bump actuating mechanism when
carrying or holding tool while connected
to air. If bumped, the tool may accidentally
shoot in dangerous direction.
SAFE HANDLING. Never point nailer at
others! Carry nailer only by handle, never
by any other part. Do not carry nailer by
air hose.
HOSE USAGE. Make sure your air hose
is designed for tool in use, is in good con-
dition, and is long enough to reach your
work area without stretching. However, an
overly long air hose in the work area may
be a tripping hazard.
OPERATING QUESTIONS. If you are not
sure about intended operation, stop using
nailer. Seek formal training, or research
books or magazines that specialize in
pneumatic tools.
NAILING. Avoid driving one nail/staple on
top of another. The nail/staple may deflect
and cause injury.
AIR SOURCE. Disconnect air source
before installing nails/staples, clearing
jam, moving to another work area, per-
forming maintenance, or when tool is
not in use. A nailer connected to air may
fire accidentally, causing serious personal
injury. DO NOT use check valve or any
other fitting that allows air to remain in
the tool.
COMBUSTIBLE GASES. Never connect
nailer to pressurized oxygen or other com-
bustible gases as a power source. Only
use regulated compressed air.
CLEANING. Never use gasoline or other
flammable liquids to clean nailer; vapors
in nailer will ignite by a spark and cause
it to explode.
TOOL SERVICE. If nailer is leaking air,
damaged, or not working correctly, DO
NOT use before repairing.
HAMMER SAFETY. DO NOT use hammer
with damaged handle or loose head. Make
sure nobody is standing close enough to
be hit when you swing hammer.
No list of safety guidelines can be
complete. Every shop environment
is different. Always consider safe-
ty first, as it applies to your indi-
vidual working conditions. Use this
and other tools with caution and
respect. Failure to do so could result
in serious personal injury, damage to
equipment, or poor work results.

Model T27338 (Mfd. Since 01/15)-4-
SECTION 2: INTRODUCTION
Manual Accuracy Contact Info
We stand behind our tools. If you have any
service questions, parts requests or gen-
eral questions about the product, please
call or write us at the location listed below.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
Email: [email protected]
We want your feedback on this manual.
What did you like about it? Where could it
be improved? Please take a few minutes to
give us feedback.
Grizzly Industrial, Inc.
C/O Technical Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
We are proud to offer this document with
your new tool! We've made every effort to
be exact with the instructions, specifica-
tions, drawings, and photographs of the
tool we used when writing this manual.
However, sometimes we still make an
occasional mistake.
Also, owing to our policy of continuous
improvement, your tool may not exactly
match the manual. If you find this to be
the case, and the difference between
the manual and tool leaves you in doubt,
immediately call our technical support for
updates or clarification.
For your convenience, we post all avail-
able documentation on our website at
www.grizzly.com. Any updates to this doc-
ument will be reflected on our website as
soon as complete.

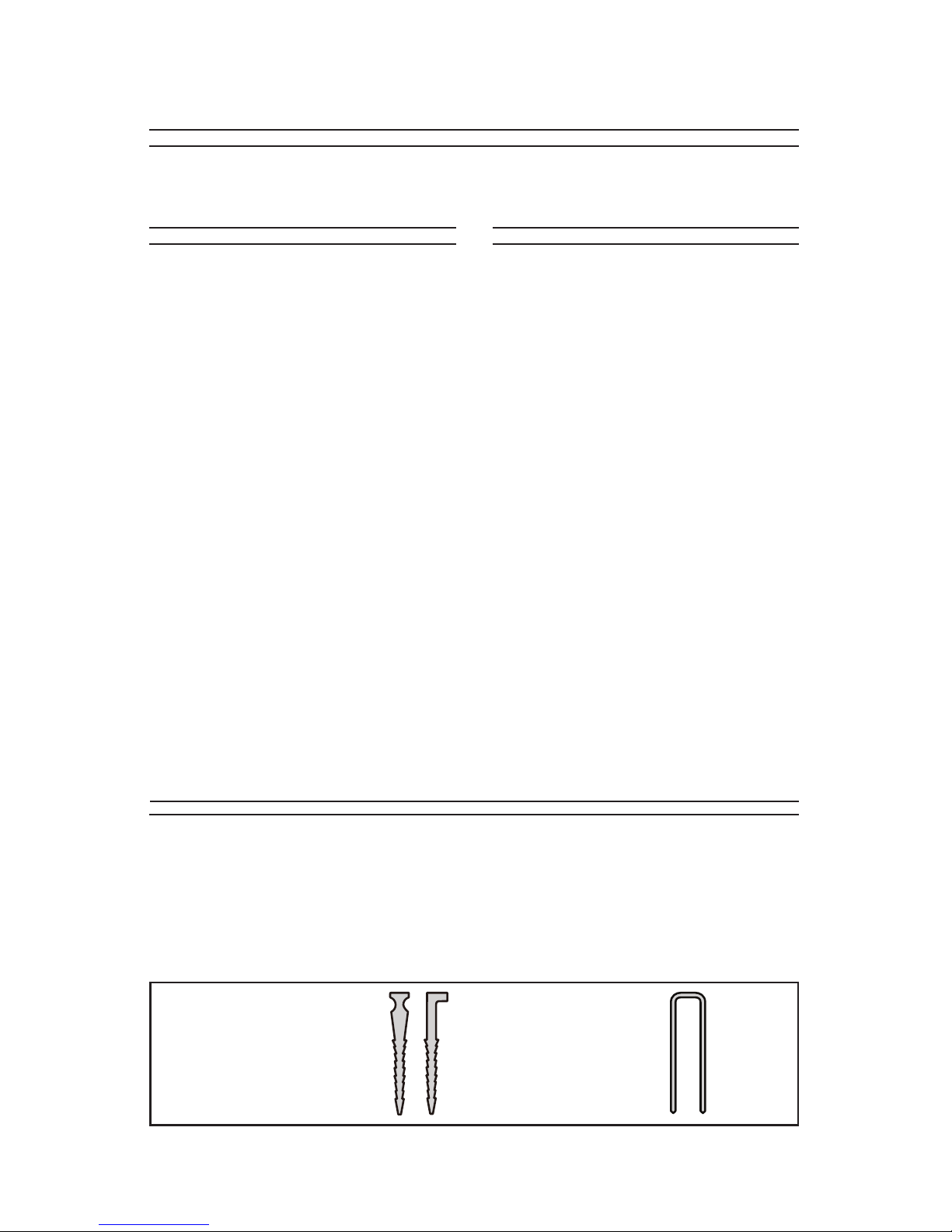

Weight ......................................................................................................................11.2 lbs.
Length x Width x Height ................................................................................20 x 31⁄2 x 23 in.
Operating Pressure ............................................................................................. 70–115 PSI
Magazine Capacity ................................................................ 100 Cleat Nails or 120 Staples
Fastener Length ........................................................................................................11⁄2–2 in.
Fastener Size ....16-Ga. T-Cleat Nails, 16-Ga. L-Cleat Nails, 15.5 Ga. 1⁄2 in. Crown Staples
Specifications
16 Ga.
L- or T-Cleat Nail
11/2"–2" Long
(100 Pc. Capacity)
15.5 Ga.
1/2" Crown Staple
11/2"–2" Long
(120 Pc. Capacity)

Model T27338 (Mfd. Since 01/15) -5-
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
using tool.
Become familiar with the names and locations of the controls and features shown below to
better understand the instructions in this manual.
Handle
Handle Grip
Air Inlet/Quick-Connect Fitting
Magazine
Cover
Magazine
Pusher
Base
Guide Plate
Head Cap Magazine
Lock Button

Model T27338 (Mfd. Since 01/15)-6-
SECTION 3: SETUP
Unpacking Inventory
Model T27338 Inventory (Figures 1-2)
A. Flooring Nailer Body .......................... 1
B. Arm .................................................... 1
C. Safety Glasses ................................... 1
D. Hammer ............................................. 1
E. Closed-End Wrench 13/16mm ........... 1
F. Bottle for Oil ....................................... 1
G. L-Bolts M8-1.25 .................................. 2
H. Lock Nuts M8-1.25 ............................. 4
I. Guide Plate for 1⁄2" Hardwood Floors . 1
J. Flat Washers 8mm ............................. 4
K. Hex Wrenches 2.5, 3, 4, 5mm .....1 Ea.
Figure 1. Model T27338 inventory.
B
C
D
A
Figure 2. Model T27338 additional
inventory.
E
GI
H
J
K
F
Your tool was carefully packaged for
safe transportation. Remove the packag-
ing materials from around your tool and
inspect it. If you discover the tool is dam-
aged, please immediately call Customer
Service at [phone] for advice.
Save the containers and all packing mate-
rials for possible inspection by the car-
rier or its agent. Otherwise, filing a freight
claim can be difficult.
When you are completely satisfied with
the condition of your shipment, inventory
the contents.
If any non-proprietary parts are missing
(e.g., a nut or a washer), we will gladly
replace them; or for the sake of expedi-
ency, replacements can be obtained at
your local hardware store.
This tool presents serious injury
hazards to untrained users. Read
through this entire manual to
become familiar with the controls
and operations before starting the
tool!

Model T27338 (Mfd. Since 01/15) -7-
Compressed Air
System
The Model T27338 is designed to be oper-
ated at 70-115 PSI using clean, dry, regu-
lated, compressed air. DO NOT exceed
the 115 PSI maximum operating pres-
sure for your model. Before using, regu-
late the air pressure on your air compres-
sor to 70 psi.
An in-line filter/lubricator/regulator unit,
depicted in Figure 3, can be installed and
should be located as close to the nailer as
possible.
The filter/lubricator/regulator unit will
protect your tool from damaging water
build-up, allow you to adjust and maintain
constant air pressure to your tool, and
save you the inconvenience of having to
manually lubricate your tool every time
you use it.
Check the current Grizzly catalog for avail-
ability of this unit. If you plan on install-
ing a filter/lubricator/regulator unit in your
compressed air system, always follow the
connection instructions that come with
the unit.
Quick
Connector
Quick
Coupler
Air Hose Quick
Coupler
Quick
Connector
Lubricator
Filter
Regulator
Air
Compressor
Your
Tool
Figure 3. Typical filter/lubricator/regulator installation order.
Exceeding maximum permissible
operating pressure may cause nailer
to explode, blowing metal fragments
in all directions. To protect yourself
and bystanders from serious personal
injury, DO NOT allow your air com-
pressor to exceed the recommend-
ed pressure when connected to this
nailer!

Model T27338 (Mfd. Since 01/15)-8-
Assembly
To assemble flooring nailer:
1. Place handle against flooring nailer
body, as shown in Figure 4, making
sure it is centered from top to bottom.
Figure 6. Handle installed onto nailer.
3. Repeat Step 2 to install remaining
L-bolt. The handle should appear like
the one in Figure 6 when installed.
Figure 4. Handle placed against flooring
nailer.
Handle
2. Slide an L-bolt into mounting hole and
slot in handle and secure with (2) 8mm
flat washers and (2) M8-1.25 lock nuts,
as shown in Figure 5.
Figure 5. L-Bolt installed.
x 2
Tip: Place thread locking compound on
lock nuts before threading onto L-bolts,
to prevent nuts from loosening.
L-Bolt

Model T27338 (Mfd. Since 01/15) -9-
Testing Firing
Mechanism
Continually firing nailer when empty
can cause internal damage. Only fire
empty nailer once or twice to ensure
it is functioning properly.
Point nailer at ground when con-
necting to air source. NEVER aim
in direction of another person or
body part.
The nailer should not fire when connected
to the air source unless it is fired by hitting
the head cap with the hammer. If the firing
mechanism is not working properly, the
nailer could fire immediately when con-
nected to the air source.
Before loading the nailer, check the firing
mechanism to ensure safe use.
To check firing mechanism:
1. DISCONNECT NAILER FROM AIR
SOURCE!
2. Make sure magazine is empty and con-
tains no nails/staples.
3. Place flooring nailer on ground with
nailer guide plate facing down, then
connect air hose. The nailer should not
fire.
— If it does not fire, proceed to Step 4.
— If nailer does fire, immediately dis-
connect nailer from air source and
call [phone] for Technical
Support.
4. Place nailer guide plate along edge
of a scrap piece of wood flooring that
is clean and free of any knots, nails,
or other foreign objects, and properly
secured.
Note: Nailer should sit flush along
square edge of scrap piece.
5. While holding handle with one hand,
strike head cap with included ham-
mer using moderate force. The nailer
should fire.
— If it does fire, then firing mecha-
nism is working properly. Test is
complete.
— If it does not fire, then firing mecha-
nism may not be working correctly or
may need service. Disconnect nailer
from air source and please call (570)
546-9663 for technical support.

Model T27338 (Mfd. Since 01/15)-10-

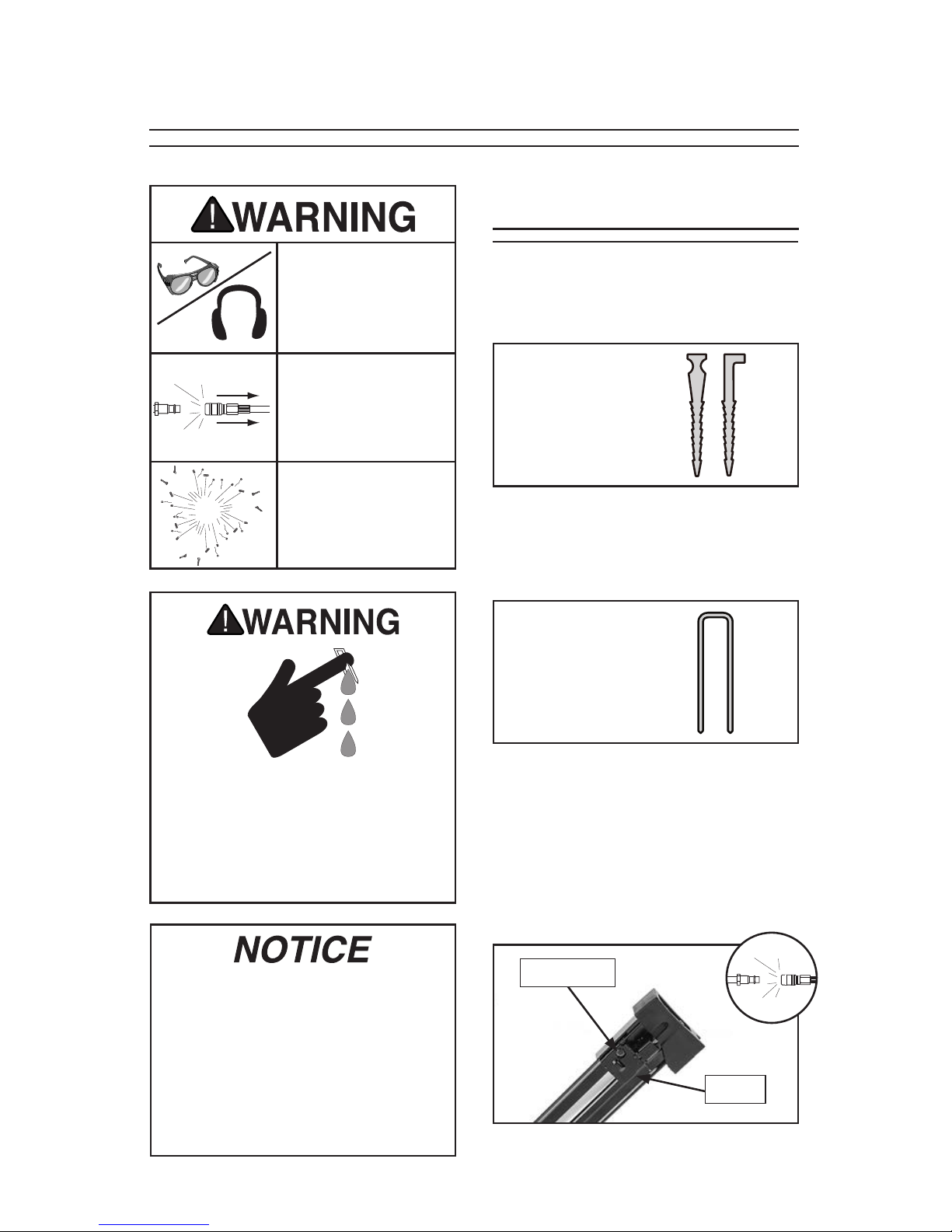

SECTION 4: OPERATIONS
If you have never used this type
of tool or equipment before, WE
STRONGLY RECOMMEND that you
read books, trade magazines, or get
formal training before beginning any
projects. Regardless of the content
in this section, Grizzly Industrial
will not be held liable for accidents
caused by lack of training.
ACCIDENTAL
START HAZARD!
Disconnect before
service or fastener
replacement.
AIR PRESSURE
HAZARD!
Never exceed max
PSI rating for tool.
EYE/EAR INJURY
HAZARD!
Wear protective
equipment when
using this tool.
Deflection due to material irregulari-
ties can cause puncture injuries to
improperly placed hands or body
parts. Always position hands and
body away from fastener trajectory
and deflection paths.
Loading Nailer
The Model T27338 shoots both nails and
staples.
Nail Replacement Guidelines
16 Ga.
L- or T-Cleat Nail
11/2"–2" Long
(100 Pc. Capacity)
15.5 Ga.
1/2" Crown Staple
11/2"–2" Long
(120 Pc. Capacity)
16 Ga.
L- or T-Cleat Nail
11/2"–2" Long
(100 Pc. Capacity)
15.5 Ga.
1/2" Crown Staple
11/2"–2" Long
(120 Pc. Capacity)
Note: Use 11⁄2" nails to install 1⁄2"- or 5⁄8"-
thick hardwood flooring. Use 2" nails to
install 3⁄4"- or 25⁄32"-thick hardwood flooring.
Staple Replacement Guidelines
Figure 7. Location of pusher, lock button.
Lock Button
Pusher
To load nailer:
1. DISCONNECT NAILER FROM AIR
SOURCE!
2. Pull magazine pusher back completely,
and secure pusher with lock button, as
shown in Figure 7.

Model T27338 (Mfd. Since 01/15) -11-

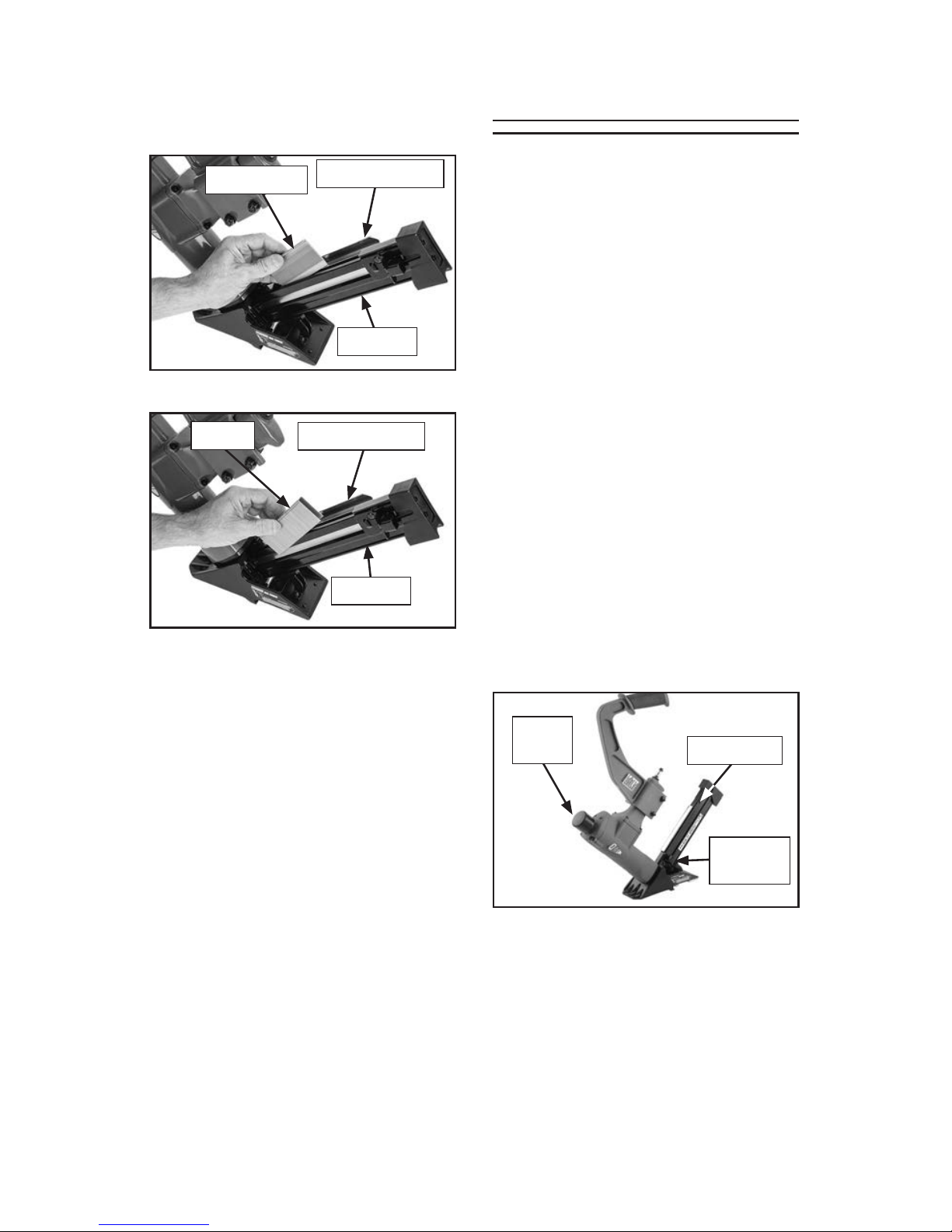

3. Open magazine cover and slide strip of
nails or staples pointed-end down into
magazine, as shown in Figures 8–9.
Changing Guide Plate
The Model T27338 comes with a pre-
installed 25⁄32" guide plate and a 1⁄2"
un-installed guide plate. The 25⁄32" guide
plate is used for 3⁄4" or 25⁄32" hardwood floor-
ing; the 1⁄2" guide plate is used for 1⁄2" or 5⁄8"
hardwood flooring.
Tool Needed Qty
Hex Wrench 4mm ..................................... 1
To change guide plate:
1. DISCONNECT NAILER FROM AIR
SOURCE!
2. Pull magazine pusher back (see
Figure 10), secure it with lock button,
remove any nails/staples from maga-
zine, then unlock pusher and slide it
forward.
3. Place scrap wood under nose of nailer
and hit head cap (see Figure 10) to
make sure magazine is empty.
Figure 10. Location of head cap.
Lock Button
Head
Cap
Magazine
Pusher
Figure 8. Loading L-cleat nails.
Magazine
Figure 9. Loading staples.
4. Push lock button and allow pusher
to slide nails/staples toward nose of
nailer.
Staples
L-Cleat Nails
Magazine Cover
Magazine
Magazine Cover

Model T27338 (Mfd. Since 01/15)-12-
4. Place nailer on side to access guide
plate (see Figure 11).
5. Remove (3) flat head cap screws that
secure guide plate to bottom of nailer
(see Figure 11), and remove guide
plate.
Figure 11. Removing guide plate.
6. Install replacement guide plate with flat
head cap screws removed in Step 5.
Operating Nailer
Read the safety instructions in this
manual before operating the nailer.
If an automatic air line oiler is not used,
before operating the nailer, place several
drops of pneumatic tool oil into the quick-
connect fitting.
To operate nailer:
1. Install correct guide plate for size of
flooring material (refer to Changing
Guide Plate on Page 11).
2. Install nails/staples in magazine (refer
to Loading Nailer on Page 10).
3. Place flooring nailer on ground with
nailer guide plate facing down, then
connect air source to quick-connect
fitting.
4. Position flooring strip and lightly tap it
into place with metal side of hammer.
DO NOT use nailer to position flooring
strips.
Note: Test nailer on sample flooring
strip when installing pre-finished floor-
ing to make sure nailer does not dam-
age finish. Replace base plate if it is
damaged and marring flooring finish.
IMPACT INJURY!
Point nailer at ground when con-
necting to air source. To prevent
serious injury, NEVER aim in direc-
tion of another person or body part.
Guide Plate
Flat Head
Cap Screw

Model T27338 (Mfd. Since 01/15) -13-

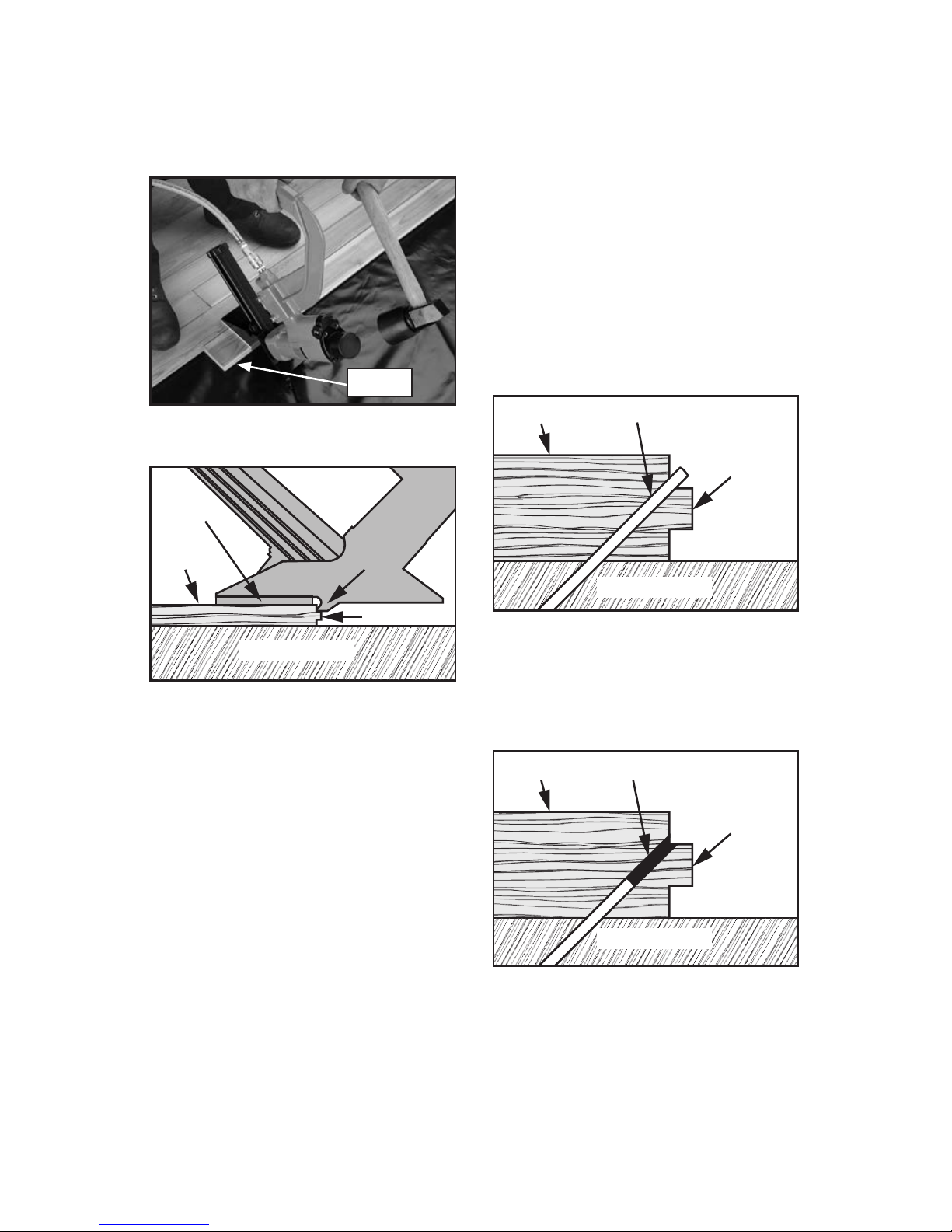

7. Check nail/staple for proper depth and
placement. The goal is to insert a nail /
staple flush with tongue, or just below
tongue.
— If depth is satisfactory, then proceed
with your project.
— If depth is too shallow (see
Figure 13), then slightly increase
air pressure and repeat Steps 4–6.
Note: If necessary, use a center punch
to seat the nail/staple more deeply.
5. Place nailer with guide plate on floor-
ing, as shown in Figures 12–13. Make
sure cleat on bottom of nailer is posi-
tioned above tongue in flooring.
Figure 12. Typical example of operating
nailer.
Tongue
Flooring
Guide
Plate
Cleat
Tongue
Side View
Wood Subfloor
Flooring
Guide
Plate
Cleat
Tongue
Side View
Wood Subfloor
Figure 13. Correct setup for operating
nailer.
6. Using rubber end of included hammer,
strike head cap with light/medium force
to shoot nail/staple into wood. DO NOT
use multiple strikes to force nail into
wood. This will cause a jam or a rico-
chet, and possible injury.
Figure 14. Example of nail/staple depth
too shallow.
Staple/Nail
Tongue
Flooring
Staple/Nail
Tongue
Flooring
Wood Subfloor
Wood Subfloor
Side View
Staple/Nail
Tongue
Flooring
Wood Subfloor
Side View
Side View
Staple/Nail
Tongue
Flooring
Staple/Nail
Tongue
Flooring
Wood Subfloor
Wood Subfloor
Side View
Staple/Nail
Tongue
Flooring
Wood Subfloor
Side View
Side View
Figure 15. Example of nail/staple depth
too deep.
Note: Nailing/stapling depth is not
always consistent due to variations in
the flooring material. Sometimes it will
be necessary to tap a few nails/staples
flush with a hammer and a punch.
— If depth is too great (see Figure
15), then slightly decrease air pres-
sure and repeat Steps 4–6.

Model T27338 (Mfd. Since 01/15)-14-

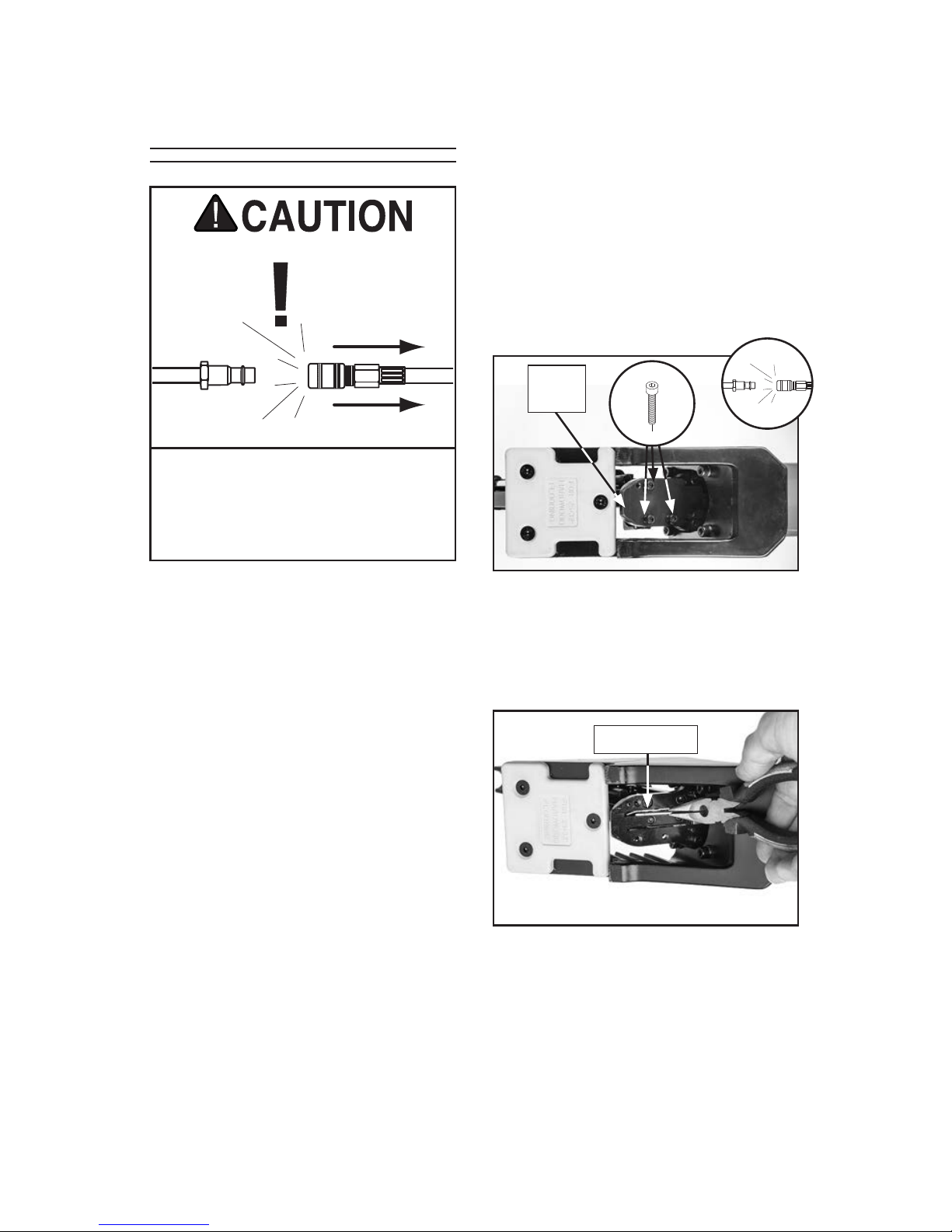

This nailer may accidentally fire if
you work on it without disconnecting
it from air source. Always disconnect
air from nailer whenever clearing a
jammed nail/staple!
Clearing Jammed
Nails
6. Remove jammed nail (see Figure 17)
with pair of needle-nose pliers, then
replace driver guide.
Figure 16. Cap screws securing driver
guide.
7. Load new nail/staple magazine that
only contains clean, undamaged nails/
staples. DO NOT use dirty or damaged
nails/staples!
Figure 17. Jammed nail in discharge area.
Tools Needed Qty
Hex Wrench 4mm ..................................... 1
Needle-Nose Pliers .................................. 1
If the nailer does not fire nails/staples
when you strike the head cap, it can indi-
cate the nailer has jammed. A jammed nail
must be cleared before using the nailer
again.
To clear jammed nail from discharge
area:
1. DISCONNECT NAILER FROM AIR
SOURCE!
2. Pull magazine loader all the way back,
lock in top position, then remove nails/
staples.
3. Place scrap wood under nose of nailer
and strike head cap (see Figure 10) to
ensure magazine is empty and make
sure all compressed air is expended.
4. Jammed nail/staple should now be vis-
ible; use needle nose pliers to remove
it from discharge area.
— If nail cannot be removed, continue
to Step 5.
— Continue to Step 7 when jammed
nail is removed.
5. Remove three cap screws shown in
Figure 16 that secure driver guide.
Driver
Guide
Jammed Nail

Model T27338 (Mfd. Since 01/15) -15-
SECTION 5: ACCESSORIES
order online at www.grizzly.com or call 1-800-523-4777
H4979—Twin Cup Hearing Protector
Optime III is a super-muff, and has been
developed for use in extremely noisy envi-
ronments. The hearing protection is based
on a technology with a double casing that
minimizes resonance in the holder casing.
Figure 19. Hearing protection.
T20451—"Kirova" Clear Safety Glasses
H7194—Bifocal Safety Glasses 1.5
H7195—Bifocal Safety Glasses 2.0
H7196—Bifocal Safety Glasses 2.5
Figure 18. Assorted safety glasses.
Installing unapproved accessories
may cause nailer to malfunction,
resulting in serious personal injury
or tool damage. To reduce this risk,
only install accessories recom-
mended for this tool by Grizzly.
Refer to our website or latest
catalog for additional recommended
accessories.
T22456—Bostitch Pneumatic Lubricant
This Premium Grade Pneumatic Tool
Lubricant is specially formulated for pneu-
matic tools and blended using premium
grade turbine oil. Contains rust and oxida-
tion inhibitors to prevent degradation of
tool components.
Figure 20. Pneumatic tool lubricant.
T20451
H7195 H7196
H7194

Model T27338 (Mfd. Since 01/15)-16-
D2530—Steelex 4-Pc. Nail & Center
Punch Set
Chrome vanadium steel nail sets are
brightly color coded for size identification
and easy protection against misplacement
on the bench or job site. Four sizes: 1⁄32",
1⁄16", 3⁄32" and 1⁄8".
Figure 21. D2530 Nail & Center Punch
Set.
T22721—11⁄2" Hardwood Flooring
L-Nails, 1000 Pc.
These finish coated cleats are packed
in quantities of 1,000 per box, which is
enough for 200 square feet of flooring.
Figure 23. T22721 11⁄2" Flooring Nails.
H6143—21⁄2" Finish Nailer
This Finish Nail Gun drives 16-gauge fin-
ish nails from 11⁄4" to 21⁄2" long. Built for
tough use, the large cast aluminum body
provides plenty of power for the hardest
woods. Features include a 360º exhaust
port, comfort grip rubber handle, eco-
nomical air consumption with low noise,
narrow nose for tight spots, and a quick
jam release mechanism. Great for all trim
applications.
Figure 22. H6143 Finish Nailer.
T22325—Bostitch 12" Claw Bar
Designed for the professional or serious
do-it-yourselfer, this 12-Inch Bostitch Claw
Bar is made of forged, high-carbon spring
steel for extreme strength and durabil-
ity. Its flat striking surface and polished
beveled claws allow this tool to be driven
deeply under hard to reach embedded
nails. As a result, this an ideal claw bar for
precision prying in applications such as
demolition, roofing, flooring and framing.
Figure 24. T22325 Claw Bar.

Model T27338 (Mfd. Since 01/15) -17-
SECTION 6: MAINTENANCE
Disconnect the nailer from the air source
before cleaning. Use compressed air to
clean the magazine and discharge area.
Do not allow dust, chips, sand, etc. into
the air connectors or into the body of the
nailer; this may result in leaks and damage
to the nailer and the air couplings.
Never use gasoline or other flamma-
ble liquids to clean this tool. Vapors
in tool may ignite, causing tool to
explode. Ignoring this warning may
lead to serious personal injury or
even death!
Place two to three drops of pneumatic
tool oil in the nailer air inlet (as shown in
Figure 25) before every use and after
every 2 hours of continuous use. Wipe off
any excess oil near the nailer exhaust to
avoid dust build-up.
Figure 25. Lubricating nailer via air inlet.
An alternative to manual oiling would be
to simply install a lubricator in your air
compressor line. Refer to Page 7 for addi-
tional information. If your air compressor
line already has a lubricator, then regular
lubrication of your nailer will not be neces-
sary. Just make sure there is always oil in
the lubricator.
LubricatingCleaning

Model T27338 (Mfd. Since 01/15)-18-
SECTION 7: SERVICE
Review the troubleshooting and procedures in this section if a problem develops with your
tool. If you need replacement parts or additional help with a procedure, call our Technical
Support.
Always disconnect air from tool
whenever servicing! During mainte-
nance, tool connected to air may fire
accidentally, causing serious per-
sonal injury!
To replace piston:
1. DISCONNECT NAILER FROM AIR
SOURCE!
2. Remove all nails/staples from maga-
zine and remove guide plate.
3. Remove (4) cap screws shown in
Figure 26 that secure base.
Replacing Pistons/
O-Rings
If you use yo u r n ail er day in a nd day out , p is -
ton repair assemblies (part PT27338026)
and O-ring kits (part PT27338061) are
cheap insurance against wasted down
time and lost profits, in the event that
the piston assembly or O-rings become
worn out. Air leaking from vents under the
head cap can indicate O-rings need to be
replaced.
Figure 26. Location of cap screws that
secure base.
Disconnect air from nailer whenever
servicing! During maintenance, a
nailer connected to air may fire
accidentally, causing serious injury!
Items Needed Qty
Hex Wrench 3mm ..................................... 1
Hex Wrench 4mm ..................................... 1
Hex Wrench 5mm ..................................... 1
Piston Replacement Assembly ................. 1
Replacement O-Rings .............................. 2
Snap-Ring Pliers ...................................... 1
Base
4. Carefully slide base off of driver and
remove large washer and rubber bum-
per (see Figure 27).
Figure 27. Bumper and washer.
Washer
Driver
Bumper
