Grundfos CIM 290-MA LPWAN GiC User manual

CIM 290-MA LPWAN GiC
Cellular module
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

CIM 290-MA LPWAN GiC
English (GB)
Installation and operating instructions ..................................4
3
Table of contents

English (GB) Installation and operating instructions
Original installation and operating instructions
Table of contents
1. General information ............. 4
1.1 Hazard statements .............. 4
1.2 Notes ..................... 4
2. Abbreviations ................ 5
3. Product introduction ............ 5
3.1 Product overview ............... 6
3.2 Intended use ................. 7
3.3 Applications .................. 7
3.4 Supported products .............. 7
3.5 RS-485 communication interface....... 7
3.6 LEDs ..................... 7
4. Installation requirements .......... 9
4.1 Security .................... 9
4.2 RF safety ................... 9
4.3 External cellular antenna requirements . ..10
4.4 Radio frequency radiation exposure
information (for Canada and US only) ....10
4.5 EMC statements for USA ...........10
5. Installation ..................11
5.1 Fitting a cellular antenna ...........11
5.2 Connecting the RS-485 communication
interface ....................11
5.3 Activating BLE ................11
5.4 Configuration via Grundfos GO........11
5.5 Local firmware update ............11
5.6 Factory reset .................12
6. Electrical connection ............12
6.1 Connecting the power supply.........12
7. Startup ....................12
8. Fault finding .................12
8.1 LED1 and LED2 remain off when the
power supply is connected ..........12
8.2 LED2 for internal communication is
flashing red ..................12
8.3 LED2 for internal communication is
permanently red................13
8.4 LED1 is flashing yellow ............13
8.5 LED3 for RS-485 interface is flashing red ..13
8.6 No data is coming from the product .....13
8.7 No BLE connection between the CIM
module and the smart phone .........14
9. Technical data ................14
10. Decommissioning ..............15
11. Disposing of the product ..........15
12. Document quality feedback ........15
1. General information
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
4
English (GB)

If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
2. Abbreviations
BLE Bluetooth Low Energy
CIM Communication Interface
Module
CIU Communication Interface
Unit
GENI
Grundfos Electronics
Network
Intercommunication.
Proprietary Grundfos
fieldbus protocol
GDP Grundfos iSOLUTIONS
Device Protocol
GiC Grundfos iSOLUTIONS
Cloud
GND Ground
LED Light Emitting Diode
LTE-M
Long-Term Evaluation
Machine. Radio
communication
technology standard
IMEI
International Mobile
Equipment Identity.
Unique address for a
piece of hardware
PELV Protective Extra Low
Voltage
RSI Renewable Solar Inverter
3. Product introduction
The CIM module enables cellular data transmission
based on LTE-M technology between the Grundfos
iSOLUTIONS cloud and a Grundfos host product with
a CIM GENIbus interface slot, or with a connected
Modbus RTU slave device that is supported by the
Grundfos iSOLUTIONS cloud.
The Grundfos iSOLUTIONS Cloud requires a
subscription.
The CIM 290 module can be bought separately and
must be fitted in a CIU unit or in another host product
to enable cellular communication.
In this document, "Grundfos product" refers to one or
more Grundfos products, depending on the actual
application.
5
English (GB)

3.1 Product overview
12
5
4
8 3 7
6
TM084699
CIM 290 front view
8 9
TM084700
CIM 290 rear view
Pos. Designation Description
1 LED1 Y/G/R status indicator light for cellular communication
2 LED2 R/G/B status indicator light for Grundfos product communication
3 LED3 R/G status indicator light for RS-485
4 SW1 Reset device button
5 SW2 Bluetooth pairing button
6 SW3 RS-485 Line termination switch
7 RS-485 GENIbus / Modbus RTU connection
8 ANT Antenna connector
9 SIM SIM card slot with preinstalled SIM card
6
English (GB)

3.2 Intended use
CIM 290-MA LPWAN GIC enables data transmission
based on LTE-M technology between the Grundfos
iSOLUTIONS cloud (GiC) and a Grundfos host
product with a CIM GENIbus interface slot, or to a
connected Modbus RTU slave device via the external
RS-485 port which is supported by the Grundfos
iSOLUTIONS cloud.
The products supported depend on the implemented
drivers on the Grundfos iSOLUTIONS cloud. Contact
Grundfos for the latest information on the supported
products.
Configuration of CIM 290 can be done via Grundfos
GO using BLE wireless communication.
For detailed instructions about mounting and
retrofitting the CIM module on pumps, refer to the
Installation and operating instructions of the Grundfos
host product.
3.3 Applications
CIM (Communication Interface Module) 290 4G (LTE-
M) cellular-based interface transmits data from a host
product via cellular LTE-M technology to a Grundfos
iSOLUTIONS Cloud application, for
example, Grundfos Connect. A separate contract may
be required for data hosting and cellular data
traffic. The product requires a connected LTE
antenna. The CIM module is preconfigured with a
SIM card that has a Grundfos specific LTE-M roaming
profile.
Information about how to mount a CIM interface onto
a Grundfos product is described in the Installation
and operating instructions of the product itself.
Retrofitting of the CIM 290 is described in the
Installation and operating instructions of the Grundfos
product.
3.4 Supported products
Contact Grundfos for the latest information on which
products are supported.
3.5 RS-485 communication interface
A Modbus RTU slave device can be connected to the
connector of the RS-485 communication interface.
The communication settings for baud rate, start/stop
bits and parity bits can be configured via the BLE
interface and Grundfos GO, or from the cloud.
3.6 LEDs
CIM 290 cellular communication, LED1
TM084701
1
2
3
4
5
1 s
3 s
TM084876
Pos. Colour Description
1Flashing
yellow
Searching for cellular
network
2
Pulsating
yellow (single
pulse)
Cellular network active
3Permanent
green
Data exchange to Grundfos
iSOLUTIONS Cloud
4 - For future use
5 - For future use
7
English (GB)

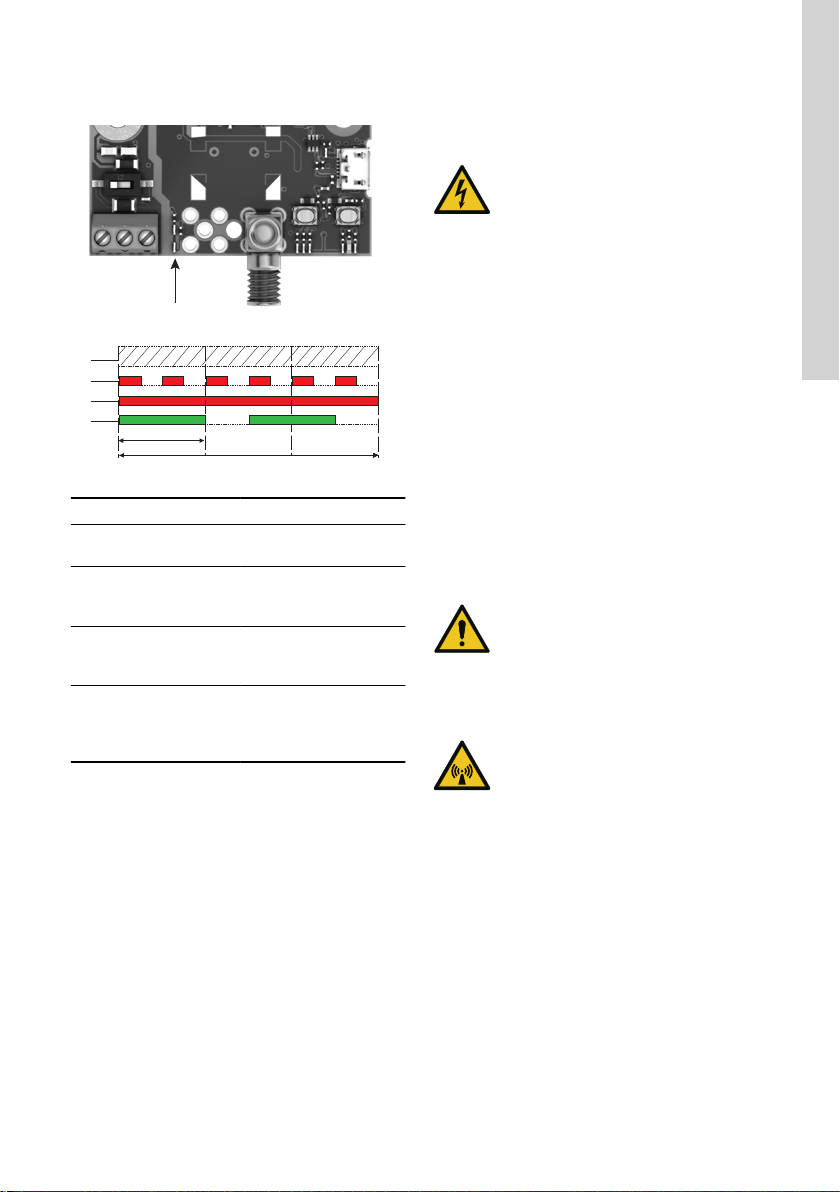

Internal communication to product, LED2
TM084702
1
2
3
4
5
6
1 s
3 s
TM084877
Pos. Colour Description
1Pulsating red (single
pulse)
CIM 290 is
commissioned, but
communication with
the product is lost
2Pulsating red (single
pulse)
Product profile not
downloaded from
Grundfos Remote
Management/
Grundfos
iSOLUTIONS Cloud
3 Permanent green
Internal
communication with
Grundfos product is
stable
4Pulsating blue (single
pulse)
Confirming BLE
connection
5 Permanent blue BLE communication
active
6 -
LED is switched
off during firmware
upgrades
Firmware upgrade, LED1 and LED2
TM084703
1
2
3
1 s
3 s
TM084878
Pos. Colour Description
1Flashing red and
green
Firmware upgrade in
progress, LED2
2 - For future use
3 - For future use
8
English (GB)

RS-485 Modbus master, LED3
TM084704
1
2
3
4
3 s
1 s
TM085117
Pos. Colour Description
1 - RS-485 is not used: LED
is off
2Pulsating red
(single pulse)
RS-485 Modbus RTU
(Master): communication
failure
3 Permanent red
RS-485 Modbus RTU
(Master): configuration
error
4 Flashing green
RS-485 Modbus RTU
(Master):
Modbus is sending
or receiving data
Related information
6.1 Connecting the power supply
8.1 LED1 and LED2 remain off when the power
supply is connected
8.2 LED2 for internal communication is flashing red
8.3 LED2 for internal communication is permanently
red
8.4 LED1 is flashing yellow
8.5 LED3 for RS-485 interface is flashing red
4. Installation requirements
WARNING
Electric shock
Death or serious personal injury
‐Connect the CIM 290 only to a
Grundfos host product with a dedicated
CIM interface.
‐Installation must be carried out by
qualified and trained experts.
4.1 Security
The CIM module provides a secure way of performing
cellular data transmission to the cloud. It uses
encryption and mutual authentication based on X.509
certificates for access authentication. The CIM
module does not accept any incoming connection
attempts from the cellular network.
The CIM module acts as fieldbus master for the
GENIbus and Modbus RTU protocols. These
protocols use the underlying RS-485 communication.
As this does not have any built-in security, it is highly
recommended to allow physical access to the
installation to authorized personnel only, and
otherwise adhere to the initiatives suggested in the
local risk assessment if available.
4.2 RF safety
Installers and end users must be provided
with these installation and operating
instructions and operating conditions for
satisfying RF exposure compliance.
WARNING
Radiation
Minor or moderate personal injury
‐The antenna used for the product in
which the CIM module is fitted must be
installed with a separation distance of
at least 20 cm (0.66 feet) from
persons, and must not be co-located or
operated in conjunction with any other
antenna or transmitter.
Interference of other electronic equipment may occur
if the equipment is inadequately protected.
9
English (GB)

4.3 External cellular antenna requirements
The combined gain of the cable and
antenna solution used for this product
must not exceed 2.0 dBi.
The installation room must have stable
network coverage.
The external antenna must be installed
outside the control cabinet.
The external antenna must have an SMA
connector.
An external antenna must always be
connected to the CIM 290.
4.4 Radio frequency radiation exposure
information (for Canada and US only)
CAUTION
Radiation
Minor or moderate personal injury
‐This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. This
equipment must be installed and
operated with a minimum distance of
20 cm (0.66 feet) between the radiator
and your body.
‐This transmitter must not be co-located
or operated in conjunction with any
other antenna or transmitter.
Model: CIM 290-MA LPWAN GIC
The host product needs to be labelled
with the following information:
HMN name:______________________
Contains FCC ID: OG3-CIM290LPWAN
Contains IC: 10447A-CIM290LPWAN.
The enclosed FCC label must be attached near the
nameplate on the product in which the CIM module is
installed. The label must be visible and easily
accessible. Remember to write the host marketing
name (HMN) on the label according to the Installation
and operating instructions of the host product.
Check the manual of the host pump and make sure
that CIM 290 is supported.
This device complies with Part 15 of the
FCC Rules and with license exempt RSSs
of Innovation, Science & Economic
Development Canada.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications made to this
equipment not expressly approved by
Grundfos may void the FCC authorization
to operate this equipment.
4.5 EMC statements for USA
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
10
English (GB)

5. Installation

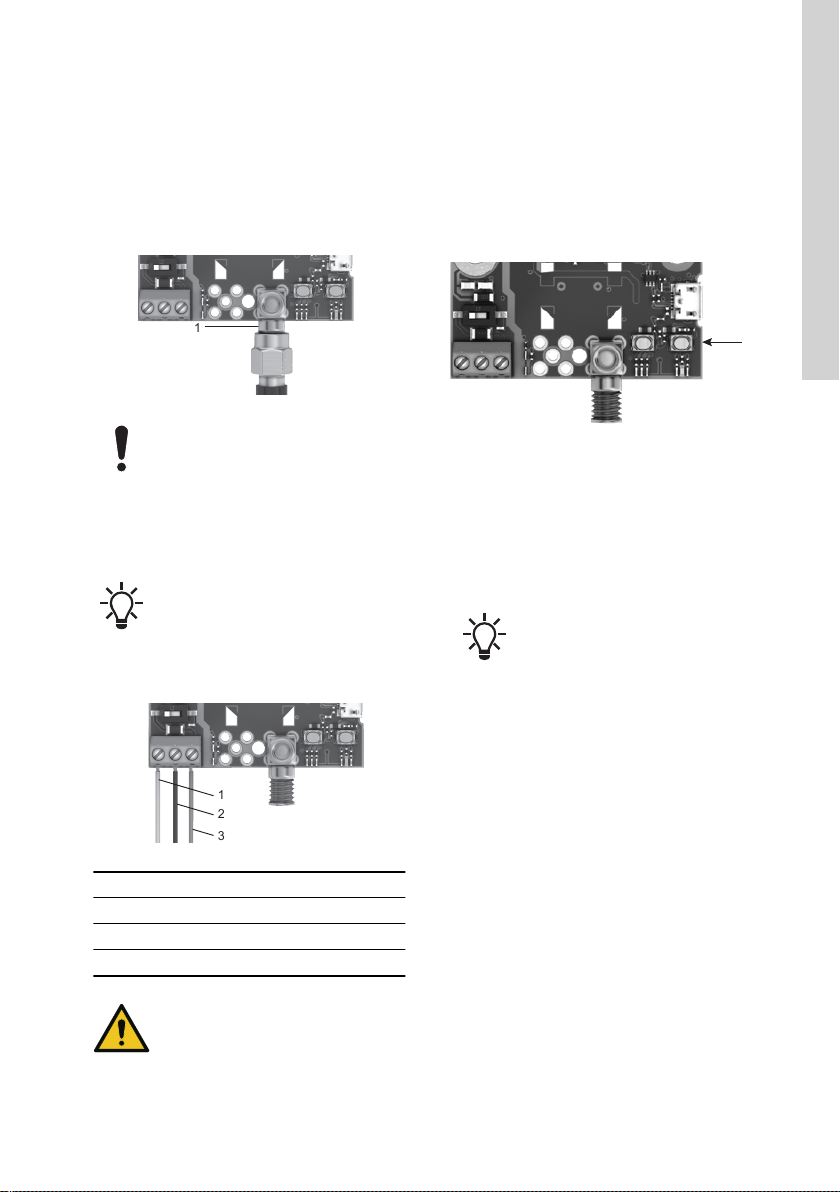

5.1 Fitting a cellular antenna
The antenna for CIM 290 must be connected to the
module to establish a connection to the cellular
network.
1. Connect the external antenna cable to the SMA
connector (pos. 1) of the CIM 290 manually.
1
TM084852
The external antenna must always be
connected to the CIM 290.
5.2 Connecting the RS-485 communication
interface
1. Connect the wires according to the below table.
SW2 line termination needs to be
switched on if the unit is the last device
on a subnet.
LED3 shows the status of the RS-485
communication.
123
TM084851
Pos. Description
1 RS485, A (+), D1, Data
2 RS485, Y, GND
3 RS485, B (-), D0, Data
The RS-485 port must only be
connected to PELV circuits.
The RS-485 port should be used for local
firmware updates via GENIBus to CIMCIU PC
tool, or for connecting external Modbus RTU slave
fieldbus devices.
Related information
3.5 RS-485 communication interface
5.3 Activating BLE
TM084705
CIM 290 with BLE pairing button
1. Press the BLE pairing button for wireless
communication with Grundfos GO via BLE.
Grundfos GO must be installed on your mobile
phone.
2. Pair CIM 290 with the mobile phone.
Pressing the BLE button for more than
15 seconds resets the current BLE
pairing process.
5.4 Configuration via Grundfos GO
CIM 290 may be configured via Grundfos GO. If
required, the parameter for the RS-485 Modbus RTU
master interface has to be configured (baud rate,
parity bits, start/stop bits, activation, address). The
Initial Startup Wizard guides you through the setup.
5.5 Local firmware update
The local firmware on the CIM module can be
updated via RS-485 port using the Grundfos
Selfprogrammer tool.
11
English (GB)

5.6 Factory reset
TM084706
1. Press the reset button for 5 seconds to start a
factory reset.
6. Electrical connection
WARNING
Electric shock
Death or serious personal injury
‐Connect CIM only to a Grundfos host
product with a dedicated CIM interface.
6.1 Connecting the power supply
When installed by factory, LED2 on the
CIM module is permanently red until the
product driver is downloaded from the
cloud.
1. Switch on the power supply. The CIM module is
powered by the Grundfos product in which it is
fitted.
a. LED1 is flashing yellow (searching for cellular
network). When the connection to the cellular
network is established, LED1 pulsates yellow
(cellular network active).
b. LED2 is permanently green (internal
communication between the CIM module and
the Grundfos product is stable).
Related information
3.6 LEDs
7. Startup
Be aware that the initial powering of the
device can take 5-10 seconds due to the
power-up sequences.
8. Fault finding
Various faults of the CIM module can be detected by
observing the status of the three communication
LEDs.
8.1 LED1 and LED2 remain off when the
power supply is connected
Cause Remedy
The CIM module is fitted
incorrectly in the
Grundfos product.
• Make sure that the
CIM module is fitted
correctly in the
Grundfos product.
The CIM module is
defective.
• Replace the CIM
module. Contact
Grundfos.
If the CIM module is
fitted in a CIU 90xbox:
• Check the power
supply for the CIU 90x
box.
Related information
3.6 LEDs
8.2 LED2 for internal communication is
flashing red
Cause Remedy
There is no internal
communication between
the CIM module and the
Grundfos product.
• Make sure that the
CIM module is fitted
correctly in the
Grundfos product.
If the CIM module is
fitted into a CIU 90x
box:
• Make sure that the
GENIbus cable to the
product and possible
wires are connected
properly on clamps A-
Y-B (and are not
mixed).
Related information
3.6 LEDs
12
English (GB)

8.3 LED2 for internal communication is
permanently red
Cause Remedy
The CIM module does
not support the
Grundfos product.
• Contact Grundfos.
The CIM module is not
configured. The product
driver is not downloaded
from the cloud yet.
When the CIM
module is switched on,
LED2 may turn green
for 1 minute before it
turns permanently red.
• Run the setup process
in the cloud. Contact
Grundfos.
Related information
3.6 LEDs
8.4 LED1 is flashing yellow
LED1 is flashing with a one-second interval.
Cause Remedy
The SIM card is not
inserted.
• Insert the SIM card.
The SIM card is
not inserted correctly.
• Insert the SIM card
correctly.
The PIN code of the
SIM card is not removed
or set to 4321.
• Remove the PIN
code or set it to 4321
with a mobile phone.
No connection to the
cellular network.
• Check the connection
to the antenna.
• Check the cellular
coverage of the area
with, for instance, a
mobile phone.
• Experiment with the
position of the external
antenna.
• In some cases, adding
an additional antenna
to the second SMA
connector may
improve the signal.
Related information
3.6 LEDs
8.5 LED3 for RS-485 interface is flashing
red
Cause Remedy
Communication to
Modbus RTU slaves is
not working.
• Make sure that
the slaves have unique
Modbus RTU
addresses.
• Check the Modbus
RTU parameter
settings, such as baud
rate, parity bits, start/
stop bits.
• There is no cloud
driver for the Modbus
RTU slave device
loaded to the CIM
module.
Related information
3.6 LEDs
8.6 No data is coming from the product
Cause Remedy
The SIM card is
dislocated.
• Reinsert the SIM card
into the SIM slot.
The slanted edge of
the SIM card must
point upwards.
The antenna conditions
are not optimal.
• Improve the antenna
conditions. See section
Antenna requirements.
Other faults. • Contact Grundfos.
Related information
4.3 External cellular antenna requirements
13
English (GB)

8.7 No BLE connection between the CIM
module and the smart phone
Cause Remedy
Bluetooth is
unresponsive on your
mobile phone.
• Disable and enable
Bluetooth again.
BLE connection error. • Delete the Grundfos
product from the
Bluetooth list on your
mobile phone and pair
it again.
• Restart the Grundfos
product.
• Update BLE firmware
to the latest version to
fix this
issue permanently.
Firmware upgrades for
specific products are
being prepared,
contact Grundfos for
more details.
9. Technical data
Electrical data
Power supply
Only use a dedicated
interface slot for a CIM
module in the Grundfos
host product.
Temperature range for
operation
-20 to +70 °C (-4 to +158
°F)
Storage temperature -25 to +60 °C (-13 to
+140 °F)
LTE-M cellular data
Mobile station LTE
category LTE Cat M1
Operation-frequency LTE
bands
B1 (2100 MHz)
B2 (1900 MHz)
B3 (1800 MHz)
B4 (1700 MHz)
B5 (850 MHz)
B8 (900 MHz),
B12 (700 MHz)
B13 (700 MHz)
B18 (850 MHz)
B19 (850 MHz)
B20 (800 MHz)
B25 (1900 MHz)
B26 (850 MHz)
B27 (850 MHz)
B28 (700 MHz)
B66 (1700 MHz)
B85 (700 MHz)
Operation-frequency 2G
bands
B2 (1900 MHz)
B3 (1800 MHz)
B5 (850 MHz)
B8 (900 MHz)
Output power
LTE: 23 dBm (Power
Class 3)
GSM/GPRS: 33 dBm
(Power Class 4)
Cellular antenna,
mandatory accessory
SMA antenna connection
(max. 2 dBi antenna
gain)
14
English (GB)

Bluetooth information
Frequency of operation 2400 - 2483,5 MHz (ISM
band)
Modulation type GFSK
Maximum data rate 2 Mbps
Transmit power 5 dBm EIRP with internal
antenna
Serial communication data
Physical communication
layer RS-485
Modbus wire
configuration
• Screened, twisted-
pair cable
• Min. 0.25 mm2 / Min.
23 AWG
• Conductors: D0, D1
and common
GENIbus wire
configuration
• Screened, twisted-
pair cable
• Min. 0.25 mm2 / Min.
23 AWG
• Conductors: A (+), B
(-) and Y (common)
Maximum cable length 1200 m (4000 ft)
Slave address 1-247 (default 231)
Line termination
• Preset set to "Off"
• Position "On" for line
termination
10. Decommissioning
Delete all information before
decommissioning.
Press the reset button for 5 seconds to
start a factory reset.
11. Disposing of the product
This product or parts of it must be disposed of in an
environmentally sound way.
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.
The crossed-out wheelie bin
symbol on a product means
that it must be disposed of
separately from household
waste. When a product
marked with this symbol
reaches its end of life, take it
to a collection point
designated by the local waste
disposal authorities. The
separate collection and
recycling of such products will
help protect the environment
and human health.
See also end-of-life information at
www.grundfos.com/product-recycling.
12. Document quality feedback
To provide feedback about this document, scan the
QR code using your phone’s camera or a QR code
app.
FEEDBACK92969681
Click here to submit your feedback
15
English (GB)

Argentina
Bombas GRUNDFOS de Argentina S.A.
Ruta Panamericana km. 37.500industin
1619 - Garín Pcia. de B.A.
Tel.: [phone]
Fax: [phone]
Australia
GRUNDFOS Pumps Pty. Ltd.
P.O. Box 2040
Regency Park
South Australia 5942
Tel.: [phone]
Fax: [phone]
Austria
GRUNDFOS Pumpen Vertrieb
Ges.m.b.H.
Grundfosstraße 2
A-5082 Grödig/Salzburg
Tel.: [phone]
Fax: [phone]
Belgium
N.V. GRUNDFOS Bellux S.A.
Boomsesteenweg 81-83
B-2630 Aartselaar
Tel.: [phone]
Fax: [phone]
Bosnia and Herzegovina
GRUNDFOS Sarajevo
Zmaja od Bosne 7-7A
BiH-71000 Sarajevo
Tel.: [phone]
Fax: [phone]
www.ba.grundfos.com
E-mail: [email protected]
Brazil
BOMBAS GRUNDFOS DO BRASIL
Av. Humberto de Alencar Castelo
Branco, 630
CEP 09850 - 300
São Bernardo do Campo - SP
Tel.: [phone]
Fax: [phone]
Bulgaria
Grundfos Bulgaria EOOD
Slatina District
Iztochna Tangenta street no. 100
BG - 1592 Sofia
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Canada
GRUNDFOS Canada inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Tel.: [phone]
Fax: [phone]
China
GRUNDFOS Pumps (Shanghai) Co. Ltd.
10F The Hub, No. 33 Suhong Road
Minhang District
Shanghai 201106 PRC
Tel.: [phone]
Fax: [phone]
Columbia
GRUNDFOS Colombia S.A.S.
Km 1.5 vía Siberia-Cota Conj. Potrero
Chico,
Parque Empresarial Arcos de Cota Bod.
1A.
Cota, Cundinamarca
Tel.: [phone]
Fax: [phone]
Croatia
GRUNDFOS CROATIA d.o.o.
Buzinski prilaz 38, Buzin
HR-10010 Zagreb
Tel.: [phone]
Fax: [phone]
www.hr.grundfos.com
Czech Republic
GRUNDFOS Sales Czechia and Slovakia
s.r.o.
Čajkovského 21
779 00 Olomouc
Tel.: [phone]
Denmark
GRUNDFOS DK A/S
Martin Bachs Vej 3
DK-8850 Bjerringbro
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
www.grundfos.com/DK
Estonia
GRUNDFOS Pumps Eesti OÜ
Peterburi tee 92G
11415 Tallinn
Tel.: + 372 606 1690
Fax: + 372 606 1691
Finland
OY GRUNDFOS Pumput AB
Trukkikuja 1
FI-01360 Vantaa
Tel.: [phone]
France
Pompes GRUNDFOS Distribution S.A.
Parc d’Activités de Chesnes
57, rue de Malacombe
F-38290 St. Quentin Fallavier (Lyon)
Tel.: [phone]
Fax: [phone]
Germany
GRUNDFOS GMBH
Schlüterstr. 33
40699 Erkrath
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Service in Deutschland:
[email protected]
Greece
GRUNDFOS Hellas A.E.B.E.
20th km. Athinon-Markopoulou Av.
P.O. Box 71
GR-19002 Peania
Tel.: [phone]
Fax: [phone]
Hong Kong
GRUNDFOS Pumps (Hong Kong) Ltd.
Unit 1, Ground floor, Siu Wai industrial
Centre
29-33 Wing Hong Street & 68 King Lam
Street, Cheung Sha Wan
Kowloon
Tel.: [phone]
Fax: [phone]
Hungary
GRUNDFOS Hungária Kft.
Tópark u. 8
H-2045 Törökbálint
Tel.: [phone]
Fax: [phone]
India
GRUNDFOS Pumps india Private Limited
118 Old Mahabalipuram Road
Thoraipakkam
Chennai 600 097
Tel.: [phone]
Indonesia
PT GRUNDFOS Pompa
Graha intirub Lt. 2 & 3
Jln. Cililitan Besar No.454. Makasar,
Jakarta Timur
ID-Jakarta 13650
Tel.: [phone]
Fax: [phone]
Ireland
GRUNDFOS (Ireland) Ltd.
Unit A, Merrywell Business Park
Ballymount Road Lower
Dublin 12
Tel.: [phone]
Fax: [phone]
Italy
GRUNDFOS Pompe Italia S.r.l.
Via Gran Sasso 4
I-20060 Truccazzano (Milano)
Tel.: [phone]
Fax: [phone]
Japan
GRUNDFOS Pumps K.K.
1-2-3, Shin-Miyakoda, Kita-ku
Hamamatsu
431-2103 Japan
Tel.: [phone]
Fax: [phone]
Kazakhstan
Grundfos Kazakhstan LLP
7' Kyz-Zhibek Str., Kok-Tobe micr.
KZ-050020 Almaty Kazakhstan
Tel.: [phone]
Korea
GRUNDFOS Pumps Korea Ltd.
6th Floor, Aju Building 679-5
Yeoksam-dong, Kangnam-ku, 135-916
Seoul, Korea
Tel.: [phone]
Fax: [phone]
Latvia
SIA GRUNDFOS Pumps Latvia
Deglava biznesa centrs
Augusta Deglava ielā 60
LV-1035, Rīga,
Tel.: + 371 714 9640, 7 149 641
Fax: + 371 914 9646
Grundfos companies

Lithuania
GRUNDFOS Pumps UAB
Smolensko g. 6
LT-03201 Vilnius
Tel.: + 370 52 395 430
Fax: + 370 52 395 431
Malaysia
GRUNDFOS Pumps Sdn. Bhd.
7 Jalan Peguam U1/25
Glenmarie industrial Park
40150 Shah Alam, Selangor
Tel.: [phone]
Fax: [phone]
Mexico
Bombas GRUNDFOS de México
S.A. de C.V.
Boulevard TLC No. 15
Parque industrial Stiva Aeropuerto
Apodaca, N.L. 66600
Tel.: [phone]
Fax: [phone]
Netherlands
GRUNDFOS Netherlands
Veluwezoom 35
1326 AE Almere
Postbus 22015
1302 CA ALMERE
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
New Zealand
GRUNDFOS Pumps NZ Ltd.
17 Beatrice Tinsley Crescent
North Harbour Industrial Estate
Albany, Auckland
Tel.: [phone]
Fax: [phone]
Norway
GRUNDFOS Pumper A/S
Strømsveien 344
Postboks 235, Leirdal
N-1011 Oslo
Tel.: [phone]
Fax: [phone]
Poland
GRUNDFOS Pompy Sp. z o.o.
ul. Klonowa 23
Baranowo k. Poznania
PL-62-081 Przeźmierowo
Tel.: [phone]
Fax: [phone]
Portugal
Bombas GRUNDFOS Portugal, S.A.
Rua Calvet de Magalhães, 241
Apartado 1079
P-2770-153 Paço de Arcos
Tel.: [phone]
Fax: [phone]
Romania
GRUNDFOS Pompe România SRL
S-PARK BUSINESS CENTER, Clădirea
A2, etaj 2
Str. Tipografilor, Nr. 11-15, Sector 1, Cod
013714
Bucuresti, Romania
Tel.: [phone]
E-mail: [email protected]
Serbia
Grundfos Srbija d.o.o.
Omladinskih brigada 90b
11070 Novi Beograd
Tel.: [phone]
Fax: [phone]
www.rs.grundfos.com
Singapore
GRUNDFOS (Singapore) Pte. Ltd.
25 Jalan Tukang
Singapore 619264
Tel.: [phone]
Faxax: [phone]
Slovakia
GRUNDFOS s.r.o.
Prievozská 4D 821 09 BRATISLAVA
Tel.: [phone]
sk.grundfos.com
Slovenia
GRUNDFOS LJUBLJANA, d.o.o.
Leskoškova 9e, 1122 Ljubljana
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
South Africa
GRUNDFOS (PTY) LTD
16 Lascelles Drive, Meadowbrook Estate
1609 Germiston, Johannesburg
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Spain
Bombas GRUNDFOS España S.A.
Camino de la Fuentecilla, s/n
E-28110 Algete (Madrid)
Tel.: [phone]
Fax: [phone]
Sweden
GRUNDFOS AB
Box 333 (Lunnagårdsgatan 6)
431 24 Mölndal
Tel.: [phone]
Fax: [phone]
Switzerland
GRUNDFOS Pumpen AG
Bruggacherstrasse 10
CH-8117 Fällanden/ZH
Tel.: [phone]
Fax: [phone]
Taiwan
GRUNDFOS Pumps (Taiwan) Ltd.
7 Floor, 219 Min-Chuan Road
Taichung, Taiwan, R.O.C.
Tel.: [phone]
Fax: [phone]
Thailand
GRUNDFOS (Thailand) Ltd.
92 Chaloem Phrakiat Rama 9 Road
Dokmai, Pravej, Bangkok 10250
Tel.: [phone]
Fax: [phone]
Turkey
GRUNDFOS POMPA San. ve Tic. Ltd.
Sti.
Gebze Organize Sanayi Bölgesi
Ihsan dede Caddesi
2. yol 200. Sokak No. 204
41490 Gebze/ Kocaeli
Tel.: +90 - 262-679 7979
Fax: +90 - 262-679 7905
E-mail: [email protected]
Ukraine
ТОВ "ГРУНДФОС УКРАЇНА"
Бізнес Центр Європа
Столичне шосе, 103
м. Київ, 03131, Україна
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
United Arab Emirates
GRUNDFOS Gulf Distribution
P.O. Box 16768
Jebel Ali Free Zone, Dubai
Tel.: [phone]
Fax: [phone]
United Kingdom
GRUNDFOS Pumps Ltd.
Grovebury Road
Leighton Buzzard/Beds. LU7 4TL
Tel.: [phone]
Fax: [phone]
U.S.A.
Global Headquarters for WU
856 Koomey Road
Brookshire, Texas 77423 USA
Phone: [phone]
Uzbekistan
Grundfos Tashkent, Uzbekistan
The Representative Office of Grundfos
Kazakhstan in Uzbekistan
38a, Oybek street, Tashkent
Tel.: [phone]
Fax: [phone]
Grundfos companies

92969681 08.2023
ECM: 1369270
www.grundfos.com
Trademarks displayed in this material, including but not limited to Grundfos and the Grundfos logo, are registered trademarks owned by The Grundfos Group. © 2023 Grundfos Holding A/S, all rights reserved.
