Grundfos CIM 500 User manual

CIM 500 Ethernet module
Installation and operating instructions
GRUNDFOS INSTRUCTIONS

English (GB)
2
English (GB) Installation and operating instructions
Original installation and operating instructions
These installation and operating instructions
describe the Grundfos CIM 500 Ethernet module.
Sections 1-3 provide the information necessary to be
able to install and start up the product in a safe way.
Sections 4-8 provide important information about
operating the product as well as information about
fault finding, technical data and disposal of the
product.
CONTENTS
Page
1. General information

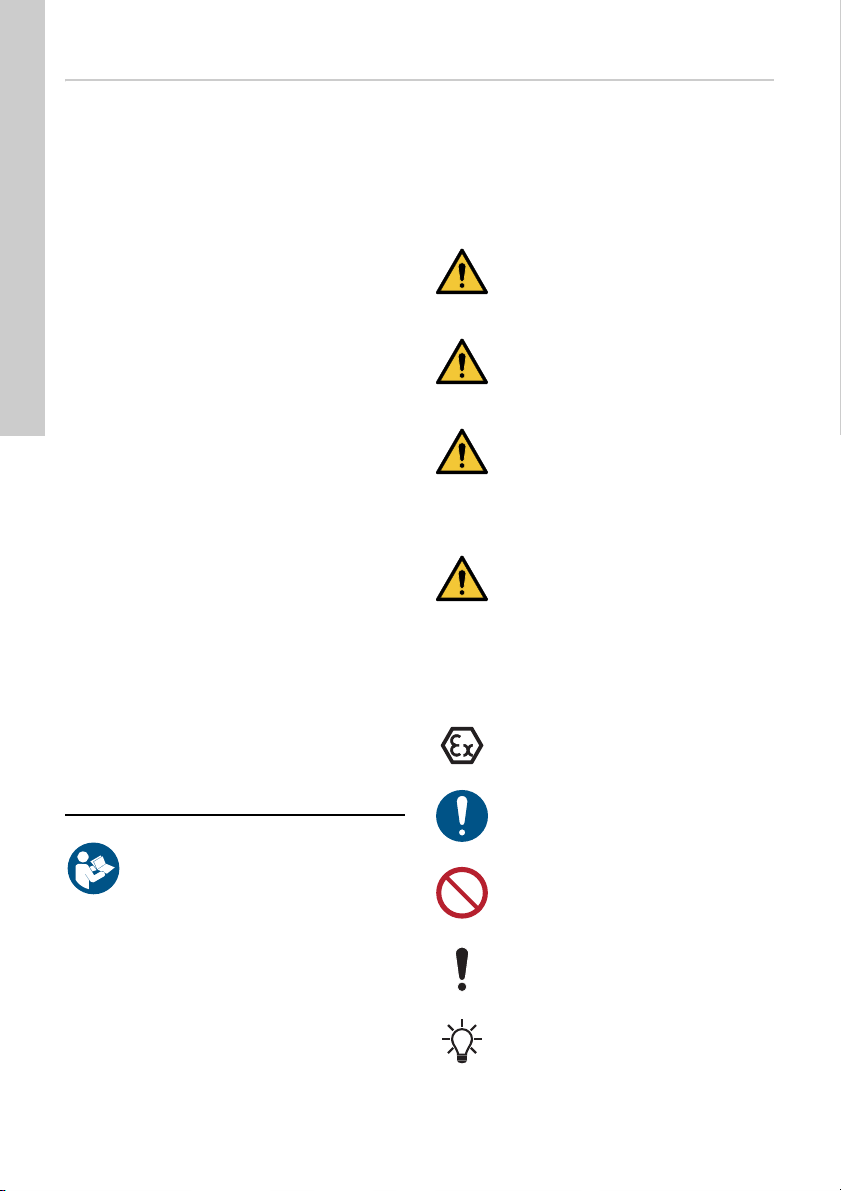

1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
The hazard statements are structured in the
following way:
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
1. General information 2
1.1 Hazard statements 2
1.2 Notes 2
2. Applications 3
2.1 Abbreviations 3
2.2 CIM 500 Ethernet module 4
3. Installation 4
3.1 Security 4
3.2 Connecting the Ethernet cable 5
3.3 Selection of Industrial Ethernet protocol 6
3.4 Setting up the IP addresses 6
3.5 Connection to the webserver 7
4. Status LEDs 8
5. Data activity and link LEDs 9
6. Fault finding 10
6.1 PROFINET IO 10
6.2 Modbus TCP or BACnet IP 11
6.3 EtherNet/IP 12
6.4 GRM IP 13
7. Technical data 14
7.1 PROFINET technical specifications 14
7.2 Modbus TCP technical specifications 15
7.3 BACnet IP technical specifications 15
7.4 EtherNet/IP technical specifications 16
8. Disposal 16
Read this document before installing the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
SIGNAL WORD
Description of hazard
Consequence of ignoring the warning.
- Action to avoid the hazard.
Observe these instructions for
explosion-proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.

English (GB)
3
2. Applications
The CIM 500 Ethernet module enables data
transmission between an Industrial Ethernet network
and a Grundfos product.
The module supports various Industrial Ethernet
protocols. See section 3.3 Selection of Industrial
Ethernet protocol.
The module is fitted in the product to be
communicated with, in a CIU 500 or in an E-box 500.
Retrofitting of the module is described in the
installation and operating instructions of the
Grundfos product.
Configuration is done via the built-in webserver,
using a standard web browser on a PC.
You can download the specific functional profile for
the product in question from Grundfos Product
Center.
2.1 Abbreviations
APDU Application Protocol Data Unit.
ARP
Address Resolution Protocol.
Translates IP addresses to MAC
addresses.
CAT5 Ethernet cable type with four
twisted-pair cables.
CAT5e Enhanced CAT5 cable with better
performance.
CAT6
Ethernet cable compatible with CAT5
and CAT5e, and with very high
performance.
CIM Communication Interface Module.
CIU Communication Interface Unit.
DHCP
Dynamic Host Configuration Protocol.
Used to configure network devices so
that they can communicate via an IP
network.
DNS Domain Name System. Used to resolve
host names to IP addresses.
E-box
Extension Box.
Used as a communication interface
between a Grundfos product and a
fieldbus.
GENIpro
Grundfos Electronics Network
Intercommunication protocol
Proprietary Grundfos fieldbus protocol.
GiC Grundfos iSOLUTIONS Cloud
GND Ground.
GRM Grundfos Remote Management.
HTTP
Hyper Text Transfer Protocol. The
protocol commonly used to navigate the
world wide web.
IANA Internet Assigned Numbers Authority.
IP Internet Protocol.
LED Light-emitting diode.
MAC Media Access Control. Unique address
for a piece of hardware.
MDI Medium Dependent Interface.
Ping
Packet InterNet Groper. A software
utility that tests connectivity between
two TCP/IP hosts.
PLC Programmable Logic Controller.
RJ45
Registered Jack #45, also called 8P8C
modular connector type. Connects four
twisted-pair cables. Most common
Ethernet connector type.
SELV Separated or Safety Extra-Low Voltage.
SELV-E Separated or Safety Extra-Low Voltage
with earth.
TCP
Transmission Control Protocol. Protocol
for Internet communication and
Industrial Ethernet communication.
UDP User Datagram Protocol
URL Uniform Resource Locator. The IP
address used to connect to a server.
VPN Virtual Private Networks.

English (GB)
4
2.2 CIM 500 Ethernet module

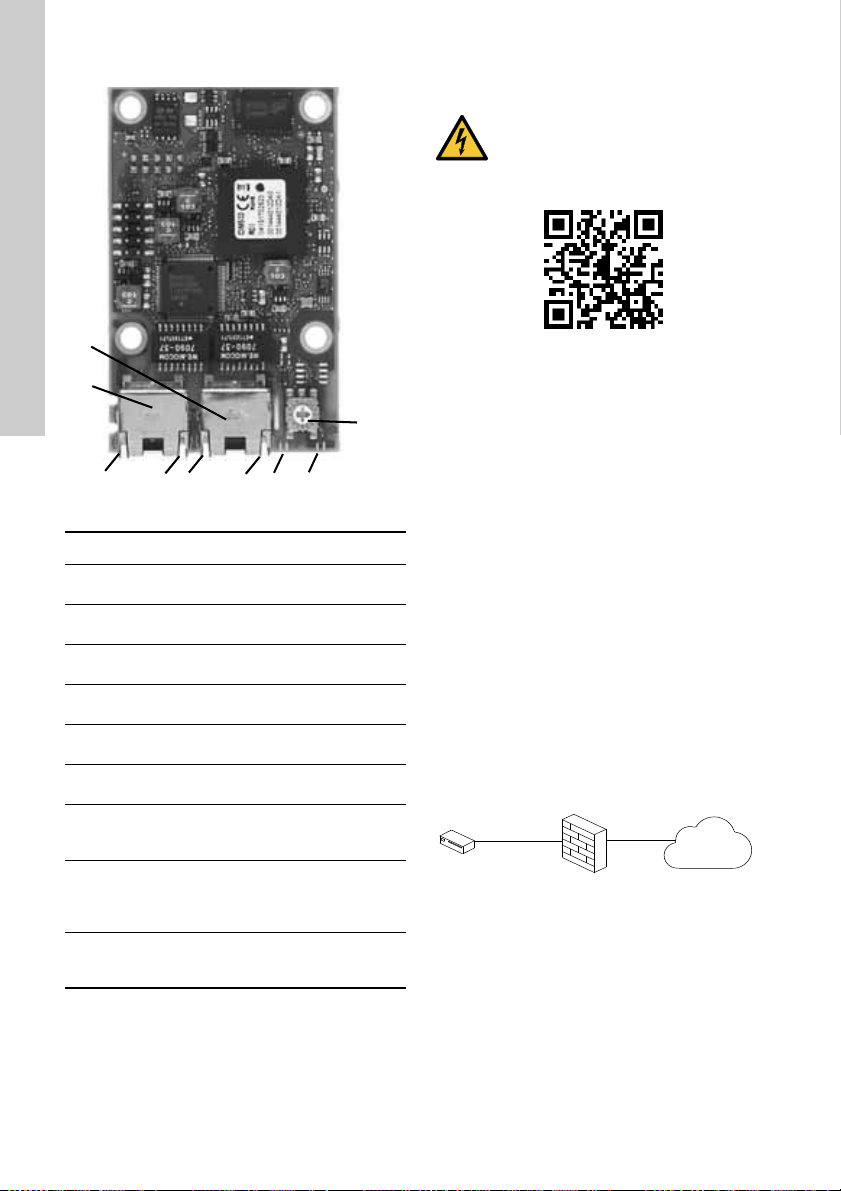

Fig. 1 CIM 500 Ethernet module
3. Installation
Fig. 2 QR code for the CIU quick guide
3.1 Security
Grundfos connected products must be behind a
firewall or connected to a private network.
If a firewall or private network is not in place, the
Grundfos product may be subject to a cyber-security
risk and becomes vulnerable to an attack or
compromise.
Follow the highly recommended configuration
requirements below. If in doubt, consult an IT
Infrastructure Specialist.
3.1.1 CIM 500
CIM 500 is a traditional network-connected device
and must be placed on a private network behind a
firewall. It must not be connected directly to the
Internet. Also, no TCP/IP ports must be forwarded to
the product. If you need remote access to the device,
you must use technologies such as Virtual Private
Networks (VPNs) to ensure a secured connection.
Consider contacting an IT Infrastructure Specialist to
establish such a solution.
For CIM 500 in mode 4, GRM IP (Grundfos Remote
Management) the firewall must accept connections
initialised by the Grundfos product to the Internet
only (outgoing connections).
Fig. 3 Secure connectivity for CIM 500
TM05 7431 1013
Pos. Designation Description
1ETH1
Industrial Ethernet RJ45
connector 1
2ETH2
Industrial Ethernet RJ45
connector 2
3DATA1
Data activity LED for
RJ45 connector 1
4LINK1
Link LED for RJ45
connector 1
5DATA2
Data activity LED for
RJ45 connector 2
6LINK2
Link LED for RJ45
connector 2
7LED1
Red and green status
LED for the selected
Ethernet protocol
8LED2
Red and green LED for
internal communication
between CIM 500 and
the Grundfos product
9SW1
Rotary switch for
selection of Industrial
Ethernet protocol
2
1
345678
9
WARNING
Electric shock
Death or serious personal injury
- Only connect CIM 500 to SELV or
SELV-E circuits.
TM07 4226 1119
Grundfos
device Firewall
Internet

English (GB)
5
3.2 Connecting the Ethernet cable
Use RJ45 plugs and an Ethernet cable. Connect the
cable screen to protective earth at both ends.
Maximum cable length
CIM 500 is designed for flexible network installation.
The built-in two-port switch makes it possible to
daisy chain from product to product without the need
of additional Ethernet switches. The last product in
the chain is only connected to one of the Ethernet
ports. Each Ethernet port has its own MAC address
and CIM 500 has a built-in switch which means that
the cable can run another 100 metres whenever
passing a CIM 500 module.

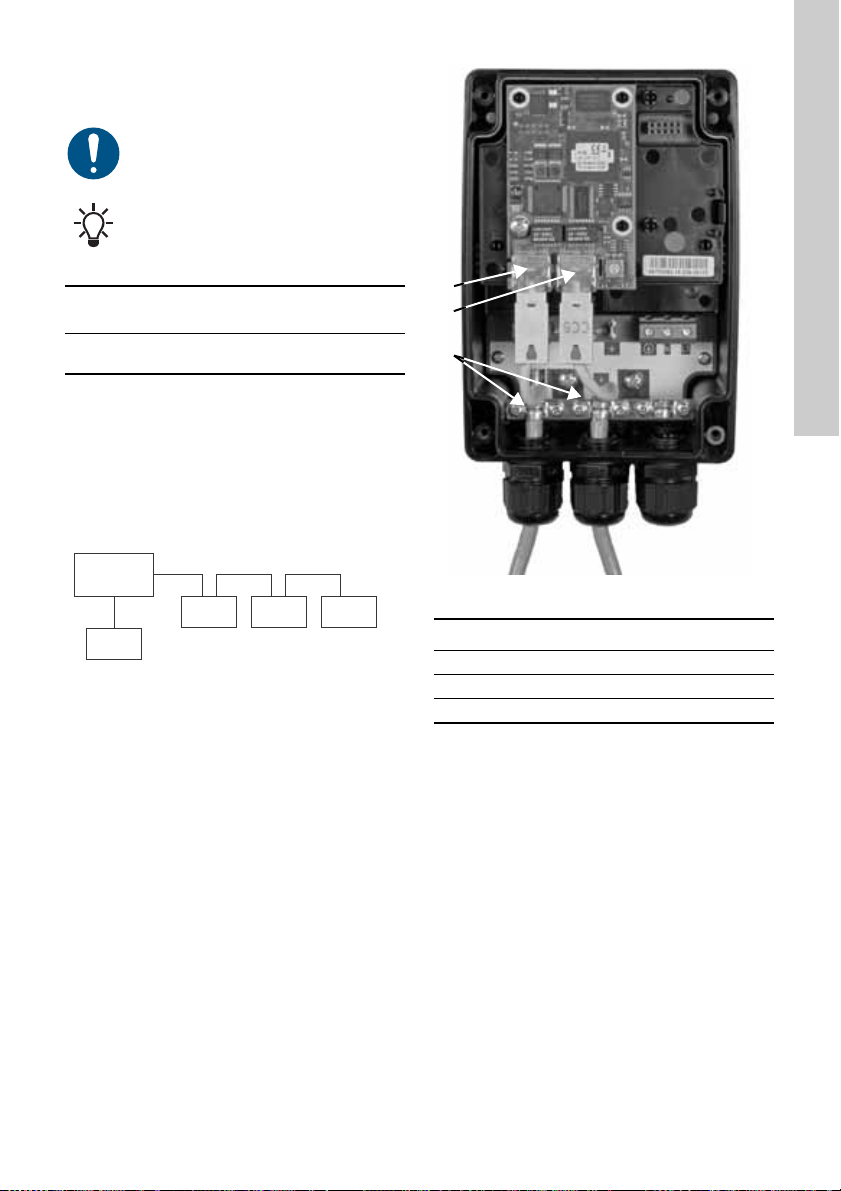

Fig. 4 Example of Industrial Ethernet network
Fig. 5 Example of Ethernet connection
It is important to connect the cable screen
to protective earth by means of the earth
clamp or in the connector.
For GRM IP communication, ensure that
the network is protected by a firewall.
Speed
[Mbit/s] Cable type Max. cable length [m/ft]
100/10 CAT5,
CAT5e, CAT6 100/328
TM05 6435 4711
Ethernet
switch
CIM
500
CIM
500
CIM
500
CIM
500
TM05 7480 1013
Pos. Description
1 Industrial Ethernet RJ45 connector 1
2 Industrial Ethernet RJ45 connector 2
3 Earth clamp/GND
1
2
3

English (GB)
6
3.3 Selection of Industrial Ethernet
protocol
The module has a rotary switch for selection of the
Industrial Ethernet protocol. See fig. 6.
Fig. 6 Selecting the Industrial Ethernet
protocol
3.4 Setting up the IP addresses
The module comes with a fixed webserver IP
address. Via the webserver, this address can be
changed to another fixed value, or a DHCP server
can be selected.
TM05 7481 1013
Pos. Description
0 PROFINET IO, default
1 Modbus TCP
2 BACnet IP
3 EtherNet/IP
4
GRM IP for Grundfos Remote
Management, requires a contract with
Grundfos.
5 Grundfos iSOLUTIONS Cloud (GiC)
6...E Reserved. LED1 is permanently red to
indicate an invalid configuration.
F
Resetting to factory settings.
1. Set the rotary switch to this position
2. LED1 starts to flash red and green for
20 seconds to indicate that factory
resetting is about to take place.
3. After 20 seconds, LED1 stops to flash
and factory resetting is initiated.
4. When both LED1 and LED2 switch off,
the resetting is completed. The rotary
switch can be moved to another
position.
If the rotary switch position is changed
when the module is powered on, the
module will restart and use the protocol
associated with the new position.
Default IP
settings used by
webserver
IP address: 192.168.1.100
Subnet mask: 255.255.255.0
Gateway: 192.168.1.1
Device name and
IP settings for
PROFINET IO
The device name is configured
from the webserver or from the
PROFINET IO configuration
tool. The IP address is
automatically assigned by the
PLC. This assigned
PROFINET IP address must
be different from the
webserver's IP address.
IP settings for
Modbus TCP
It can be given a fixed value
via the webserver, or it can use
a DHCP server.
This assigned Modbus TCP
address must be different from
the webserver's IP address.
IP settings for
BACnet IP
It can be given a fixed value
via the webserver, or it can use
a DHCP server. Note that
BACnet IP and the webserver
share the same IP address.
IP settings for
EtherNet/IP
It can be given a fixed value
via the webserver, or it can use
a DHCP server.
This assigned EtherNet/IP
address must be different from
the webserver's IP address.
IP settings for
GRM IP
GRM IP uses DHCP, and the
connected router automatically
assigns an IP address.

English (GB)
7
3.5 Connection to the webserver
The module can be configured by means of the
built-in webserver. To establish a connection from
a PC to CIM 500, proceed as follows:
1. Connect the PC and the module using an
Ethernet cable. See fig. 7.
2. Configure the Ethernet port of the PC to belong
to the same subnetwork as CIM 500, for example
192.168.1.101, and the subnet mask to
255.255.255.0. See section How to configure an
IP address on your PC using Windows 7 or How
to configure an IP address on your PC using
Windows 10.
3. Open a standard Internet browser and type
192.168.1.100 in the URL field.
4. Log in to the webserver:

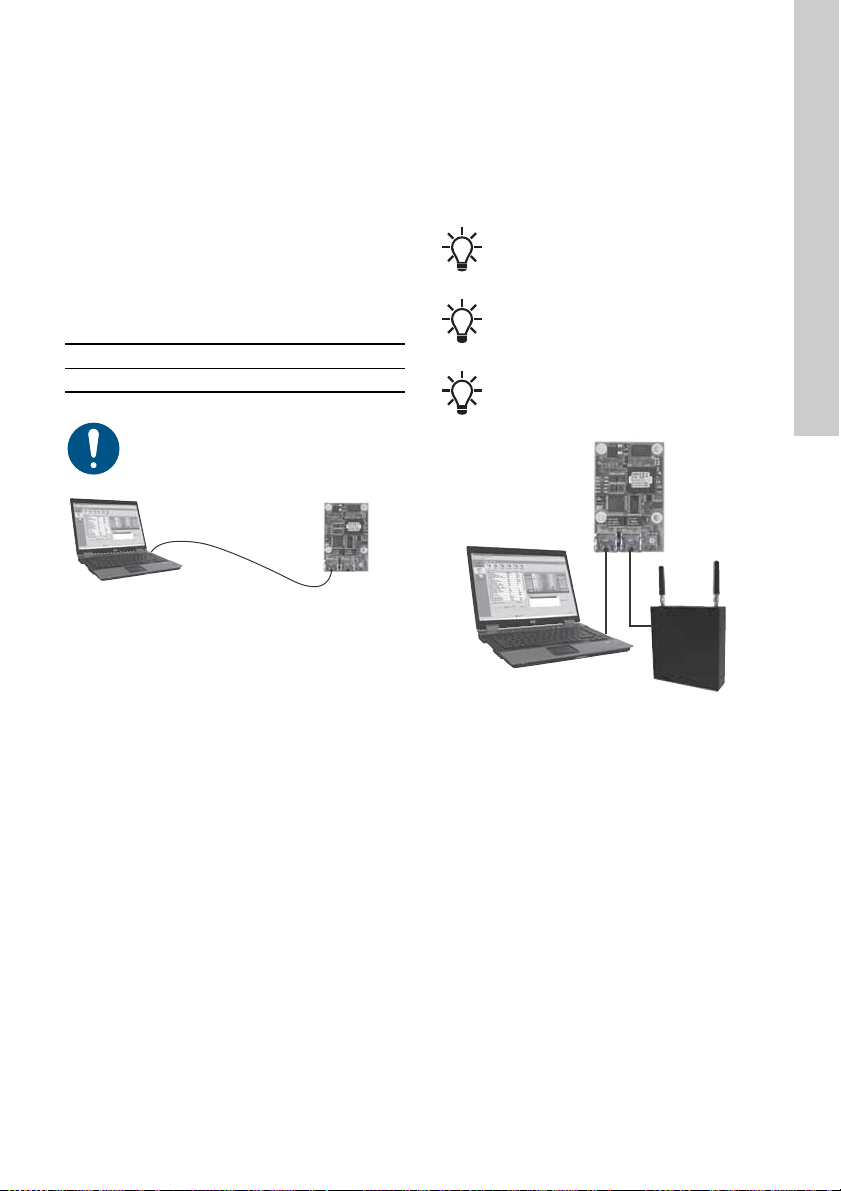

Fig. 7 CIM 500 connected to PC via
Ethernet cable
3.5.1 Connection to the webserver using GRM IP
To access the webserver via GRM IP, you need to
connect your PC parallel to the router (RJ45 port 1)
at CIM 500 RJ45 port 2. Look at the router
webserver which address the router assigns to the
CIM 500. Then use this IP address for the webserver
access.
See also sections 3.1 Security and Webserver
configuration.
Fig. 8 CIM 500 connected to PC and
cellular router
User name Default: admin
Password Default: Grundfos
The first time you log in, you must set a
unique password. Only a factory resetting
of CIM 500 can reset the password to
Grundfos.
TM05 6436 4712
You can use both ETH1 and ETH2 to
establish a connection to the webserver.
You can access the webserver while the
selected Industrial Ethernet protocol is
active.
When you select "GRM IP", the connected
router automatically assigns an IP address
to the module via DHCP.
TM07 4565 1919

English (GB)
8
4. Status LEDs
The module has two status LEDs, see fig. 1:
• LED1: Red and green status LED for Ethernet
communication, fieldbus LED.
• LED2: Red and green status LED for
communication between the module and the
Grundfos product, GENI LED.
LED1, PROFINET IO
LED1, Modbus TCP and BACnet IP
LED1, EtherNet/IP
Status Description
Off The module is switched off.
Flashing green
Wink function. LED flashes
10 times when activated from the
PROFINET master.
Permanently
green
The module is in cyclic data
exchange mode.
Flashing red
(3 Hz, duty
cycle 50 %)
Wrong or missing PROFINET IO
configuration. See section
6.1 PROFINET IO.
Pulsing red
(0.3 Hz, duty
cycle 10 %)
The device name and network
settings are configured, but
connection to master lost.
See section 6.1 PROFINET IO.
Permanently
red
Product is not supported.
See section 6.1 PROFINET IO.
Permanently
red and green
Error in firmware download.
See section 6.1 PROFINET IO.
Flashing red
and green
Resetting to factory settings.
After 20 seconds CIM 500
restarts.
Status Description
Off No Modbus or BACnet
communication, or switched off.
Flashing green Modbus or BACnet
communication active.
Permanently
red
Module configuration fault.
See section 6.2 Modbus TCP or
BACnet IP.
Permanently
red and green
Error in firmware download.
See section 6.2 Modbus TCP or
BACnet IP.
Flashing red
and green
Resetting to factory settings.
After 20 seconds CIM 500
restarts.
Status Description
Off Ethernet Link is not active.
Permanently
green
Ethernet Link is active,
connection is established.
Flashing green Ethernet Link is active,
no connection is established.
Permanently
red
Ethernet Link is active,
IP address conflict is detected.
Flashing red Ethernet Link is active,
any connection is timed out.

English (GB)
9
LED1, GRM IP
LED2, all fieldbuses
5. Data activity and link LEDs
The module has two connectivity LEDs related to
each RJ45 connector. See fig. 1.
DATA1 and DATA2
These yellow LEDs indicate data traffic for the RJ45
connector in question.
LINK1 and LINK2
These green LEDs show whether the Ethernet cable
is properly connected to the RJ45 connector in
question.
Status Description
Off No GRM IP communication or
switched off.
Flashing green Startup period (120 seconds)
Permanently
green
Communication with the
GRM server is established.
Flashing green
(0.3 Hz)
Data is transmitted to the
GRM server.
Flashing red
• GRM communication lost,
• no communication to the GRM
server, or
• product driver is not loaded
from GRM.
Flashing red
and green
Resetting to factory settings.
After 20 seconds CIM 500
restarts.
Status Description
Off The module is switched off.
Flashing red
No internal communication
between CIM 500 and the
Grundfos product.
Permanently
red
The module does not support the
Grundfos product connected.
Permanently
green
Internal communication between
the module and the Grundfos
product is OK.
Permanently
red and green Memory fault.
During startup, there is a delay of up to five
seconds before the status of LED1 and
LED2 is updated.
Status Description
Off No data communication on
RJ45 connector
Flashing Data communication on
RJ45 connector
On Heavy network traffic
Status Description
Off No Ethernet link on RJ45 connector
On Ethernet link on RJ45 connector is OK

English (GB)
10
6. Fault finding
6.1 PROFINET IO
You can detect faults in a module by observing the
status of the two status LEDs. See the tables below.
CIM 500 fitted in a Grundfos product or CIM 500
fitted in a CIU 500
Ensure that SW1 is in position "0" to select
PROFINET.
Fault (LED status) Possible cause Remedy
1. Both LEDs remain off when
the power supply is
connected.
a) The module is fitted
incorrectly in the Grundfos
product.
Check that the module is fitted and
connected correctly.
b) The module is defective. Replace the module.
c) CIU 500 is defective. Replace CIU 500.
2. LED1 remains off. a) SW1 is not set correctly. Set the switch to "0".
3. LED2 is flashing red. a) No internal communication
between the module and the
Grundfos product.
Check that the module is fitted
correctly in the Grundfos product.
b) No internal communication
between CIU 500 and the
Grundfos product.
• Check the cable connection
between the Grundfos product
and CIU 500.
• Check that the individual
conductors have been
connected correctly, for
example not reversed.
• Check the power supply to the
Grundfos product.
4. LED2 is permanently red. a) The module does not support
the connected Grundfos
product.
Contact the nearest Grundfos
company.
5. LED1 is permanently red. a) The module does not support
the connected Grundfos
product.
Contact the nearest Grundfos
company.
b) SW1 is in illegal position. Set the switch to "0".
6. LED1 is flashing red, 3 Hz. a) Fault in the PROFINET IO
configuration of the module.
• Restart CIM 500. Use the
RESTART button on the
webserver, or power cycle the
product. See section
PROFINET IO configuration.
• Check that the PROFINET IO
IP address configuration is
correct. Check the device name
in CIM 500 and PROFINET IO
master.
• Check that the right GSDML file
is used.
7. LED1 is pulsing red, 0.3 Hz. a) The connection to the master
is lost.
• Check the cables.
• Check that the master is
running.
8. LED1 is permanently red
and green at the same time.
a) Error in firmware download. Use the webserver to download
the firmware again. See section
Update in the appendix.
9. LED2 is permanently red
and green at the same time.
a) Memory fault. Replace the module.

English (GB)
11
6.2 Modbus TCP or BACnet IP
You can detect faults in a module by observing the
status of the two status LEDs. See the tables below.
CIM 500 fitted in a Grundfos product or CIM 500
fitted in a CIU 500
Ensure that SW1 is in position "1" if
Modbus should be selected or in position
"2" if BACnet should be selected.
Fault (LED status) Possible cause Remedy
1. Both LEDs remain off when
the power supply is
connected.
a) The module is fitted
incorrectly in the Grundfos
product.
Check that the module is fitted and
connected correctly.
b) The module is defective. Replace the module.
c) CIU 500 is defective. Replace CIU 500.
2. LED2 is flashing red. a) No internal communication
between the module and the
Grundfos product.
Check that the module is fitted
correctly.
b) No internal communication
between the CIU 500 and the
Grundfos product.
• Check the cable connection
between the Grundfos product
and CIU 500.
• Check that the individual
conductors have been
connected correctly, for
example not reversed.
• Check the power supply to the
Grundfos product.
3. LED2 is permanently red. a) The module does not support
the connected Grundfos
product.
Contact the nearest Grundfos
company.
4. LED1 is permanently red. a) Fault in the Modbus
configuration of the module.
• Check that SW1 is set to "1".
• Check that the Modbus IP
address configuration is correct.
See section Modbus TCP
configuration.
b) Fault in the BACnet
configuration of the module.
• Check that SW1 is set to "2".
• Check that the BACnet IP
address and UDP port number
configuration is correct.
See section BACnet IP
configuration.
5. LED1 is permanently red and
green at the same time.
a) Error in firmware download. Use the webserver to download
the firmware again. See section
Update in the appendix.
6. LED2 is permanently red and
green at the same time.
a) Memory fault. Replace the module.

English (GB)
12
6.3 EtherNet/IP
You can detect faults in a module by observing the
status of the two status LEDs. See the tables below.
CIM 500 fitted in a Grundfos product or CIM 500
fitted in a CIU 500
Ensure that SW1 is in position "3".
Fault (LED status) Possible cause Remedy
1. Both LEDs remain off when
the power supply is
connected.
a) The module is fitted
incorrectly in the Grundfos
product.
Check that the module is fitted
and connected correctly.
b) The module is defective. Replace the module.
c) CIU 500 is defective. Replace CIU 500.
2. LED1 remains off. a) SW1 is not set correctly. Set the switch to "3".
3. LED2 is flashing red. a) No internal communication
between the module and the
Grundfos product.
Check that the module is fitted
correctly.
b) No internal communication
between the CIU 500 and the
Grundfos product.
• Check the cable connection
between the Grundfos product
and CIU 500.
• Check that the individual
conductors have been
connected correctly, for
example not reversed.
• Check the power supply to the
Grundfos product.
4. LED2 is permanently red. a) The module does not support
the connected Grundfos
product.
Contact the nearest Grundfos
company.
5. LED1 is permanently red. a) IP address conflict. Check the IP address
configuration.
b) SW1 is in illegal position Check that SW1 is set to "3".
6. LED1 is flashing red. a) Connection time-out. Verify the connection and
communication between PLC
and CIM 500.
7. LED1 is permanently red and
green at the same time.
a) Error in firmware download. Use the webserver to download
the firmware again. See section
Update in the appendix.
8. LED2 is permanently red and
green at the same time.
a) Memory fault. Replace the module.

English (GB)
13
6.4 GRM IP
You can detect faults in a module by observing the
status of the two status LEDs. See the tables below.
CIM 500 fitted in a Grundfos product or CIM 500
fitted in a CIU 500*
* Requires a contract with Grundfos.
Ensure that SW1 is in position "4" to select
GRM IP.
Fault (LED status) Possible cause Remedy
1. Both LEDs remain off when the power
supply is connected.
a) The module is fitted
incorrectly in the Grundfos
product.
Check that the module is fitted
and connected correctly.
b) The module is defective. Replace the module.
c) CIU 500 is defective. Replace CIU 500.
2. LED1 remains off. a) SW1 is not set correctly. Set the switch to "4".
3. LED2 is flashing red. a) No internal communication
between the module and
the Grundfos product.
Check that the module is fitted
correctly in the Grundfos
product.
b) No internal communication
between the CIU 500 and
the Grundfos product.
Check the cable connection
between the Grundfos product
and CIU 500.
c) No GRM driver is loaded. Connect to the GRM server
and run the four-step wizard.
4. LED1 is flashing green. a) 120 seconds startup
phase.
5. LED1 is permanently red. a) SW1 is in illegal position. Set the switch to "4".
6. LED2 is permanently red. a) The module does not
support the connected
Grundfos product.
Contact the nearest Grundfos
company.
7. LED1 is flashing red. a) The GRM communication
is lost or there is no
communication to the
GRM server.
• Check the Ethernet cable in
the router.
• Check the router settings.
• Check the router related to
the SIM card.
• Check that the contract with
Grundfos is valid and there
is access to the GRM data.
8. Cannot access CIU 500 on the
GRM interface.
a) No connection to the GRM
server.
Check that you use the lowest
MAC address (lowest number)
of the two ports of CIM 500.
See the sticker on the module.
Requires a contract with
Grundfos and granted access
to GRM.

English (GB)
14
7. Technical data
* Requires a contract with Grundfos.
7.1 PROFINET technical specifications
General
Application layer DHCP, HTTP, HTTPS, Ping
Transport layer TCP, UDP
Internet layer Internet protocol V4 (IPv4)
Link layer ARP, Media Access
Control, Ethernet
Ethernet cable
Screened, twisted-pair
cables, CAT5, CAT5e or
CAT6. Auto-crossover
detection (auto MDI-X).
Transmission speed 10 Mbit/s, 100 Mbit/s
(auto-detected)
Industrial Ethernet
protocols
• PROFINET IO
• Modbus TCP
• BACnet IP
• EtherNet/IP
• GRM IP*
Supply voltage 5 VDC ± 5 %, Imax. 350 mA
Storage temperature -25 to +70 °C
-13 to +158 °F
Functionality PROFINET RT
• PROFINET device according to Conformance Class B
• Media Redundancy Protocol (MRP) Client
• System redundancy S2
• Multicast provider and subscriber
Minimum cycle time PROFINET RT 250 μs
Number of IO connections per controller 2 for cyclic data
1 for parameter set
Maximum number of IO data 1,024 bytes
GSDML version V2.34
Dynamic IO configuration Supported
Diagnostics Supported
Maximum number of data modules 85
Watchdog
Communication watchdog with fixed 2 seconds time-out.
It can be enabled via the control module in the device
profile.
Certificate Conformance July 2019

English (GB)
15
7.2 Modbus TCP technical specifications
To optimise data security when using Modbus TCP via a cellular router, Grundfos strongly recommends that
the cellular data connection is based on a private APN with static IP and with no access to public Internet.
7.3 BACnet IP technical specifications
Number of IO socket connections 8
Maximum number of IO data 255 bytes per telegram
Function codes supported
03 Read holding registers
04 Read input registers
06 Write single registers
16 Write multiple registers
Diagnostics No
DHCP Supported
Watchdog
Communication watchdog with fixed 5 seconds
time-out. It can be enabled via the watchdog register in
the device profile.
Certificate No
Number of IO socket connections 1
Communication User Datagram Protocol, UDP
Maximum number of IO data 1500 Bytes
Objects supported
• Analog input
• Analog output
• Analog value
• Binary input
• Binary output
• Multistate input
• Multistate output
•Device
DHCP Supported
Foreign device Supported
Data sharing services
• ReadProperty
• ReadPropertyMultiple
• WriteProperty
• WritePropertyMultiple
• SubscribeCOV
• ConfirmedCOVNotification
• UnconfirmedCOVNotification
Device management services
• Who-is / I-am
• Who-has / I-have
• DeviceCommunicationControl
Watchdog Network watchdog timer. Time-out is configurable via
the CIM 500 web page.
Certificate BTL listing

English (GB)
16
7.4 EtherNet/IP technical specifications
8. Disposal
This product or parts of it must be disposed of in an
environmentally sound way:
1. Use the public or private waste collection service.
2. If this is not possible, contact the nearest
Grundfos company or service workshop.
See also end-of-life information at
www.grundfos.com/product-recycling.
Minimum requested packet interval 15 ms
I/O data
505 bytes output
509 bytes input
Maximum 255 bytes I/O data per assembly.
Number of IO connections
10
Default; configurable depending on available socket
resources.
Number of encapsulation sessions
10
Default; configurable depending on available socket
resources.
Number of explicit messaging connections
2 explicit messaging connections per encapsulation
session
20 explicit messaging connections in total, configurable.
User-specific objects
Object 100. Depending on connected product.
• Grundfos pump
• Grundfos booster
• Grundfos dosing.
Maximum number of connections
2 explicit messaging connections x 10 encapsulation
sessions
Additional 10 I/O connections
Total: 30 connections.
Standard objects
• Identity object (class 0x01)
• Message Router object (class 0x02)
• Assembly object (class 0x04). Assembly: up to 32
• Connection Manager object (class 0x06)
• Device Level Ring (DLR) object (0x47)
• Quality of Service (QoS) object (0x48)
• TCP/IP Interface object (0xF5)
• Ethernet Link object (0xF6)
DHCP Supported
Functional scope
• Adapter
• Support of 2 Ethernet Link objects for implementing
ring and daisy chain topologies
• Device Level Ring (DLR) protocol
(announce-based ring node)
• Quality of Service (QoS)
• IPv4 Address Conflict Detection (ACD)
Watchdog Communication watchdog with fixed 5 seconds
time-out. It can be enabled via the CIM 500 web page.
Certificate Plugfest December 2018, Conformance July 2019.

Appendix
17
Appendix 1
Webserver configuration
The built-in webserver offers easy monitoring of the CIM 500 module and makes it possible to configure the
selected Industrial Ethernet protocol. Using the webserver, you can also update the firmware of the CIM 500
module and store or restore settings, among other functions.
To connect a PC to CIM 500, proceed as follows:
1. Connect the PC and the module using an ethernet cable.
2. Configure the ethernet port of the PC to the same subnetwork as CIM 500, for example 192.168.1.101.
See section How to configure an IP address on your PC using Windows 7 or How to configure an IP
address on your PC using Windows 10.
3. Open a standard Internet browser and type 192.168.1.100 in the URL field.
How to configure an IP address on your PC using Windows 7
1. Open "Control Panel".
2. Select "Network and Sharing Center".
3. Click [Change adapter settings].
4. Right-click and select "Properties" for the Ethernet adapter. Typically "Local Area Connection".
5. Select properties for "Internet Protocol Version 4 (TCP/IPv4)".
6. Select the "Alternate Configuration" tab and enter the user-configured IP address and the subnet mask you
would like to assign to your PC. See fig. 1.
Fig. 1 Example from Windows 7
How to configure an IP address on your PC using Windows 10
1. Search for "Ethernet" in Windows.
2. Select "Change Ethernet setting".
3. Select "Change adapter options".
4. Right-click "Ethernet" and select "Properties".
5. Select properties for "Internet Protocol Version 4 (TCP/IPv4)".
6. Select the "Alternate Configuration" tab and enter the user-configured
IP address and subnet mask you would like to assign to your PC.
TM05 7422 1814

Appendix
18
Login
For administration of username and password, see also User Management.
Fig. 2 Login
If you experience problems with logging in
to the webserver after a firmware update,
perform a factory reset.
TM07 4522 1919
Object Description
Username Enter username.
Default: admin.
Password
Enter password. Default: Grundfos.
After the first log in, you are forced to change the password.
The password must contain:
• at least 8 and maximum 20 characters
• at least one lower case letter
• at least one upper case letter
• at least one numeric or special character.
When logging in, you have four attempts before a back-off algorithm starts an
exponentially increasing time delay between each attempt. Power cycling CIM 500
resets the back-off algorithm.

Appendix
19
PROFINET IO configuration
This web page is used to configure all the parameters relevant to the PROFINET IO protocol standard.

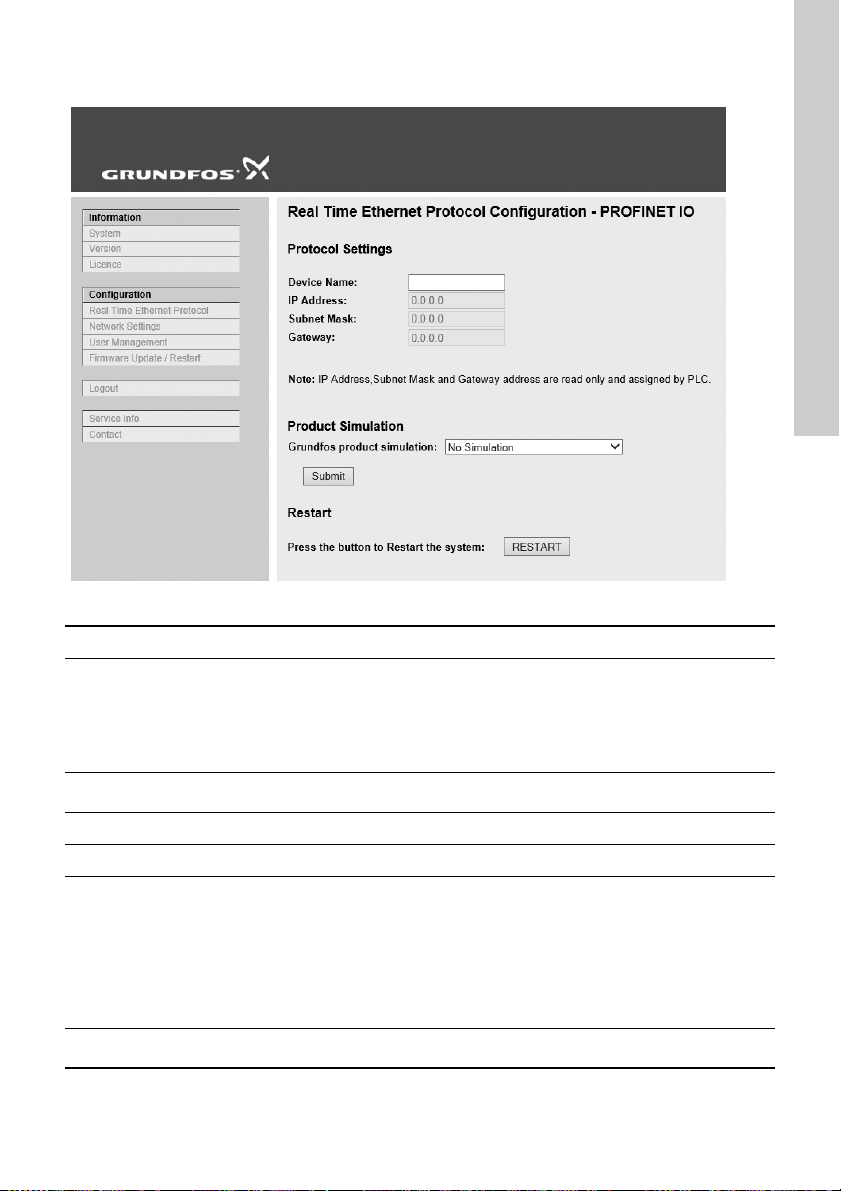

Fig. 3 RealTime Ethernet Protocol Configuration - PROFINET IO
TM07 4525 1919
Object Description
Device Name
Fill in a device name according to the PROFINET rules:
• It consists of one or more labels separated by a dot.
• The total length is 1 to 240 characters.
• The length of a label is 1 to 63 characters.
• Labels only consist of lower case characters, digits and "-".
The first and the last character of a label must not be "-".
IP Address This field is read only. The IP address is assigned from the PLC. PROFINET IO is not
allowed to share the IP address with a CIM 500 webserver.
Subnet Mask This field is read only. The subnet mask is assigned from the PLC.
Gateway This field is read only. The gateway address is assigned from the PLC.
Grundfos product
simulation
The module can be put in product simulation mode to generate realistic simulated
values of all the PROFINET IO input data. It will thus be possible to connect a
PROFINET IO master to a module fitted in a CIU or an E-box without installing this
device in a real industrial process system. In an office environment, it can then be
verified that communication works, and data is received and handled correctly by the
PROFINET IO master application program (for example PLC program) before installing
the device.
To enable product simulation, select a product type from the dropdown list.
To terminate product simulation, select "No Simulation".
Restart Press the restart button if the LED1 flashes red, which indicates a wrong or missing
PROFINET IO configuration.

Appendix
20
Modbus TCP configuration
This web page is used to configure all the parameters relevant to the Modbus TCP protocol standard.

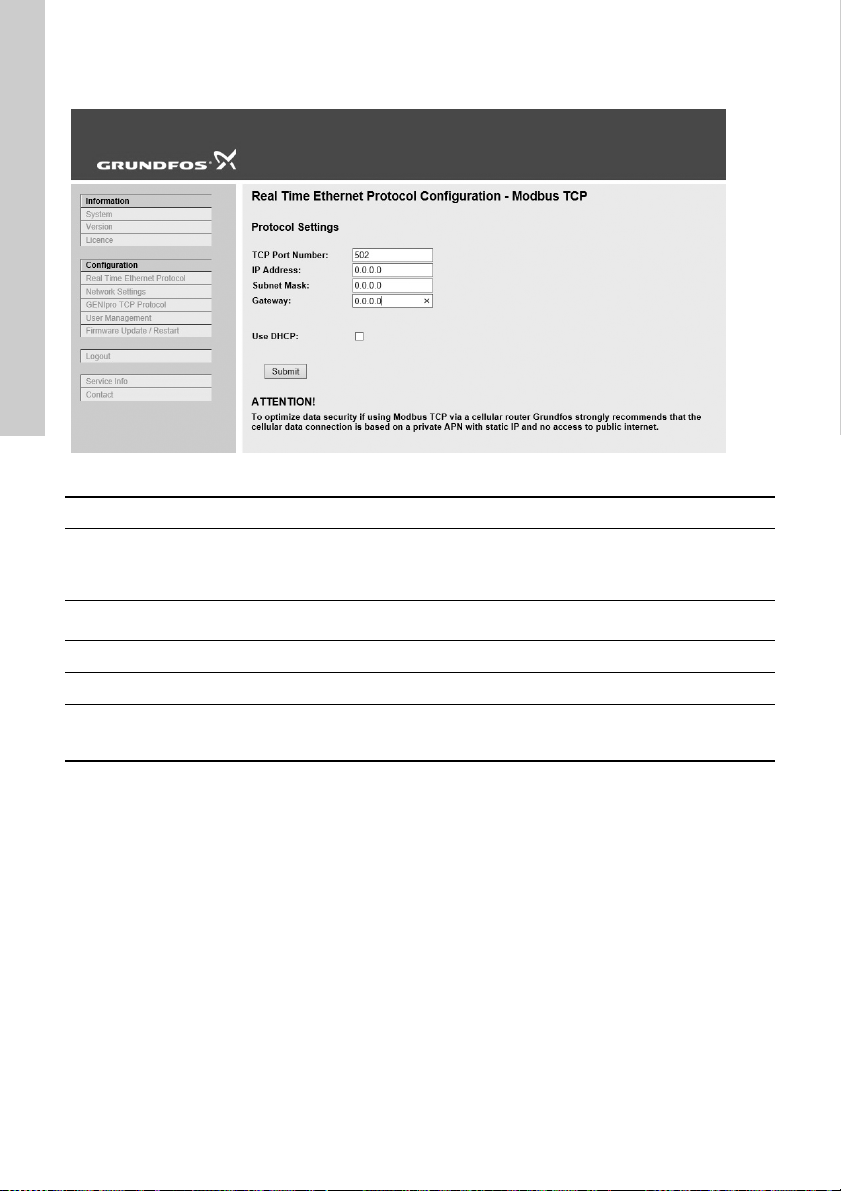

Fig. 4 Real Time Ethernet Protocol Configuration - Modbus TCP
TM07 4523 1919
Object Description
TCP Port Number
The default value is 502, the official IANA-assigned Modbus TCP port number.
The number 502 is always active implicitly.
If you select another value in the webserver configuration field, both the new value and
value 502 will be active.
IP Address Configuration of the static IP address if a DHCP server is not used. Modbus TCP is not
allowed to share the IP address with a CIM 500 webserver.
Subnet Mask Configuration of the subnet mask if a DHCP server is not used.
Gateway Configuration of the gateway address if a DHCP server is not used.
Use DHCP
The module can be configured to automatically obtain its Modbus TCP network settings
from a DHCP server if available on the network.
Default: DHCP disabled. "Use DHCP" is unchecked.
