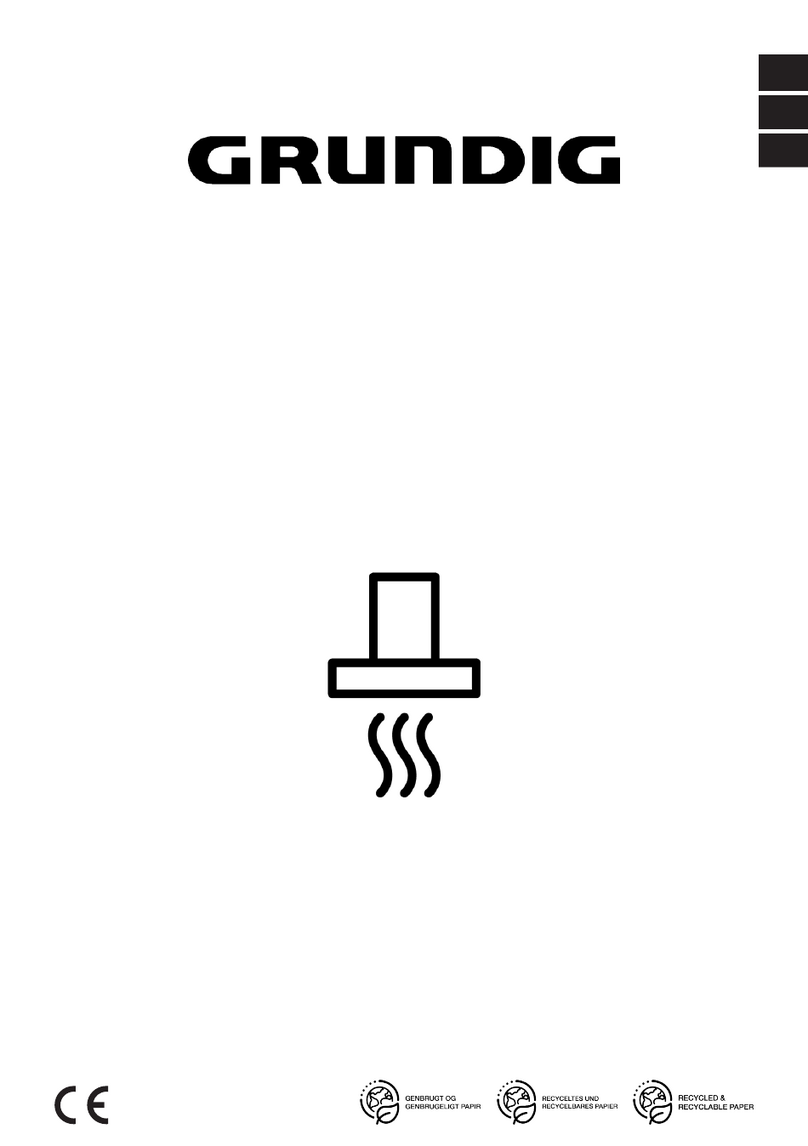

Grundig GDKP 2460 BC User manual

Hood
User Manual
01M-8899923600-4220-05
EN - DE - ES - RO
GDKP 2460 BC

2
ENGLISH 04 - 16
ESPAÑOL 33 - 49
ROMÂNĂ 50 - 68
DEUTSCH 17 - 32

Please read this guide first!
Dear Customer,
Thank you for choosing a GRUNDIG product. We would like you to achieve the optimal
efficiency from this high quality product which has been manufactured with state
of the art technology. Please make sure you read and understand this guide and
supplementary documentation fully before use and keep it as a reference. Include
this guide with the unit if you hand it over to someone else. Observe all warnings and
information herein and follow the instructions.
Keep in mind that this user guide may apply to several product models. The guide
clearly indicates any variations of different models.
Symbols and their meanings
These symbols are used throughout this guide:
CImportant information and recommen-
dations regarding the use of the appli-
ance.
ACAUTION: Warnings on personal injury
or property damage.
BElectric shock warning,
Risk of fire warning.
Complies with WEEE Regulations. No PCB Included.
This product has been manufactured at modern facilities respectful to the environment without harm-
ing nature.

4ENGLISH
General Safety
Important Safety Instructions Read Carefully
And Keep For Future Reference This section
contains safety instructions that will help pro-
tect from risk of fire, electric shock, exposure
to leak microwave energy, personal injury or
property damage. Failure to follow these in-
structions shall void any warranty.
■ Grundig products comply with the appli-
cable safety standards; therefore, in case
of any damage on the appliance or power
cable, it should be repaired or replaced by
the dealer, service center or a specialist
and authorized service alike to avoid any
danger. Faulty or unqualified repair work
may be dangerous and cause risk to the
user.
■ This appliance is intended to be used in
household and similar applications such
as:
– Staff kitchen areas in shops, offices and
other working environments;
– Farm houses
– By clients in hotels, and other residential
type environments;
– Bed and Breakfast type environments.
■ Operate the appliance for its intended pur-
pose only as described in this manual.
■ The manufacturer cannot be held liable for
damages resulting from improper installa-
tion or misuse of the product.
■ This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or men-
tal capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved.
■ Children shall not be allowed play with the
appliance. Cleaning and user maintenance
shall not be made by children without su-
pervision.
■ The minimum distance between the sup-
porting surface for the cooking vessels on
the hob and the lowest part of your product
must be at least 65 cm.
■ If the instructions for installation for the gas
hob specify a greater distance, this has to
be taken into account.
■ Make sure that your mains power supply
complies with the information supplied on
the rating plate of the appliance.
■ Never use the appliance if the power cable
or the appliance itself is damaged.
■ Prevent damage to the power cable by not
squeezing, bending, or rubbing it on sharp
edges. Keep the power cable away from
hot surfaces and naked flame.
■ Use the appliance with a grounded outlet
only.
WARNING: Do not connect the appliance to
the mains until the installation is fully com-
plete.
IMPORTANT SAFETY AND ENVIRONMENTAL INSTRUCTIONS ______

5
ENGLISH
■ Place the appliance in a way so that the
plug is always accessible.
■ Do not touch the lamps if they have oper-
ated for a long time. They can burn your
hands since they will be hot.
■ Follow the regulations set out by compe-
tent authorities on discharge of the exhaust
air (this warning is not applicable for use
without Chimney ).
■ Operate your appliance after putting a pot,
pan etc. on the hob. Otherwise, high heat
may cause deformation in some parts of
your product.
■ Turn off the hob before taking the pot, pan
etc. from it.
■ Do not leave hot oil on the hob. Pans with
hot oil may cause self combustion.
■ Pay attention to your curtains and covers
since oil may catch fire while cooking food
such as fries.
■ Grease filter must be replaced at least
monthly. Carbon filter must be replaced at
least every 3 months.
■ Product shall be cleaned accordance with
user manual. If cleaning was not carried
out in accordance with user manual, there
may be fire risk.
■ Do not use non-fire-resistant filtering ma-
terials instead of the current filter.
■ Only use the original parts or parts recom-
mended by the manufacturer.
■ Do not operate the product without the fil-
ter and do not remove the filters while the
product is running.
■ In the event of be started any flame,
de-energize your product and cooking ap-
pliances.
■ In the event of be started any flame, cover
the flame and never use water to extin-
guish.
■ Unplug the appliance before each cleaning
and when the appliance is not in use.
■ The negative pressure in the environment
should not exceed 4 Pa (4 x 10 bar) while
the hood for electric hob and appliances
running on another type of energy but elec-
tricity operate simultaneously.
■ In the environment where the appliance is
being used, the exhaust of devices running
on fuel oil or gas, such as room heater
must be absolutely isolated or device must
be hermetical type.
■ When connecting the Chimney , use pipes
with a diameter of 120 or 150 mm. Pipe
connection must be as short as possible
and have as few elbows as possible.
Danger of choking! Keep all the packaging
materials away from children.
CAUTION: Accessible parts may become hot
when used with cooking appliances.
■ The product outlet must not be connected
to air channels that include other smoke.
■ The ventilation in the room may be insuf-
IMPORTANT SAFETY AND ENVIRONMENTAL INSTRUCTIONS ______

6ENGLISH
ficient when the hood for electric hob is
used simultaneously with the devices op-
erating on gas or other fuels (this may not
apply to appliances that only discharge the
air back into the room).
■ Objects placed on the product may fall. Do
not place any objects on the product.
■ Do not flambe under the your product.
WARNING: Before installing the Hood, re-
move the protective films.
■ Never leave high naked flames under the
hood when it is in operation
■ Deep fat fryers must be continuously mon-
itored during use: overheated oil can burst
into flames.
Compliance with the WEEE Directive and
Disposing of the Waste Product:
This product complies with EU WEEE Direc-
tive (2012/19/EU).This product bears a clas-
sification
symbol for waste electrical and electronic
equipment (WEEE).
This symbol indicates that this
product shall not be disposed with
other household wastes at the end
of its service life. Used device must
be returned to offical collection point for re-
cycling of electrical and electronic devices.
To find these collection systems please con-
tact to your local authorities or retailer where
the product was puchased. Each household
performs important role
in recovering and recycling of old appliance.
Appropriate disposal of used appliance helps
prevent potential negative consequences for
the environment and human health.
Compliance with RoHS Directive
The product you have purchased complies
with EU RoHS Directive (2011/65/EU). It does
not contain
harmful and prohibited materials specified in
the Directive.
Package Information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do not
dispose of the packaging materials together
with the domestic or other wastes.Take them
to the packaging material collection points
designated by the local authorities
.
IMPORTANT SAFETY AND ENVIRONMENTAL INSTRUCTIONS ______

7
ENGLISH
GENERAL APPEARANCE ___________________________
Overview
Technical Data
1. Inner Chimney
2. Outer Chimney
3. Control Panel
4. Aluminum Grease Filter
5. Lighting
(Figure 2)
(Figure 1).
Model GDKP 2460 BC
Supply voltage 220-240V ~ 50 Hz
Lamp Power 2 x 3 W
Motor Power 210 W
Flow rate (m³/h) – 3. Level 627 m³/h
Insulation Class of Motor Class F
Insulation Class Class I
504
598
53
Mn643 Max 1023
590
20
380
261
250
80 25

8ENGLISH
OPERATION OF THE APPLIANCE ______________________
Controlling the Appliance
KEY FUNCTION
(A) : 1. Stage Button Operates the appliance on 1st speed. When you press this button again to turn off
the appliance, the screen speed stage turns off.
(B) : 2. Stage Button Operates the appliance on 2nd speed. When you press this button again to turn
off the appliance, the screen speed stage turns off.
(C) : 3rd Stage Button Operates the appliance on 3rd speed. When you press this button again to turn off
the appliance, the screen speed stage turns off.
(D) : Light On / Off You may illuminate the cooking area by pressing this button. Re-press the button
to turn off the lamp.
Energy Efficient Usage
■ When using your appliance, adjust the speed
settings according to vapour and odour intensity,
in order to save energy.
■ Use low speeds (1-2) under normal conditions,
and high speed (3) for intense odour and vapour.
■ The lamps on the hood are placed for illuminat-
ing the cooking area.
Using them for environmental lighting shall cause
unnecessary energy expenditure and insufficient
lighting.
Operating the Hood
■ Your appliance contains a motor that has various
speeds.
■ For better performance, we recommend using
low speeds under normal conditions and high
speeds in cases of strong odours and intense
vapour.
■ You can start your appliance by pressing on the
desired speed setting button. (A, B, C)
■ You may illuminate the cooking area by pressing
the lamp (D).
Automatic Stop
Your appliance has Automatic Stop feature, ena-
bling it to ventilate for a bit more and remove the
unwanted odours and vapour inside the environ-
ment and turn off automatically after the cooking
is done. To enable Automatic Stop feature, press
the any speed stage button (A, B, C) on the control
panel for longer than 2 seconds; the 15-minute
timer function shall be activated. When the au-
tomatic stop feature is active, pressing the same
speed button shall disable the automatic stop func-
tion and the appliance's motor shall stop. This fea-
ture is disables when you switch between different
speed stages. If you want the appliance to stop au-
tomatically, you need to enable the automatic stop
feature again.
A B CD

9
ENGLISH
OPERATION OF THE APPLIANCE ______________________
Operation with Chimney Con-
nection
■ Vapour is extracted through
the flue duct, which is fas-
tened to the connection head
on the hood.
■ The diameter of the flue duct must be the
same as the connection ring. In horizontal
settings, the pipe has to have a slight up-
ward slope (around 10º) so that the air can
exit the room easily.
Operation without Chimney Con-
nection
■ Air is filtered through the
carbon filter and recirculated
in the room. Carbon filter is
used when it is impossible to
use a flue in the house.
■ In flueless use, remove the flaps inside the
flue adapter.
■ Remove the aluminum grease filter. To in-
stall the carbon filter, fit the filter to the tabs
by centring it on the plastic piece on both
sides of the fan body. tighten it by turning
right or left.
■ Replace aluminum grease filter.
Bulb
Bulb Power (W) 3
Holder / Socket GZ 10
Bulb Voltage (V) 220 - 240
Size (mm) 53 x 50
ILCOS Code DR/F3-220-240-
GZ10-50-53
Replacement of Lamp
(Figure 3)
Make the electrical connections of the appli-
ance.Your appliance uses 3W spot LED lamp.
For replacing the lamps, push downwards
on the holder from its behind, turn it coun-
ter-clockwise, and take it out downwards.
Apply the above operation in reverse to install
new lamps (Figure 3).

10 ENGLISH
CLEANING AND MAINTENANCE _______________________
C
Before cleaning and mainte-
nance, unplug the product or
turn off the switch.
Cleaning of Aluminum Grease
Filter
Aluminum grease filter is used to retain the
oil particles in the air. Aluminum grease filter
may change colour after repeated cleaning.
This is normal, and you do not have to replace
your filters.
(Figure 4)
■ Push the aluminum grease filter lock for-
ward.
■ Then pull it slightly down and pull it out
(Figure 4). Otherwise, you may bend the fil-
ter. Wash and rinse aluminum grease filter
with liquid detergent and replace aluminum
grease filter to their seats by carrying out
the steps specified above in reverse order.
These aluminum grease filter are used to
retain the oil particles in the air.
C
You may also wash the alumi-
num greasefilterinthe washing
machine.
A
CAUTION
Incaseofnormaluse,cleanyour
aluminum grease filter once in
a month.
Replacement of Carbon Filters
(Figure 5)
The appliance you have purchased is appro-
priate for use with carbon filters.
■ Remove the aluminum grease filter
(Figure 4).
■ Place the lower part of the carbon filter to the
motor cabinet (Figure 5).
■ Press on the tab of the carbon filter and
push it forward, and ensure that the tabs
of carbon filter are engaged and locked.
(Figure 5).
■ Attach the aluminum grease filter.
A
CAUTION
Carbon filter shall never be
washed.
A
CAUTION
Replace carbon filters once
every 3 months.
A
CAUTION
You can obtain the carbon filter
from the authorized services.
