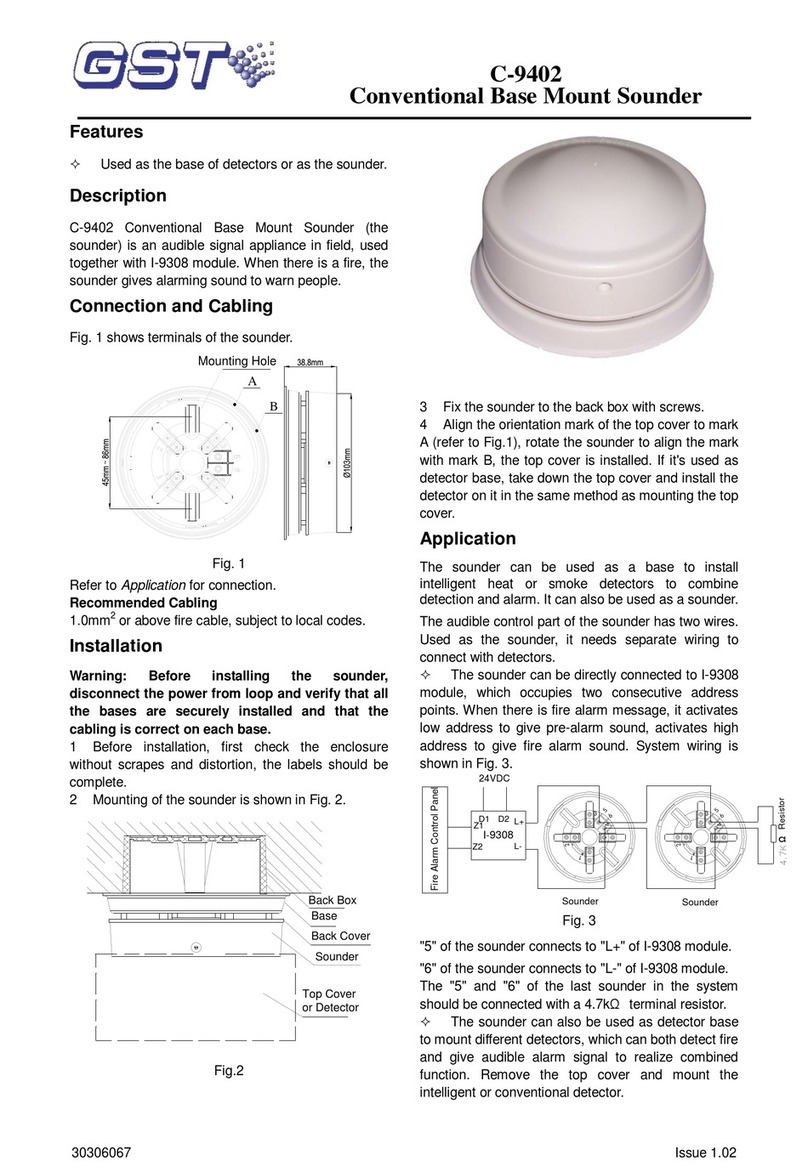

GST C-9402 User manual

HTTP://WWW.HOMBI.RU
30304161 Issue2.01
Features
Used as the base of a detector or the sounder.
Description
C-9402 Conventional Base Mount Sounder (the
sounder) is an audible signal appliance in field, used
together with I-9308 module. When there is a fire, the
sounder gives alarming sound to warn people.
Connection and Wiring
Terminals of the sounder are shown in Fig. 1.
A
B
Mounting Hole
Fig. 1
Refer to Application for connection.
Recommended Wiring
1.0mm2or above fire cable, subject to local codes.
Installation
Warning: Before installing the sounder,
disconnect the power from loop and verify that all
the bases are securely installed and that the wiring
is correct on each base.
1 Before installation, first check the enclosure
without scrapes and distortion, the labels should be
complete.
2 Mounting of the sounder is shown in Fig. 2.
Electric
Box
Base
Back Cove
r
Sounder
Top Cover
or Detector
Fig.2
3 Fix the sounder to the electric box with screws.
4 Align the orientation mark of the top cover to mark
A(refer to Fig.1), rotate clockwise to B, the top cover is
installed. If it's used as detector base, take down the
top cover and install the detector on it in the same
method as mounting the top cover.
Application
Used as the base, it can connect with GST detectors
to combine detection and alarming. And it needs
separate wiring.
The sounder can be used as a base to install
intelligent heat or smoke detectors to combine
detection and alarm. It can be also used as a sounder.
The audible control part of the sounder has two wires.
Used as the sounder, it needs separate wiring to
connect with detectors.
The sounder can be directly connected to I-9308
module, which occupies two consecutive address
points. When there is fire alarm message, it activates
low address to give pre-alarm sound, activates high
address to give fire alarm sound. System wiring is
shown in Fig. 3.
Sounder
Sounder
24VDC
Fire Alarm Control Panel
4
6
3
5
4
6
5
2
3
2
I-9308
D2D1
Z1 L+
1
1
L-
Z2
Ω
Resistor
Fig. 3
"5" of the sounder connects to "L+" of I-9308 module.
"6" of the sounder connects to "L-" of I-9308 module.
The "5" and "6" of the last sounder in the system
should be connected with a 4.7kΩterminal resistor.
The sounder can also be used as detector base
to mount different detectors, which can both detect fire
and give audible alarm signal to realize combined
function. Remove the top cover and mount the
intelligent or conventional detector.
When mounting intelligent detector on the sounder,
The Intelli
g
ent Solution C-9402
Conventional Base Mount Sounder
HTTP://GSTRU.RUE-MAIL: [email protected]

HTTP://WWW.HOMBI.RU
30304161 Issue2.01
Wire according to Fig. 3 first, then go on wiring
according to Fig. 4.
Intelligent
Detector
3
1
1
FireAlarmControlPanel
Intelligent
Detector
Z1
Z2
L+
I-9308L-
D2
D1
2
4
6
5
3
2
4
6
5
24VDC
Fig. 4
"1" and "3" of the sounder connect to loop,
polarity-insensitive.
"2" and "4" don't connect to any wire, but are used to
fix the detector accessorily.
When mounting conventional detectors on the
sounder, I-9319 Intelligent Zone Monitor Unit should
be added to the system and a P-9907 Active End of
Line Unit be connected to the end of the loop. First
wire according to Fig. 3, then go on wiring according to
Fig. 5.
Conventional
Detector
3
1
1
FireAlarmControlPanel
Conventional
Detector
Z1
Z2
L+
I-9308L-
D2
D1
24VDC
2
4
6
5
3
2
4
6
5
I-9319
Z1 O-
Z2 O+
3
Diode
Diode
P-9907
Active End of Line Unit
Fig. 5
"1" of the sounder connects to "O+" of the zone
monitor unit.
"3" of the sounder connects to "O-" of the zone monitor
unit.
An 1N5819 diode (please note polarity) should be
connected between 1 and 2 of the sounder.
"2" of the sounder connects to "1" of the next
equipment as anode of output power.
"2" and "3" of the last sounder connect to end of line
unit.
"4" of the sounder doesn't connect to any wire, but is
used to fix the detector accessorily
Specifications
Operating Voltage 24VDC
Alarm Current ≤15mA
Sound Level ≥85dB (1m horizontally
ahead (A weighted))
Type of Alarm Signal Pre-alarm: Intermittent
(0.5s on 1s off)
Fire Alarm: Continuous
(0.4s on 0.3s off)
Ingress Protection
Rating IP31
Operating
Temperature -10℃～+50℃
Relative Humidity ≤95%, non condensing
Material and Color of
Enclosure ABS, white (RAL 9016)
Dimension Diameter: 120mm
Height: 38.8mm(without top
cover)
Weight About 130g
Accessories and Tools
Mode Name Remark
I-9308 Addressable
Sounder Circui
t
Module
Supplied separately
Top cover Used as the sounder
