Guardian Angel GA-253 User manual

*** USER’S MANUAL ***
FCC ID : Q8605001

The Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction, may
cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of more of the following
measures: -
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced Radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change
or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERECE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.

iii
English
FEDERAL COMMUNICATIONS COM-
MISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with and instruc-
tions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference try one or more off the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/TV
technician for help.
Caution:
To assure continued FCC compliance:
Any changes or modifications not expressly by the
grantee of this device could void the user’s authority to
operate the equipment.

English
Contents
Contents
Introduction
Features....................................................................................... 1
Unpacking.................................................................................... 2
Components ................................................................................ 3
Setting Up the GA-253
Setting Up the Camera/Transmitter............................................. 5
Setting Up the Tripod ............................................................... 6
Attaching the Camera to the Tripod...................................... 6
Positioning the Tripod........................................................... 6
Setting Up the Fixed Mounting Bracket.................................... 8
Assembling the Fixed Mounting Bracket .............................. 8
Attaching the Camera to the Angle Bracket ......................... 9
Attaching the Mounting Bracket to a Fixed Surface ........... 10
Setting Up the Video Monitor/Receiver.................................. 11
Using the Batteries and Adapters .............................................. 12
Turning the Power On ............................................................ 12
Using Batteries....................................................................... 13
Using the Power Adapters ..................................................... 14
Plugging In the Power Adapters ......................................... 14
Using the GA-253
Using the GA-253 as a Wireless Audio/Video
Security System......................................................................... 15
Setting Channels .................................................................... 15
Setting Channels for Single Camera Use........................... 15
Setting Channels for Multiple Camera Use......................... 17
Adjusting the Focus................................................................ 18
Adjusting the Volume ............................................................. 18
Adjusting Reception Quality ................................................... 19
Specifications......................................................................... 20
Troubleshooting.................................................................... 21

1
English
Introduction
Thank you for selecting the Guardian Angel. This
highly configurable wireless audio/video monitoring
system enables you to set up a monitoring network
quickly and easily without the need to install wires and
cables.
Included in this wireless system are a full-colour CMOS
camera/transmitter and a portable hand-held receiver
with a colour TFT LCD display. The Receiver can be
powered using the power adapters or an alkaline battery.
The standard RF transmission protocols and selectable
operating channels makes this a very versatile unit
which can be used in the home, office or when outside.
The Guardian Angel supports up to four separate trans-
mitters operating on separate channels that you can
switch between using a single handheld receiver.
Features
• Wireless audio and video monitoring for office
security
• Lightweight receiver is equipped with a 2.5-inch
colour TFT LCD screen and built-in speaker
• 2.4 GHz signal avoids interference from 900
MHz cordless phones
• Adjustable antenna transmits up to 300 feet
(FCC - USA)
• Four-channel capability allows a single receiver
to receive signals from up to four different trans-
mitters
• Six infrared, night vision
• LCD saving mode (voice activation) extends bat-
tery life

2
English
Unpacking
Contact your dealer immediately if any of the following
components are missing.
Video Monitor/Receiver
User Manual
Your Guardian Angel
includes either a tripod or
a fixed mounting bracket
(must be assembled).
Fixed Mounting Bracket
(components)
Camera/Transmitter
User ManualAC Power Adapters
Tripod

3
English
Components
Transmitter
Fixed Mounting Bracket
Antenna
Focus Ring
Angle Bracket
Base Mount
Stem
Adjustable leg
Angle screw
Camera mount
Angle Bracket
Tripod
Microphone

4
English
Receiver
Antenna
Speaker
Volume
Control
Power Adapter
Power Switch
Channel
Indicator LEDs
Channel
Selector
TFT LCD
Screen

5
English
Setting Up the GA-253
Setting Up the Camera/Transmitter
This chapter takes you through the steps required to set
up the Guardian Angel. Depending on the model you
purchased, your Guardian Angel will come equipped
with either a fixed mounting bracket or a tripod. For
instructions on setting up the tripod, see the next sec-
tion, Attaching the Camera to the Tripod on page 6. For
instructions on setting up the fixed mounting bracket,
see Setting Up the Fixed Mounting Bracket on page 8.
Tripod
Your Guardian Angel
includes either a tripod or
a fixed mounting bracket
(must be assembled)
Fixed Mounting
Bracket Components

6
English
Setting Up the Tripod
Attaching the Camera to the Tripod
1. Hold the camera firmly to avoid dropping it.
2. Screw the threaded top of the assembled angle
bracket clockwise into the hole on the underside
of the camera body.
Positioning the Tripod
The camera tripod is equipped with adjustable legs to
allow positioning of the camera at a range of heights.
Each of the three legs is individually adjustable to allow
compensation for uneven surfaces. The camera mount
angle bracket at the top of the tripod can be adjusted to a
suitable angle by loosening the angle bracket screw, set-
ting the angle, then tightening the screw.
Angle bracket
screw
Adjustable leg

7
English
Take the following points into consideration when plan-
ning a location for your camera:
• The camera should be positioned so that the view
of the area to be monitored is unobstructed.
• The line of sight between the camera and the
video monitor should be as clear as possible.
Reducing the number of doors, walls and win-
dows between the camera and the video monitor
improves reception quality.
• You must ensure the area in wish you wish to set
up the camera has a power outlet.
When positioning the camera:
1. Make sure the camera is securely attached to the
tripod.
2. Position the tripod in the desired location, adjust-
ing the legs and angle as necessary.
3. Test the reception of the video monitor/receiver
in locations where you plan to use the receiver.
See the section Adjusting Reception Quality on
page 19 for information on improving wireless
transmission quality.

8
English
Setting Up the Fixed Mounting Bracket
Assembling the Fixed Mounting Bracket
The fixed mounting bracket included consists of three
parts:
• Angle bracket
•Stem
• Base mount
Follow these steps to assemble the fixed mounting
bracket:
1. Screw the threaded end of the stem clockwise
into the base mount.

9
English

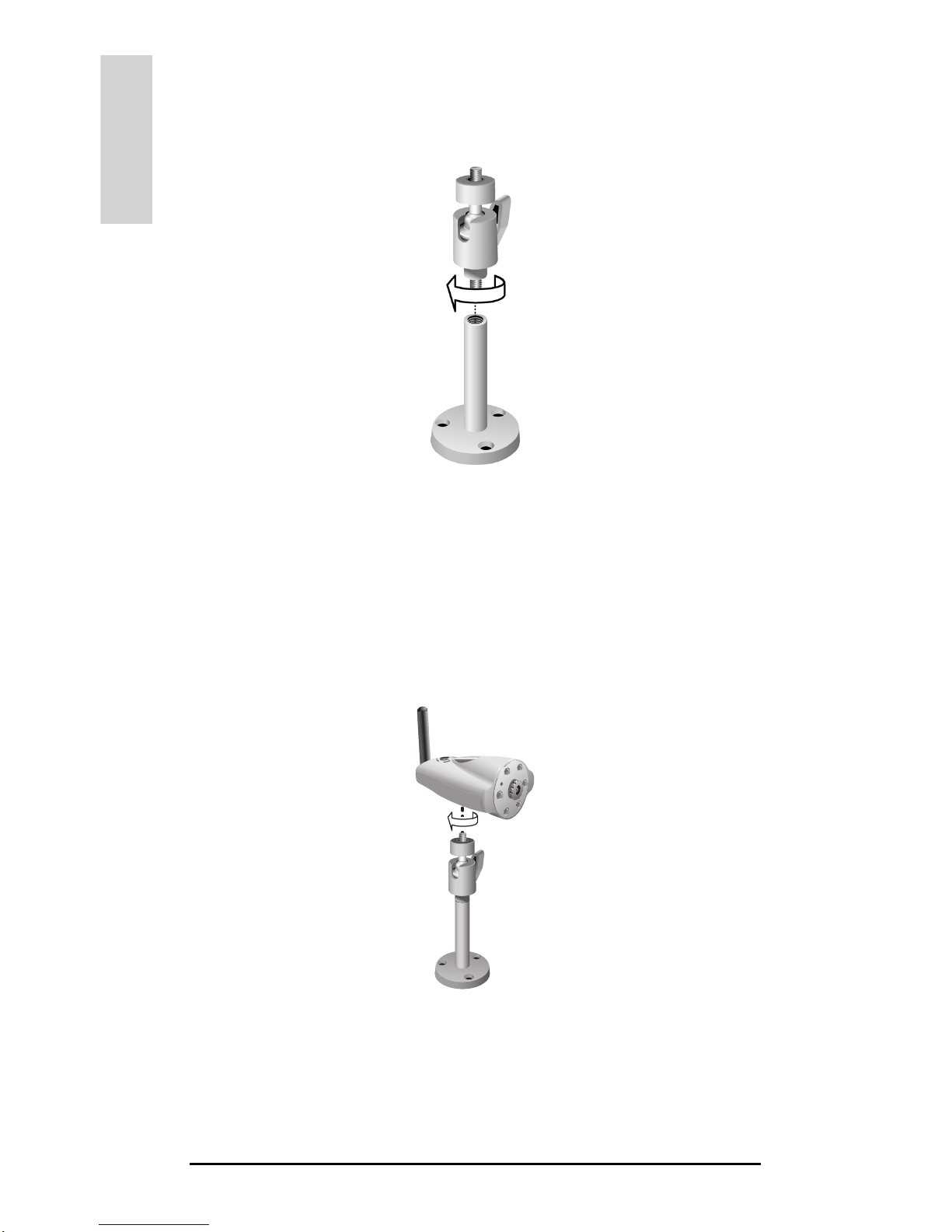

2. Screw the threaded end of the angle bracket
clockwise into the top of the stem.
Attaching the Camera to the Angle Bracket
1. Hold the camera firmly to avoid dropping it.
2. Screw the threaded top of the assembled angle
bracket clockwise into the hole on the underside
of the camera body.

10
English
Attaching the Mounting Bracket to a Fixed Sur-
face
You may choose to attach the camera mount to a fixed
surface such as a wall or ceiling; however, the following
points should be taken into consideration when planning
a location.
• The camera should be positioned so that the view
of the area to be monitored is unobstructed.
• The line of sight between the camera and the
video monitor should be as clear as possible.
Reducing the number of doors, walls and win-
dows between the camera and the video monitor
improves reception quality.
• You must ensure the area in wish you wish to set
up the camera has a power outlet.
To mount the camera to a fixed surface:
1. Make sure the mounting assembly components
are screwed together firmly.
2. Hold the base of the mount against the fixed sur-
face and point the camera at the area to be moni-
tored.
3. Have another person test reception of the video
monitor/receiver in locations where you plan to
use the receiver. See the section Adjusting
Reception Quality on page 19 for information on
improving wireless transmission quality. Deter-
mine the optimum camera placement before pro-
ceeding to the next step.
4. Using a sharpened pencil, mark the location of
the three mounting bracket holes on the fixed
surface (e.g. wall).
5. Drill three holes at the locations you marked.
6. Push the wall plugs into the holes.

11
English
7. Use a Phillips screwdriver to screw the base
mount to the fixed surface.
8. Attach the camera to the angle bracket and make
final adjustments to the camera angle. Tighten
the angle bracket thumb screw.
Setting Up the Video Monitor/Receiver
The video monitor is designed for portability and con-
venience. It can be held in your hand and carried
around, stored in a pocket, or placed at a comfortable
viewing angle on a flat surface.
Angle
bracket
thumb
screw
78

12
English
Using the Batteries and Adapters
Turning the Power On
Both the camera/transmitter and the video monitor/
receiver are powered using the included power adapt-
ers. The camera/transmitter can also be powered by
three ordinary or rechargeable size AA batteries.
To turn the transmitter power on, slide the power switch
in the direction of the arrow illustrated below:
The video camera/receiver power switch has three set-
tings as illustrated:
On
Off Receiver
Power Switch
LCD Saving Mode
Audio/VideoOff

13
English
Using Batteries
Using batteries provides convenient, cable-free power
for the receiver. Normal operating times are as follows:
Operating time can be extended when the receiver is in
LCD saving mode. The receiver can also be plugged
into an electrical outlet using the power adapter as
explained in the following section.
When the batteries no longer contain enough charge to
power the receiver, it will automatically shut down.
There is no audible or video warning prior to shutdown.
Caution:
• Incorrectly replacing the batteries may result in
explosion.
• Replace batteries with the same or equivalent
type of battery.
Never force the pins of a power adapter into an electric
outlet. Purchase a plug adapter if necessary.
Component LCD
Saving
Audio and
Video
Video Monitor/Receiver 6 hours 3 hours

14
English
Using the Power Adapters
The GA-253 comes with two identical chargers that can
be used interchangeably between the camera/
transmitter and the video monitor/receiver. Read the
warning below before proceeding.
Warning:
• Do not use power adapters in outdoor locations.
• Do not place power adapters in areas where they
may come in contact with liquids.
• Never force the pins of a power adapter into an
electric outlet. Purchase a plug adapter if neces-
sary.
Plugging In the Power Adapters
1. Plug the power adapter into an electrical outlet.
2. Plug the AC adapter connector into the power
adapter port on the transmitter and receiver as
shown in the following illustrations.
Transmitter
Receiver

15
English
Using the GA-253
This section explains how to set up and use the GA-253
as a wireless security system or as a wireless A/V enter-
tainment hub.
Using the GA-253 as a Wireless
Audio/Video Security System
Setting Channels
The GA-253 can transmit and receive audio and video
signals on four distinct frequencies or channels. This
enables you to monitor up to four different cameras
using a single receiver, monitor a single camera with
two receivers, or use any other combination of transmit-
ters and receivers.
Setting Channels for Single Camera Use
1. Make sure the camera/transmitter and video
monitor/receiver are powered on. See Turning
the Power On on page 12.
2. Push the channel selector button on the camera
to select a channel. The green channel indicator
LED switches to the next channel (1, 2, 3 or 4)
with each button press. Select channel 1.
Channel 1 Indicator LED
Channel Selector Button
