GVA G77TFW16 User manual

77CM TOWER FAN WITH
TOUCH CONTROL
G77TFW16
Instruction Manual
G77TFW16_IB_160718_grace.indd 1 18/7/16 2:37 pm

G77TFW16_IB_160718_grace.indd 2 18/7/16 2:37 pm

1
Contents
Guide to the Appliance 2
Caring for the Environment 3
Safety Information and Warnings 4
Items in the Box 8
Operation Instructions 9
Troubleshooting 11
Care and Maintenance 12
Technical Specifications 13
G77TFW16_IB_160718_grace.indd 1 18/7/16 2:37 pm

2
Guide to the Appliance
Due to production improvements, the appliance may differ
slightly from the diagram shown. Diagrams in this instruction
manual are for reference only.
1
2
3
4
5
6
7
8
9
10
11
12
1. On/Off Button
2. Speed Button
3. Oscillating Button
4. Timer Setting Button
5. Control Panel & Display
6. Remote Control
7. Carrying Handle
8. Remote Control Storage
9. Air Flow Direction Adjuster
10.Cord Storage
11.Power Cord
12.Base
G77TFW16_IB_160718_grace.indd 2 18/7/16 2:37 pm

3
Caring for the Environment
Responsible disposal of the packaging
The packaging of your appliance has been selected from environmentally
friendly materials and can usually be recycled. Please ensure these are
disposed of correctly.
Plastic wrapping can be a suffocation hazard for babies and young
children, please ensure all packaging materials are out of reach and
are safely disposed of. Please ensure they are offered for recycling rather
than throwing these materials away.
Responsible disposal of the appliance
At the end of its working life, do not throw this appliance out with your
household rubbish. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again.
Electrical and electronic appliances contain materials and substances
which, if handled or disposed of incorrectly, could be potentially
hazardous on the environment and human health.
Observe any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately. Contact your local
authorities for advice on recycling facilities in your area.
The plug must be rendered useless and the cable cut off directly behind
the appliance or the machine to prevent misuse.
G77TFW16_IB_160718_grace.indd 3 18/7/16 2:37 pm

4
Safety Information and Warnings
Please follow all the safety precautions
listed below for safety and to reduce the
risk of injury or electrical shock.
•Read all the instructions before operating
the appliance and keep them for future
reference. If you pass the product on to a
third party, include these instructions.
•Your fan should be used in such a way
that it is protected from moisture, e.g.
condensation, splashed water, etc. Do not
place or store your fan where it can fall or
be pulled into water or any other liquid.
•Stand the fan on a stable, level surface
during use. Do not allow your fan to sit on
top of the mains cable.
•Do not remove any fixed covers. Never
use this appliance if it is not working
properly, or if it has been dropped or
damaged. Always contact a qualified
technician to carry out repairs. If the mains
cable is damaged it must be replaced by
the manufacturer, its service agent, or
similarly qualified persons in order to
avoid a hazard.
G77TFW16_IB_160718_grace.indd 4 18/7/16 2:37 pm

5
Safety Information and Warnings
•If the fan is knocked over during use, turn
off the unit and unplug it from the mains
socket immediately.
•Do not operate your fan in the bathroom.
•Do not use hazardous chemicals to
clean or come into contact with the fan.
Never attempt to use the fan without the
base parts assembled or in a horizontal
position.
•This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the appliance by a person responsible
for their safety. Children shall not play
with the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
•Children should be supervised to ensure
that they do not play with the appliance.
•Never allow children to point their fingers
into any power sockets or moving parts.
G77TFW16_IB_160718_grace.indd 5 18/7/16 2:37 pm

6
Safety Information and Warnings
•If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified person in
order to avoid a hazard.
•Ensure that the fan is switched off and
fully unplugged from the mains supply
before removing the guard.
•Do not operate this appliance with
anything other than your hands. Do not
use the appliance with wet hands.
•For fans that require assembling, to avoid
personal injury, please ensure the product
has been fully assembled according to
the instructions within this manual.
•The appliance is for household and
indoor use only.
•When the appliance is not in use and/or
before cleaning, unplug it from the outlet
first.
•The appliance is only intended for the
purpose described in the user manual.
Do not use the appliance or any part of
the appliance out of the intended use to
avoid risk.
G77TFW16_IB_160718_grace.indd 6 18/7/16 2:37 pm

7
Safety Information and Warnings
•The use of attachments which are not
recommended or sold by the appliance
manufacturer may cause a risk of injury
to persons.
•Fan slots and oscillating feature are a
potential finger entrapment hazard for
toddlers and small children. Parental
supervision is required.
•When the fan is assembled, the fan guard
should not be taken off anymore.
G77TFW16_IB_160718_grace.indd 7 18/7/16 2:37 pm

8

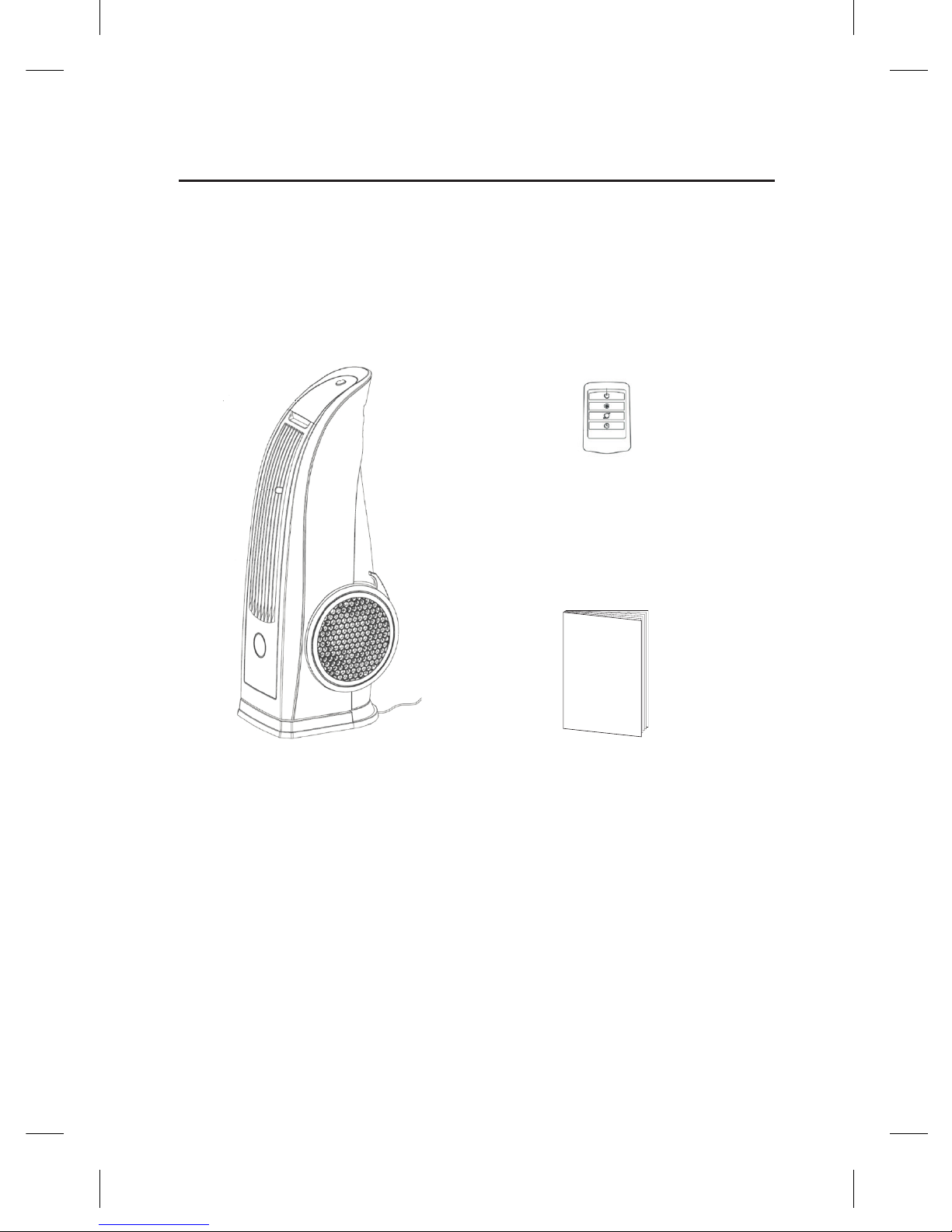

Items in the Box
Remove all items from the packaging. Retain the packaging. If you
dispose of it please do so according to local regulations.
The following items are included:
Instruction Manual
Instruction
Manual
Main Unit
Remote Control
(batteries included)
G77TFW16_IB_160718_grace.indd 8 18/7/16 2:37 pm

9
Operation Instructions
•Press the ON/OFF BUTTON to switch the fan on or off. To switch off
the fan completely, unplug the power cord. Press and hold the ON/
OFF BUTTON to change the temperature unit.
•Press the SPEED BUTTON for the required fan speed. The following
settings are available:
L - The Fan operates at the lowest speed
M - The Fan operates at the medium speed
H - The Fan operates at the highest speed
- The Fan is quiet with speed lower than L speed
•To make the fan oscillate, press the OSCILLATING BUTTON. To stop
the oscillation, press the OSCILLATING BUTTON again.
•Adjust the air flow direction by moving the AIR FLOW DIRECTION
ADJUSTER.
•Press the TIMER SETTING BUTTON repeatedly to set the automatic
switch-off timer. Switch-off hour can be set from 1 to 9 hours.
•To replace batteries in the remote control:
– open the battery compartment
– remove the old batteries
– insert 2 x AAA batteries, make sure the polarities match
– close the battery compartment
G77TFW16_IB_160718_grace.indd 9 18/7/16 2:37 pm

10
Handling the Batteries
•Improper or incorrect use of batteries may cause corrosion
or battery leakage, which could cause fire, personal injury or
damage to property.
•Only use the battery type indicated in this manual.
•When the batteries are exhausted, the remote control will not
function. Replace both batteries at the same time with new
ones.
•Do not install new batteries with used ones and do not mix
different types of batteries.
•Do not dispose of used batteries as domestic waste. Dispose
of them in accordance with local regulations.
Handling the Remote Control
•Do not drop or cause impact to the remote control.
•Do not spill water or any liquid on the remote control.
•Do not place the remote control on a wet object.
•Do not place the remote control under direct sunlight or near
sources of excessive heat.
•Remove the battery from the remote control when not in
use for a long period of time, as it could cause corrosion
or battery leakage and may result in physical injury and/or
property damage including fire.
Operation Instructions
G77TFW16_IB_160718_grace.indd 10 18/7/16 2:37 pm

11
Troubleshooting
Problem Solution
The force of air coming from
the unit is weak.
Adjust the speed up to a higher
setting.
The unit does not work. Check that the plug is connected
correctly and that the unit is turned
on at the mains supply.
Other abnormal conditions. Disconnect the fan from the wall and
consult a repair specialist.
G77TFW16_IB_160718_grace.indd 11 18/7/16 2:37 pm

12
Care and Maintenance
•Unplug the unit from the mains socket.
•Use a slightly damp cloth to wipe the outer body of the unit.
•Never completely cover the unit with water or use chemicals or
detergents as they could damage the unit in some way.
•Do not dismantle the unit to clean.
G77TFW16_IB_160718_grace.indd 12 18/7/16 2:37 pm

13
Technical Specifications
Rated Voltage 220-240V~
Rated Frequency 50 Hz
Input Power 85 W
Climate Class T
Ambient Operating Temperature 40˚C
Features and specifications are subject to change without prior notice.
G77TFW16_IB_160718_grace.indd 13 18/7/16 2:37 pm

IB-G77TFW16-160718V1
While every effort has been made in the preparation of this instruction
manual, the publishers cannot be held responsible for the accuracy of the
information contained herein or any consequences arising from it.
M.E.W. (Australia) Pty Ltd
15 Vaughan Street
Essendon Fields VIC 3041
ACN 152 719 036
1300 725 885
[email protected]
gvaproducts.com.au
G77TFW16_IB_160718_grace.indd 14 18/7/16 2:37 pm
