GW Instek GUT-6000A User manual

GUT-6000A
Digital IC Tester
USER MANUAL

GUT-6000A USER MANUAL
2
INTRODUCTION...................................................3
FEATURES...........................................................4
SPECIFICATIONS.................................................5
CONTROLS & INDICATORS................................6
KEYS’ INSTRUCTION...........................................7
OPERATIONAL INSTRUCTIONS.........................8
1. OPERATIONAL PROCEDURES......................8
2. TESTING PROCEDURES................................9
3. AUTO LOOP TEST...........................................10
4. AUTO Search....................................................11
TROUBLE SHOOTING........................................12
MESSAGE DESCRIPTIO.....................................13
KEY CODE DESCRIPTION.................................15
TOTAL ASSEMBLY.............................................16
KEY CODE TABLES............................................17

GUT-6000A USER MANUAL
3
INTRODUCTION
GOOD WILL INSTRUMENT CO., LTD., accumulated over 30 years experiences in
electronic products’ research and development, is a pioneering manufacturer in IC
testers industry. The GUT-6000A, desktop design, is a newly launched and best
quality possible and multi-functions equipped product.
User’s friendly sets up by replacing another IC; the GUT-6000A continues to
undertake the task. The hard ware design of ''black-light'' function extends user’s
convenience for testing ICs in an inadequate light environment. The Buzzer key
built in various tones can easily identify the testing result. The unique capability
in identifying over 1800 CMOS/TTL digital ICs (up to 24 pins) surpasses the other
major digital IC testers.
The GUT-6000A feature such as built in ''auto search & test'' speeds to identify
and test IC. In addition, the ''loop'' design for continuously testing function is
intelligently applied to detect defective ICs and their stability. All these strengths
provide signicantly conveniences for digital IC testers.
All the GUT-6000A accumulated incalculable benets are to be discovered as
users utilize the value-added, multi-functions equipped tester. This is a best
choice for the factories, R&D sections, maintenance departments, laboratories as
well as academics because it really creates future with your business.

GUT-6000A USER MANUAL
4
FEATURES
● Reliable desktop design.
● User’s friendly set up and operates.
● 16*1 character 9*7 dot matrix LCD display.
● Built in 6 functions and 10 numerical keys.
● Identifier over 1800 CMOS/TTL digital ICs (up to 24 pins).
● High test speed at an average 0.8 second for one IC test.
● The following IC series can be tested under 5V.
■ Texas Instruments 54/74 TTL series.
■ Motorola 14000 and RCA CD4000 CMOS series.
■ Other compatible ICs with the above mentioned devices.
● ''AUTO'' function key supports ''auto search and test'' function. User only to put
the IC into the socket, no need to press any key, no need to process any other
movements, the ''auto search and test'' will continue processing.
● ''LOOP'' function key supports ''continue examining'', able to make sure
reliability of the IC.
● Various ''BUZZER'' sounds to presents the test results ''FAIL'', or ''PASS''.

GUT-6000A USER MANUAL
5
SPECIFICATIONS
DISPLAY 16*1 character dot matrix LCD display
TEST SOCKET One position for 28 Pin IC socket
OPERATIONAL KEY
( 1 ) TTL/CMOS, BUZZER, LOOP,
AUTO, GO, BACK SPACE
( 2 ) 10 numerical keys ( 0 – 9 )
TEST VOLTAGE 5 - 24VDC
ALARM Various tones for the test result
POWER SUPPLY 110/220VAC, 50/60 Hz(Auto range)
OPERARING
TEMPERATURE 10℃to 40 ℃
STORAGE TEMPERATURE 0℃ to 50 ℃
MEASURENENT 13”(W) x 11.8”(D) x 4.3”(H)
WEIGHT 3.3 LB ( 1.5Kg )

GUT-6000A USER MANUAL
6
CONTROLS & INDICATORS
(1) Liquid Crystal Display…..…....16*1 character 9*7 dot matrix LCD display
(2) 28Pin Test IC Socket
(3) Keyboard
(4) Fuse …………………………...1A, protects tester from damage
(5) Power Switch …………………Power on or off
(6) AC Receptacle ….…………...Plug in power cord
(7) GND…………………………...Ground

GUT-6000A USER MANUAL
7
KEYS’ INSTRUCTION
KEYS INSTRUCTION
Numerical Keys
Input IC numbers for test.
Execution key
● Executes testing work as inputting a device
number.
● Repeats test.
IC series selection key
● Switches selection TTL74, CMOS40 or
CMOS45 IC series
Auto search & test key
● Auto detects IC number
● Auto test IC
● If change into new IC, the ''auto search &
test'' will auto detect the IC, and continue to
test.
Loop Test key
● Tests IC's stability
● Stop and show errors as defective IC is found
● Press any key to stop running
● If take the IC away, the LCD will show
''EMPTY''. Then, if put any IC into socket, the
''LOOP'' function will continue.
● Use numerical key of 0 to 9, key in the IC's
number , and press ''LOOP'' key to process
loop test.
Back space Key
● Erases wrong number in the left side of ←
BUZZERING switching key
● Switches BUZZER on/off
AUTO
09
GO
TTL/
CMOS
LOOP
BUZZER

GUT-6000A USER MANUAL
8
OPERATIONAL INSTRUCTIONS
1. OPERATIONAL PROCEDURES
STEP1. Plug in AC power cord, then switch power on.
The black light of LCD is on and presents software version.
It starts self-test.
STEP2. Auto search the IC number and test if an IC is on the socket.
STEP3. Use TTL/CMOS to switch the selection of ''TTL74'', ''CMOS40'' or
''CMOS45'' series ICs.
No system error found displays on the LCD
System error shows on the LCD if it is detected.

GUT-6000A USER MANUAL
9

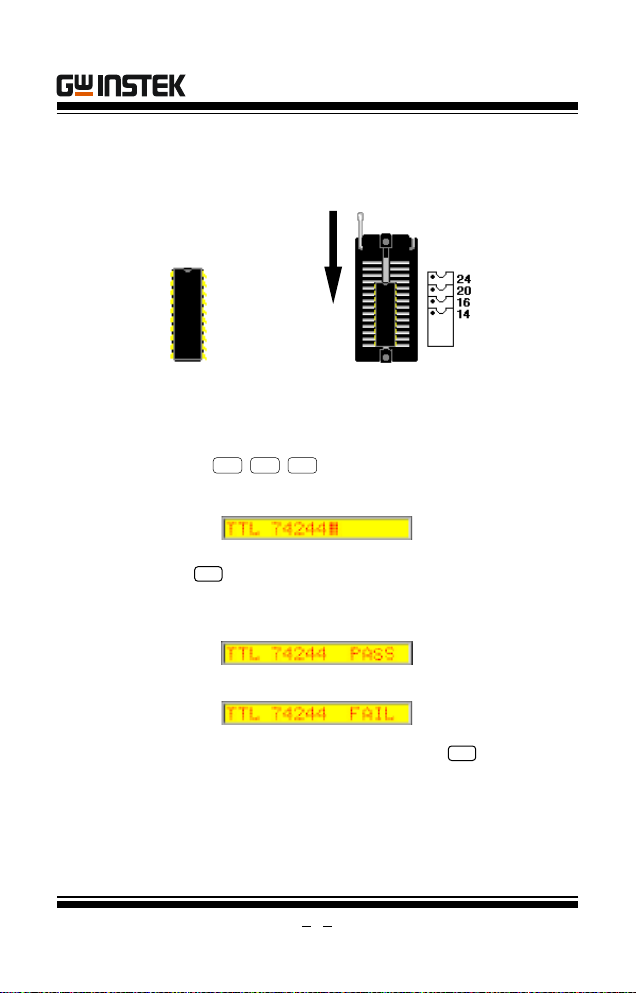

2. TESTING PROCEDURES
STEP1. Put IC on the socket and IC’s bottom line up with socket. Pin 1 side
faces up.
STEP2. Input the IC number such as the TTL 74LS244, and user types in IC
number in order.
STEP4. Repeat test by replacing a new IC, then press .
STEP5. Re-type the IC’s numbers for other another test.
Note. ''Pass'' may also happen to some logic function compatible but
different number’s two ICs if their numbers are exchanged with each
other to test.
IC pin 1 side faces up
Pass test displays on the LCD
LCD display
Fail test displays on the LCD
Pull down pin-stabler.
324
STEP3. Press , then the test works. Follow-up test result is displayed
on the LCD.
GO
GO

GUT-6000A USER MANUAL
10

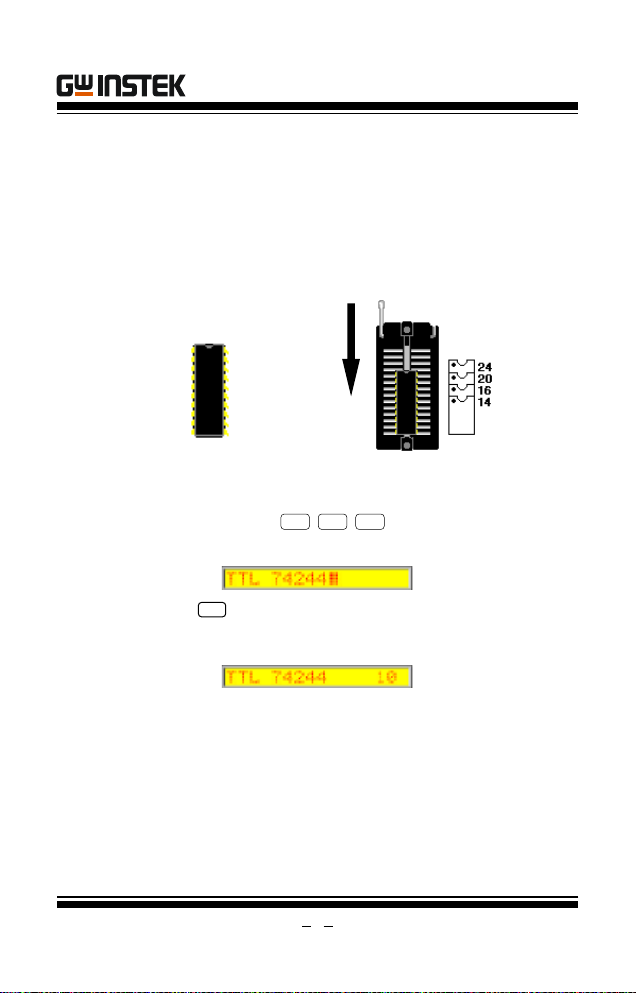

3. AUTO LOOP TEST
1. When an IC is tested, the test results appear unstable such as sometimes
good and sometimes not. The auto loop test is designed to detect this kind of
problem.
2. When a big quantity of same number of IC need to be test, the auto loop test
is speeding the process.
STEP1. Put IC into the socket and IC’s bottom line up with socket. Pin 1 side
faces up.
STEP2. Input the IC number such as the TTL 74LS244 device, and user
types in IC number in order.
STEP3. Press , then the test is running. Follow-up test result is
displayed on the LCD.
Error found was displayed on the LCD, ''Error in: nnnnn'', nnnnn means the
number of the error times.
STEP4. If take the IC away from the socket, the system will back to waiting
IC put in situation.
STEP5. Put IC into the socket, tight down the pin-stabler, the system will stat
the ''auto loop test''.
STEP6. Press any key to stop the ''auto loop test''.
IC pin 1 side faces up Pull down pin-stabler
244
LCD display
LCD display
LOOP

GUT-6000A USER MANUAL
11
4. AUTO Search
STEP2. Put IC into the socket and tight down the pin-stabler. System will begin to
process. If the test is correct, the LCD will shows ''PASS''. If the tests is
incorrect, the LCD will show ''FAIL''.
STEP3. Take the IC away the socket. The system will back to waiting IC situation.
Repeat the above steps, the auto search function will continue.
STEP4. If the system search for new IC number, not the number which you press
in, but the compatible IC. In this situation, no need to take the IC away, only
need to press ''AUTO'' key. The system will switch to the new IC number.
Repeat to press ''AUTO'' to switch to new IC number.
STEP5. Press any key but not ''AUTO'' to quit the auto search function. The LCD
will show ''CANCELAUTO''. Release to the original mode.
Note: IC number’s search result is presented from a small number to a bigger one.
For example, IC 74520 is found earlier than IC 74521.
Note: The biggest number for counter is 65535, if the over this number, the
counter will start from ''0''.
This test aims to search the unknown IC number.
STEP1. Press ''AUTO'' key, the LCD will show ''AUTO SEARCH''. The ''AUTO
SEARCH'' function is beginning. For example the TTL 74244.

GUT-6000A USER MANUAL
12
TROUBLE SHOOTING
SITUATIONS REASONS HOW
● LCD’s dark backlight
● No message on the LCD
●BUZZER no sound
● No response from key
board
∵Power off
∵Loose AC power cord
∵Burned fuse
∴Reset Power
∴ TightenAC power cord
∴ Replace fuse
∵Loose LCD connector.
∵Power supply damaged ∴Tighten LCD connector & plug
∴Contact regional distributor for
assistance
● BUZZER no sound
● LCD’s back light is on
● LCD message appears
● Response by any key on
the key board
∵ BZZER off ∴ Press BUZZER to switch
∵ BUZZER damaged
∵Components Q11,R3
damaged
∴ Replace SP1
∴ Replace Q11, R3
● LCD appears irregular
● LCD back light is dark
● Buzzer is no problem
∵Loose LCD flat cable
∵Damaged LCD’s unit ∴Tighten LCD’s flat cable
∴ Replace LCD’s unit
● IC test unstable ∵Bad connection between
IC and socket
∵SOCKET unclear or
damaged
∵Defective IC
∴Re-put IC, and pull down pin-
stabler
∴ Replace a SOCKET
∴Replace an IC
∵Loose CPU
∵Unstable internal circuit ∴Check U1
∴Re-put U.
∴Connect local distributor for
assistance
● Some keys no response ∵Key board damaged ∴Replace U4
∴Replace a keyboard.
● LCD’s black light is on
● LCD shows unstable
● No buzzer sound
● No response by pressing
any key on the key board
∵Loose CPU
∵Loose internal connector
∵Internal circuit unstable
∵Power supply damaged
∴Check U1
∴Re-put U1
∴Tighten internal connector & plug
∴Connect local distributor for
assistance

GUT-6000A USER MANUAL
13
MESSAGE DESCRIPTION
< Version xxxx > System version
SYSTEM CHECK... Power on self-test
SYSTEM READY !! Pass self-test
SYSTEM ERROR !! Error found form system
POWER ON SEARCH Power on to search IC number
TTL 74xxxx Cue for TTL 54/74xxx IC series
CMOS40xxx Cue for CMOS 40XX IC series
CMOS45xxx Cue for CMOS 45XX IC series
TTL 74xxx TEST IC test is going on
TTL 74xxx PASS No defective IC found
TTL 74xxx FAIL Defective IC found
TTL 74xxx nnnnn Counter for the total number
Error in: nnnnn Counter for the error number
LOGIC IC SEARCH Searching IC number
** NOT FOUND ** IC number not found
*** EMPTY *** To search without any IC is placed for
TTL 74xxx FIND IC number found
- AUTO SEARCH - Enter ''auto search'' mode

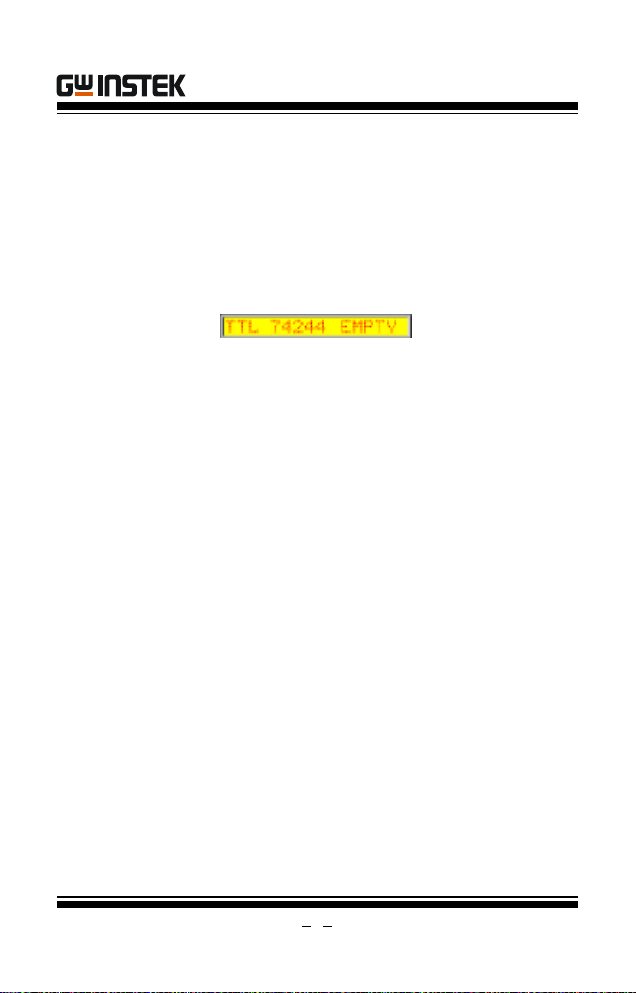

TTL 74xxx EMPTY Waiting for IC be put
TTL 74xxx >> Test and search function is running
- CANCELAUTO! Quit from auto search and test mode
- CANCEL LOOP! Quit from auto loop mode
-- BEEP ON -- Sound on
-- BEEP OFF -- Sound off

GUT-6000A USER MANUAL
14
PARTS LIST
Item Quantity Reference Part
1 2 C1, C2 18P
2 1 C4 0.1uF 50V
3 1 C3 4.7uF 15V
4 1 C5 47uF 15V
51 R1 10K 5% 1/4W
6 1 R2 470K 5% 1/4W
71 R3 4.7K 5% 1/4W
8 2 R4, R5 470 5% 1/4W
9 1 RP1 47Kx8 8R9P
10 1 RP2 4.7Kx5 4R6P
11 3RP3-RP5 4.7Kx8 8R9P
12 1 RP6 10Kx6 6R7P
13 6 RS1-RS6 100x4 4R8P
14 6 RS7, RS8 3.3KX4 4R8P
15 1 D1 1N4148
16 6 Q1-Q6 2SA1020
17 4Q7-Q10 2SC1384
18 1 Q11 2SC945
19 1 U1 CPU UNIT
20 2 U2, U3 74HTC05
21 1 U4 74HCT139
22 1 XTAL 14.318 MHZ
23 1 SP1 5V SPEAKER 1205
24 16 SW1-SW16 KEY(12x12mm)DTSK-
22
25 1 TEXTOOL1 28 Pin TEXTOOL
26 1 CON1 2P in 18 0' P OWE R
CONNECTOR
27 1 CON2 14 Pin 180' HEADER
28 1 LCD 16x1 LCD PC-1601L
29 1 PCB GUT-6000A PCB
30 2 CASE GUT-6000A
31 1 POWER S/W POWER SUPPLY
5V 2A AC 90-230V

GUT-6000A USER MANUAL
15
KEY CODE DESCRIPTION
Input device number without series key code, it runs by switching TTL/CMOS
selection.
Ex1. IC TTL 74138
An user switches TTL/CMOS to ''TTL 74'', then input 1 , 3 , 8 in order.
Ex2. CMOS 4020
An user switches TTL/CMOS to ''CMOS40'', then input 2 , 0 in order.
Ex3. CMOS 74HC4040
An user switches TTL/CMOS to ''CMOS40'', then input 4 , 0 in order.
Some ICs have different pin arrangements despite that have the same number. In
that situation, various key codes information is supplemented for this group’s ICs (see
appendixes).
Users may come upon difcult in some generic type’s ICs. For example, an IC is
numbered TTL 7454 and 74H54, the user identies the difference with ''XXX'' and
''9XXX''. If the user is interested in testing TTL 74H54 device, then selects ''TTL 74''
rst. Then types 9 , 0 , 5 , 4 .

GUT-6000A USER MANUAL
16

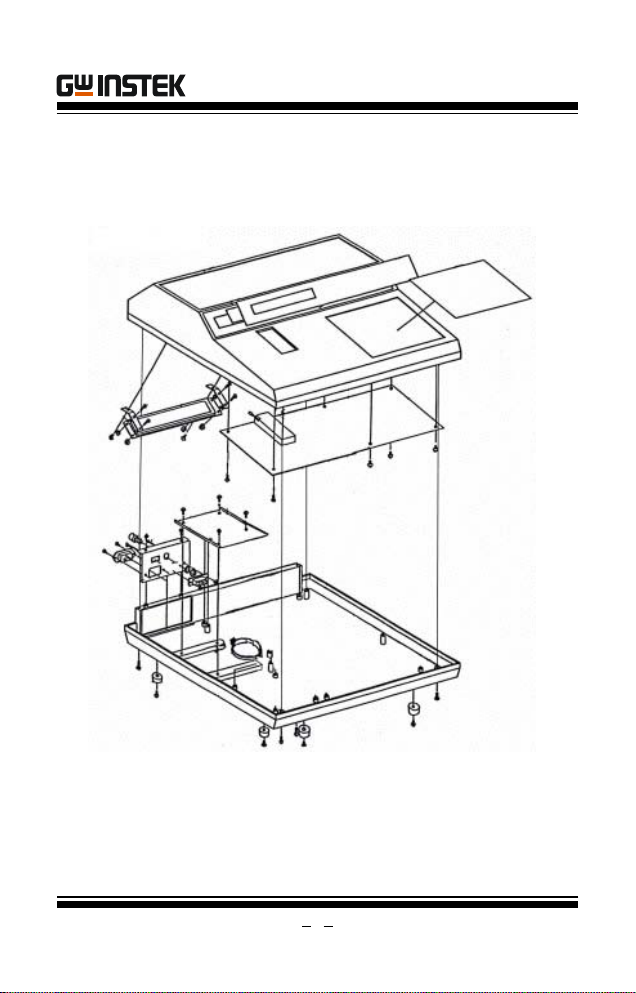

TOTAL ASSEMBLY

GUT-6000A USER MANUAL
17
KEY CODE TABLES
SERIES
54/74
NO.
CIRCUIT DESCRITPION
LS ALS FS L STD HHC CHCT AS AC ACT
00 XXXXXXXXXX XX
01 X X X
02 XXXXX XX XX
03 X X X X X X
04 XXXXXXXXXX XX
05 X X X X X X X
06 X X
07 X X
08 XXXX X XX XX
09 X X X X
10 XXXXXXXXX XX
11 XXXX XX
12 X X X
13 X X
14 X X X X X
15 X X X X
16 X X
17 X X
18 X
19 X
20 XXXXXXXXX XX
21 X X X
22 X X X X X
23 X X
24 X X
25 X X
26 X X
27 X X X X
28 X X X
30 XX XXXXXX

GUT-6000A USER MANUAL
18
SERIES
54/74
NO.
CIRCUIT DESCRITPION
LS ALS FS L STD HHC CHCT AS AC ACT
32 XXXX X XX XX
33 X X X
34 X X
35 X X
36 X
37 X X X
38 X X X X
39 X
40 X X X X X
41
42 X X X X X X
43 X X X
44 X X X
45 X X
46 X X X
47 X X X
48 X X X
49 X
50 X X
51 X X
H52 9052
53 X X
54 X X 9054
55 X X
60 X
H61 9061
63 X
64 X X
65 X
70 X
72 XXX
73 X X X

GUT-6000A USER MANUAL
19
SERIES
54/74
NO.
CIRCUIT DESCRITPION
LS ALS FS L STD HHC CHCT AS AC ACT
74 XXXXXXXXX
75 X X X X
77 X X
H78 9078
80
81
82
83 X X X
84
85 X X X X X
86 XXXX X XX XX
87 X
89
90 X X X X
91 X X X
92 X X
93 X X X
94 X X
95 X X X
96 X X X
105
107 X X X
109 X X X X X X X X
110
111
112 XXXX X XXX
113 X X X X X X
114 XXXX X
116
125 X X X
126 X X X
128

GUT-6000A USER MANUAL
20
SERIES
54/74
NO.
CIRCUIT DESCRITPION
LS ALS FS L STD HHC CHCT AS AC ACT
132 X X X X
134 X X
135 X
136 X X
137 X X X X
138 X X X X X X X X
139 X X X X X X X X
140 X X
141 X X
142
143 X
144
145 X X
147 X X X
148 X X X
150 X X
151 XXXX X XX XX
152 X
153 X X X X X X X X
154 X X
155 X X
156 X X
157 XXXXXX XX XX
158 XXXX X XX
159 X X
160 X X X X X X X
161 XXX X XX XXX
162 X X X X X X X X
163 XXXX X XX XXX
164 XXX XX XXX XX
