GW Instek GLC-10000 User manual

Leakage Current Tester
GLC-10000
USER MANUAL
Rev. A
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

TABLE OF CONTENTS
3
Table of Contents
SAFETY INSTRUCTIONS .................................................. 6
OVERVIEW .................................................................... 11
Introduction..............................................11
Key Features .............................................18
Basic Theory .............................................22
Leakage Current Modes ............................24
Leakage Current Modes ............................30
Measurement Flow Chart ..........................32
Front Panel ...............................................33
Rear Panel.................................................35
Touch Screen Basics .................................38
GETTING STARTED........................................................ 39
Preparation ...............................................39
Power and Probe Connection ....................40
Tilt the Stand and Hand Carry ...................44
Power Up ..................................................45
Shut Down ................................................46
OPERATION .................................................................. 47
Measurement Terminals............................47
Earth Leakage Current...............................50
(Touch) Enclosure - Earth Leakage Current51
(Touch) Enclosure - Enclosure Leakage Current..53
(Touch) Enclosure - Line Leakage Current .55
Patient Auxiliary Current ...........................57
Patient Connection - Earth Leakage Current
(Patient Leakage Current I) .......................58
Enternal Voltage on a SIP/SOP Leakage
Current (Patient Leakage Current II) .........60

GLC-10000 User Manual
4
External Voltage on a Specific F-type Applied Part
Leakage Current (Patient Leakage Current III).......62
External Voltage on Metal Accesible Part
not Protectively Earthed Leakage Current ..63
Total Patient Leakage Current (Patient Connection –
Earth) .........................................................65
Free Current (Enclosure –Enclosure) ...............66
MEASUREMENT .............................................................68
Interface of Home Screen .........................68
Selecting a Measuring Network.................73
Selecting the Safety Class/ Grounding
Class .........................................................76
Selecting a Leakage Measurement Mode...77
Selecting Measurement Parameters ..........79
Saving Measurement Results ....................87
SAVE/RECALL FEATURES ................................................89
Save Panel Settings ...................................89
Recall Panel Settings or Test Data .............92
USB Storage ...................................................................96
Connection and Navigation .......................96
Download and Upload Files ......................97
Firmware Update ......................................98
Save a Screen Image .................................99
SYSTEM SETTINGS .......................................................100
Meter Measurement................................101
EUT Voltage and Current Check ..............104
Initialize Menu........................................106
System Self Test ......................................107
Beep Settings ..........................................108
Display Settings ......................................109
Interface Settings....................................110

TABLE OF CONTENTS
5
Clock Settings .........................................112
Calibration ..............................................113
Information ............................................114
Measure Settings ....................................115
REMOTE CONTROL ......................................................117
Remote Interface Configuration ..............118
COMMAND OVERVIEW ................................................122
Command Syntax ....................................122
Command List ........................................125
Appendix for Commands.........................185
EXTERNAL I/O..............................................................200
Features ..................................................200
Cautions .................................................200
I/O Definition .........................................201
Connection .............................................203
Electrical Characteristics.........................204
Internal Circuit Configuration .................205
FAQ..............................................................................206
APPENDIX ....................................................................207
Measurement Functions .........................207
Specifications .........................................209
Accessories.............................................210
Measurement Network (MD) ..................211
Fuse Replacement ...................................213
Dimensions ............................................214
Declaration of Conformity .......................215
INDEX ..........................................................................216

GLC-10000 User Manual
6
SAFETY INSTRUCTIONS
This chapter contains important safety instructions
that you must follow during operation and storage.
Read the following before any operation to ensure
your safety and to keep the instrument in the best
possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the GLC-10000
or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.

SAFETY INSTRUCTIONS
7
Safety Guidelines
General Guideline
CAUTION
Do not place any heavy object on the
instrument.
Avoid severe impact or rough handling that
leads to damaging the instrument.
Do not discharge static electricity to the
instrument.
Do not block or obstruct the cooling fan vent
opening.
Do not perform measurement at circuits
directly connected to Mains (Note below).
Do not disassemble the instrument unless you
are qualified as service personnel.
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. the
GLC-10000 falls under category II
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC 100V～240V ±10%, 50/60Hz
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.
Fuse
WARNING
Fuse type: T0.63A/250V
Make sure the correct type of fuse is installed
before power up.

GLC-10000 User Manual
8
To ensure fire protection, replace the fuse only
with the specified type and rating.
Disconnect the power cord before fuse
replacement.
Make sure the cause of fuse blowout is fixed
before fuse replacement.
Cleaning the
GLC-10000
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemical or cleaner containing harsh
material such as benzene, toluene, xylene, and
acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: < 80%
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees
and their requirements as follows. The GLC-10000 falls under
degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.

SAFETY INSTRUCTIONS
9
Storage
environment
Location: Indoor
Relative Humidity: < 80%
Temperature: −10°C to 50°C
Mains supply voltage fluctuations: +/-10 %
If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.
LAN, RS232, USB, Signal I/O and GPIB ports
are only to be connected to the circuits which
are separated from mains supply by double /
reinforce insulation.
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

GLC-10000 User Manual
10
Power Cord
Do NOT replace the detachable MAINS supply
cord by inadequately RATED cords.
Suitable supply cord set shall use with the
equipment:
- Mains plug: Shall be national approval;
- Mains connector: C13 type;
Cable:
1) Length of power supply cord: less than 3 m;
2) Cross-section of conductors: at least 0.75 mm2;
Cord type:
- Shall meet the requirements of IEC 60227 or
IEC 60245 (e.g.: H05VV-F, H05RN-F) or
national approval.
The power switch that is included in the
instrument is not considered a disconnecting
device. The mains plug is used as the
disconnecting device. Do NOT position the
equipment so that it is difficult to disconnect
the appliance inlet or power plug.

OVERVIEW
11
OVERVIEW
This chapter describes the GLC-10000 in a nutshell, including the
main features, front and rear panel description, and the power up
sequence.
Introduction
Overview
Many electrical products must undergo electrical
safety testing to ensure their safety. These tests
include insulation resistance, withstand voltage,
ground continuity and leakage current tests. These
tests are complex and critical for safety standards
compliance.
To comply with international standards and to
ensure operator safety, leakage current tests are
also performed under normal and faulty operating
conditions.
Leakage current tests can be separated into 3 basic
types:
Earth Leakage current
Enclosure Leakage current
Patient Leakage current
The GLC-10000 complies with IEC, UL and other
international electrical safety standards requiring
leakage current measurement.

GLC-10000 User Manual
12
Leakage Current Modes
Metal accessible part
notprotectively earthed
Signal input/
outputsection (SIP/SOP)
12
3
4
5
67
8
9
10
Earth Leakage
Current
Refers to the current that flows through a protective
grounding wire to earth #1. (General Electrical,
Medical Equipment)
(Touch)
Enclosure
Leakage Current
Refers to the current that flows through a human
body in contact with a device enclosure including
three scenarios: Enclosure –Earth #2, Enclosure –
Enclosure #3 and Enclosure –Line #4. (General
Electrical, Medical Equipment)
Patient Auxiliary
Current
Refers to the current that flows through an applied
part to human body to applied part #5. (Medical
Equipment)

OVERVIEW
13
Patient
connection -
Earth Leakage
Current
(Patient Leakage
Current I)
Refers to the current that flows through an applied
part to human body to earth #6.(Medical
Equipment)
It also refers to the Patient Leakage Current I
associated with MD-F 1995.
Enternal Voltage
on a SIP/SOP
Leakage Current
(Patient Leakage
Current II)
Refers to the current that flows through an applied
part to human body to earth #7. (Medical
Equipment)
It also refers to the Patient Leakage Current II
associated with MD-F 1995.
External Voltage
on a Specific F-
type Applied
Part Leakage
Current
(Patient Leakage
Current III)
Refers to the current that flows through an applied
part of malfunctioning medical equipment to human
body to F-type applied part #8.(Medical
Equipment)
It also refers to the Patient Leakage Current III
associated with MD-F 1995.
External Voltage
on Metal
Accesible Part
not Protectively
Earthed Leakage
Current
Refers to the current that flows through a metal
accesible part not protectively earthed to applied
part to human body to earth #9. (Medical
Equipment)
Total Patient
Leakage Current
Refers to the current which is the total sum of all
leakage current to/from patient connection of the
multiple applied parts of identical type #10 (e.g.,
Patient –Earth). (Medical Equipment)
Free Current
Leakage
Measurement
Refer to the current which flows between enclosure
and enclosure from 2 ungrounded points on the
enclosures.

GLC-10000 User Manual
14
Measurement Principles
Background
Leakage current can be categorized into 3 types:
Electric current that flows through the body of
someone who touches the equipment, the current that
flows through a protective grounding wire to earth and
the current that flows through a human body
connected to an applied part. When testing the
leakage current of an EUT (equipment under test),
testing must be performed under normal and single
fault conditions.

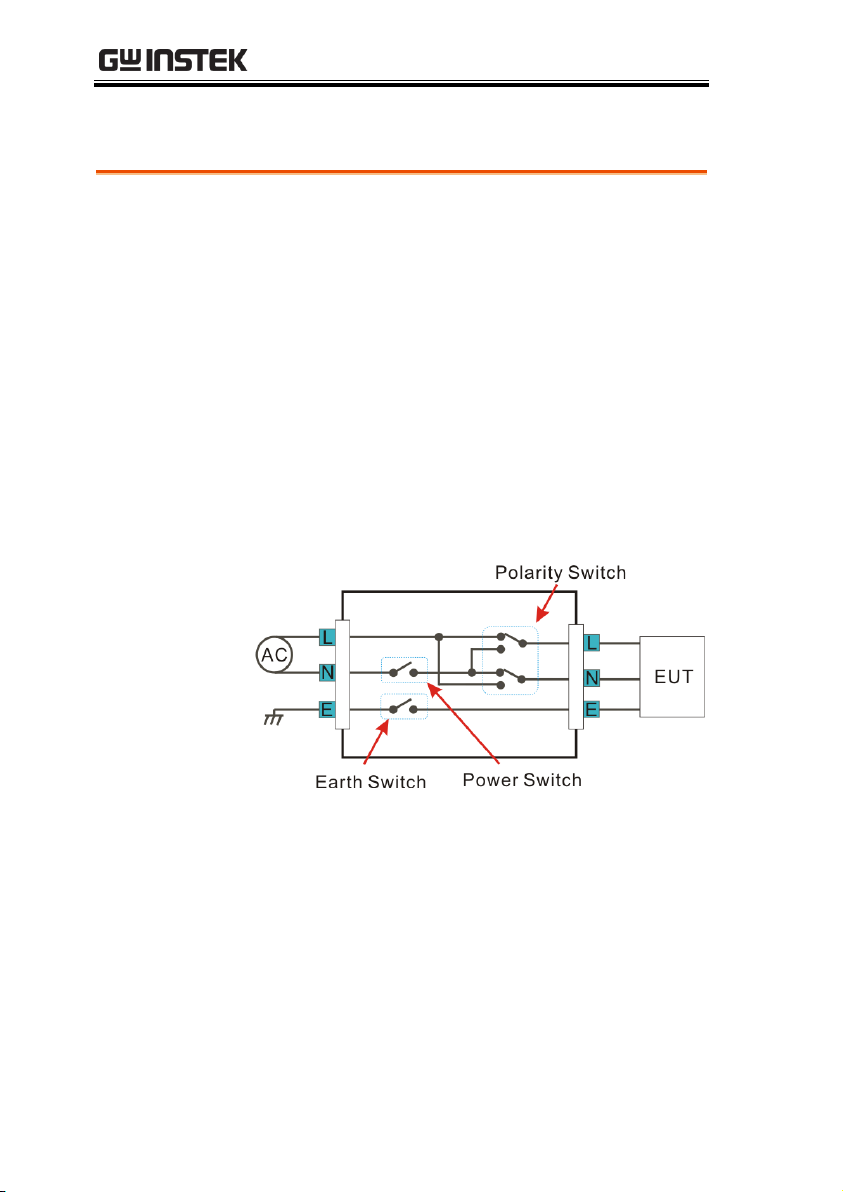

As shown below, a number of relays are used to
simulate different fault conditions. Power to the EUT
is normally open and thus turning off the power
disconnects one wire on the power line.

OVERVIEW
15
Single Fault conditions include the following:
1. Earth disconnected (excluding earth leakage
current tests).
2. Disconnected neutral power line.
3. External equipment failure. (Patient leakage
current II, Patient Leakage Current III).
Polarity of the power supply can also be switched
to measure the leakage current under test. Thus
the polarity of the power supply should also be
taken into account.
Measurement
Methods
The diagram below shows how the probes, MD’s
and power supply are connected for different
leakage current tests.
Measuring Devices
Background
Leakage current (touch current) tests that measure
electrical equipment require a circuit network that can
simulate the impedance of a human body. The
impedance of a human body varies with the contact
points, area and the path of conduction. Thus the
circuit network used to simulate the impedance of a
human body varies with the type of test performed. As
such, the safety standards used to measure leakage
current also varies greatly. The circuit networks used
are known as measuring devices, or MD for short. MD
circuits are resistor-capacitor (RC) circuits. The GLC-
10000 supports 12 different measuring devices.

GLC-10000 User Manual
16
UL Standards
MD-A
MD-B
IEC60990-1
MD-C1
MD-C2
MD-C3
IEC60598-1
MD-D
Medical
Networks
MD-F
MD-E (without RC filter)
IEC61010-1
MD-G
MD-H
JIS Standards
MD-I
PCC

OVERVIEW
17
Note
When conducting leakage current tests, please note
the following:
1. Under normal operating conditions, leakage
current is measured when an electrical device
under test is properly insulated with earth. If
the device is not properly insulated, the
leakage current that is conducted through the
measurement network may be invalid.
2. Leakage current tests involve high voltages.
When working with high voltages, testing
personnel should use proper safety
precautions. All test labs should establish
safety rules to cut-off power to an EUT should
conditions become unsafe. Contacting any
electrical appliance under test is extremely
hazardous and should not be attempted.
3. The surrounding environment has an effect
upon leakage current tests. Avoid high
temperatures, high humidity and surface
pollutants on the enclosure surface as they can
all have an influence on the resulting data.

GLC-10000 User Manual
18
Key Features
International
Standards and
Regulations
The GLC-10000 has 12 measurement networks
(Measuring Devices: MD) supporting GB/12113,
IEC/UL and other international standards for
electrical products:
1. MD-A: UL
2. MD-B: UL
3. MD-C1: IEC60990
4. MD-C2: IEC60990
5. MD-C3: IEC60990
6. MD-D: IEC60598
7. MD-E: (1kΩ):-general application
8. MD-F: IEC60601
9. MD-G: IEC61010-1
10. MD-H: (2kΩ)-general application
11. MD-I: JIS
12. PCC: (35Ω)

OVERVIEW
19
Measurement
Modes
There are a number of leakage current
measurement tests covering general electrical
equipment and medical electrical equipment.
(1) Earth leakage current
(2) Touch current (Enclosure - Earth)
(3) Touch current (Enclosure - Enclosure)
(4) Touch current (Enclosure - Line)
(5) Patient auxiliary current
(6) Patient leakage current (Patient connection -
Earth)
(7) Patient leakage current (external voltage on a
SIP/SOP)
(8) Patient leakage current (external voltage on a
specific F-type applied part)
(9) Patient leakage current (external voltage on
metal accessible part not protectively earthed)
(10) Total patient leakage current (Patient
connection - Earth)
(11) Total patient leakage current (external voltage
on a SIP/SOP)
(12) Total patient leakage current (external voltage
on a specific F-type applied part)
(13) Total patient leakage current (external voltage
on metal accessible part not protectively
earthed)
(14) Free current (Enclosure - Enclosure)
(15) Enclosure - Earth leakage current
(16) Enclosure - Enclosure leakage current
(17) Enclosure - Line leakage current
(18) Patient leakage current I
(19) Patient leakage current II
(20) Patient leakage current III
Note
The tests applicable to medical MD-F 2020:
6, 7, 8, 9, 10, 11, 12, 13.
The tests applicable to medical MD-F 1995:
5, 18, 19, 20.

GLC-10000 User Manual
20
Leakage Current
Types
Leakage current measurement modes：
DC, AC, AC+DC, AC Peak.
Measurement
Range
Automatic/Manual ranges:
DC/AC/AC+DC：50uA/500uA/5mA/50mA
(Range：4uA～50mA)
AC Peak：750uA/7.5mA/75mA
(Range：40uA～75mA)
Operation
Auto/Manual/Programmable
Single fault conditions and power supply
polarity switch
Measurement/Delay time settings
Maximum / minimum hold
PASS/FAIL(Upper, Lower) Judgement (limits)
Save and recall setup and measurement results
System clock settings
Multilanguage support
System Self test
EUT voltage/current/power consumption
High output alarm and led indicators.
Remote control interface options
Interface
With the exception of the Start, Reset and power
switches, the user-interface is entirely controlled
via a touch screen.
LCD
The simple, user-friendly interface is extremely
intuitive with a large 7.0” color TFT screen.
EUT Test Status
The voltage, current and power consumption of
the EUT can be measured.
