GW Instek GPT-9500 Series User manual

Multi-Channel Hipot Tester
GPT-9500 Series
USER MANUAL
ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

Table of Contents
3
Table of Contents
SAFETY INSTRUCTIONS .................................................. 5
GETTING STARTED .......................................................... 9
GPT-9500 Series Overview ................... 10

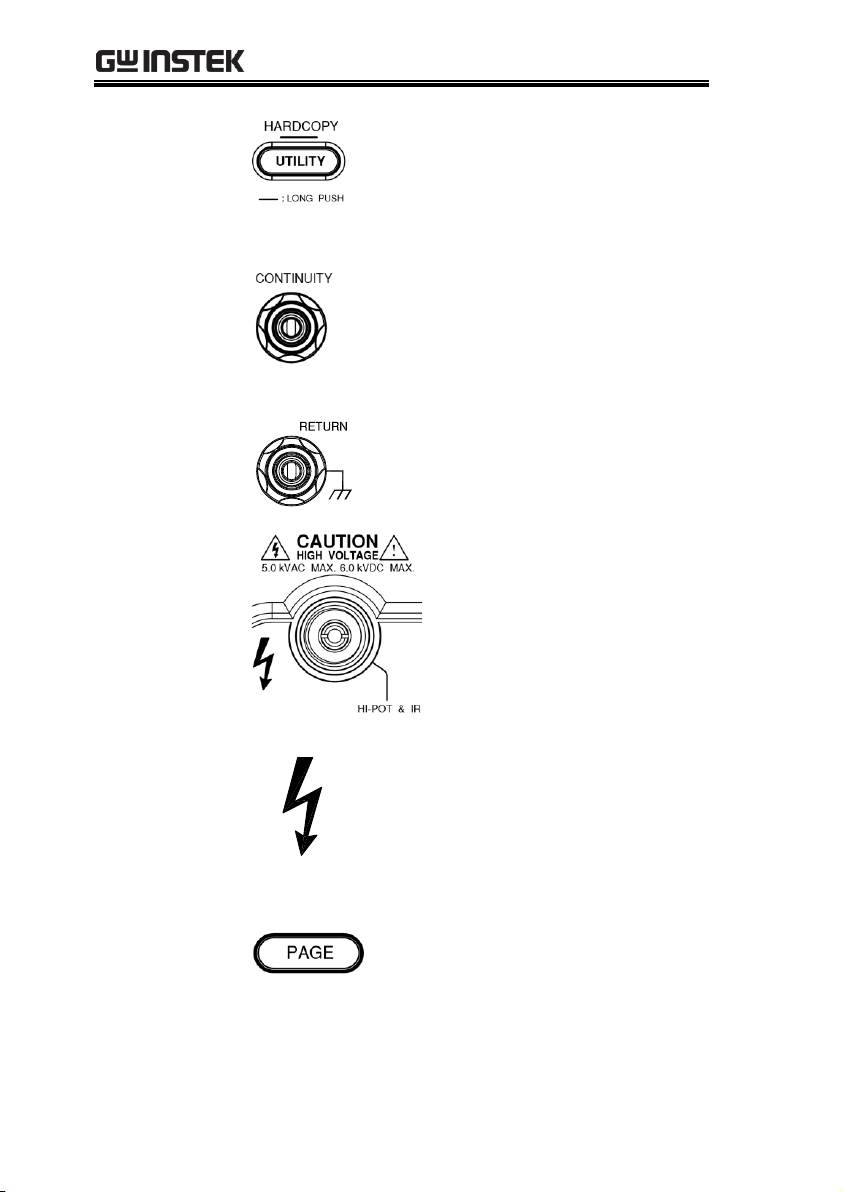

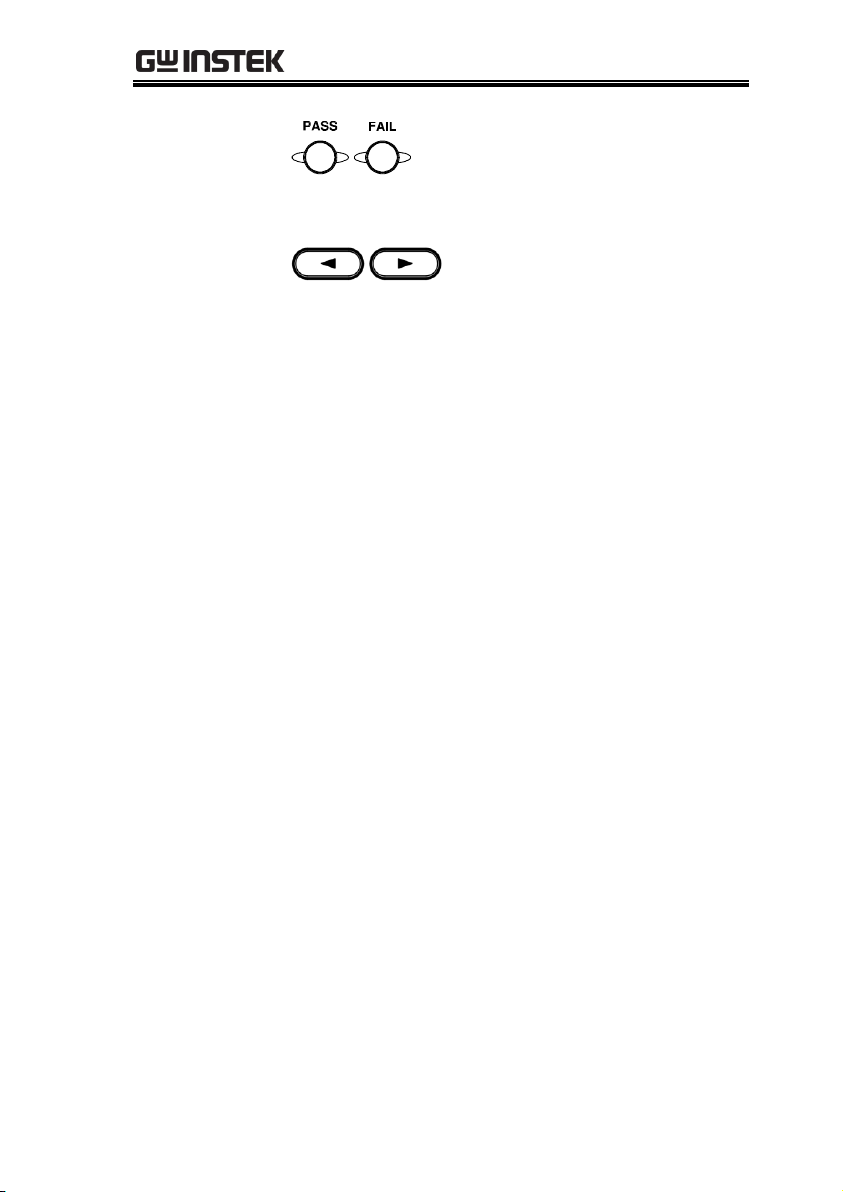

Front Panel Overview ........................... 14

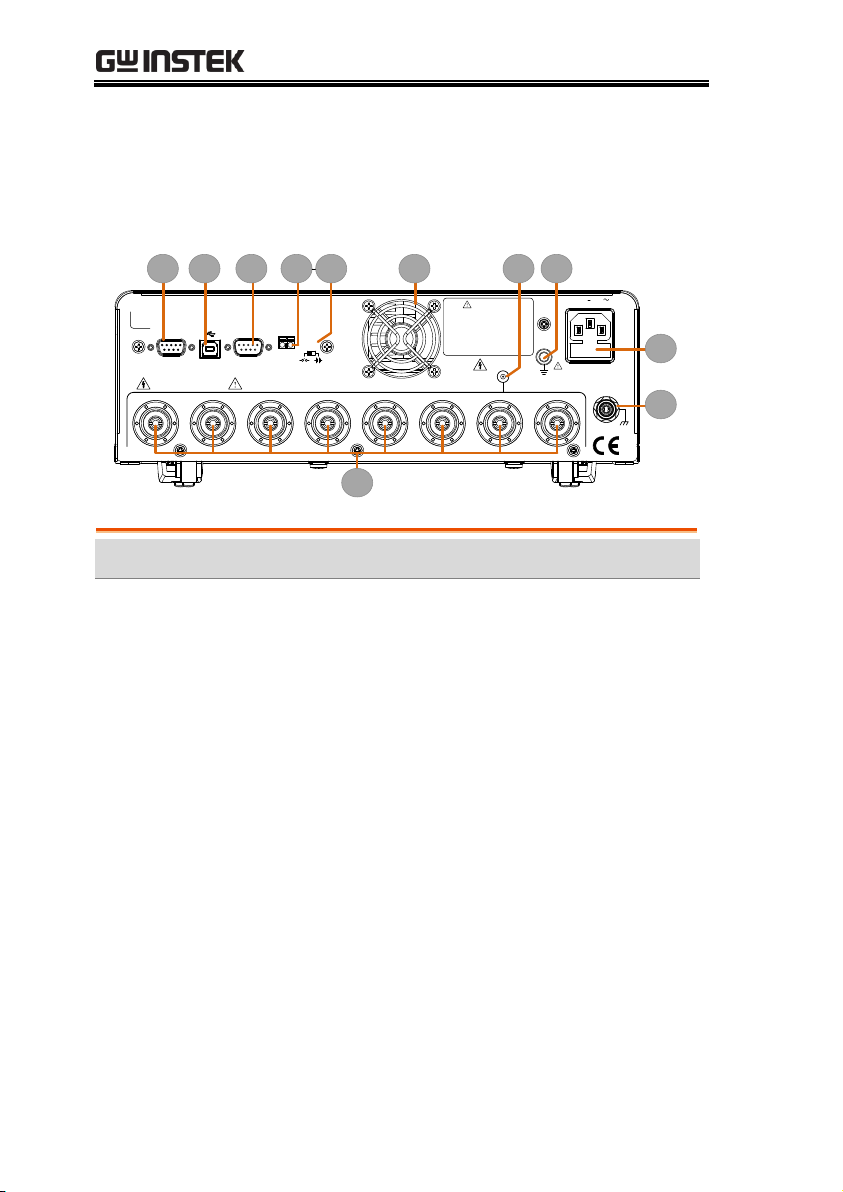

Rear Panel Overview ............................ 18
Status Bar ............................................ 21
Set Up.................................................. 23
OPERATION .................................................................. 31
Menu Tree............................................ 33
Test Lead Connection ........................... 39
MANU Tests ........................................ 40
AUTO Tests.......................................... 90
UTILITY ........................................................................139
System Setting ................................... 141
Test Setting ........................................ 154
Interface Setting ................................ 181
EXTERNAL CONTROL ...................................................190
External Control Overview.................. 191
REMOTE CONTROL ......................................................195
Interface Configuration ...................... 196
Command Syntax ............................... 200
Command List ................................... 202
APPENDIX ....................................................................273
Fuse Replacement .............................. 273
Test Errors ......................................... 274

GPT-10000 Series User Manual
4
Status System .................................... 275
GPT-9500 Specifications .................... 276
GPT-9503/9513 Dimensions .............. 281
Declaration of Conformity .................. 282
INDEX ..........................................................................283

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to ensure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the instrument or to
other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Frame or Chassis Terminal
Earth (ground) Terminal

GPT-9500 Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the
instrument.
Avoid severe impact or rough handling that
leads to damaging the instrument.
Do not discharge static electricity to the
instrument.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the GPT-9500 unless you are
qualified.
Position
Guideline
WARNING
The rear position of the GPT-9500 should be
placed in an area with easy accessible for power
disconnection, that is, unplugging the power
cord with ease.
Keep away from the device under test which
connects with the GPT-9500 when test is
underway. In addition, while test is ongoing,
never touch the device under test, the GPT-9500
as well as other relevant units.
Any inappropriate manner that is unspecified
by the manufacturer may result in irreversible
harms or impaired protection by the GPT-9500.

SAFETY INSTRUCTIONS
7
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
GPT-9500 does not fall under category II, III or IV.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Power Supply
WARNING
AC Input voltage range:
AC 100V –240V ± 10%
Frequency: 50Hz/60Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.
Cleaning the
GPT-9500
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: ≤70% (no condensation)
Altitude: < 2000m
Temperature: 0˚C~40˚C

GPT-9500 Series User Manual
8
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The GPT-9500 falls under degree
2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -10°C to 70°C
Relative Humidity: ≤ 85% (no condensation)
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

GETTING STARTED
9
GETTING STARTED
This chapter describes the safety analyzer in a
nutshell, including its main features and front /
rear panel introduction. After going through the
overview, please read the safety considerations in
the Set Up chapter.
GPT-9500 Series Overview .............................................. 10
Series lineup...................................................................................10
Lineup Overview ..........................................................................11
Main Features ................................................................................11
Accessories.....................................................................................12
Package Contents..........................................................................13
Front Panel Overview ..................................................... 14
GPT-9503/9513..............................................................................14
Rear Panel Overview ...................................................... 18
GPT-9503/9513..............................................................................18
Status Bar ...................................................................... 21
Set Up ........................................................................... 23
Tilting the Stand............................................................................23
Line Voltage Connection and Power Up ...................................24
How to edit parameter value promptly.....................................25
Workplace Precautions ................................................................27
Operating Precautions..................................................................28
Basic Safety Checks.......................................................................30

GPT-9500 Series User Manual
10
GPT-9500 Series Overview
Series lineup
The GPT-9500 Series are multi-channel AC/DC withstanding
voltage and insulation resistance safety tester.
The GPT-9513 is AC/DC withstanding voltage and insulation
resistance tester with 8 channels scan –Hi & Lo setup functions.
The GPT-9503 is AC/DC withstanding voltage and insulation
resistance tester with 8 channels scan –Hi setup functions.
For the all models, the testing terminals are also mirrored on the
rear panel for added safety and for more permanent safety testing
environments.
The GPT-9500 Series can store up to 501 manual tests, and run up
to 99 manual tests sequentially within an automatic test, allowing
the safety testers to accommodate any number of safety standards,
including IEC, EN, UL, CSA, GB, JIS and others.
Note: Throughout this user manual, the terms ACW, DCW and IR,
refer to AC Withstanding, DC Withstanding and Insulation
Resistance testing, respectively.

GETTING STARTED
11
Lineup Overview
Model name
ACW
DCW
IR
Scan - Hi
Scan - Lo
GPT-9503




GPT-9513





Main Features
Performance
ACW: 5kVAC
DCW: 6kVDC
IR: 50V~1kV
8-CH Scanner
Features
Ramp up time control
Fall time control
Safety discharge
501 test conditions (MANU mode)
99 steps per group (AUTO mode)
99 groups for total 500 memory locations
(AUTO mode)
Over temperature, voltage and current
protection
View, Edit, Ready, Test, Stop, High Voltage and
Pass, Fail indicators
Interlock (configurable)
Interface
RS232/USB interface for programming
Signal I/O port for pass/fail/test monitoring
and start/stop control
Interlock terminal for safety operation

GPT-9500 Series User Manual
12
Accessories
Standard
Accessories
Part number
Description
GHT-115 x 1*
Test lead set
GHT-116B x 1*
Test lead (Black)
GHT-116R x 8*
Test lead (Red)
Region dependent
Power cord
N/A
Interlock wire
* Please refer to the packing list since the accessories may vary.
Optional
Accessories
Part number
Description
GHT-205
High Voltage Test Probe
GHT-113
High Voltage Test Pistol
GTL-232
RS232C cable
GTL-246
USB cable (A to B type)

GETTING STARTED
13
Package Contents
Check the contents before using the GPT-9500 series.
Opening the box
Contents
(single unit)
GPT-9500 unit
Quick Start Guide
User manual CD
Power cord x1
(region dependent)
GHT-115 test lead x1*
GHT-116B test lead x 1
(Black) *
GHT-116R test leads x 8
(Red) *
Interlock wire
* Please refer to the packing list since the accessories may vary.
Note
Keep the packaging, including the box, polystyrene
foam and plastic envelopes should the need arise
to return the unit to GW Instek.

GPT-9500 Series User Manual
14
Front Panel Overview
GPT-9503/9513
STOP
START
POWER
PASS FAIL
PAGE
ESC UTILITY
GPT AC / DC Withstanding Voltage /
Insulation Resistance / Scanner Tester
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX. 6.0 kVDC MAX.
RETURNCONTINUITY
HI-POT & IR
: LONG PUSH
LOCAL HARDCOPY
-9503
1
2
4
G E C
B
A
9
3
F D
5 6 7 8
Item
Description
1
STOP Button
2
START Button
3
POWER Switch
4
Soft Keys (Green Zone)
5
Scroll Wheel
6
USB A-Type Host Port
7
ESC/LOCAL Key
8
UTILITY/HARDCOPY key
9
CONTINUITY Terminal
A
RETURN Terminal
B
HIGH VOLTAGE Output Terminal
C
HIGH VOLTAGE Indicator
D
PAGE Key
E
PASS/FAIL Indicators
F
Arrow Keys
G
Display

GETTING STARTED
15
STOP button
The STOP button is used to
stop/cancel tests. The STOP button
will also put the tester in the READY
status to begin testing.
START button
The START button is used to start tests.
The START button can be used to start
tests when the tester is in the READY
status. Pressing the START button will
put the tester in the TEST status.
POWER switch
Turns the power on. The tester will
always start up with the AUTO (0)
test setting display.
Soft Keys
The Soft keys correspond to the menu keys directly
above on the main display.
Scroll wheel
The scroll wheel is used to edit
parameter values. Be aware that
faster the scroll speed, bigger the
value digits can be set and vice versa.
USB Host Port
It can connect with USB flash drive
for parameter storage and firmware
upgrade. Also, it is available for
screenshot hardcopy in association
with the Hardcopy key.
ESC/LOCAL Key
ESC allows user to return to
previous page. LOCAL switches
operation back to local mode from
remote mode

GPT-9500 Series User Manual
16
UTILITY/
HARDCOPY key
UTILITY changes to the main utility
setting page. Long press
HARDCOPY key for 1 second to take
a screenshot. Make sure an USB flash
disk is inserted before the action.
CONTINUITY
terminal
The CONTINUITY terminal
(red) is used for CONT
(Continuity) test. Refer to page
102 for test lead connection of
CONTINUITY.
RETURN
terminal
The RETURN terminal (black)
is used for ACW, DCW and IR
tests.
HIGH VOLTAGE
output terminal
The HIGH VOLTAGE terminal
output is used for outputting
the testing voltage in ACW,
DCW and IR tests. The
terminal is recessed for safety.
This terminal is used in
conjunction with the RETURN
terminal.
HIGH VOLTAGE
indicator
The HIGH VOLTAGE
indicator will light up red
when an output terminal is
active. Only after the test has
finished or stopped will the
indicator turn off.
PAGE Key
It is used to change among
different pages concerning
parameter editing or AUTO
mode displays.

GETTING STARTED
17
PASS/FAIL
indicators
The PASS and FAIL indicators
light up upon a PASS or FAIL
test result at the end of a
MANU test or AUTO test.
Arrow Keys
The arrow keys are used to
select the digit of a value that
is being edited.
Display
4.3” Color TFT LCD display in 480 X 272 resolution

GPT-9500 Series User Manual
18
Rear Panel Overview
GPT-9503/9513
SIGNAL I / O LOCK RS232
OUTPUT
GND
TO AVOID ELECTRIC SHOCK THE POWER CORD
PROTECTIVE GROUNDING CONDUCTOR MUST BE
ONLY WITH SPECIFIED TYPE AND RATED FUSE.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
DO NOT REMOVE COVERS. REFER SERVICING TO
FOR CONTINUED FIRE PROTECTION. REPLACE
CONNECTED TO GROUND.
QUALIFIED PERSONNEL.
WARNING
SER. NO. LB
DO NOT TOUCH THE HIGH VOLTAGE TERMINALS DURING TESTING WHEN THE HV INDICATOR LIGHTS UP !
HIGH VOLTAGE
INDICATOR
AC 100 240V
50/60Hz 400VA MAX.
FUSE RATINGT4A 250V
FROM THE INSTRUMENT BEFORE
REPLACING THE FUSE.
ENSURE THE POWER IS REMOVED
RETURN
HIGH VOLTAGE
CAUTION5.0 kVAC MAX.
6.0 kVDC MAX.
INTER
CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
TEST
3
9
1 2 4 5 6 8
A
7
B
Item
Description
1
RS232 Interface Port
2
USB B-Type Interface Port
3
Signal I/O Port
4
INTERLOCK Terminal
5
TEST OUTPUT Switch
6
Fan
7
HIGH VOLTAGE Indicator
8
GND
9
AC Mains Input (Power Cord Socket)
A
RETURN Terminal
B
HIGH VOLTAGE Output/RETURN Terminals from CH1 –CH8
(RETURN function is only available for GPT-9513)

GETTING STARTED
19
RS232 Interface
Port
The RS232 port is used for remote
control.
USB B-Type
Interface Port
The USB B-Type port is used for
remote control.
SIGNAL I/O port
The SIGNAL I/O port is used to
monitor the tester status (PASS,
FAIL, TEST) and input (START/
STOP signals).
INTERLOCK
Terminal
The INTERLOCK terminal is used
to connect with interlock wire for
safety operation.
TEST OUTPUT
switch
When SIGNAL I/O is utilized,
depending on the applied device, it
can be toggled between power
symbol and contact symbol.
Contact symbol
Power symbol
Fan/Fan Vents
Exhaust fan. Allow enough room
for the fan to vent. Do not block the
fan openings.
HIGH VOLTAGE
Indicator
The HIGH VOLTAGE indicator will
light up when an output terminal is
active. Only after the test has
finished or stopped will the lamp
turn off.

GPT-9500 Series User Manual
20
GND
Connect the GND (ground)
terminal to the earth ground.
AC Mains Input
AC Mains Input for Power Cord
Socket: 100 –240 VAC ±10%.
The fuse holder contains the AC
mains fuse. For fuse replacement
details, see page 45.
RETURN
terminal
The RETURN terminal is used for
ACW, DCW and IR tests. Note that
it can be shared by HIGH
VOLTAGE output terminals (CH1 –
CH8) jointly at the same time.
HIGH VOLTAGE
output terminals
(CH1 –CH8)
|
The HIGH VOLTAGE terminals
outputs (CH1 –CH8) are used for
outputting the testing voltage in
ACW, DCW and IR tests. The
terminals are recessed for safety
and used in conjunction with the
RETURN terminal.
For GPT-9513, all channels are
selectable for HV output, L-
Return and non-used, whilst all
channels of GPT-9503 are
selectable for HV output and
non-used only.
WARNING
USE WITH EXTREME CAUTION. Do not touch
the HIGH VOLTAGE terminal during testing.
