GWS MIG220 AC/DC User manual

INSTRUCTION MANUAL
IMPORTANT: Read This Instruction Manual Completely before operating this equipment. Save this
manual and keep it handy for quick reference. Pay particular attention to the hazards and safety
precautions provided for your protection and for the protection of those in the immediate vicinity
where this device is to be used. Contact your distributor if you do not fully understand this
manual or require additional information.

1
Contents
Features
1.0 Recommended Safety Precautions ................. 2
1.1 Personal Safety Warning Signs .............................. 2
1.2 Safety Precautions Preface .................................... 2
1.3 Electrical Shocks ..................................................... 4
1.4 User Responsibilities .............................................. 4
1.5 Module Explanation ...............................................4
2.0 Introduction ......................................................... 4

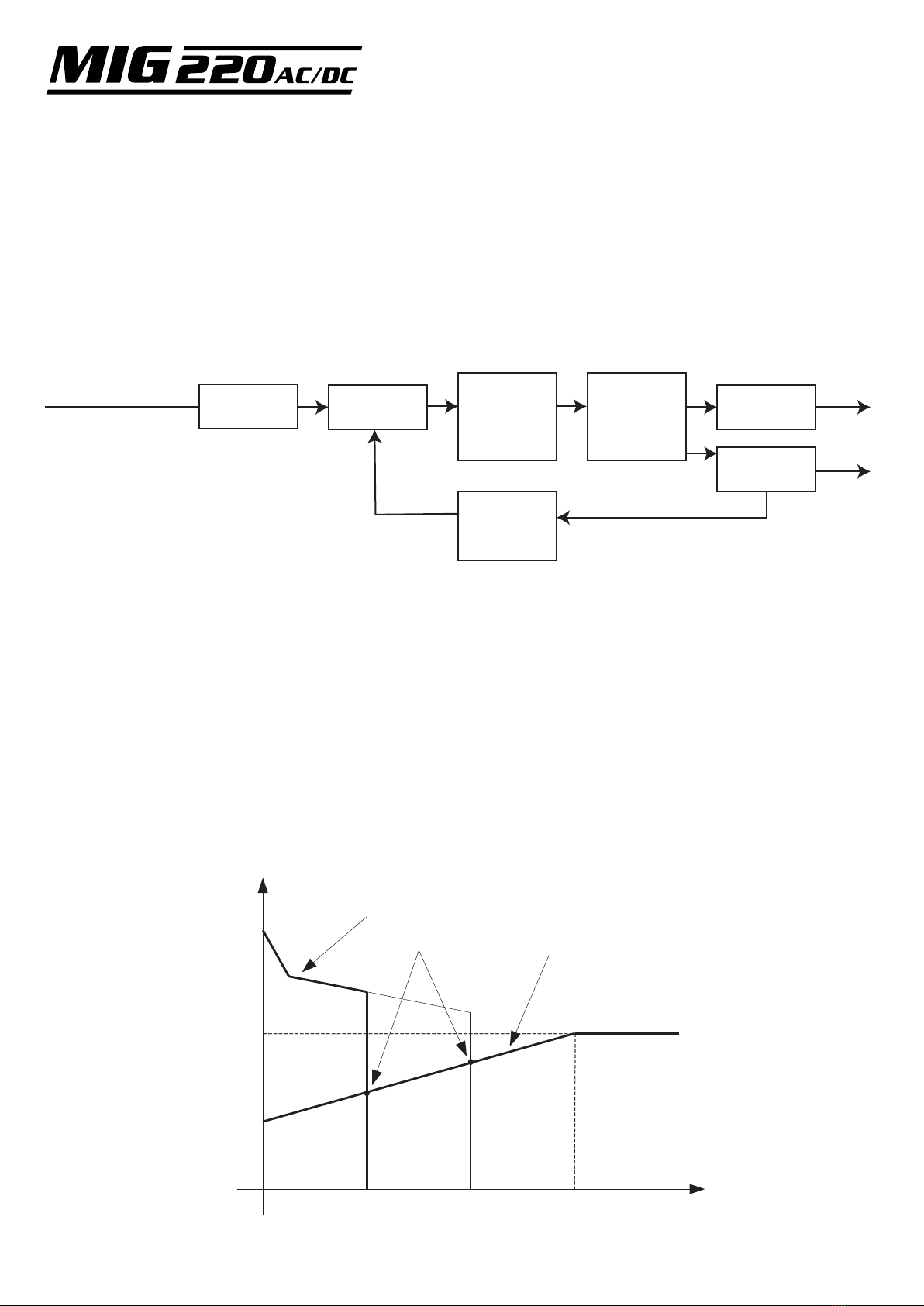

2.1 Working Principle ................................................... 5
2.2 Volt-Ampere Characteristics .................................. 5
3.0 Installation and Adjustment ............................ 6
3.1 Parameters............................................................... 6
3.2 Duty Cycle & Over Heating..................................... 7
3.3 Movement and Placement ..................................... 7
3.4 Power supply input connection.............................. 7
3.5 Polarity Connection (MMA).................................... 7
3.6 Assembling the equipment (TIG) ........................... 8
5.7 Electrical Schematic drawing.......................... 25
4.0 Operation ............................................................. 9

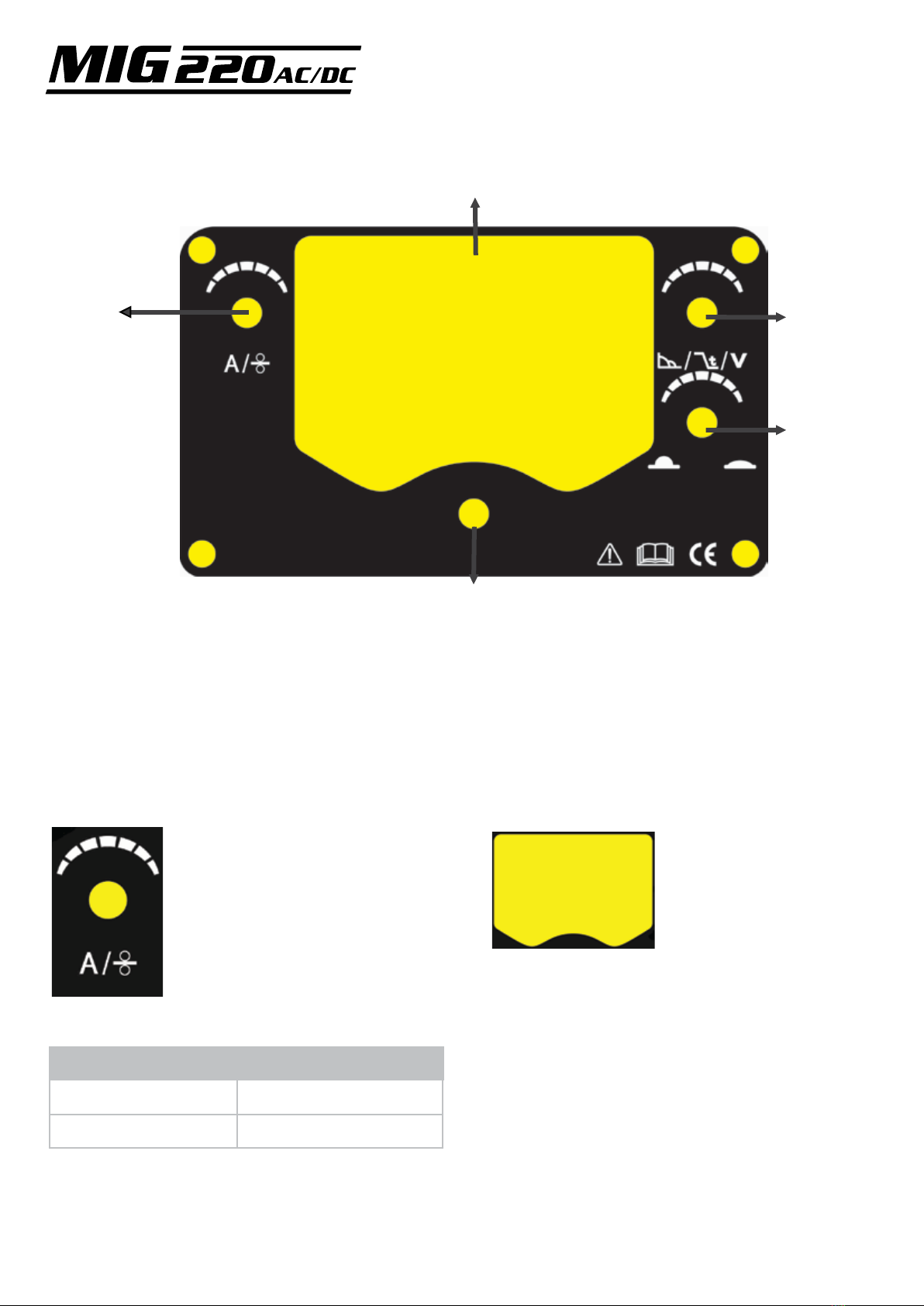

4.1 Lay out For Front And Rear Panel........................... 9

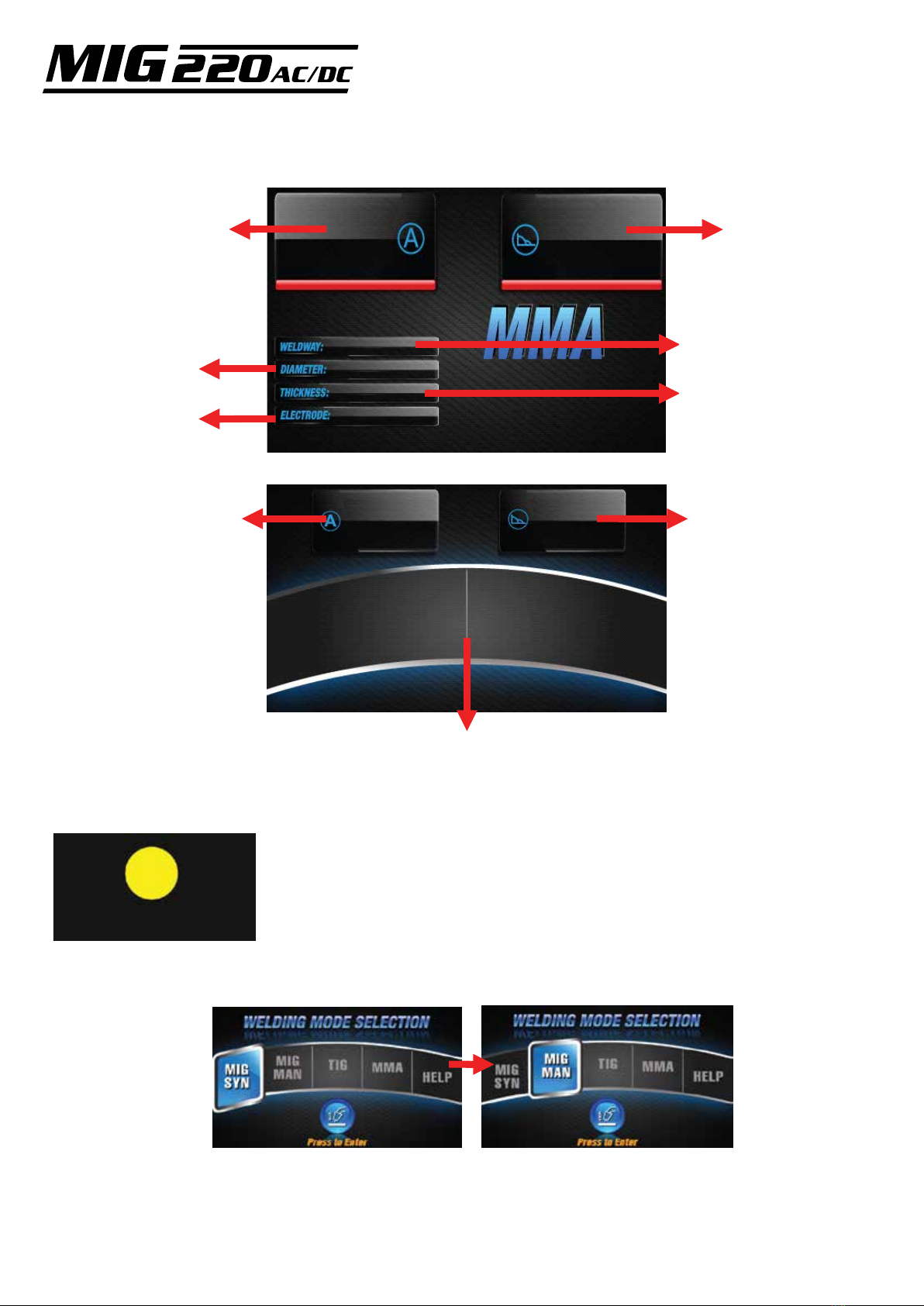

4.2 Control Panel.......................................................... 10
4.3 Argon ARC Welding Operation ............................ 12
4.3.1 TIG Welding (4T Operation) ............................... 12
4.3.2 TIG Welding (2T operation)................................ 13

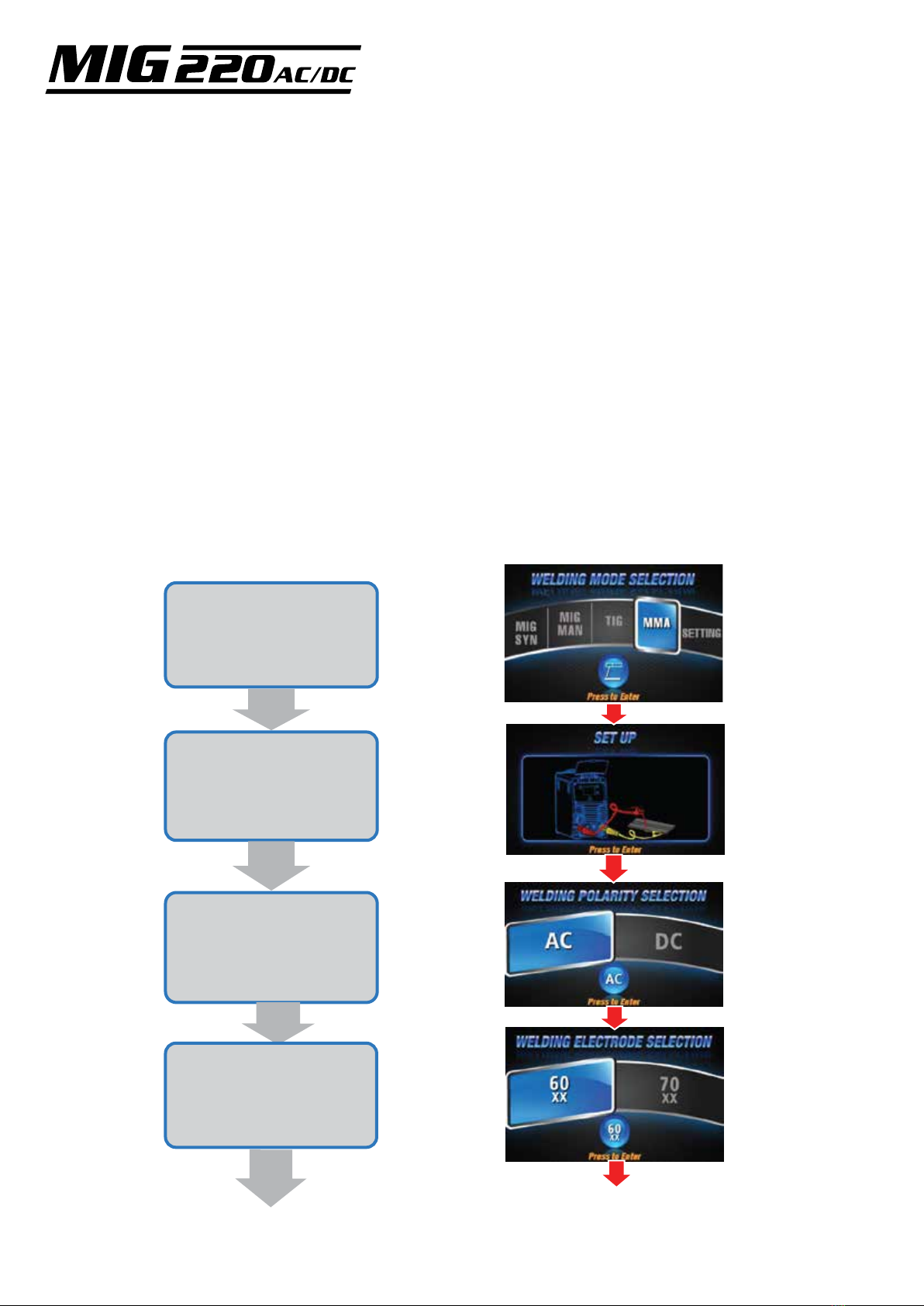

4.4 MMA Welding Mode Settings............................... 14
4.5 MIG Welding mode Settings ................................. 15
4.6 MIG SYN Operation Guide .................................... 15

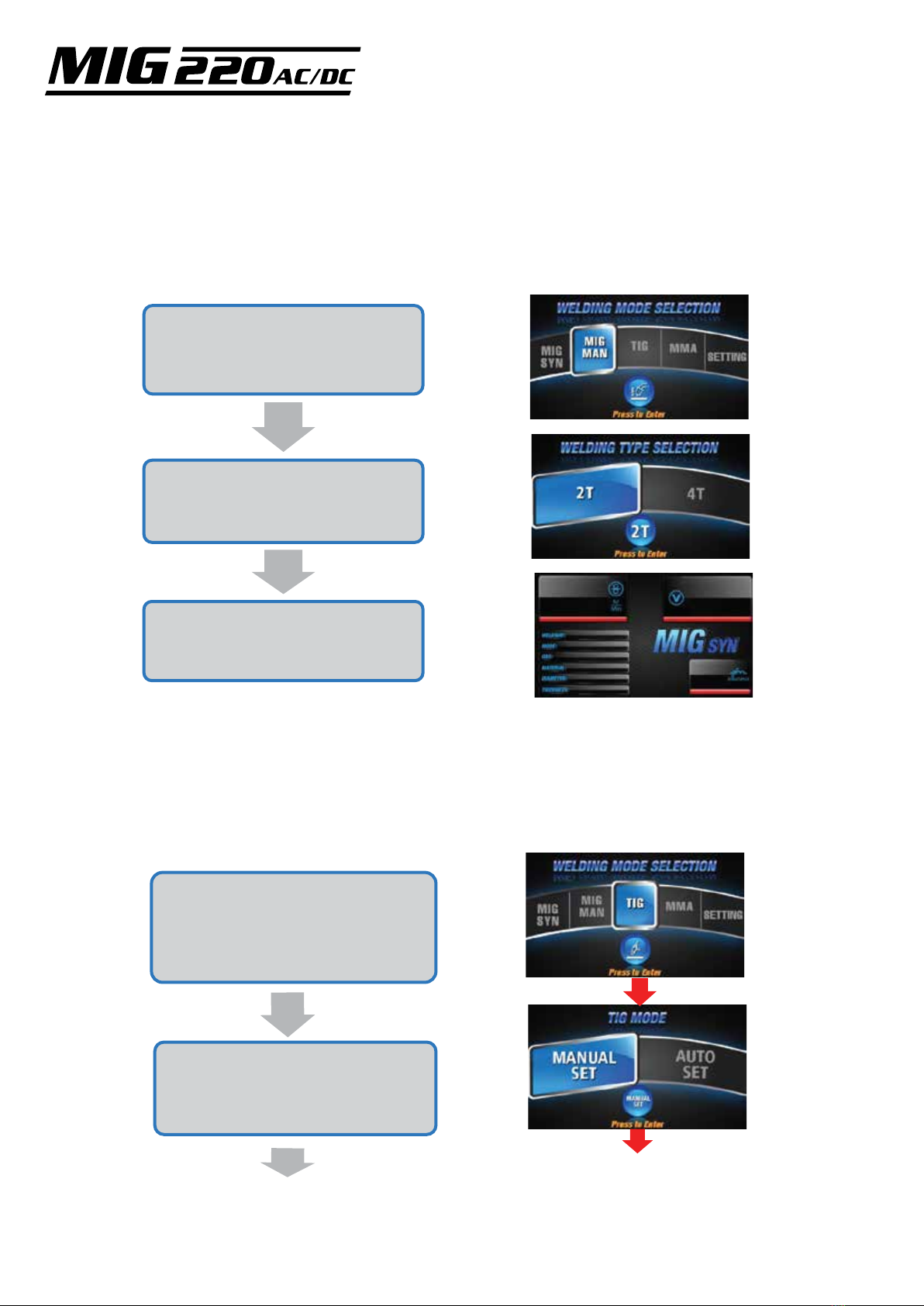

4.7 MIG MAN Operation Guide................................... 17

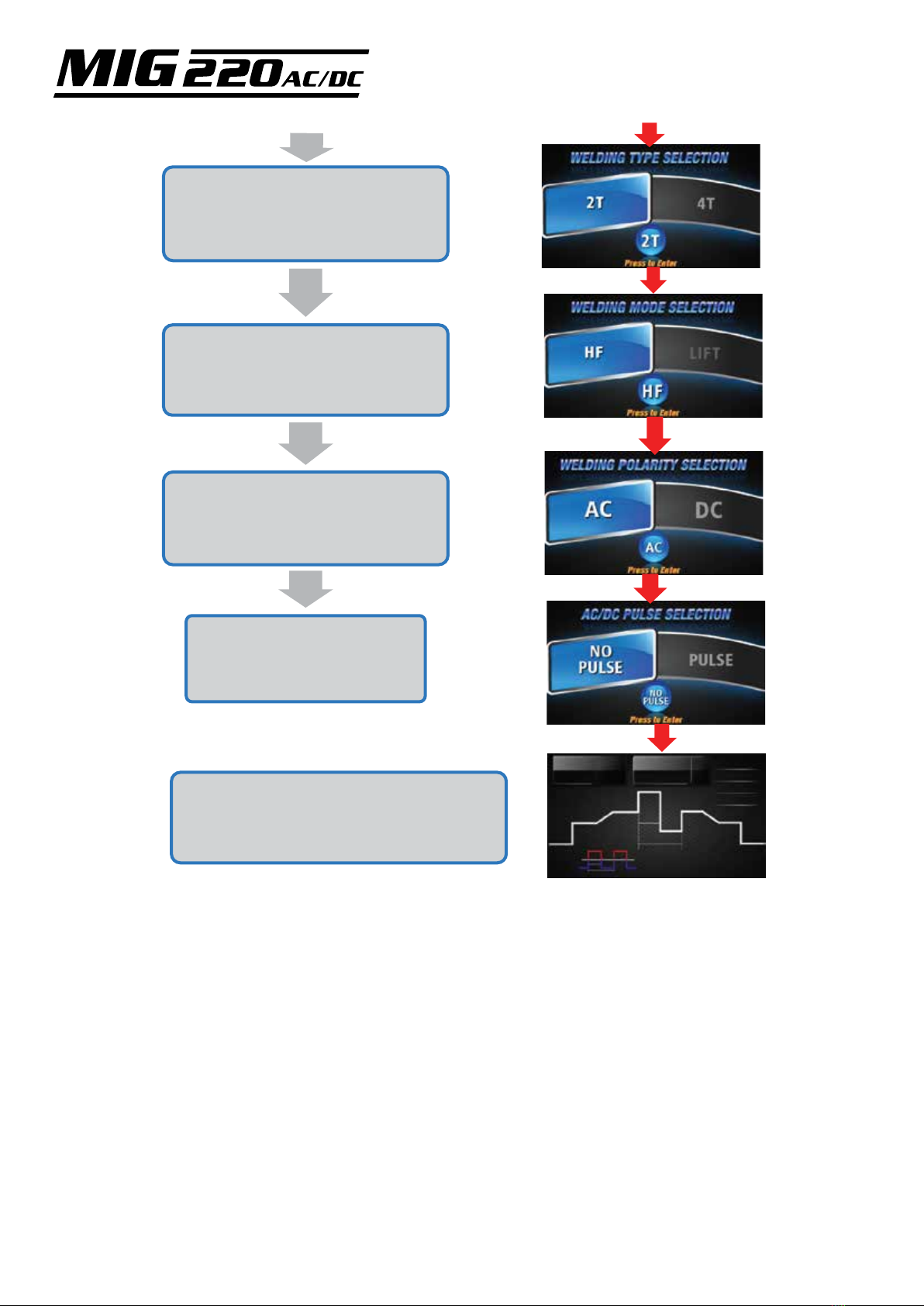

4.8 TIG Welding mode settings ................................... 17

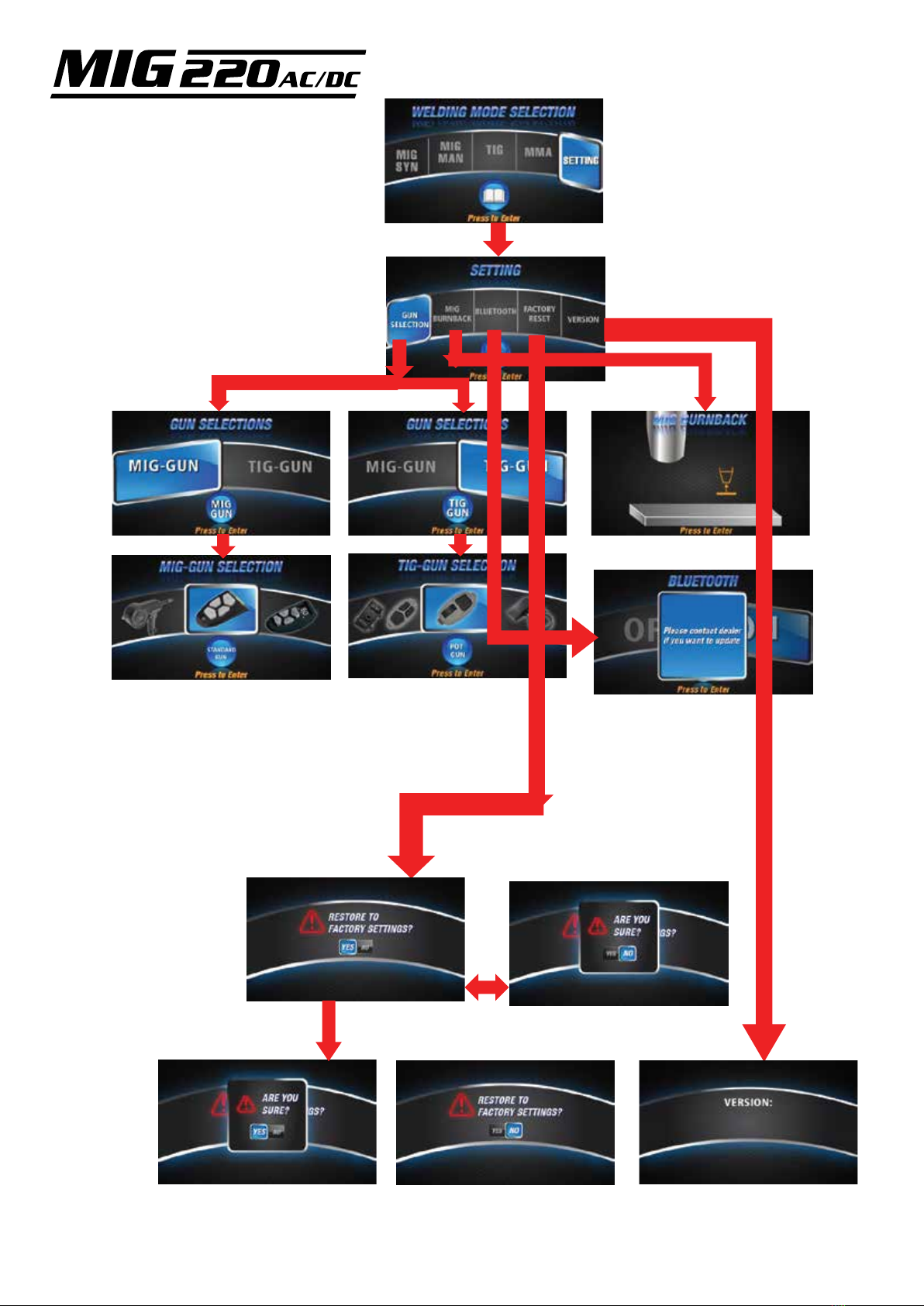

4.9 Set up operation guide.......................................... 18
4.9.1 Memory operation guide ................................... 20
PLEASE NOTE that under no circumstances should your
MIG220 AC/DC be altered or changed in any way from
standard factory configuration. Doing so, will void the
machine warranty.
5.0 Welding Parameters ......................................... 20
5.1 Joint form in TIG/MMA......................................... 20
5.2 The Explanation of Welding Quality ................... 21
5.3 TIG Parameters...................................................... 21
5.4 Operation Environment........................................ 23
5.5 Operation Notices ................................................. 23
5.6 Troubleshooting .................................................... 24
• True Multi-process: 4:1 MIG/Stick/LIFT AC/DC Pulse
TIG/HF AC/DC TIG in one machine to weld in any condition
for multiple materials.
• Single phase 230V.
• Large 4.3 inch color screen: user friendly for setting synergic
parameters on MIG & TIG, Arc force/hot start on MMA
• Innovative high resolution screen provides a clear view of
parameters
• Light weight and portable
• PFC (Power Factor Correction)
• Suitable for generator use
• Max 15-20Kg Spool.
• Spool Gun Capable
• Foot Control Optional on TIG
• 4 Drive Roller System

1.1 Personal Safety Warning Signs
2
1.0 Recommended Safety Precautions
The above safety warning signs indicate the risk of personal
injury or even death. IMPORTANT! Hot or moving parts can
cause serious injury and electric shock can kill. Use the
following MIG220 AC/DC operation guidelines to insure your
own personal safety and for those in the immediate vicinity
of your work area.
1.2 Safety Precautions Preface
• The following are explanations of dangers present while
operating the machine. Please remind yourself and others of
these dangers.
• Only people who are trained professionally can install,
debug, operate, maintain and repair the equipment.
• NEVER TOUCH electrical parts
• Use dry, hole-free gloves and other protective safety gear
• Protect yourself from work and ground using dry
insulation. Make sure inulation is sufficiently covering
the working area.
• Use caution when working in confined spaces, in wet
environments or where falling is a risk
CLOTHING:
Suitable clothing must be worn to prevent excessive skin
exposure to UV radiation, sparks and molten metal. Flame-
proof, loose fitting cotton clothing buttoned to the neck,
protective leather gloves, spats, apron and steel toe safety
boots are also highly recommended. In addition, use a
helmet with the recommended shade lens for amperage
listed in the shade chart below.
FUMES AND GASES CAN BE DANGEROUS:
• Welding may produce fumes and gases hazardous to
health. Avoid breathing these fumes and gases. When
welding, keep your head out of the fume. Use enough
ventilation and/or exhaust at the arc to keep fumes and
gases away from the breathing zone. When welding with
electrodes which require special ventilation such as stainless
or hard facing or on lead or cadmium plated steel and other
metals or coatings which produce highly toxic fumes, keep
exposure as low as possible and below Threshold Limit
Values using local exhaust or mechanical ventilation. In
confined spaces or in some circumstances, outdoors, a
respirator may be required. Additional precautions are also
required when welding on galvanized steel.
• Do not weld in locations near chlorinated hydrocarbon
vapors coming from degreasing, cleaning or spraying
operations. The heat and rays of the arc can react with
solvent vapors to form phosgene, a highly toxic gas, and
other irritating products.
• Shielding gases used for arc welding can displace air and
cause injury or death. Always use enough ventilation,
especially in confined areas, to insure breathing air is safe.
• Read and understand the manufacturer’s instructions for
this equipment and the consumables to be used, including
the material safety data sheet and follow your employer’s
safety practices.
ARC RAYS CAN BURN:
• Use a shield with the proper filter and cover plates to
protect your eyes from sparks and the rays of the arc when
welding or observing open arc welding.
Less than 150 amps
150 to 250 amps
250 to 300
300 to 350
Over 350 amps
Use one shade darker for aluminium welding
Shade 9
Shade 10
Shade 11/12
Shade 13
Shade 14
ELECTRIC SHOCK CAN KILL!
• True Multi-process: 4:1 MIG/Stick/LIFT AC/DC Pulse
TIG/HF AC/DC TIG in one machine to weld in any condition
for multiple materials.
• Single phase 230V.
• Large 4.3 inch color screen: user friendly for setting synergic
parameters on MIG & TIG, Arc force/hot start on MMA
• Innovative high resolution screen provides a clear view of
parameters
• Light weight and portable
• PFC (Power Factor Correction)
• Suitable for generator use
• Max 15-20Kg Spool.
• Spool Gun Capable
• Foot Control Optional on TIG
• 4 Drive Roller System

3
ROTATING PARTS MAY BE DANGEOUS:
• Use only compressed gas cylinders containing the correct
shielding gas for the process used and properly operating
regulators designed for the gas and pressure used. All hoses,
fittings, etc. should be suitable for the application and
maintained in good condition.
• Always keep cylinders in an upright position securely
chained to an undercarriage or fixed support.
• Cylinders should be located:
- Away from areas where they may be struck or subjected
to physical damage.
- A safe distance from arc welding or cutting operations
and any other source of heat, sparks, or flame.
• Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
• Keep your head and face away from the cylinder valve
outlet when opening the cylinder valve.
• Valve protection caps should always be in place and hand
tight except when the cylinder is in use or connected for
use.
ELECTRIC AND MAGNETIC FIELDS:
Electric current flowing through any conductor causes
localized Electric and Magnetic Fields (EMF). The discussion
on the effect of EMF is ongoing all around the world. Until
now, no material evidences show that EMF may have effects
on health. However, the research on damage of EMF is still
ongoing. Before any conclusions are made, we should
minimize exposure to EMF as much as possible.
In order to minimize EMF, we should use the following
procedures:
• Route the electrode and work cables together – Secure
them with tape when possible.
• All cables should be put away and far from the operator.
• Never coil the power cable around your body.
• Make sure the welding machine and power cable are as
far away from the operator as possible.
• Connect the work cable to the workpiece as close as
possible to the area being welded.
• People with heart pacemakers should stay away from the
welding area.
The equipment complies with electromagnetic compatibility
on the class A which is intended for users in any locations
other than residential locations where the electrical power is
provided by public low-voltage supply system.
• Use suitable clothing made from durable flame-resistant
material to protect your skin and that of your helpers from
the arc rays.
• Protect other nearby personnel with suitable, non-flam-
mable screening and /or warn them not to watch the arc nor
expose themselves to the arc rays or to hot spatter or metal.
WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION.
• Remove fire hazards from the welding area. If this is not
possible, cover them to prevent the welding sparks from
starting a fire. Remember that welding sparks and hot
materials from welding can easily go through small cracks
and openings to adjacent areas. Avoid welding near hydrau-
lic lines. Have a fire extinguisher readily available.
• Where compressed gases are to be used at the job site,
special precautions should be used to prevent hazardous
situations.
• When not welding, make certain no part of the electrode
circuit is touching the work or ground. Accidental contact
can cause overheating and create a fire hazard.
• Do not heat, cut or weld tanks, drums or containers until
the proper steps have been taken to insure that such
procedures will not cause flammable or toxic vapors from
substances inside. They can cause an explosion even though
they have been “cleaned”.
• Vent hollow castings or containers before heating, cutting
or welding. They may explode.
• Connect the work cable to the work as close to the
welding area as practical. Work cables connected to the
building framework or other locations away from the
welding area increase the possibility of the welding current
passing through lifting chains, crane cables or other alter-
nate circuits. This can create fire hazards or overheat lifting
chains or cables until they fail.

1.3 Electrical Shock
• Never touch ‘live’ electrical parts
• Earth clamp all work materials
• Never work in wet or damp environments
Avoid electric shock by:
• Wearing dry, insulated boots
• Using dry, leather gloves
• Never change electrodes with bare hands or wet gloves
• Never cool electrode holders in water
• Work on a dry, insulated floor where possible
• Never hold the electrode or holder under your arm
1.4 User Responsibilities
• Read the Instructional Manual prior to using your
MIG220 AC/DC
• Unauthorised repairs to this equipment may endanger
the technician and operator and will void your Warranty.
Only qualified personnel should perform repairs
• Always disconnect mains power before investigating
equipment malfunctions
• Replace broken, damaged, missing or worn parts & hoses
immediately.
• Equipment should be cleaned & serviced periodically
4
2.0 Introduction
The MIG220 AC/DC welder adopts the latest pulse width
modulation (PWM) technology and the insulated gate
bipolar transistor (IGBT) power module.
At the same time, this machine is capable of four welding
patterns, MMA, MIG, AC/DC & TIG. Built with versatility in
my mind to satisfy all kinds of welding.
• The MIG220 AC/DC has built in general protection
functions for:
Pulse width (PWM) limit
Over-voltage/over-current/over-heating
• MCU control system
• Reduced weight of the machine improves portability
MMA——Manual Metal Arc welding
PWM——Pulse-Width Modulation
IGBT——Insulation Gate Bipolar Transistor
TIG——Tungsten Insert Gas welding
1.5 Module Explanation
MIG220 AC/DC
Soft-switching Technology
MIG
Max Current is 240A, LCD
Display

5
2.1 Working Principle
Single Phase, AC
220V 50HZ Rectifier Inverter
2.2 Volt-Ampere Characteristic
The MIG220 AC/DC Series welder has an excellent volt-ampere characteristic, displayed in the following graph. The relation
between the conventional rated loading voltage U2and the convention welding current I2is as follows:
When I2≤600A，U2=10+0.04I2(V); When I2＞600A,U2=34(V).
Medium
Frequency
Transformer
Hall Device
Current
Positive-
Feedback
Control
DC
DC
DC
AC ACAC
The working principle of the MIG220 AC/DC welder is shown as the following figure.
Single phase work frequency AC 220V (50 Hz) is rectified into DC (380V), then is converted to medium frequency AC (about
44KHz) by inverter device (IGBT), after reducing voltage by medium transformer (the main transformer) and rectified by
medium frequency rectifier (fast recovery diodes), and is outputted by inductance filtering. The circuit adopts current and
voltage feedback control technology to ensure current/voltage output stability. The welding current parameter can also be
adjusted continuously to meet welding requirements.
Medium
Frequency
Rectify
Inverter AC
67
34
10
0600I2（A）
U2（V）
Working
point
Volt-ampere characteristic The relation between the
conventional loading
voltage and welding current

6
3.1 Parameters
3.0 Installation and Adjustment
MIG TIG MMAMMATIGMIG
DC
4.2
33.0 18.0
60%100A 30%140A
100%80A
Fe:0.6/0.8/0.9/1.0 Ss:0.8/1.0 Al:0.9/1.0 Flux:0.9(self-shield)/1.0/1.2
0.99
0.1-10
15-50
5-100
0.5-200
25-200
50/60Hz
45(Controlled)
29.8
660×275×500
IP23
F
AF
1~100/110/120/127±10% 1~200/220/230/240±10%
AC DC
3.2
27.0 17.0
60%110A
30%140A
100%90A
3.2
20.0 10.0
60%110A 30%140A
100%90A
15~14030~140 10~140
AC DC
3.5
29.3 19.6
60%80A
30%110A
100%60A
60%80A
30%110A
100%60A
3.8
29.3 19.6
DC
6.8
31.0 15.5
60%180A 25%220A
100%160A
AC DC
5.1
20.0 10.0
60%150A
25%200A
100%125A
5.8
24.0 12.0
60%180A 25%220A
100%160A
AC DC
6.9
28.0 14.0
60%170A 30%200A
100%145A
60%145A
30%200A
100%125A
7.0
31.4 15.7
15~140 10~140 15~20030~220 10~220 15~200 10~200
MIG220 AC/DCMachine
Cooling
Insulation Class Protection Class Dimensions(mm)
Net Weight(Kg) Wire Diameter(mm) Power Factor
AC Frequency(Hz)
Pulse Frequency(Hz)
Pulse Width Range(%)
Clearance Eect(AC TIG)(%) Up/Down Slope Time(S)
Welding Current Range(A)
No Load Voltage(V)
Duty Cycle(40°C 10min)
Eective Current(A) Rated Input Current(A)
Rated Input Power(KW)
Function Frequency(Hz) Power Supply Voltage(V) 230V
Generator Size 8.5 KVA

3.2 Duty cycle & Over heating
The letter “X” stands for duty cycle, which is defined as the
proportion of the time that a machine can work continuously
within a certain time (10 minutes).
The rated duty cycle means the proportion of the time that a
machine can work continuously within 10 minutes when it outputs
the rated welding current.
The relation between the duty cycle “X” and the output welding
current “I” is shown as the right figure.
If the welder overheats, the IGBT over-heat protection unit inside
it will output an instruction to cut the output welding current, and
will light up the over-heat pilot lamp on the front panel. In the
event this occurs, the machine should be left to cool for 15
minutes. When operating the machine again, the welding output
current or the duty cycle should be reduced.
The relation between duty cycle and welding
current for the MIG220 AC/DCCP
I（A）
0
％
X
250
60％
210
3.3 Movement and Placement
Please take care for the welder when moving it, and do not let it slope.
It also can be moved by the handle on the top of the welder. Place the welder well when moving it to the right position. When the machine
gets to the destination, it needs to be stabilized to avoid gliding.
When using a forklift, its arm length must be long enough to reach the outside so as to ensure lifting safely.
The movement may result in potential danger or substantive hazard, so please make sure that the machine is in a safe position before using
it.
3.4 Power supply input connection
The MIG220 AC/DC welding machines power supply connects to 220V.
When the power supply voltage is over/under the safe work voltage, the over voltage or under voltage protection inside the welder will
trigger, turning the alarm light on and cutting the current output off.
If the power supply voltage continually goes beyond the safe work voltage range, it will shorten the machines life-span.
The below measures can be used:
• Change the power supply input net - connect the welder with the stable power supply voltage of the distributor
• Induce the machines current power supply at the same time
• Set the voltage stabilization device in the front of the power cable input
3.5 Polarity Connection (MMA)
Workpiece
-+-+
MIG220
AC/DC
MIG220
AC/DC
Holder
Workpiece
Holder
Electrode Electrode
DC POSITIVE CONNECTION DC NEGATIVE CONNECTION
MMA (DC): Choosing the connection of DCEN or DCEP according to the different electrodes. Please refer to the electrode
manual.
7

3.6 Assembling the equipment (TIG)
-+
MIG220
AC/DC
Workpiece
Welding Torch
Ar
DC POSITIVE CONNECTION
MIG220
AC/DC
rear panel front panel
Gas Hose
Argon Gas
Cylinder
Pipe
Welding Cable
Control Cable of
torch switch
Shield gas
input joint
Shield gas
connector
Aero socket
(ie: MIG200)
• The workpiece is connected to the positive electrode of the welding machine, with the welding torch connected to the
negative electrode, called the DC positive connection. Otherwise, it’s called the DC Negative connection. Generally it is usually
operated as a DC positive connection when TIG welding.
• The control cable of the torch switch consists of 2 wires, pedal control of 3 wires and the aero socket has 14 leads.
8

16
MIGARC220 AC/DC
1. Current & wire knob Used to adjust the current and wire feeding speed
2.
3. Voltage knob Used to adjust voltage downslope/arc force
4. Inductance adjusting knob Used for adjusting inductance
5. LCD Display Displays current working state and the related settings parameters
6. Main Control Knob Used for navigation and selection
7. MIG gun quick connector The MIG welder’s positive polarity output.
8. Negative Output The Welders’ negative polarity output.
9. Shield gas connector Is connected to the gas input pipe of torch.
10. Aero socket Is connected to torch switch control wire. (It has 14 leads and lead 8 - lead 9 are connected to
torch switch control wire
11. Positive output The welders positive polarity output
12. Power source switch Turns the machine off and on.
13. MIG Shield gas input joint To connect one head of the gas hose while the other head of which is connected to argon gas
cylinder.
14. Power source input To connect power source
15. TIG Shield gas input joint To connect one head of the gas hose while the other head of
which is connected to argon gas cylinder.
16. Fan Triggers when the machine overheats, used for cooling components inside the welder.
9
4.0 Operation
4.1 Lay out for front and rear panel

4.2 Control Panel
§4.2 Control panel
LCD Display
Current &
wire
feeding speed
adjusting knob
Main Control knob
Voltage/downslope
/arc force adjusting
knob
Inductance
adjusting knob
Overview
The key feature of the control panel is the logical way in
which the controls are arranged. All the main parameters
are needed for day-to-day working can easily be:
• Selected with the keys
• altered with the adjusting dial
• shown on the display during welding
The illustration below shows an overview of the main
settings needed for day-to-day working, the following
section is a detailed description of these settings.
(1) Current and wire feeding speed adjusting knob
In different modes of welding, this button
has diverse function. In the mode of
MMA, it is used to adjust the welding
current. In the state of MIG, it is used to
regulate wire feeding speed. The range of
the current and speed are displayed in the
table.
TYPE MIG220 AC/DC
The range of adjusting
current (A)
The range of wire feeding
speed (m/s)
10~220
3.0~25
(2) The LCD Display
According to the different welding states, this display will
show the current working state and the related setting
parameters. ie: In the state of MMA, when the user sets the
relative MMA parameters, the current, ARC
force, welding-way, diameter, thickness and electrode etc
will be displayed. When in the state of welding, it will
display the setting parameters, current voltage and current.
10

ARC force
Diameter
Thickness
electrode
Display the setting
current
Setting arc
force
Setting welding
current
Weld Way
The actual current and voltage display
(3) The Control Knob
This knob is mainly used for navigating and confirming selections. When shifting the button left or right,
the corresponding page will navigate to the left or right. When pressing the knob, the page will be selected.
Navigation shifting the knob to the right
11

The MIG220 AC/DC Series welder has an excellent volt-ampere characteristic, displayed in the following graph. The relation
between the conventional rated loading voltage U2and the convention welding current I2is as follows:
When I2≤600A，U2=10+0.04I2(V); When I2＞600A,U2=34(V).
12
(4) The adjustment button for voltage, down slope and arc force
In different welding states, this knob has differing functions:
(1) In the mode of MMA, it can adjust the arc force, the range is 0~10;
(2) In the mode of TIG, it can adjust the time of down slope;
(3) In the mode of MIG, it can adjust the welding voltage, the range is 10~25V
(5) The knob of inductance
This button is used for adjusting the output inductance, the range is 0~10, used to make the
machines welding performance better.
NOTE:
Only “Parameter selection keys” and “Adjusting dial” can be used in the welding process.
Only “Rod electrode welding key”, and “Adjusting dial” can be used on MMA mode.
4.3 Argon ARC Welding Operation
4.3.1 TIG Welding (4T Operation)
The start current and crater current can be pre-set. This function can compensate the possible crater that appears at the
beginning and end of welding. Thus, 4T is suitable for the welding of medium thickness plates.

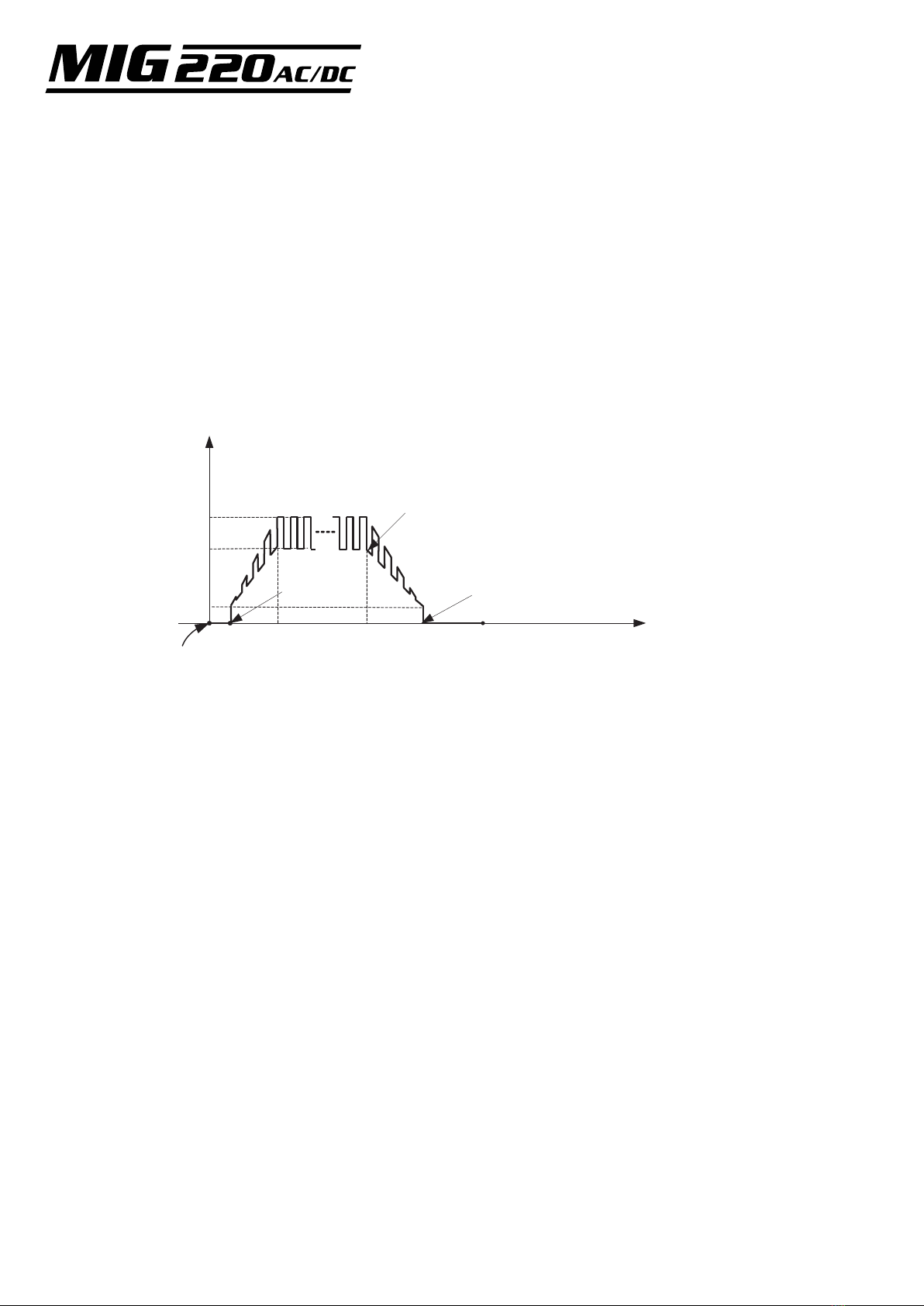

Pulsed TIG long welding (4T):
Introduction:
• 0: Press and hold the gun switch, Electronmagnetic gas valve is turned on. The shielding gas starts to flow
• 0~t1: Pre flow time, adjustment range of pre flow time: 0.1~1.0S
• t1: Striking success, adjustment range of start current 5~250A (315A)
• t2: Loosen the gun switch, the output current slopes up from start current. If the output pulse function is turned on, the
output current is pulsed
• t2~t3 Output current slopes up to the setting current value; adjustment range of up slope time 0~10.0S
t( s)
0
I( A)
t1
switch
t5
Loosen the
t7
Striking success
Stop arc
t3 t4t2 t6
switch
Loosen the
Welding current (peak
current) setting value
Base current setting
value Start
current Crater
Repress down the
switch
current
Press and hold the
welding gun switch

13
• t3~t4: Welding process. During this period, the gun switch is loosened
• t4: Repress down the gun switch, the output current slopes down to crater current
• t4~t5: Down slope time, adjustment range of down slope time: 0~10.0S
• t5~t6: Crater current holds time; adjustment range of crater current: 5~250A (315A)
• t6: Loosen the gun switch, stop arc, and keep on argon flowing
• t6~t7: Post flow time, adjustment range of post flow time: 0.1~10.0S
• t7: Electromagnetic valve is closed and stopped argon flowing. Welding is finished.
4.3.2 TIG Welding (2T operation)
Pulsed TIG short welding (2T):
•0: Press and hold the gun switch, Electromagnetic gas valve is turned on. The shielding gas starts to flow.
• 0~t1: Pre flow time, adjustment rane of pre flow time: 0.1~1.0S
• t1~t2: Striking success, the output current slopes up to the setting current from minimum current (5A);
• t2~t3: During the whole welding process, the gun switch is pressed and held without releasing. Note: If the output pulse
function is turned on, the output current is pulsed. If the output pulse function is turned off, the output current is DC current
• t3: Loosen the gun switch, the output current slopes down; if the output pulse function is turned on, the slope down
current is pulsed
• t3~t4: The output current slopes down to minimum current (10A), stop arc; adjustment range of down slope time: 0~5S
• t4~t5: Post flow time, adjustment range of post flow time: 0.1~10.0S
• t5: Electromagnetic valve is closed and stopped argon flowing. Welding is finished.
Introduction:
Short circuit protection function:
1. TIG /DC/LIFT：If the tungesten electrode touches the workpiece when welding, the current will drop to 30A,
which can reduce tungsten spoilage，prolonging the life of the tungsten electrode，and prevent tungsten clipping.
2.TIG /DC/HF：If the tungesten electrode touches the workpiece when welding, the current will drop to 0 within 1s,
which can reduce tungsten spoilage，prolonging the life of the tungsten electrode，and prevent tungsten clipping.
3.MMA operation：if the electrode touches workpiece over two seconds, the welding current will drop to the 0
automatically to protect the electrode.
Prevent arc-break function：TIG operation，Avoid arc-break with special means, even if arc-break occurs the HF will
keep the arc stable.
t( s)
0
I( A)
Loosen the
switch
welding gun
t1 t5
Striking
success
Press and hold the
welding gun switch
Stop arc
t3 t4t2
Welding current (peak
current) setting value
Base current setting
value
5A

14
Welding mode
selection
Welding Cable
Connection diagram
Welding polarity
selection
Welding electrode
selection
Notices:
•Check the condition of welding and connection units first, otherwise there may be malfunctions such as ignition
sparks, gas leakages, loss of control and so on.
•Check whether there is enough Argon gas in the shield gas cylinder, you can test the electromagnetic gas
valve via the switch on the front panel.
• Do not let the torch aim at your hand or other parts of your body. When you press the torch switch, the arc is ignited with
a high-frequency, high-voltage spark and the ignition spark can cause interferences in equipment.
• The flow rate is set according to the welding power used in the job. Turn the regulation screw to adjust the gas
flow which is shown on the gas hose pressure meter or the gas bottle pressure meter.
• The spark ignition works better if you keep the 3mm distance from the workpiece to the tungsten electrode during the ignition.
4.4 MMA Welding mode Settings
When you select the MMA mode, you can select related parameters according to the Use occasion.
Such as the welding electrode, thickness, electrode diameter, the output mode(AC/DC) and so on.
The Operation process is as shown below. The machine indication interface is as follows. At every level menu you can
press the control knob to jump into the next level menu, and rotate the main knob right or left change the status
of the current menu or the value of Welding current and arc-force.

15
Welding electrode
diameter selection
Thickness
Welding parameter
display and adjustment
interface
4.5 MIG Welding mode Settings
4.6MIG SYN Operation Guide
This machine has two modes in MIG status. In the unitary mode，this machine can according to use occasion and condition,
select the diameter and type of the welding-wire etc. Through the welding test, we give the recommended parameters of the
voltage, wire-speed and inductance. The MIG-SYN Operation process as shown below.
Welding mode
selection
The gun and the
Grounding cable
Connection diagram
Selection of welding
materials

Protective gas selection
Welding wire diameter
selection
Welding type selection
Thickness
Welding parameter display
and adjustment interface
16

17
In the last level, the all setting parameters will display in the Corresponding positionyou’re your welding experience is poor,
you can according the state of the welding to adjust the settings of the voltage, speed and inductance.
4.7 MIG man Operation guide
In this mode, the user can adjust voltage and wire speed according to user's usage habits and welding occasions.
you can only select the welding mode of 2T or 4T.
Welding mode selection
Welding type selection
Welding parameter display
and adjustment interface
4.8 TIG Welding mode Settings
Same as other welding methods, this machine in TIG mode also has SYN and manual two welding modes. In every mode,
the user can according to the use situation, choose the suitable mode to achieve the perfect welding effect.
If you select the manual mode, the specific operation steps are as follows. If you select the AUTO mode, the operation
steps are similar with the manual mode.
Welding mode
selection
TIG Manual selection

Welding parameter display
and adjustment interface
PULSE Selection
18
Welding mode
selection
HF -LIFT selection
AC -DC selection
4.9 Set up operation guide
In order to meet the use requirements of customers, this machine has Multiple gun options in TIG and MIG mode, also
has the Advanced remote-control technology, the user can choose the mobile-phone’s Bluetooth which the operation
system is Android to connect to the machine, then you can adjust the welding status or welding parameters. the specific
operation steps are as follows.

19
As show in the picture, in every status, if you select the corresponding function, the program will jump to
the corresponding page.
