H-P Products MX2500 User manual

Dealer Name
Dealer Phone
Serial Number
P/N 80208-01 • 03/20
H-P Products §512 West Gorgas Street §Louisville, OH 44641
Attention Installer: Please be sure this manual and warranty information
are left with the power unit or customer when installation is complete.
Read Manual Before Operating System
Read the owner’s manual thoroughly before operating to
ensure the most efficient use of the system.
Operating Instructions For
Central Vacuum Models:
MX2500 & MX2570

MX2500 & MX2570
2
Models UL File Ref. # NEMKO Ref. #
MX2500 (120 volt) 22100 N/A
MX2570 (230 volt) N/A MX2570

3
TABLE OF CONTENTS:
Important Safety Instructions ....................................................................... 3
Grounding Instructions ................................................................................. 5
General Information ...................................................................................... 6
Registration ................................................................................................... 6
Operating Instructions .................................................................................. 6
General Maintenance .................................................................................... 6
Bag Removal and Replacement .................................................................... 7
Troubleshooting ............................................................................................. 8
IMPORTANTES MESURES DE SECURITÉ .................................................... 9
INSTRUCTIONS DE MISE À LA TERRE ....................................................... 11
Warranty ....................................................................................................... 12
IMPORTANT SAFETY INSTRUCTIONS
Read These Instructions Before Using This Vacuum System
Installation of this product should be made by a qualified, authorized
central vacuum dealer. Before installing, using, or servicing this product,
the installer should carefully read and fully understand the instructions
including all warnings, cautions, and safety notice statements. To
reduce the risk or personal injury, death and/or property damage, follow
all instructions for proper installation, operation and maintenance.
These instructions are not intended as a complete listing of all details
for installation, operation and maintenance. If you have any questions
concerning any of these procedures, STOP, and call an authorized central
vacuum dealer.

MX2500 & MX2570
4
When using an electrical appliance, basic precautions should always be
followed, including the following:
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY:
• Unplug and disconnect power before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used
by or near children.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as
it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to an authorized servicing dealer.
• Do not pull or carry by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners.
• Do not run appliance over cord.
• Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle system or appliance with wet hands.
• Use extra care when cleaning on stairs.
• Do not use on wet surfaces.
• Do not put any object into openings. Do not use with an opening blocked.
Keep openings free of dust, lint, hair and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Connect to a properly grounded outlet. See grounding instructions.
• Turn off all controls before unplugging.
• Do not use to pick up flammable or combustible liquids such as gasoline
or use in areas where they may be present.
• Do not place or store anything on top of power unit.
• Any service work required in motor compartment should be performed
by an authorized service representative.
• Do not operate without filter bag in place.
• Always turn off this appliance before connecting or disconnecting
motorized nozzle.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without
supervision.

5
GROUNDING INSTRUCTIONS
This appliance must be grounded.
If it should malfunction or break
down, grounding provides a path of
least resistance for electric current
to reduce the risk of electric shock.
This appliance is equipped with a
cord having an equipment-grounding
conductor and grounding plug.
The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
WARNING
Improper connection of the
equipment-grounding conductor
can result in a risk of electric
shock. Check with a qualified
electrician or service person if
you are in doubt as to whether the
outlet is properly grounded. Do not
modify the plug provided with the
appliance- if it will not fit the outlet;
have a proper outlet installed by a
qualified electrician.

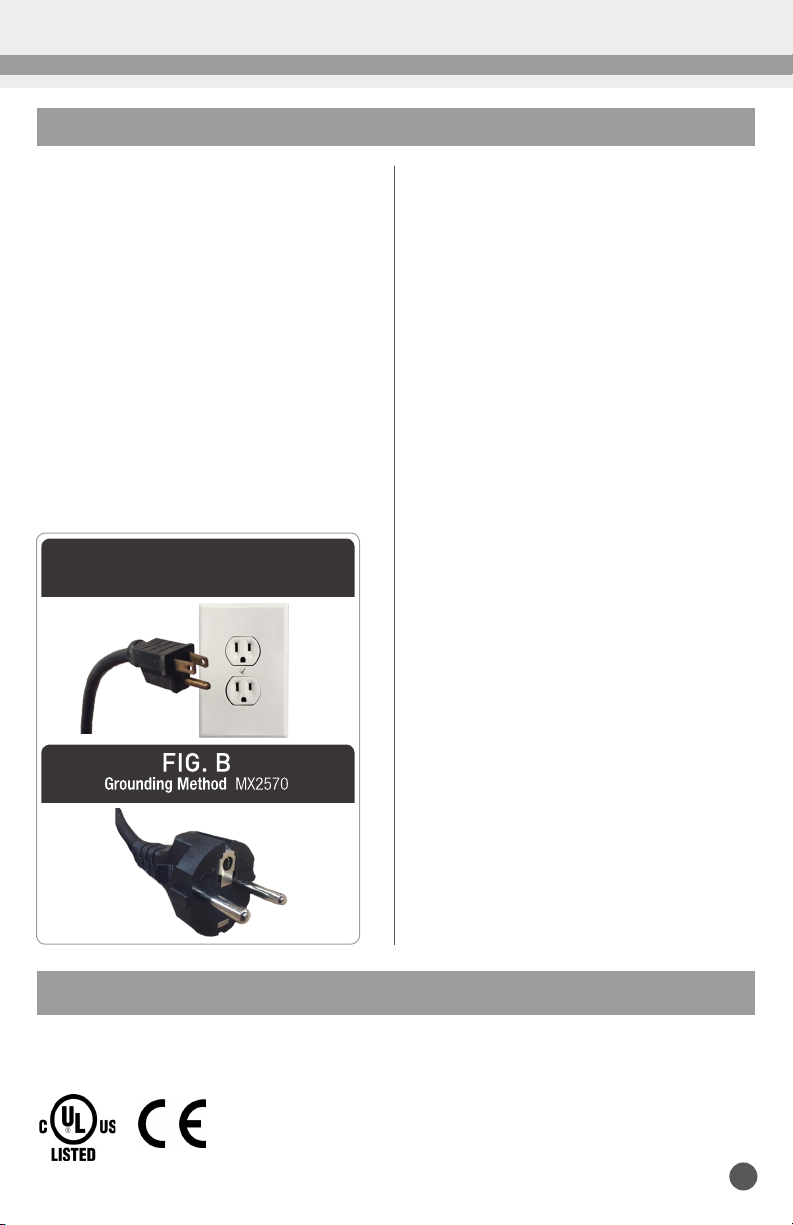

Model MX2500 is for use on a
nominal 120 volt circuit and has a
grounding plug that looks like the
plug in Fig. A. Model MX2570 is for
use on a nominal 230 volt circuit
and has a grounding plug that looks
like the plug in Fig. B.
Make sure that the appliance is
connected to an outlet having the
same configuration as the plug. No
adapter should be used with this
appliance.
CONNECT TO A PROPERLY GROUNDED OUTLET ONLY.
SAVE THESE SAFETY INSTRUCTIONS
Intended For Household and Light Commercial Use. Do not vent into a
wall, a ceiling, or concealed space of a building or structure.
WARNING:
Electric shock could occur
if used on wet surfaces.
CAUTION:
Do not use on a wet
rug or floor.
FIG. A
Grounding Method MX2500

MX2500 & MX2570
6
GENERAL INFORMATION
Do not store objects on top of the power unit. This will prevent easy
access to the filter bag.
This central vacuum is designed to vacuum ordinary household dirt and
dust. The system is designed for dry pickup.
The central vacuum system is a network of inlet valves, 2” PVC tubing,
and low voltage wiring installed in the walls of your home. The dirt is
transported through the in-wall tube system back to the filter bag (located
in the power unit).
REGISTRATION
To register your MX Central Vacuum
System for warranty, register online
at www.cvacregistration.com.
Proof of purchase or registration of
an MX Central Vacuum System is
required before any warranty work
will be performed by an Authorized
Dealer. Registration ensures a fast
and easy resolution for all your
warranty needs.
OPERATING
INSTRUCTIONS
Using your central vacuum system
is easy. Simply raise the inlet
valve lid, insert the hose end and
attach the desired cleaning tool to
the hose wand. The power unit is
activated when the hose is inserted
into the valve.
GENERAL POWER UNIT MAINTENANCE
The simple care and maintenance instructions included here will help
ensure trouble-free use of your central vacuum system.
• Do not place objects on top of the power unit.
• Do not allow the motor to remain ON unless a hose is connected or an
inlet valve is open. If airflow is not permitted to flow through fan blades,
motor damage may occur.
• Do not operate without a disposable bag (PN# 80150) in place.
• The power unit does not require any lubrication.
• The exterior of the power unit can be wiped with a clean, dry cloth. Do
not use liquid cleaners or water as an electrical shock may occur.
• For additional service contact the Authorized Servicing Dealer written on
the front of this manual or locate an authorized dealer online at
www.h-pproducts.com.

7

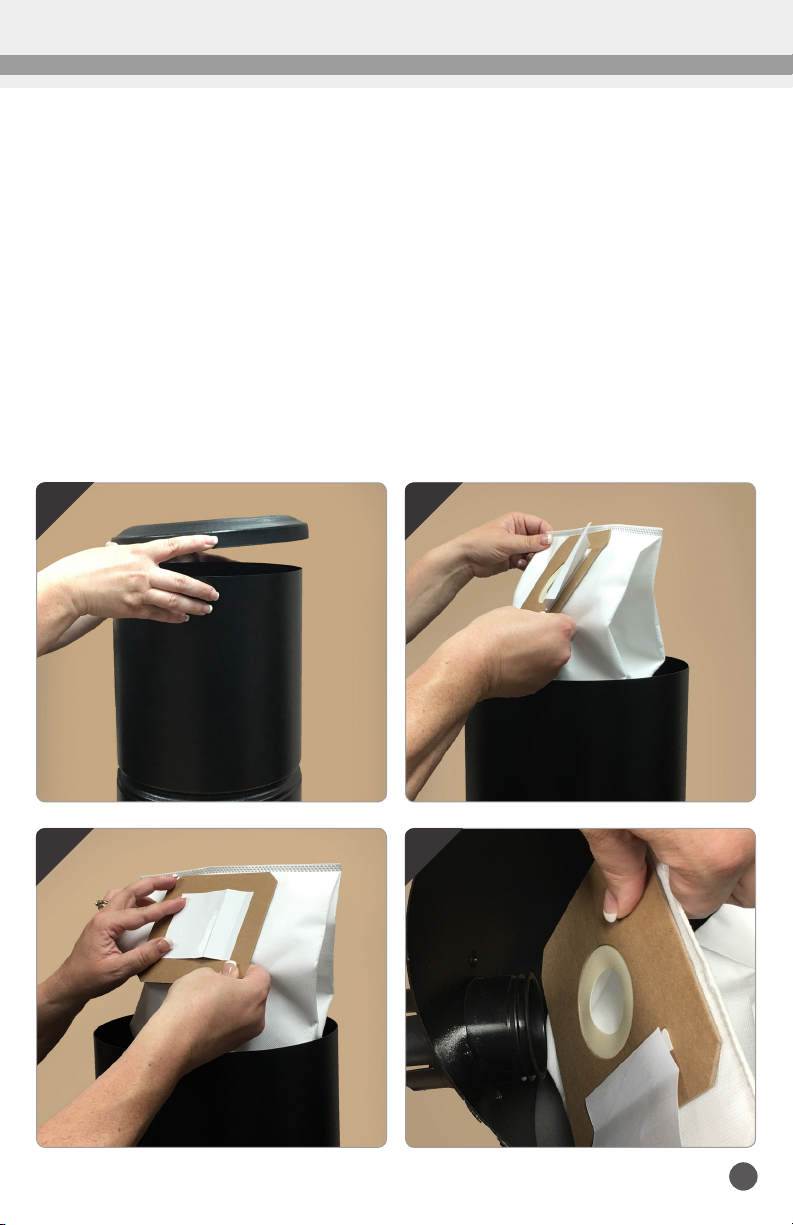

BAG REMOVAL & REPLACEMENT
Follow These Steps (refer to figures 1-4)
Make sure the power unit is OFF.
1. Remove the top cover from power unit by lifting it up. (Fig.1)
2. Remove the used filter bag by holding the cardboard header and sliding
it off of the plastic bag adapter. (Fig.2)
3. Pull off reorder information and seal the bag opening with adhesive
flap. Discard used bag. (Fig.3)
4. Install new bag by folding over the flap, exposing the hole and cardboard
header. Do not remove reorder information from flap until ready for
disposal. Hold cardboard header firmly and push the bag collar onto the
adapter fitting. Re-install top cover. (Fig.4)
FIG. 3
FIG. 1
FIG. 4
FIG. 2
7

MX2500 & MX2570
8
TROUBLESHOOTING THE SYSTEM
Motor Fails to Turn on:
• Check the main fuse or circuit breaker at the main power supply panel of
your home. Reset breaker or replace fuses if necessary.
• Check the Power Unit reset button located above the power cord.
Pressing the button should restore operation.
• If the circuit protector continues to trip after a short period of time the
motor brushes may be worn out. Contact the qualified servicing dealer
written on the front of this manual for service.
Loss of Vacuum:
• The filter bag may need replaced- Follow instructions in this guide.
• The hose may be clogged- To check if there is an obstruction, unplug the
hose and insert an object that is smaller than the diameter of the hose (a
butter knife works well). Pass the object completely through the hose, if
it stops, that will indicate where the obstruction is located. A dry garden
hose can be inserted into the hose to help push the obstruction through.
• The top cover may not be property seated on the canister.
• Tube lines may be obstructed- First check the 90 degree elbow located
directly behind the inlet valve, if an obstruction occurs it will usually not
make it past this elbow. If the obstruction is not visible at the elbow,
attempt to purge the tubing at each inlet valve. To do this, connect the
hose and use your hand to stop airflow at the end of the hose for a
couple seconds, let airflow resume. Repeat if necessary.
• If necessary, contact the qualified servicing dealer written on the front
of this manual to perform required maintenance or locate one online at
www.h-pproducts.com.
Obtaining Service Under Warranty: To obtain repair on warranted parts,
contact the seller of the system with the power unit serial number.

9
CONSIGNES DE SÉCURITÉ
IMPORTANTES
Lisez ces instructions avant d'utiliser ce système de vide
L'installation de ce produit doit être effectuée par un concessionnaire
agréé et agréé. Avant d'installer, d'utiliser ou d'entretenir ce produit,
l'installateur doit lire attentivement et comprendre complètement
les instructions, y compris tous les avertissements, mises en garde
et déclarations de sécurité. Pour réduire le risque ou les blessures
corporelles, le décès et / ou les dommages matériels, respectez toutes
les instructions pour une installation, une opération et une maintenance
appropriées. Ces instructions ne sont pas une liste complète de tous les
détails pour l'installation, l'exploitation et la maintenance. Si vous avez des
questions concernant l'une de ces procédures, arrêtez-la et appelez un
revendeur autorisé de l'aspirateur central.
ATTENTION:
Un choc électrique pourrait survenir si utilisé sur des surfaces humides.
MISE EN GARDE:
Ne pas utiliser sur un tapis ou un plancher humide.

MX2500 & MX2570
10
Lors de l'utilisation d'un appareil électrique, les précautions de base
doivent toujours être suivies, y compris les suivantes:
AVERTISSEMENT: POUR RÉDUIRE LE RISQUE
D'INCENDIE, D'ÉLECTROCUTION OU DE BLESSURE:
• Débranchez et débranchez l'alimentation avant de procéder à l'entretien.
• Ne laissez pas être utilisé comme un jouet. Une attention particulière est
nécessaire lorsqu'ils sont utilisés par des enfants ou à proximité d'enfants.
• Utilisez uniquement comme décrit dans ce manuel. Utilisez uniquement les
pièces jointes recommandées par le fabricant.
• Ne pas utiliser avec un cordon ou une fiche endommagés. Si l'appareil ne
fonctionne pas comme il se doit, il a été abandonné, endommagé, laissé à
l'extérieur ou tombé dans l'eau, renvoyez-le à un concessionnaire agréé.
• Ne tirez ni ne le transportez par cordon, utilisez le cordon comme poignée, fermez
une porte sur le cordon ou tirez le cordon autour des arêtes vives ou des coins.
• Ne coulez pas l'appareil sur le cordon.
• Tenir le cordon éloigné des surfaces chauffées.
• Ne débranchez pas en tirant sur le cordon. Pour débrancher, saisissez la fiche,
pas le cordon.
• Ne manipulez pas le système ou l'appareil avec les mains humides.
• Faites attention en cas de nettoyage sur les escaliers.
• Ne pas utiliser sur des surfaces humides.
• Ne placez aucun objet dans les ouvertures. Ne pas utiliser avec une ouverture
bloquée. Gardez les ouvertures sans poussière, peluches, cheveux et tout ce qui
peut réduire le débit d'air.
• Gardez les cheveux, les vêtements lâches, les doigts et toutes les parties du
corps loin des ouvertures et des pièces en mouvement.
• Ne retirez rien qui brûle ou fume, comme les cigarettes, les allumettes ou les
cendres chaudes.
• Connectez-vous à une prise de courant correctement mise à la terre. Voir les
instructions de mise à la terre.
• Éteignez toutes les commandes avant de débrancher.
• Ne pas utiliser pour retirer des liquides inflammables ou combustibles tels que
de l'essence ou utiliser dans les endroits où ils peuvent être présents.
• Ne placez ni ne stockez rien au dessus de l'unité de puissance - une surchauffe
du moteur pourrait se produire.
• Tout service de travail requis sous la couverture supérieure doit être effectué
par un représentant agréé.
• Ne pas utiliser sans filtre en place.
• Toujours éteindre cet appareil avant de brancher ou de débrancher la buse motorisée.
• Cet appareil peut être utilisé par les enfants âgés de 8 ans et plus et les
personnes ayant des capacités physiques, sensorielles ou mentales réduites ou
un manque d'expérience et de connaissances si elles ont reçu une surveillance
ou des instructions pour utiliser l'appareil de façon sûre et comprendre les
dangers. impliqué.
• Les enfants ne doivent pas jouer avec cet appareil.
• Le nettoyage et la maintenance par l'utilisateur ne doivent pas être
effectués par des enfants sans surveillance.

11
CONNECTEZ-VOUS À UNE PRISE CORRECTEMENT MISE
À LA TERRE UNIQUEMENT.
INSTRUCTIONS DE MISE À LA
TERRE
Cet appareil doit être mis à la terre.
En cas de dysfonctionnement ou de
décomposition, la mise à la terre
fournit un chemin de résistance
au courant électrique pour réduire
le risque de choc électrique. Cet
appareil est équipé d'un cordon doté
d'un conducteur de mise à la terre
et d'une fiche de mise à la terre. La
fiche doit être branchée sur une prise
appropriée correctement installée et
mise à la terre conformément à tous
les codes et ordonnances locaux.
AVERTISSEMENT
Une connexion incorrecte du
conducteur de mise à la terre
peut entraîner un risque de choc
électrique. Vérifiez auprès d'un
électricien ou d'un technicien
qualifié si vous avez des doutes
quant à la bonne mise à la terre du
point de vente. Ne modifiez pas la
fiche fournie avec l'appareil, si elle
ne correspond pas à la prise; Avoir
une prise appropriée installée par
un électricien qualifié.
Le modèle MX2500 est destiné à
être utilisé sur un circuit nominal
de 120 volts et possède une fiche
de mise à la terre qui ressemble
à la fiche de la Fig. A. Le modèle
MX2570 est à utiliser sur un circuit
de 230 volts nominal et possède
une fiche de mise à la terre qui
ressemble à la prise de la Fig. B.
Assurez-vous que l'appareil est
connecté à une prise de courant
ayant la même configuration que la
fiche. Aucun adaptateur ne doit être
utilisé avec cet appareil.
Enregistrer ces consignes de
sécurité
Destiné à l'usage domestique et
léger.
Ne pas évacuer dans un mur, un
plafond ou un espace dissimulé
d'un bâtiment ou d'une structure.

MX2500 & MX2570
12
The MX Built-In Central Vacuum System (the “MX System”) is manufactured by H-P Products,
Inc. (“H-P”), 512 W. Gorgas Street, Louisville, Ohio, 44641. The following is the exclusive limited
warranty (“Limited Warranty”) provided by H-P with respect to the MX System:
Permanently Installed Components
All permanently installed components of the MX System are warranted to be free from defects
in material and workmanship under normal use and care for a period of three (3) years as long
as the original purchaser (“you”) owns the home of the original installation or until the system
is removed from its original installation location, whichever occurs first. In the event of a defect
in a permanently installed component of the MX System, contact an authorized servicing dealer
(an “Authorized Dealer”) to ensure the best quality repair and servicing. Upon determination
of a defect with the permanently installed product, H-P will provide any replacement parts to
the Authorized Dealer at no cost to you. Repair or replacement of any permanently installed
defective part or parts shall be at the labor cost billed to you by the Authorized Dealer.
Attachments
MX System cleaning attachments including: turbine power brushes, non-electric hoses, wands,
tools and tool caddies are warranted to be free from defects in material and workmanship
under normal use and care for three (3) years from original date of consumer purchase. In
the event of a defect in a MX System cleaning attachment, the attachment will be repaired or
replaced, at H-P’s option, at an Authorized Dealer’s location at no cost to you.
Limitations of Warranty
In addition to any limitations set forth above, this Limited Warranty does not extend to (a) any
power unit purchased from someone other than an Authorized Dealer; (b) any MX System which
has not been installed in accordance with manufacturer-recommended instructions; (c) any
MX System or attachment which has been altered or modified in any way; (d) any MX System
or attachment which has been damaged due to misuse, negligence, accident, or improper
operation; (e) any damage due to shipping and handling; (f) any damage due to installation
or faulty installation; (g) any MX System or attachment upon which an unauthorized repair
or service has been performed; (h) any damage to a permanently installed component as a
result of or relating to consumable items such as motor brushes, disposable bags, or filters.
Purchase of products and services from unauthorized sources does not void your original
warranty on the MX System or attachments purchased through H-P or an Authorized Dealer.
You are responsible for securing additional and separate warranties on parts and services
purchased from someone other than an Authorized Dealer as H-P does not offer warranty
coverage on products and services purchased through unauthorized sources. There is NO
warranty for consumable items such as light bulbs, belts, beater brushes, motor brushes,
disposable bags and filters.
AS A CONDITION PRECEDENT TO WARRANTY COVERAGE HEREUNDER, YOU MUST PROVIDE
PROOF OF PURCHASE OR HAVE REGISTERED THE MX CENTRAL VACUUM POWER UNIT BY
TELEPHONE AT 1-800-822-8356, ONLINE AT www.cvacregistration.com OR BY COMPLETING
AND MAILING THE WARRANTY REGISTRATION CARD.
THIS WARRANTY IS A SOLE AND EXCLUSIVE WARRANTY. ALL OTHER WARRANTIES
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ARE EXCLUDED. THIS WARRANTY COVERS ONLY LIABILITY AND RESPONSIBILITY
DESCRIBED HEREIN AND THERE IS NO LIABILTY FOR ANY CONSEQUENTIAL, INCIDENTAL OR
SPECIAL DAMAGES ARISING FROM THE USE OF THIS SYSTEM.
Some states do not allow exclusion or limitation or warranties or limitation of incidental or
consequential damages, so the above exclusion may not apply to you. This warranty gives you
specific legal rights and you may have other rights that vary from state to state.
LIMITED WARRANTY
MX2500 & MX2570
