HAFRO NEW BI-SIZE Junior Series Instruction Manual

Assembly
instructions and user
NEW BI-SIZE
Shower booth
70/80 x 90 RH - LH
80/85 x 80/85
90 x 90
Edition: 15/02/2019
GRUPPO GEROMIN S.r.l. reserves the right to make changes to the product at any time without giving any notice.

2
WARNING:
INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN COMPLIANCE WITH IEC STANDARDS,
LEGAL REQUIREMENTS, AND SPECIFIC NATIONAL STANDARDS FOR PLUMBING AND ELECTRICAL
SYSTEMS.
BEFORE CONNECTING THE APPLIANCE, THE INSTALLER MUST REQUEST THE DECLARATION OF CONFORMITY
FOR THE PLUMBING AND ELECTRICAL SYSTEMS, AS REQUIRED BY LAW NO.46 OF 05/03/90.
IN THE ABSENCE OF THIS DOCUMENTATION, HAFRO S.R.L. WILL DENY ANY RESPONSIBILITY FOR THE
BUILDING OR SYSTEMS, WHERE ITS APPLIANCES ARE TO BE INSTALLED.
ELECTRICAL SAFETY NOTE
Products are built in compliance with standards 60335.2.105. They are tested to personnel, in compliance with IEC standards and with directives currently in
effect in each single installer must also beaut horized to issue a certificate of conformity of properi installation. He must also require of the user (prior to
installation) a declaration of conformity of the systems of the building as required by law. In the absence of this documentation declines any responsibility for
the systems or premises where the product will be installed. The product must be firmly fixed and permanently attached to the electrical network and the
earthing system. Ascertain that the building’s electrical that the earthing system is efficient (refer to standard 64.8).
The product must be installed by authorised or qualified personnel, both as regards the electrical and plumbing connections. Before connecting the booth,
the installer must make sure that the electrical system complies with CEI 64.8 standards, the it is protected by a differential switch 0.03A, and that the
earthing system is efficient and complies with the aforementioned provisions. It is necessary to incorporate in the power supply network a disconnecting
device with a contact opening distance which allows complete disconnection in the conditions of the overvoltage category III, in accordance with the
installation rules.Connections to the electrical system must be made with an omnipolar switch with a contact aperture of at least 3mm, placed outside the
safety zones as set forth in the latest edition of technical standard CEI 64-8/7 (it must be from splashes or the water supply (see drawing). The electrical
system connection wire must be protected by a corrugated tube with no joins or intermediate connections. The wire must not have characteristics inferior to
those of type H05VV-F its section must be sized according to the model. The components used for connection must have specifications and IP protection as
set forth in standard 64.8 for applicatin in bath and showers.
GRUPPO GEROMIN S.r.l.

3
NEW BI-SIZE
70/80 x 90 RH-LH
80/85 x 80/85
90x90
technical
card
The overall dimensions
are expressed in centimetres.
Theactualmeasurements
may vary by ± 1 cm.
The minimum height of the tile covering, without projections, is the same as the height of the shower booth.
SYSTEMS Electrical specifications Caratteristiche idrauliche Overall dimensions
AKw maximum water operating connections
hydro
consumption pressure nozzles H/C water drain
Dim. Shower booth packaging
Length Width Height Net
Weight
Gross
Volt Hz
106
106 98
98
67
64
87
83
INTEGRA 1,5/3.0 12 1/2" 40/50 200
lt/min 15
JUNIOR 9,6 2,2 50
230 1,5/3.0 12 1/2" 40/50 200
lt/min 15
80
86
86
114
43
80
105
90
80
113
43
MOD.
70/80 x 90
MOD.
80/85 x 80/85
70
98
90
90
128
43
109
MOD.
90 x 90
217
H min. 221
207

4
NEW BI-SIZE
70/80 x 90 RH-LH
80/85 x 80/85
90 x 90

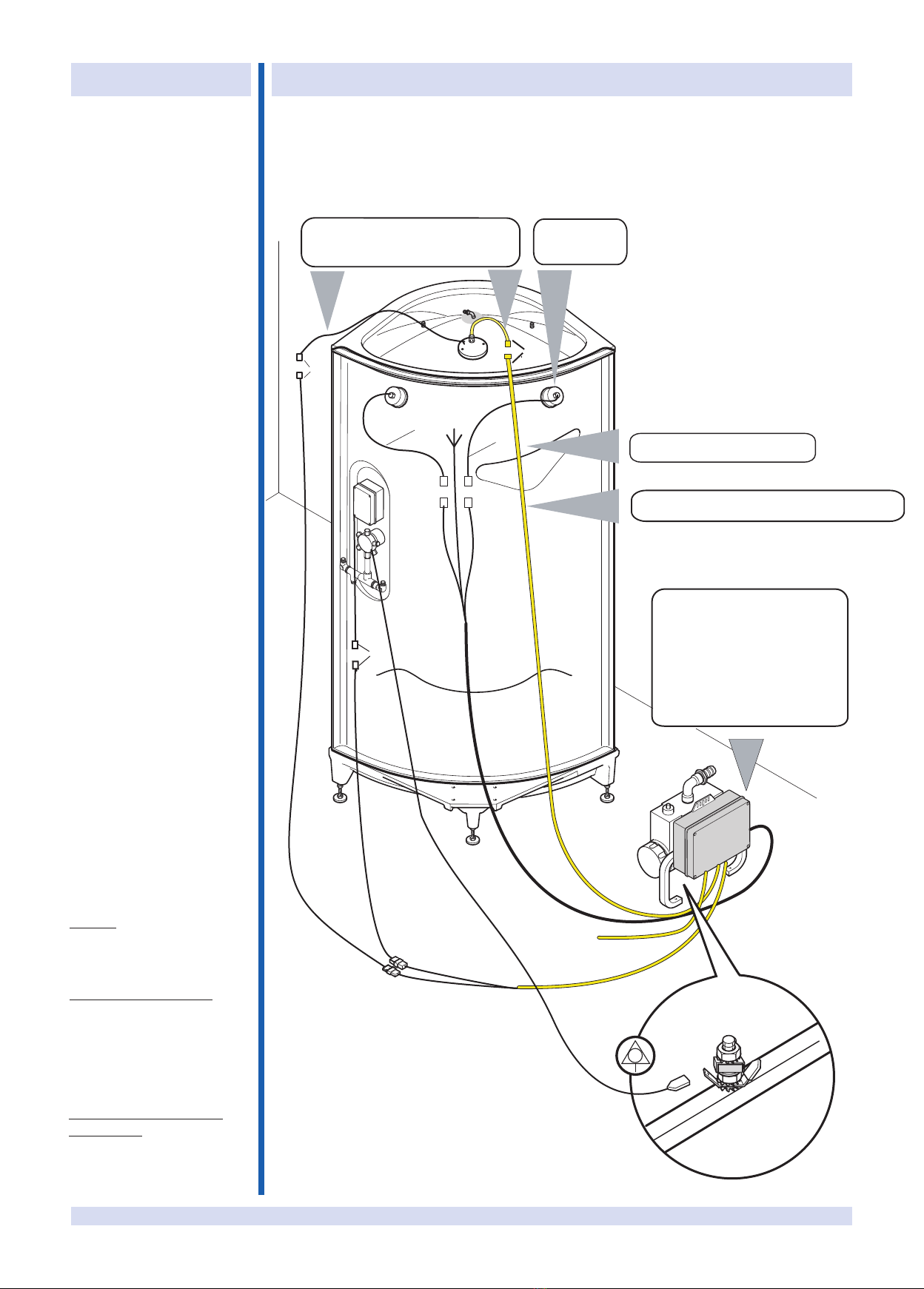

Plumbing and electrical layout
KEY
A- 1/2” cold water wall attachment.
B- 1/2” hot water wall attachment.
C-D-D1 hose exit
C- Power cable exit ( length min. 2 [m] )
D- Equipotential cable exit ( length min. 2 [m] )
D1 - Alarm cable exit ( length min. 2 [m] )
O - Floor drain ø40/50
O1 - Wall drain ø40/50
Connections C and D1 only apply for models with Turkish bath.
Connections are specular for all models.
35
35
5
O1
O
A
B
C-D-D1
200
55 10
4
20
10
The showerbooth must be installed by qu r personnel, forboth the electrical and plumbing connections.
Before proceeding with installation, the installer must check that the electrical system is protected by a ntial switch (0.03) and
that the earth system complies with the standards currently in force in the country of use.
The shower booth must be permanently connected to the electrical system (with a H05 - 3x2.5mm tri-polar switch with a 2.5 mm
2 2
section) by means of a bi-polar switch (minimum aperture of the three contacts 3mm) suitable for the power (kW) of the product to be
connected, located outside zones 0,1,2,3, and far from possible water splashes.
The product must also be connected to the equipotential system of the building by means of the appropriate terminal located on the
frame.
It must alsobe possible for the shower booth to be removed at any time, without having to carry out any operations on the masonry.
WARNING:if the given instructions are not observed, or only partially observed, the safety of the shower booth might be at risk: there-
fore the manufacturer’s guarantee will no longer be valid and the manufacturer will not be liable for any direct or indirect damage to
the product.
The annulment of the guarantee, as indicatedabove, will result in the replacement of the parts recognized as being faulty, without
covering labour costs necessary for the removal of the product.
GRUPPO GEROMIN srl reserves the right to make alterations to the product at any time without prior notice
BAR
Operating pressure:
- MIN 150 kPa (1,5 bar)
- MAX 300 kPa (3,0 bar)
Hot water temperature:
- MAX 60°C (140°F)
If the water pressure is higher than indicated, install pressure reducers.
Provide shut-off cocks out of the dimensions of the product for hot and cold water closing.

5
60
240
225
Zone 1
Zone 0
Zone 2
Zone 3
SAFETY ZONE INTRODUCTION
200
106
89
PACKAGING
WARNING:
CHECK THE CONDITION OF THE PACKAGING AND THE
GOODS UPON RECEIPT, ESPECIALLY IF THE PACKAGING
SHOWS ANY VISIBLE DAMAGE. IF IT DOES, POINT
THIS OUT TO THE TRANSPORTER IMMEDIATELY.
THE MANUFACTURER DENIES ALL RESPONSIBILITY
FOR TRANSPORT.
The shower booth must be assembled in the place
where it is to be installed, building permitting.
Assembly requires 2 people.
In the shower booth packaging (200x106x98) you will
the following:
- shower tray;
- all wall panels
- top;
- glass panels
- electronic set with boiler (for models with Turkish bath)
- assembly and use manual.
Check the condition of these items prior to proceeding
with installation.
Before proceeding with installation, ensure that the prepared con-
nections match the spe cations on the technical data card of the
model to be installed. Ensure that the walls above the shower tray
are completely straight. It is advisable to install two closures
in the water ures. For models with a thermostatic device, these
are provided with the product.
The product must be installed by authorised or qualified personnel, both
as regards the electrical and plumbing connections. Before connecting
the booth, the installer must make sure that the electrical system complies
with CEI 64.8 standards, the it is protected by a differential switch 0.03A,
and that the earthing system is efficient and complies with the
aforementioned provisions. It is necessary to incorporate in the power
supply network a disconnecting device with a contact opening distance
which allows complete disconnection in the conditions of the overvoltage
category III, in accordance with the installation rules.Connections to the
electrical system must be made with an omnipolar switch with a contact
aperture of at least 3mm, placed outside the safety zones as set forth in
the latest edition of technical standard CEI 64-8/7 (it must be from splashes
or the water supply (see drawing). The electrical system connection wire
must be protected by a corrugated tube with no joins or intermediate
connections. The wire must not have characteristics inferior to those of type
H05VV-F its section must be sized according to the model. The components
used for connection must have specifications and IP protection as set forth
in standard 64.8 for applicatin in bath and showers.
EQUIPOTENTIAL CONNECTION
The appliance should be connected to the earth system
of the building by means of the appropriate terminal located
on the frame of the tray and properly marked as
set forth by standards 60335.2.60.

6
HARDWARE FITTINGS KIT
A
B
Q.tyPos. Description Q.tyPos. Description
7Foot
M10x20
7Nut
M10
ACMDADI10005
2Plate for fastening
ACMPIAS15010
2Fastening bracket
ACMSTA011071
8Screw
6x16
ACMVITI00008
11 Kasher
6x18
ACMROND10002
FOOT KIT (with shower tray)
C
E
F
G
1 Drainage column
(see drainage
column instructions
AC300)
H
1Nut
ACMDADI10003
2Dowel
ACMTASS0006
I
2Screw 4,2x50
ACMVITI10014
M
2
Seal
GUARNBOX0005
N2
L
HARDWARE FITTINGS KIT FOR SHOWER BOOTH(in main packaging)
A1 6Screws
3,5x16
6954
9Screw-cover
cap
ACMCAPPUC001
8Screw
3,5x25
3Screw
3,5x22
B1
C1
D1
Seal cap
XGUARN000012
E1
F1 2Magnetic
seals
XGUARN000013
2Seal Door 25 mm
XGUARN000014
2Glass panel
seal 16 mm
XGUARN000015
2
2
Seal
4 mm
XGUARN000016
G1
H1
I1
Seal
4 mm
XGUARN000017
L1
25
16
O1 4Knobs
2Grub screws
M4x20
V1
HARDWARE FITTINGS KIT FOR GLASS PANELS
SEAL KIT
HANDLE KIT
V2
Z4 Z5
2Grub screws
M4x30

7
HARDWARE FITTINGS KIT
EV8
A2 4Top bearing
4Bottom bearing
4Screw-cover
cap
4Screw
M4x6
B2
C2
D2
E2
F2
4Screw-cover
cap
4Screw
M4x16
1Certicate
of guarantee
2
Filter closures
(only for models
with thermostat)
1Assembly and
Use Manual
1Drain pipe
(Bonomini)
A3
B3
Istruzioni
di montaggio
NEW BI-SIZE
Box doccia
70/80 x 90 DX - SX
80/85 x 80/85
90 X 90
Q.tyPos. Description
BEARING KIT (in hardware fittings kit for glass panels)
ASSEMBLY AND USE MANUAL KIT
A4
Q.ty DescriptionPos.
1Boiler with
electronics
1Silicone steam hose
TUBA2SILICO1
2
1
Clip CN 15-25
ACMFASCCN025
2
Clip CN 08-16
ACMFASCCU001
2Screws
M6x35
ACMVITI10019
2Screws
ACMROND10002
STEAM KIT
B4
C4
Connector
RACCPGPL130010
D4
1O-Ring
E4
1Hose
11x17
80 cm
TUBA2RETIN
F4
G4
H4
I4
2Seal
GUARBFASIT03
L4

8
1
6
3
5
20 cm
New Bi-Size
80X80
90X90
=
=
New Bi-Size
70X90 DX
New Bi-Size
70x90 SX
4
4a
4b
4c
D4 F4
A3
B
G4
2
2a 2b
FASE 1b
FASE 1a
A
Remove the protective lm
from the tray.
Attach the drainage column
to the shower tray, and fas -
ten it (g.2).
Connect the exible drain
hose “A3” (inside the man -
ual pack) to the drainage
column (g.2).
For models with Turkish
bath, remove the cap from
thedrainagecolumn,attach
the hose coupler “D4” (in
the Steam kit), making sure
that the “O”-ring stays in
place (g.2a).
Connect the “F4 “ hose to
the hose coupler with the
clamp “G4” (g. 2b) .
Screw the nuts “B” onto the
feet “A” , then insert them
into the appropriate bushes
of the shower tray (g.3).
Position the shower tray,
depending on the chosen
model, for 70x90 position
on the RH (g.4b), 70x90 or
80x80 position on the LH
(g.4c), (g.4a), checking
that it is perfectly level.
Leveltheshowertraybyad -
justing its feet, locking them
into the required position
and then adjust the middle
foot (g.6).
WARNING: The front edge
of the shower tray must not
be less than 20 cm from the
oor (g.5).
After this phase, it is advis -
able to provisionally con -
nect the drainage pipe and
test for watertightness.
For models with Turkish bath
INSTALLING THE SHOWER TRAY

9
2
1
N
3
1
2
G
H
PHASE 3 PANEL INSTALLATION
PHASE 2 PANEL INSTALLATION
Position the panel over the
shower tray (g.1), check
that it is ush with the in -
ternal edge of the shower
tray and fasten it using the
screws “G” and the washer
“H” provided (g.2).
Remove the protective film
from the sponge seals “N”
(fig.1) and insert them into
the compensator profiles of
the panel (fig.2).
Cut away any extra parts
(fig.3).

10
2
2
1
1C1
PHASE 5 ASSEMBLING THE GLASS PANELS
PHASE 4 ASSEMBLING THE GLASS PANELS
Apply plenty of silicone to
the given points (fig.1).
Assemble the two glass
panels with the top and bot -
tom runners (fig.2)
Fasten together the as-
sembled glass panels using
the screws “C1” provided
(fig.3).

11
E1
3
1
2
PHASE 6 ASSEMBLING THE GLASS PANELS
Cut the seal cap “E1” into 4
pieces, the same length as
the fixed glass panel (fig.1)
and insert it into the inside
of the closure (fig.2). Use
liquid soap to make this
operation easier.
Apply plenty of silicone
to the bottom part of the
hollow on the vertical alu -
minium profile, to create a
cap (fig.3).
WARNING: Incorrect sili -
cone application might
result in leaks.
Clean any silicone residue
with a clean cloth.

12
1
1
B1 A1 3mm
1
PHASE 8 ATTACHING THE FIXED GLASS PANELS
PHASE 7 INSERTING THE CLOSURE
Hold the closure so that it
rests perfectly on the com -
pensator profiles, and use
a 3 mm bit to drill through
the six holes provided in
the profile.
Fasten the closure using the
screws “A1” and the cap
with washer “B1” (fig.1).
Place the closure on the
shower booth and lower it
until the hollow of the lower
profile fastens onto the
shower tray profile.
Make sure that the gasket
“E1” , previously glued to
the fixed profiles of the clo -
sure, does not come free.
Make sure that the closure
is perfectly positioned on
the shower tray.

13
5
OK!
OK!
4
3
12
Click!
F1
G1
D2
C2
B2
A2
A2
L1
I1
V2
V1 Z5
Z4
PHASE 9a ASSEMBLING AND INSERTING THE SLIDING DOORS
Insert the top bearings “A2”
into the top of the doors,
fasten them with the screws
“C2” and cover with the
screw-cover cap “B2” (fig.1-
2).
Insert the bottom bearings
“D2” into the bottom part of
the doors in the same way
and cover with the screw-
cover cap “B2” .
Insert the seals “G1” ,“I1” “L1”
(only for models with Turkish
bath) and the magnetic seal
“F1” (fig.3-4).
Attach the handles “M1”
using the appropriate grub
screw “N1” (fig.5).

14
PHASE 9b ASSEMBLING AND INSERTING THE SLIDING DOORS
Fasten the sliding glass
panels to the closures, first
hooking on at the bottom of
the door, and then, pulling
upwards, hook on the top
part (fig.5-6-7).
Fasten the seal “H1” to the
fixed glass panels (fig.8).
Check sliding and that the
two doors line up. If neces -
sary, adjust the top slides
with the key provided for
this purpose in the closure
kit .
WARNING: To prevent wa-
ter leakage after installing
the doors, check that the
sealing strip “H1” on the
fixed glass panels sticks
perfectly to the bottom
profile of the closure.
6
5
7
8
H1
G1 G1
L1
L1
I1
I1

15
PHASE 10 ASSEMBLING THE TOP
Remove the protective film
from the top (fig.1) and
insert it on the shower tray
(fig.2).
Fasten it at the ends with
the screws “G” , the wash-
ers “H” and the appropriate
plates “E” (fig.3a) and in the
middle with the screw “G” ,
the washers “H” and the nut
“I” (fig.3b).
Complete this operation by
fastening the brackets “F”
to the top without fastening
them completely (fig.4).
2
1
H
F
G
4
E
H
G
H
G
I
H
3a
3b

16
PHASE 11 PLUMBING CONNECTIONS
For models with Turkish
bath, take the electronic kit
with boiler and attach it to
the shower tray with two
internal screws measuring
70x90 and external ones
measuring 80x80 (fig.1).
CONNECTIONS IN SE
-
QUENCE:
Connect the hot and cold
water outlets to the taps
using two flexible hoses
with two stainless steel
flexible hoses, 120cm (not
provided) (fig.3).
It is advisable to insert two
filter closures into the water
connections, provided for
models with thermostat
“B3” (fig.2).
Connect the water supply
hose (fig.4), the steam hose
(fig.5), the boilder drain hose
(fig.6) and the boiler wash
hose (fig.7).
Attach the flexible hose
to the shower and the ap -
propriate water connection
(fig.8).
1
4
5
6
7
For mod. 70x90
For mod. 80x80 o 90x90
Only
models
With
Turkish
bath
8V
E
6
NO!
2
3
8
1
H4
B4
B3
C4
L4
G4
I4
5
4
EV8
EV8
4
C
C
F
F
9
8V
E
7

17
PHASE 12 EQUIPOTENTIAL AND ELECTRICAL CONNECTION WHERE REQUIRED
Before making the electri -
cal connections, carefully
read the notes on electri -
cal safety.
This appliance must be con-
nected to the earth system
of the building, in compli -
ance with standard 64.8,
using the special terminal
on the shower booth tap
fittings, duly marked with a
special symbol.
For models with Turkish
bath, the earth terminal is
on the frame, also connect
the cable coming from the
tap fittings to this.
Only for shower booths
which use electricity.
Connect the keyboard ca -
bles (11-12) and, connect
the SPEAKER cables (13-
14) for models with a radio.
Remove the electric wiring
box cover, connect to the
electric power supply (220
VOLT 50 HZ), passing the
cable through the cable
clamp and connect it to the
terminals L – N – EARTH.
There are two terminals on
the electronic card marked
with the wording OUT 3,
these correspond to a nor -
mally open relay contact,
to which the alarm circuit
can be connected; in com -
pliance with legal require-
ments and specific national
standards. The power sup -
ply to the alarm circuit can
be either 220/240 volt or
low voltage, with maximum
absorption of 10 A. Con -
nections to the alarm circuit
must be carried out using
a cable that is not inferior
to type H 05 VV-F 2X1.5
square millimetres.
LIGHT
For models with light, insert
cable “15” into the ap -
propriate cable clamp.
CHROME THERAPY
For models with chromo
therapy, c o n n e c t the
spotlight wire in the connector
cn5 of the chrome therapy
expansion board on the
electronic box.
Only models with
TURKISH BATH
For further information,
see the electrical dia-
grams at the back of the
manual.
WARNING: Cables and electrical
connections wired by the manu -
facturer must not be tampered
with. For further information, see
electric wiring diagrams.
230V
12
13 14
11
12 and 15 only for models with
chrome therapy and radio
15 Only models with light
Only models
with radio
15
cn5 Only models with chrome therapy
RADIO AND CHROME
THERAPY
Connect wires 15 and 12.

3
H MLF
4H
G
1
2
13
D1
2
PHASE 14 FASTENING THE FRONT PANEL
PHASE 13 SHOWER BOOTH FASTENING BRACKETS
Remove the protection from
the front panel (fig.1), line
it up with the shower tray
and insert the top edge into
the groove of the closure
(fig.2).
Fasten the panel with the
“D1” screws. Make sure the
panel is properly inserted
in the aluminium edge to
avoid perforating it with the
screws (fig.3).
Move the shower booth near the
wall, check that the structure
is straight and mark the holes
for fastening and the top of the
brackets (fig1). Move the shower
booth away again and drill the
holes with a 6 mm bit. Remove
the brackets “F” and fasten them
to the wall using the dowels “L” ,
the screws “M” and the washers
“H” provided (fig.3).
Connect the hose “A3” to the
drain, run a test cycle for all
functions, checking for correct
operation and perfect water -
tightness.
Position the shower booth
against the wall, making sure
that:
- all the wires are well-positioned
between the shower booth and
the walls;
- all the feet are stable on the
floor.
Fasten the shower booth per-
manently to the wall using the
screws “G” and the washers
“H” (fig.4).

19
Instructions for using the Taps
Thank you for choosing a product, designed and manufactured to meet your well-being needs in
the best way possible.
MIXER HYDRAULIC CONTROLS FOR NEW BI-SIZE MOD.
A
The SOUND stall is supplied with the mixer unit.
The mixer control consists of two dials, the upper one (A) that serves
as a diverter and, and the lower one (B) is used to adjust the water
temperature and to open and close the water.
B
To select the desired function, spray shower head or hydro-massage
jet, turn the upper dial A untilreaching the desired function.
MIXER HYDRAULIC CONTROLS FOR SOUND MOD. NEWBI-SIZE(ACCESSORY)
A,tejegassam-ordyhrodaehrewohsyarps,noitcnufderisedehttcelesoT
turn the upper dial A until reaching the desired function.
To open or adjust the water ow intensity always use lever A.
C
TEMPERATURE ADJUSTMENT B
To adjust the water temperature turn dial B positioning
the selected temperature upwards to 12 o'clock.
The dial is equipped with a safety button C to protect against scalding;
to increase the temperature above 38°C, press the button and turn the
dial anti-clockwise.
To ensure the proper operation of the thermostatic mixer, a boiler with a water supply of at least 10 litres
of water per minute at 60/65 °C is required.
CAUTION!!
After each use, be sure to turn o he mixer or the shut-o alve. If a temperature higher than 38 degrees
is selected, it is advisable to reposition the thermostat ic dial before the safety lock. The temperature of the
mixed water should never exceed 60 °C.

20
Fig. 1: Pellicle Display
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
ON/OFF General;
ON/OFF Turkish bath;
Left navigation key;
Navigation key down;
Confirmation;
Navigation key up;
Right navigation key;
Radio FM;
Allarm;
Only for version Junior
Keyboard functions
1. ON/OFF General
Pressing the button illuminates the backlight with
the enabling of Turkish bath and radio functions.
To the active system, while holding down the key for 2 seconds,
all functions are immediately available and the system returns
standby.
Figure 2: Standby display.
Hello...
Hello...
10 - Chromotherapy;
