HAI OmniTouch 10 pe User manual

10” Portable Color Touchscreen
User’s Manual

Trademarks
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation. Other product names mentioned in this
manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
Document Number: 94I00-1 Rev. A
2010
● Home Automation, Inc.

i
Regulatory Compliance Statements
FCC Statement
FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
CAUTION! The radiated output of this device is far below the FCC radio frequency exposure limits.
Nevertheless, the device shall be used in such a manner that the potential for human contact during
normal operation is minimized. When connecting an external antenna to the device, the antenna shall be
placed in such a manner to minimize the potential for human contact during normal operation. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20cm (8inches) during normal operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try and correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.

ii
CE Conformity Statement
Radio products with the CE alert marking comply with the R&TTE Directive (1999/5/EC) issued by the
Commission of the European Community. Compliance with this directive implies conformity to the
following European Norms (in brackets are the equivalent international standards).
•EN 60950-1 (IEC60950-1) - Product Safety
•EN 300 328 Technical requirement for radio equipment
•ETS 301 489 General EMC requirements for radio equipment.
Products that contain the radio transmitter are labeled with CE alert marking and may also carry the CE
logo.
Safety
Use the following safety guidelines to help protect yourself and the OmniTouch 10pe.
•Do not attempt to service the OmniTouch 10pe yourself.
•Always follow installation instructions closely.
•Be sure that nothing rests on the AC adapter's power cable and that the cable is not located where
it can be tripped over or stepped on.
•Do not cover the AC adapter with papers or other items that will reduce cooling; also, do not use
the AC adapter while it is inside a carrying case.
•Use only the AC adapter, power cord, and batteries that are approved for use with this unit. Use
of another type of battery or AC adapter may cause risk of fire or explosion.
•If you use an extension cable with the AC adapter, ensure that the total ampere rating of the
products plugged in to the extension cable does not exceed the ampere rating of the extension
cable.
•When you move the OmniTouch 10pe between environments with very different temperature
and/or humidity ranges, condensation may form on or within the OmniTouch 10pe. To avoid
damaging the OmniTouch 10pe, allow sufficient time for the moisture to evaporate before using
the OmniTouch 10pe.
•When you disconnect a cable, pull on its connector or on its strain relief loop, not on the cable
itself. As you pull out the connector, keep it evenly aligned to avoid bending any connector pins.
Also, before you connect a cable make sure both connectors are correctly oriented and aligned.

iii
RTC Battery/Battery Safety
•There is a risk of explosion if the battery is replaced by an incorrect type.
•Dispose of used batteries according to the manufacturer's instructions.
•Do not dispose of batteries in a fire. They may explode. Check with local authorities for disposal
instructions.
CAUTION! The battery used in this device may present a risk of fire or chemical burn if mistreated. Do
no disassemble, heat above 50 degree C, or incinerate. Replace battery with HAI P/N: 94A03-1
(46-12381-030) Li-ion 11.1V 1900mAh and second battery with Li-ion 11.1V 3800mA Cell Panasonic
SMP only. Use of another battery may present a risk of fire or explosion.
Dispose of used batteries according to local disposal regulations. Keep away from children. Do not
disassemble and do not dispose of in a fire.
Battery Charge Notice
It is important to consider the environment temperature whenever you are charging the Lithium-Ion
battery pack. The process is most efficient at normal room temperature or slightly cooler. It is essential
that you charge batteries within the stated range of 0°C to 50°C. Charging batteries outside of the
specified range could damage the batteries and shorten their charging life cycle.
Storage and Safety Notice
Although charged Lithium-Ion batteries may be left unused for several months, their capacity may be
depleted due to build up of internal resistance. If this happens they will require recharging prior to use.
Lithium-Ion batteries may be stored at temperatures between -20°C to 50°C, however they may be
depleted more rapidly at the high end of this range. It is recommended to store batteries within normal
room temperature ranges.

iv

v
Table of Contents
Regulatory Compliance Statements .............................................i
FCC Statement ...................................................................................................................................i
FCC Radiation Exposure Statement............................................................................................................................ i
Federal Communications Commission Notice........................................................................................................... i
CE Conformity Statement .................................................................................................................ii
Safety..............................................................................................ii
RTC Battery/Battery Safety .............................................................................................................iii
Battery Charge Notice .....................................................................................................................iii
Storage and Safety Notice ...............................................................................................................iii
Introducing the OmniTouch 10pe ................................................1
Package Contents ...........................................................................................................................2
OmniTouch 10pe Overview ..............................................................................................................2
Front View Description ................................................................................................................................................ 3
Right View ..................................................................................................................................................................... 4
Back View ...................................................................................................................................................................... 5
Back View Description ................................................................................................................................................. 5
About the Optional Docking Cradle............................................................................................................................ 6
Getting Started ...............................................................................8
Using the Power Switch..................................................................................................................8
Replacing the Battery......................................................................................................................9
Charging the Battery Using the AC Adapter ........................................................................................................... 11
Charging the Battery with the Optional Docking Station ....................................................................................... 11
Turning On .....................................................................................................................................12
Turning On the OmniTouch 10pe for the First Time...................................................................13
Calibrating the OmniTouch 10pe Screen ................................................................................................................. 14
Configuring the Wireless Network............................................................................................................................ 15
Setting the Time and Date ......................................................................................................................................... 17
Connecting to the HAI Controller.................................................................................................18
Starting the OmniTouchPro Application .....................................................................................21
Returning to the Configuration Page ....................................................................................................................... 21
Using the Hardware.....................................................................22
Using the Stylus ............................................................................................................................23
Inserting an SD Memory Card ......................................................................................................23
Removing a Storage Card ......................................................................................................................................... 24
Connecting Devices to the OmniTouch 10pe .............................................................................25
Connecting USB ......................................................................................................................................................... 25
Connecting an External Monitor ............................................................................................................................... 25
Connecting Headphones ........................................................................................................................................... 26
Connecting a Microphone........................................................................................................................................... 26

vi
System Specifications ................................................................27
Maintenance.................................................................................29
Maintaining the Battery Pack .......................................................................................................29
Maintaining the LCD Display ........................................................................................................29
Cleaning the OmniTouch 10pe.....................................................................................................29

1
Chapter 1
Introducing the OmniTouch 10pe
Thank you for purchasing the OmniTouch 10pe Portable Touchscreen. The durable OmniTouch 10pe is
a customizable touchscreen that allows you to control all capabilities of an HAI Omni IIe, OmniPro II,
Lumina, or Lumina Pro home control system.
The high performance processor incorporates an additional graphic controller to provide speed and
efficiency when in use, while using minimal power to extend battery life.
The OmniTouch 10pe is equipped with I/O ports to provide ample connectivity. The OmniTouch 10pe
supports 802.11a/b/g Wireless LAN.
The OmniTouch 10pe uses the Windows XP operating system. Three programmable function buttons
make it easy to interact with your home control system. A software keyboard included enables you to
enter and edit text.
The OmniTouch 10pe is sealed to meet IP54 standards and is built to withstand a 3-foot drop.

2
Package Contents
After opening the box, ensure the following items are present:
•OmniTouch 10pe
•AC Power Adapter
•Power Cord
•Rubber Bumpers
•Stylus
OmniTouch 10pe Overview
The following sections describe the main components of the OmniTouch 10pe.
Front View

3
Front View Description
Number
Component
Description
1 Power LED
• Off: Power off
• Solid green: Power on (when power is off,
LED is green when the unit charging)
• Blinking green: AC power on and the battery
is charging
2 HDD LED
• Lights green to indicate hard disk drive activity.
3 WLAN LED
• Off: No RF signal / No LAN connection
• Solid green: WLAN connected
• Blinking green: TX/RX transmission
4 Microphone Enables you to speak into the OmniTouch 10pe
(for future use).
5 S1 / Brightness Press to decrease brightness
6 S2 / Brightness Press to increase brightness
7 Rubber bumper indents Lock the rubber bumpers in place
8 Touch-sensitive display
9 Speakers
10 Programmable Function Keys
11 Not Used
12 Keyboard Button
13 Mode Button
14 Enter Button

4
Right View
Number
Component
1
Microphone Jack
2
Headphone Jack
3
VGA Port
4
Serial Port
Left View
Number
Component
1
Power Button
2
USB Ports (2)
3
SD Card Slot
4
Power Input Jack (DC)

5

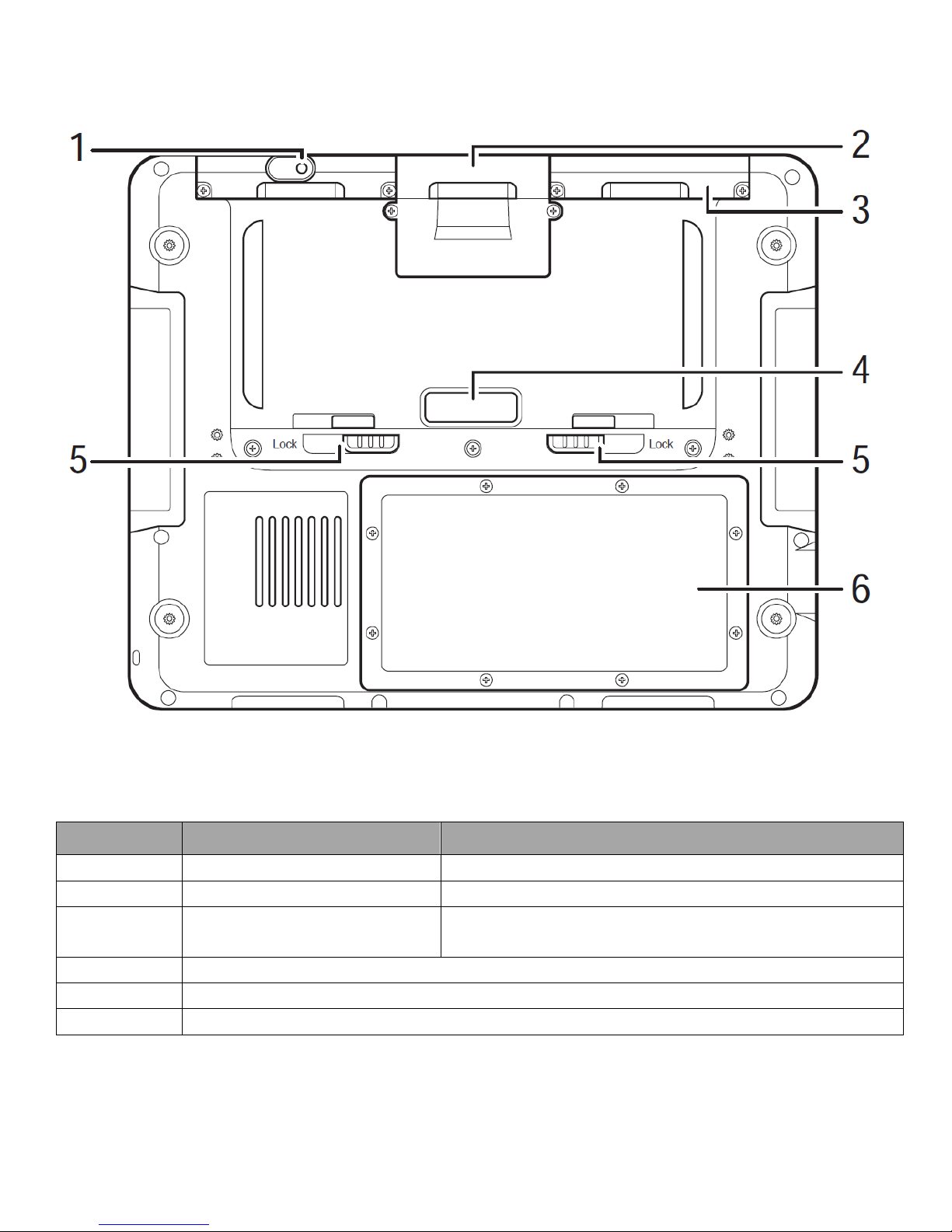

Back View
Back View Description
Number
Component
Description
1
Left Compartment
Contains the hard disk drive
2
Middle Compartment
Contains SIM card slot
3 Right Compartment
Contains connectors for MSR, RFID, or GPS
module
4
External Battery Contacts / Power Switch
5
External Battery Lock
6
Battery / Memory Compartment

6
About the Optional Docking Cradle
The optional 94A01-1 OmniTouch 10pe Docking Cradle is used to secure the OmniTouch 10pe in an
upright position, while providing power to the unit, charging the battery, and connecting accessories.
When the optional 94A01-1 Docking Cradle is used, the OmniTouch 10pe Touchscreen should be
placed in the cradle while it’s not in use.
Note:
When inserting the OmniTouch 10pe into the docking cradle, push down firmly. The power LED
on the OmniTouch 10pe will blink green when the battery is charging.
To charge the external battery, attach the battery to the docking stand as shown below.
The external battery can also be charged
when installed on the OmniTouch 10pe.

7
Docking Connectors
See below for the rear view of the docking and a description of all ports and connectors.
Number
Component
Description
1 LAN Port Connect an RJ-45 cable between the LAN connector
and a port on the local network.
2 Serial port Connect a serial cable to connect another PC or
serial device.
3 USB ports (host) These ports connect to USB devices. Connect USB
type A connectors to these ports.
4 Power jack
The AC adapter connects to this jack to provide
power to the OmniTouch 10pe and to charge its
battery when it’s inserted into the docking cradle.

8
Chapter 2
Getting Started
Installing the Rubber Bumpers
To protect the housing case of OmniTouch 10pe, install the
supplied rubber bumpers.
1. Install the rubber bumpers on the left and right side of
OmniTouch 10pe.
2. Make sure the rubber bumpers are aligned and locked on
the indents.
Removing the Rubber Bumpers
From the rear of the OmniTouch 10pe, remove the rubber
bumpers.
Using the Power Switch
The power switch, located next to the external battery contacts, controls the flow of power of your
OmniTouch 10pe. By default, the power switch is set on the left. To reveal the power switch, remove
the external battery contacts cover.
•To cut off power flow - switch to the left
•To allow power flow - switch to the right

9
Replacing the Battery
This section explains how to install the battery.
WARNING! There is a risk of fire and burns if the battery pack is handled improperly.
DO NOT disassemble, crush, puncture, short external contacts, or dispose the battery
pack in fire or water. DO NOT attempt to open or service the battery pack. Dispose of
used batteries according to local recycling guidelines in your area.
CAUTION! The battery used in this device may present a risk of fire or chemical burn
if mistreated. Do no disassemble, heat above 60°C, or incinerate. Replace battery with
HAI P/N: 94A03-1 (46-12381-030) only. Use of another battery may present a risk of fire
or explosion.

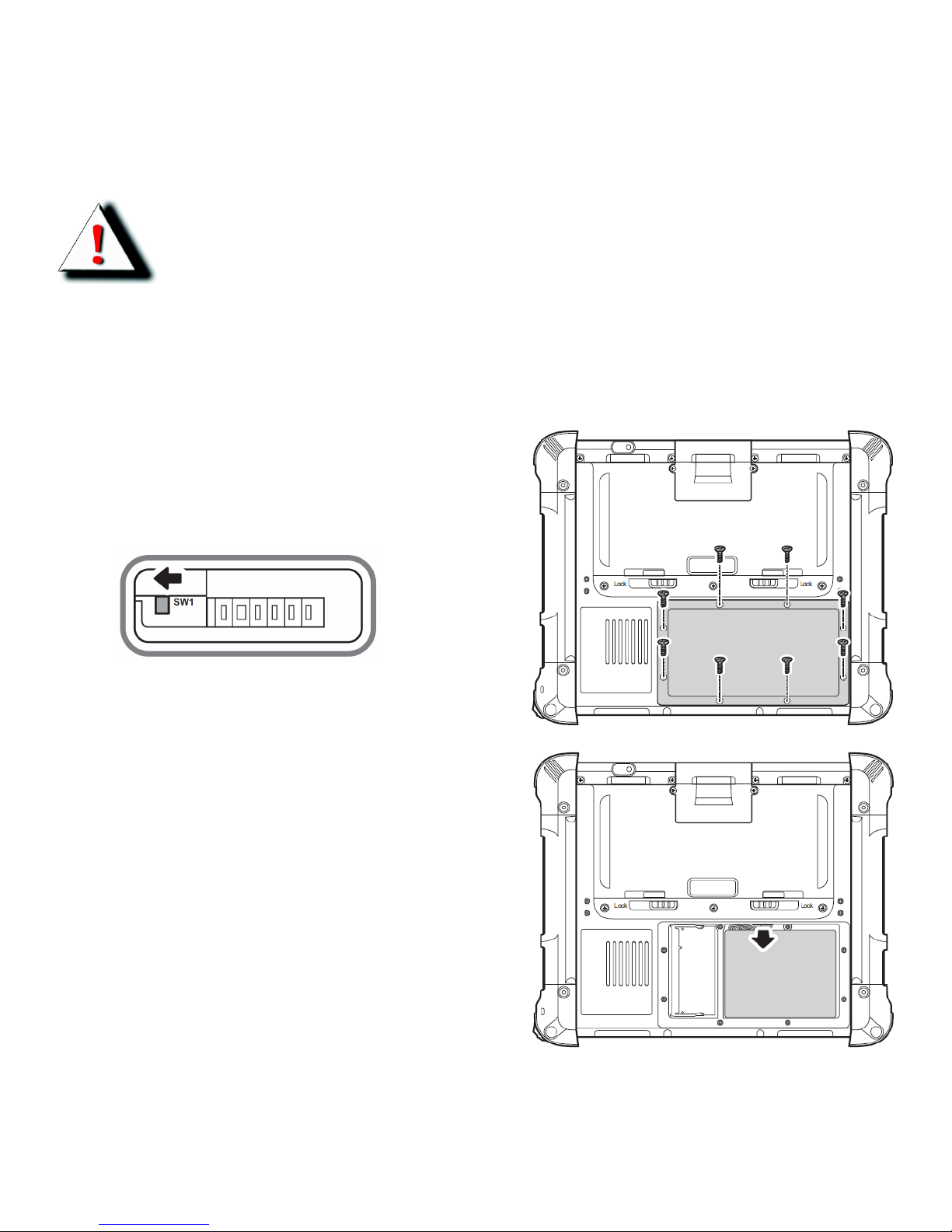

1. Make sure the system is turned off.
2. Move the power switch to the left to ensure
battery power is completely cut off.
3. Unscrew the battery compartment cover.
4. Remove the battery connector.
5. Lift the battery out of the compartment.

10
Replacing the Battery
1. Connect the battery connector to the connector inside the compartment.
2. Place the battery inside the compartment.

11
Connecting the Power
Before using the OmniTouch 10pe for the first time, you must fully charge the battery using the supplied
AC adapter or the optional Docking Cradle.
Connect the power adapter as shown and leave to charge for:
• a minimum of 4 hours when using the internal battery
• a minimum of 8 hours when a second battery is installed
Charging the Battery Using the AC Adapter
1. Plug the AC adapter cable into the Power jack on the OmniTouch 10pe.
2. Plug the power cable connector into the AC adapter.
3. Plug the AC adapter into an electrical outlet.
Charging the Battery with the Optional Docking Station
1. Plug the AC adapter cable into the power jack on the optional docking station.
2. Plug the power cable connector into the AC adapter
3. Plug the AC adapter into an electrical outlet.

12
4. Open the Docking/Cradle connector cover and place it into the housing.
5. Slide the device into the Docking Cradle until it snaps into place.
6. The connection is secure when the bottom edge of the OmniTouch 10pe is aligned with the
docking station and the LED indicator on the OmniTouch 10pe blinks green.
Turning On
1. Move the power switch to the right.
2. Press and hold the power button to turn on the OmniTouch 10pe.
