Hakko Electronics FR-803 User manual

SMD Rework Station with Vacuum Pickup
Instruction Manual
●
Thank you for purchasing the HAKKO FR-803 SMD Rework Station.
This unit features:
● Digital control and display of time and temperature
● Display of air-flow rate
● Manual and automatic modes
● Built-in vacuum pickup
Please read this manual before operating the HAKKO FR-803.
Keep this manual readily accessible for reference.
●
TABLE OF CONTENTS
1. PACKING LIST ………………………………………… 1
2. SPECIFICATIONS ……………………………………… 1
3. WARNINGS, CAUTIONS, AND NOTES …………… 2
4. PART NAMES …………………………………………… 3
5. PREPARATION: ASSEMBLY AND ELECTRICAL CONNECTION …… 5
6. OPERATION …………………………………………… 8
7. PARAMETERS ……………………………………… 17
8. OFFSET SETTING METHOD ……………………… 18
9. MAINTENANCE / INSPECTION …………………… 19
10. ERRO MESSAGE ………………………………… 20
11. TROUBLESHOOTING …………………………… 20
12. OPTINAL PARTS …………………………………… 21
13. PARTS LIST / STATION …………………………… 23
13. PARTS LIST / HANDPIECE ……………………… 25
14. WIRING DIAGRAM ………………………………… 26
®

1

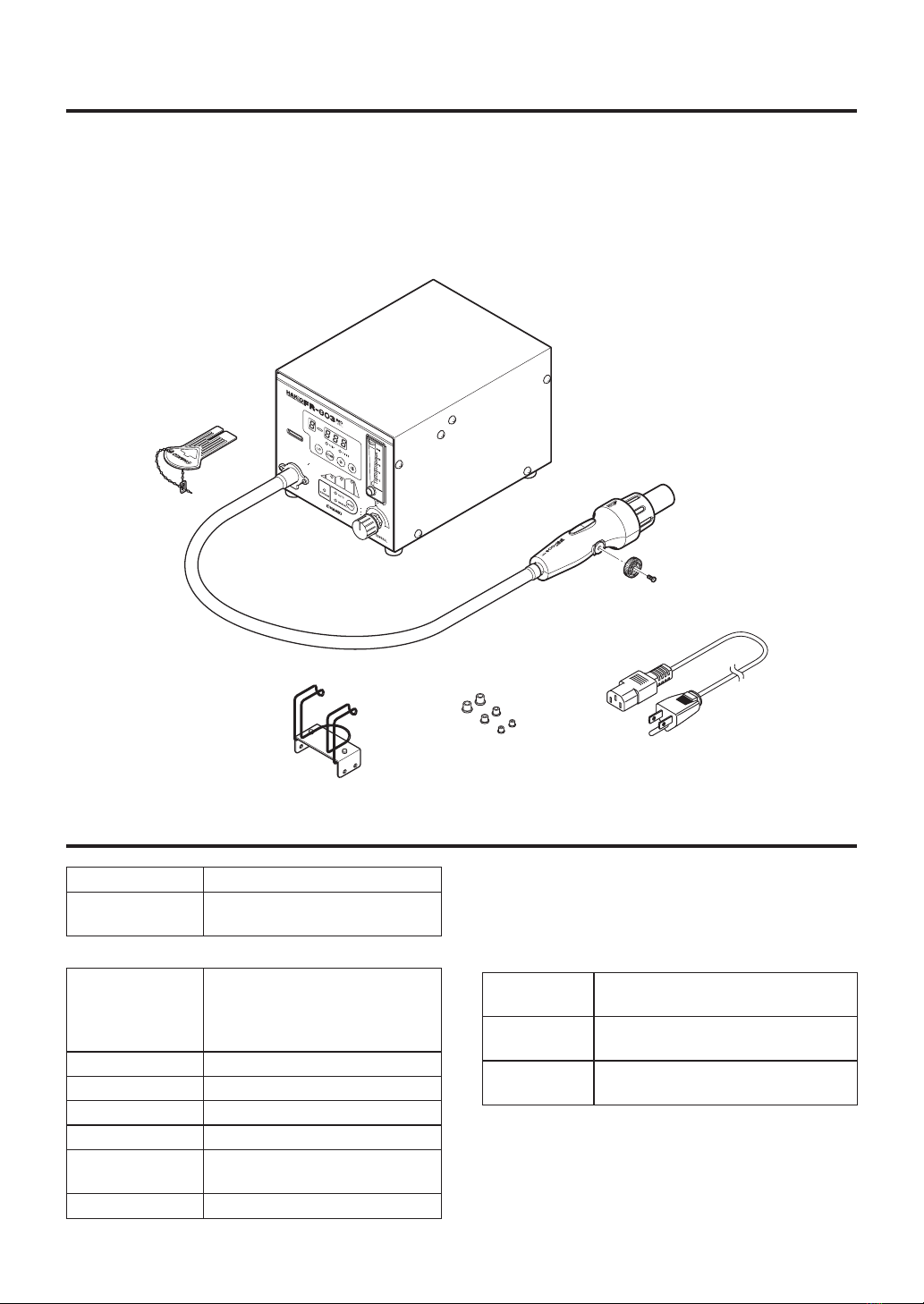

1. PACKING LIST
HAKKO FR-803 station ........................................... 1
Power cord .............................................................. 1
Handpiece holder .................................................... 1
Pads (ø3 mm (0.12 in.), ø5 mm (0.20 in.), ø7.6 mm (0.3 in.)) .....2 each
Vacuum pipe control knob (L) .................................. 1
Control card ............................................................. 1
Instruction manual ................................................... 1
* This product does not include a nozzle. A large
selection of nozzles are available for the HAKKO
FR-803. Select the nozzle or nozzles suitable for
the work to be performed.
Check the contents of the Hakko 852 package and
confirm that all the items listed below are included.
Control card
HAKKO FR-803 station
Handpiece holder
2. SPECIFICATIONS
Name HAKKO FR-803
Power consumption 100V-310W 110V-370W 120V-440W
220V-590W 230V-650W 240V-700W
● Station
Power consumption 100V 30 W
110-120V 40W
220-240V 50W
(Standby, 100-120V 4W, 220-240V 4W)
Capacity 5 l/min to more than 20 l/min
Control temperature 100 ~ 450°C/200 ~ 840°F (sensor)
Modes Manual/Auto
Timer 3 file/step
External dimensions 160 (W) × 145 (H) × 230 (D) mm/
6.3 × 5.7 × 9.1 in.
Weight 5 kg (11.02 lb.)
● Handpiece
Power
consumption
100V-280W 110V-330W 120V-400W
220V-540W 230V-600W 240V-650W
Total length
(w/o cord)
200mm/7.9 in.
Weight (w/o
cord)
200 g/0.44 lb.
* This product is protected against electrostatic discharge.
* Specifications and design are subject to change without
notice.
2 for each pad
Power cord
Vacuum pipe control
knob (L)

2
3. WARNINGS, CAUTIONS, AND NOTES
WARNING
Warnings and cautions are placed at critical points in this manual to direct the operator's attention to
significant items. They are defined as follows:
WARNING : Failure to comply with a WARNING may result in serious injury or death.
CAUTION : Failure to comply with a CAUTION may result in injury to the operator, or damage to
the items involved.
NOTE : A NOTE indicates a procedure or point that is important to the process being
described.
EXAMPLE : An EXAMPLE is given to demonstrate a particular procedure point or process.
WARNING
To avoid damage to the unit, do not turn the power switch OFF until the pump stops automatically
by cooling down (until appears on the display) after use.
CAUTION
When the power is ON, the temperature of the hot air and the nozzle ranges from 100 to 450°C. (200
to 840°F.). To avoid injury to personnel or damage to items in the work area, observe the following:
● Do not direct the hot air toward personnel or touch the metal parts near the nozzle.
● Do not use the product near combustible gases or flammable materials.
● Advise those in the work area that the unit can reach very high temperatures and should be considered
potentially dangerous.
●
Turn the power OFF when no longer using the HAKKO FR-803 or when leaving it unattended.
● Before replacing parts or storing the unit, allow the unit to cool and then turn the power OFF.
Observe the following precautions to prevent accidents or damage to the unit.
● Do not strike the handpiece against hard surface or otherwise subject it to physical shock.
● Be sure the unit is grounded. Always connect power to a grounded receptacle.
● Do not disassemble the pump or the vacuum pump.
● Do not modify the unit.
● Use only genuine HAKKO replacement parts.
● Do not wet the unit or use the unit with wet hands.
● Remove power cord by holding the plug – not the wires.
● Do not leave the vacuum pump on for long periods of time.
● Make sure the work area is well ventilated.
● While using the HAKKO FR-803, donʼt do anything which may cause bodily harm or physical damage.

3

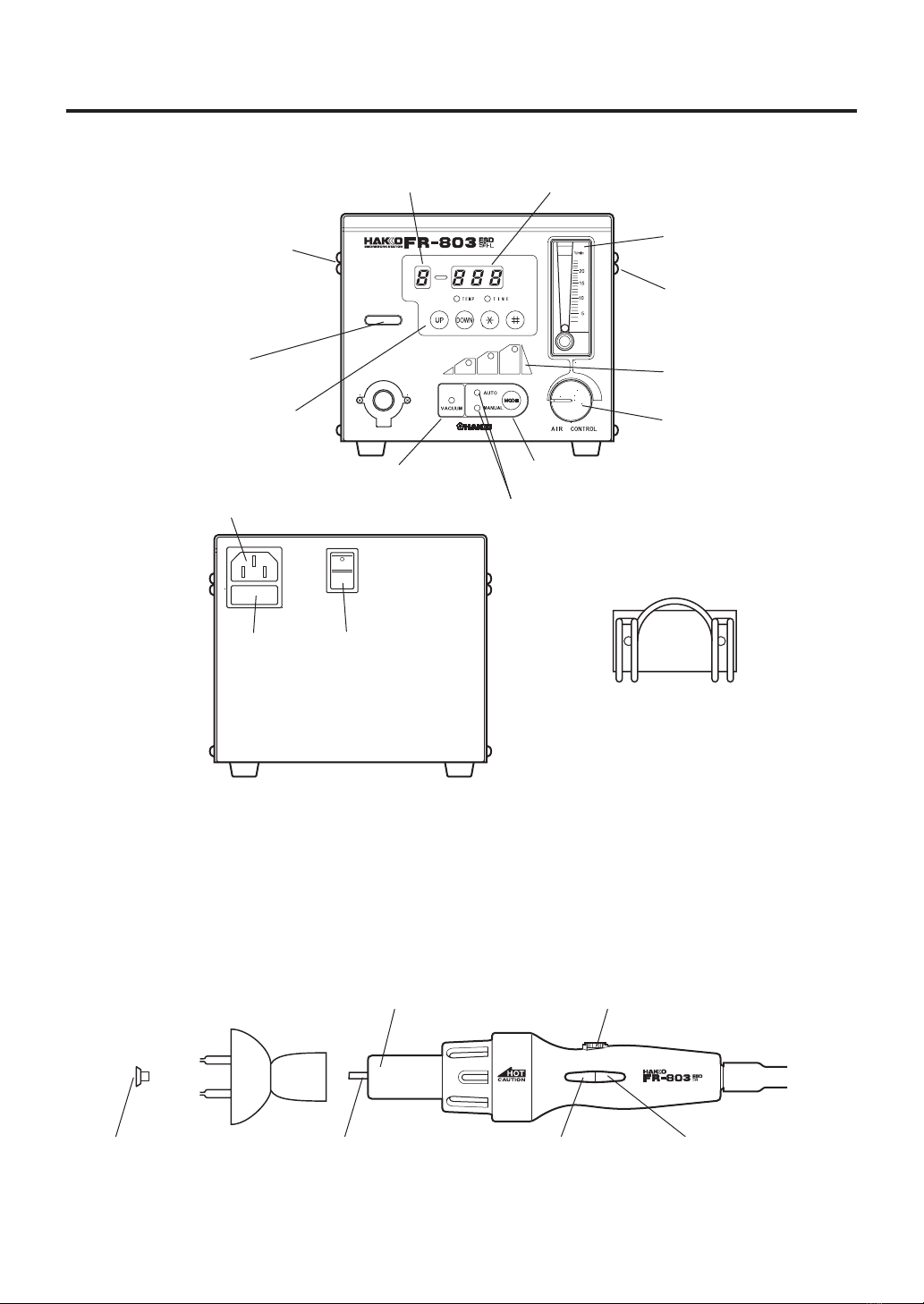

4. PART NAMES
Station
Handpiece
Handpiece holder
Fuse ⑩Power switch
Power receptacle
Slot for control
card
Handpiece holder
mounting screw
③Airflow meter
①File number display ②Temperature/Timer display
Handpiece holder
mounting screw
④Display steps
⑤Airflow control knob
⑥Mode selecting button
⑧Vacuum indicator
③Sensor (internal)
②Vacuum pipe
Nozzle
(not included)
①Pad
⑤Vacuum pipe control knob
④Hot air button ⑥Vacuum button
⑦AUTO, MANUAL indicator
⑨Settingbuttons

4
Station
① File number display
② Temperature/timer display
③ Airflow meter
④ Display steps
⑤ Airflow control knob
⑥ Mode selection button
⑦ AUTO/MANUAL indicator
⑧ Vacuum indicator
⑨ Setting button
⑩ Power switch
Handpiece
① Pad
② Vacuum pipe
③ Sensor (internal)
④ Hot air button
⑤ Vacuum pipe control knob
⑥ Vacuum button
This section displays files 1 to 3 in Auto mode.
This section displays a temperature and timer setting time for each
step in AUTO mode.
CAUTION
The displayed and set temperature indicates the temperatures at the
sensor.
This meter indicates the airflow rate.
This section will be lit during every step in AUTO mode.
This knob controls the airflow. The airflow can be set in the range
of 5 to 20 l/min.
This button displays and selects the MANUAL and AUTO modes.
This indicator lights the selected mode.
This indicator lights when the vacuum pump is in operation.
Use this button for setting, determining and checking the file
number, temperature, timer, etc.
This switch turns the power ON and OFF.
The pad absorbs parts.
The pad is mounted on the tip of the vacuum pipe.
This sensor detects the temperature of the hot air.
● MANUAL Mode
When the Start button is pressed, the unit begins blowing hot
air. When the Start button is pressed again, the unit begins
cooling and stops blowing hot air after reaching 100°C (200°F).
● AUTO Mode
When the Start button is pressed again, the selected AUTO
program begins.
This knob controls the length of the vacuum pipe.
This button turns the vacuum pump ON and OFF.

5

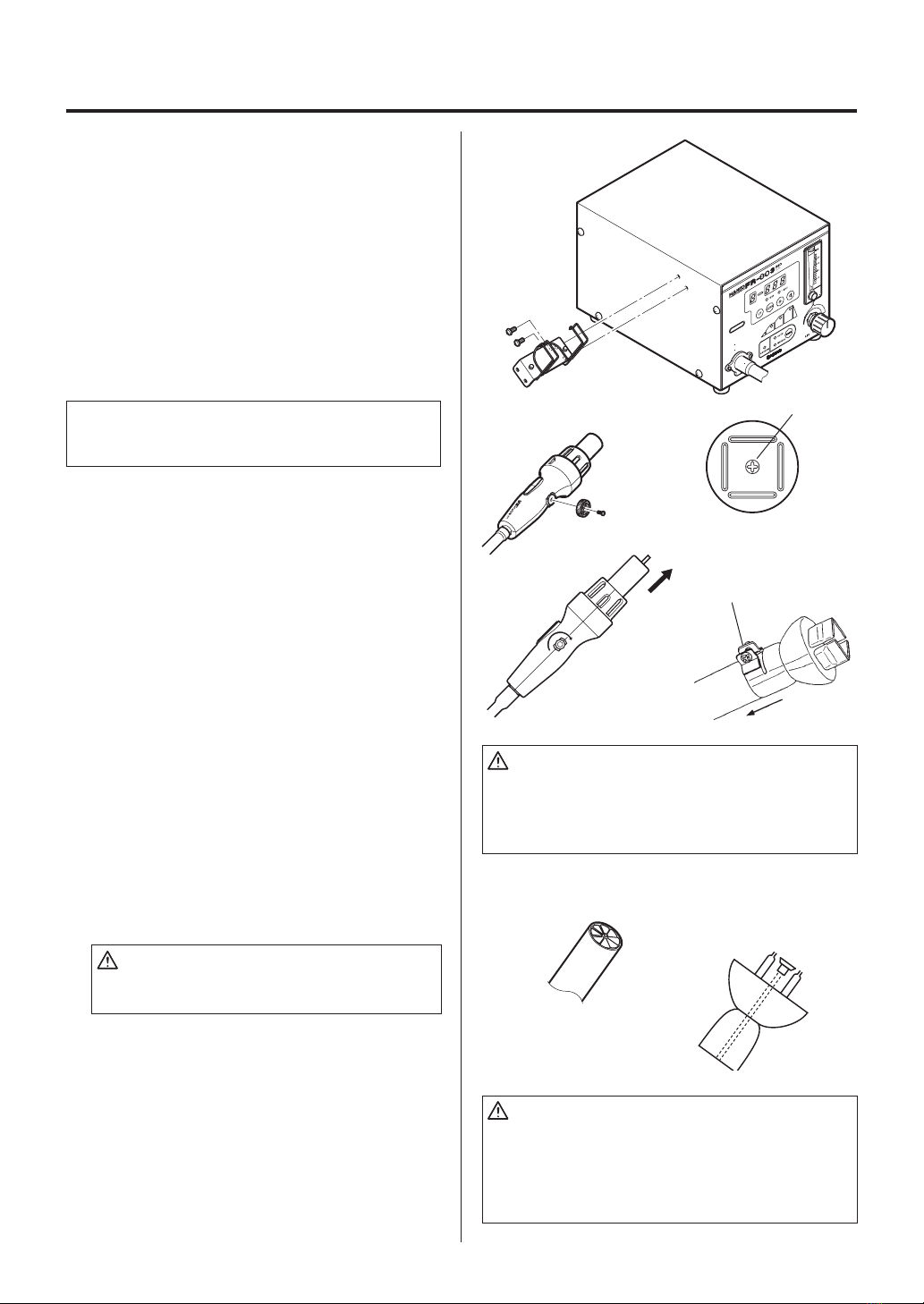

5. PREPARATION: ASSEMBLY AND ELECTRICAL CONNECTION
A. Station Assembly
● Attach the handpiece holder.
Remove the handpiece holder mounting
screw from the side of the station. Attach the
handpiece holder to the station. (Figure 1)
(The handpiece holder can be installed on
either the left or right side.)
B. Handpiece Assembly
NOTE:
The handpiece can be used with the provided vacuum
pipe control knob (L). (See figure 2.)
● Using vacuum function operative nozzle
(see page 21.)
1. Attach the nozzle.
a. Extend the vacuum pipe using the
vacuum pipe control knob. (Figure 3)
b. Remove the inside screw (M3 × 5) of the
nozzle. (Figure 4)
c. Loosen the nozzle mounting screw. Pass
the vacuum pipe through the nozzle hole
and attach the nozzle. (Figure 5)
d. Tighten the nozzle mounting screw.
2. Attach the pad.
a. Attach the pad. (Figure 7)
b. Adjust the pad to an appropriate position.
Adjust the vacuum pipe so that the pipe
and pad protrude as little as possible.
CAUTION
The nozzle and pad will be heated at high
temperature. Cool them before replacement.
CAUTION
● Vacuum pipe
Do not use excessive force.
When not using a nozzle, retract the vacuum pipe
to the shortest length. (Figure 6)
(Figure 1)
M3 × 5
(Figure 4)
(Figure2)
(Figure 3) (Figure 5)
(Figure 6)
(Figure 7)
Mounting screw
CAUTION
● Pad
The pad does not last indefinitely. When it becomes
deteriorated, replace it. Since exposure to high
temperatures causes it to deteriorate faster, Hakko
recommends it be cooled after use.

6
Power receptacle
Power cord
Handpiece holder
Power switch
● Using vacuum function inoperative nozzle
(see page 22.)
■ Attach the nozzle.
a. Retract the vacuum pipe to the shortest
length using the vacuum pipe control
knob. (See page 5, Figure 6)
b. Loosen the nozzle mounting screw.
Attach the nozzle. (See page 5, Figure 5)
c. Tighten the nozzle mounting screw.
CAUTION
The pad cannot be used with this type of nozzle.

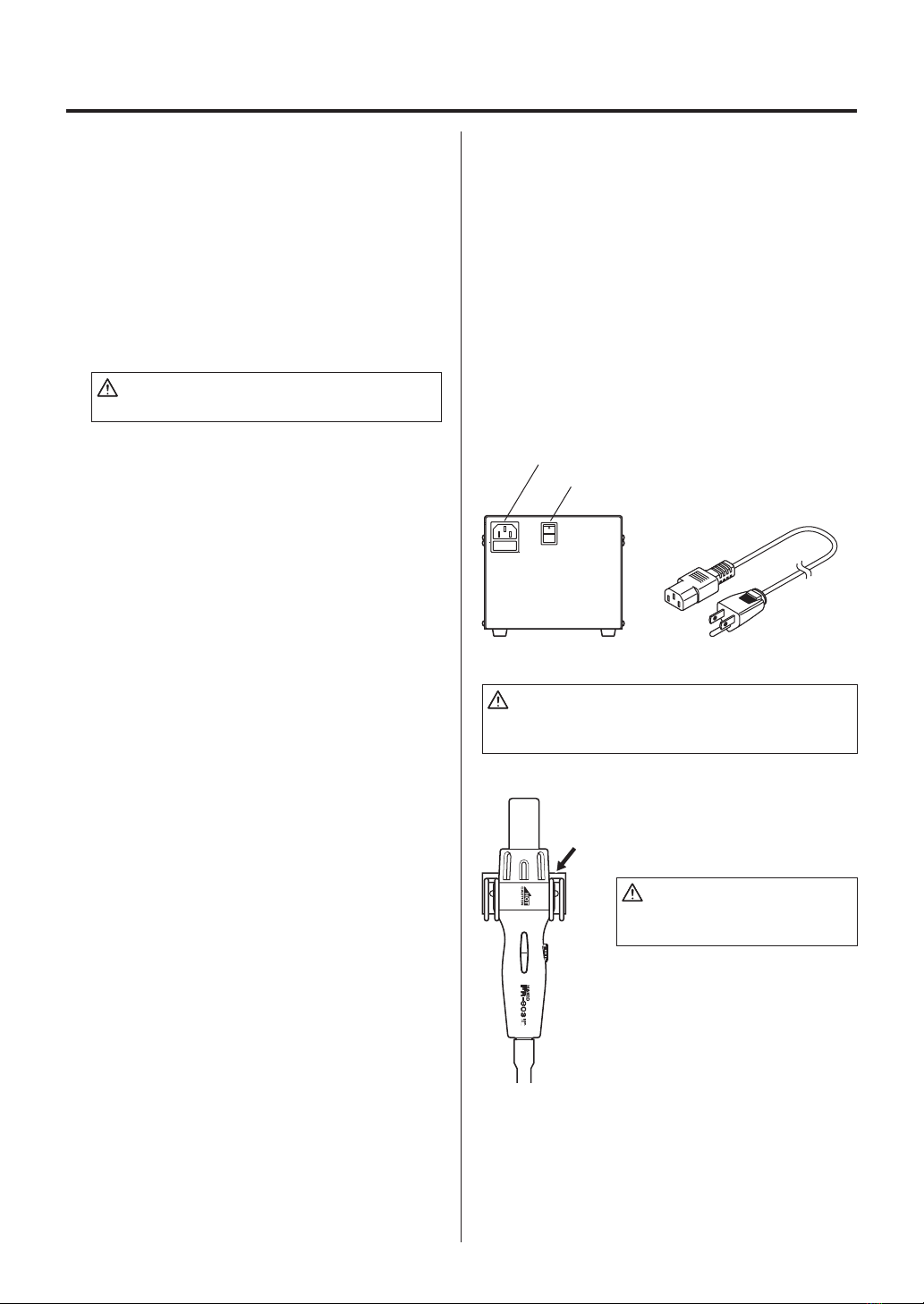

C. Electrical Connection and Power ON
1. Connect the power cord to the power
receptacle on the back panel of the station.
(Figure 8)
2. Place the handpiece on the holder. (Figure 9)
3. Plug the power cord into a grounded wall
socket.
4. Turn the power switch ON.
(Figure 9) Top View
(Figure 8)
CAUTION
This product is ESD-protected. Be sure to use a
grounded wall socket.
CAUTION
When not in use, place the
handpiece on the holder.

7
6. OPERATION

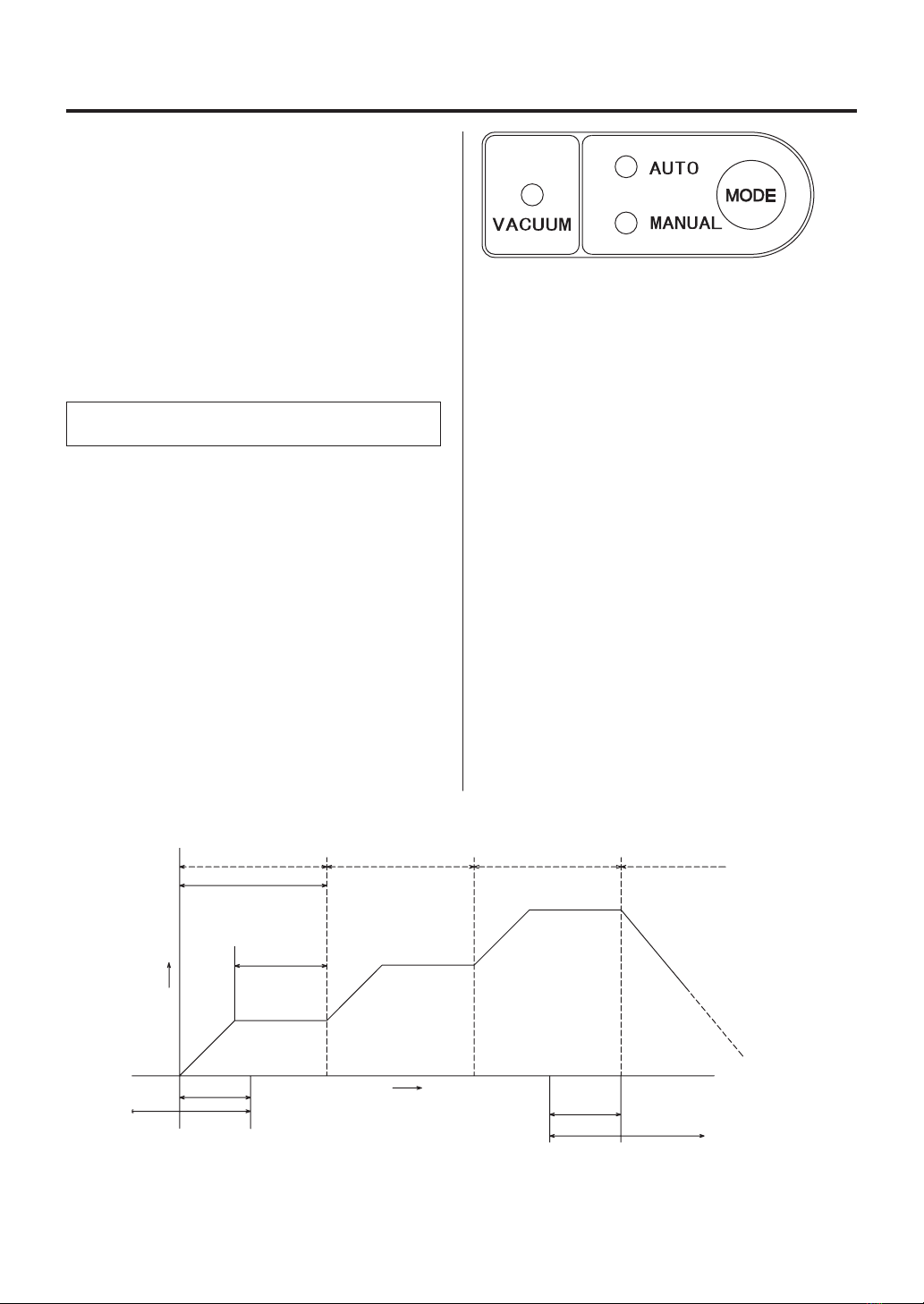

A. Mode Selection
Insert the control card into the card slot and select
your desired mode using the mode selection button.
(Figure 10)
The HAKKO FR-803 provides the following two
modes. The AUTO mode consists of the INSTALL
and REMOVE modes.
● Manual Mode
In this mode, air and vacuum pump operation
are controlled entirely by manual operation.
NOTE:
The timer cannot be set when using MANUAL mode.
● AUTO mode
● Install Mode (AUTO) (See page 14.)
This mode is used when installing parts.
The vacuum pump will be automatically
turned OFF.

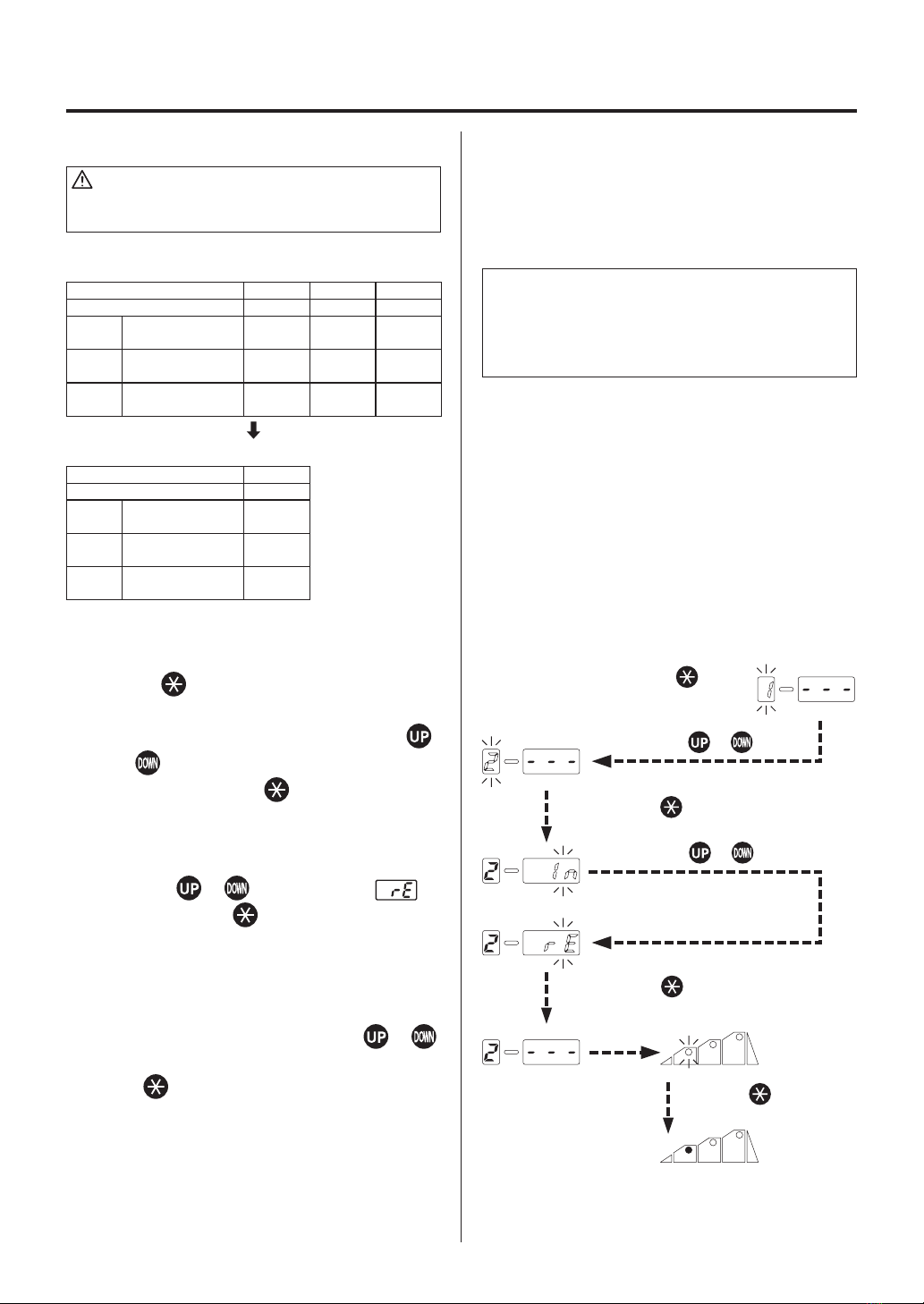

● Remove Mode (AUTO) (See page 13.)
This mode is used when removing parts.
The vacuum pump will be automatically
turned ON.
In INSTALL mode, turn ON the vacuum function
manually and align the component on the PWB.
Vacuum function automatically will turn OFF 5
seconds after starting selected the profile.
In REMOVE mode, the vacuum function automati-
cally turns ON during the last 10 seconds of the
selected profile.
Set the temperature profile shown in the following
figure in advance.
(Figure 10)
Step 1 Step 2 Step 3 Cool down
Air temperature
Timing when the vacuum pump is
turned OFF in INSTALL mode
Start
Time
Temperatue
is increasing.
Temperature
is stable.
Temperature
is stable.
Temperature
is decreasing.
When the tempera-
ture falls to 100°C
(200°F), the air stops
blowing automati-
cally.
Opend timer time
Closed timer time
Temperatue
is increasing.
10 seconds
Timing when the vacuum pump is
turned ON in REMOVE mode
5 seconds
* In REMOVE mode, turn OFF the vacuum pump manually.
Temperatue
is increasing.
Temperature
is stable.

8
6. OPERATION

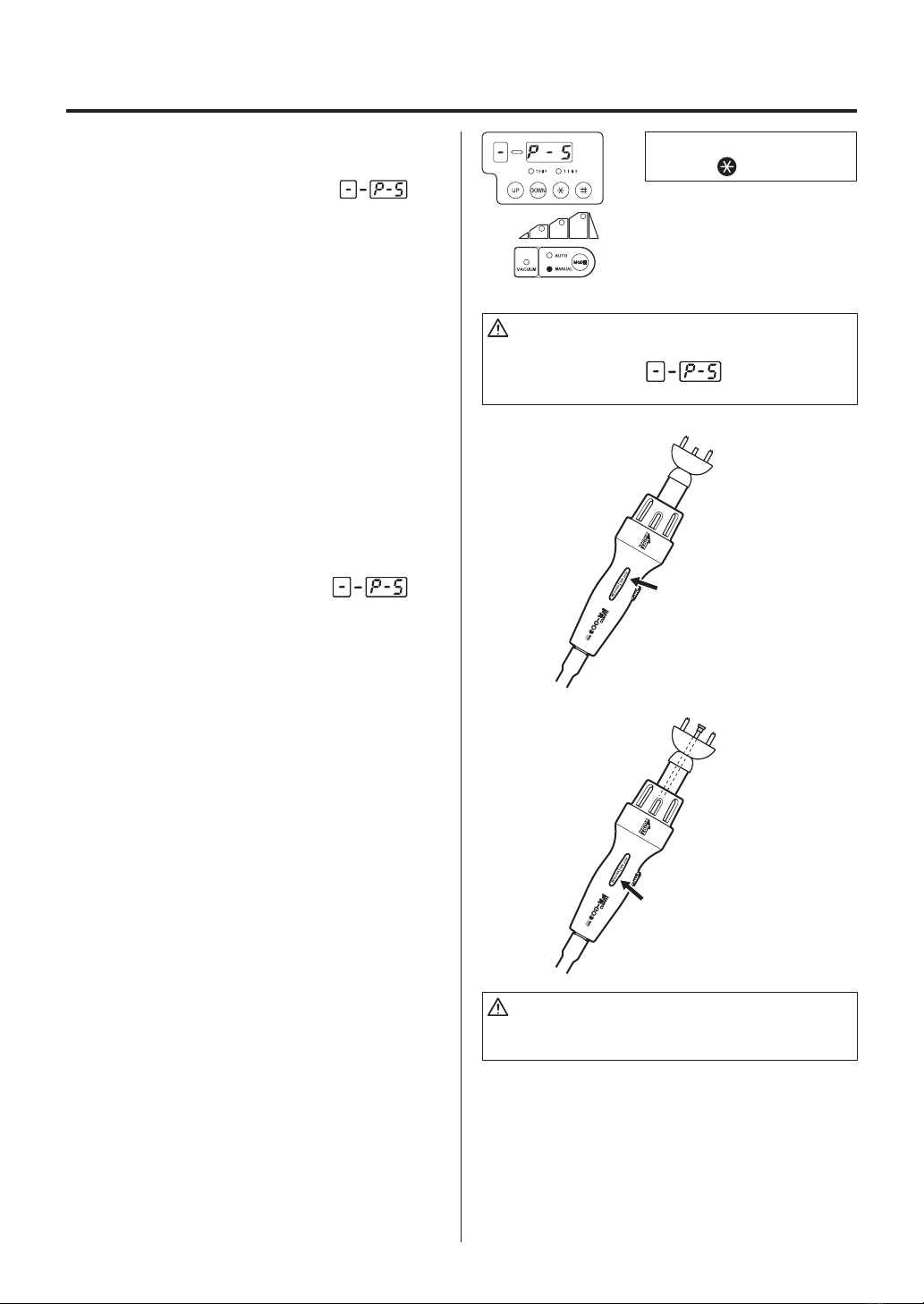

HOT AIR button
VACUUM button

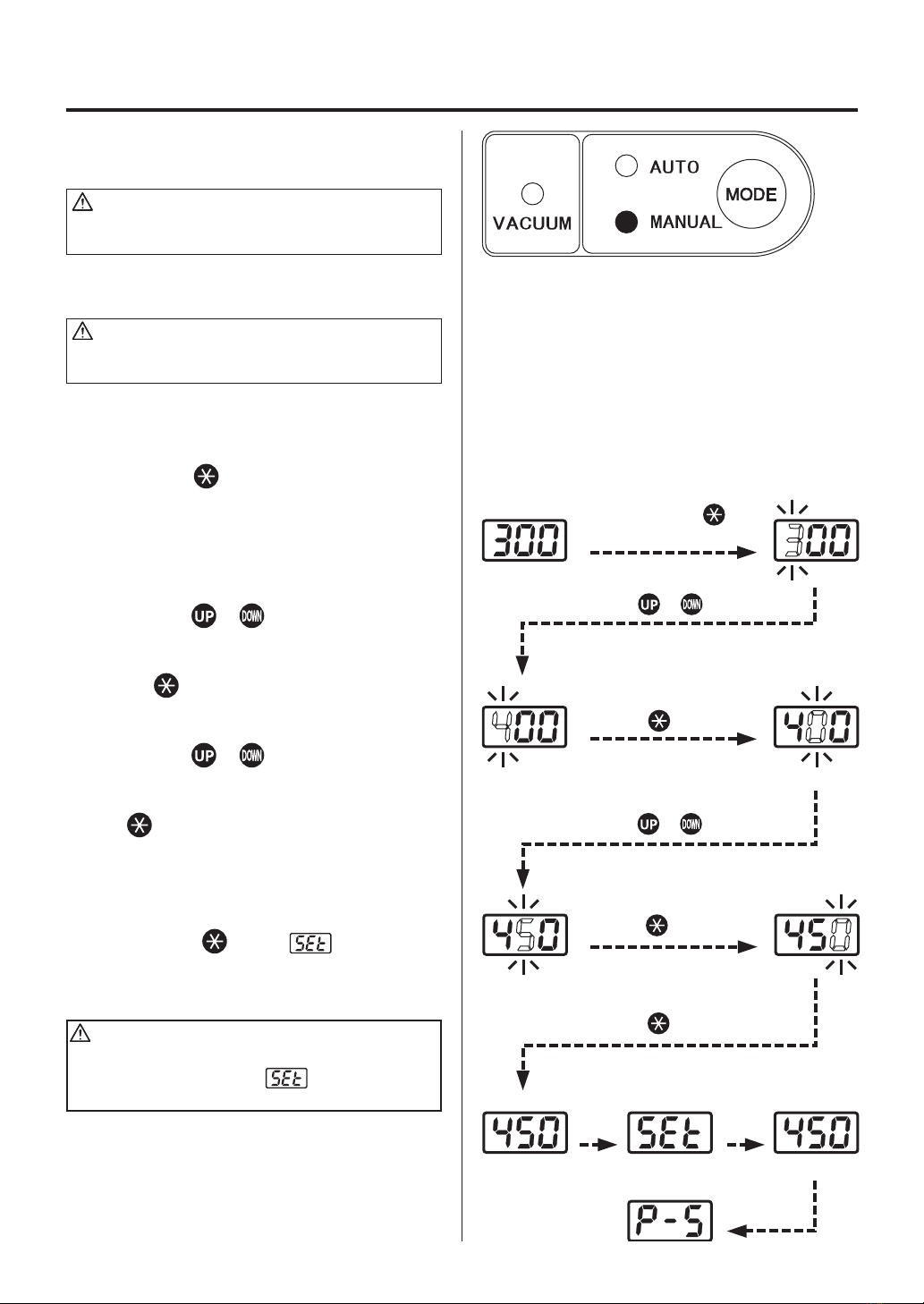

B. Selecting Manual Mode
The temperature/timer is displayed by .
The HAKKO FR-803 is preset at 300°C at the
factory, see page 9.
● Air Blow
1. Start
Press the HOT AIR button on the hand-
piece to start the flow of air. The hot air
blows from the tip of the nozzle, and the
temperature is controlled according to the
temperature setting.
2. Stop
Press the HOT AIR button again.
Power to the heater is shut off and cooling
begins. When the temperature falls to 100
°C. (200°F.), the air stops blowing and the
temperature display reads .
● Vacuum Function
This function is used to hold the component
securely to the pads.
1. Start
Press the Vacuum button on the hand-
piece. The vacuum pump turns ON and
the part is held by suction.
2. Stop
Press and hold the Vacuum button. The
vacuum pump turns OFF.
CAUTION
To avoid damage to the equipment, do not turn the
power switch OFF until appears on the
display.
CAUTION
Parts held by the pads are very hot. Be careful when
removing them from the pads.
To check the set temperature,
press the button .

9
6. OPERATION
C.Temperature change method in
MANUAL mode
CAUTION
Be sure to insert the control card into the card slot and
set the mode to MANUAL before changing.
Setting change in temperature
CAUTION
The temperature setting range is 100 to 450°C (200 to
840°F).
Example: Change the temperature setting from
300 to 450°C.
1. Press the button on the temperature
setting section for 1 sec. or more.
● The HUNDREDS digit flashes on the
display, indicating that the HUNDREDS digit
can be entered.
2. Enter the HUNDREDS digit.
● Use the or buttons to select your
desired value for the HUNDREDS digit.
When your desired value is displayed, press
the button. The TENS digit begins to
flash.
3. Enter TENS digit.
● Use the or buttons to select your
desired value for the TENS digit. When
your desired value is displayed, press the
button. The UNITS digit begins to flash.
4. Enter the UNITS digit.
● Select your desired value for the UNITS
digit in the same manner as for the TENS
digit. When your desired value is displayed,
press the button. displays
and indicates that the temperature setting
procedure is completed.
CAUTION
If the power is turned OFF before the temperature set-
ting procedure is completed ( is not displayed),
the new setting value will not be stored in memory.
Press the or button.
Press the button once.
Press and hold the but-
ton for more than 1 second.
Press the or button.
Press the button once
Press the button once
● Attempting to enter a value outside the setting
range will cause the display to begin flashing the
HUNDREDS digit again. Reenter a correct value.
● Both the display temperature and the tempera-
ture setting are the temperature at the sensor.
(Even with the same temperature setting, the
temperature of the hot air differs depending on
the nozzle size.)

10

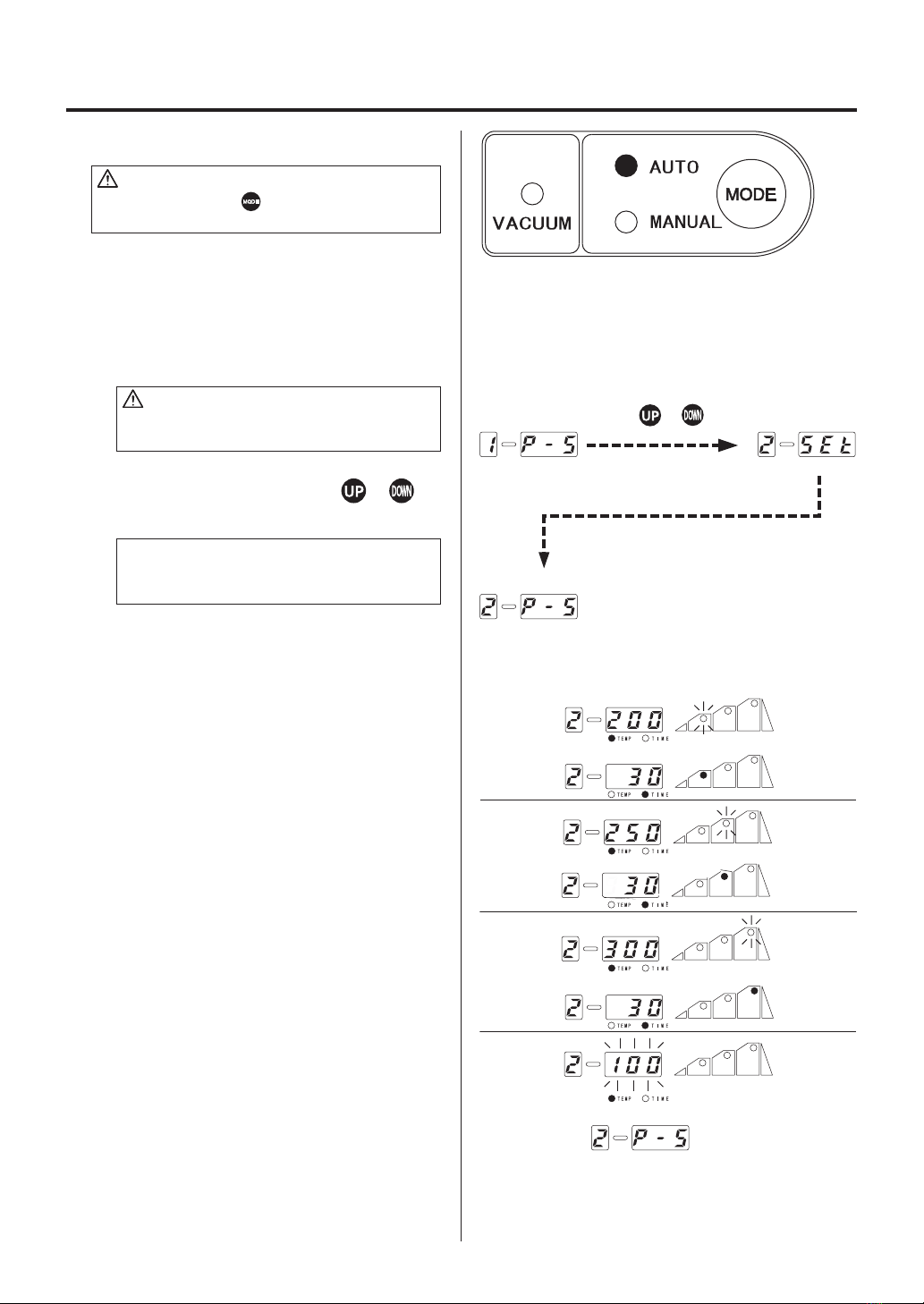

D. Setting method in AUTO mode
CAUTION
Be sure to press the button and set the mode
to AUTO.
The temperature profiles from 1 to 3 have been
initially set. If it is necessary to change, see
page 13.
1. Opening up a file
CAUTION
Be sure to insert the control card before
opening.
Display a file number using the or
button.
NOTE:
If the file number is not changed, it is unneces-
sary to insert the control card.
2. Pressing the HOT AIR button on the
handpiece causes the unit to begin to
blow, and setting the temperature profile
causes it to start the file program.
3. When all the steps are completed, the unit
will be automatically stopped.
Press the or button.
Step 1
Temperature display
Temperature display
Temperature display
Timer
Timer
Timer
Step 2
Step 3
Cool down
Temperature
is increasing.
Temperature
is increasing.
Temperature
is increasing.
Temperature
is decreasing.
Timer is in
operation.
Timer is in
operation.
Timer is in
operation.

11
6. OPERATION

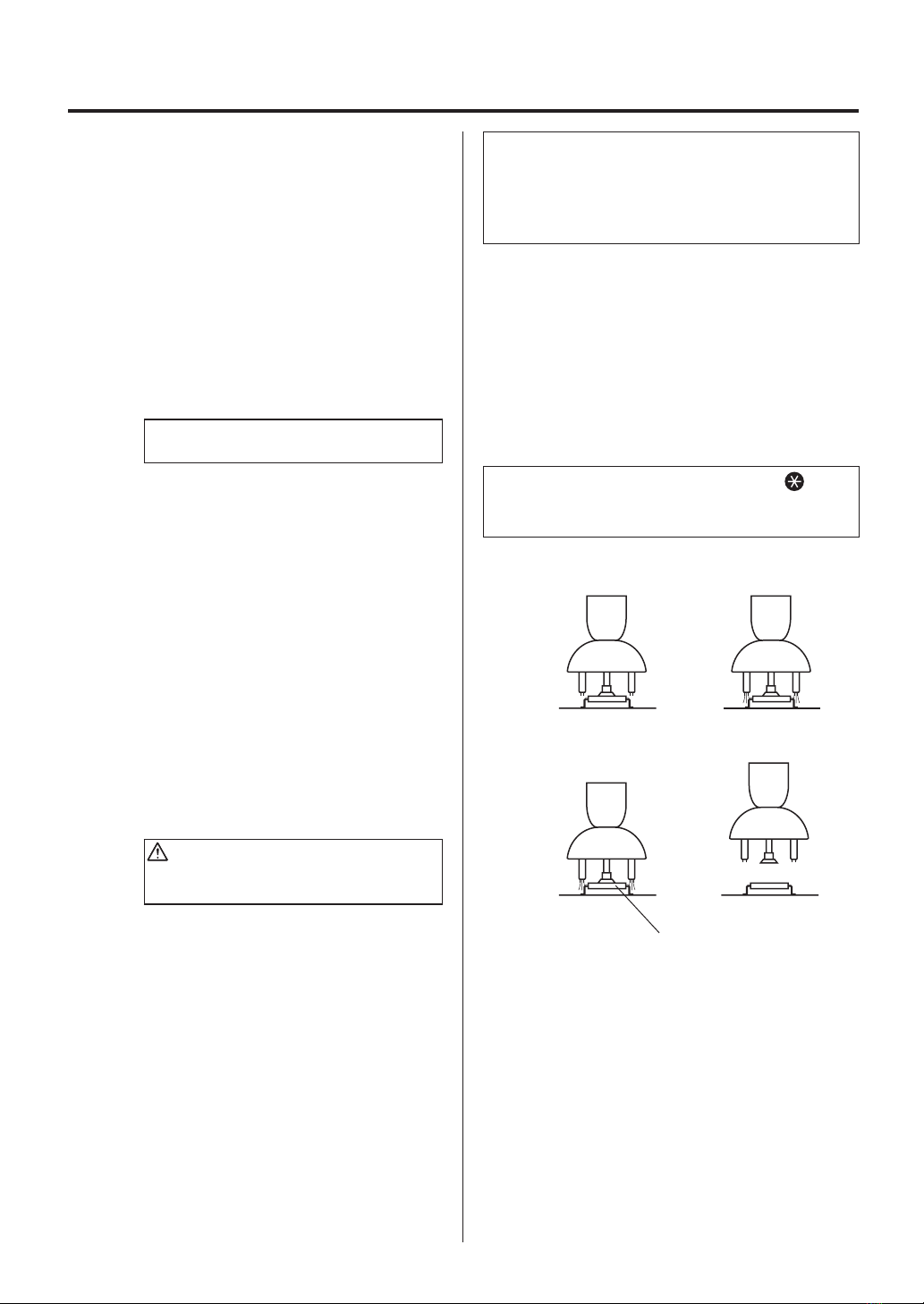

D-1 Setting method in AUTO/INSTALL
mode
● Operations in INSTALL mode
This mode has the following sequence:
① Vacuum ON (Manual)
② Start/hot air blow (Manual)(Step/start)
③ Vacuum OFF after 5 seconds
④ Step 1 operation
⑤ Step 2 operation
⑥ Step 3 operation
⑦ Cool down operation
NOTE:
The operation can be set from 1 to 3.
● Installation
• Advance preparation of P.W.B.
Apply an appropriate amount of solder paste
to the P.W.B.)
① Part suction and positioning
Press the VACUUM button on the
handpiece. Have the part sucked by the
pads and position the part on the P.W.B.
(Figure 1)
② Start (heating)
Press the HOT button on the handpiece.
Hot air blows from the nozzle to melt the
solder. The station operates based on
the preprogrammed temperature profile.
(Figure 2)
CAUTION
To stop the program, press the HOT AIR
button. Cooling begins.
③ Vacuum stop
After 5 seconds, the vacuum turns OFF
and the part is released from suction.
(Figure 3)
④ Stop
When the step operation is completed,
cooling begins. Make sure the solder has
hardened before lifting the handpiece.
(Figure 4)
To check the temperature setting, press the
button. To change the temperature setting, see “Setting
method in AUTO mode” on page 13.
In INSTALL mode, press the HOT AIR button after
turning the vacuum function ON manually and
aligning the component on the PWB. Vacuum function
automatically will turn OFF 5 seconds after starting
selected the profile.
②①
④③
Figure 1 Figure 2
Figure 3 Figure 4
Vacuum OFF

12

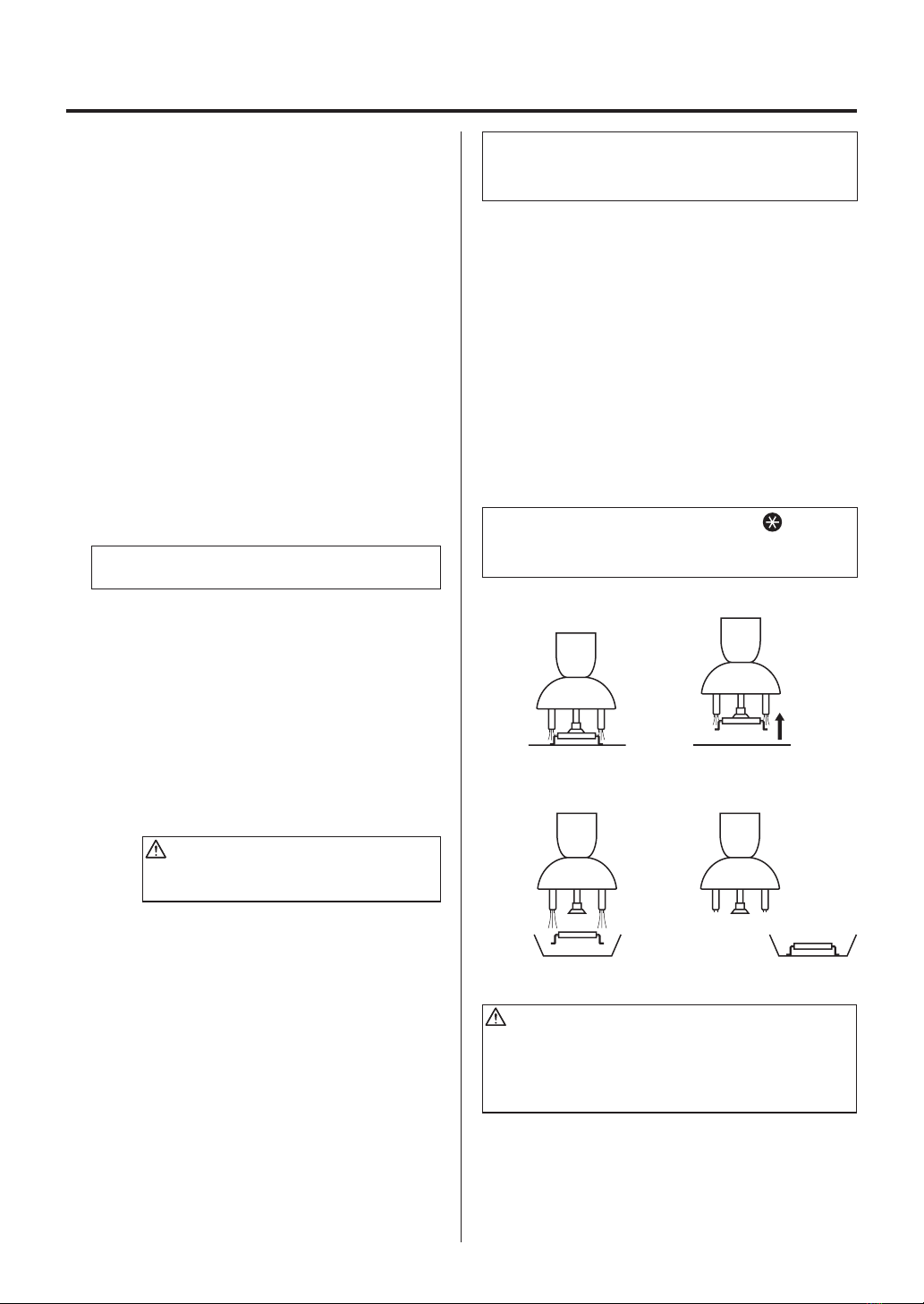

D-2 Setting method in AUTO/REMOVE
mode
● Operations in REMOVE mode
This mode has the following sequence:
① Start/hot air blow (manual)
② Step 1 operation
③ Step 2 operation
④ Step 3 operation
⑤ Ten seconds before the last step is
completed, the vacuum automatically
turns ON and then a single sound lasting
1 second is generated. Two seconds
before completion, a continuous sound is
generated.
⑥ Vacuum OFF (manual)
⑦ Cool down
NOTE:
The operation can be set from 1 to 3.
● Removal
• Parts mounting
Mount the nozzle and pads on the part to be
removed. (Figure 1)
① Start (heating)
Press the HOT AIR button on the
handpiece. Hot air blows from the
nozzle and melts the solder. The station
operates based on the preprogrammed
temperature profile. (Figure 2)
CAUTION
To stop the program, press the HOT AIR
button. Cooling begins.
② Part suction
When the timer runs down to 10 sec., the
vacuum automatically turns ON and the
part is sucked. Lift the handpiece and
remove the part from the P.W.B. (Figure
3)
③ Releasing the sucked part
To release the sucked part, press the
VACUUM button. (Figure 3)
④ Stop
After that, when the step operation is
completed, cooling begins and the airblow
stops as soon as the temperature reaches
100°C (200°F). (Figure 4)
To check the set temperature, press the button.
To change the set temperature, see “Setting mode in
AUTO mode” on page 13.
In REMOVE mode, the vacuum function automatically
turns ON during the last 10 seconds of the selected
profile.
CAUTION
If the vacuum button is pressed before the timer runs
down to 10 seconds, the vacuum pump turns ON.
Press the vacuum button again to stop the air blowing.
②①
④③
Figure 1 Figure 2
Figure 3 Figure 4

13
E. File changing method in AUTO mode
CAUTION
Be sure to insert the control card into the card slot
before changing.
File initial setting
File 1 File 2 File 3
Mode INSTALL INSTALL INSTALL
Step 1 Setting temperature 200 200 200
timer time 30 30 30
Step 2 Setting temperature 250 250 250
timer time 30 30 30
Step 3 Setting temperature 300 300 300
timer time 30 30 30
Example: When file 2 is changed as follows:
File 2
Mode REMOVE
Step 1 Setting temperature 250
timer time 25
Step 2 Setting temperature 250
timer time 30
Step 3 Setting temperature 320
timer time 25
1. If the button is pressed for 1 second
or more, the file number display section
flashes. Select the file number using the
or button. If your desired file number is
displayed, press the button. The mode
will be shifted to the INSTALL or REMOVE
selection mode.
2. Use the or button to display .
Then, press the button to select and shift
to the step selection mode.
3. Select your desired step using the or
button. Display your desired step and press
the button to select. After that, the mode
will be shifted to temperature setting mode
in step 1.
6. OPERATION
Press the or button.
Press the button.
Press and hold the button
for more than 1 second.
NOTE:
The temperature setting range:
100°C - 450°C (200°F - 840°F).
The time setting range:
0 sec. - 300 sec. (0 min. - 5 min.)
● Attempt to enter a value outside the setting
range will cause the display to begin flashing the
HUNDREDS digit again. Reenter a correct value.
● Both the display temperature and the
temperature setting are the temperature at the
sensor. (Even with the same temperature setting,
the temperature of the hot air differs depending
on the nozzle size.)
● If the time setting is set to 0 sec., the step can be
cancelled.
Press the or button.
Press the button.
Press the button.

14

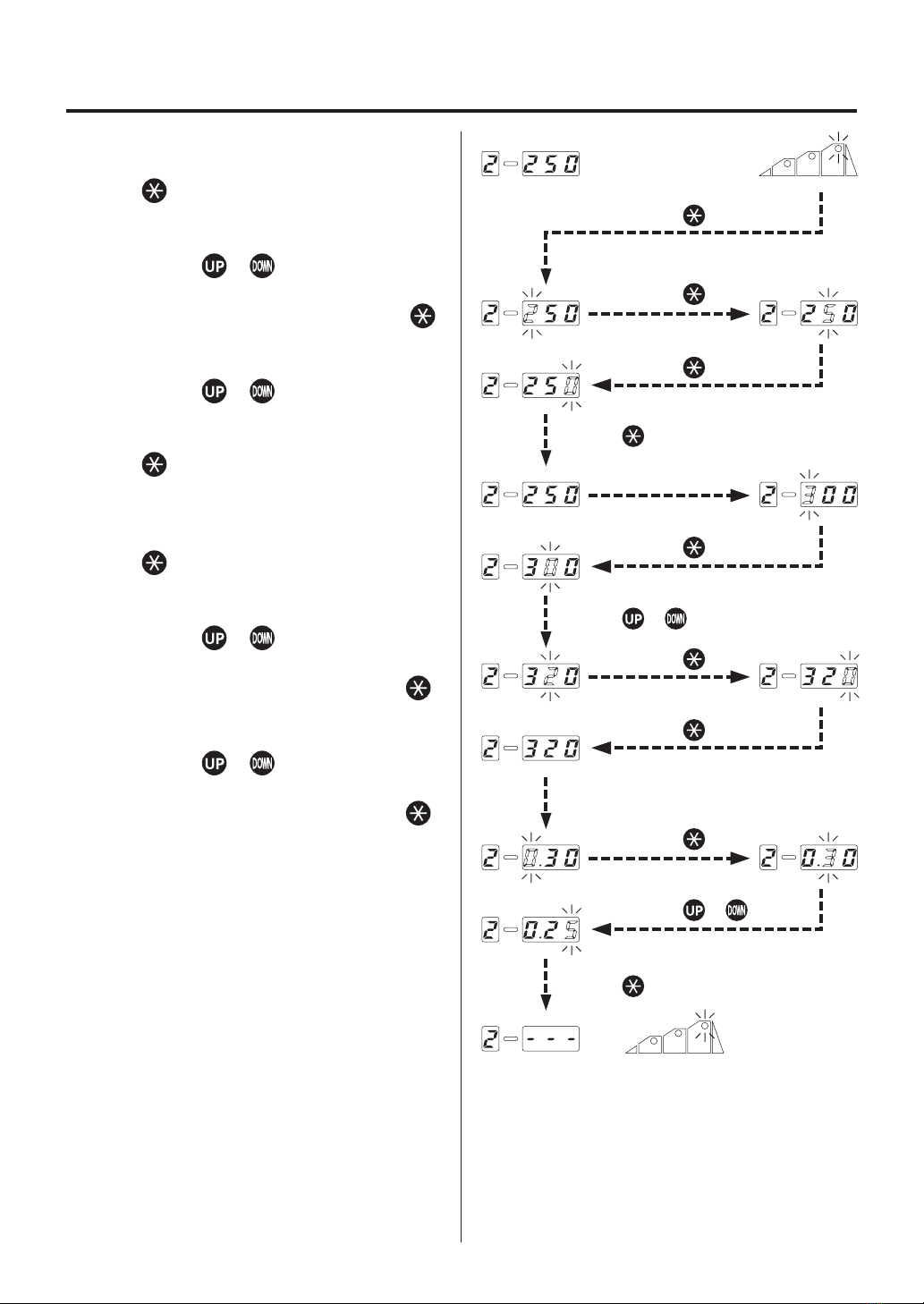

4. a. The HUNDREDS digit on the temperature/
timer display section flashes. Press the
button to select. The TENS digit
begins to flash.
b. Enter the TENS digit.
Use the or button to select your
desired value for the TENS digit. If your
desired value is displayed, press the
button. The UNITS digit begins to flash.
c. Enter UNITS digit.
Use the or button to select your
desired value for the UNITS digit. If your
desired value is displayed, press the
button. The mode will be shifted to the
timer time setting mode in step 1.
5. a. The HUNDREDS digit on the temperature/
timer display section flashes. Press the
button to set the HUNDREDS digit to
0. The TENS digit begins to flash.
b. Enter the HUNDREDS digit.
Use the or buttons to select your
desired value for the TENS digit. When
your desired value is displayed, press
the button. The UNITS digit begins to
flash.
c. Enter the UNITS digit.
Use the or buttons to select your
desired value for the TENS digit. When
your desired value is displayed, press the
button. The mode will be shifted into
the step selection mode.
6. Use the or buttons to select your
desired step. Since it is not changed in step
2, select step 3. When your desired value
is displayed, press the button to select.
The mode will be shifted to the temperature
setting mode.
Press the button.
Press the or button.
Press the button.
Press the button.
Press the button.
Press the or button.
Press the button.
Press the or button.
Press the button.
Press the or button.
Press the or button.
Press the button.

15
7. a. The HUNDREDS digit on the temperature/
timer display section flashes. Press the
button to select. The TENS digit
begins to flash.
b. Enter the TENS digit.
Use the or button to select your
desired value for the TENS digit. If your
desired value is displayed, press the
button. The UNITS digit begins to flash.
c. Enter UNITS digit.
Use the or button to select your
desired value for the UNITS digit. When
your desired value is displayed, press the
button. The mode will be shifted to
the timer time setting mode in step 3.
8. a. The HUNDREDS digit on the temperature/
timer display section flashes. Press the
button to select. The TENS digit
begins to flash.
b. Enter the TENS digit.
Use the or button to select your
desired value for the TENS digit. If your
desired value is displayed, press the
button. The UNITS digit begins to flash.
c. Enter UNITS digit.
Use the or button to select your
desired value for the UNITS digit. If your
desired value is displayed, press the
button. The temperature and timer setting
in step 3 will be completed and shifted to
the step selection mode.
6. OPERATION
Press the button.
Press the or button.
Press the button.
Press the button.
Press the button.
Press the button.
Press the button.
Press the button.
Press the button.
Press the or button.
Press the button.

16
Read from the
center of the ball.
Turn clockwise to increase the airflow.
Turn counterclockwise to decrease the airflow.

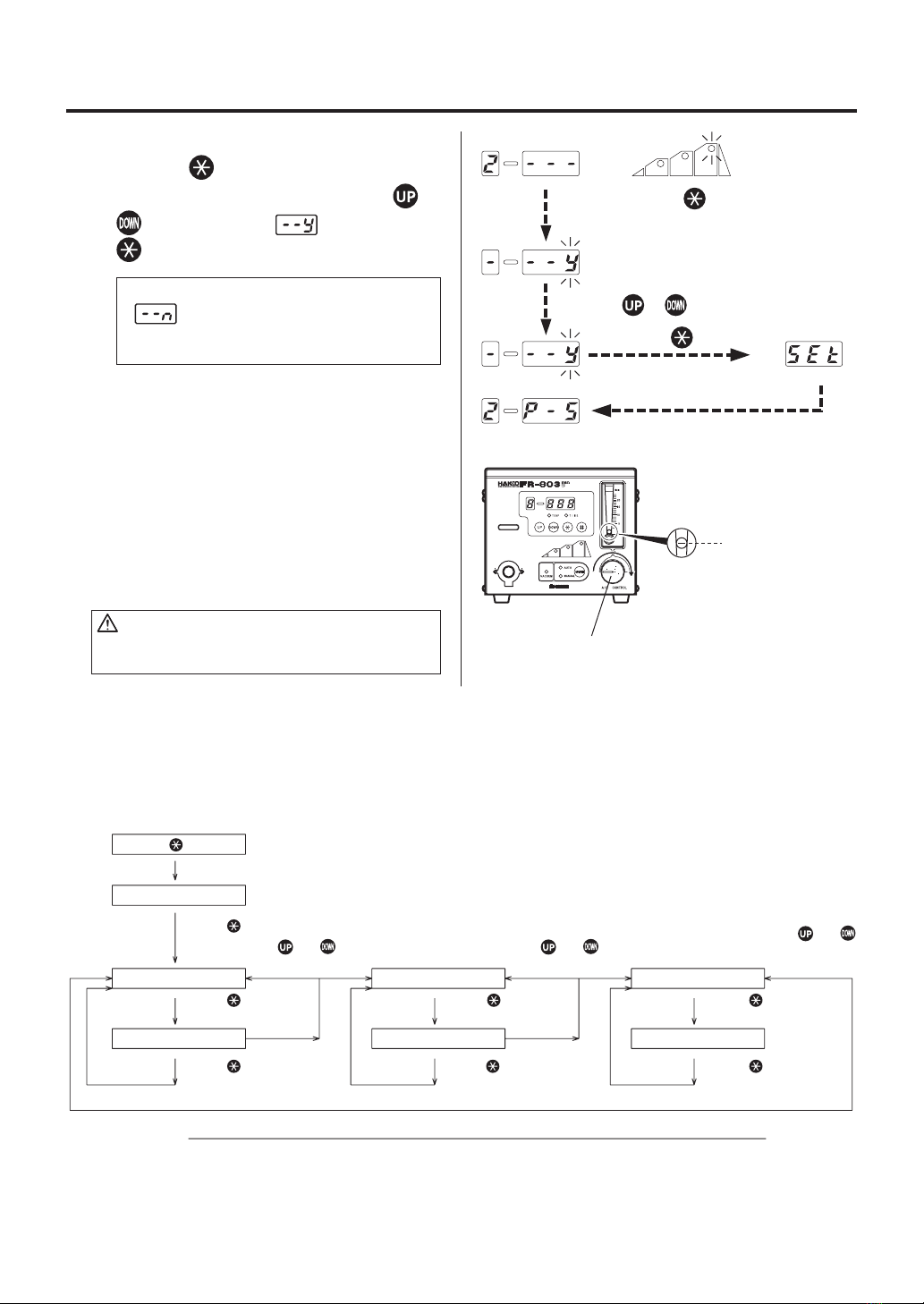

9. File writing
Press the button for 1 second or more to
shift into the file writing mode. Use the or
buttons to display and press the
button. The file writing will be completed.
NOTE:
If is selected, the data will be returned
to the data before change and the mode will
be shifted to the file number selection mode.
* In AUTO mode, files are not selected. Select
the file to be used and start it.
F. Airflow adjustment
Adjust the flow rate of the hot air while watching
the airflow meter. The adjustment range is 5 l/min
to 20 l/min.
CAUTION
Do not apply excessive force when turning the
airflow control knob.
G. Set data checking method
Setting in Auto mode
Select your desired file No. in advance.
Press the button.
Press and hold the button for more
than 1 second.
Mode display
Step 1: Temperature check
Step 1: Time check
Step 2: Temperature check
Step 2: Time check
Use the button to go next.
Use the button
to go next.
Use the button to return
to temperature display.
Use the button to return
to temperature display.
Use the button to return
to temperature display.
Use the button
to go next.
Use the button
to go next.
* If no button is input for 2 seconds or more in any condition, the unit will be returned to normal conditions.
Step 3: Temperature check
Step 3: Time check
Use the and buttons
to change the STEP.
Use the and buttons
to change the STEP.
Use the and
buttons to change
the STEP.
.(INSTALL and REMOVE checking)
Press the button.
Press the or button.

17

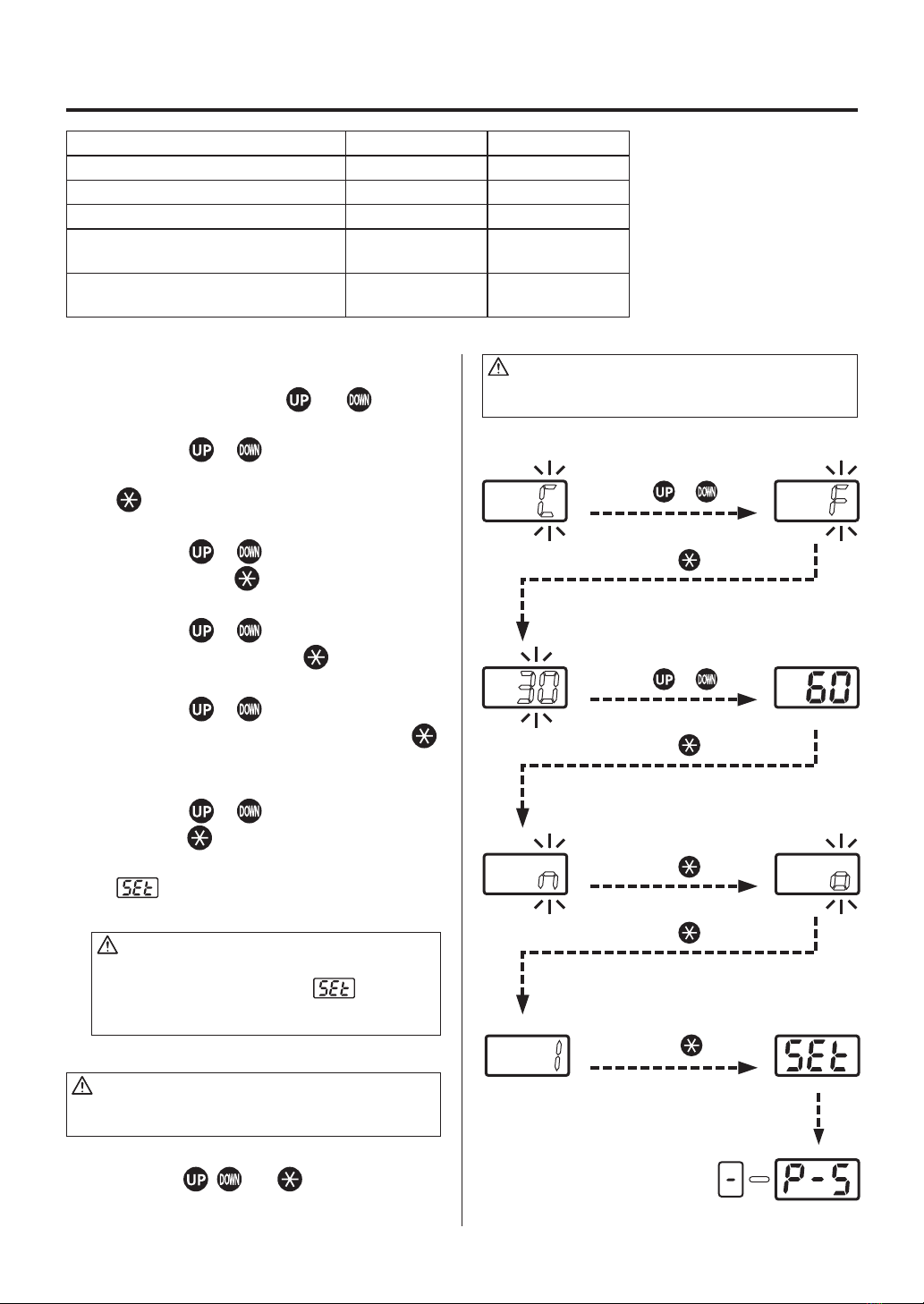

7. PARAMETERS
● Parameter change method
Parameter change method and buttons.
1. °C/°F change
Press the or button, select "C"
(Celsius) or "F" (Fahrenheit) and press the
button to enter.
2. Change of power save time
Press the or select 30 min, 60 min or
∞ and press the button to enter.
3. Change of timer display unit
Press the or button, select “n” (min)
or “S” (sec) and press the button to enter.
4. Change of countdown method
Press the or select “o” (Opened
timer) or “c” (Closed timer) and press the
button to enter. (See the table on page 7.)
5. Change of card-lock function
Press the or button, select 1 or 2 and
press the button to enter.
The parameter input mode is completed,
is displayed and then returned to the
normal mode.
CAUTION
If the power is turned OFF before the parameter
setting procedure is completed ( is not
displayed), the new setting value will not be stored
in memory.
Parameter Parameter display Initial setting
°C/°F change °C or °F C (°C)
Power saving time (30 min/60 min/∞) 30, 60 or ∞ 30 (30 min)
Timer display unit (min/sec) n or S n (min)
Change of count-down method
(Opened timer/closed timer)
o or c o
(opened timer)
Change of control card lock function
(Normal/single lock)
1 or 2 1
(normal)
* In case of simple lock, the change of file number in AUTO mode can be changed without inserting the control card.
CAUTION
Be sure to insert the control card into the card slot
before changing.
Press the button.
Press the or button.
Press the or button.
Press the button.
Press the button.
Press the button.
Press the button.
● Initial resetting method
CAUTION
Be sure to insert the control card into the card slot
before initial resetting.
Turn the power switch ON while simultaneously
pressing the , and buttons to reset
to the initial set values upon shipment from the
factory. The mode is displayed in MANUAL.

18
8. OFFSET SETTING METHOD
NOTE:
The temperature at the blowout port varies depends on
the nozzle size. The offset temperature can be selected.
CAUTION
Change the mode to MANUAL before setting.
The operations cannot be performed in AUTO mode.
Be sure to insert the control card.
1. Press the button for 1 second or more.
The mode will be shifted to the offset inputting
mode.
2. Input the offset value.
The input range is -50 to + 50°C (In °F mode,
from -90 to + 90°F)
Enter the HUNDREDS digit.
a. Use the or buttons to select your
desired value for the HUNDREDS digit. Only
0 (in case of positive) and – (in case of nega-
tive) can be input (the same as in °F mode).
Select 0 or – and press the button. The
TENS digit begins to flash.
Enter the TENS digit.
b. Use the or buttons to select your
desired value for the TENS digit. When your
desired value is displayed, press the
button. The UNITS digit begins to flash.
Enter the UNITS digit.
c. Select your desired value for the UNITS digit
in the same manner as for the TENS digit.
When your desired value is displayed, press
the button. displays and indicates
that the temperature setting procedure is
completed.
Press the or button
Press the button.
Press and hold the button
for more than 1 second.
Press the or button
Press the button.
Press the button.
Press the or button
<In MANUAL mode>
Temperature 300°C
Offset value 0
<In AUTO mode>
File 1 File 2 File 3
Mode INSTALL INSTALL INSTALL
Step 1 Setting temp.
Timer time
200°C
30
200°C
30
200°C
30
Step 2 Setting temp.
Timer time
250°C
30
250°C
30
250°C
30
Step 3 Setting temp.
Timer time
300°C
30
300°C
30
300°C
30
● Factory setting
CAUTION
Be sure to insert the control card into the card slot
before initial resetting.
Turn the power switch ON while simultaneously
pressing the , and buttons to reset the
initial set values upon shipment from the factory. The
mode is displayed in MANUAL.
Upon shipment from the factory, the data are set to
the values as shown in the right tables.

19

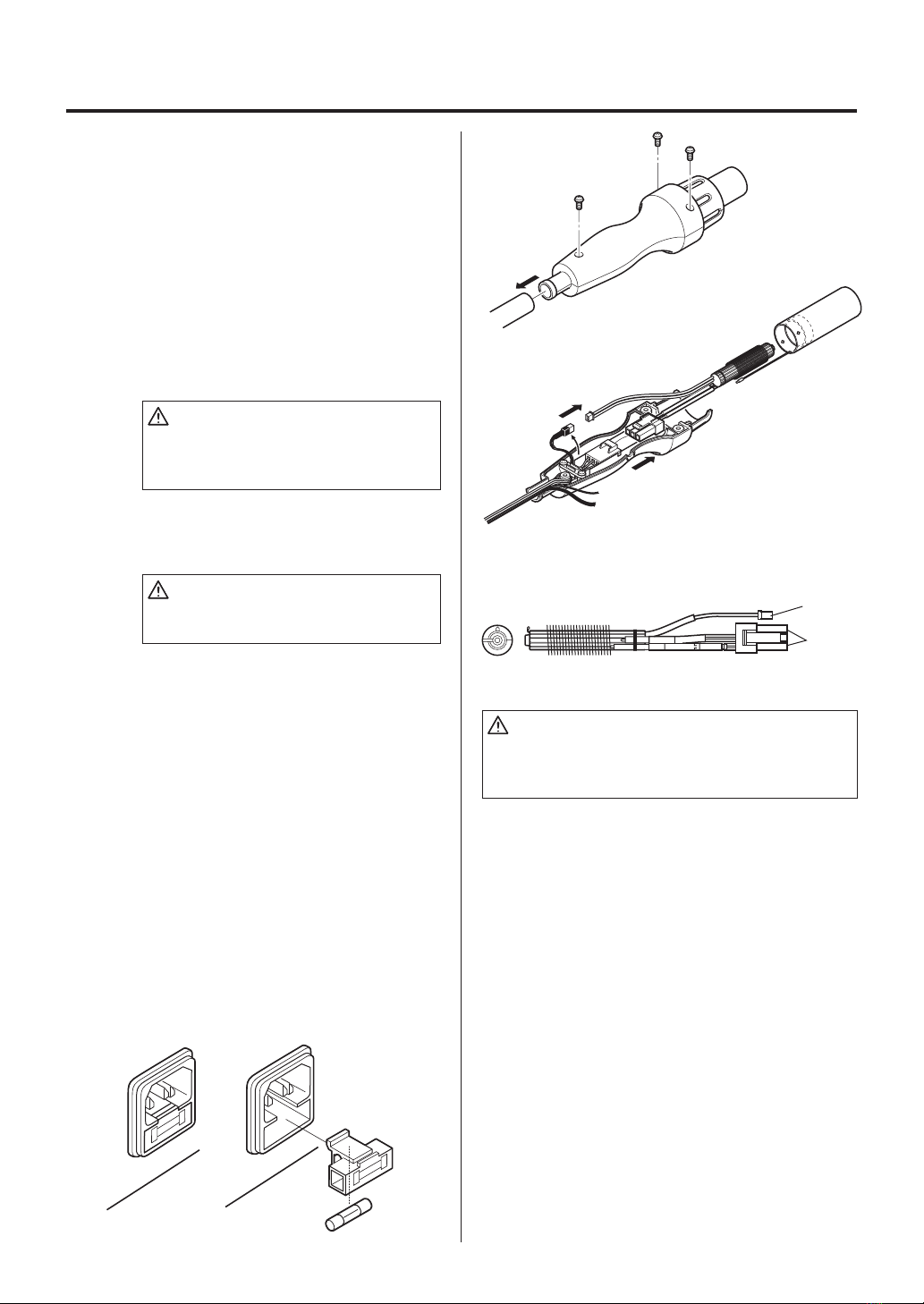

9. MAINTENANCE / INSPECTION
● Broken Heater or Sensor
① Open the handpiece.
1. Retract the vacuum pipe to its shortest
length.
2. Remove the three screws holding the
handpiece together.
3. Move the tube downward.
4. Remove the pipe from the protruding
portion of the handle.
CAUTION
Quartz glass and heat insulation are inside
the pipe. Be careful not to drop or lose
these items.
5. Disconnect the heater sensor connector
and remove the heater.
CAUTION
Do not apply excessive force to the
vacuum pipe.
② Measure the resistance value.
1. Measure the resistance value (a) of the
sensor. The normal value is 0Ω.
2. Measure the resistance value (b) of the
heater. The normal values are approx-
imately 33Ω (±10%) (100-120V), 85Ω (±
10%) (220-240V) at room temperature.
If the resistance value is abnormal,
replace the part.
(Refer to the instructions included with the
replacement part.)
● Replacing the Fuse
1. Unplug the power cord from the power recep-
tacle.
2. Remove the fuse holder.
3. Replace the fuse with new one.
4. Put the fuse holder back in place.
a
b
CAUTION
Since there are various hazards with replacing the
heating element, be sure to turn off the power and
replace them according to the avove procedure.
