TMS-4 OVERVIEW
The Haltech TMS-4 is a simple, plug-and-play way to
monitor tyre pressures through your Haltech ECU.
The TMS-4 system is available in two kit forms, with
different tyre pressure sensors. These can be mounted
inside the tyre (HT-011600) or externally (HT-011601).
Both sets of sensors are able to warn of air leaks,
temperature variations, and when the pressure is over
or under a set level.
The external pressure sensors provided with the TMS-4
External Sensor Kit (HT-011601) can be fitted directly to
the valves on a car’s tyres without the need to remove
the tyres.
• Plug’n’Play with Haltech ECUs using NSP or
ESP software packages
• Receiver operating temperature:
-40°C to 85°C (-40°F to 185°F)
• Receiver environmentally sealed to IP67 standard
• Internal sensors environmentally sealed to
IP67 standard (HT-011600)
• External sensors environmentally sealed to
IP69 standard (HT-011601)
• Sensor operating temperature:
-40°C to 125°C (-40°F to 257°F)
• Capable of reading up to 116psi air pressure
Haltech TMS-4 with internal sensors
Part No: HT-011600
Haltech TMS-4 with external sensors
Part No: HT-011601
2

3
What’s in the box?
TMS-4 Internal Sensor Kit (HT-011600)
• Haltech TMS-4 receiver
• TE MCON to DTM-4 CAN cable
• 4 x internal tyre pressure sensors
• Mounting Hardware: nut and washer set
• Warning sticker set
• Quick Start Guide
What’s in the box?
TMS-4 External Sensor Kit (HT-011601)
• Haltech TMS-4 receiver
• TE MCON to DTM-4 CAN cable
• 4 x external tyre pressure sensors
• Mounting Hardware: nut and washer set
• 4 x anti-theft lock nuts
• Lock nut spanner
• Quick Start Guide

4
TMS-4 INSTALLATION
Receiver installation
Install the receiver in the vehicle using the mounting
hardware supplied. For best results installation
location should be high in the vehicle.
Connection
The TMS-4 receiver connects via the supplied TE MCON
to DTM-4 CAN Cable.
Upon powering up an audible beep will be heard from
the receiver to indicate it is on.
Sensor installation: Internal
1. Deflate each tyre and remove from the wheels
2. Remove the old tyre valve from each wheel
3. Install the sensor in the corresponding wheel
according to the position sticker on the sensor
4. Re-install the tyre, ensuring sensor is not damaged
during this process
5. Reinflate the tyre to the desired pressure
6. Perform a dynamic wheel balance
TE MCON to DTM-4 CAN cable
Internal pressure sensor (HT-011600)

45
TMS-4 SETUP
Sensor installation: External
1. Remove the valve cap from the valve
2. Inflate tyre to desired pressure
3. Thread the anti-theft lock nut onto the valve
4. Install the sensor in the corresponding tyre
according to the position sticker on the sensor
5. Tighten the lock nut using the spanner provided
6. Check for leaks with soapy water

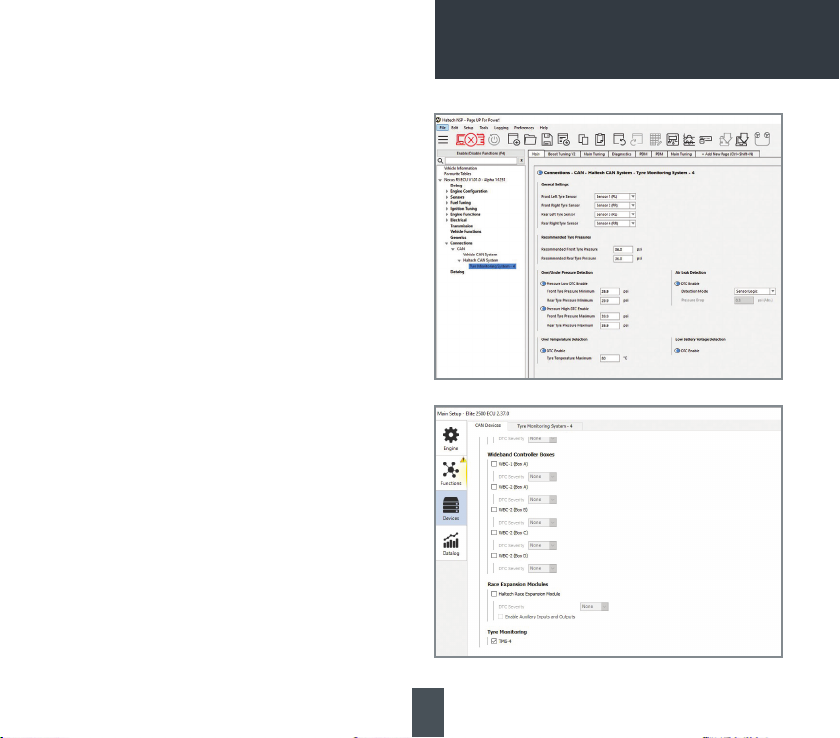

Enabling the TMS-4: NSP software
In NEXUS series ECUs the receiver is enabled through
Connections > CAN > Haltech CAN System: Tyre
Monitoring (TMS-4 Enable).
It should also appear in the menu tree once detected on
the Haltech CAN Bus and enabled from there.
Enabling the TMS-4: ESP software
In Elite series ECUs the receiver is enabled via the
Main Setup (F4 page), then Devices: Tyre Monitoring
(TMS-4 Enable).
Once enabled it will appear next to CAN Devices.

6
TMS-4 OPERATION
Assigning sensors to wheels
Pressure sensors can be re-assigned to any wheel in
the setup menu, which allows users swap wheels and
re-assign sensors without physically swapping parts.
By default sensors are assigned as per the stickers
on the sensors. Sensors can also be turned off in the
software if monitoring that wheel is not required.
Channels

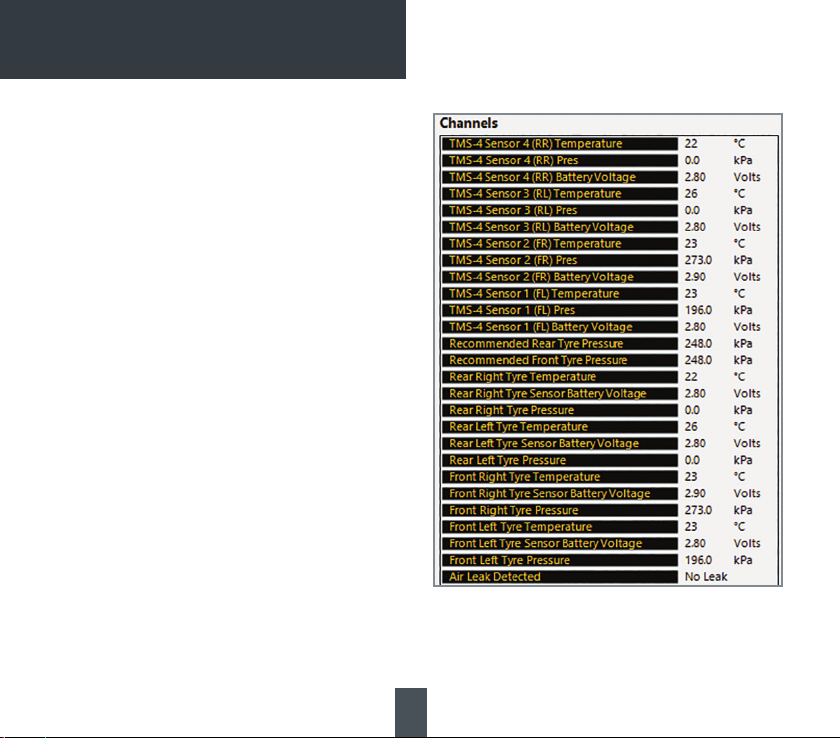

The following data channels are available in both NSP
and ESP software, as shown in this image 
TMS-4 channels can be searched for by using the
keywords “tyre”, “tire”, and “wheel”.
Channels displayed:
• Per Tyre Pressure
• Per Tyre Temperature
• Per Tyre Sensor Voltage
• Per Sensor Pressure
• Per Sensor Temperature
• Per Sensor Battery Voltage
• Air Leak Detected (1 channel covers all 4 tyres)
• Recommended Tyre Pressures
(for logging and display purposes only)
NOTE: The recommended tyre pressures are values defined by
users under the sensor setup and assignment tab of NSP and
ESP software. These figures are only used for the convenience
of display and are NOT used in any calculations.

67
TMS-4 OPERATION
Air Leak Detection
The TMS-4 system can warn of air leaks in tyres.
Enabled by default in the software, Air Leak Detection
can use sensor logic, or be manually user-defined.
Sensor logic relies on the sensor flagging an air leak,
then signals a DTC based on that flag.
Users can also define their own pressure drop values
in the TMS-4 setup menu. If a pressure drop of that
value (or greater) occurs over a 5 second period then
the ECU flags an air leak.
Over / Under Pressure Detection
A DTC can be flagged when the air pressure readings
fall below, or rise above, the user-defined pressure
values for the front and rear pairs of tyres.
Users can set maximum and minimum pressure values
for pairs of tyres per-axle in the TMS-4 setup menu.
A DTC is triggered if the pressure drops or rises, to
under or over the pre-set values for 3 seconds or more.
Both internal and external sensors have a working
pressure range of 0-116 psi (0-800kpa).
Sensor Signal Loss Detection
A DTC triggers if signal loss is detected from any active
sensors. Signal loss can only be detected when sensors
are known to be awake so this requires vehicle speed
to be enabled, as sensors activate during pressure
change or when tyres are moving.
Diagnostic Trouble Codes
The TMS-4 can trigger several optional DTCs, including:
• Pressure High / Pressure Low
• Temperature High
• Air Leak Detected
• Sensor Battery Voltage Low
• Sensor Signal Loss
DTCs can be enabled within the TMS-4 setup menu. If a
sensor is not assigned to a tyre, it cannot trigger a DTC.
DTCs are referenced to the wheel the sensor is
assigned to. For example, if Sensor 3 (RL) is assigned
to the front left tyre and detects pressure is too low
the “Front Left Tyre Pressure Low” DTC will trigger.
Over Temperature Alert
A DTC is flagged if any sensor is at or above the user
defined maximum temperature entered.

8
TMS-4 MAINTENANCE

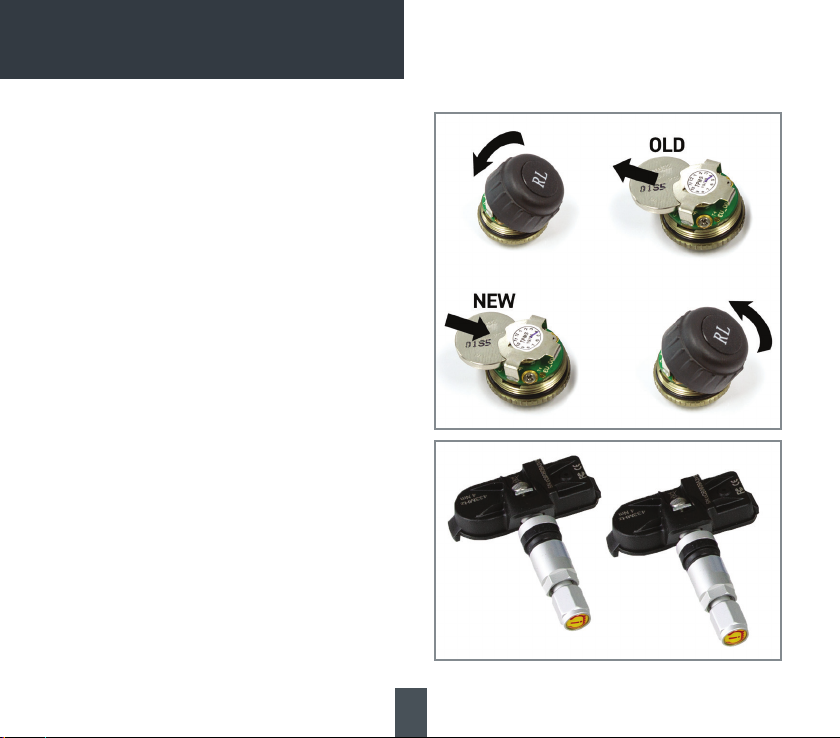

Battery Replacement - external sensors
The CR1632 battery used in the external pressure
sensors can be easily replaced.
1. Remove the sensor from the valve stem
2. Unscrew the cover from the sensor
3. Push the battery out of its holder
4. Gently push replacement battery in
5. Re-attach sensor to the valve stem
CR1632 batteries typically have a 1-2 year lifespan.
Battery replacement - internal sensors
The CR2023 batteries used in the internal tyre pressure
sensors are not replaceable.
These units have an average lifespan of 3 years, which
is longer than the average life of a tyre.
Low battery Voltage detection
A DTC will be triggered if any sensor battery falls below
2.3V. Individual battery voltages can be monitored by
the associated TMS-4 battery voltage channels.

89
TMS-4 WIRING CONNECTIONS

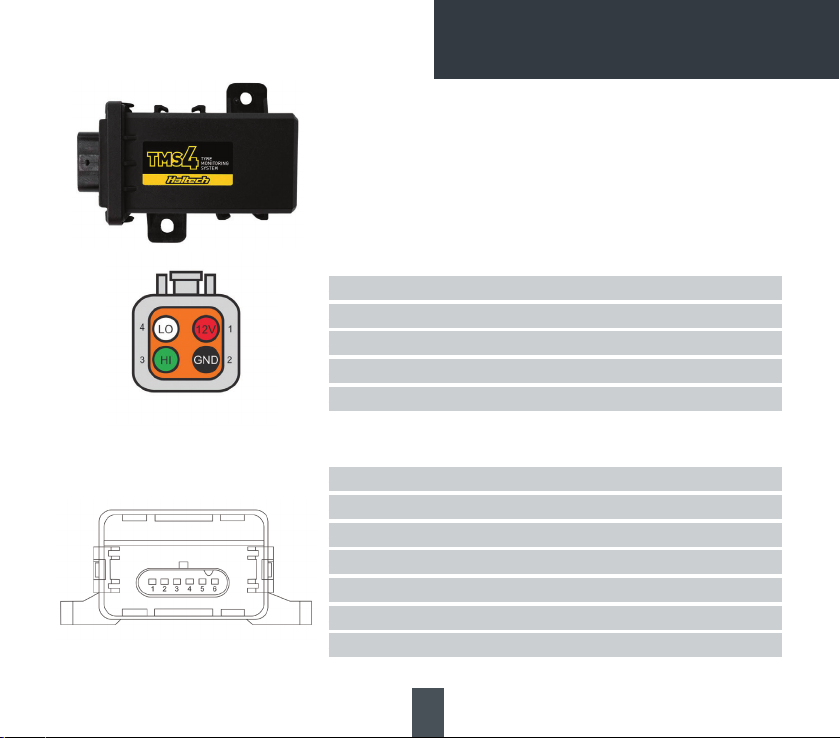

CAN Connection: DTM-4 receptacle
Pin Number Connection Wire Colour
1 +12V Supply Red
2 Battery Ground Black
3 CAN High Green
4 CAN Low White
CAN Connection: TE MCON Connector
Pin Number Connection Wire Colour
1 CAN Low White
2 CAN High Green
3 - -
4 - -
5 +12V Supply Red
6 Battery Ground Black
Rear View, Wire Side
Rear View, Receiver Side
Receiver wiring
The Haltech TMS-4 receiver uses a 6-pin TE MCON wiring connector.
Both kits are supplied with a plug’n’play TE MCON to DTM adaptor cable,
terminated with a four-pin DTM-4 connector.

10
TMS-4 receiver
Size (without connector) 103.80 x 80.70 x 36.80mm
Operating Voltage 12V to 32V DC
Ambient Operating Current 50mA
Receiver frequency 433.92MHz + / - 50KHz
Ingress Protection IP67
Operating Temperature -40°C to +85°C (-40°F to 185°F)
Conguration via Haltech NSP or ESP Software
CAN Connection 6-position TE MCON Connector
TMS-4 Internal Sensors (HT-011600)
Battery Model CR2023, 380mAh (Not Replaceable)
Battery lifespan Up to 3 years
Standby Current <0.7uA
Pressure Measurement Range 0-800kpa (0-116psi)
Temperature Measurement Range -40°C to +125°C (-40°F to 257°F)
Ingress Protection IP67
TMS-4 External Sensors (HT-011601)
Battery Model CR1632, 140mAh (Replaceable)
Battery Lifespan 1-2 years
Standby Current <0.7uA
Pressure Measurement Range 0-800kpa (0-116psi)
Temperature Measurement Range -40°C to +125°C (-40°F to 257°F)
Ingress Protection IP69
TMS-4 SPECIFICATIONS

10 11
At Haltech we make every effort to design and manufacture fault-
free products that perform up to or above the market expectations.
All our products are covered by a Limited 12 Month Warranty.
Haltech Limited Warranty
Unless specied otherwise, Haltech warrants its products to be free from
defects in material or workmanship for a period of 12 months from the
date of purchase.
If the Haltech product is found to be defective as mentioned above, it will be
replaced or repaired if returned prepaid along with proof of purchase. Proof
of purchase in the form of a copy of the original purchase invoice, receipt
or bill of sale which indicates that the product is within the warranty period,
must be presented to obtain warranty service.
Replacement or repair of a defective product shall constitute the sole lia-
bility of Haltech. To the extent permitted by law, the foregoing is exclusive
and in lieu of all other warranties or representations, either expressed or
implied, including any implied warranty of merchantability or tness. In no
event shall Haltech, be liable for special or consequential damages.
Product Returns
Please include a copy of the original purchase invoice, receipt or bill of sale
along with the unused, undamaged product and its original packaging. Any
product returned with missing accessory items or packaging will incur extra
charges to return the item to a re-saleable condition.
All product returns must be sent via a freight method with adequate track-
ing, insurance and proof of delivery services. Haltech will not be held re-
sponsible for product returns lost during transit.
Returns of Products Supplied in Sealed Packaging
The sale of any sensor or accessory supplied in sealed packaging is strictly
non-refundable if the sealed packaging has been opened or tampered with.
This will be clearly noted on the product packaging. If you do not accept
these terms please return the sensor in its original unopened packaging
within 30 days for a full refund.
A sensor or accessory product may be returned after 30 days of purchase
(with its sealed packaging in tact) for credit only (no refunds given) and will
be subject to a 10% restocking fee.
Installation of Haltech Products
No responsibility whatsoever is accepted by Haltech for the tment of
Haltech Products. The onus is clearly on the installer to ensure that both
their knowledge and the parts selected are correct for that particular appli-
cation. Any damage to parts or consequential damage or costs resulting
from the incorrect installation of Haltech products are totally the respon-
sibility of the installer.
Always disconnect the battery when doing electrical work on your vehicle.
Avoid sparks, open ames or use of electrical devices near ammable sub-
stances. Do not run the engine with a battery charger connected as this
could damage the ECU and other electrical equipment.
Do not overcharge the battery or reverse the polarity of the battery or any
charging unit. Disconnect the Haltech ECU from the electrical system
whenever doing any welding on the vehicle by unplugging the wiring har-
ness connector from the ECU.
After completing the ECU installation, make sure there is no wiring left
un-insulated. Uninsulated wiring can cause sparks, short circuits and in
some cases re. Before attempting to run the engine ensure there are no
leaks in the fuel system. All fuel system components and wiring should be
mounted away from heat sources, shielded if necessary and well ventilat-
ed. Always ensure that you follow workshop safety procedures. If you’re
working underneath a jacked-up car, always use safety stands!
__________________________________________________________
Haltech Off-Road Usage Policy
In many states it is unlawful to tamper with your vehicle’s emissions equip-
ment. Haltech products are designed and sold for sanctioned off-road/com-
petition non-emissions controlled vehicles only and may never be used on
a public road or highway.
Using Haltech products for street/road use on public roads or highways is
prohibited by law unless a specic regulatory exemption exists (more infor-
mation can be found on the SEMA Action Network website www.semasan.
com/emissions for state by state details in the USA).
It is the responsibility of the installer and/or user of this product to ensure
compliance with all applicable local and federal laws and regulations.
Please check with your local vehicle authority before purchasing, using or
installing any Haltech product.
WARRANTY CERTIFICATE

12
Haltech Australia
17 Durian Place, Wetherill Park
NSW 2164 Australia
Phone: [phone]
Email: [email protected]
Haltech New Zealand
Grey Lynn Auckland, NZ 1021
Phone: [phone]
Email: [email protected]
Haltech USA East
750 Miles Point Way,
Lexington, KY 40510 USA
Phone: [phone]
Email: [email protected]
Haltech USA West
26429 Rancho Parkway S, Unit 125
Lake Forest, CA 92630 USA
Phone: [phone]
Email: [email protected]
Haltech Europe
Ottogasse 2A,
2333 Leopoldsdorf, Austria
Phone: [phone]
Email: [email protected]
Haltech UK
Unit 1, Miras Business Estate, Lower Keys Business Park,
Keys Park Road, Hednesford, WS12 2FS
Phone: [phone]
Email: [email protected]
facebook.com/HaltechEngineManagement
youtube.com/haltechecu
instagram.com/haltechecu
08/2020
