Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit . . . . . . . . . . . . 11
Operating Your Fan . . . . . . . . . . . . . 13
Care of Your Fan . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . 15
106-200
548810
792145359043

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned off at the
circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this fan
with any solid-state fan speed control device. It will permanently damage the
electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and capable of
reliably supporting a minimum of 35 pounds, Use only NOM Listed outlet
boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the trailing
edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be cautious
when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be spread
apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on the other side of
the outlet box.
All set screws must be checked and retightened where necessary before
installation.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING
THE BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO
NOT INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN
SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.

2
Unpacking Your Fan
Set of blades (5)
Canopy assembly
Ball/downrod assembly
Fan motor assembly
1.
2.
3.
4.
Blade arms (5)
Light kit
Glass shade
Pull chains and fobs (2)
5.
6.
7.
8.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 01-800-681-9321.
Unpack your fan and check the contents. You should have the following items:
1
3
4
2
5
6
7
8
AB
CD
Blade Attachment Hardware
(16 Screws with Fiber Washers )
Electrical Hardware
(3 Plastic Wire Nuts)
Extra plastic plug
Thumb screw
A.
B.
C.
D.

3
Installing Your Fan
Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing NOM listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 18°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two types
of hanging assemblies; the standard ceiling
installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting.
The "close-to-ceiling" mounting is recommended
in rooms with less than 8-foot ceilings or in areas
where additional space is desired from the floor to
the fan blades.
When using the standard downrod installation, the
distance from the ceiling to the bottom of the fan
blades will be approximately 12 inches. The
"close-to-ceiling" installation reduces the distance
from the ceiling to the bottom of the fan blades to
approximately 9 inches.
Once you have decided which ceiling installation
you will use, proceed with the following
instructions. Where necessary, each section of the
instructions will note the different procedures to
follow for the two types of installation.
Hanging the Fan
Option 1:
Standard Ceiling Mounting WARNING
FAILURE TO PROPERLY INSTALL COTTER PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Figure 7
Figure 5
Remove
Figure 6
Loosening the four screws on the top of the
canopy. (Figure. 5)
1.
Remove the mounting bracket from the canopy
by remove the two non-slotted screws and
loosen the slotted screws (Figure 6).
2.
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing (Figure 7). Carefully insert the
clevis pin through the holes in the collar and
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Tighten two set screws on top of the fan motor
firmly. (Figure 7)
5.
6.
Route the wires through the canopy and then
through the ball/downrod assembly (Figure. 7).
Loosen, but do not remove the 2 set screws on
the collar on top of the motor housing.
3.
4.
Motor Wires
Ball/Downrod
Assembly
Ceiling Canopy
Pin in Locked
Positioon
Motor Collar
Cotter Pin
Clevis Pin
Tighten Screw
Firmly
Loosen but
do not Remove

5
Remove three of the six screws and lock
washers (every other one) from the collar of
top motor (Figure 9).
3.
Route the wires exiting the top of the fan motor
through the canopy, then proceed to place the
ceiling canopy over the collar at the top of the
motor. (Figure 10)
Align the mounting holes with the holes in the
motor and fasten using the screws and lock
washers removed in step 3 (Fig. 10).
Tighten the mounting screws security.
4.
5.
6.
WARNING
FAILURE TO COMPLETELY TIGHTEN THE
THREE SCREWS IN STEP 5 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
Motor
Collar Screw and Lock Washer
(3 of 6 Places)
Figure 9
Figure 10
Collar
Ceiling
Canopy
Screw and
Lock Washer
(3 Places)
Option 2:
Close-to-Ceiling Mounting
Remove the mounting bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws (Figure 5 and 6).
Remove the decorative canopy bottom cover
from the canopy by turning the canopy bottom
cover counterclockwise (Figure 8).
1.
2.
Canopy
Bottom
Cover
Remove
Figure 8
NOTE: If a longer downrod is needed, take out
the screw located in the hanger ball, lower the
hanger ball and remove the pin, remove all 3
pieces from the downrod and assemble them onto
the new longer downrod before proceeding step 3.
(The longer downrod is available at any Home
Depot store)

6
Installing Fan to
the Electrical Box
WARNING
THE TAB AS SHOWN IN FIGURE 12 IS ONLY TO
BALANCE THE FAN WHILE ATTACHING
WIRING. FAILURE TO HANG AS SHOWN IN
FIGURE 12 MAY RESULT IN TAB BREAKING
CAUSING THE FAN TO FALL. TAB MUST PASS
FROM INSIDE TO OUTSIDE OF CANOPY.
WARNING
WHEN USING THE STANDARD BALL/ DOWN-
ROD MOUNTING. THE TAB IN THE RING MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN
THE GROOVE COULD CAUSE DAMAGE TO
WIRING.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
NOM Listed Outlet Box
Ceiling Mounting
Bracket Tab
120V
Wires
Mounting
Screws (Supplied
with Outlet Box)
Figure 11
Carefully lift the fan assembly up to the ceiling
mounting bracket and hang the fan on the tab
provided by utilizing one of the holes at the outer
rim of the ceiling canopy. (Figure 12) If use
standard mounting, seat the hanger ball in the
mounting bracket socket. Make sure the tab on
the mounting bracket socket is properly seated in
the groove in the hanger ball. (Figure 12)
4.
Pass the 120-volt supply wires through the
center hole in the mounting bracket. (Figure
11)
Install the ceiling mounting bracket on the
outlet box with the screws and washers
provided with your outlet box. (Figure 11)
When using “close-to-ceiling” mounting, it is
important that the mounting bracket be level. If
necessary, use leveling washers (not included)
between the mounting bracket and the outlet
box. Note that the flat side of the mounting
bracket is toward the outlet box. (Figure 11)
Security tighten the two mounting screws.
1.
2.
3.
Figure 12
Groove
Standard Mounting Close-to-Ceiling Mounting
Tab

7
Making the Electrical
Connections
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
WARNING
ELECTRICAL DIAGRAMS ARE FOR REFER-
ENCE ONLY. OPTIONAL USE OF ANY LIGHT
KIT SHALL BE NOM LISTED AND MARKED
SUITABLE FOR USE WITH THIS FAN.
Connect the fan motor black wire to the supply
black (hot) wire using a wire nut. (Figure 13)
Connect the blue wire for light kit to the black
household supply wire.
Turn wire nut connections upward, spreading
them apart so the green (ground) will be on one
side of the outlet box and the white, black and
blue wire will be on the other side, and push
carefully up into the outlet box.
3.
4.
5.
Connect the ground conductor of the 120V
supply (this may be a bare wire or a wire with
green colored insulation) to the green ground
lead(s) of the fan. (Figure 13) When using
standard ceiling mounting, there are two green
grounding leads; one from the ceiling mount-
ing bracket and one from the ball/downrod
assembly. When using “Flushmount Installa-
tion” mounting, there is only one green ground
lead from the ceiling mounting bracket since
the ball/downrod assembly is not used.
Connect the fan motor white wire to the supply
white (neutral) wire using a wire nut. (Figure
13)
1.
2.
REMEMBER to disconnect the power.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the wire nuts supplied with
your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or
connections.
SUPPLY CIRCUIT
Figure 13
BLACK
WHITE
BLACK
WHITE
BLUE
GREEN
Outlet Box
Ground
Conductor
Green
Ground
Lead
Ground to
Downrod
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE.

8
Finishing the Fan
Installation
Standard Ceiling Mounting
WARNING
MAKE SURE THE TAB ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
WARNING
LOCKING SLOTS OF CEILING CANOPY ARE
PROVIDED ONLY AS AN AID TO MOUNTING.
DO NOT LEAVE FAN ASSEMBLY UNATTENDED
UNTIL ALL FOUR CANOPY SCREWS ARE
ENGAGED AND FIRMLY TIGHTENED.
Slide canopy up to the ceiling as shown in Figure
14. Make sure you place the wires safely into the
outlet box. Secure the canopy to the ceiling
mounting bracket with the four screws with your
fan.
Remove the fan from the tab on the ceiling
mounting bracket. Secure the canopy to the ceiling
mounting bracket with four screws included with
your fan. (Fig. 15)
Close-to-Ceiling Mounting
Figure 14
Canopy
Outlet Box
Ceiling
Mounting
Bracket
Screws
Canopy
Outlet Box
Screws
Figure 15
Ceiling
Mounting
Bracket

9

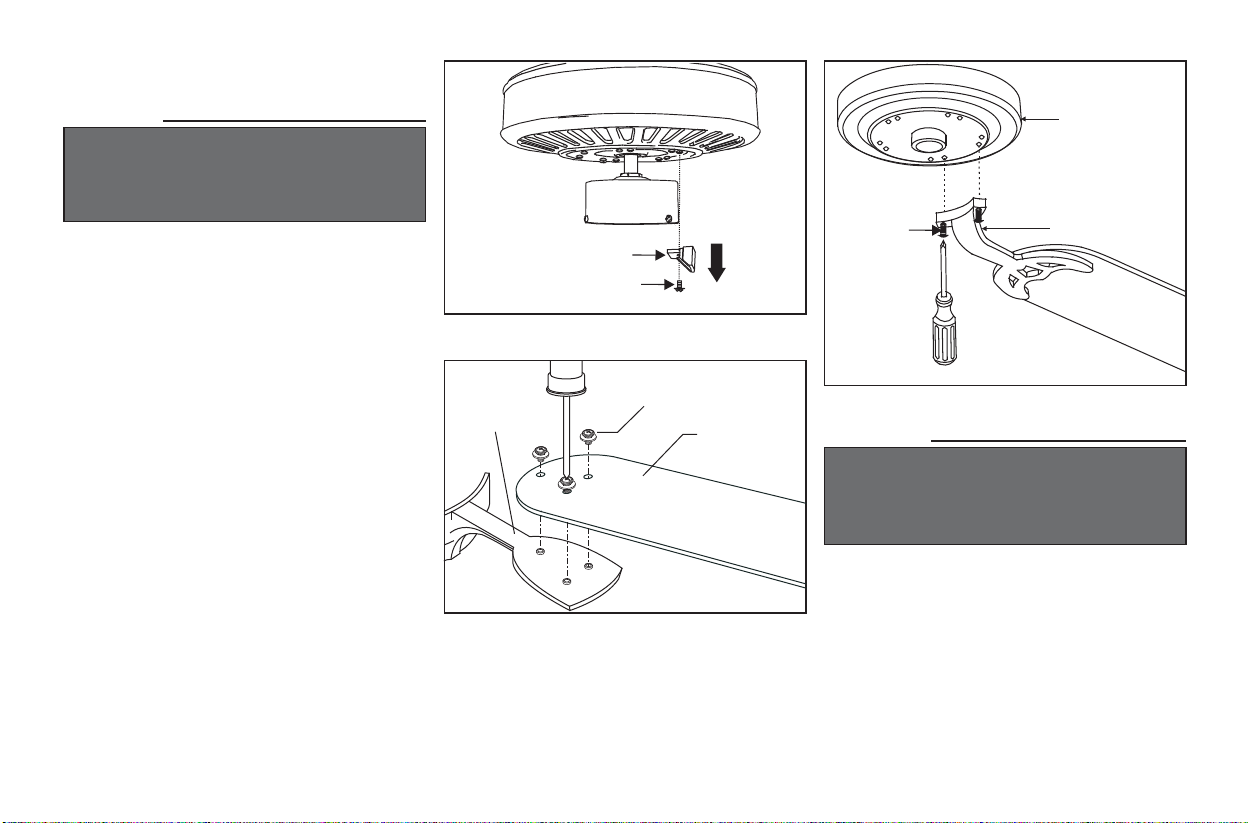

Attaching the Fan Blades
Attach blades to blade arms using three screws
with fiber washers. (Fig. 17) Start a screw into
the blade arm, do not tighten. Repeat for the 2
remaining screws and washers.
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Fasten blade assembly to motor using the
screws supplied. (Fig. 18)
1.
2.
3.
CAUTION
MOTOR IS SHIPPED WITH RUBBER PACKING
MOUNTS TO PREVENT MOVEMENT DURING
TRANSPORTATION. REMOVE MOTOR STOPS
PRIOR TO ATTACHING BLADE BRACKETS.
(FIG. 16)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Figure 18
Figure 16
Figure 17
Blade
Blade Arm
Screws with
Fiber Washers
Motor
Blade Arm
Screws
Rubber Packing Mounts
Screws

Figure 19
Touching Ceiling
Blade Balancing
Verify that all blades and blade bracket screws are secure (most fan
wobble problems are caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level
using the following process:
Select a point on the ceiling above the tip of one of the blades, then select
any fan blade and measure from the center of the selected blade to the
point on the ceiling (as shown in Figure 19). Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from
the ceiling for every blade. Measurement deviations should be within
1/8”.
If all deviations are less than 1/8” and the fan continues to wobble, please
call Customer Service (01-800-681-9321) to order a complimentary Blade
Balancing Kit.
If deviation is greater than 1/8”, please call Customer Service
(01-800-681-9321) to order complimentary replacements of your brackets.
1.
2.
-
-
-
All blades are grouped by weight during assembly. Because natural woods
vary in density, the fan may wobble even though the blades are weight
matched. The following procedure should correct most fan wobble. Check
after each step.
10

11

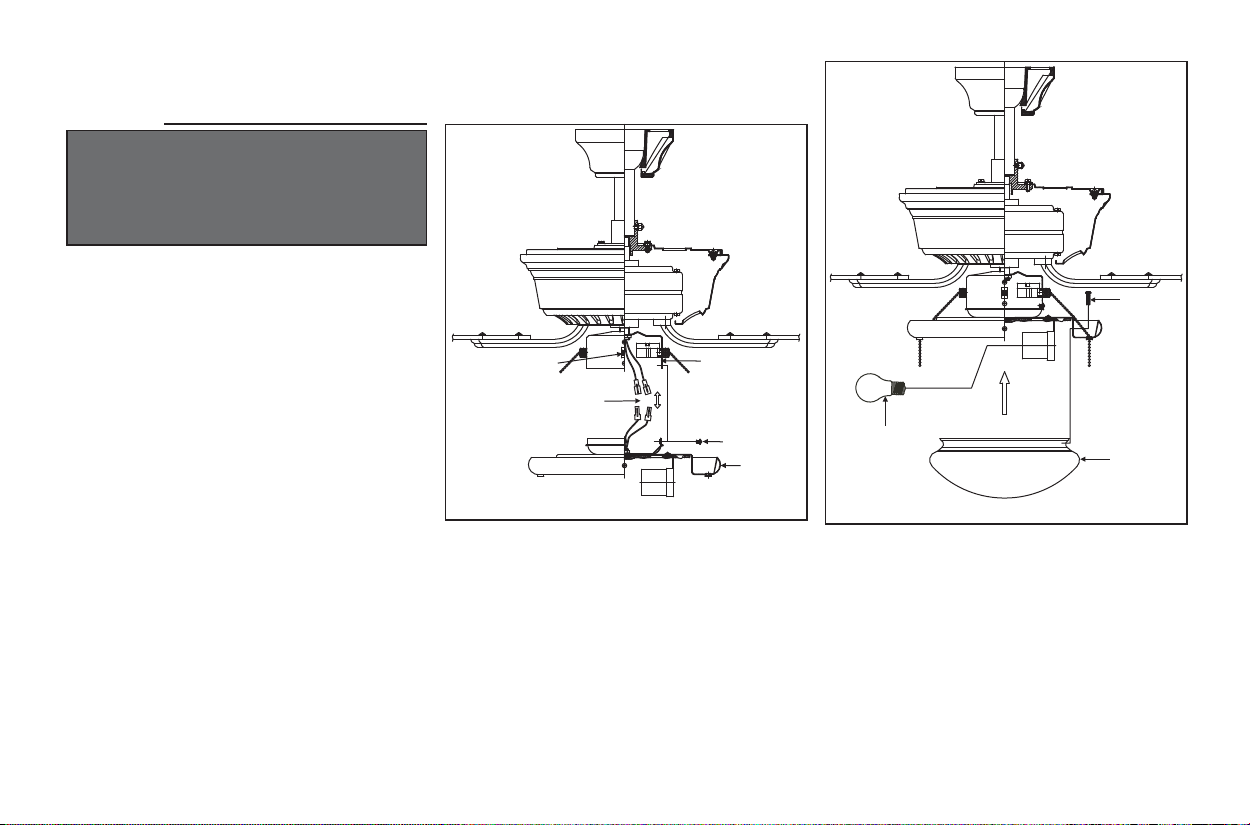

Installing the Light Kit
While holding the light kit under your fan,
locate two single white and blue wires in the
switch housing labeled FOR LIGHT. Make the
polarized plug connections:
- White to white
- Blue to black
Carefully push all wires back into the switch
housing. Attach the light kit fitter by aligning
its keyhole slots with the three screw holes and
the reverse switch on the side of the switch
housing. Tighten the three screws securely to
prevent the light kit from vibrating loose. (Fig.
20)
Install 60 watt (Max.) medium base bulb (not
included). (Fig. 21)
Mount the glass shade to the light fixture by
unscrewing partway the thumbscrews on the
glass holder, insert the glass, then gently
tighten the thumbscrews by hand evenly to the
glass. DO NOT OVER TIGHTEN. (Fig. 21)
1.
2.
3.
4.
Figure 20
Screws
Light Kit
Reverse Switch
Wire Connector
Switch
Housing
Figure 21
Glass
Shade
Thumb
Screws
Bulb
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.

12
1.
2.
3.
Disassemble the switch housing cover from the
light kit, you can keep the light kit for future
use.
Attach the plastic plug to the switch housing
cover. (Fig. 22)
Install the switch housing cover to the switch
housing with screws provided. (Fig. 22)

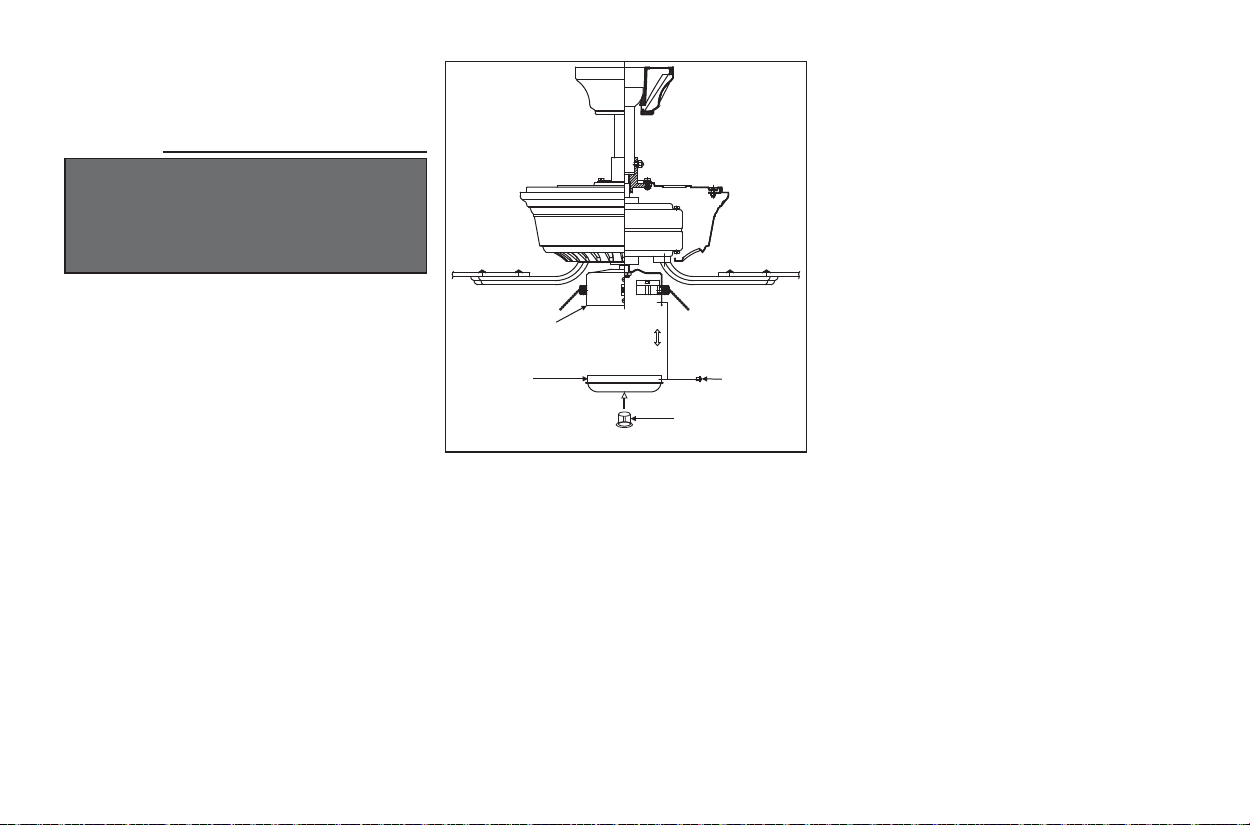

Fan without Light Kit
(Optional)
Figure 22
CAUTION
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE
AT FUSE BOX. TURNING POWER OFF USING
THE FAN SWITCH IS NOT SUFFICIENT TO
PREVENT ELECTRIC SHOCK.
Screws
Switch
housing
cover
Switch housing
Plastic plug

13
Operating Your Fan
Warm weather - (Counter Clockwise Direction)
A downward air flow creates a cooling effect as
shown in Figure 23. This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise Direction) An upward
air flow moves warm air off the ceiling are as
shown in Figure 24. This allows you to set your
heating unit on a lower setting without affecting
your comfort.
Turn on the power and check the operation of the
fan. The pull chain controls the fan speed as
follows: 1 pull - High, 2 pulls - Medium, 3 pulls -
Low and 4 pulls - Off.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, and so on.
Light kit pull chain- it controls the light kit in
"ON" or "OFF".
The slide switch controls directions: forward
(switch down) or reverse (switch up).
WARNING
LOCKING SLOTS OF CEILING CANOPY ARE
PRVIDED ONLY AS AN AID TO MOUNTING. DO
NOT LEAVE FAN ASSEMBLY UNATTENDED
UNTIL ALL FOUR CANOPY SCREWS ARE
ENGAGED AND FIRMLY TIGHTENED.
NOTE
WAIT FOR FAN TO STOP BEFORE REVERSING
THE DIRECTION OF THE BLADE ROTATION.
Figure 23
Figure 24

14
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in
the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub
is tight.
Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a
new fan disappear during this time.
If using an optional light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
1.
2.
1.
2.
3.
4.
5.
6.
7.
Fan will not start
Fan sounds noisy
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

15
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM N.W. G.W. C.F.
52” 120 7.07 kg
(15.56 lbs.)
8.33 kg
(18.36 lbs.) 2.0'
LOW
MED.
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit .
Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García,
Nuevo León, C.P. 66267. Tel. [phone]
Warranty printed on manual is not valid for Mexico
Questions, problems, missing parts?
Before returning to the store call our customer service
01-800-004-6633
0.2
0.34
0.46
10.24
28.9
53.73
56
113
153
The appliance is not to be used by persons (including
children) with reduced physical, sensory or metal capabili-
ties, or lack of experience and knowledge, unless they have
been given supervision or instruction.
Children should be supervised to ensure that they do not
play with the appliance.
CMM
37.21
88.30
120.44
