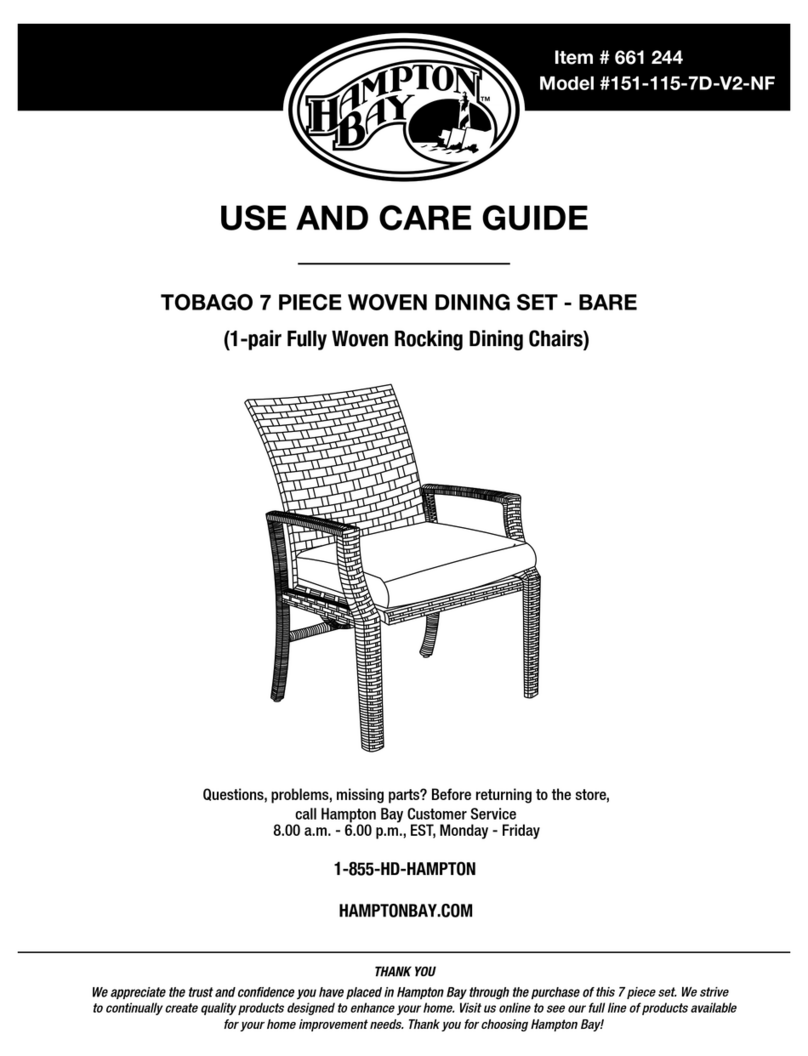

HAMPTON BAY TOBAGO 151-115-7D-V2-NF User manual

THANK YOU
USE AND CARE GUIDE
TOBAGO 7 PIECE WOVEN DINING SET -BARE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
HAMPTONBAY.COM
Item # 661 240
Model #151-115-7D-V2-NF
8.00 a.m. - 6.00 p.m., EST, Monday - Friday
1-855-HD-HAMPTON
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Hampton Bay!
7-piece set.
(Extension Dining Table)

2
Table of Contents
Safety Information
DANGER: Please keep children out of the assembly area
during assembly.
WARNING: Do not sit or stand on the table.
CAUTION:
Warranty
Table of Contents.......................................................
Safety Information......................................................
Warranty .....................................................................
Two Year Frame and Weave Limited Warranty
Pre-Assembly............................................................
Planning Assembly......................................................
Hardware Included.....................................................
Package Contents .....................................................
Assembly .................................................................
What Is Covered...........................................................
What Is Not Covered...................... .. ..............................
2
2
2
2
2
2
3
3
3
4
5
TWO YEAR FRAME AND WEAVE LIMITED WARRANTY
WHAT IS COVERED
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
s warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Before using, wipe with a clean, dry cloth. Do not use bleach or solvents. Treat frame with liquid wax for maximum protection against
UV light and salty, damp air. When not in use, store furniture in a cool, dry place. When cleaning the tabletop make sure to use a soft
clean cloth that does not bleed color. Please periodically check the tightness of bolts on the table.
You may contact our customer service department with any questions by phone at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
Do not put heavy objects on the table.
Care Instructions...... ................................................ 2
Care Instructions
................
We warrant the frame and weave to be free of manufacturing defects to the original buyer for two years.
....
IMPORTANT: You must have an umbrella base ready
before you set an umbrella in the center of the table. Failure
to do so will result in damage to the glass top.
Operation ................................................................. 7

3 HAMPTONBAY.COM
Pre-Assembly
NOTE: Hardware not shown to actual size.
Please contact 1-855-HD-HAMPTON for further assistance.
PLANNING ASSEMBLY
It will take two people about 10 minutes to complete the assembly process. Please have a rubber mallet ready before assembly.
HARDWARE INCLUDED
Part Description Quantity
Nut
Lock washer
Washer
4
AA
CC
DD
4
4
AA
BB
CC
DD
Long bolt 4
BB
EE
FF
Plastic glide 4
EE
Wrench 1
FF

4
Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity
ATable rim 1
BTable leg 4
A
B
C
D
CGlass 2
DGlass 1

5 HAMPTONBAY.COM
Assembly
1 Attaching long bolts
Please contact 1-855-HD-HAMPTON for further assistance.
□Place the table rim (A) upside down on a flat, smooth and non-abrasive surface.
Screw one long bolt (AA) firmly into each corner of the table rim (A).
□Remove the inner cartons from the table rim (A) and set them aside.
2 Attaching table legs
□At each corner of the table rim (A), attach the table legs (B) to the table rim (A) by allowing long bolts (AA) to go through the table legs (B).
□Secure the table legs (B) to the long bolts (AA) with washers (DD), lock washers (CC) and nuts (BB) using the wrench (FF).
A
AA
AA
FF
DD
CC
BB
B
B
B
BB
AA
A

6
Assembly (continued)
3 Attaching the plastic glides
□Cover the bottom of each table leg (B) with a plastic glide (EE) using a rubber mallet.
4 Placing the table glasses
□Turn the table upright.
□
EE
B
Inset the glass pieces (C and D) into the table rim (A).
C
C
D
A
□Adj ust foot glides to level the table.

77
Operation
1 Opening the table
□SLOWLY slide ONE of the bigger sections apart until you hear a click at its maximum range. The other big section will also slide apart and
the small section will rise to the same level as the big section.
2 Folding the table top
□Push the big section inward until the small section is completely covered and both big sections meet each other.
□Push the big section inward until both big secitons meet the small section and form a complete flat surface.
□Slowly slide one of the big sections apart a little until the small section begins to lower. Stop sliding outward at this critical point.
IMPORTANT: Release the locking mechanism at the beginning of this step. Lock the locking mechanism at the end of this step.
The locking mechanism is located underneath the middle of each short side.
IMPORTANT: Release the locking mechanism at the begining of this step. Lock the locking mechanism at the end of this step.
Press here to release
Press here to lock
123

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8.00 a.m. – 6.00 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
