HAMPTON BAY 237-830 User manual

INSTRUCTIONS MANUAL
HOME DEPOT SKU# 237-830 (UPC# 046335840508)
Page 1

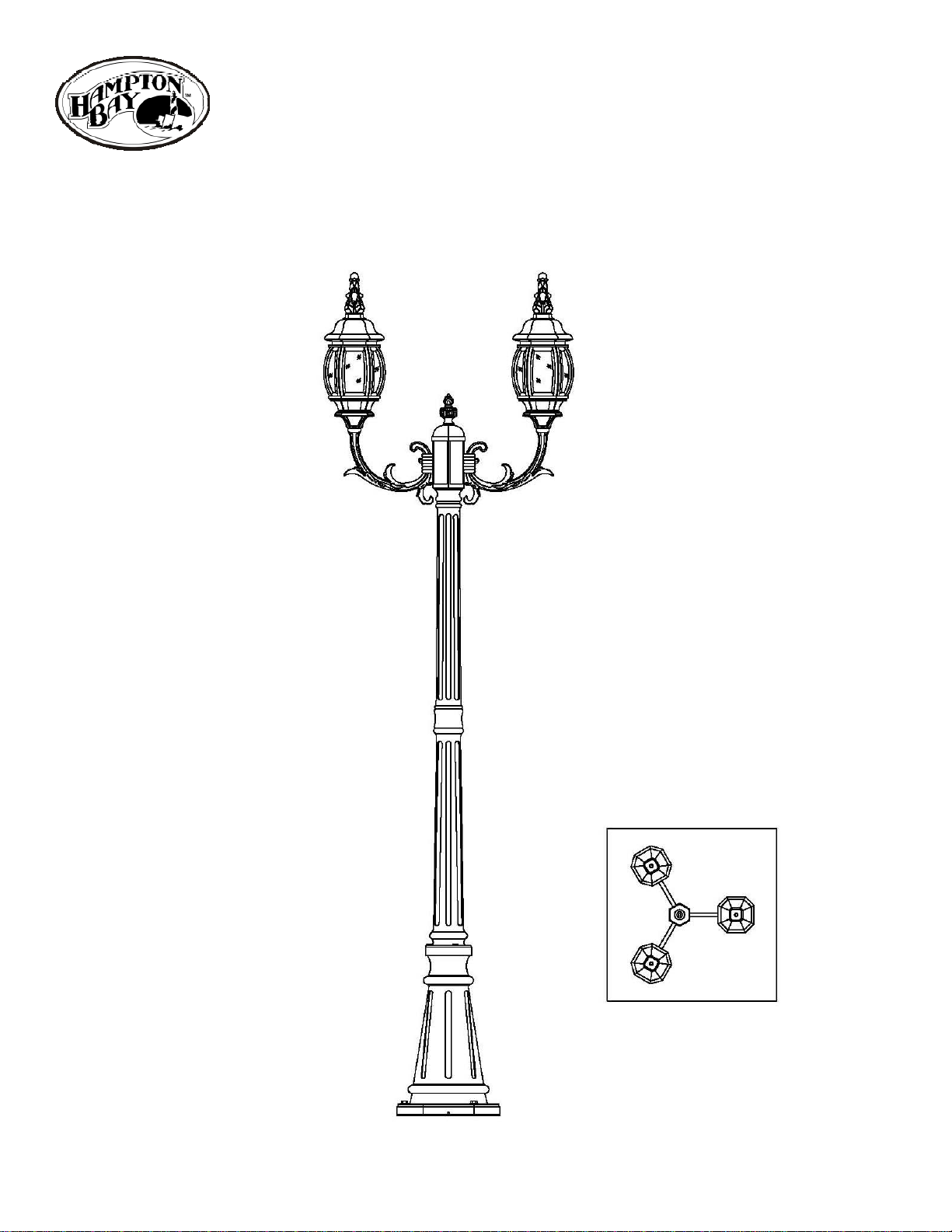

THREE-HEAD POST LANTERN

Page 2
Thank you for purchasing this Hampton Bay Three-Head Post Lantern.
This product has been manufactured with the highest standards of safety
and quality.
1. Handsome Black finish with Bent Beveled glass.
2. Solid cast aluminum resists elements.
3. For energy savings this fixture has been engineered to safely use a
Self Ballasted Compact Fluorescent Lamp in place of an incandescent
lamp.
FEATURES:
Before returning to your local Home Depot, please call our Customer
Service Team at 1-877-527-0313 or visit www.homedepot.com. Please
reference your SKU (237-830) or UPC (046335840508).
QUESTIONS, PROBLEMS, MISSING PARTS:

Page 3

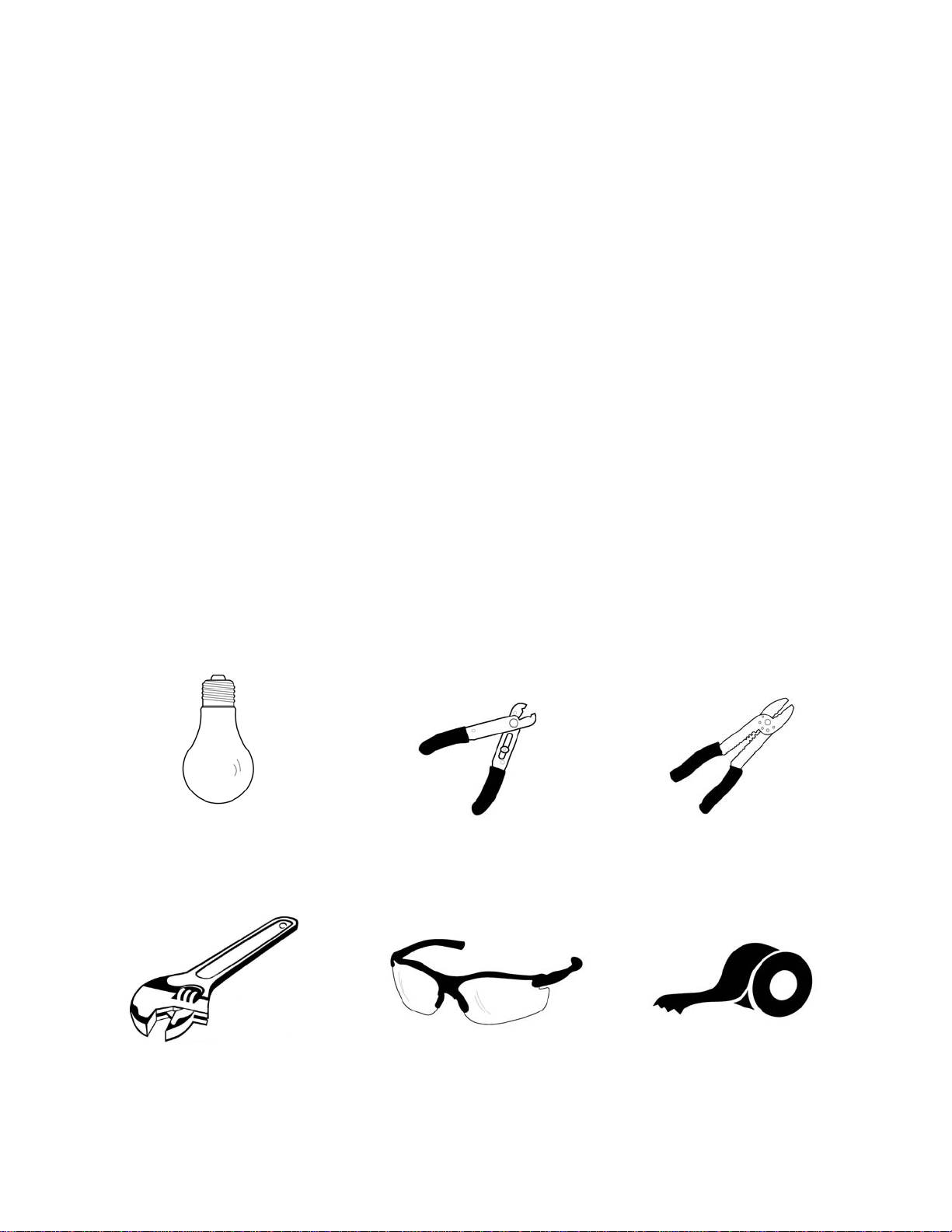

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY
(not included):
Safety
goggles
Electrical
tape
Wire
strippers
Wire
cutters
Three Light Bulbs
(100 watt maximum
or CFL equivalent)
Wrench
CAUTION:
1. Before starting installation of this fixture or removal of a previous
fixture, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.
2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY
ELECTRICAL QUESTIONS. If you have any non-electrical
questions about this fixture, please call our Customer Service Team at
1-877-527-0313 or visit www.homedepot.com. Please reference your
SKU (237-830) or UPC (046335840508).
3. KEEP your receipt and these Instructions for Proof of Purchase.

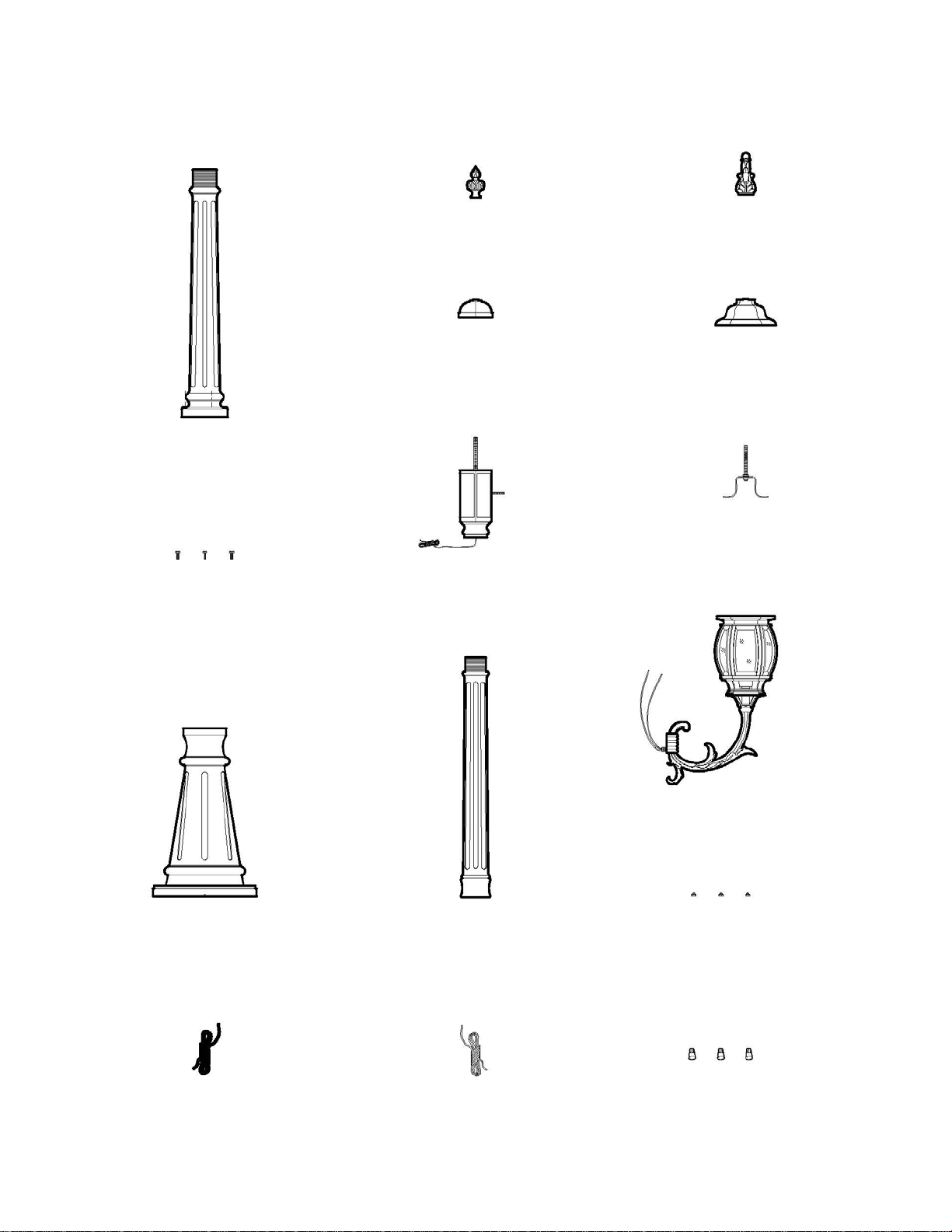

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):
Page 4
3 ea Hex Screws (#17)
3 ea Arm Assembly (#3)
1 ea Pole (#1)
1 ea Pole (#2)
1 ea Base (#16)
1 ea Top Cover (#12)
1 ea Hood
Finial (#26)
1 ea Hood (#25)
1 ea Hood Bracket (#24)
3 ea Acorn Nuts (#6)
1 ea Wire Housing
(#5)
1 ea Cover
Finial (#14)
3 ea Wire Nuts (#9)
1 Black Extension
Wire (#8) 1 White Extension Wire (#7)

ASSEMBLY INSTRUCTIONS:
1. Carefully unpack the fixture. Lay out all parts on a clean surface.

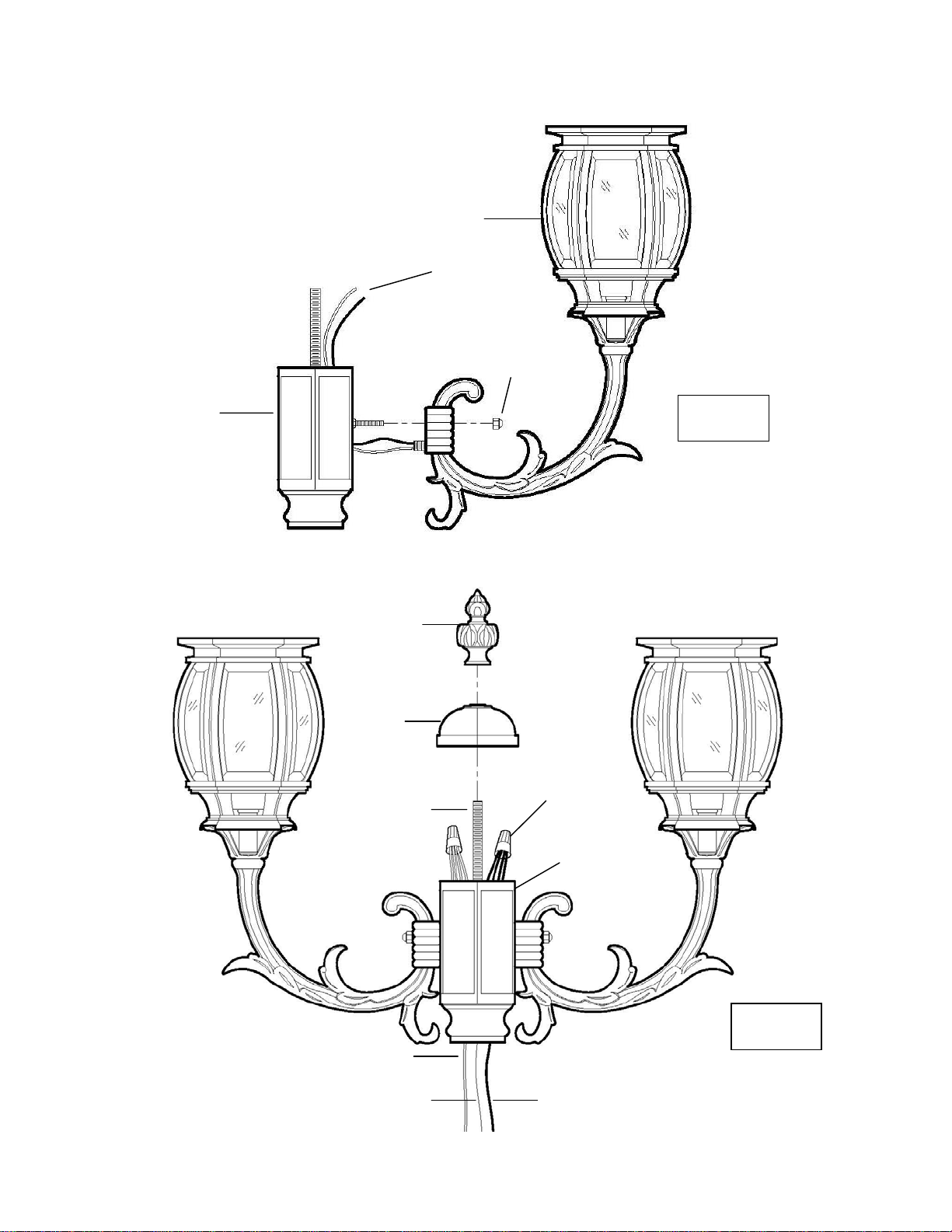

2. Feed the Wires (#4) of one Arm Assembly (#3) in through one side hole of the
Wire Housing (#5) and through its top opening. Secure each Arm Assembly
(#3) to the Wire Housing (#5) using an Acorn Nut (#6), as shown. (Fig. 1)
3. Unravel the two Extension Wires (#7 & #8). Feed the two Extension Wires
(#7 & #8) into the bottom opening of the Wire Housing (#5) through to the top
opening. (Fig. 2)
4. Using the provided Wire Nuts (#9), make wire connections between the White
Extension Wire (#7) and the White Arm Assembly Wires (#10) and between
the Black Extension Wire (#8) and the Black Arm Assembly Wires (#11), as
shown. Wrap each wire connection with 2” of electrical tape. (Fig. 2)
5. Slide the Top Cover (#12) onto the Threaded Pipe (#13) and onto the Wire
Housing (#5). Thread the Cover Finial (#14) onto the Threaded Pipe (#13) to
secure the Top Cover (#12). (Fig. 2)
6. Unravel and extend the Fixture Ground Wire (#15) of the Wire Housing (#5).
(Fig. 2)

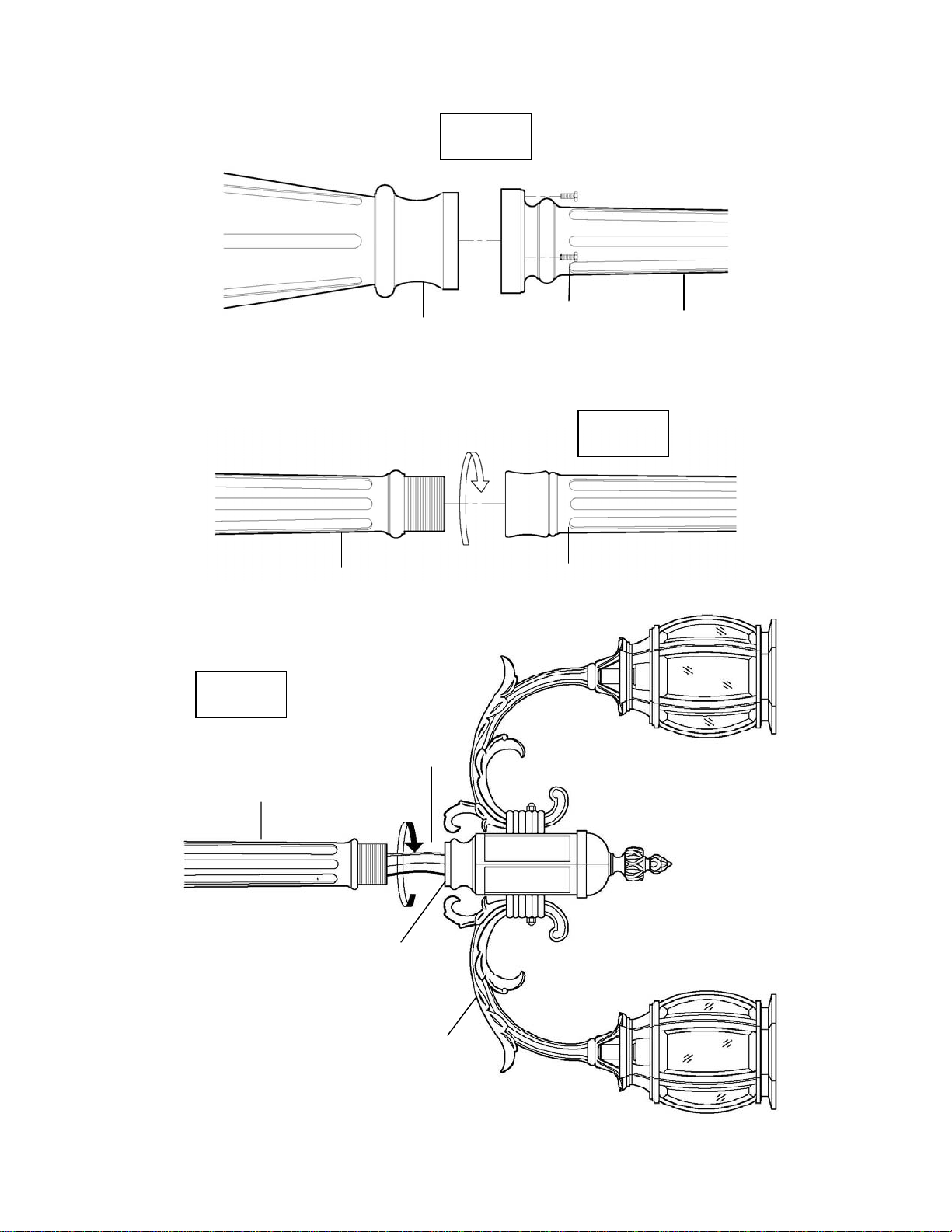

7. Attach Pole (#2) to the Base (#16) using the provided Hex Screws (#17). (Fig.
3)
8. Thread Pole (#1) onto Pole (#2). (Fig. 4)
9. Feed the Wires (#7, #8 & #15) of the Three-Head Lantern Assembly (#19)
through the entire Pole/Base Assembly (#20) to the bottom opening. Screw
the Pole/Base Assembly (#20) into the Wire Housing (#5) of the Three-Head
Lantern Assembly (#19). (Fig. 5 & 6)
Page 5

10. Wrap the Fixture Ground Wire (#15) around the Ground Screw (#21).
Tighten the Ground Screw (#21). (Fig. 6)
11. Proceed to the Installation Instructions.
12. Install an incandescent Light Bulb (#22) or a Listed SBCFL (Self-Ballasted
Compact Fluorescent Lamp [not provided]) into the socket of each Cage
(#23). Do not exceed a 100 watt incandescent light bulb, or a 26 watt
SBCFL. (Fig. 7)
13. Twist a Hood Bracket (#24) into the provided slots of each Cage (#23), as
shown. Slide a Hood (#25) onto each Hood Bracket (#24) and Cage (#23).
Secure each Hood using a Hood Finial (#26). (Fig. 8)
ASSEMBLY INSTRUCTIONS (CONT.):
Page 6

ASSEMBLY:
3. Arm Assembly
Page 7
4. Wires
5. Wire Housing
6. Acorn
Nut
7. White Extension Wire
8. Black Extension Wire
9. Wire
Nut
Fig. 1
Fig. 2
15. Fixture Ground
Wire
12. Top
Cover
14. Cover
Finial
13. Threaded
Pipe 5. Wire
Housing

ASSEMBLY (CONT.):
2. Pole
16. Base 17. Hex
Screws
2. Pole 1. Pole
Fig. 3
Fig. 4
Fig. 5
Wires
19. Three-Head
Lantern
Assembly
Page 8
20. Pole/Base Assembly
5. Wire Housing

ASSEMBLY (CONT.):
Fig. 6
16. Base
15. Fixture
Ground Wire
7. White Extension
Wire
8. Black
Extension Wire
Fig. 7
22. Light Bulb
23. Cage
24. Hood
Bracket
25. Hood
26. Hood
Finial
Fig. 8
23. Cage
21. Ground
Screw
Page 9

Page 10

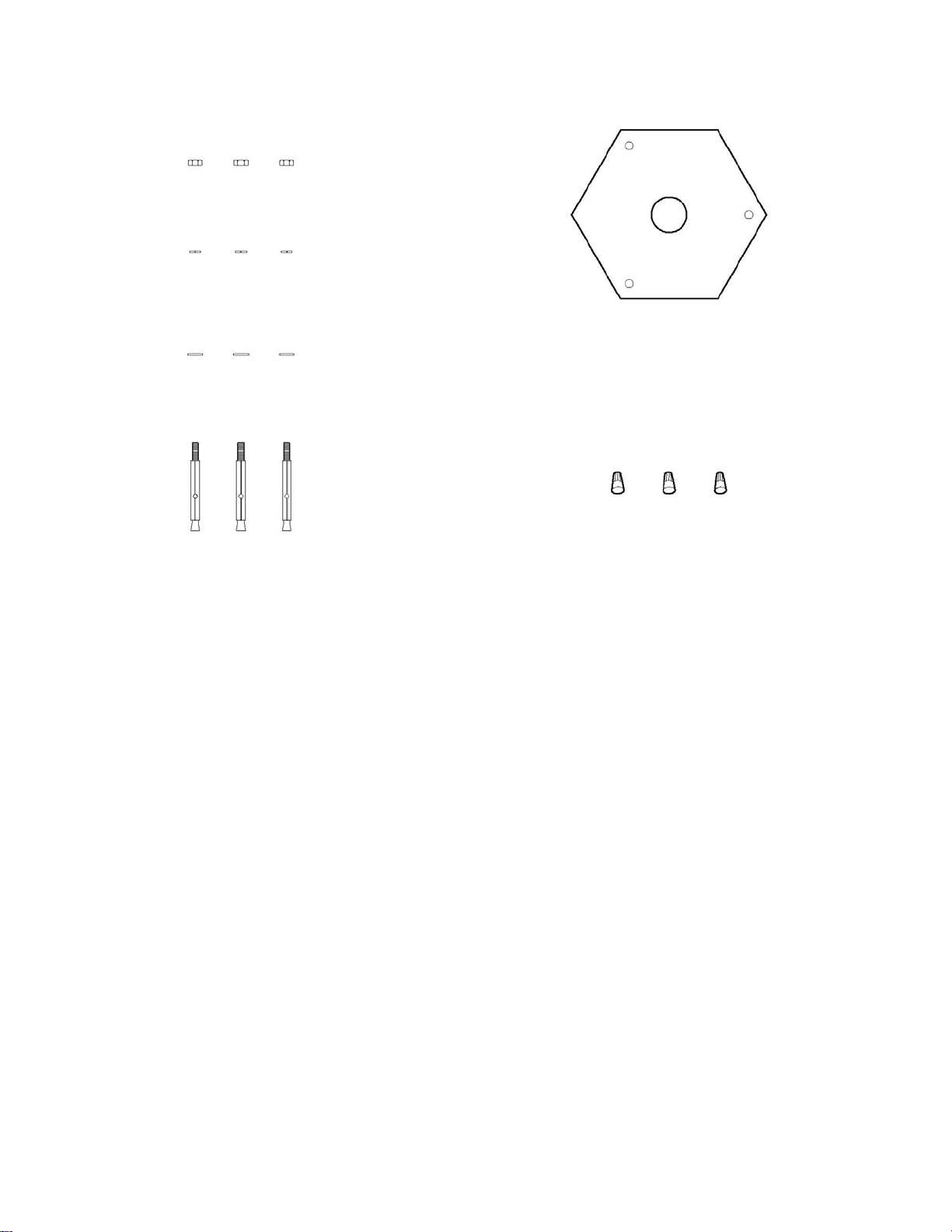

PARTS INCLUDED FOR INSTALLATION (parts are not to
scale):
INSTALLATION INSTRUCTIONS:
1. Select the desired installation location. Run supply wires from the breaker
panel to the desired location and prepare the concrete surface. (If you are
unfamiliar with proper electrical practices, obtain services of a qualified
electrician.) When preparing the concrete surface, be sure that the Wire
Conduit (#27), protecting the supply wires, extends 1/2” above the Concrete
Surface (#28) to prevent any runoff from entering. Using the provided
Template (#29), mark the locations for the mounting holes. At the marked
locations, drill ½” diameter Holes (#30) approximately 3” deep. Do not
exceed a 3” depth. (Fig. 9)
2. Insert the Anchors (#31) into the Holes (#30). (Fig. 10)
3. Using the provided Wire Nuts (#9), make the following wire connections (Fig.
11):
White Extension Wire (#7) to White (Neutral) Supply Wire (#33)
Black Extension Wire (#8) to Black (Hot) Supply Wire (#34)
Fixture Ground Wire (#15) to Supply Ground Wire (#35)
3 ea Wire Nuts (#9)
3 ea Anchors (#31)
3 ea Flat Washers (#36)
3 ea Lock Washers (#37)
3 ea Hex Nuts (#38)
1 ea Template (#29)

INSTALLATION INSTRUCTIONS (CONT.):
4. Wrap all wire connections with electrical tape for a more secure connection.
Note: If you have electrical questions, consult your local electrical code for
approved grounding methods.
5. Slide the Base (#16) onto the Anchors (#31). (Fig. 12)
6. Slide a Flat Washer (#36) and a Lock Washer (#37) (in that order) onto each
Anchor (#31). Thread a Hex Nut (#38) onto each Anchor (#31) to secure the
Base to the ground. (Fig. 12)
7. Proceed to Step 12 of the Assembly Instructions.
8. Installation is complete. Turn on power at the circuit breaker or fuse box.
Turn the light switch on to activate the fixture.
Page 11

INSTALLATION:
8. Black Extension Wire
34. Black (Hot) Supply Wire
35. Supply Ground Wire
9. Wire Nut
7. White Extension Wire
33. White (Neutral) Supply
Wire
15. Fixture Ground Wire
Fig. 9
27. Wire
Conduit
28. Concrete
Surface 30. Hole
Fig. 10
30. Hole
31. Anchor
Fig. 11
Page 12

Fig. 12
INSTALLATION (CONT.):
16. Base
31. Anchor
36. Anchor
37. Lock Washer
38. Hex Nut
Page 13

Page 14
Possible Cause Corrective Action
1. Power is off. 1. Make sure power supply is on.
2. Faulty switch. 2. Test or replace switch.
3. Faulty wire connection. 3. Check wiring.
Fuse blows or circuit breaker
trips when light is turned on. 1. Crossed wires or power wire is grounding out. 1. Check wire connections.
Lights will not turn on.
TROUBLESHOOTING:
PRODUCT MAINTENANCE:
1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean
water, never a solvent) to wipe the surface of the fixture.
2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the
circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly
dampened clean cloth (use clean water, never a solvent) to wipe the interior surface of the
fixture.
3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft
cloth to dust or wipe carefully.
LIMITED WARRANTY
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a
period of three (3) years from date of purchase. This warranty applies only to the original consumer
purchaser and only to products used in normal use and service. If this product is found to be defective, the
manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of of the product at
the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse,
accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product
that is found to have been improperly installed, set-up, or used in any way not in accordance with the
instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of
an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to
faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product,
such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not
warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a
particular purpose, other than the warranty contained herein. The manufacturer specifically
disclaims any liability and shall not be liable for any consequential or incidental loss or damage,
including but not limited to any labor/expense costs involved in the replacement or repair of said
product.

MANUAL DE INSTRUCCIONES
HOME DEPOT SKU# 237-830 (UPC# 046335840508)
Page 15
FAROL DE POSTE CON TRES CABEZAS

Gracias por comprar este Farol de Poste con Tres Cabezas de Hampton
Bay. Este producto ha sido fabricado con las normas más altas de
seguridad y calidad.
1. Hermoso acabado en negro con vidrio biselado doblado.
2. Su sólida estructura de aluminio fundido resiste a los elementos.
3. Con fines de ahorro de energía, este luminario ha sido diseñado para
usar de manera segura un foco fluorescente compacto con balasto
integrado en lugar de un foco incandescente.
CARACTERÍSTICAS:
Antes de regresar el producto a su Home Depot, llame a nuestro Equipo
de Servicio al Cliente al 1-877-527-0313 o visite www.homedepot.com.
Dé como referencia el SKU (237-830) o UPC (046335840508).
PREGUNTAS, PROBLEMAS, PARTES FALTANTES:
Page 16

HERRAMIENTAS REQUERIDAS PARA LA INSTALACIÓN Y
EL ENSAMBLAJE (no incluidas):
Gafas de
seguridad
Cinta de
aislar
PelacablesPinzas
para
cables
Tres focos (100 W
máximo o CFL
equivalente)
Llave
ajustable
PRECAUCIÓN:
1. Antes de iniciar la instalación de este luminario o la remoción de un
luminario anterior, desconecte la energía eléctrica al apagar el
disyuntor de circuitos o al quitar el fusible en la caja de fusibles.
2. CONSULTE A UN ELECTRICISA CALIFICADO SI TIENE
DUDAS CON LAS CONEXIONES ELÉCTRICAS. Si tiene
preguntas acerca de este luminario, que no estén relacionadas con las
conexiones eléctricas, llame a nuestro Equipo de Servicio al Cliente
al 1-877-527-0313 o visite www.homedepot.com. Dé como referencia
su SKU (237-830) o UPC (046335840508).
3. CONSERVE su recibo y estas Instrucciones como comprobante de
compra.
Page 17

PARTES INCLUIDAS PARA EL ENSAMBLAJE (las partes no se
muestran a escala):
3 Tornillos
hexagonales (#17)
3 Ensamblaje del brazo (#3)
1 Poste (#1)
1 Poste (#2)
1 Base (#16)
1 Cubierta superior
(#12)
1 Punta para la
capota (#26)
1 Capota (#25)
1 Ménsula para la capota
(#24)
3 Tuercas ciegas (#6)
1 Carcasa para
cables (#5)
1 Punta para la
cubierta (#14)
3 Tuercas para cables
(#9)
1 Extensión negra
(#8) 1 Extensión blanca (#7)
Page 18

INSTRUCCIONES DE ENSAMBLAJE:
1. Desempaque el luminario con cuidado. Coloque todas las partes sobre una
superficie limpia.
2. Pase los cables (#4) de un ensamblaje de brazo (#3) por un agujero lateral de
la carcasa para cables (#5) y a través de su abertura superior. Asegure cada
ensamblaje de brazo (#3) a la carcasa para cables (#5) utilizando una tuerca
ciega (#6), como se muestra (Fig. 1).
3. Desenrolle las dos extensiones (#7 y #8). Pase las dos extensiones (#7 y #8)
por la abertura inferior de la carcasa para cables (#5) a través de la abertura
superior (Fig. 2).
4. Con las tuercas para cables que se incluyen (#9), realice las conexiones de
cables entre la extensión blanca (#7) y los cables del ensamblaje del brazo
blanco (#10) y entre la extensión negra (#8) y los cables del ensamblaje del
brazo negro (#11), como se muestra. Envuelva cada conexión de cables con 2”
de cinta de aislar (Fig. 2).
5. Deslice la cubierta superior (#12) en el tubo roscado (#13) y la carcasa para
cables (#5). Enrosque la punta de la cubierta (#14) en el tubo roscado (#13)
para asegurar la cubierta superior (#12) (Fig. 2).
6. Desenrolle y extienda el cable a tierra del luminario (#15) de la carcasa de
cables (#5) (Fig. 2).
7. Fije el poste (#2) a la base (#16) utilizando los tornillos hexagonales que se
incluyen (#17) (Fig. 3).
8. Enrosque el poste (#1) en el otro poste (#2) (Fig. 4).
9. Pase los cables (#7, #8 y #15) del ensamblaje del farol con tres cabezas (#19)
por todo el ensamblaje del poste/base (#20) hasta la abertura inferior.
Enrosque el ensamblaje del poste/base (#20) en la carcasa para cables (#5) del
ensamblaje del farol con tres cabezas (#19) (Fig. 5 y 6).
Page 19

10. Envuelva el cable a tierra del luminario (#15) alrededor del tornillo de tierra
(#21). Apriete el tornillo de tierra (#21) (Fig. 6).
11. Continúe con las Instrucciones de instalación.
12. Instale un foco incandescente (#22) o un foco fluorescente compacto con
balasto integrado (SBCFL) [no incluido]) en el portafocos de cada jaula
(#23). No exceda de un foco incandescente de 100 W o un SBCFL de 26 W
(Fig. 7).
13. Gire la ménsula para la capota (#24) en los agujeros provistos en cada jaula
#23), como se muestra. Deslice la capota (#25) en cada ménsula para capota
(#24) y jaula (#23). Asegure cada capota utilizando una punta para capota
(#26) (Fig. 8).
INSTRUCCIONES DE ENSAMBLAJE (CONTINUACIÓN):
