HAMPTON BAY SKU 414-713 User manual

1
INSTRUCTION MANUAL
Solar Post Lantern
Home Depot SKU 414-713 (UPC 609839462401)
Français P.6
Español P.11

2
Thank you for the purchase of your new solar lamp. We take great pride in providing you a
superior quality ecologically friendly solar lamp. Contained in this instruction sheet are some
simple steps to gain the most enjoyment and longevity from your solar lamp.
FEATURES:
1. Durable cast-aluminum outdoor construction and attractive age-iron finish for all weather.
2. Provided with 23 warm white LEDs in up to 100+ lumens high output.
3. Seedy textured glass creates a diffused effect when illuminated.
4. Includes Lithium Phosphate Rechargeable Battery.
5. Perfect for Installing near driveways, pathways, decks, gardens, and outdoor living spaces.
6. Fits 3-inch diameter round poles and pier base.
QUESTIONS, PROBLEMS, MISSING PARTS:
Should you experience problems with your solar post lantern, before returning to your local
Home Depot, please contact a Customer Service representative at CustomerService@Creative-
prc.us or 830-249-1200. Please reference your SKU 414-713 Solar Post Lantern when
speaking to a Customer Service representative.
TOOLS REQUIRED FOR INSTALLATION:
CAUTION:
Your solar light may not function in temperature below -4ºF(-20ºC) or above 140ºF(60ºC).

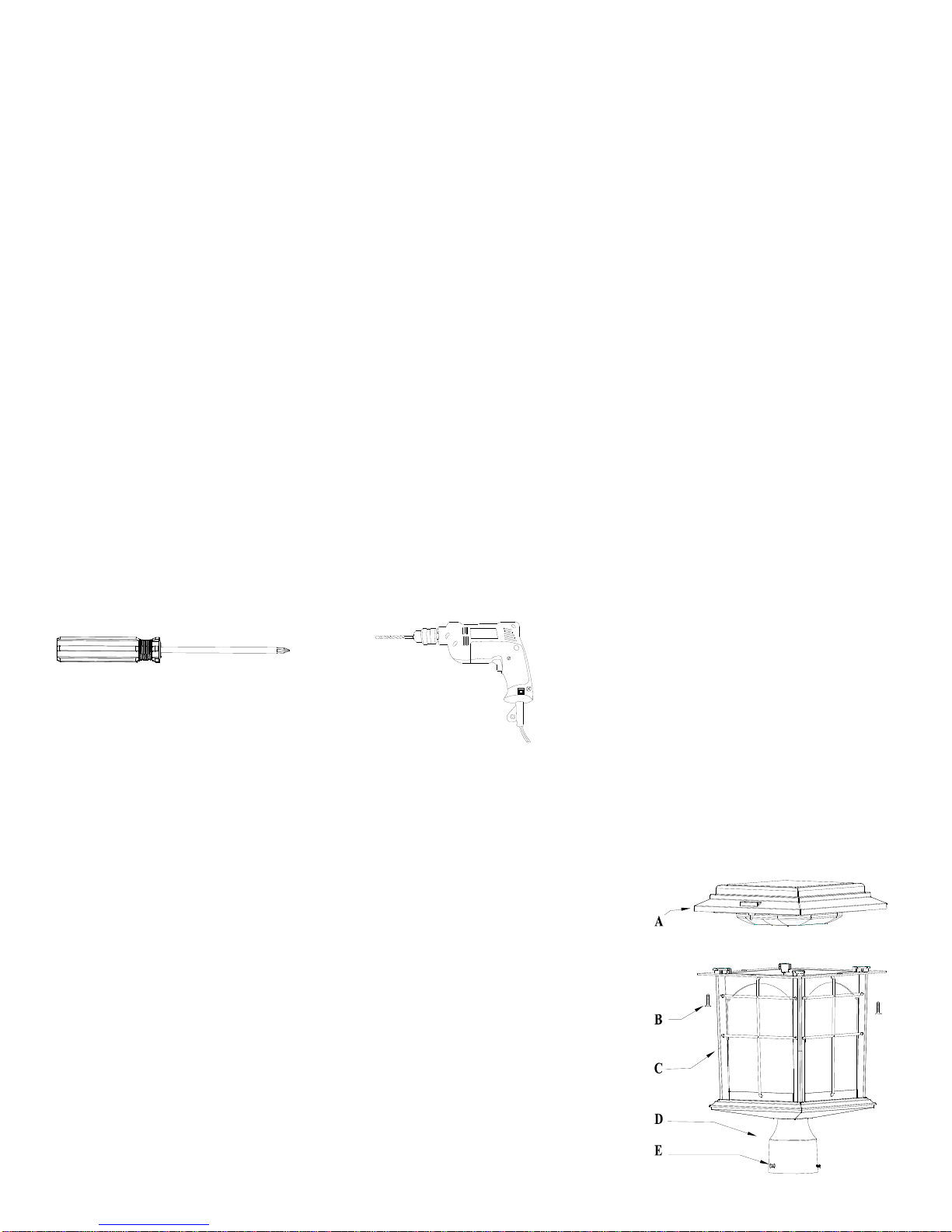

PARTS INCLUDED FOR ASSEMBLY / INSTALLATION:
Before starting to assemble your solar post lantern, make sure all
parts are present as shown on part list and diagram. If there are
missing or damaged parts, please contact a Customer Service
representative at [e-mail] or
830-249-1200.
A. Top Cap Assembly (1)
B. Lock Screw (2)
C. Housing (1)
D. Mounting Collar (1)
E. Set Screw (3)
Screwdriver
er
Drill

3
CHARGING INSTRUCTIONS:
All solar-powered lighting requires a sufficient amount of sunlight to recharge the battery(s).
Solar lighting performance is based on the amount of sunlight received during the day. Your
Solar Light can run up to 10 hours when fully charged. Place your solar light in an area which
is free from cover, shade or shadow. Note that if it is placed in a shaded area, the performance
may be dramatically reduced. In winter months or on cloudy days, the time required to fully
charge the battery(s) will increase.
BATTERY CARE INSTRUCTIONS:
Use one 26650 Lithium Phosphate (LiFePO4), 3000mAh, 3.2V rechargeable battery. For best
performance, replace with rechargeable 3.2V LiFePO4 battery every 3 years or when
performance diminishes. Refer to the following steps and the illustration provided to replace
battery.

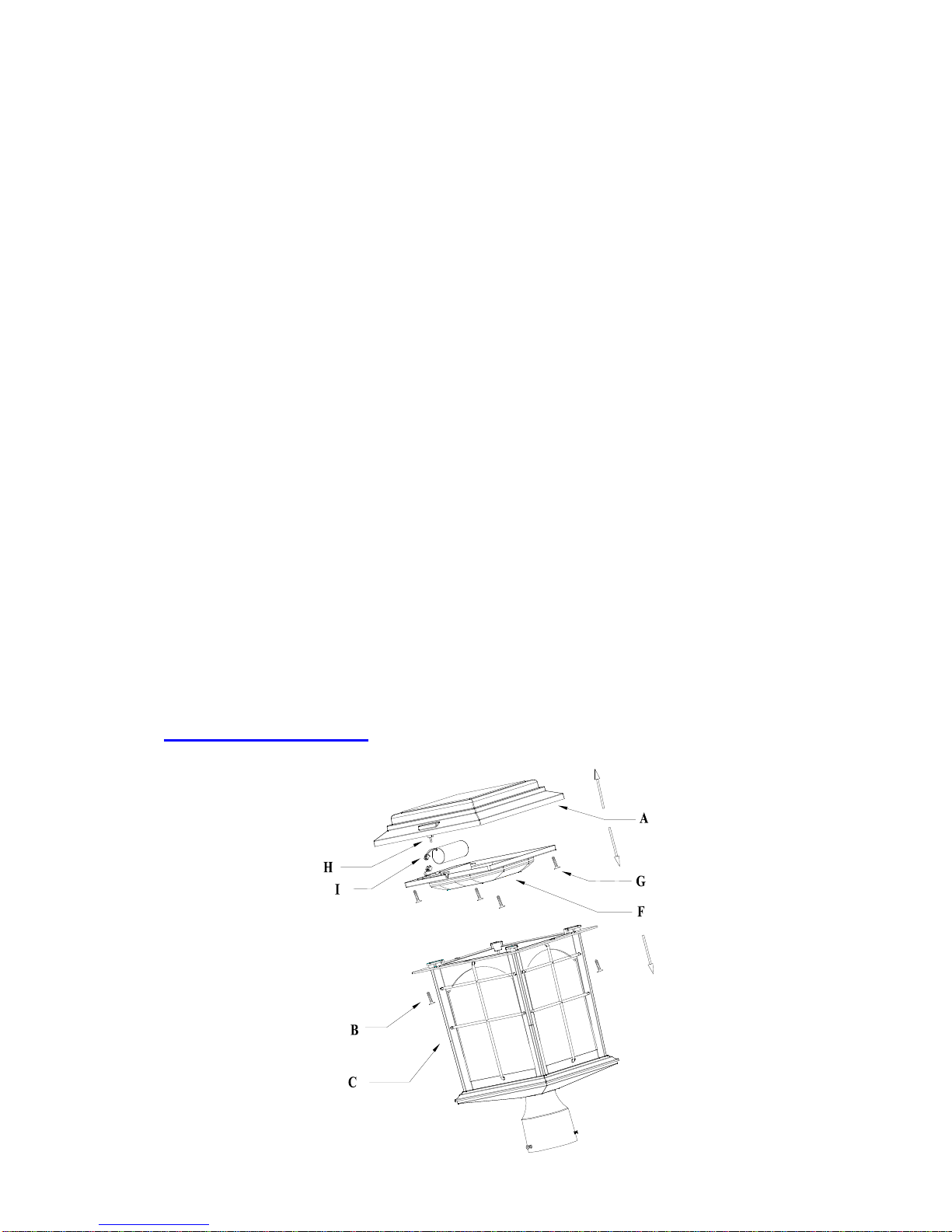

1. Loosen 2 lock screws (B), remove top cap assembly (A) from housing (C).
2. Remove battery cover plate (F) from top cap assembly (A) by loosening 4 screws (G) as
shown on diagram below. NOTE: To reduce the risk of damage to electrical connections,
exercise caution when separating the battery cover plate (F) from the top cap assembly (A).
3. Disconnect the wire connection of battery lead (I) and remove the old battery from battery
compartment located on battery cover plate (F) as shown on diagram below. Replace with a
new 26650 LiFePO4, 3000mAH, 3.2V rechargeable battery pack.
4. Reassemble battery cover plate (F) and top cap (A), with screws (B & G).
IMPORTANT: Use Rechargeable Battery only. Battery(s) must be recycled or disposed
of properly. Replacement battery Model 46240-000RB is available at www.creative-prc.us
or by emailing [e-mail].

4
ASSEMBLY / INSTALLATION INSTRUCTIONS:

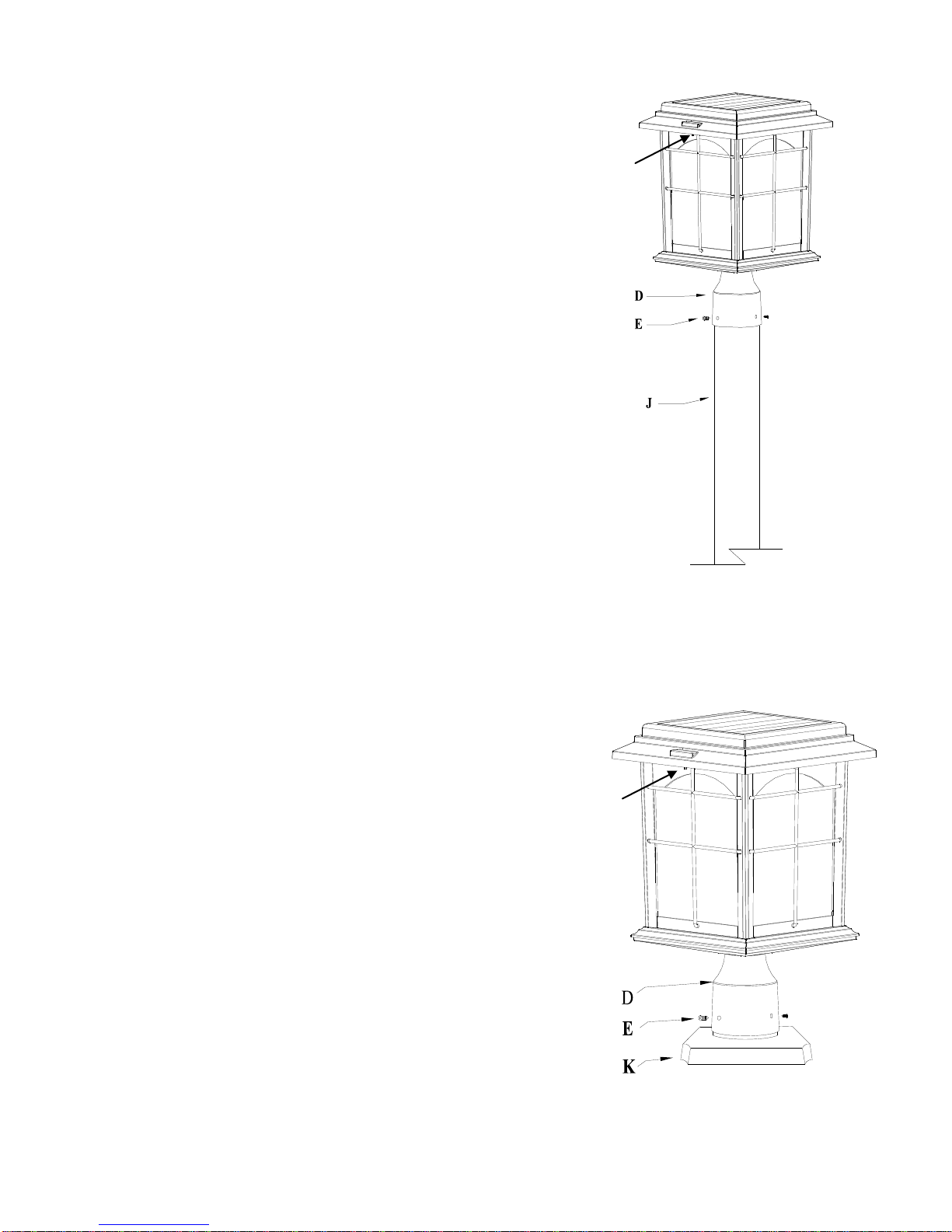

Assembly / Installation for Post Mounting:
1. Place mounting collar (D) of post lantern over
the top of 3-inch diameter pole (J) (sold
separately).
2. Tighten 3 set screws (E) against pole.
3. Alternative Securement: Remove set screws
(E) and mark hole locations with marker. Drill
holes in pole and secure mounting collar by
screwing set screws into holes drilled into pole.
4. Set switch (H) located on the bottom plate
under top cap to AUTO position and allowed to
charge a full sunny day. The AUTO position
automatically turns the unit ON at dusk.
Assembly / Installation for Surface Mounting:
1. Place mounting collar (D) of post lantern onto the
fixed 3-inch diameter pier base (K) (sold
separately).
2. Secure mounting collar (D) to pier base (K) with
3 set screws (E).
3. Alternate Securement: Refer to Step 3 of Post
Mounting instructions.
4. Set switch (H) located on the bottom plate under
top cap to AUTO position and allowed to charge a
full sunny day. The AUTO position automatically
turns the unit ON at dusk.
5.
H
H

5
PRODUCT MAINTENANCE:
1. Remove the plastic film on the solar panel before using. The solar panel should be cleaned
periodically with a damp cloth to help maintain optimum performance.
2. Do not use any cleaners with chemicals, solvents or harsh abrasives.
3. When storing any solar product for an extend period of time, be sure to remove the batteries.
Storing any solar product without regular recharge or removal could cause permanent
damage to the rechargeable batteries.
TROUBLESHOOTING:
FREQUENT ASKED
QUESTIONS
ANSWERS
Light(s) not ON or
Light(s) Flashing or
Blinking On/Off
a) Make sure unit is placed under direct sunlight to charge
and not in a shaded or partially shaded area.
b) Prior to use, for units with an AUTO/OFF switch, check
that the unit has been set to AUTO (or ON) position and
allowed to charge a full sunny day. The AUTO position
automatically turns the unit ON at dusk. For units without
an AUTO/OFF switch, remove battery isolator tag and
allowed to charge a full sunny day.
c) Your solar light is equipped with a photosensor that
shuts the light off during the day. If the solar light is
placed too close to another light source, it may detect the
light and prevent the unit from turning on. Avoid placing
the solar light near other light sources.
d) For best performance, replace with rechargeable 3.2V
LiFePO4 battery every 3 years or when performance
diminishes. The 26650 LiFePO4, 3000mAH, 3.2V
rechargeable battery Model 46240-000RB is available at
www.creative-prc.us, [e-mail], or
by phone at 830-249-1200.
Will rain or sprinklers
damage my solar lights?
Your solar lights are designed for outdoor use in all
climates. Rain and sprinklers will not damage your solar
lights.
Why do my solar lights
seem to be on shorter in
the winter months?
The normal charging time for solar lights is decreased in
the winter months due to the shorter days and longer
nights. Expect your solar light performance to diminish in
the winter months.
