C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 2
CAUTION: DO NOT ATTEMPT TO USE THIS EQUIPMENT
WITHOUT FIRST UNDERSTANDING THE CONTENTS OF
THIS MANUAL.
Introduction
Overview of C1000 lift system
Before using this equipment, and to ensure the safe operation of your C1000 lift, carefully read this entire
manual, especially the section on “Cautions”. The C1000 is designed to be used in conjunction with Handi-
care lift track, accessories and slings. Please refer to any user guides supplied with these components and refer
to them while reviewing this manual.
Should any questions arise from reviewing this manual contact your local authorized Handicare dealer. Failure
to comply with warnings in this manual may result in injury to either the operator, or the individual being lift-
ed/transferred. Damage to the lift and/or related components may also occur. Be sure that the contents of this
manual are completely understood prior to using this piece of equipment.
Store this manual with the documents included with the lift system and sling (s). Contents of this manual are
subject to change without prior written notice.
The C1000 is a lifting aid used by health care professionals and those providing care in the home to lift, posi-
tion and transfer clients or a disabled family member. The C1000 lift is part of what is termed ceiling lift tech-
nology which takes advantage of lifting from above and not from below or the side. Additionally the ceiling
lift does not take up valuable floor space as most traditional methods do. Finally, the ceiling lift makes it possi-
ble to move mobility impaired individuals with minimal strain or risk to the caregiver, while providing com-
plete safety, dignity and comfort for the client or family member.
The C1000 lift is one of three major components that make up this technology. The other two components are
the track and sling. The C1000 lift runs on the lift track which is securely mounted to the ceiling structure of
the institution, or home with the use of ceiling brackets. The track itself is made of specially designed alumi-
num and comes in many different shapes, lengths and configurations, and is custom tailored and installed to
meet your specific requirements. The third component, the sling, is a specially designed fabric accessory that
attaches to the lift by means of a carry bar and straps, and holds an individual while the lift, positioning or
transfer takes place. Both the track and sling are generally supplied with the lift at the initial time of purchase.
Please refer to any user guides supplied with the C1000 lift and reference them while reviewing this manual.
The C1000 is a fixed ceiling lift, that is, it always remains on the lift track. It has the ability to lift an individu-
al up from one location such as bed, move the individual along the track to another location and
finally lower the individual into a chair or bath. It is moved along the track in one of two ways. The first is by
manually moving the lift along the track with the aid of a caregiver. The second is by having the lift power it-
self along the track. The functions of lifting up or down, or moving to the left or right, are accomplished by
pressing buttons of a pneumatically (air) operated hand control. The hand control is attached to the lift by way
of a rubber airline tubing. Due to the design of the lift system, it takes very little effort to press a button to per-
form the desired motion.
Please refer to figures 1A and 1B to see sample floor plans of an installed lift system. Refer to figures 2A and
2B to familiarize yourself with the components of the C1000 lift. Figures 3A and 3B show the underside view
of the lift as it would be seen by an operator.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 3
Components of lift system

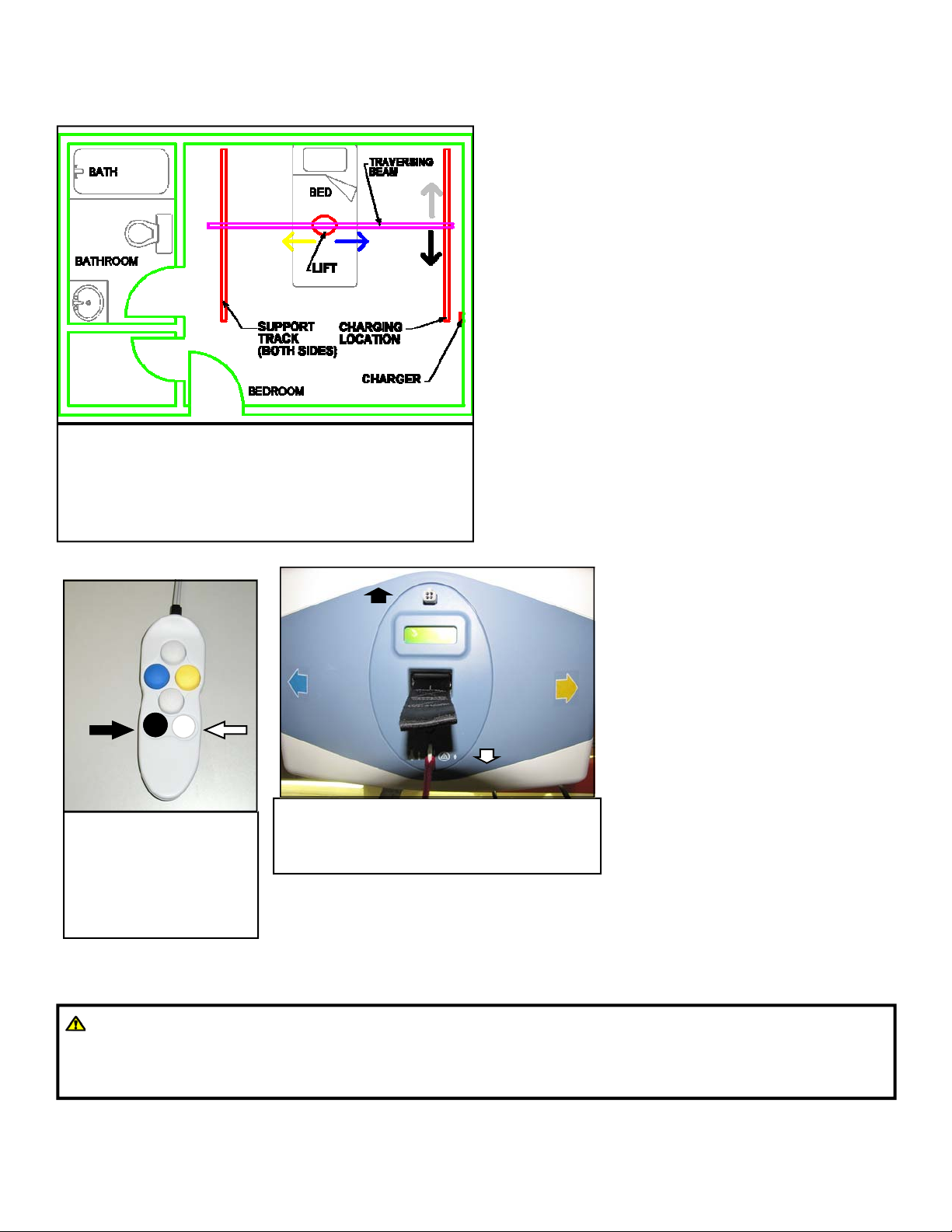

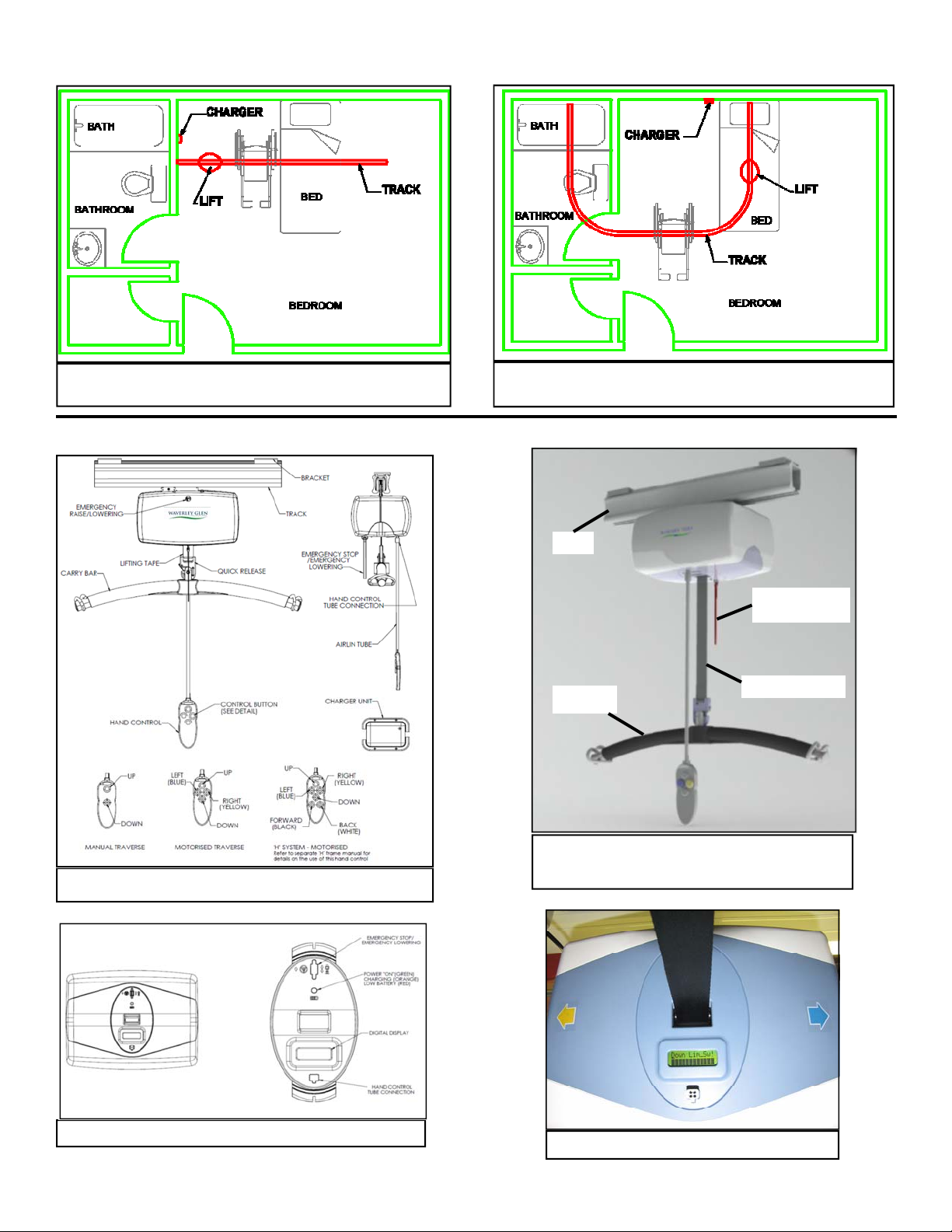

Figure 1A - Sample floor plan showing basic components of
a ceiling lift system.
Figure 1B - Alternate sample floor plan showing basic
components of a ceiling lift system.
Figure 2A - Basic components of the ceiling lift
Figure 3A—Underside view of the lift
Figure 2B - The C1000 ceiling lift with standard
Emergency Stop/ Lowering.
Figure 3B - Photo of underside
Carry bar
Emergency Stop/
Lowering
Lifting tape (strap)
Track

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 4
Specifications of C1000 lift
The following components are included with your new C1000 lift system:
• C1000 lift (Manual or Motorized traverse)
• Pneumatic Hand Control
• Lift Charger (mounted on the wall or ceiling at the end of the track)
• Owner’s Manual
• Warranty Card
SLINGS: If a sling has been supplied with the lift refer to the instructions included with the sling.
ACCESSORIES: If additional accessories such as a tur ntable, or gate system have been supplied with the lift refer to the
instructions included with those items.
IMPORTANT: Before initial use, the lift unit must be charged for 4 hours. Refer to section titled "Charging
Instructions". The hand control airline tube must also be connected to the lift. If it is not connected refer to the section titled
“Connecting airline to the lift”.
Component List
Maximum load of the installed lift is
determined by referring to the product
label located on side of lift.
Shipping/Storage Conditions:
Temperature: -40 to +70 ºC
Relative Humidity: 10 to 100% RH
Atmospheric Pressure: 500 to 1060 hPa
This symbols is used to point out instructions and information related to work place safety where
injury may occur if the information is disregarded or ignored. Follow these instructions, be careful and
attentive at all times.
Lift Motor: 24 VDC
Traverse Motor: 24 VDC (Optional at time of Purchase)
“H” Frame Traverse Motor: 24 VDC (Optional at time of Purchase)
Charger Input: 120VAC 1.0 Amps
Charger Output: 24 VDC 1.5 Amps
Batteries: 24 VDC (2 x 12 VDC) 5.0 AH, Sealed Lead Acid
Lift Case: Flame Retardant ABS
Hand Control: Pneumatic
Lifting Range: Up to 96” (2438mm)
Lift Weight: 24.5 lbs.
Maximum Load: Standard maximum load in 1000 lbs.
Duty Cycle: 1 minute ON, 9 minutes OFF
Rated Performance: 17-20 lifts at 1000 lbs, 10% duty cycle, each lift being 24 inches at the middle of the lifting range
(from 54” strap out to 30” strap out) per full battery. Please note: the lift has a break in
period; breaking in of the lift will need to be done before these numbers will be
achieved. The breaking in period will vary from lift to lift and is dependent on the
frequency of use and the types of load being applied, the higher the load and a greater
frequency of use will break in the lift faster.
Service Life: 22, 500 cycles or 10 years, whichever comes earlier
As a precautionary measure, the lifting strap should be replaced every 5000 cycles or 3
years, whichever comes earlier. Higher usage lifts may necessitate more frequent
replacement of the lifting strap; please refer to page 26 for General Inspection and
Maintenance information.
Type of Applied part: B type
Other Symbols Used:
Body Weight
Class II Equipment - electrical equipment in which protection against electric shock does not rely on
basic insulation only.
Emergency Stop

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 5
Lifting Range
NOTES:
 Please use the following type of plug for C1000 lifts installed in the UK:
 Please use the following type of plug for C1000 lifts installed in Australia.
 The C1000 lift shall be connected to a center-tapped single phase supply circuit when
users in the United States connect the equipment to a 240 V supply system.
Models Table for C1000 Lift
Code Description
329100 C1000 Manual Traverse
329101 C1000 Manual Traverse (Omni)
329126 C1000 Power RTC
329137 C1000 Power XY Traverse
329150 C1000 Power Traverse
329151 C1000 Power Traverse (Omni)
329102 C1000 Manual Traverse (Rev. G)
329152 C1000 Power Traverse (Rev. G)
329103 C1000 lbs. Manual Traverse (Rev.A)
329153 C1000 lbs. Power Traverse (Rev.A)

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 6
●The C1000 must be installed prior to use. Contact your local authorized dealer to ensure that it is
properly installed. The C1000 must be installed only by persons authorized by Handicare Ltd.
●Under no circumstance should the C1000 track, lift and sling (s) or entire system be put in control of
a person who has not been properly trained in the use and care of this equipment. Failure to ad here
to this warning may result in serious injury to the operator, and/or the individual being lifted/
transferred.
●The C1000 lift, and associated track and sling (s) are not toys. Do not use it for unsafe practices. Do
not allow children to play with the lift or any of its’ components.
●The manufacturer's warranty is void if persons unauthorized by Handicare perform work on the
C1000 lift system.
●There are no user serviceable parts inside the cover. Do not remove cover screws, or open the lift
unit, as this will VOID THE WARRANTY.
●In facilities where more than one operator will be responsible for using the C1000 lift and associated
track and sling (s) it is imperative that all such members be trained in its’ proper use. A training
program should be established by the facility to acquaint new operators with this equipment.
●Never expose the C1000 lift directly to water. Warranty does not cover any misuse or abuse of the
lift system.
●To maintain optimum function, the C1000 should be inspected and maintained on a regular basis.
See the section titled “General Inspection and Maintenance”.
●Any accessories used with the C1000 including track and sling (s), should be checked to ensure that
they are in good working order. Check for signs of wear or fraying prior to use. Report any
unusual wear, or damage immediately to your local authorized Handicare dealer.
●The C1000 lift and associated lift, track and sling (s) are intended only for lifting and
transferring of a person. Handicare will not be responsible for any damage caused by the misuse,
neglect or purposeful destruction of the lift, and/or its’ associated components.
●Do not in any circumstance exceed the maximum allowable load of this lift. Refer to the
“
Specifications” section of this manual, and/or the labels on the side of the lift.
●The installation of the lift, track, accessories, and sling are certified to a maximum load. Do not
exceed the maximum rated load of any of the components,
●There is a risk of explosion if the lift is used in the presense of flammable anaesthetics.
●The C1000 has features which improve it's electromagnetic immunity but immunity from
interference cannot be guaranteed. For best performance keep transmitting devices (cell phones and
hand-held radios) away from the lift.
●Ensure that a clear space is maintained around the lift and track. Move all curtain material and other
obstacles out of the way before performing a transfer.
 The charger must be located outside the patient vicinity at all times. The patient vicinity is the space
with surfaces likely contacted by the patient or an attendant who can touch the patient. This
space is 6 feet (1.83m) beyond the perimeter of the bed, examination table, etc., extending vertically
7-1/2 feet (2.29m) above the floor.
Cautions

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 7
Attaching the airline tube to the lift
Should the gray rubber airline that connects the lift to the hand
control become disengaged from the underside of the lift it must
be re-connected in order for the lift to work properly.
The rubber airline may become disconnected for the following
reasons:
1) The lift is pulled along the track by the airline.
2) The tubing accidentally gets wrapped around an object while
a lift or transfer is being performed.
3) It is accidentally pulled out by the caregiver or the individual
being lifted.
The airline is connected to a gray rubber grommet located on the
underside of the lift. Refer to figure 3A.
Small metal ribbed pins located at the end of the airline hold the
airline to this rubber grommet in a specific manner. Therefore it is
important to make sure that the airline is connected properly.
Both the grey airline and the rubber grommet have a grey rib on
one of their sides. Line up the grey ribs together. Refer to figure
3B. When this is done then the metal ribbed pins attached to the
end of the airline can be re-inserted into the corresponding holes
in the rubber grommet on the underside of the lift. Be sure to in-
sert the pins into the grey rubber grommet sufficiently so that it is
secure. Refer to figure 3C.
Perform a brief test to ensure proper connectivity. Turn the lift
ON and OFF. Raise and lower the carry bar. For motorized trav-
erse lifts move the lift left and then right. If these functions work
correctly then the airline is properly connected.
If the lift does not work properly, check to ensure that the grey
ribs on the grey rubber grommet on the underside of the lift and
the airline tubing are lined up properly. If they are not lined up
properly, then remove the airline, line up the grey lines and then
re-insert it into the rubber grommet. Perform the test as noted in
the preceding paragraph. If there are still problems with the lift
then contact your local authorized dealer for service.
Caution: A sturdy ladder may be required in order to access the underside of the lift to re-attach
the rubber airline of the lift. Caution should be used when this is required.
Should you have any concerns or questions contact your local authorized Handicare dealer.
Figure 3A - Gray rubber grommet located on
underside of lift. Rubber airline is not connected.
Note grey rib on grommet.
Figure 3B - Gray rubber airline being inserted
into rubber grommet of lift. The black ribs on
both pieces are lined up. The metal ribbed pins
are on the airline.
Figure 3C - Gray rubber airline being inserted
into rubber grommet of lift. The black ribs on
both pieces are lined up. The metal ribbed pins
are on the airline.
Metal pins that get inserted into the holes
of the grommet of the lift.
Pieces connected together

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 8
Caution: Always, before using the C1000 lift system, the lift, track and sling (s)
must be visually checked for any unusual wear, or damage. Refer to the user manual
with each piece of supplied equipment to determine what should be checked. Should
anything look unusual contact your local Handicare dealer prior to use.
Failure to comply with this caution could result in serious injury to the operator, the
individual being lifted and/or damage to the lift.
Operation
Turning the lift ON and Automatic OFF
Figure 4B - Power traverse hand
control
Press any
button to
turn ON
Figure 4D - Lift ON indicator
Figure 4A - Manual traverse hand
control
Press any
button to
turn ON
Figure 4C - Motorized traverse “H”
Press any
button to
turn ON

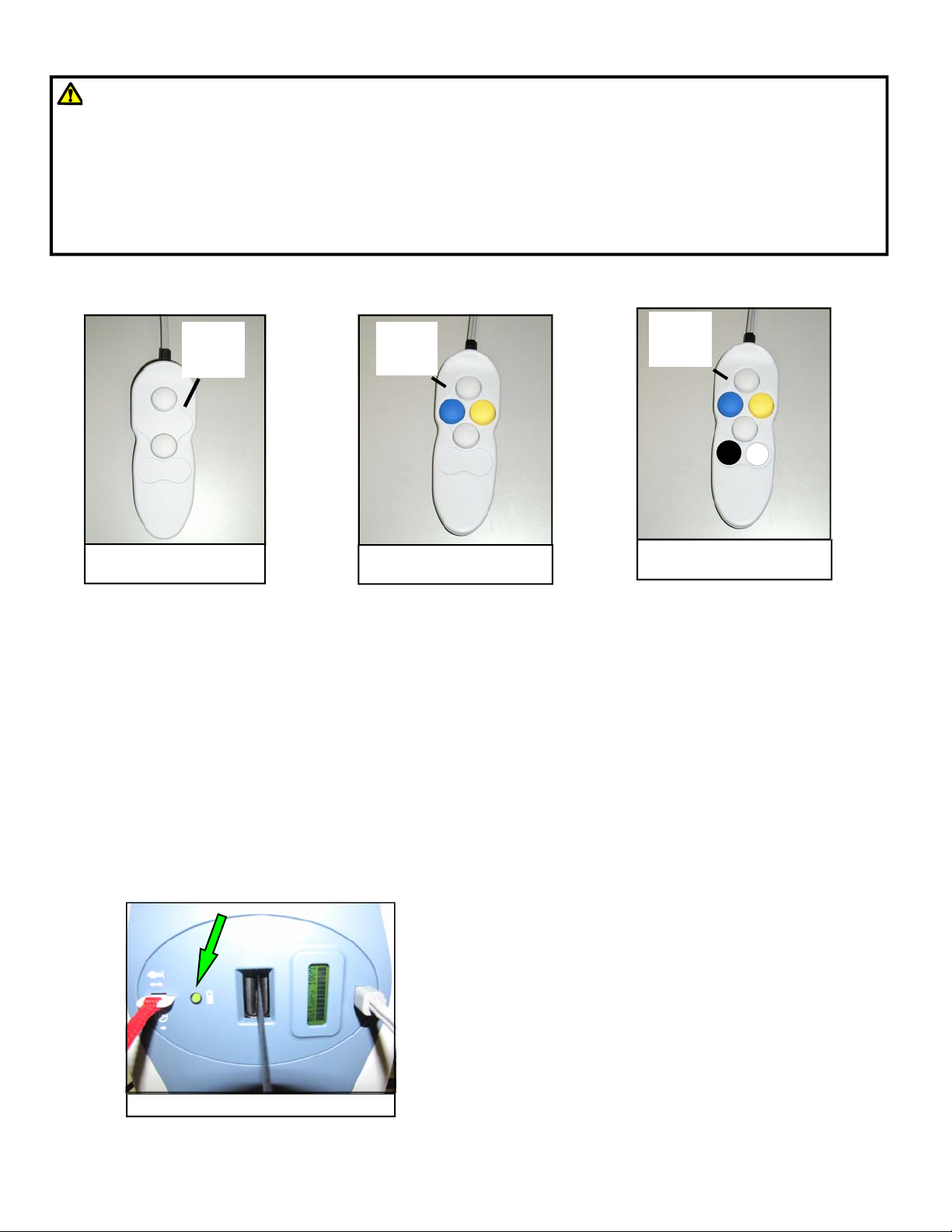

NEW LIFTS OR LIFTS THAT HAVE HAD BATTERIES CHANGED SHOULD BE CHARGED A MINIMUM OF 30
MINUTES BEFORE USE.
Refer to figures 4A, 4B and 4C to determine the hand control that is attached to the lift.
To operate the lift it must first be turned ON with the use of the hand control. This can be done by pressing any button
on the hand control. The indicator light located on the underside of the lift will turn GREEN and the display screen will
turn on. Refer to Figure 4D. If the lift fails to turn ON at anytime, ensure that the EMERGENCY STOP/ LOWERING
CORD has not been pulled and that the plastic clip at the end of the red cord has not come out.
To conserve battery power the lift will automatically shut off after approximately 5 seconds if no buttons are pressed after
initial “waking” or after approximately 2 minutes on non-use after last button push.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 9
The lift is normally parked at the charg-
ing station end of the track when not in
use. It can be moved along the track to a
position directly above the person to be
lifted in one of two ways.
If you have a manually traversing lift
lower the carry bar to a comfortable
height such that it can be easily grabbed
by your hand. Move the lift along the
track by gently pushing the carry bar, or
individual in the sling. Never pull the lift
along the track.
If you have a motorized traversing lift, use the blue or yellow colored
directional hand control buttons to move the lift. The blue and yellow
buttons correspond to the blue and yellow directional arrows on the un-
derside of the lift. The direction therefore that is taken is determined by
the color of the button that is pressed. This works the same no matter
what side of the lift a person is standing on.
6C.
Raising/lowering the carry bar
Operation
By pressing the DOWN arrow
button, or the UP arrow button,
the carry bar can be lowered/
raised to the correct height for
attaching the sling or position-
ing an individual. Refer to fig-
ure 5A and 5B
It is recommended that the care-
giver (operator) hold the carry
bar with one hand while this is
being done so that it will not
accidentally sway and/or come
into contact with an individual
or close object. These buttons
work the same on each model
of the lift.
Figure 5A - Power traverse hand con-
trol showing raising/lowering func-
Moving the lift
Figure 6A - Motorized traverse hand
control showing colored buttons.
Figure 6C - Directional arrows on
underside of lift
Figure 6B - Lift showing horizontal move-
ment. Arrows are for motorized versions
Figure 5B - Lift showing raising/lowering of
carry bar.
Caution: Always use extreme care when moving the lift along the
track. Watch out for and avoid any obstructions that may cause injury
to the individual in the sling and/or damage to the lift.
UP
DOWN
BLUE YELLOW

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 10
Operation
Moving the “H” system traversing beam
If the installed track is an “H” system then this sec-
tion should be reviewed as it describes how to move
the traversing beam. If the installed track is not an
“H” system then this section can be skipped.
The “H” system involves the installation of two par-
allel support tracks and one traversing beam that is
mounted perpendicular to the two support tracks.
Refer to figure 7A. The benefit of this type of system
is that it provides greater movement and positioning
ability for an individual since the floor space cover-
age area is much larger than for a single piece of
track.
Besides the previously described UP/DOWN move-
ment of the carry bar, and LEFT/RIGHT movement
of the lift, the “H” system adds the ability to move
the traversing beam anywhere along the length of
the two parallel support tracks. Refer to figure 7A.
Figure 7A - Sample of “H” system room covering layout. Note that the
lift can be moved along the traversing beam, and that the traversing
beam itself can be moved along the two parallel support tracks.
The actual direction of travel when the hand control buttons are pressed
may be different than shown, since the track and lift orientation may be
different than installed. .
This can be accomplished in one of
two ways. If the installed “H” travers-
ing beam is manually traversing then
the beam is moved along the support
tracks by manually moving the beam,
lift, and individual in one motion. This
movement is the same as that used for
a manual traversing lift, as previously
described.
If the installed “H” system traversing
beam is motorized traversing then the
beam is moved along the support
tracks by pressing either the black or
white hand control button. Refer to
figure 7B. This will move the beam in the direction of travel as noted by the
black [▼] and white arrows [▲]located on the underside of the lift. Refer to fig-
ure 7C.
Figure 7C - Directional arrows on underside of power
traverse “H” system lift. Black and white arrows show
traversing beam direction of travel when the corre-
sponding colored button is pressed on the hand control.
Figure 7B - Power traverse “H”
system hand control showing
traversing beam movement
buttons. Button colors corre-
spond to the black and white
directional arrows located on the
Caution: Always use extreme care when moving the traversing beam. Watch out for
and avoid any obstructions that may cause injury to the individual in the sling, or
damage to the lift/track.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 11
Attaching the carry bar to the lift
Your lift has come with a Quick Release Carabiner on
the strap. Open the latch of Quick Release Carabiner
by hand. Refer to figure 8A.
Insert the Dowel Pin of carry bar into the hook of
Quick Release Carabiner and release the latch. Make
sure the latch is closed safely after the Dowel Pin sit-
ting into the hook of Quick Release Carabiner. Refer to
figure 8B.
The Carry Bar is attached to the Lift’s Quick Release
Carabiner. Refer to figure 8C.
Figure 8A - Open the latch of Quick Release Carabiner
Open the Latch
Figure 8B - Insert the Dowel Pin of carry bar into the hook of Quick
Release Carabiner
Dowel Pin
Quick Release
Carabiner
Latch
Figure 8C - Attaching the carry bar to the Quick Release
Carabiner

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 12
If your motorized, traversing lift has a return-to-charge feature (RTC),
pressing & holding the blue and yellow colored directional hand control
buttons simultaneously for 3-5 seconds (to produce beeping noise) will
automatically retract the lift’s carry bar and drive the lift along its track
until it docks at the charger.
C-1000’s is equipped with new weight sensitive adaptive return-to-
charge feature, which offers added protection during RTC movement.
The salient features of new “Load Sensitive RTC” are as under
1) If user/operator may have accidentally enabled RTC while a patient is
in the lift , the RTC function will stop automatically by sensing ex-
cess load on the lift during RTC. The overload threshold is between
40-70 lbs.
2) During RTC , if lift carry bar accidentally gets tangled with obsta-
cles , Furniture , drapery etc., the lift will automatically detect the
change in the load and if any variation of more than 15-30 Lbs. is de-
tected the lift will stop automatically.
Note:- RTC feature can always be interrupted manually by either
pressing any buttons on the hand control or by holding the carry bar
firmly.
Note that the RTC feature has several characteristics that may be altered
to the user’s preference:
RTC Max. Time may be set anywhere from 60 sec to 240 sec in 60 sec
increments and represents the maximum time allowed for the lift to travel
to and dock at the charger before aborting the operation.
RTC Drop Time may be set anywhere from 3 sec to 24 sec in 3 sec incre-
ments and represents the time the lift devotes to lowering the carry bar
upon docking at the charger.
RTC Speed may be set to 2, 4, 6 or 8 and represents the relative speed the
lift travels at to reach the charger.
Contact your Service Technician to change these settings.
Return To Charge (If Equipped)
Figure 8D - Press & Hold the blue and
yellow color hand control buttons simul-
taneously to activate the RTC feature.
Caution: Always use extreme care when moving the traversing beam. Watch out for
and avoid any obstructions that may cause injury to the individual in the sling, or
damage to the lift/track.
Caution: Always ensure the carry bar is attached to the lift before activating RTC
function. The added weight of the carry bar is required to ensure correct working of
limit switches. Failure to have carry bar attached can result in limit switch error , refer
to “Troubleshooting” Section at page 25 for recommended solution.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 13
Basics in transferring an individual
Caution: Always check to ensure that the lift is correctly positioned directly above the per-
son to be lifted. Over time, the lift strap may fray if this is not followed.
Caution: Always make sure that the sling is correctly fitted and adjusted on each side of the
individual so that maximum comfort and safety are achieved prior to lifting.
Step 1) Move the lift away from the char ging station or cur rent location and close to the individual that
is to be transferred. Use the procedures for up and down and moving along the track as described in the sec-
tions titled, “Raising/lowering the lift” and “Moving the lift along the track”.
Step 3) Once the individual has been outfitted with the sling, move the lift so that it is positioned directly
over the individual. Lower the carry bar to a height so that the straps of the sling can be easily attached to the
carry bar.
Caution: The following steps are intended to generally illustrate the procedure involved in the lifting
and transferring of an individual from one location to another using the lift, track and sling. Track con-
figurations will vary by installation.
The manual for the sling that was purchased with the lift should be reviewed in detail prior to attempt-
ing these steps, as the sling illustrated here may not be the same as the one that was purchased.
Contact your local authorized Handicare dealer if you have any questions or concerns.
Step 2) Prepare the individual being transferred with the appropriate sling. Refer to the instructions
supplied with the sling that was purchased on how to properly outfit an individual with a sling.
Caution: Always use extreme care when moving the lift along the track. Watch out for and
avoid any obstructions that may cause injury to the individual in the sling, or damage to the
lift/track.
Caution: Check to ensure that the carry bar has no cuts, dents or sharp edges that may
come in contact with the straps of the sling and cause damage to them. Report any concerns to
your local authorized dealer.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 14
Basics in transferring an individual … continued
Caution: Prior to lifting an individual make sure that the straps of the sling are securely
placed on the hooks of the carry bar and that the straps will not come off.
Step 4) Attach the straps of the sling to the hooks of the car ry bar . The str aps on each side of the sling
are generally attached to the corresponding side of the carry bar. Be sure to double check to ensure that the
straps are properly attached to the carry bar, and that the individual being lifted is properly positioned in the
sling prior to lifting.
Caution: There is a risk for the strap to disengage from the hook, if a sling loop is allowed to
rotate and rest on the top of the hook(s). Please check to ensure that the loops are on the hook
not resting in the hook. Failure to adhere to these instructions could result in serious injury or
death.
For your safety and the safety of the patient, please always ensure that the sling loops are correctly
positioned on the carry bar hooks. It is suggested to do the check of the sling loops once there is
tension to the sling loops, but prior to completely lifting the patient.
Caution: Prior to lifting an individual ensure the hand control cord is free of the carry bar
hooks.
Sling loop correctly positioned
at the base of the carry bar
hook.
During the preparation for
the patient transfer, the ten-
sion is reduced.
Sling loop flipped over and
incorrectly resting on the
hook.
Sling loop separated from
the carry bar hook.
Load applied. The sling loop
begins to slide off the hook.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 15
Basics in transferring an individual … continued
Caution: Prior to removing the straps of the sling from the carry bar be sure to check that
the individual being lifted is securely supported in the final desired position.
Step 8) Lower the car ry bar sufficiently to allow the straps of the sling to be easily removed fr om the
carry bar. Take care not to let the carry bar come in contact with the individual in the sling. The straps from the
sling can now be removed from the carry bar. The carry bar of the lift should then be raised sufficiently and
the lift moved away from the immediate area so that it will not interfere with the removal of the sling from the
individual.
Step 7) Once at the desired location the individual in the sling can be lowered/raised to the cor r ect
height in order to complete the transfer. On completion of lowering/raising ensure that the individual is proper-
ly positioned and safely supported prior to removing the straps of the lift from the carry bar.
Step 6) Once at the cor rect height the individual can be moved along the track to the desir ed location.
Refer to the sections already described in this manual on how to move the lift along the track
Step 10) The lift can now be moved to a safe location until fur ther use, or r elocated to its' original loca-
tion. The lift should be turned off when not in use. It is recommended that the lift be left on charge when not
in operation. Refer to the section titled, “Charging the lift” for instructions on charging.
Step 9 ) The sling can now be gently r emoved fr om the individual. It should then be stored in a safe
place for future use.

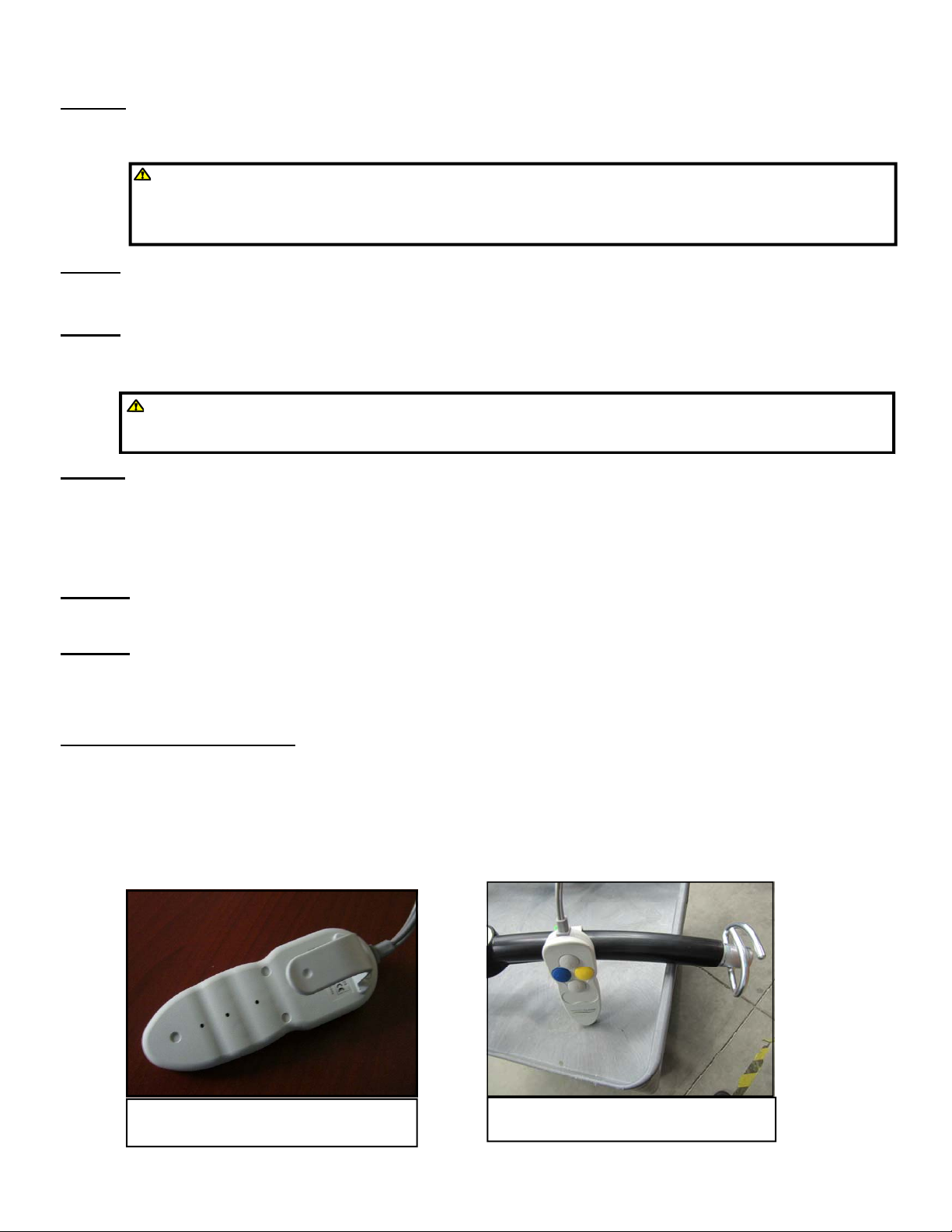

Optional Hand Control Hook
Your lift has come with an optional Hand Control Hook. This Hand Control Hook can be installed onto the
Hand Control using the self tapping screws provided with the plastic hook. On the back of the Hand Control
there will be 2 small pilot holes where the self tapping screws should be screwed into. See figure 9A for a
Hand Control with the Plastic Hook already assembled. Figure 9B demonstrates the use of the plastic hook
with your lift.
Figure 9A - Hand Control with Hook Figure 9B - Suggested use
Step 5) The individual may now be raised with the use of the UP button on the hand control. While lift-
ing is in progress the height required in order for the transfer to be completed safely should be closely ob-
served. Ensure that the individual being lifted will not be injured by any obstructions during the initial lifting.
Caution: Always use caution when lowering/raising an individual who is in the sling of the
lift. Watch out for and avoid any obstructions that may cause injury to the individual, or dam-
age to the lift.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 16
C1000 TANDEM BARIATRIC SYSTEM
In cases where a client’s weight, size or medical condition requires precise control when transferring or
re-positioning, The C-1000 Tandem Bariatric Lift provides a safe and reliable solution.
The transfer or re-positioning of Bariatric clients can be difficult. A single track can push the legs of a
Bariatric client toward the torso, decreasing the hip angle, and compressing the upper body. This can
cause discomfort and, in some cases compromise breathing.
Mounted on dual ceiling tracks running parallel to each other, each track fitted with its own inde-
pendently-operated motor, the C-1000 Tandem Bariatric system allows a caregiver to separately lift tor-
so and legs. This allows the caregiver to keep the angle between the torso and femur open - sometimes
difficult to achieve using a single-motor lift system. Precise body positioning, whether seated or recum-
bent, is possible with the C-1000 Tandem Bariatric System providing maximum flexibility and comfort.
Caution: The C-1000 Tandem Bariatric system requires more staff co-ordination be-
cause of its dual motor system. Each lift has its own hand control and its operated inde-
pendently often requiring two staff members acting as a team.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 17
C1000 TANDEM BARIATRIC SYSTEM CARRY BAR
ACCESSORY
Tandem Bariatric System Carry Bar allows users to take full advantage of dual motor positioning giv-
ing greater control of a client’s weight between the two (torso and leg) lifting motors. The part number
for the Tandem Bariatric Carry Bar is 360765.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 18
Charging the lift
The light will turn ORANGE on the lift control
panel and a slow beeping audible alarm will sound
if the batteries are low and require charging. The
display screen will also indicate low battery.
Complete the transfer that is in progress and then
move lift to the end of the track where the charger
is located.
Following the ORANGE indicator, the light will
turn RED on the lift control panel and a fast beep-
ing audible alarm will sound indicating the batter-
ies are fully discharged and require charging. The
display screen will also indicate low battery.
When the battery is discharged the UP function
will be disabled. The DOWN and EMERGENCY
DOWN function along with X-Y TRAVERSING
will continue to operate.
Caution: Use only the Soneil charger that was supplied with the lift or with Mascot 9940 charger. Use
of any other charger will void all warranties and may cause damage to the lift.
Figure 10A - Underside of lift showing RED dis-
charged battery indicator light and audible alarm
beeping every 10 seconds.
The charger contacts with two metal charging strips that run along the inside of the track.
Whenever the lift is over a section of track with charging strips it will automatically start to charge
the lift if its battery is low.
The batteries should be charged on a regular basis. It is recommended that the lift be left on charge
when not in operation, and at the end of each day. This will maximize the life cycle of the batteries
The lift may remain connected to the charger indefinitely since the charger has a built-in regulator,
eliminating the danger of overcharging.
As a general rule it is recommended that the carry bar be raised to a height so that it will not
interfere with anything or anyone while the unit is not in use.
Display Screen
Allowable Charger Specifications:
-Soneil 2403SRM30, Input: 100-240Vac, 50/60Hz, 1.5A max, Output: +24Vdc, 1.5A
-Mascot 9940, Input : 100-240Vac, 50-60Hz, 0.9amp ; Output: 29.5Vdc, 1.3amp /
When the lift is on the charger the light on the lift will always be ORANGE. After one hour, the lift
may be used, however, overnight charging is recommended. The light will change to GREEN when
the lift is removed from the charger. This indicates that the lift is charged between 25%-100%.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 19
In addition to the indicator lights on the lift, the
charger has an indicator light as well. When
ORANGE, it indicates that the that the lift is on
the charger and charging. Refer to figure 9A.
When the lift is fully charged light on the
charger will change to GREEN.
Note: In some circumstances it may be neces-
sary to mount the charger out of view.
Figure 11A - Charger with ORANGE light indicating that
the lift is connected and charging. When the lift is fully
charged this light will turn GREEN.
Constant Charger
The constant charger system has two metal
roller bearings (Figure 11B & C) that contact
charging strips that run along the inside of the
track. When the lift is over a section of track
with charging strips it will automatically start to
charge and the light be ORANGE.
Note: Constant charge units don’t turn off,
since they are constantly connected to the
charger.
The Constant Charger can be attached to all
operating C-1000 lifts. The batteries can
remain connected to the charger indefinitely,
since the charger has a built-in regulator, the
danger of overcharging is eliminated.
Figure 11B - The Constant Charger attachment to the C-
1000 patient lifts.
Figure 11C - The Constant Charger attachment to the C-
1000 (Rev.G) patient lifts.

C1000 - User Guide (636155) Rev: 04 Nov 2019 Page: 20
LCD Display Functionality
Default Display Modes:
The lift unit can be set to either of the following as the ‘Default’ display mode:
1. Battery Level (the factory setting for the Default Display Mode); or,
2. Number of Lifts.
To change from one operating mode to another please call your local service technician.
In Battery Level Mode the lift will: (Factory Setting)
1. Display the word, “Battery”, with the percentage charged (in 5% increments) in the top
row of the display (e.g., “Battery 65%”).
2. Display a bar graph of the battery level in the second row of the display by displaying the
appropriate number of fully blackened rectangles as in the following diagram:
Note: As the lift is initially switched on, the level of battery charge displayed may be
incorrect. However, as soon as the lift is actually operated, the charge level will update to
the correct level.
In Number of Lifts Mode the lift will:
3. Display the word, “Lifts”, with the number of lifts completed in the top row of the display
(e.g., “Lifts 500”) and a bar graph to indicate the battery level:
In any ‘Default display mode’, if the battery levels fall below 25% the lift will go into Low Battery
Mode. The lift will then:
1. Change the indicator light on the lift to ORANGE.
2. Make an audible beeping sound every ten (10) seconds.
3. Display will show the battery % in the first line and the charge level bars in the second
line.
If the battery are fully depleted the lift will then:
1. Change the indicator light on the lift to RED.
2. Make an audible beeping sound every ten (10) seconds.
3. Display will show “Low Batt!”
