Instruction Manual
HI 9241
HI 93501
HI 93501S
HI 93503
HI 935007
Portable Microprocessor
Thermometers
www.hannainst.com

2
Dear Customer,
Thank you for choosing a Hanna product.
Please read this instruction manual carefully before using the instrument.
This manual will provide you with the necessary information for correct
use of the instrument, as well as a more precise idea of its versatility.
If you need additional technical information, do not hesitate to e-mail
us at [email protected].
WARRANTY .................................................................................. 2
PRELIMINARY EXAMINATION ........................................................ 3
GENERAL DESCRIPTION ................................................................ 3
SPECIFICATIONS OF HI 9241S ..................................................... 4
SPECIFICATIONS OF HI 93501 & HI 93501S ............................... 5
SPECIFICATIONS OF HI 93503 ..................................................... 6
SPECIFICATIONS OF HI 935007 ................................................... 7
OPERATIONAL GUIDE ................................................................... 8
BATTERY REPLACEMENT ............................................................. 11
TEMPERATURE PROBES .............................................................. 12
HI 9241, HI 93501, HI 93501S, HI 93503 and HI 935007 are
guaranteed for two years against defects in workmanship and materi-
als when used for their intended purpose and maintained according
to instructions. Electrodes and probes are guaranteed for six months.
This warranty is limited to repair or replacement free of charge.
Damage due to accidents, misuse, tampering or lack of prescribed
maintenance is not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of
purchase, serial number and the nature of the problem. If the repair is
not covered by the warranty, you will be notified of the charges
incurred. If the instrument is to be returned to Hanna Instruments,
first obtain a Returned Goods Authorization number from the Technical
Service department and then send it with shipping costs prepaid.
When shipping any instrument, make sure it is properly packed for
complete protection.
WARRANTY
TABLE OF CONTENTS

3
Remove the instrument from the packing material and examine it to
make sure that no damage has occurred during shipping. If there is
any damage, notify your dealer or the nearest Hanna Customer
Service Center.
Each meter is supplied complete with:
• Temperature probe
• Alkaline batteries: 3 x 1.5V AAA
• Instruction manual.
Note:Save all packing material until you are sure that the instrument
functions correctly. All defective items must be returned in the
original packing with the supplied accessories.
Temperature plays a very important role in the food industry, and it
also has to be checked in the warehouses, loading docks and in
transportation vehicles.
You can choose the Hanna food-thermometer which best meets your
needs, among several models:
HI 9241, HI 93501, HI 93501S, HI 93503 and HI 935007 are
professional, rugged and waterproof thermometers, designed to be used
on a daily basis in industrial kitchens and catering. They provide
excellent accuracy and can operate with a wide range of interchangeable
probes (designed for air, liquid or penetration; see page 12) without
requiring recalibration.
Standard features include Cal-Check feature for checking the meter
calibration status any time, low battery detection, auto-off capability
and long battery life.
Moreover, HI 93501S and HI 93503 are provided with stability
indicator, a bargraph with seven level of stability and Hold function to
freeze the reading on the LCD.
HI 935007 is a K-thermocouple thermometer. It offers a wide
temperature range, automatic change of resolution from 0.1 °C to
1 °C.
PRELIMINARY EXAMINATION
GENERAL DESCRIPTION
All rights are reserved. Reproduction in whole or in part is prohibited without the
written consent of the copyright owner.

4
Main features:
•HI 765 probes series
•Calibration Check feature
•Remaining battery life indication / low battery detection
•Auto-off capability
•Waterproof casing
Range -50.0 to 150.0 °C
Resolution 0.1 °C
Accuracy ±0.4 °C excluding probe error
Typical EMC Deviation ±0.5 °C (with HI 765BL probe)
Battery 3 x 1.5V AAA, approx. 2000 hours of continuous use
Auto-off after 8 minutes of non use
Environment -10 to 50 °C (14 to 122 °F);
max 100% RH non-condensing
Dimensions 152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz)
SPECIFICATIONS OF HI 9241

5
Main features:
•HI 762 probes series
•Range -50 to 150 °C
•Calibration Check feature
•Remaining battery life indication / low battery detection
•Stability indicator (S model)
•Hold feature (S model)
•Auto-off capability
•Waterproof casing
Range -50.0 to 150.0 °C
Resolution 0.1 °C
Accuracy ±0.4 °C excluding probe error
Typical EMC Deviation ±0.4 °C (with HI 762PWL probe)
Battery 3 x 1.5V AAA, approx. 2000 hours of continuous use
Auto-off after 8 minutes of non use
Environment -10 to 50 °C (14 to 122 °F); RH 100%
Dimensions 152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz.)

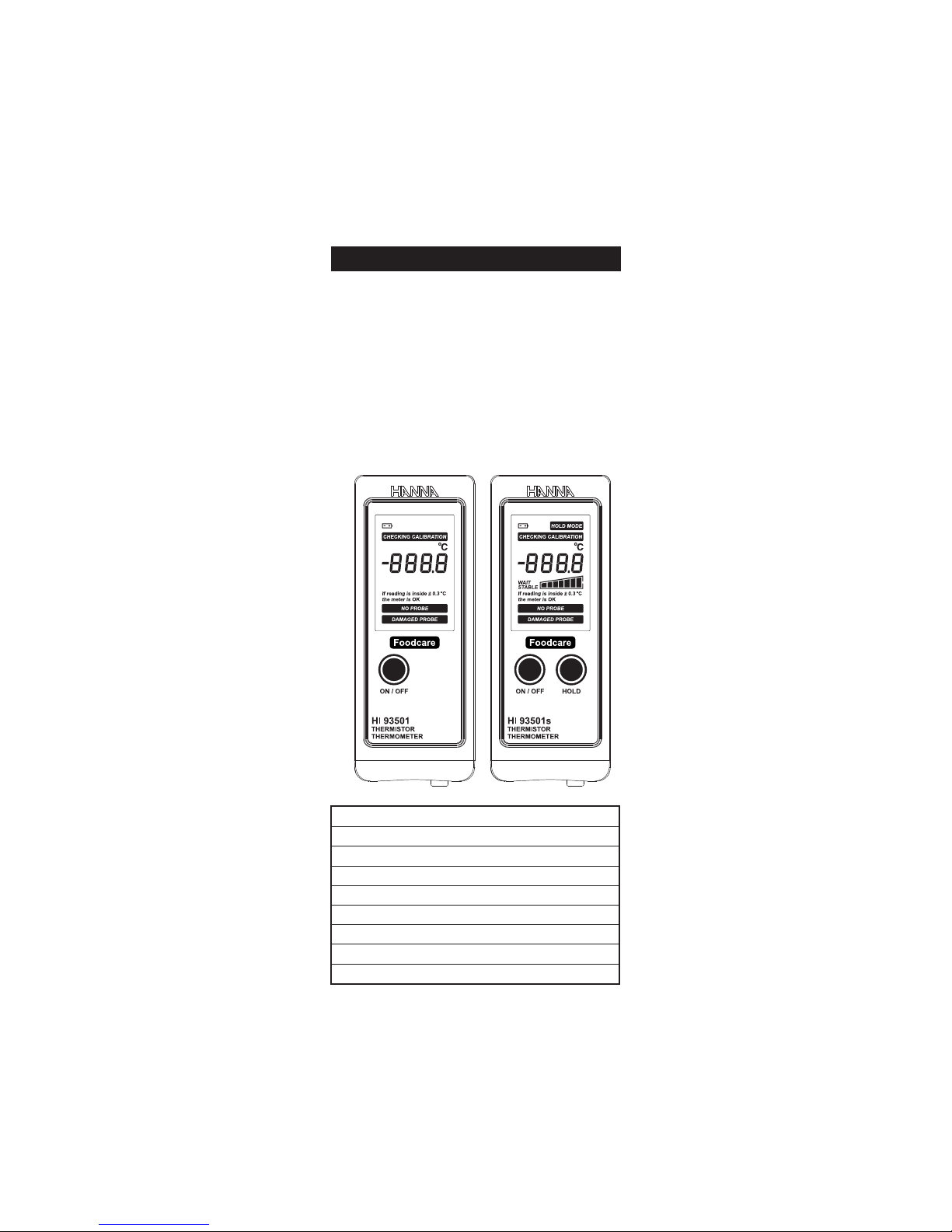

SPECIFICATIONS OF HI 93501 & HI 93501S

6
Main features:
•HI 765 probes series
•Range -50 to 150 °C
•Calibration Check feature
•Remaining battery life indication / low battery detection
•Stability indicator
•Hold feature
•Auto-off capability
•Waterproof casing
Range -50.0 to 150.0 °C
Resolution 0.1 °C
Accuracy ±0.4 °C excluding probe error
Typical EMC Deviation ±0.4 °C (with HI 765PWL probe)
Battery 3 x 1.5V AAA, approx. 2000 hours of continuous use
Auto-off after 8 minutes of non use
Environment -10 to 50 °C (14 to 122 °F); RH 100%
Dimensions 152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz.)
SPECIFICATIONS OF HI 93503

7

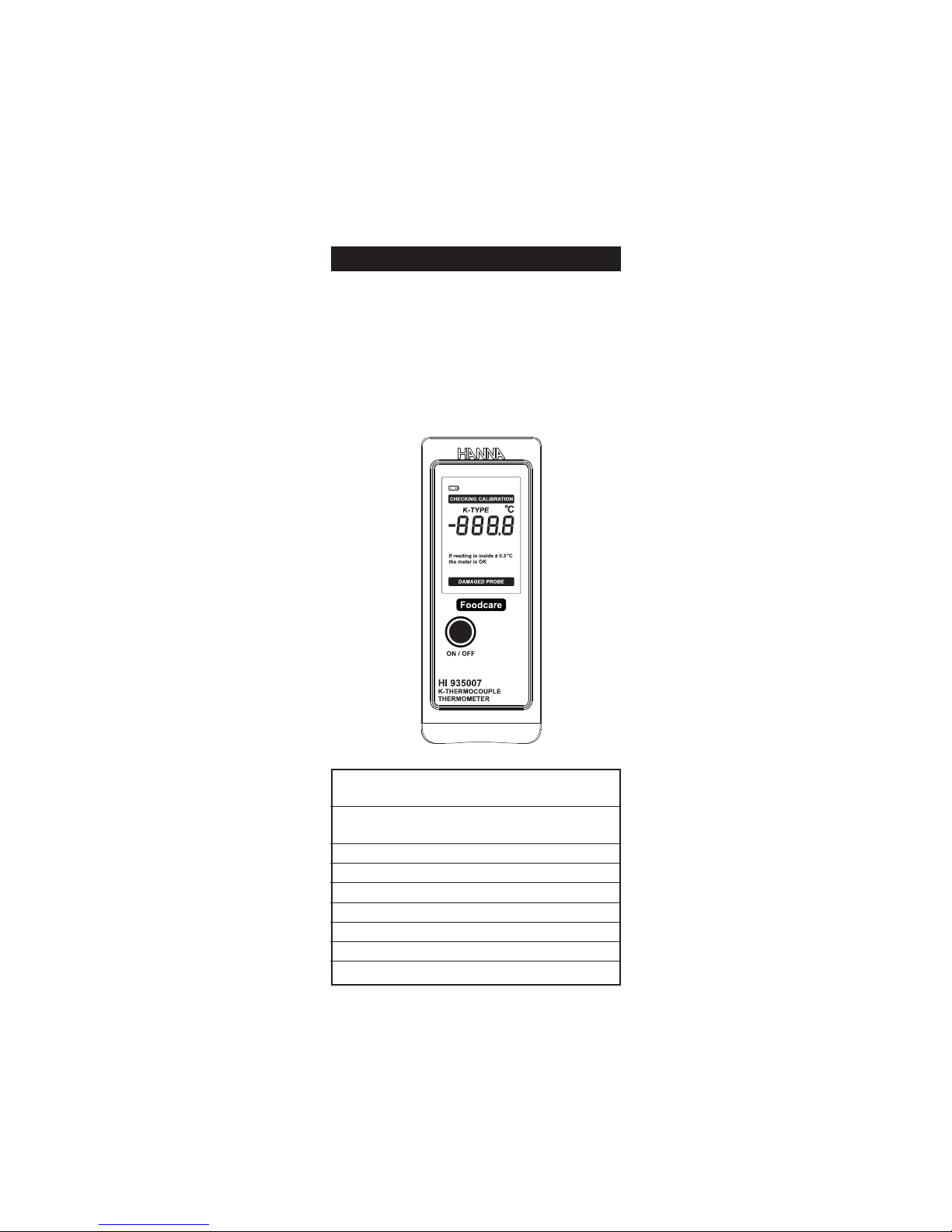

Main features:
•Direct HI 766C K-thermocouple probe
•Available in °C
•Range -50.0 to 1350 °C
•Remaining battery life indication / low battery detection
•Auto-off capability
•Waterproof casing
SPECIFICATIONS OF HI 935007
Range -50.0 to 199.9°C
200 to 1350 °C
Resolution 0.1 °C (up to 199.9 °C)
1 °C (outside)
Accuracy ±0.2% F.S. excluding probe error
Typical EMC Deviation ±3 °C
Battery 3 x 1.5V AAA, approx. 1000 hours of continuous use
Auto-off after 8 minutes of non use
Environment -10 to 50 °C (14 to 122 °F); RH 100%
Dimensions 152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz.)

8
Each meter is supplied with batteries. Remove the battery cap, un-
wrap the supplied batteries and install them while paying attention to
their polarity (see also the "Battery replacement" section for more
details).
TAKING MEASUREMENTS
Connect a suitable temperature probe to the meter (see pages 12-14 for
a complete list of Hanna probes).
Note: HI 935007 has a fixed probe.
To switch the meter ON, press the ON/OFF
button on the front of the meter. If it does not
turn on, make sure that the batteries are
properly installed in their place.
At start-up the thermometer displays all LCD
segments for a few seconds, followed by the
percentage indication of the remaining battery
life; then it enters Cal Check mode and then
enters measurement mode.
Note: The full display can be frozen by
keeping the ON/OFF button pressed.
If a temperature probe is plugged in, the meter displays the measured
temperature.
If no temperature probe is plugged in or the reading is over-range, the
display shows blinking dashes. If the reading is slightly beyond the
measuring range, the meter flashes the closest full-scale value.
To switch the meter OFF, press the ON/OFF key.
AUTO-OFF FEATURE
To save battery life, each model is provided with an auto-off feature,
which switches the instrument off after a certain period of non use.
The auto-off delay time is 8 minutes.
OPERATIONAL GUIDE

9

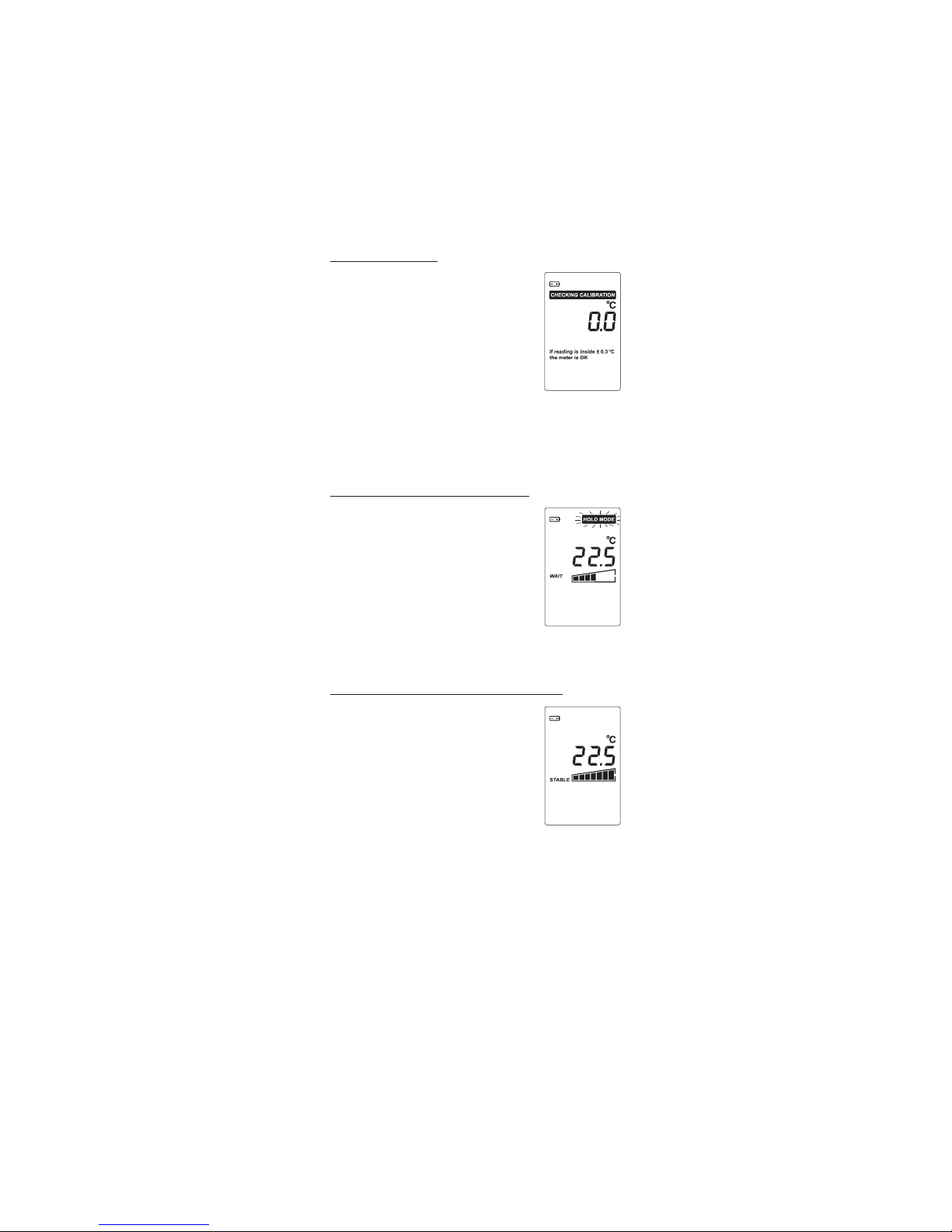

CALIBRATION CHECK
All the models are provided with auto-
matic Cal-Check feature at start-up, which
allows the user to check the instrument
calibration status.
If the meter is calibrated, the display
will stabilize and show “0.0 °C” (±0.3
°C) in a few seconds.
Contact your dealer or your nearest Hanna
Service Center for recalibration, if necessary.
HOLD FEATURE (HI 93501S, HI 93503)
The hold function is activated by pressing
the HOLD key.
The measured temperature and the stabil-
ity bargraph is held on the display until
HOLD is pressed again.
The “HOLD MODE” tag blinks on the dis-
play while in Hold mode.
STABILITY INDICATOR (HI 93501S, HI 93503)
A stability indicator with seven levels of
bargraph is provided on the LCD. Until
the reading become stable the “WAIT”
tag is on.
When the reading is inside ±0.1 °C win-
dow the “STABLE” tag become on stability
bargraph is full.

10

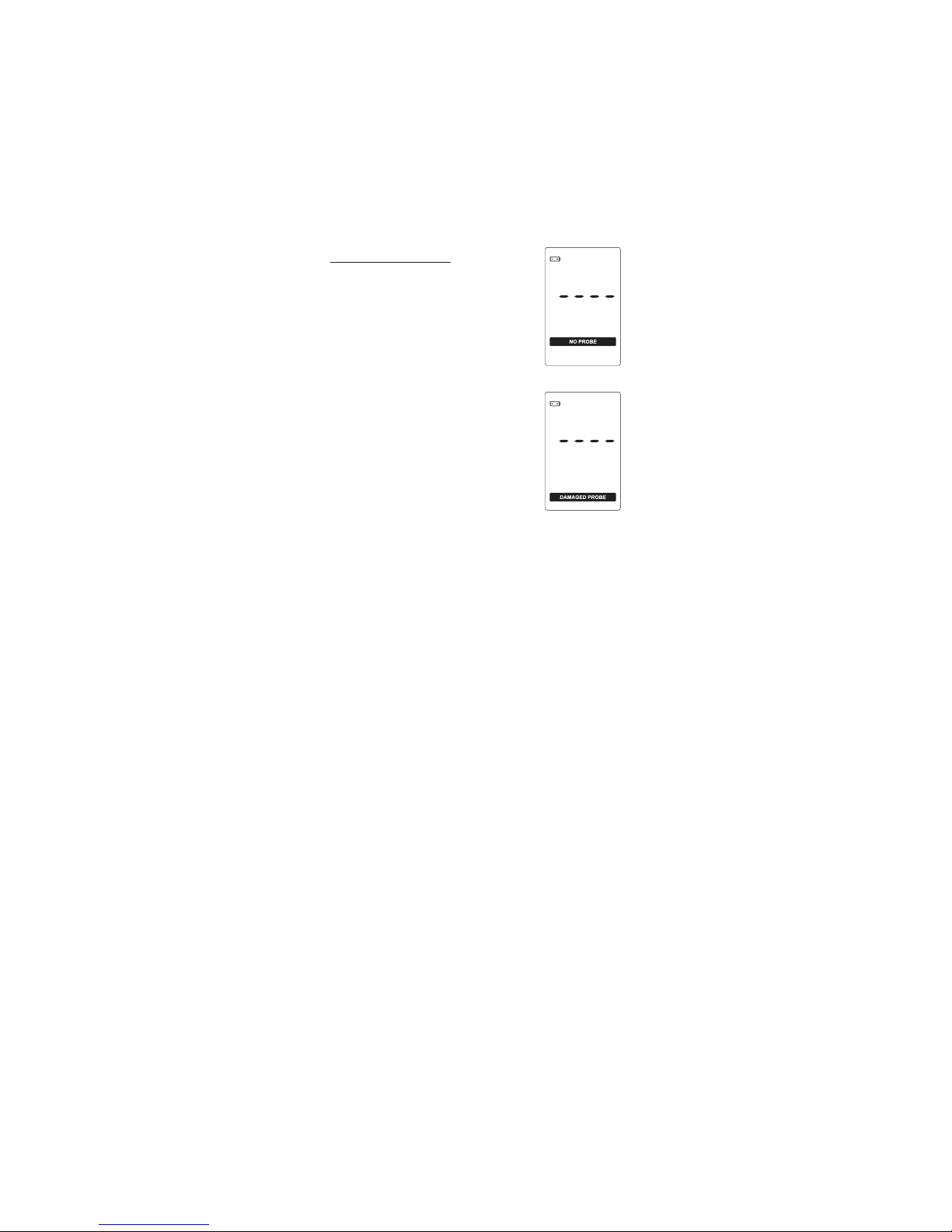

WARNING MESSAGES
NO PROBE message
If the probe is not connected “NO
PROBE” message is displayed.
DAMAGED PROBE message
When the readings are very far from the
reading range, the probe can be dam-
aged, “DAMAGED PROBE” message is
displayed.

11

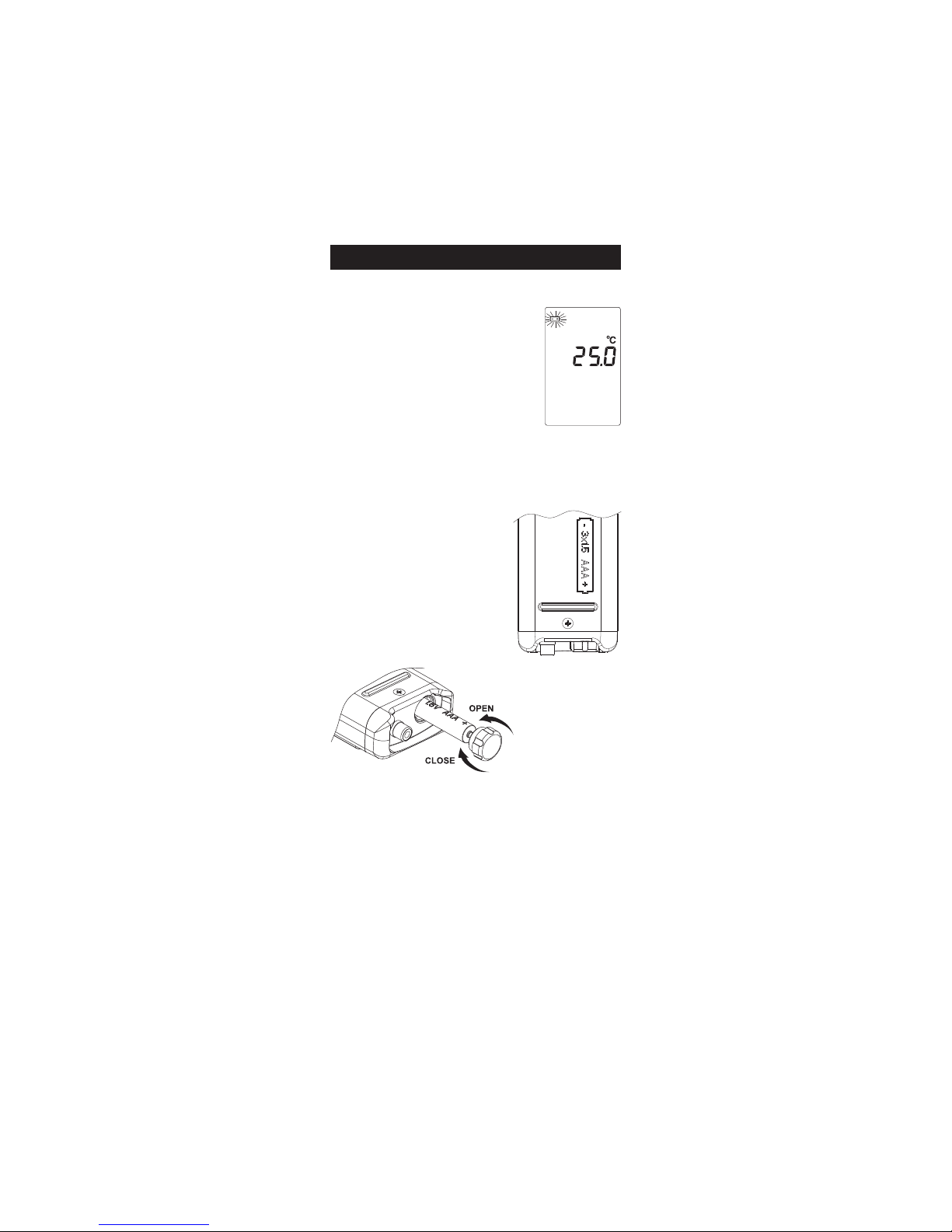

When the remaining battery life is less than 10% the battery tag
blinks on the display to warn the user.
If the battery level is low enough to cause
erroneous readings, the Battery Error Preven-
tion System (BEPS) turns the meter off.
Immediately replace the batteries with new
ones.
Battery replacement must only take place in a non-hazardous
area.
The batteries are accessed by opening the battery compartment
cap on the bottom of the instrument.
Replace the three 1.5V AAA alkaline
batteries located in the battery
compartment, observing the polarity
on the rear of the instrument.
Reattach the battery compartment
cap making sure that the gasket is
in place.
BATTERY REPLACEMENT

12
Hanna offers a wide range of probes to meet your needs with air,
liquid, penetration and surface measurements.
All Hanna temperature probes are pre-calibrated at the factory and
ready-to-use. These interchangeable probes make it possible to switch
from one probe to another without requiring recalibration.
Hanna probes are also available in different handle colors to avoid
cross contamination during testing.
Note:To clean the meters, do not use aggressive detergents. It is
recommended to use water.
FOR HI 93501 AND HI 93501S
HI 762A Air probe, w/1 m (3.3') cable & white handle
HI 762A/10 Air probe, w/10 m (33') cable & white handle
HI 762BL General purpose liquid probe, w/1 m (3.3') cable
& black handle
HI 762L General purpose liquid probe, w/1 m (3.3') cable
& white handle
HI 762L/2 General purpose liquid probe, w/2 m (6.6') cable
& white handle
HI 762L/10 General purpose liquid probe, w/10 m (33') cable
& white handle
HI 762PBL General purpose penetration probe w/1 m (3.3')
cable & blue handle
HI 762PBL/10 General purpose penetration probe w/10 m (33')
cable & blue handle
HI 762PG General purpose penetration probe with 1 m (3.3')
cable and green handle
HI 762PG/10 General purpose penetration probe w/10 m (33')
cable & green handle
HI 762PR General purpose penetration probe w/1 m (3.3')
cable & red handle
HI 762PR/10 General purpose penetration probe w/10 m (33')
cable & red handle
HI 762PW General purpose penetration probe w/1 m (3.3')
cable & white handle
HI 762PW/10 General purpose penetration probe w/10 m (33')
cable & white handle
TEMPERATURE PROBES

13
HI 762PWL Penetration probe w/1 m (3.3') cable & white
handle
HI 762W Wire probe without handle for hard-to-reach
places w/1 m (3.3') cable
HI 762W/10 Wire probe, without handle for hard-to-reach
places w/10 m (33') cable
FOR HI 9241 AND HI 93503
HI 765A Air probe, w/1 m (3.3') cable & white handle
HI 765A/10 Air probe, w/10 m (33') cable & white handle
HI 765BL General purpose liquid probe, w/1 m (3.3') cable
& black handle
HI 765L General purpose liquid probe, w/1 m (3.3') cable
& white handle
HI 765L/10 General purpose liquid probe, w/10 m (33')
cable & white handle
HI 765PBL General purpose penetration probe w/1 m (3.3')
cable & blue handle
HI 765PBL/10 General purpose penetration probe w/10 m (33')
cable & blue handle
HI 765PG General purpose penetration probe w/1 m (3.3')
cable & green handle
HI 765PG/10 General purpose penetration probe w/10 m (33')
cable & green handle
HI 765PR General purpose penetration probe w/1 m (3.3')
cable & red handle
HI 765PR/10 General purpose penetration probe w/10 m (33')
cable & red handle
HI 765PW General purpose penetration probe w/1 m (3.3')
cable & white handle
HI 765PW/10 General purpose penetration probe w/10 m
(33') cable & white handle
HI 765PWL Penetration probe w/1 m (3.3') cable & white
handle
HI 765W Wire probe without handle for hard-to-reach
places w/1 m (3.3') cable
HI 765W/10 Wire probe without handle for hard-to-reach

14
places w/10 m (33') cable
FOR HI 935007
HI 766C (*) Penetration, K-type thermocouple probe w/1 m
(3.3') cable
(*) To be replaced only by authorized service technicians.

15
Hanna Instruments reserves the right to modify the design,
construction and appearance of its products without advance notice.
RECOMMENDATIONS FOR USERS
Before using these products, make sure they are entirely suitable for
the environment in which they are used.
Operation of these instruments in residential areas could cause
unacceptable interferences to radio and TV equipment, requiring the
operator to follow all necessary steps to correct interferences.
Any variation introduced by the user to the supplied equipment may
degrade the instruments’ EMC performance.
To avoid electrical shock, do not use these instruments when voltages
at the measurement surface exceed 24 VAC or 60 VDC.
To avoid damage or burns, do not perform any measurement in
microwave ovens.

16
Printed in EUROPE
(ROMANIA) MAN93501Y 10/10
Hanna Instruments Inc.
Highland Industrial Park
584 Park East Drive
Woonsocket, RI 02895 USA
Technical Support for Customers
Tel. [phone]
Fax [phone]
E-mail [email protected]
www.hannainst.com
Local Sales and Customer Service Office
