Harbor Breeze ARMORY 40087 User manual

1
Lowes.com/harborbreeze
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB13358
ITEM #0451801, 0451802, 0451803
ARMORY CEILING FAN
MODEL #40087, 40088, 40090
Español p. 23

2
Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Operating Instructions .............................................................17
Care and Maintenance ............................................................18
Troubleshooting..................................................................18
Limited Lifetime Warranty ..........................................................20
Replacement Parts List ............................................................21

3
Lowes.com/harborbreeze

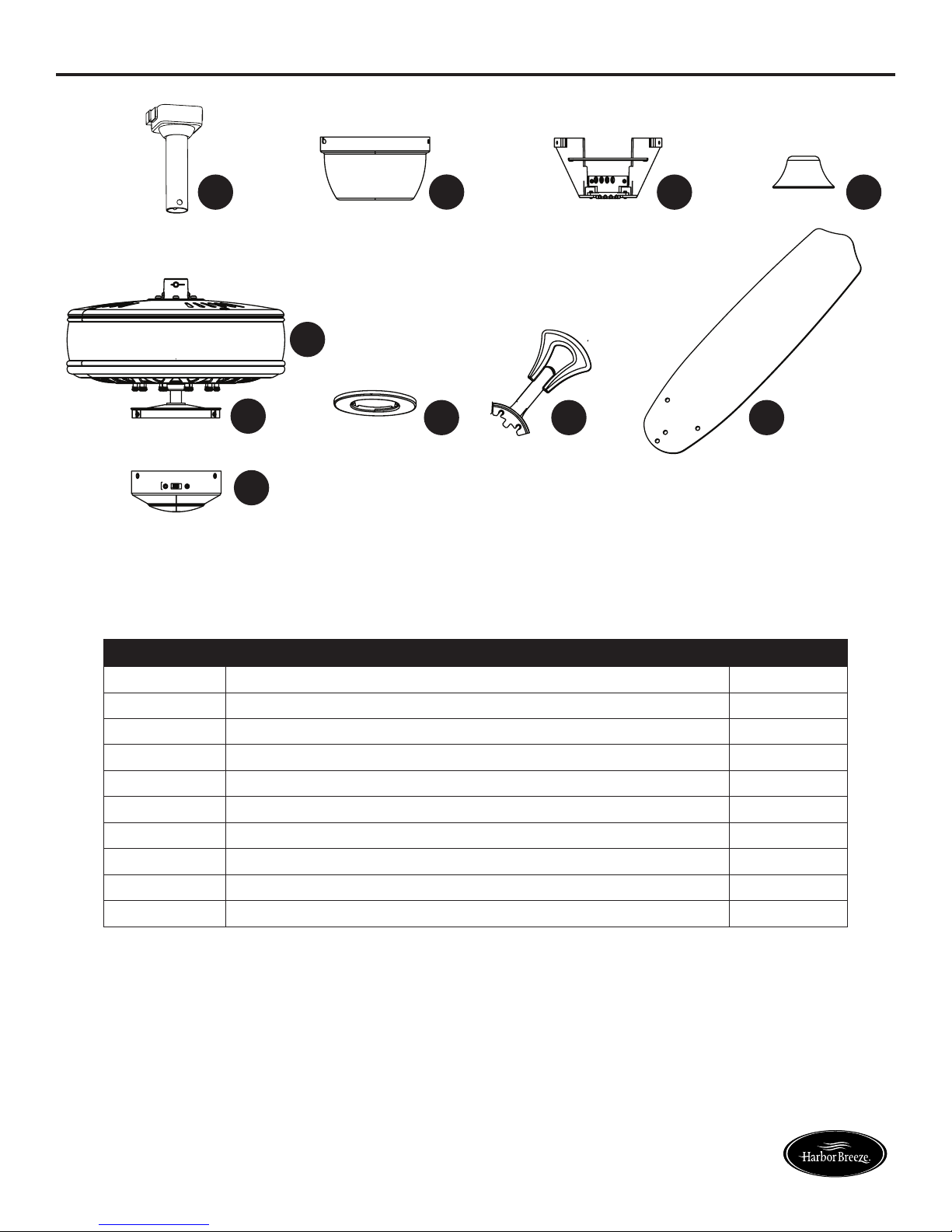

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Canopy (preassembled to Mounting Bracket (C)) 1
C Mounting Bracket 1
D Yoke Cover 1
EMotor Assembly 1
F Fitter Plate (preassembled to Motor Assembly (E)) 1
G Canopy Cover (preassembled to Canopy (B)) 1
HBlade Arm 5
I Blade 5
J Switch Housing 1
A
E
G
FI
J
H
BC D

4
Lowes.com/harborbreeze
HARDWARE CONTENTS
Motor Screw
Qty. 10
(preassembled to
Motor Assembly (E))
+ 1 extra
Wire
Connector
Qty. 3 + 1 extra
Pull Chain
Extension
Qty. 1
Downrod Clip
Qty. 1
(preassembled to
Downrod (A))
Downrod Pin
Qty. 1
(preassembled to
Downrod (A))
Motor Housing Set
Screw
Qty. 2
(preassembled to
Motor
Assembly (E))
Closemount
Screw
Qty. 3
+ 1 extra
Mounting Bracket
Screw
Qty. 4
(preassembled to
Mounting Bracket
(C))
Blade Screw
Qty. 5 + 1 extra
Blade Washer
Qty. 5 + 1 extra
Spring Washer
Qty. 10
(preassembled to
Motor Screw (AA))
+ 1 extra
Fitter Plate Screw
Qty. 3
(preassembled to
Fitter Plate (F))
AA
KK LL
BB
GG
FF HH II JJ
CC DD EE
H
a
r
b
o
r
B
r
e
e
z
e

5
Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
ElectricalCode,andANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 17.75 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,mountthefantoan
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
theoutletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshock,orpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure that they
are secured.
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
After opening the top of the carton, remove the mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid
damagetothenish.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

7
Lowes.com/harborbreeze
INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
2. Determine the mounting method to use.
Helpful Hint: Downrod mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (not included). Angle
mounting is best suited for angled or vaulted ceilings.
A longer downrod is sometimes necessary to ensure
proper blade clearance.
Note:Flushmount installation is not available for this
item.
Important:If using the angle mount, check to ensure
the ceiling angle is not steeper than 23°.
2
Downrod Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (I) will be at least 30 in. from
any obstructions. Also check the downrod (A)
length to ensure the blades (I) will be at least 7 ft.
abovetheoor.
I
A
3
7 ft.
Minimum
30 in.
Minimum

8
Lowes.com/harborbreeze
INITIAL INSTALLATION
4. Remove the two mounting bracket screws (HH) from
the round holes of canopy (B). Set aside for later
use. Detach mounting bracket (C) from canopy (B).
Secure the mounting bracket (C) to the outlet box
using screws and washers provided with the outlet
box.
Hardware Used
HH Mounting
Bracket Screws x 2
C
4
B
HHC
5. Remove and discard the three rubber stoppers and
veplasticspacersfromtheundersideofthemotor
assembly (E).
For Standard or Angle Mounting Instructions,
continue to page 9. For Closemount Instructions,
proceed to page 12.
Rubber
Stopper
Plastic
Spacer
E
5

9
Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.

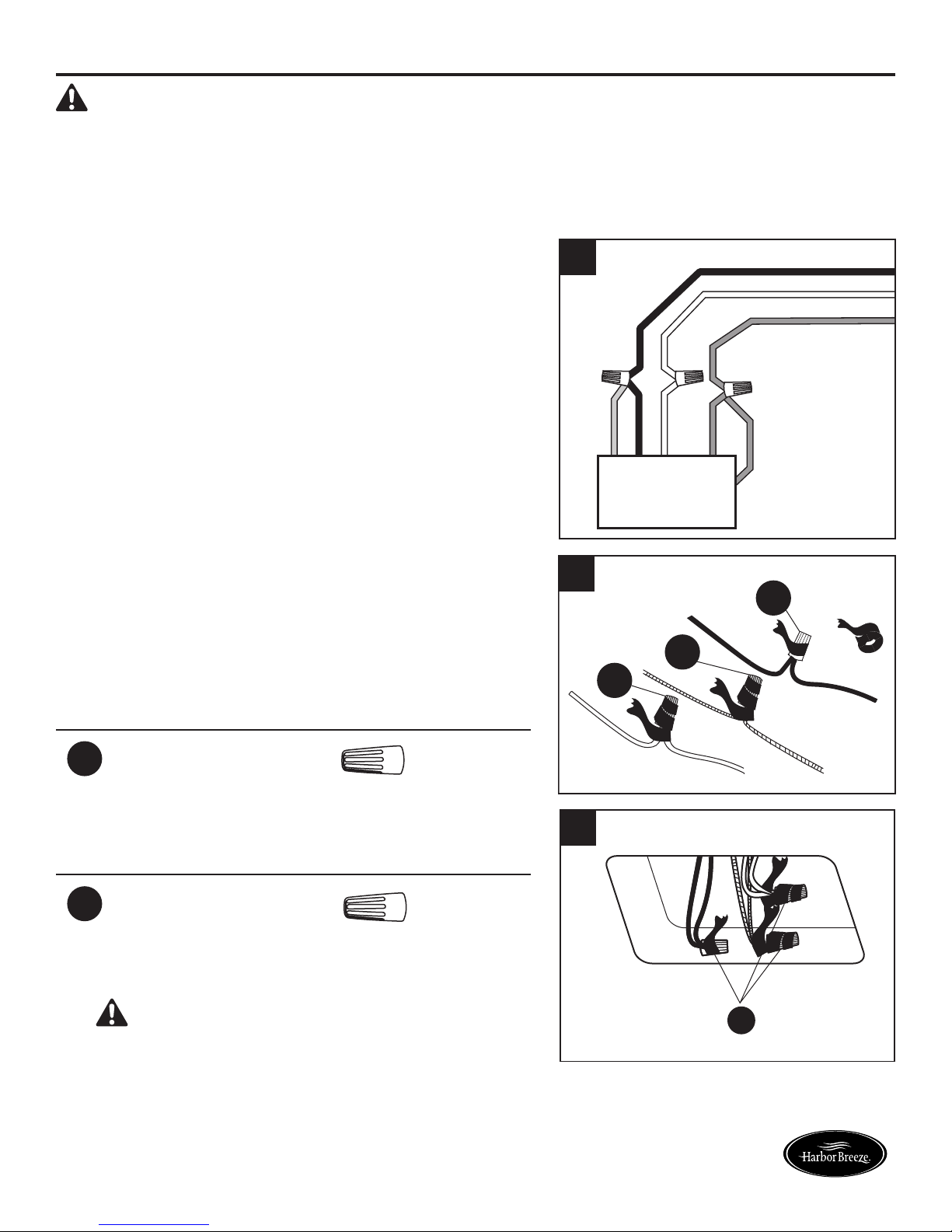

1. Connect supply and mounting bracket (C) wires
according to the diagram and these steps:
•ConnecttheGreenwiresfromthemountingbracket
(C) and the plug on the mounting bracket (C) to the
Bare/Green (ground) supply wire.
•ConnecttheBlueandBlackwiresfromthe
mounting bracket (C) to the Black (hot) supply wire.
•ConnecttheWhitewirefromthemountingbracket
(C) to the White (common) supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (BB).
Note: The Black wire is hot power for the fan.
The White wire is common. The Blue wire is hot
power for light (sold separately; wiring instructions
will differ if optional light kit is purchased. Refer to
light kit manufacturer’s instructions). The Green
wires are ground wires. If house wires are different
colors than referred to above, stop immediately. It is
recommended a professional electrician determines
the proper wiring.
Hardware Used
BB Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
Hardware Used
BB Wire Connector x 3
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (BB) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the White
wire connections on the opposite side of the outlet
box from the Black and Blue wire connections.
BB
BB
BB
BB
Mounting Bracket
Black
White
Bare/Green
Black Blue White
Green
2
3
1

10
Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Remove the downrod pin (EE) and downrod clip
(DD) from the downrod (A). Then partially loosen the
motor housing set screws (FF) in the yoke at the top
of the motor assembly (E).
Hardware Used
DD Downrod Clip x 1
EE Downrod Pin x 1
FF Motor Housing
Set Screw x 2
5. Insert the downrod (A) through the canopy (B) and
yoke cover (D). Thread the wires from the motor
assembly (E) through the downrod (A).
6. Slide the downrod (A) into the yoke of the motor
assembly (E), align the holes, and re-install the
downrod clip (DD) and downrod pin (EE). Then re-
tighten the motor housing set screws (FF).
Hardware Used
DD Downrod Clip x 1
EE Downrod Pin x 1
FF Motor Housing
Set Screw x 2
A
B
D
E
E
A
DD
EE
FF
A
DD
FF
A
E
EE
4
5
6

11
Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
7. Depending on the length of the downrod you use,
you may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead wires,
it is suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod and
measure 8 in. of lead wire. Then cut the excess wire
off with wire cutters (not included).
8. If you decided to cut back the lead wire in Step 7,
strip 1/2 in. of insulation from the end of the white
wire. Twist the stripped ends of each strand of wire
within the insulation with pliers. Repeat this step for
black, blue (if applicable) and green wires.
Important:If you did not cut back the lead wires in
Step 7, Step 8 is not necessary and you
may proceed to Step 9.
9. While pressing the corresponding wire button on the
downrod (A), insert the stripped end of the black wire
from downrod (A) into the hole, then release the wire
button. Gently pull the wire to be sure it is secure.
Repeat for the remaining wires.
Wire
Button
ABlack
Blue
White
Green
7
8
9

12
Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
10. With the wire buttons facing the mounting bracket (C),
lift the downrod (A) into the mounting bracket (C).
Note:Plugs from downrod (A) should seat securely
in integrated wiring system on mounting
bracket (C).
Proceed to Final Installation on page 15.
A
C
CLOSEMOUNT INSTRUCTIONS
1. Remove the canopy cover (G) from the bottom of the
canopy (B).
Helpful Hint: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. high. The
downrod (A) and canopy cover (G) are not used in
this type of installation.
1
G
B
2. Align the canopy (B) with the holes in the top of the
motor assembly (E). Secure the canopy (B) to the
top of the motor assembly (E) with the closemount
screws (GG).
Hardware Used
GG Closemount Screw x 3
E
B
GG
10
2

13
Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTIONS

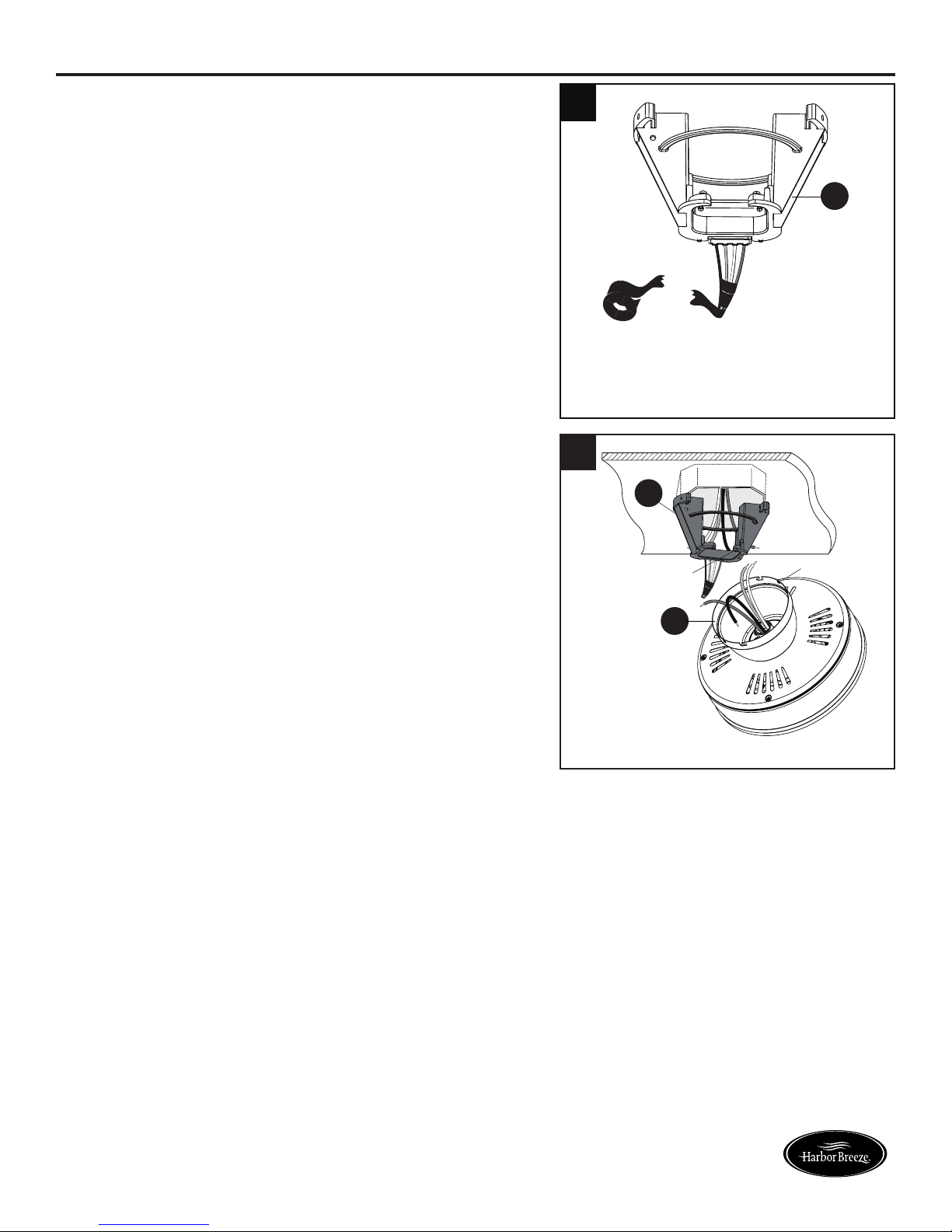

3. Secure the preinstalled wiring from the mounting
bracket (C) with electrical tape.
Important:The integrated wiring system will not be
used for closemount installation since the
downrod (A) will not be utilized. C
4. Raise the fan and place the hole in the canopy (B)
onto the stud on mounting bracket (C).
3
B
C
Stud Hole
4

14
Lowes.com/harborbreeze
BB
BB
BB
CLOSEMOUNT INSTRUCTIONS
WARNING:Toreducetheriskofre,electricalshock,orpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box (not included) is properly grounded or that a ground (green or bare) wire
is present.
5. Connect supply and fan wires according to the
diagram and these steps:
•ConnecttheGreenwirefromthefan(C)totheBare/
Green (ground) supply wire.
•ConnecttheBlueandBlackwiresfromthefanto
the Black supply wire.
•ConnecttheWhitewirefromthefantotheWhite
supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (BB).
Note: The Black wire is hot power for the fan. The
White wire is common. The Blue wire is hot power
for light (sold separately; wiring instructions will
differ if optional light kit is purchased. Refer to light
kit manufacturer’s instructions). The Green wire is
the ground wire. If house wires are different colors
than referred to above, stop immediately. It is
recommended a professional electrician determines
the proper wiring.
Hardware Used
BB Wire Connector x 3
6. Wrap electrical tape (not included) around each
individual wire connector (BB) down to the wire.
Hardware Used
BB Wire Connector x 3
7. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (BB) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the White
wire connections on the opposite side of the outlet
box from the Black and Blue wire connections.
Fan
Black
White
Bare/Green
Black Blue White
Green
6
7
5
BB
7

15
Lowes.com/harborbreeze
FINAL INSTALLATION
1. Align the key slots on the canopy (B) with the heads
of the mounting bracket screws (HH) preassembled
on mounting bracket (C). Lift the canopy (B) up and
rotate it clockwise until the mounting bracket screws
(HH) engage the key slots
Hardware Used
HH Mounting Bracket
Screw x2
B
HH
C
2. Secure the canopy (B) with the previously removed
mounting bracket screws (HH) and tighten all four
mounting bracket screws (HH).
Note:Closemount installation will not use the
downrod (A) and canopy cover (G).
Hardware Used
HH Mounting Bracket
Screw x 4
B
HH
C
3. Align blade arm (H) studs with their corresponding
holes in the blade (I) and then insert the blade screw
(II) and blade washer (JJ) to attach one blade arm (H)
to a blade (I). Tighten the blade screw (II). Repeat for
each blade.
Hardware Used
II Blade Screw x 5
Blade Washer x 5
1
2
JJ
H
I
JJ
II
Stud
3

16
Lowes.com/harborbreeze
E
J
FINAL INSTALLATION
4. Slide the two holes in the blade arm (H) over
the motor screws (AA) and spring washers (KK)
preassembled on motor housing (E). Tighten motor
screws (AA) to secure blade arm (H). Repeat for
remaining blade arms (H).
Hardware Used
AA Motor Screw x 10
E
H
AA
5. Connect the plug from the motor assembly (E) to
the plug from the switch housing (J), and ensure the
connections are secure.
6.Removethetterplatescrews(LL)preassembledto
thetterplate(F).Attachtheswitchhousing(J)tothe
tterplate(F),securingwithtterplatescrews(LL).
Hardware Used
LL Fitter Plate
Screw x 3
4
5
FJ
LL
6

17
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
1. The pull chain labeled FAN has four positions to
control fan speed. One pull is HIGH, two is MEDIUM,
three is LOW and four turns the fan OFF.
2. Use the fan reverse switch, located on the switch
housing (J) to optimize your fan for seasonal
performance.
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Note:Wait for the fan to stop before moving the
reverse switch.
2A. In warmer weather, push the reverse switch
to the left to display a Sun icon, which will result in
downwardairowcreatingawindchilleffect.
2B. In cooler weather, push the reverse switch to the
righttodisplayaSnowakeicon,whichwillresultin
upwardairowthatcanhelpmovestagnant,hotair
off the ceiling area.
Important:The reverse switch must be set either
completely left or right in order for the fan
to function correctly. If the reverse switch
is set in the middle position, the fan will
not operate Fig. 2C.
Fig. 2A Fig. 2B
Fig. 2C
J
2
1
H
a
r
b
o
r
B
r
e
e
z
e
Fan Pull Chain
FINAL INSTALLATION
7. Attach the pull chain extension (CC) or custom pull
chain extension (not included) to the fan pull chain.
Hardware Used
CC Pull Chain
Extension x 1
H
a
r
b
o
r
B
r
e
e
z
e
CC
H
a
r
b
o
r
B
r
e
e
z
e
7

18
Lowes.com/harborbreeze
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
thenish.Cleanthebladeswithalint-freecloth.Youmayoccasionallyapplyalightcoatoffurniture
polish to wood blades for added protection.
Important:Shut off the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch to
either the left or right.
2. Make sure the wall switch is turned
on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The break-in period has not
surpassed.
5. The outlet box is not secure.
6. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Run the fan continuously for 24 - 48
hours on medium or high speed for
a “break in” period.
5. Ensure the outlet box is secured to
the building structure.
6. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

19
Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade
from the opposite side. Or balance
the fan using a balancing kit (not
supplied).
3. Turn off the power. Loosen the
canopy and verify that the mounting
bracket is secure to the electrical
outlet box. The bracket must be
ushwithoutmovementagainstthe
outlet box.
4. Use a longer downrod or move the
fan to another location.
5. Lift up the yoke cover and tighten
the set screw to the yoke until
secure.

20
Lowes.com/harborbreeze
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plexiglas blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbyafxinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.
