Harbor Breeze EXOCET 40764 User manual

1
Lowes.com/harborbreeze
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
EB14695
ITEM #0651842
EXOCET CEILING FAN
MODEL #40764
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
Français p. 20

2
Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Secondary Hanging System ........................................................11
Wiring .........................................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions .............................................................16
Care and Maintenance ............................................................17
Troubleshooting..................................................................17
Limited Lifetime Warranty ..........................................................18
Replacement Parts List ............................................................19

3
Lowes.com/harborbreeze
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket 1
E Canopy 1
F Canopy Cover 1
GMotor Assembly 1
H Fitter Plate (preassembled to Motor Assembly [G]) 1
I Yoke Cover 1
J Light Kit 1
K Shade Cover 3
L Halogen Bulb 3
MBlade Arm 3
N Blade 3
O Motor Screw (preassembled to Motor Assembly [G]) 6 +1 extra
P Set Screw (preassembled to Motor Assembly [G]) 2
Q Canopy Screw (preassembled to Mounting Bracket [D]) 2
R Fitter Plate Screw (preassembled to Fitter Plate [H]) 3
S Blade Balancing Kit 1
A
D E
L
K
O P Q
F
G
H
I
J
M
B
C
N
SR

4
Lowes.com/harborbreeze
HARDWARE CONTENTS
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 9
+ 1 extra
Blade Washer
Qty. 9
+ 1 extra
Blade Screw
Cap
Qty. 9
+ 1 extra
Pull Chain Extension
Qty. 2
Secondary
Support Screw
Qty. 1
Support Washer
Qty. 1
Secondary
Spring Washer
Qty. 1
FF GG HH
(shown actual size)
AA BB CC DD EE
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

5
Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National
ElectricalCodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight owf this fan is: 12.94 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
DANGER: If using the fan in a wet location, the fan must be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical
shock or death.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoanoulet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
WARNING: Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12 gauges or there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan motor assembly to ensure they are
secured.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters

7
Lowes.com/harborbreeze
INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance.
Important:If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Flushmount installation is not available for this
item.
Closemount installation is not available for this
item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (N) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (N) will be at least 7 ft. above
theoor. A
3
7 ft.
Minimum
30 in.
Minimum
2
1
N

8
Lowes.com/harborbreeze
INITIAL INSTALLATION
4. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
Important:If using the angle mount, ensure the open
end of the mounting bracket (D) is installed facing the
higher point of the ceiling.
5. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (P) in the yoke at the top of the motor
assembly (G).
6. Insert the downrod (A) -- or a longer downrod, if
required -- through the canopy (E), canopy cover (F)
and yoke cover (I). Feed the wires and braided cable
from the fan through the downrod (A).
4
D
D
Standard
Mounting
Angle
Mounting
Yoke
C
A
B
P
G
A
I
F
E
6
5

9
Lowes.com/harborbreeze
INITIAL INSTALLATION
7. Slide the downrod (A) into the yoke, align the holes,
then re-install the downrod pin (B) and downrod
clip (C). Secure with set screws (P) and slide the
yoke cover (I) down until it rests on top of the motor
assembly (G).
8. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner: Take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
8 inches of lead wire, then cut the excess wire off with
wire cutters (not included).
9. If you decided to cut back the lead wire in Step 8, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat the
step for black and green wires.
Note:If you did not cut back the lead wires in Step 8,
Step 9 is not necessary and you may proceed to Step
10 instead.
C
A
I
P
B
G
7
Yoke
8
9

10
Lowes.com/harborbreeze
INITIAL INSTALLATION

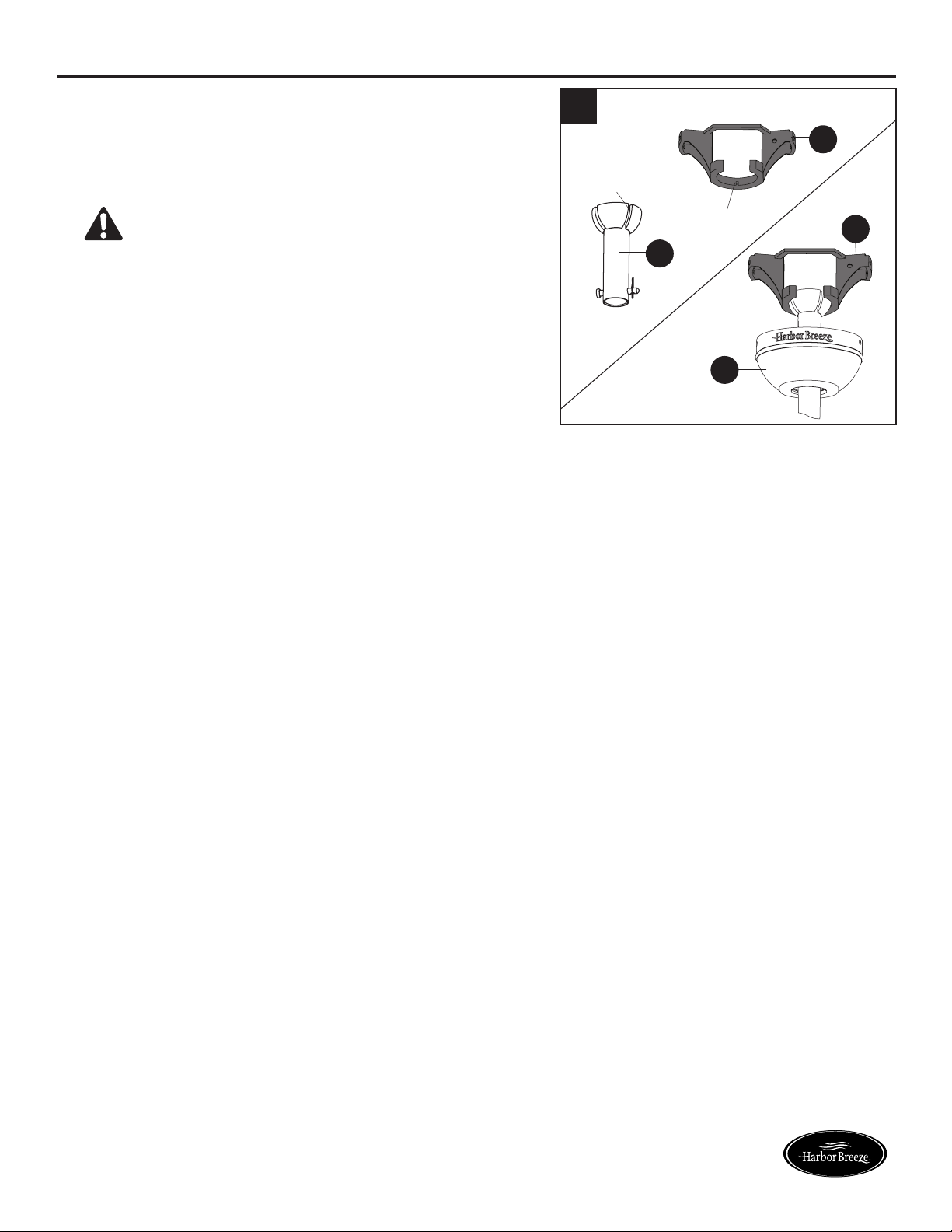

10. Install the ball end of the downrod (A) into the opening of
the mounting bracket (D). Align a slot in the ball with the
tab in the mounting bracket (D).
Important:The downrod (A) should not rotate if
installed correctly.
DANGER: Failure to align a slot in the ball with
the tab may cause the fan to wobble or fall, which
could result in serious injury or death.
10
A
A
D
D
Tab
Slot

11
Lowes.com/harborbreeze
1
2
3
Braided Cable
Outlet Box
Open Loop
SECONDARY HANGING SYSTEM
1. Feed the loop of the braided cable, preassembled to the
motor assembly (G), up through the outlet box mounted
in the ceiling.
2. Install secondary support screw (FF), secondary spring
washer (HH) and support washer (GG) partly into the
side of the brace installed in the ceiling. Then loop
the braided cable up and over the ceiling brace and
place the open loop of the braided cable around the
secondary support screw (FF).
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
Hardware Used
FF Secondary Support
Screw x 1
Support Washer x 1
Secondary Spring
Washer x 1
3. Tighten the secondary support screw (FF), securing the
braided cable.
Hardware Used
FF Secondary Support
Screw x 1
WARNING: Secondary support is required for this
product. Failure to follow the steps below could result in
property damage and/or personal injury.
FF
GG
HH
Brace
FF
GG
A
HH

12
Lowes.com/harborbreeze
WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12 gauges and there is more than one house wire to connect to the two
fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Connect supply and fan wires according to the diagram
and these steps:
•ConnecttheGreenwiresfromthefanandtheupper
mounting bracket (D) to the Bare/Green (ground)
supply wire.
•ConnecttheWhitewirefromthefantotheWhite
(neutral) supply wire.
•ConnecttheBlackandBluewiresfromthefantothe
Black (hot) supply wire.
Secure all wiring connections together with wire
connectors (AA).
Note: If a second hot power wire is available from outlet
box, connect it to the blue (light power) wire from the
fan for separate light and fan control.
Note: The Blue wire is power for light. The Black
wire is power for the fan. The White wire is neutral/
common. The Green wire is the ground. If house
wires are different colors than referred to above, it is
recommended a professional electrician determines the
proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire strands are visible
after making connections. Place Green and White wire
connections on opposite sides of outlet box from the Black.
1D
AA
AA
3
2

13
Lowes.com/harborbreeze
FINAL INSTALLATION
1. Remove one of the canopy screws (Q) from the
bottom of the mounting bracket (D). Slide the key slot
in the canopy (E) over the head of the canopy screw
(Q) preassembled to the mounting bracket (D). Twist
the canopy (E) clockwise to lock. Replace the canopy
screw (Q) in the round hole in the bottom of the
canopy (E) and tighten.
2. Slide the key slots in the canopy cover (F) over the
heads of the canopy screws (Q) preassembled to
the mounting bracket (D). Twist the canopy cover (F)
clockwise to lock.
F
Q
2
1
E
Q
Q
Key Slot

14
Lowes.com/harborbreeze
FINAL INSTALLATION

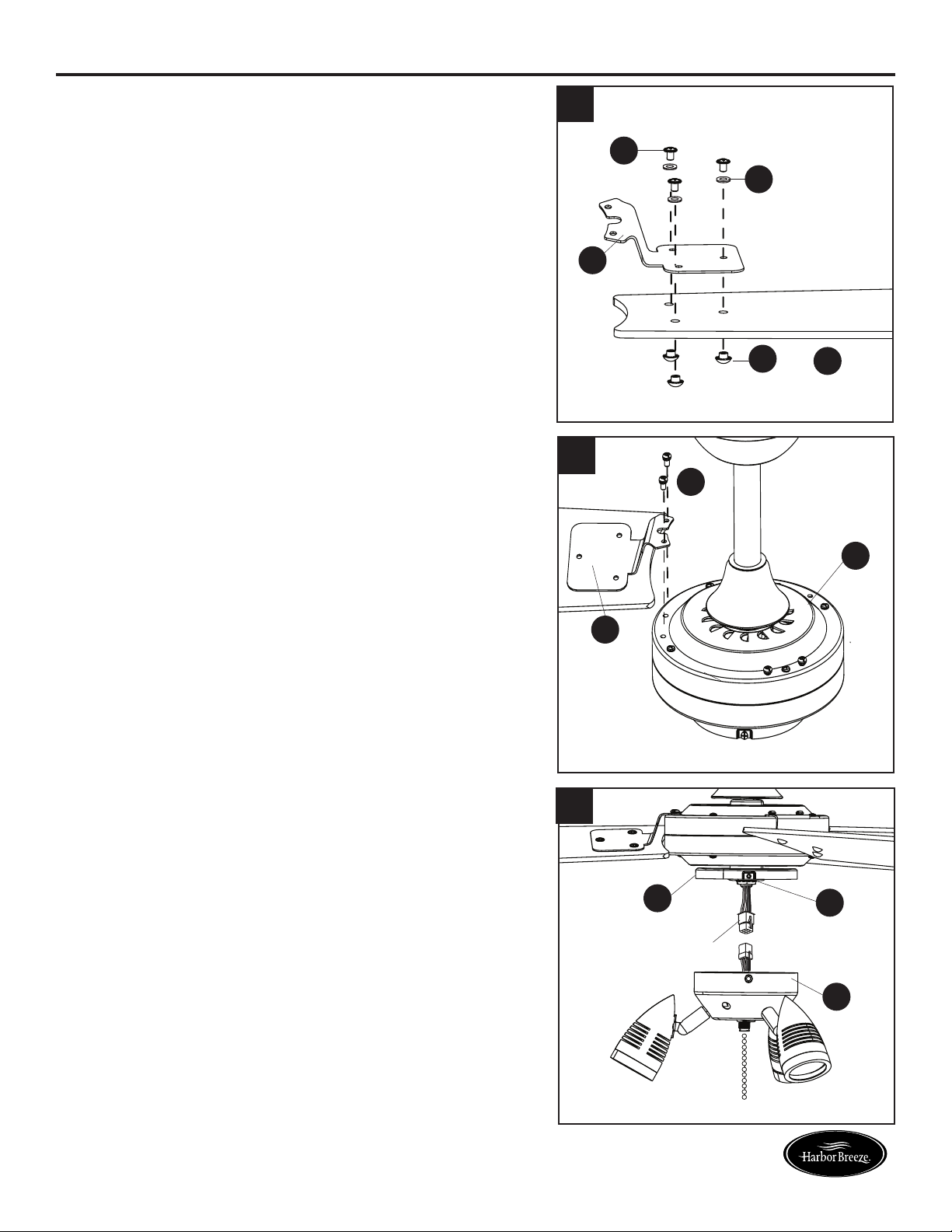

3. Insert three blade screws (BB) along with blade
washers (CC) through one blade arm (M) and
into one blade (N) and into the blade screw caps
(DD). Secure each blade screw (BB) with a Phillips
screwdriver (not included), starting with the one in
the middle. Repeat this step for the remaining blades
(N) and blade arms (M).
4. Remove the motor screws (O) from the top of the
motor assembly (G). Align the two holes in the blade
arm (M) with two motor screw holes in the top of
the motor assembly (G). Secure the blade arm (M)
to motor assembly (G) using two motor screws (O).
Completely secure each blade arm (M) to the motor
assembly (G) before moving to next.
5.Removethetterplatescrews(R)preassembled
tothetterplate(H).Then,connectthe9-pin
connectorfromthetterplate(H)tothe9-pin
connector from the light kit (J). Secure the light
kit(J)tothetterplate(H)byreinstallingthetter
plate screws (R).
BB
DD
CC
N
M
3
4
5
O
M
G
J
R
H
9-Pin Connector

15
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
Lowes.com/harborbreeze
FINAL INSTALLATION

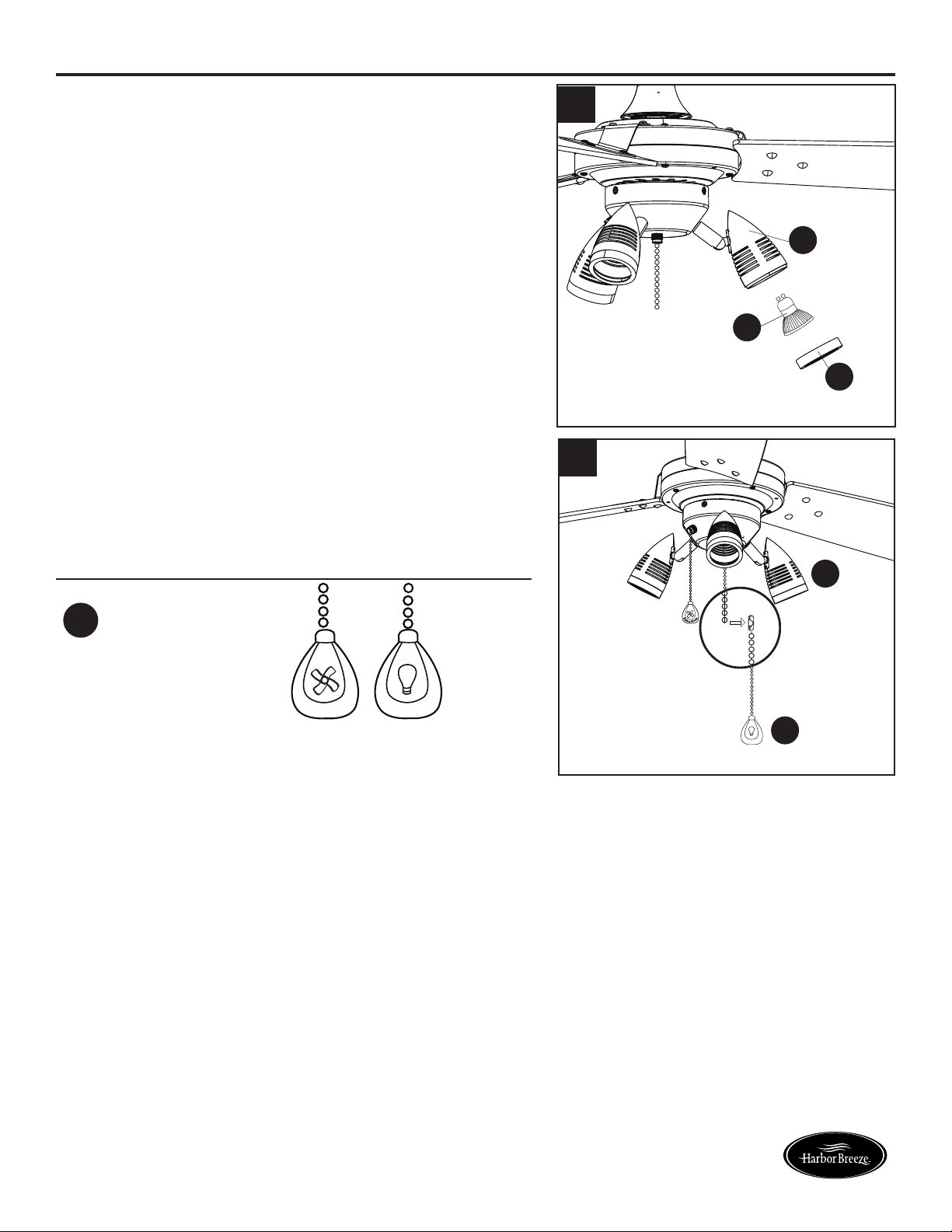

6. Remove shade covers (K) from light kit (J). Install
bulbs (L) and replace the shade covers (K).
IMPORTANT: Make sure you allow the bulbs (L) and
light kit (J) to cool before you replace the bulbs (L).
7. Snap the end of the pull chain extensions (EE) onto
the ends of the appropriate pull chains. The pull
chain extending from the center of the light kit (J)
controls the light and the pull chain extending from
the side of the light kit (J) controls the fan.
Hardware Used
EE Pull Chain
Extension x 2
6
7
J
L
K
EE
J
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

16
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
1. The pull chain on the side of the light kit (J) has four
positions to control the fan speed. One pull is HIGH,
two is MEDIUM, three is LOW, and four turns the fan
OFF. The pull chain in the center of the light kit (J)
turns the lights ON and OFF.
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
2. Use the fan reverse switch located on the light kit (J)
to optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Note:Wait for the fan to stop before moving the
reverse switch.
2a. In warmer weather, push the reverse switch left
to display a Sun icon, which will result in downward
airowcreatingawindchilleffect.
2b. In cooler weather, push the reverse switch
righttodisplayaSnowakeicon,whichwillresultin
upwardairowthatcanhelpmovestagnant,hotairoff
the ceiling area.
Important: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
Fig. 2a Fig. 2b
Fig. 2c
2
1
Fan Pull
Chain
Light Pull
Chain
JReverse
Switch

17
Lowes.com/harborbreeze
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
thenish.Cleanthebladeswithalint-freecloth.
Bulb Replacement: Use GU-10 halogen bulbs.
Important:Shut off the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch to either
the left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
There is excessive
wobbling.
1. The blades and/or blade
arms are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to vaulted
ceiling.
5. Set screw on the yoke of the
motor housing is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
the blade balancing kit (S).
3. Turn off the power. Verify the mounting
bracket is secure to the electrical outlet
box.Thebracketmustbeushwithout
movement against the outlet box.
4. Use a longer downrod (sold separately)
or move fan to a different location.
5. Tighten the set screw on the yoke of the
motor assembly.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to
control the fan speed.
4. Ensure the outlet box is secured to the
building structure.
5. Ensure the mounting bracket is secured to
the outlet box and that the screws are tight.

18
Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure the 9-pin connectors in the
light kit are connected properly.
3. Turn the power off and check all
connections at the ceiling outlet box.
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plexiglas blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbyafxinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

Lowes.com/harborbreeze
19
Printed in China
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PART #
A Downrod 0651842-A
D Mounting Bracket 0651842-D
E Canopy 0651842-E
F Canopy Cover 0651842-F
I Yoke Cover 0651842-I
M Blade Arm 0651842-M
N Blade 0651842-N
HW Hardware Kit 0651842-HW
9109•120214
A
D E F I
M N HW
