Harbor Breeze BRISTLE AR13-44BLK AR13-44BN User manual

Purchase Date
1
BRISTLE INDOOR
CEILING FAN
MODEL # AR13-44BLK AR13-44BN
Español p. 18
ITEM # 5497066 5497067
5497069 5497068
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could
also contact us at [email protected].
AS23222
HARBOR BREEZE and logo design are
trademarks or registered trademarks of LF,
LLC. All rights reserved. AR13-44BRZ AR13-44WHT

2
Safety Information .....................................................................................................
Package Contents .....................................................................................................
2
5
6
6
7
9
10
12
13
14
15
15
16
17
Hardware Contents ...................................................................................................
Preparation ................................................................................................................
Initial Installation ........................................................................................................
Wiring ........................................................................................................................
Final Installation ........................................................................................................
Operating Instructions ...............................................................................................
Installing the Remote Control Holder.........................................................................
Operation ...................................................................................................................
Care and Maintenance ..............................................................................................
Troubleshooting ........................................................................................................
Limited Lifetime Warranty .........................................................................................
Replacement Parts List .............................................................................................
TABLE OF CONTENTS
SAFETY INFORMATION
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: Dimmable to 10% with select dimmers. See lowes.com for more information.

3
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product.
SAFETY INFORMATION
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70. Hire a qualified electrician or consult a do-it-yourself wiring handbook
if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades
to the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 14.08 lbs.
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount to an outlet box
UL-Listed acceptable for fan support of 35 lb. (15.9 kg) or less and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
To reduce the risk of fire, electric shock or personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the outlet box.
NEED HELP? In the event you have broken glass or are missing parts, call 888-251-1003. Do
not return the ceiling fan to the place of purchase. Be sure to have available the owner's manual,
item or model number, finish, color, type of glass, etc.
Attention Statement needs to read this way.
ATTENTION: The use of a fan brace with all ceiling fans is recommended. Application style
vary. Braces are sold separately in the lighting or electrical department.
ATTENTION: Do not use an extension cord with this fan.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to
avoid electrical shock.

4
SAFETY INFORMATION
WARNING
Risk of Fire and Electric Shock: Do not repair or service this light kit. The light source is
designed for this specific application and can overheat if serviced by untrained personnel. If
any servicing is required, call our customer service department (at 888-251-1003) for return
authorization and shipping instructions.
CAUTION
To reduce the risk of personal injury, use only the screws provided with the outlet box.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly
to ensure that they are secured.

5
PACKAGE CONTENTS
IMPORTANT REMINDER: You must use
the parts provided with this fan for proper
installation and safety.
1
4
1
1
Receiver + Remote Pack
Mounting Plate Screw
(preassembled to Mounting
Plate (A))
I
H
DESCRIPTIONPART QUANTITY
A
B Housing Ring 1
Mounting Plate 1
C
D
Blade 5
LED Light Kit assembly
5
E Fan motor assembly 1
F
G
DESCRIPTIONPART QUANTITY
C
A
B
D
G
D
E
F
Blade Support Plate (with
Screws and Lock Washers)
I
H
Balance Kit

6
Wire
Connector
Qty. 4
HARDWARE CONTENTS
PREPARATION
AA
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes.
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers.
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached
to the building structure and can support the full weight of the fan. Failure to do this can result in
serious injury or death. The stability of the outlet box is essential in minimizing wobble and noise
in the fan after installation is complete.
CAUTION: Be sure outlet box is properly grounded and a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove
motor from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure they
are secured.
Wire
Connector
(Remote Pack)
Qty. 6
BB

7
INITIAL INSTALLATION
1. Turn off circuit breakers and wall switch to the
fan supply line leads.
2. This fan can be mounted as a flushmount on
a regular (no-slope) ceiling only.
Check to make sure blades (C) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3. Remove two of the four mounting plate
screws with lock washers (I) from the
mounting plate (A) and loosen the other two
screws with lock washers (I). (Do not
remove.)
DANGER: Failure to disconnect power
supply prior to installation may result in
serious injury or death.
1
ON
OFF
ON
OFF
2
30 in.
min.
7 ft.
min.
C
3
A
I
I

8
INITIAL INSTALLATION
4. Attach the mounting plate (A) to the outlet
box (not included) with two screws and
washers provided with the outlet box. Ensure
the mounting plate (A) is tight and secured.
5. Make sure the slot openings of the housing
ring (B) are on top, and then slip the housing
ring (B) onto the fan motor assembly (E).
Carefully lift the fan motor assembly (E) up to
the mounting plate (A) and hang the fan on
the hook provided using one of the holes at
the outer rim of the fan motor assembly (E).
A
Outlet Box
Hook
5
WARNING: To reduce the risk of fire, electric
shock or other personal injury, mount the fan
only to an outlet box or supporting system
marked acceptable for fan support and use
the mounting screws provided with the
outlet box.
WARNING: The hook is only to hold the
fan while attaching wiring. Failure to hang
as instructed may result in the hook breaking
causing the fan to fall. The hook must pass
from the inside to the outside of the fan
motor assembly.
4
A
E
B

9
WIRING
1. If you feel you do not have enough electrical
wiring knowledge or experience, have your
fan installed by a licensed electrician.
Follow the steps below to connect the fan
to your household wiring. Use the plastic
wire nuts (AA & BB) with your fan. Secure
the plastic wire nuts with electrical tape.
Make sure there are no loose strands or
connections.
Make wire connections from the receiver
and fan to the outlet box as follows, using
the wire nuts (AA & BB).
From fan To receiver
Blue Wire --------------------- Blue Wire "For
Light"
Black Wire -------------------- Black Wire "To
Motor L"
White Wire ------------------- White Wire "To
Motor N"
From receiver To outlet box
Black wire "AC in L" -------- Black wire (hot)
White wire "AC in N" ------- White wire
(neutral)
From mounting plate To outlet box
Green wire ------------------- Green or bare
wire (ground)
Turn the wire nut connections upward,
spreading them apart so the green
(ground) and white wires will be on one
side and the black and blue wires will be
on the other side.
1
WARNING: Check to see that all
connections are tight, including ground,
and that no bare wire is visible at the wire
nuts, except for the ground wire.
CAUTION: Do not use with a wall light
dimmer switch.
NOTE: The fan must be installed at a
maximum distance of 20 ft. from the
remote control for proper signal
transmission between the remote control
and the fan's receiving unit.
Black
Ground
conductorWhite
A
BB
AA
E
White
Black
Outlet Box
White
Black
Blue
Receiver

10
FINAL INSTALLATION
1. Remove the fan motor assembly (E) from the
mounting plate hook, and engage the key
holes on the fan motor assembly (E) with the
two mounting plate screws with lock washers
(I) previously loosened.
Install the two mounting plate screws with
lock washers (I) previously removed, and
tighten all four mounting plate screws with
lock washers (I).
Raise up canopy ring (B) and line up the four
tabs with the four grooves on the fan motor
assembly (E). Once lined up, slide the
canopy ring (B) up to the fan motor assembly
(E) until snug.
2. Insert the blade (C) through the slot on the
motor. Align the holes on the blade (C) and
the fan motor assembly (E) and secure the
blade in place with blade support plate with
screws and lock washers (D) provided.
Repeat this process to attach the other
blades (C).
1
C
E
2
D
E
I
I
A
WARNING: To reduce the risk of personal
injury, do not insert foreign objects between
rotating fan blades (C).
Tabs
Grooves

11
FINAL INSTALLATION
1. While holding the 20W LED light kit (F)
under the fan motor assembly (E), snap
together the wire connection plugs :
White to white
Black to black
Position the notches on the inner edge
of the 20W LED light kit (F) so they match
the tabs on the outside of the rim on the
light kit mounting plate. Carefully lift the
20W LED light kit (F) inside the light kit
mounting plate and secure it to the fan by
turning the 20W LED light kit (F) clockwise
until snug.
CAUTION: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at the
fuse box. Turning power off using the fan
switch is not sufficient to prevent electric
shock.
NOTE: If the light kit could be wobbled by
hand, it means the light kit is not twisted
completely till the right position. Keep
twisting the light kit till it could not be wobbled
by hand.
1
F
E
Wire Connection
Plugs
Light Kit Mounting
Plate
Notches
Tabs

12
OPERATING INSTRUCTIONS
NOTE: Batteries will weaken with age and should
be replaced before leaking takes place as this will
damage the remote control. Dispose of used
batteries properly and keep them out of the reach
of children.
NOTE: The remote has been pre-paired in the
factory for your convenience.
1. Remove the battery cover by pressing firmly on
the arrow and sliding the cover off.
2.
Install two 1.5V AAA batteries (included).
3. Replace the battery cover on the remote
control.
LEARNING PROCESS
IMPORTANT: If you have two or more fans, please
follow steps below to control each fan independently.
Also follow steps below to re-pair the remote and
the receiver when needed.
NOTE: The dip switch in the battery compartment
has been set on “0” position for your convenience.
If you want to re-pair the remote, please set the dip
switch on “1” position.
To add a remote to your fan’s memory, use the
steps below:
Ensure AC power to the fan is OFF to begin the
learning process.
Slide the dip switch in the battery compartment to
the "1" position.
Turn the fan’s AC power ON.
NOTE:
If installing multiple fans on separate remotes,
only the fan being programmed should have AC
power turned ON. All other fans, even if they have
already been programmed, should have AC power
OFF so they do not memorize other remotes during
the learning process. Separate the fan power
switches by approximately 2 meters.
Within 30 seconds of turning AC power on, press
and release the "LEARN" button located in the
remote's battery compartment to enter the learning
function. The down light of your fan, if applicable,
will blink, and the fan blades will start to spin.
The fan will now accept commands from the added
remote.
If you would like to set the dip switch back to the
"0" position after a learning, please re-pair the
remote by following the learning process again.
1
LEARN
1
LEARN
Remote
Control
Remote
Control
Batteries
LEARN

13
OPERATING INSTRUCTIONS
INSTALLING THE REMOTE CONTROL HOLDER
1. Attach the remote control holder with the
two remote control holder mounting screws.
Light button
Press and release the light button to turn
the light on or off. Press and hold to
decrease the desired light level.
Light button
Press and release the light button to turn
the light on or off. Press and hold to
increase the desired light level.
1, 2, 3 Speed functions
1 = Low speed
2 = Medium speed
3 = High speed
Power OFF: Press and release the power
button to turn the fan off.
1
1
Remote
Control
Remote
Control
Holder
Mounting Screws

14

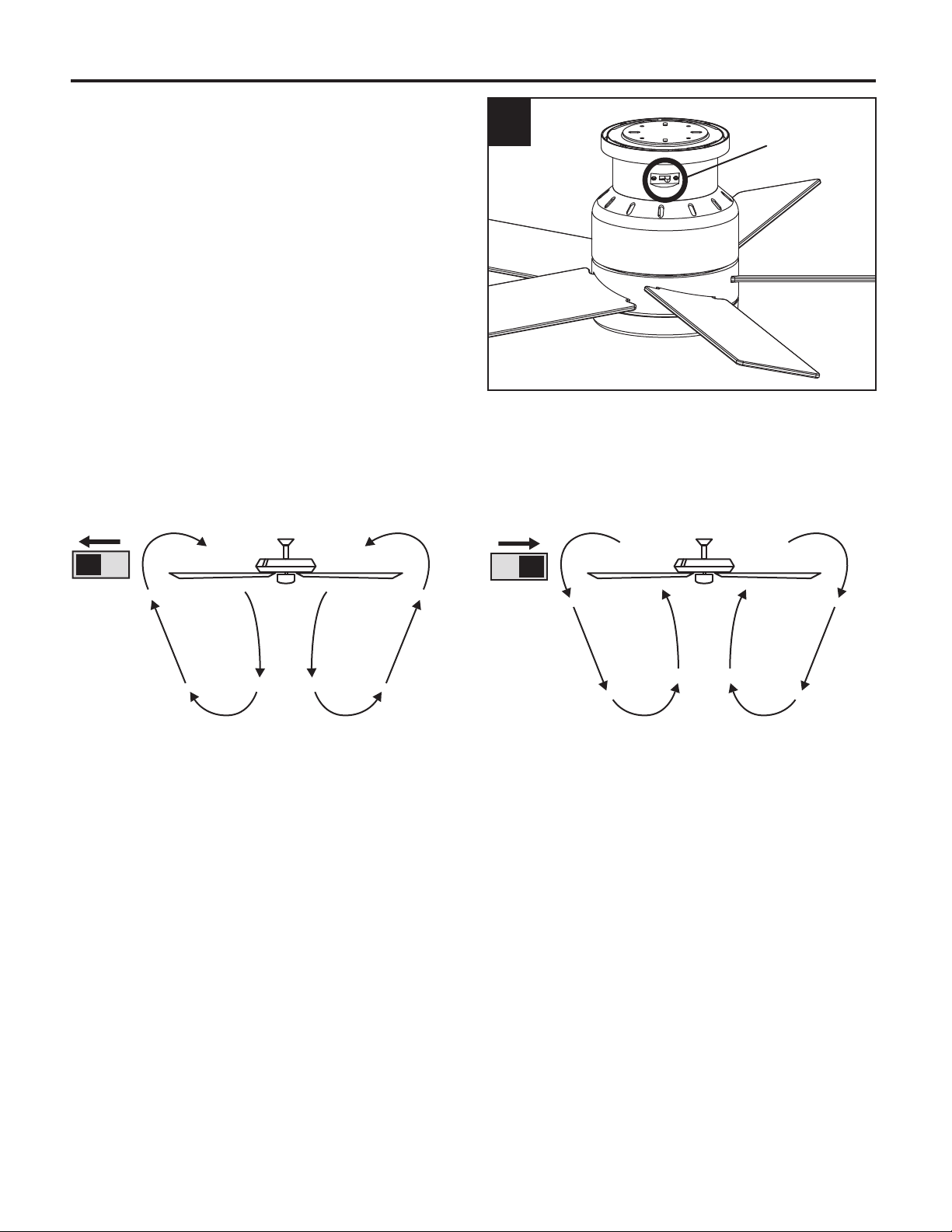

OPERATION
1. The reverse switch is located on the
surface of the motor housing. Slide the
switch to the left for warm weather
operation. Slide the switch to the right for
cool weather operation.
Warm weather - (Counterclockwise Direction) A
downward air flow creates a cooling effect. This
allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An
upward air flow moves warm air off the ceiling.
This allows you to set your heating unit on a
cooler setting without affecting your comfort.
Reverse Switch
NOTE: Wait for the fan to stop before reversing
the direction of the blade rotation.
1

15
CARE AND MAINTENANCE
Check the support connections, brackets, and blade attachments twice a year. Make sure they
are secure. Because of the fan’s natural movement, some connections may become loose over
time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. Use only a
soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water
or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Plugs not connected properly.
1. Push switch firmly either left or right.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy and
check all connections.
4. Check that male and female plugs
in switch housing are connected
properly according to instructions
on page 11.
Noisy operation. 1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing
yoke is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved
speed control device.
4. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side.
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.

16
TROUBLESHOOTING
LIMITED LIFETIME WARRANTY
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan operates but
light fails. 1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
3. Plugs not connected properly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 9.
2. Make sure that wall switch to fan
is on.
3. Check that male and female plugs
in switch housing are connected
properly according to instructions
on page 11.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
The distributor warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for Lifetime limited from the date of purchase. This warranty
applies only to the original purchaser. The distributor agrees to correct any defect at no charge or,
at our option, replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by using parts not produced by the
manufacturer of this fan or affixing accessories not produced by the manufacturer of this fan, are
the purchaser's own responsibility. The distributor assumes no responsibility whatsoever for fan
installation during the limited lifetime warranty. Any service performed by an unauthorized person
will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected
from varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from
the date of purchase. For the balance of the warranty, call our customer service department (at
888-251-1003 ) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the
limited lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance
except as may otherwise be accorded by law. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties.

17
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at
888-251-1003 , 8 a.m. - 8 p.m.,
EST, Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION PARTS #
A
C
F
Mounting Plate
Blade
5497066
-A
5497066 -C
5497066 -F
C
A
LED Light Kit assembly
F

MODELO # AR13-44BLK AR13-44BN
Fecha de la compra
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 888-251-1003, de lunes a domingo de 8 a.m. a 8
p.m., hora estándar del Este. También puede ponerse en contacto con nosotros a través
de [email protected].
ARTÍCULO # 5497066 5497067
5497069 5497068
AS23222
HARBOR BREEZE y el diseño del logotipo son
marcas comerciales o marcas registradas de LF,
LLC. Todos los derechos reservados.
VENTILADOR DE TECHO
BRISTLE PARA
INTERIORES
AR13-44BRZ AR13-44WHT
1

2
Información de seguridad ..........................................................................................
Contenido del paquete ..............................................................................................
2
5
6
6
7
9
10
12
13
14
15
15
16
17
Contenido de los aditamentos ...................................................................................
Preparación ...............................................................................................................
Instalación inicial .......................................................................................................
Cableado ...................................................................................................................
Instalación final ..........................................................................................................
Instrucciones de funcionamiento ...............................................................................
Instalación del soporte del control remoto .................................................................
Funcionamiento .........................................................................................................
Cuidado y mantenimiento ..........................................................................................
Solución de problemas ..............................................................................................
Garantía limitada de por vida ....................................................................................
Lista de piezas de repuesto .......................................................................................
ÍNDICE
INFORMACIÓN DE SEGURIDAD
Las modificaciones que no estén aprobadas por la parte responsable del cumplimiento podrían
anular la autorización del usuario para utilizar el equipo.
*NOTA: este equipo se probó y se verificó que cumple con los límites para un dispositivo digital de
clase B, conforme a la Sección 15 de las reglas de la FCC. Estos límites están diseñados para
proporcionar una protección razonable contra interferencias perjudiciales en una instalación
residencial. Este equipo genera, utiliza y puede irradiar energía de radiofrecuencia y, si no se
instala ni se usa de acuerdo con las instrucciones, puede causar interferencias perjudiciales para
las comunicaciones de radio. Sin embargo, no se garantiza que no se producirán interferencias en
una instalación en especial. Si este equipo genera una interferencia perjudicial para la recepción de
radio o televisión, que se puede determinar al encender y apagar el equipo, se recomienda al
usuario que intente corregir la interferencia con una o más de las siguientes medidas:
* Reorientar o reubicar la antena de recepción.
* Aumentar la separación entre el equipo y el receptor.
* Conectar el equipo a un tomacorriente de un circuito distinto al que usa el receptor.
Solicitar ayuda al distribuidor o a un técnico con experiencia en radio/TV.
El dispositivo cumple con la Parte 15 de las reglas FCC. Su funcionamiento está sujeto a las
siguientes condiciones: (1) este dispositivo no debe causar interferencias perjudiciales; (2) debe
aceptar cualquier interferencia recibida, incluida la interferencia que pudiese causar un
funcionamiento no deseado.
NOTA: se puede regular al 10% con reguladores seleccionados. Consulte lowes.com para
obtener más información.

3
LEA Y GUARDE ESTAS INSTRUCCIONES.
Lea y comprenda completamente este manual antes de intentar ensamblar, instalar o usar el
producto.
INFORMACIÓN DE SEGURIDAD
• No deseche la caja del ventilador ni los accesorios de espuma. En caso de que deba
devolverse este ventilador a la fábrica para realizarle reparaciones, debe enviarse en su
empaque original para asegurar una protección adecuada contra daños que puedan aumentar
la causa inicial de la devolución.
• Asegúrese de que todas las conexiones eléctricas cumplan con los códigos locales, las
ordenanzas, el Código Eléctrico Nacional y la ANSI/NFPA 70. Contrate a un electricista
calificado o consulte un manual de cableado para hacerlo usted mismo si no está familiarizado
con la instalación de cableado eléctrico.
• Asegúrese de que en el lugar de instalación que elija se pueda establecer una distancia mínima
de 2.13 m desde las aspas hasta el piso y al menos 76.2 cm desde los extremos de las aspas
hasta cualquier obstáculo.
• Una vez instalado el ventilador, asegúrese de que todas las conexiones sean seguras a fin de
evitar que se caiga.
• El peso neto de este ventilador, incluido el kit de luces, es de 14.08 kg.
ADVERTENCIA
Para reducir el riesgo de incendio, descargas eléctricas o lesiones personales,
monte en una caja de salida de clasificación UL apta para sostener ventiladores de
15.90 kg (35 lb), o menos, y use los tornillos de montaje provistos con la caja de
salida. La mayoría de las cajas de salida que se utilizan comúnmente para sostener
las lámparas no son aptas para sostener un ventilador y puede ser necesario
reemplazarlas. Si tiene dudas, consulte a un electricista calificado.
Para disminuir el riesgo de incendio, descarga eléctrica o lesiones personales, monta el
ventilador sobre la caja eléctrica marcada como “aprobada como soporte de ventilador” y usa
los tornillos de montaje que vienen con la misma.
¿NECESITA AYUDA? En caso de que el vidrio esté roto o haya piezas faltantes, llame al
888-251-1003. No devuelva el ventilador de techo al lugar donde lo compró. Asegúrese de tener
a mano el manual del propietario, el número de artículo o de modelo, el acabado, el color, el
tipo de vidrio, etc.
La declaración de atención debe leerse de esta manera.
ATENCIÓN: se recomienda la utilización de un soporte de ventilador con todos los ventiladores
de techo. El estilo de aplicación varía. Los soportes se venden por separado en el Departamento
de Iluminación o de Electricidad.
ATENCIÓN: no utilice una extensión eléctrica con este ventilador.
Para reducir el riesgo de lesiones, use solo las piezas que se incluyen con este ventilador. El uso
de piezas DISTINTAS de aquellas que se proporcionan con este ventilador anulará la garantía.
