Hardi MASTER VHY Series User manual

1
GB 01 00 MA
MASTER
VHY/HVZ
Instruction book
679025-GB-2003/12
We congratulate you for choosing a HARDI plant protection product. The reliability and
efficiency of this product depend upon your care. The first step is to carefully read and
pay attention to this instruction book. It contains essential information for the efficient
use and long life of this quality product.
As this instruction book covers all MASTER models with VHY or VHZ boom, and all
models with either BK or EVC operating unit, please pay attention to the paragraphs
dealing with precisely your model.
This book is to be read in conjunction with the “Spray Technique” book.
Illustrations, technical information and data in this book are to the best of our belief correct at the time of printing. As
it is HARDI INTERNATIONAL A/S policy permanently to improve our products, we reserve the right to make
changes in design, features, accessories, specifications and maintenance instructions at any time and without
notice.
HARDI INTERNATIONAL A/S is without any obligation in relation to implements purchased before or after such
changes.
HARDI INTERNATIONAL A/S cannot undertake any responsibility for possible omissions or inaccuracies in this
publication, although everything possible has been done to make it complete and correct.
As this instruction book covers more models and features or equipment, which are available in certain countries
only, please pay attention to paragraphs dealing with precisely your model.
Published and printed by HARDI INTERNATIONAL A/S

2

3
CE Declaration ............................................................ 4
Important safety notes ................................................. 5
Description .................................................................. 6
Sprayer setup
Connecting/disconnecting the sprayer ........................ 9
Transmission shaft ...................................................... 11
Hydraulics.................................................................... 13
Control boxes & power supply ..................................... 13
Basic adjustment of the boom ..................................... 14
Operation
Operating the boom .................................................... 16
Operation - liquid system............................................. 18
Maintenance
General guidelines ...................................................... 28
Lubrication ................................................................... 30
10 hours service .......................................................... 33
50 hours service .......................................................... 34
250 hours service ........................................................ 34
1000 hours service ...................................................... 34
Occasional maintenance ............................................. 35
Off-season storage ...................................................... 40
Fault finding ................................................................. 41
Technical specifications ............................................... 44
Subject index ............................................................... 47
Table of Contents

4GB 02 01 MA
CE Declaration
DecDec
DecDec
Declarlar
larlar
laraa
aa
ation oftion of
tion oftion of
tion of ConfConf
ConfConf
Conformityormity
ormityormity
ormity
Manufacturer, Importer,
HARDI INTERNATIONAL A/S
Helgeshøj Allé 38
DK 2630 Taastrup
DENMARK
declare that the following product;
_________________________________________________________________________________________
A. was manufactured in conformity with the provisions in the COUNCIL DIRECTIVE of 14 June 1989 on mutual
approximation of the laws of the Member States on the safety of machines (89/392/EEC as amended by directives
91/368/EEC and 93/368/EEC) with special reference to Annex 1 of the Directive on essential safety and health
requirements in relation to the construction and manufacture of machines.
B. was manufactured in conformity with the current standards implementing harmonised standards in accordance
with Article 5 (2) and other relevant standards.
Taastrup, March 2002
_____________________________________________
Adhere extra shipping package labels in the Product Identification Certificate.
Lars Bentsen
Product Development Manager
HARDI INTERNATIONAL A/S

5
GB 03 00 MA
Important safety notes
OperOper
OperOper
Operaa
aa
ator’tor’
tor’tor’
tor’s safs saf
s safs saf
s safetyety
etyety
ety
Watch for this symbol.
It means WARNING, CAUTION,
NOTE. Your safety is involved so be
alert!
Note the following recommended precautions and safe
operating practices.
Read and understand this instruction book
before using the equipment. It is equally
important that other operators of this equip-
ment read and understand this book.
Local law may demand that the operator is
certified to use spray equipment. Adhere to
the law.
Pressure test with clean water prior to filling
with chemicals.
Wear protective clothing.
Rinse and wash equipment after use and
before servicing.
Depressurize equipment after use and before
servicing.
Never service or repair the equipment while it
is operating.
Disconnect electrical power before servicing.
Always replace all safety devices or shields
immediately after servicing.
If an arc welder is used on the equipment or
anything connected to the equipment, discon-
nect power leads before welding. Remove all
inflammable or explosive material from the
area.
Do not eat, drink or smoke while spraying or
working with contaminated equipment.
Wash and change clothes after spraying.
Wash tools if they have become contaminated.
In case of poisoning, immediately seek medi-
cal advice. Remember to identify chemicals
used.
Keep children away from the equipment.
Do not attempt to enter the tank.
Do not go under any part of the sprayer unless
it is secured. The boom is secure when placed
in the transport brackets.
If any portion of this instruction book remains un-
clear after reading it, contact your HARDI dealer
for further explanation before using the equip-
ment.
SafSaf
SafSaf
Safety prety pr
ety prety pr
ety precautions - crecautions - cr
ecautions - crecautions - cr
ecautions - crop prop pr
op prop pr
op pretectionetection
etectionetection
etection
cc
cc
chemicalshemicals
hemicalshemicals
hemicals
Always be careful when working with crop
protection chemicals!
PP
PP
Perer
erer
ersonal prsonal pr
sonal prsonal pr
sonal protectionotection
otectionotection
otection
Depending on chemical type, protective gear /equipment
should be worn to avoid contact with the chemicals, e.g.:
• Gloves
• Waterproof boots
• Headgear
• Respirator
• Safety goggles
• Chemical resistant overall
Protective clothing/equipment should be used
when preparing the spray liquid, during the
spray job and when cleaning the sprayer.
Follow the chemical manufacturer’s instruc-
tions given on the chemical label.
It is always advisable to have clean water
available, especially when filling the sprayer
with the chemical.
Always clean the sprayer carefully and imme-
diately after use.
Only mix chemicals in the tank according to
directions given by the chemical manufac-
turer.
Always clean the sprayer before changing to
another chemical.

6GB 04 00 MA
Description
Description and rDescription and r
Description and rDescription and r
Description and ree
ee
evievie
vievie
view ofw of
w ofw of
w of thethe
thethe
the
MASTER sprMASTER spr
MASTER sprMASTER spr
MASTER spraa
aa
ayy
yy
yerer
erer
er
TT
TT
Tankank
ankank
ank

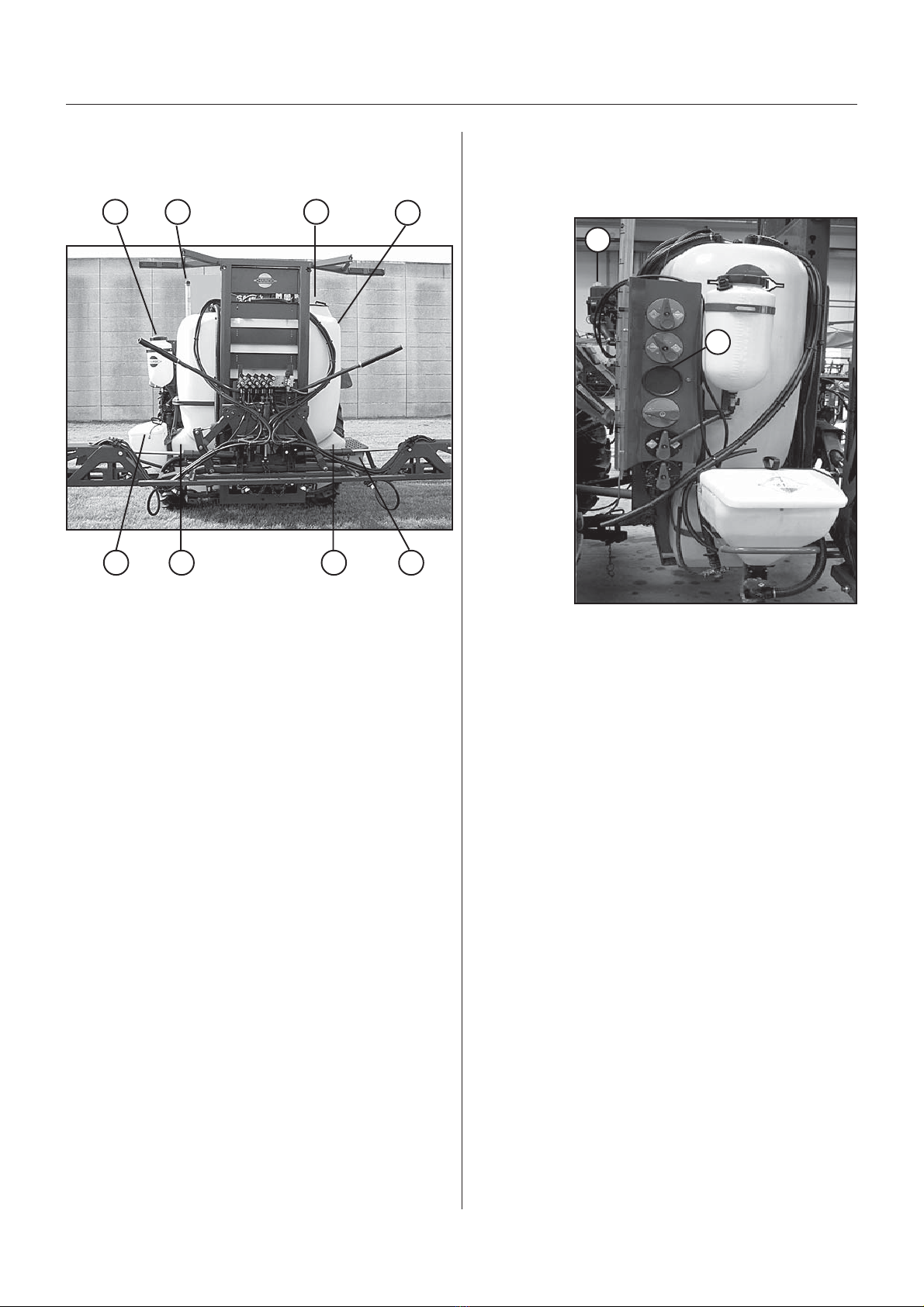

The tank (A), made of impact-proof and chemical
resistant polyethylene, has a purposeful design with no
sharp corners for easy cleaning. Nominal contents: 800,
1000 or 1200 litres.
A large, easy to read tank contents indicator (B) is
placed in front of the tank.
The filling hole (C) and a footboard (D) is placed at the
right hand side of the sprayer. This ensures an easy
access for the filling of sprays, cleaning of the tank, etc.
Rinsing tank(s) (E) are optional equipment.
Clean water tank (F) is optional equipment.
HARDI-FILLER (G) is optional equipment.
FF
FF
Frr
rr
rameame
ameame
ame
Very strong and compact frame which also has a strong
chemical and weather resistant electrostatic lacquer
coat. Screws, nuts, etc. have been DELTA-MAGNI
treated to be resistant to corrosion.
PumpPump
PumpPump
Pump
Diaphragm pump model 1302 or 363. The design of the
diaphragm pump is simple, with easily accessible
diaphragms and valves which ensures liquid does not
contact the vital parts of the pump.
MANIFOLD syMANIFOLD sy
MANIFOLD syMANIFOLD sy
MANIFOLD systemstem
stemstem
stem
The functions of the spray circuits are operated via the
centrally situated MANIFOLD valves with colour coded
plates and pictorial symbols for easy operation (H).
OperOper
OperOper
Operaa
aa
ating unitting unit
ting unitting unit
ting unit
The sprayer is equipped with either a BK operating unit
or an EVC unit (I).
BK operating unit
The BK operating unit consists of; pressure agitator
valve, safety valve, main ON/OFF valve, pressure filter
with pressure gauge, distribution valves with pressure
equalization and HARDI-MATIC pressure control valve.
EVC unit
EVC - Electrical Valve Control. The ON/OFF is linked to
the section valves, which results in a very quick re-
sponse to ON/OFF. The operating unit is constructed of
modules and is electrically controlled via a remote
control box. The unit is fit with built-in HARDI-MATIC.
HARDI-MATIC ensures a constant volume per hectare
of the liquid (l/ha) at varying forward speed within the
same gear when the number of P.T.O. revolutions are
between 300-600 r/min.
T102-0016
H
I
T102-0015
A
E
B C
DG
F
E

7GB 04 00 MA
Description
FF
FF
Filterilter
ilterilter
ilterss
ss
s

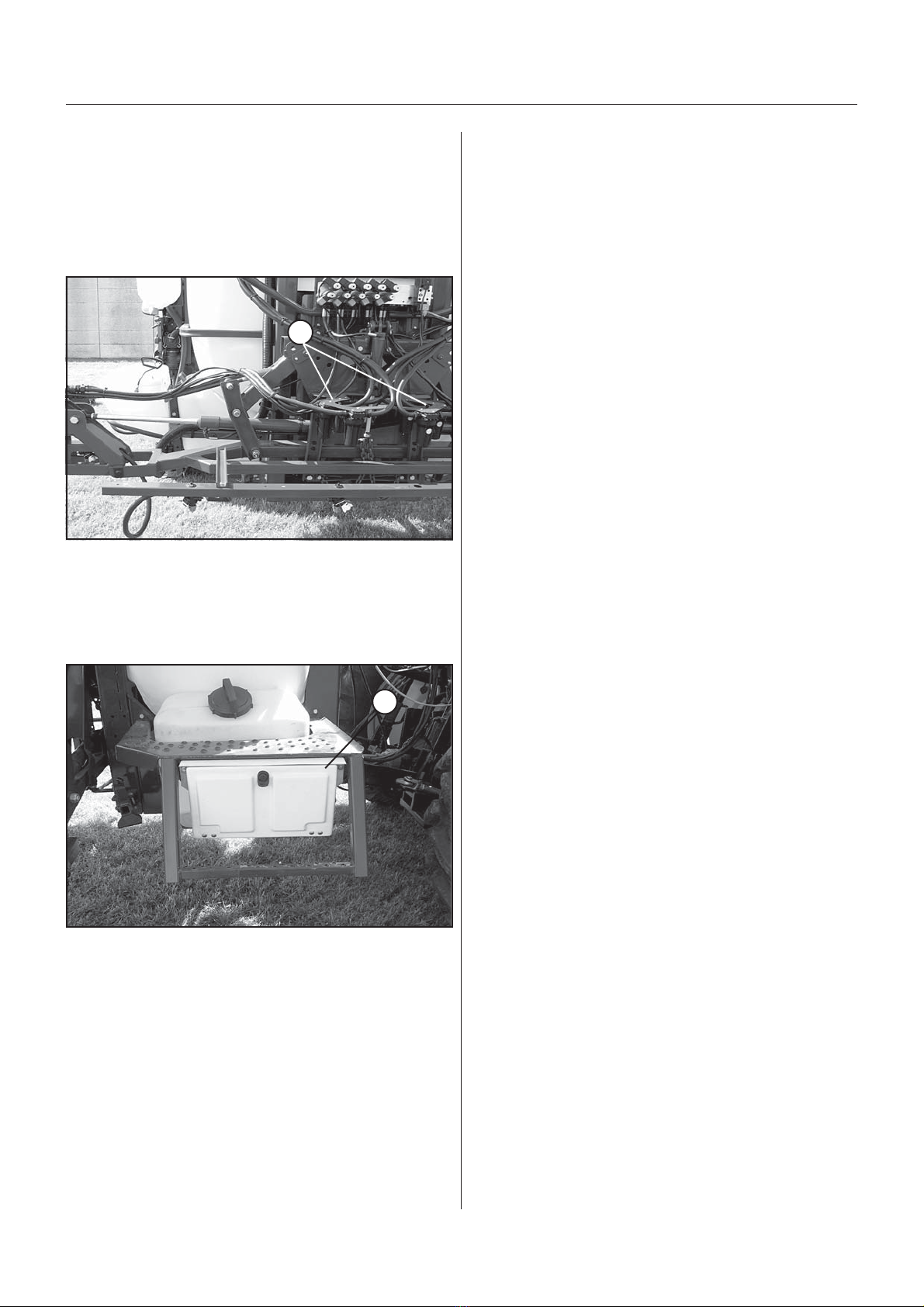

With the self-cleaning filter the impurities that exist in the
spray liquid will by-pass the filter and be recirculated
back to the tank via the return flow.
Also suction filter and nozzle filters are standard. In-line
pressure filters can be fitted as option (J).
SafSaf
SafSaf
Safety locety loc
ety locety loc
ety lockk
kk
ker (optional equipment)er (optional equipment)
er (optional equipment)er (optional equipment)
er (optional equipment)
A safety locker (K) can be mounted underneath the
footboard for the storage of safety gear.
BoomBoom
BoomBoom
Boom
The sprayer can be fitted with VHY or VHZ boom. Both
booms are supported by a trapeze which is fitted to the
tank frame.
The trapeze helps the boom to stay horizontal when
unfolded and it protects the boom against vibrations and
shocks when driving on uneven ground. This ensures
longer boom life and improves boom stability for better
spray distribution.
Booms are available in 12, 12.5, 15, 16 and 18 m
working width. Alternative boom widths are possible for
the VHZ model. All booms are provided with spring
loaded
breakaway.
IdentifIdentif
IdentifIdentif
Identificaica
icaica
ication plation pla
tion plation pla
tion platestes
testes
tes
An identification plate fitted on the frame indicates
producer name, model, own weight, max height, max
pressure of the hydraulic system and max pressure of
the spray liquid system. Frame, boom centre frame and
inner/outer sections also have identification plates
indicating boom type and part number. If ordering spare
parts, inform your dealer of these numbers.
SprSpr
SprSpr
Spraa
aa
ayy
yy
yer useer use
er useer use
er use
The HARDI MASTER sprayer is for the application of
crop protection chemicals and liquid fertilisers.
The equipment must only be used for this purpose. It is
not allowable to use the sprayer for other purposes.
If no local law demands that the operator must be
certified to use spray equipment, it is strongly recom-
mended to be trained in correct plant protection and in
safe handling of plant protection chemicals to avoid
unnecessary risk for persons and the environment when
doing your spray job.
T102-0017
J
T102-0018
K

8GB 04 00 MA
Description
Unloading the sprUnloading the spr
Unloading the sprUnloading the spr
Unloading the spraa
aa
ayy
yy
yer frer fr
er frer fr
er from the trom the tr
om the trom the tr
om the trucuc
ucuc
uckk
kk
k
Lifting pointsLifting points
Lifting pointsLifting points
Lifting points
For the unloading of the sprayer, you need a crane or a
fork lift.
When unloading with a crane please observe the two
lifting points (A) as shown on the picture below, and
make sure that the straps or belts used for lifting are
strong enough.
BefBef
BefBef
Beforor
oror
ore putting the spre putting the spr
e putting the spre putting the spr
e putting the spraa
aa
ayy
yy
yer intoer into
er intoer into
er into
operoper
operoper
operaa
aa
ationtion
tiontion
tion
Although the sprayer has been applied with a strong and
protective surface treatment on steel parts, bolts etc. in
the factories, it is recommended to apply a film of
anticorrosion oil (e.g. CASTROL RUSTILLO or SHELL
ENSIS FLUID) on all metal parts in order to avoid
chemicals and fertilisers discoloring the enamel.
If this is done before the sprayer is put into operation for
the first time, it will always be easy to clean the sprayer
and keep the enamel shiny for many years.
This treatment should be carried out every time the
protection film is washed off.
TT
TT
Terminology used in this bookerminology used in this book
erminology used in this bookerminology used in this book
erminology used in this book
Boom wingBoom wing
Boom wingBoom wing
Boom wing
A - Breakaway section
B - Short outer section (2)
C - Large outer section (1)
D - Intermediate section
E - Centre section
T102-0025
A A
ABC D
E
T102-0026

9
GB 05 00 MA
Sprayer setup
Connecting/disconnecting theConnecting/disconnecting the
Connecting/disconnecting theConnecting/disconnecting the
Connecting/disconnecting the
sprspr
sprspr
spraa
aa
ayy
yy
yerer
erer
er
SafSaf
SafSaf
Safety infety inf
ety infety inf
ety informaorma
ormaorma
ormationtion
tiontion
tion

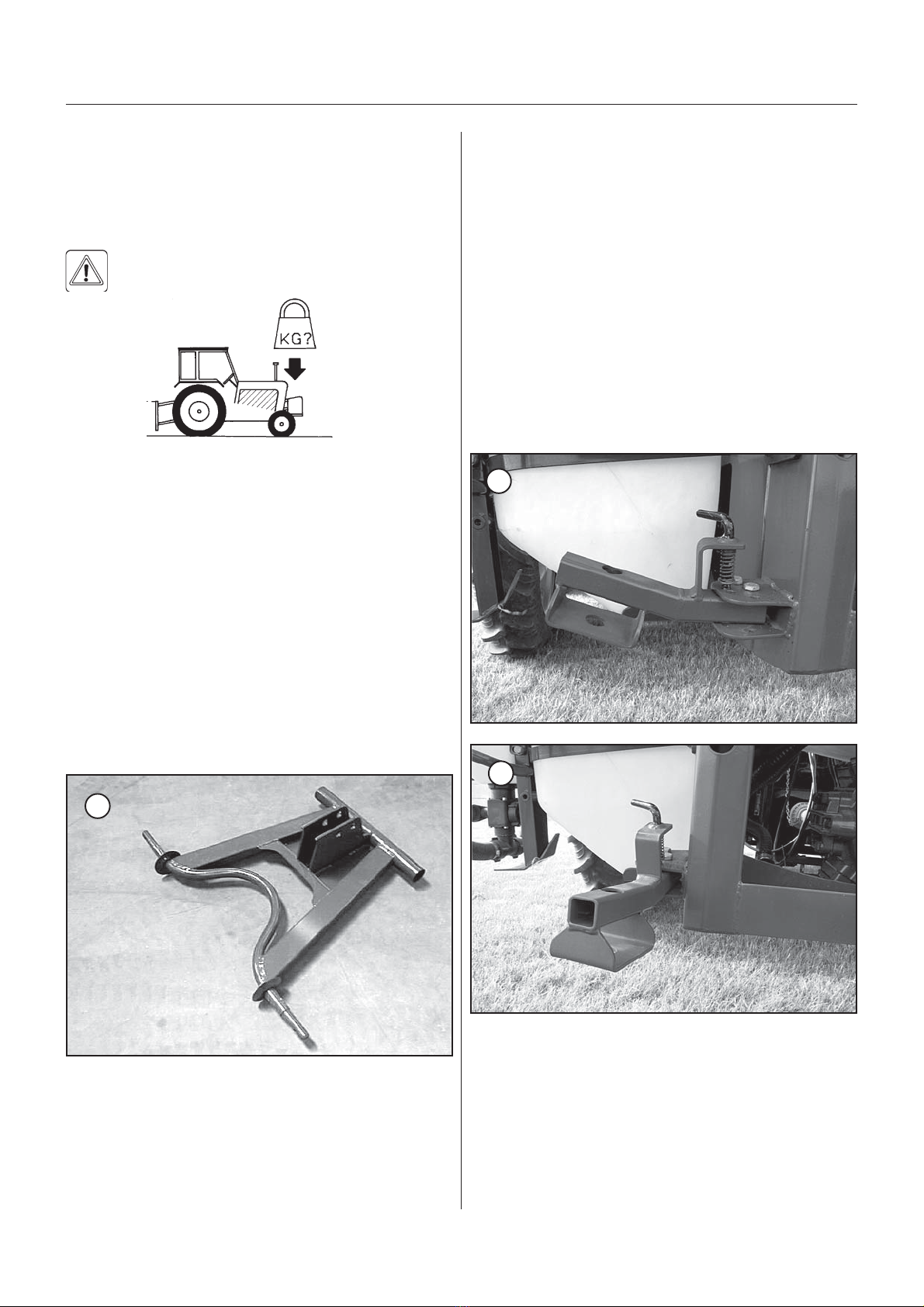

WARNING! Note the weight of the sprayer.
General recommendations are as follows:
1. Add ballast to front of tractor, if necessary.
2. Check tyre pressure (see tractor’s instruction book).
3. Be careful when filling/lifting the sprayer for the first
time.
4. Ensure the operating unit and tractor do not touch.
5. Travel at slower speeds when driving with a full tank,
as the tractor braking effect will be reduced.
QuicQuic
QuicQuic
Quick hitck hitc
k hitck hitc
k hitchh
hh
h
The sprayer is designed for three point suspension
(cat. II). A quick hitch (A) is supplied with the sprayer. Fit
the quick hitch to the tractor for easy hook-up of the
sprayer.
Frontvægt
SupporSuppor
SupporSuppor
Support let le
t let le
t legsgs
gsgs
gs
The frame has two retractable support legs that can be
turned in to minimise crop damage.
NOTE! The support legs must be unfolded before
lowering and disconnecting the sprayer.
How to unfold support legs
1. Lift spring-loaded catch (B) from the front hole (spray-
ing position).
2. Swing support legs (C) backwards.
3. Fit catch (B) in the back hole (storage position).
Support legs are turned in in reverse order.
Picture Bshows support legs in spraying position.
Picture Cshows support legs in storage position.
T102-0019
A
T102-0020
B
T102-0021
C
StorStor
StorStor
Storaa
aa
agg
gg
ge wheelse wheels
e wheelse wheels
e wheels
The sprayer can be equipped with nylon tires for support
of the sprayer during storage. Storage wheels are fitted
to the support legs.
NOTE! Tank must be empty when using storage wheels.
Max weight: 250 kg/tyre.

10 GB 05 00 MA
Sprayer setup
RR
RR
Roadwoadw
oadwoadw
oadworor
oror
orthinessthiness
thinessthiness
thiness
When driving on public roads and other areas where the
highway code applies, or areas where there are special
rules and regulations for marking and lights on imple-
ments, you should observe these and equip implements
accordingly.
RR
RR
Rear lights (optional equipment)ear lights (optional equipment)
ear lights (optional equipment)ear lights (optional equipment)
ear lights (optional equipment)
The sprayer can be equipped with rear lights (A).
Connect plug for rear lights to the tractor’s 7-pin socket
and check the functions of rear lights, stop lights and
direction indicators on both sides of the sprayer before
driving.
The wiring is in accordance with ISO 1724. (See section
on Technical Specifications).
T250-0002
A A

11
GB 05 03 01
Sprayer setup
TT
TT
Trr
rr
ransmission shaftansmission shaft
ansmission shaftansmission shaft
ansmission shaft
OperOper
OperOper
Operaa
aa
ator saftor saf
tor saftor saf
tor safetyety
etyety
ety
To avoid accidents and personal injuries, note the
following recommended precautions and safe operation
practices.
1. Always STOP ENGINE before attaching the transmis-
sion shaft to tractor P.T.O. - most tractor P.T.O. shafts
can be rotated by hand to facilitate spline alignment,
when engine is stopped.
2. When attaching the shaft, make sure that the snap
lock is FULLY ENGAGED - push and pull shaft until it
locks.
WARNING! ROTATING TRANSMISSION
SHAFTS WITHOUT PROTECTION GUARDS
ARE FATAL.
3. Always keep protection guards and chains intact and
make sure that it covers all rotating parts, including
CV-joints at each end of the shaft. Do not use without
protection guard.
4. Do not touch or stand on the transmission shaft when
it is rotating - safety distance: 1.5 meter.
5. Prevent protection guards from rotating by attaching
the chains allowing sufficient slack for turns.
6. Make sure that protection guards around tractor
P.T.O. and implement shaft are intact.
7. Always STOP ENGINE and remove the ignition key
before carrying out maintenance or repairs to the
transmission shaft or implement.
InstallaInstalla
InstallaInstalla
Installation oftion of
tion oftion of
tion of trtr
trtr
transmission shaftansmission shaft
ansmission shaftansmission shaft
ansmission shaft
First installation of the transmission shaft is done in the
following way:
1. Attach sprayer to tractor and set sprayer height in the
position with shortest distance between the tractor
and sprayer pump P.T.O. shafts.
2. Stop engine and remove ignition key.
3. If transmission shaft must be shortened, the shaft is
pulled apart.
Fit the two shaft parts at tractor and sprayer pump
and measure how much it is necessary to shorten the
shaft.
Mark the protection guards.
NOTE! The shaft must always have a minimum overlap.
The size of this overlap depends on the pump model:
Pump with 6 splines/540 r.p.m.
The shaft must always have an overlap (A) of minimum
1/3 of the length.
Pump with 21 splines/1000 r.p.m.
The shaft must always have an overlap (A) of minimum
2/3 of the length.
4. The two parts are shortened equally. Use a saw, and
file the profiles afterwards to remove burrs.
5. Grease the profiles and assemble male and female
parts again.
6. Fit the shaft to tractor P.T.O. and sprayer pump shaft.
NOTE! Female part marked with a tractor towards
tractor!
T259-0004
T259-0005 T259-0007
T259-0011
T259-0011
(A)(A)
(A)(A)
(A)
(A)(A)
(A)(A)
(A)

12 GB 05 03 01
Sprayer setup
7. Fit the chains to
prevent the protection
guards from rotating
with the shaft.
8. To ensure long life of the transmission shaft, try
to avoid working angles greater than 15°.
T259-0008
T259-0009

13
GB 05 02 MA
Sprayer setup
HyHy
HyHy
Hydrdr
drdr
draulicsaulics
aulicsaulics
aulics
RR
RR
Requirequir
equirequir
equirements - trements - tr
ements - trements - tr
ements - tractor (VHY model)actor (VHY model)
actor (VHY model)actor (VHY model)
actor (VHY model)
Connection requirements are
•one single-acting outlet to raise and lower the boom
•one double-acting outlet to fold and unfold the boom
•one double-acting outlet for hydraulic slanting control
(optional equipment)
RR
RR
Requirequir
equirequir
equirements - trements - tr
ements - trements - tr
ements - tractor (VHZ model)actor (VHZ model)
actor (VHZ model)actor (VHZ model)
actor (VHZ model)
Connection requirements are
•one single-acting outlet to raise and lower the boom
•one double-acting outlet for the electro-hydraulic
operation of the boom functions.
•one double-acting outlet for hydraulic slanting control
(optional equipment)
GenerGener
GenerGener
General infal inf
al infal inf
al informaorma
ormaorma
ormationtion
tiontion
tion
Ensure that snap couplers are clean before connection!
NOTE! The hydraulic system requires a minimum oil
pressure of 100 bar and an oil capacity of approx. 2
litres.
After having operated the boom and the system has
been filled with oil, check tractor’s hydraulic oil level and
top up if necessary.
SafSaf
SafSaf
Safety infety inf
ety infety inf
ety informaorma
ormaorma
ormationtion
tiontion
tion
WARNING! Test of the hydraulic system should
be done very cautiously. There may be air trapped
in the system which can cause violent move-
ments of the boom.
WARNING! Hydraulic leaks. Never use your
fingers to locate a leakage in any part of the
hydraulic system. Due to high pressure, hydraulic
oil may penetrate the skin.

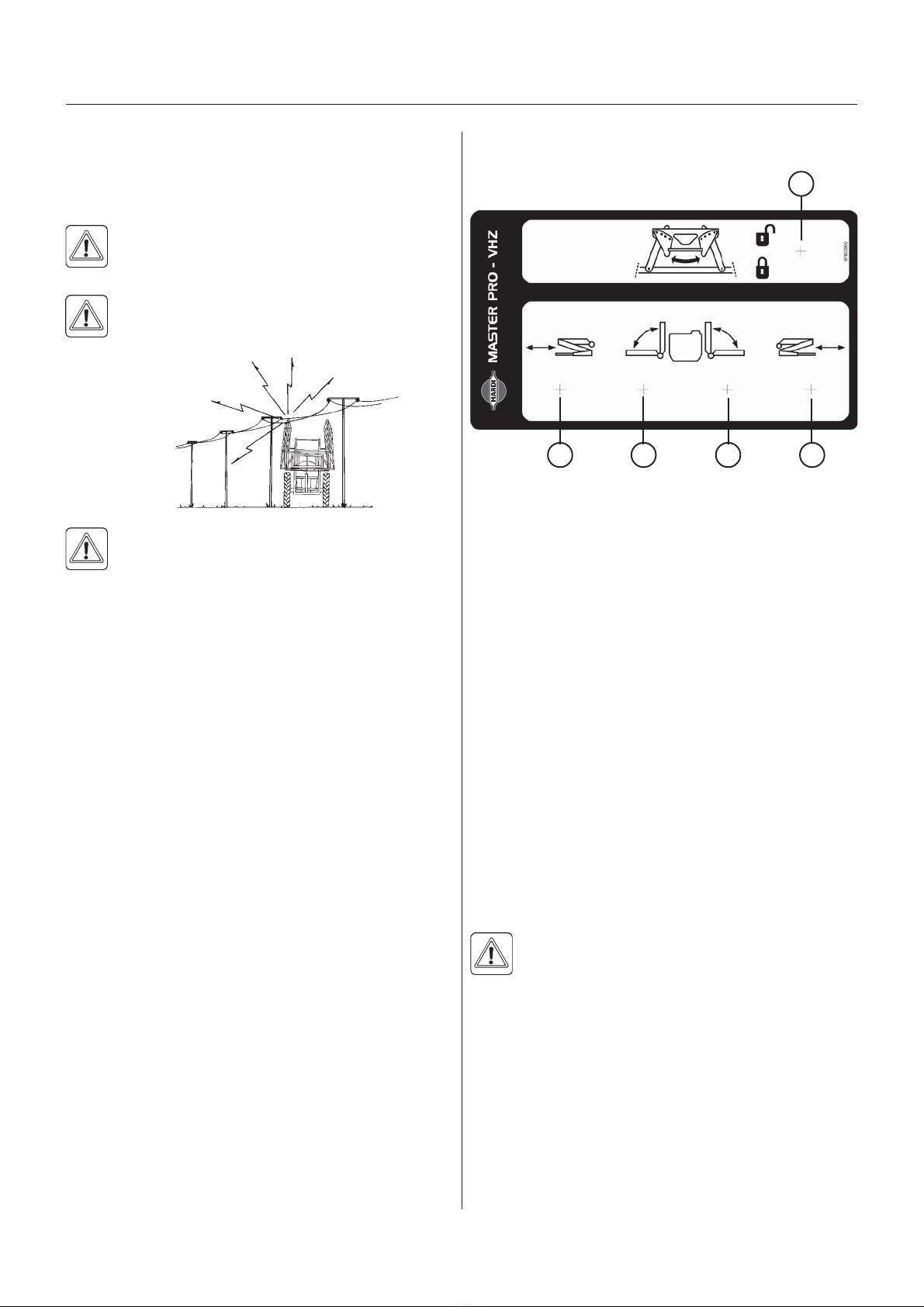

ContrContr
ContrContr
Control bool bo
ol bool bo
ol boxx
xx
xes and powes and pow
es and powes and pow
es and power supplyer supply
er supplyer supply
er supply
ContrContr
ContrContr
Control bool bo
ol bool bo
ol boxx
xx
xeses
eses
es

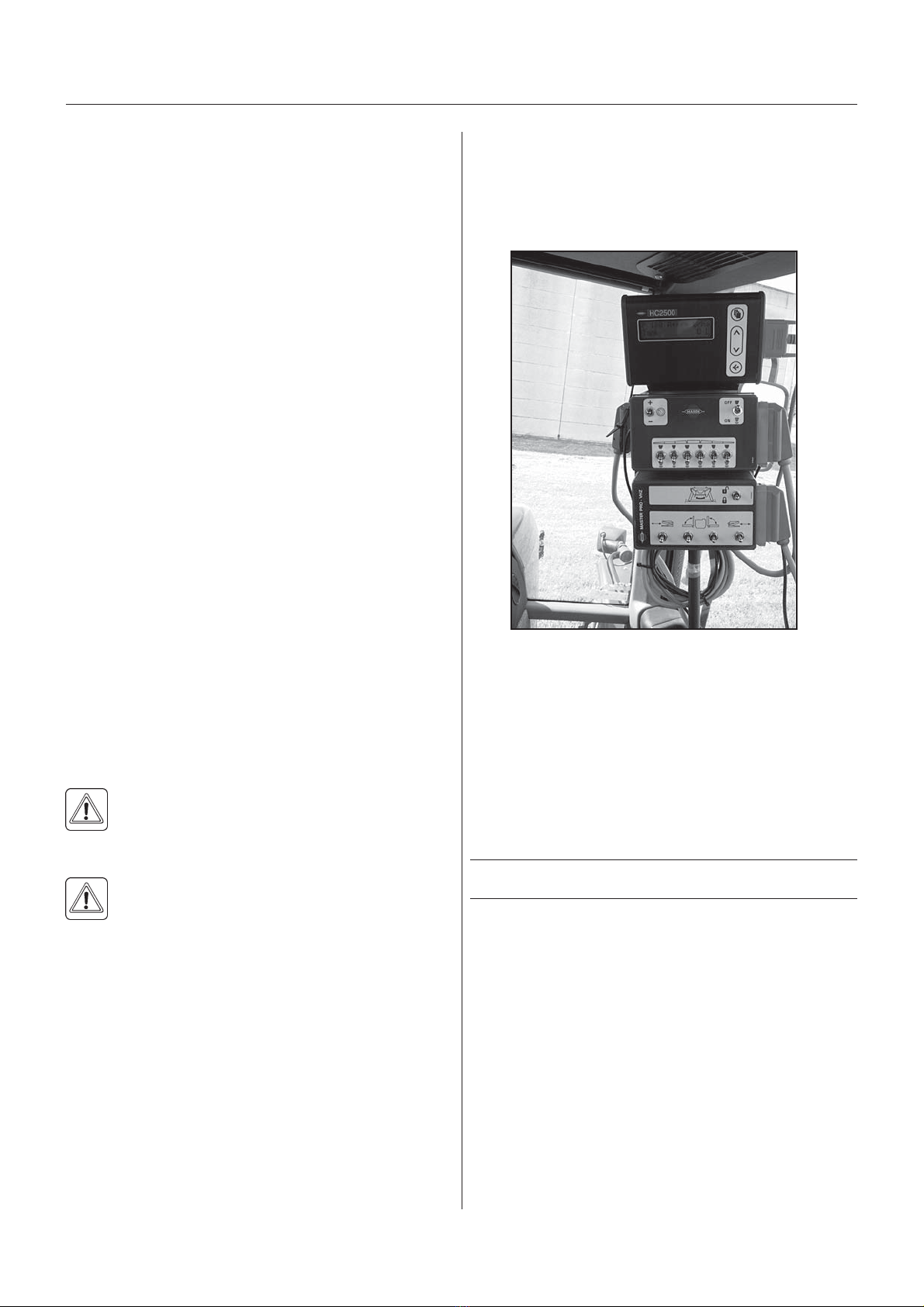

Control boxes are fitted in the tractor cabin at a conven-
ient place. Tapping screws can be used for mounting.
Power supply
Power requirement is 12V DC. Note polarity!
The wires must have a cross sectional area of at least
4.0 mm to ensure a sufficient power supply. For the EVC
operating unit the tractor circuit should have an 8 Amp
fuse
Control box Polarity (wire colour) Fuse (Amp)
Positive + Negative -
EVC control unit Brown Blue 8
VHZ control box X X X
T102-0022

14 GB 05 03 MA
Sprayer setup
Basic adjustment of the boomBasic adjustment of the boom
Basic adjustment of the boomBasic adjustment of the boom
Basic adjustment of the boom
Before commencing adjustment of the sprayer, please
go through this check list.
1. Connect the sprayer to the tractor.
2. Place tractor and sprayer on level ground (horizontal)
3. Unfold the boom.
WARNING! Nobody is allowed to be under the
boom whilst adjustment is carried out!
IntermediaIntermedia
IntermediaIntermedia
Intermediate sectionte section
te sectionte section
te section
Before commencing this job make sure that the centre
part is completely horizontal = 71,7 mm exposed piston
rod at the slanting cylinder (A) (if fitted).
Boom wing should be horizontal. If not, align boom wing
by means of axle (B). See below.
1. Loosen nut (C).
2. Rotate axle (B) till boom wing is horizontal.
3. Fasten (C)again.
A
T102-0027
B
T102-0028
C
LarLar
LarLar
Largg
gg
ge outer section (1)e outer section (1)
e outer section (1)e outer section (1)
e outer section (1)
1. Loosen the two bolts (D).
2. Align the boom by means of the control box (VHZ
models) or the hydraulic control lever (VHY models).
3. When boom is aligned, bring the bolts (A) into correct
position = the head of the bolt should just touch the
small iron work (E).
D
T102-0029
E
T102-0030

15
GB 05 03 MA
Sprayer setup
ShorShor
ShorShor
Short outer section (2)t outer section (2)
t outer section (2)t outer section (2)
t outer section (2)
Adjustment is carried out as described above in the
section ‘Large outer section’.
BrBr
BrBr
Breakeak
eakeak
eakaa
aa
aww
ww
waa
aa
ay sectiony section
y sectiony section
y section
The height of this section should be adjusted if it hangs
down compared to the rest of the wing.
Align section be means of bolted joint F.
T102-0031
F
T102-0032
CentrCentr
CentrCentr
Centre pare par
e pare par
e part - setting oft - setting of
t - setting oft - setting of
t - setting of trtr
trtr
traa
aa
apepe
pepe
pezz
zz
zee
ee
e
In order to alter the behaviour of the boom the trapeze
has 4 settings.
Setting 1: For use on uneven ground with many obsta-
cles.
Setting 2: All-round standard setting (Factory setting)
Setting 3: Slightly slower mowing trapeze. Good at
following slopes, but less compensating for
obstacles.
Setting 4: Very slow moving trapeze. For use on even
ground and slopes where there are no
obstacles.
How to alter the setting
1. Unfold and support the boom.
2. Loosen bolt from locking hole (A).
3. Remove pin + mounting (B).
4. Place (B) in new setting position (1-4).
5. Fasten bolt in locking hole (A) again.
NOTE! To change from pos. 1or 2to pos. 3or 4- or
vice versa - the pin + mounting (B) must be fastened by
the bolt in the opposite hole. In this case = C.
Carry out similar adjustments to both sides of trapeze.
T102-0023
12
3
4
T102-0024
A
B
C

16 GB 07 00 MA
Operation
T029-0010
Manoeuvring of the VHZ boomManoeuvring of the VHZ boom
Manoeuvring of the VHZ boomManoeuvring of the VHZ boom
Manoeuvring of the VHZ boom
ContrContr
ContrContr
Control bool bo
ol bool bo
ol box - rx - r
x - rx - r
x - ree
ee
evievie
vievie
view and operw and oper
w and operw and oper
w and operaa
aa
ationtion
tiontion
tion
A- Unfold/fold left outer section
B-Unfold/fold left intermediate section
C-Unfold/fold right intermediate section
D-Unfold/fold right outer section
E- Lock/unlock trapeze
NOTE! If boom isn’t symmetrically unfolded (e.g. when
using alternative boom widths) the trapeze must be
locked during driving. Failure to do so will damage the
boom!
How to unfHow to unf
How to unfHow to unf
How to unfold the boomold the boom
old the boomold the boom
old the boom
1. Activate hydraulic control lever
2. Raise boom half-way to the top (minimum)
3. Push switches (B) and (C) downwards to unfold
intermediate sections.
4. Push switches (A)and (D) outwards to unfold outer
sections.
5. When boom wings are completely unfolded, push
switch (E) upwards for 2 seconds to unlock trapeze.
6. Lower boom to desired working height.
Tilt control
Use switches (B) or (C) for single-sided tilt of boom wing.
WARNING! Do not tilt boom to vertical without
folding. Neither during normal folding procedure.
This may cause damage to the boom.
How to fHow to f
How to fHow to f
How to fold the boomold the boom
old the boomold the boom
old the boom
1. Activate hydraulic control lever.
2. Set slanting position at midway (if fitted).
3. Push switch (E) downwards for 2 seconds to lock
trapeze.
4. Raise boom half-way to the top (minimum).
5. Push switches (A) and (D) inwards to fold outer
sections.
6. Push switches (B) and (C) upwards to fold intermedi-
ate sections.
7. Lower the boom completely.
Manoeuvring of the VHY boomManoeuvring of the VHY boom
Manoeuvring of the VHY boomManoeuvring of the VHY boom
Manoeuvring of the VHY boom
The VHY boom is solely controlled by the tractor’s
hydraulic control levers.
NOTE! Only unfold and fold the VHY boom on level
ground.
OperOper
OperOper
Operaa
aa
ating the boomting the boom
ting the boomting the boom
ting the boom
SafSaf
SafSaf
Safety infety inf
ety infety inf
ety informaorma
ormaorma
ormationtion
tiontion
tion
WARNING! Before unfolding the boom it is
important to connect the sprayer to the tractor to
prevent overbalancing of the sprayer.
DANGER! When folding or unfolding the boom,
make sure that no persons or objects are in the
operating area of the boom.
DANGER! Always follow the guidelines listed
below when driving in areas with overhead power
lines:
Never use the folding/unfolding functions in areas
with overhead power lines.
Unintended boom movements can cause contact
with overhead power lines.
NOTE! A label (ref. no. 978448) follows the sprayer. This
label must be placed in the cabin at a place visible from
the operator’s seat.
GenerGener
GenerGener
General infal inf
al infal inf
al informaorma
ormaorma
ormationtion
tiontion
tion
Following operations are carried out by the tractor’s
hydraulic control lever(s)
•Raising/lowering of the boom
•Folding/unfolding the boom (VHY only)
•Slanting control (optional equipment)
AB C D
E
T102-0039

17
GB 07 00 MA
Operation
AlternaAlterna
AlternaAlterna
Alternativtiv
tivtiv
tive boom widthse boom widths
e boom widthse boom widths
e boom widths
SingSing
SingSing
Single-sided fle-sided f
le-sided fle-sided f
le-sided foldingolding
oldingolding
olding
1. Activate hydraulic control lever.
2. Raise boom half-way to the top (minimum).
3. Unfold either right or left intermediate section.
4. Unfold either right or left outer section.
NOTE! Do not unlock trapeze!
5. Lower boom to desired working height.
No folding of outer sections - ‘16-12’ kit
(optional equipment)
To disable folding of outer sections this kit is fitted to the
outer cylinders of the boom wings.
Picture B shows unfolded boom with ‘16-12’ kit.
Picture Cshows ‘16-12’ kit mounted to boom wing with
tap for ON/OFF position.
B
T102-0033
C
T102-0034

18 GB 08 00 MA
Operation - liquid system
MANIFOLD syMANIFOLD sy
MANIFOLD syMANIFOLD sy
MANIFOLD systemstem
stemstem
stem

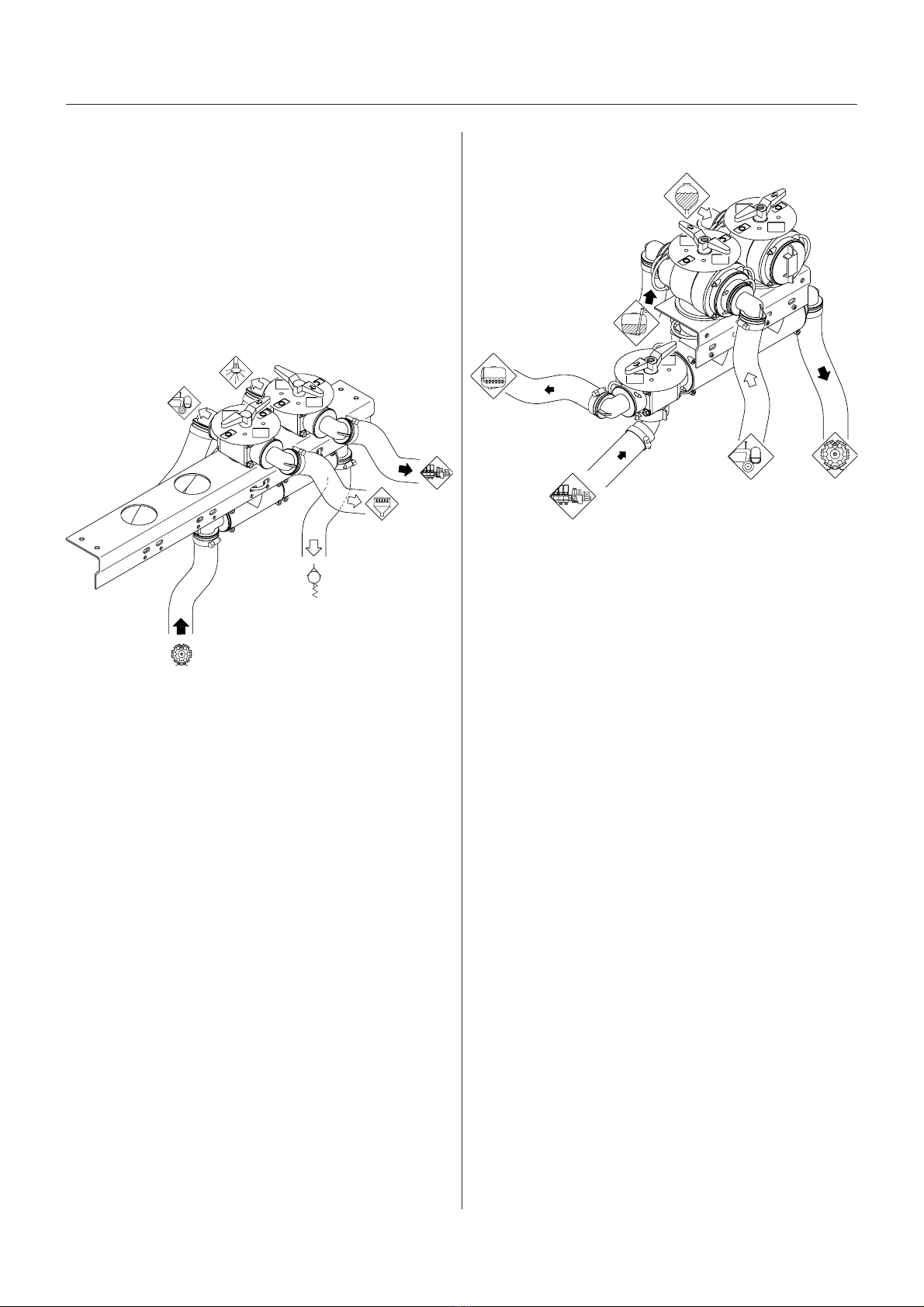

Review - MANIFOLD system
The MANIFOLD system is located at the left side of the
sprayer and permits operation of the liquid from one
position. The modular MANIFOLD system facilitates the
addition of optional extras on both pressure side and
suction side. Furthermore the suction manifold can be
fitted with a return valve which ensures better draining of
the sprayer before cleaning.
Symbols
The valves are distinguished by coloured identification
discs on the 3-way valves. Symbols corresponding to the
optional extras are located on the discs for easy identifi-
cation and operation.
A function is activated/opened by
turning the handle towards the
desired function.
IMPORTANT! Only the functions
in use should be open - always
close remaining valves.
Symbols - Black disc = Suction valve
From main tank (suction filter)
From Rinsing Tank
From Filling Device
From front tank
(suction filter)
Symbols - Blue disc = Return valve
Return from operating unit -
used for agitation
(Spraying position)
Return from operating unit to
suction side of pump
(Used for fully emptying main tank)
Electrically operElectrically oper
Electrically operElectrically oper
Electrically operaa
aa
ated MANIFOLD vted MANIFOLD v
ted MANIFOLD vted MANIFOLD v
ted MANIFOLD valvalv
alvalv
alveses
eses
es
(optional equipment)(optional equipment)
(optional equipment)(optional equipment)
(optional equipment)
One or more MANIFOLD valve(s) can be electrically
operated via a control box in the tractor cabin. These
can only be operated manually if the power to the valve
motor is disconnected.
Adjustment ofAdjustment of
Adjustment ofAdjustment of
Adjustment of 3-w3-w
3-w3-w
3-waa
aa
ay vy v
y vy v
y valvalv
alvalv
alvee
ee
e
NOTE! If a MANIFOLD valve is too tense to operate - or
to loose (= liquid leakage) - the 3-way valve needs to be
serviced. Please see the section ‘Maintenance’ for
further information.
Symbols - Green disc = Pressure valve
To Self-Cleaning
Filter/operating unit
To Fast Filling Device
To HARDI FILLER
To Tank Flushing Nozzle
To main tank
To front tank

19
GB 08 00 MA
Operation - liquid system
Function diaFunction dia
Function diaFunction dia
Function diagg
gg
grr
rr
ramsams
amsams
ams
BK operBK oper
BK operBK oper
BK operaa
aa
ating unitting unit
ting unitting unit
ting unit
1. Suction filter
2. Suction MANIFOLD
3. Pump
4. Pressure MANIFOLD
5.
6. Safety valve
7. Operating unit ON/OFF
8. Pressure regulation
9. Distribution valves
10. Return to tank from pressure equalization
11. Agitation
12. Distribution boom
EVEV
EVEV
EVC operC oper
C operC oper
C operaa
aa
ating unitting unit
ting unitting unit
ting unit
1. Suction filter
2. Suction MANIFOLD
3. Pump
4. Pressure manifold
5.
6. Self-cleaning filter
7. Return line (self-cleaning filter)
8. Safety valve
9. Agitation
10. Pressure agitation
11. Pressure regulation
12. Distribution valves
13. Return from pressure equalization
14. Distribution boom
T050-0014
23
4
6
7
8
9
10 11
12
1
5
T050-0015
23
4
6
7
8
9
10
11
12
13
1
14
5

20 GB 08 00 MA
Operation - liquid system
OperOper
OperOper
Operaa
aa
ating instrting instr
ting instrting instr
ting instructions - vuctions - v
uctions - vuctions - v
uctions - valvalv
alvalv
alveses
eses
es
The green pressure valves and the black suction valves
have 4 positions. Two positions are for options. The
other two are marked “O” indicating the valve is closed.
The blue return valve only has 2 positions.
The arrow on the handle indicates which position is
selected.
GrGr
GrGr
Green preen pr
een preen pr
een pressuressur
essuressur
essure ve v
e ve v
e valvalv
alvalv
alveses
eses
es
To select the optional equipment, the handle is turned so
the arrow and thereby liquid is directed to the optional
extra instead of to the self-cleaning filter/operating unit.
When spraying is to resume, turn the handle so the self-
cleaning filter/operating unit is selected.
If 2 or more valves are fitted, the arrow must point
towards the optional extra you select. Remaining
handles are turned to “O” (closed). When spraying is to
resume, select the self-cleaning filter/operating unit. The
other handles are turned to “O”.
If all the green pressure valves are closed the safety
valve will open inside the tank.
BlacBlac
BlacBlac
Black suction vk suction v
k suction vk suction v
k suction valvalv
alvalv
alveses
eses
es
Turn the handle so the arrow points towards the selected
optional equipment. The handle is turned back when you
want to aspirate from the main tank.
If 2 valves are fitted, e.g. front tank and rinsing tank,
select optional extra and turn the other valve to “O”
(closed). To resume aspiration from the main tank, the
arrow must point towards the main tank.
Remaining valve must be closed.
Blue rBlue r
Blue rBlue r
Blue return veturn v
eturn veturn v
eturn valvalv
alvalv
alvee
ee
e
Normally the liquid is directed to the tank return. When
the tank is nearly empty, the handle is turned so the
liquid is directed to the suction side of the pump instead
of to the tank return.
