Harken Performa Winch 50.2 PTP Manual

Performa™Winch 50.2 PTP
Installation and Maintenance Manual
MRPW-C

2
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Index
Introduction 3
Technical characteristics 3
Weight 3
Maximum working load 3
Outline 3
Installation 4
Installation procedure 5
Maintenance 7
Washing 7
Maintenance table 7
Disassembly procedure 8
Exploded view with maintenance products 11
Assembly 12
Harken®limited worldwide warranty 12
Ordering spare parts 12
Exploded view 14
Parts list 16

3
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Introduction - Technical characteristics - Outline
Introduction
This manual gives technical information on winch installation and maintenance, including
disassembling and reassembling.
This information is DESTINED EXCLUSIVELY for specialised personnel or expert users.
Installation, disassembling and reassembling of the winch by personnel who are not experts may
cause serious damage to users and those in the vicinity of the winch.
Harken®accepts no responsibility for defective installation or reassembly of its winches.
In case of doubt the Harken®Tech Service is at your disposal at [e-mail]
This Manual is available only in English. If you do not fully understand the English language, do
not carry out the operations described in this Manual.
Technical characteristics
Power ratio Gear ratio
1st speed 10,90 : 1 2,40 : 1
2nd speed 50,40 : 1 10,90 : 1
The theoretical power ratio does not take friction into account.
Weights
PT version
Weight (Kg) 5,9
Maximum working load
WARNING!
The maximum working load (MWL) for the 50.2 PT Performa™ Winch is 1450 Kg (3197 lb)
Subjecting the winch to loads above the maximum working load can cause the winch to fail or
pull off the deck suddenly and unexpectedly during high loads causing severe injury or death.
Outline
190
96
Ø195
Ø111
Line entry height

4
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Installation
The winch must be installed on a at area of the deck, reinforced if necessary to bear a load equal
to at least twice the maximum working load of the winch.
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can
bear the load.
Harken®does not supply the screws needed to install the winch since these may vary depending on
the deck on which it is to be installed. It is the installer's responsibility to choose the correct screws
taking account of the loads they will have to bear. Harken®assumes no responsibility for incorrect
installation of its winches or for an incorrect choice of mounting screws.
DANGER!
Incorrect installation of the winch may cause severe injury or
death. Consult the yard that built the boat in the case of doubt
over the correct positioning of the winch.
WARNING!
Failure to use the correct number and type of mounting fasteners
or failure to ensure the correct deck strength can result in the
winch pulling off the deck suddenly and unexpectedly during
high loads causing severe injury or death.
WARNING!
Verify the entry angle of the sheet. This must be 8° with tolerance
of ±2°, to avoid sheet overrides and damaging the winch or
making the winch inoperable leading to loss of control of the boat
which can lead to severe injury or death.
WARNING!
Mount the winch on the deck so that the drive gear is positioned
where the sheet enters the winch drum.
Incorrect position of drive gear can weaken winch leading to failure
which can cause an accident leading to severe injury or death.
Once you have chosen the correct mounting position for the winch on the deck proceed with
installation.
Installation
drive gear
SHEET
8°

5
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C

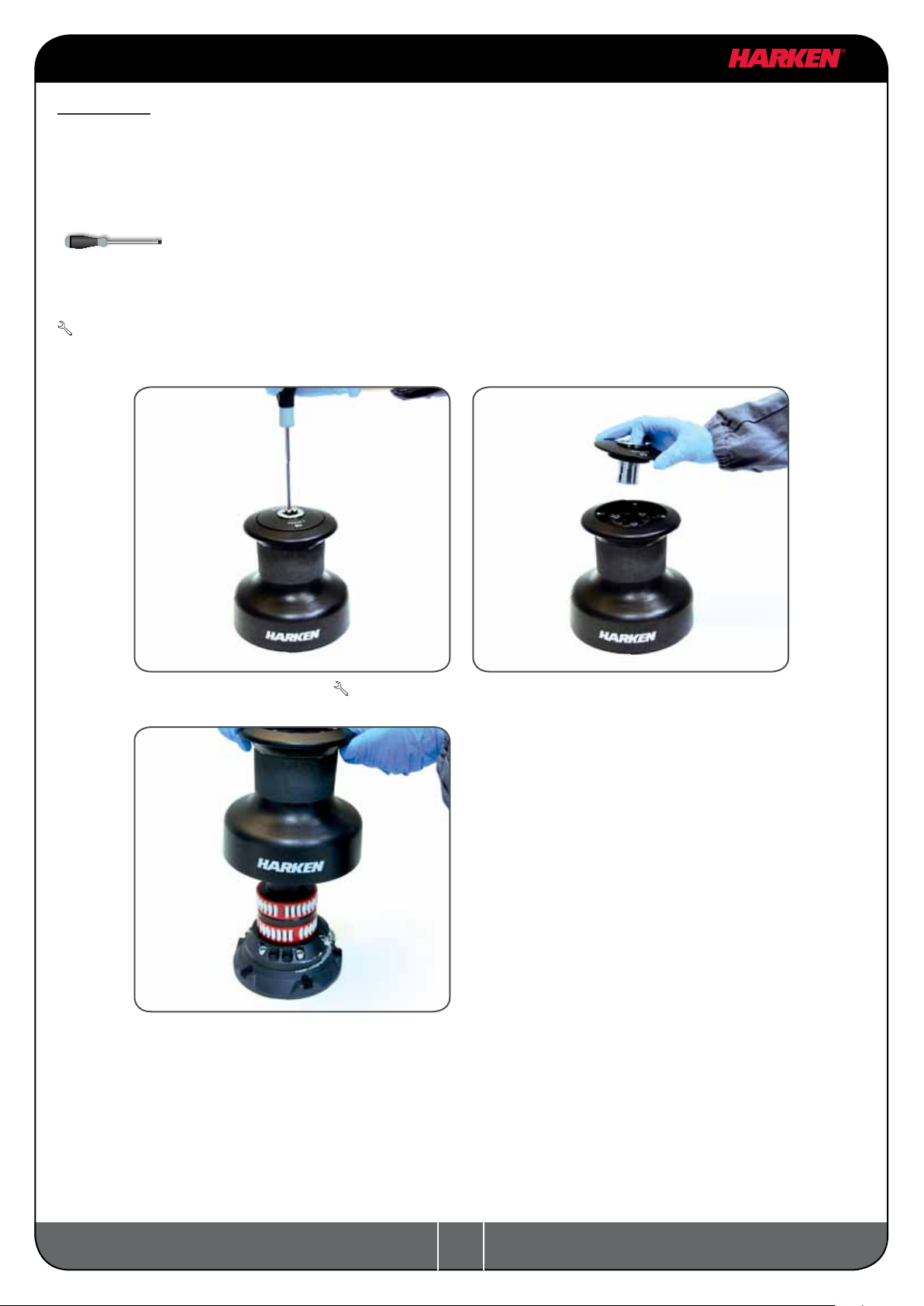

Procedure
To install the winch, remove the drum and use Socket Head (SH) bolts.
Tools needed
One medium at-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
Torque to apply when assembling
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 3.
1.Unscrew the central screw ( 2Nm/18 in-lb)
3. Lift off the drum n°23
2. Slide off the hub n°29 and the cover n°27
and the washer n°31

6
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Installation procedure
Carry out the Procedure, then install the winch on the deck in the chosen position.
A. Position the base of the winch on the deck and mark the position of the holes or use the drilling
cut-out template at the point where you have decided to place the winch.
Below is a reduced scale diagram.
The drilling cut out template is available on the Harken®website, www.harken.com
B. Remove the winch and drill the ve 8.2 mm diameter holes.
C. Bolt the base of the winch to the deck using ve M6 bolts (not supplied by Harken®), correctly
chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of
doubt.
WARNING!
To install the winch on the deck, use only bolts in A4 stainless steel (DIN 267 part11).
Bolts made of other materials may not have sufficient strength or may corrode which can
result in winch pulling off deck suddenly and unexpectedly during high loads causing
severe injury or death.
NOTICE
To mount winches on the deck, do not use countersunk bolts.
D. Fill the mounting holes with a suitable marine sealant.
E. Remove the excess adhesive/sealant from the holes and base drainage channels
final pinion
position
Ø150
46°
46°
64°
70°
70°
64°
Winch outside Ø194
Ø8.2
n°5

7
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
F. Reassemble the winch following the steps of the Procedure in the reverse order, and apply the
products indicated in the section on maintenance.
NOTICE
Before closing the winch, make sure the holes and drainage channels in the base of the winch
are not obstructed.
Maintenance
Washing
Winches must be washed frequently with fresh water, and in any case after each use.
Do not allow teak cleaning products or other cleaners containing caustic solutions to come into
contact with winches and especially anodised, chrome plated or plastic parts.
Do not use solvents, polishes or abrasive pastes on the logos, on the stickers on the winches or on
any anodized, chrome plated and plastic surfaces.
Make sure that the holes and drainage channels in the base of the winch are not obstructed so that
water does not collect.
Maintenance table
Winches must be visually inspected at the beginning and end of every season of sailing or racing.
In addition they must be completely overhauled, cleaned and lubricated at least every 12 months.
After an inspection, replace worn or damaged components. Do not replace or modify any part of the
winch with a part that is not original.
WARNING!
Periodic maintenance must be carried out regularly. Lack of adequate maintenance
shortens the life of the winch, can cause serious injury and also invalidate the winch
warranty. Installation and maintenance of winches must be carried out exclusively by
specialized personnel.
In the case of doubt contact Harken®Tech Service at [e-mail]
Maintenance

8
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C

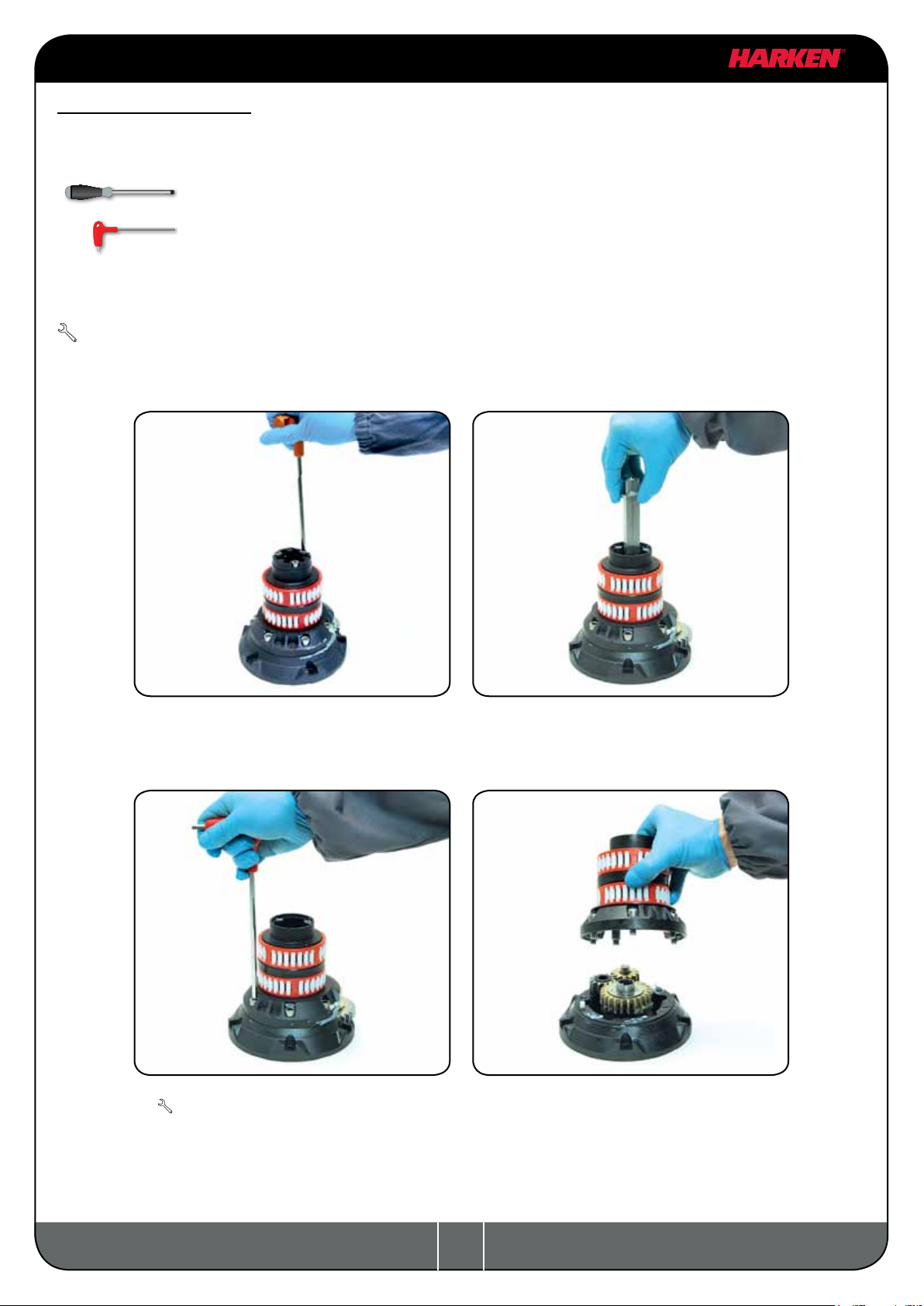

Disassembly procedure
Tools needed
One medium at-bladed screwdriver
A number ve hex key
Rags
To identify the various parts refer to the exploded view at the end of this Manual.
Torque to be applied in assembly phase
Carry out procedure as shown in the paragraph on winch installation and then do the following:
6. Unscrew the 5 hex screws n°17
( 20Nm/177 in-lb)
7. Remove the assy housing n°16.
Important: washer n°13 may remain
inside the drum support and the
washer n°30 must be replaced in the
correct position.
4. Completely unscrew the three screws n° 26
and remove the sochet support
5. Slide out the central shaft n°20

9
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
8. Remove the gear n°15 9. Remove the washer n°13
10. Remove the gearing n°9 and remove the
pawls n°7.To facilitate the operation press
the spring against the pawl with a blade.
11. Slide off gear n°2 12. Remove the pinion n°10.

10
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back
any balls, push balls in the race (as shown below):
Once the winch is completely disassembled, clean the parts with a degreasing that does not leave
residues, proper to clean metal components; rinse plastic parts in fresh water. Once you have done
this, dry the parts with cloths that do not leave residue.
Inspect gears, bearings, pins and pawls for any signs of wear or corrosion.
Carefully check the teeth of gears and ring gears to make sure there are no traces of wear.
Check the roller bearings and check there are no breaks in the bearing cages.
Replace worn or damaged components.
Carry out maintenance on components using the products listed below.
For more information on which products to use where, refer to the exploded diagram below.
Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease.
Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls!
13. Slide off gear n°5 14. Remove the washer n°4.

11
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C

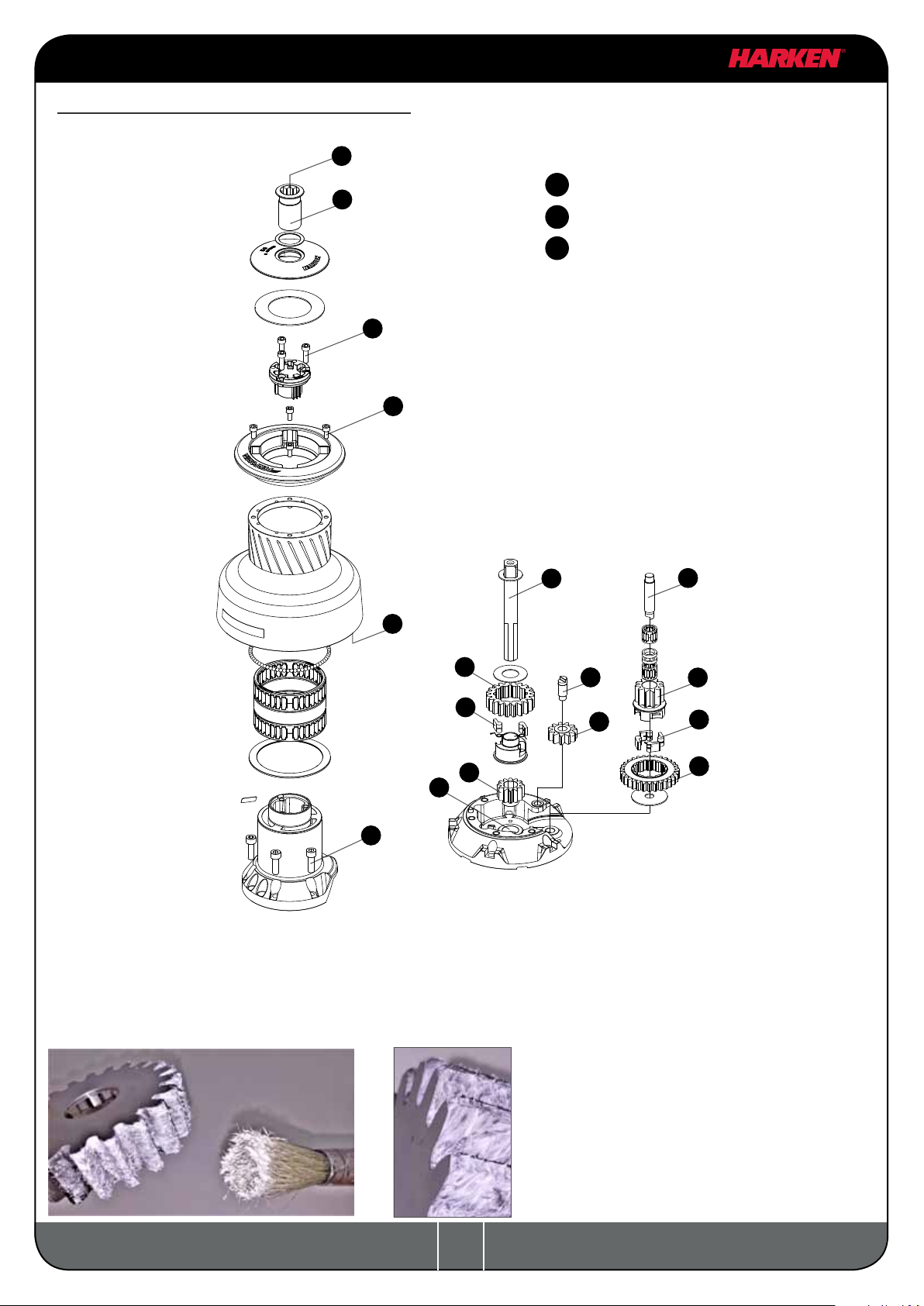

Exploded view with maintenance products
G
G
G
G
G
G
G
O
G
A
A
A
A
Harken®Grease
G
Harken®Pawl Oil
O
Anti-seize
A
G
G
G
O
1
Apply Harken®grease where indicated above
Apply Harken®grease: 1. on assy socket screw
NOTICE
On every gear and every component that must be greased, apply Harken®grease with a brush in a proper
quantity as shown below:
NOTICE
Harken®grease to apply on all
teeth: do not use excessive
quantity of product to void wastes.
If in contact with the pawls, an
excess of grease can compromise
the safety of the winch.

12
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C

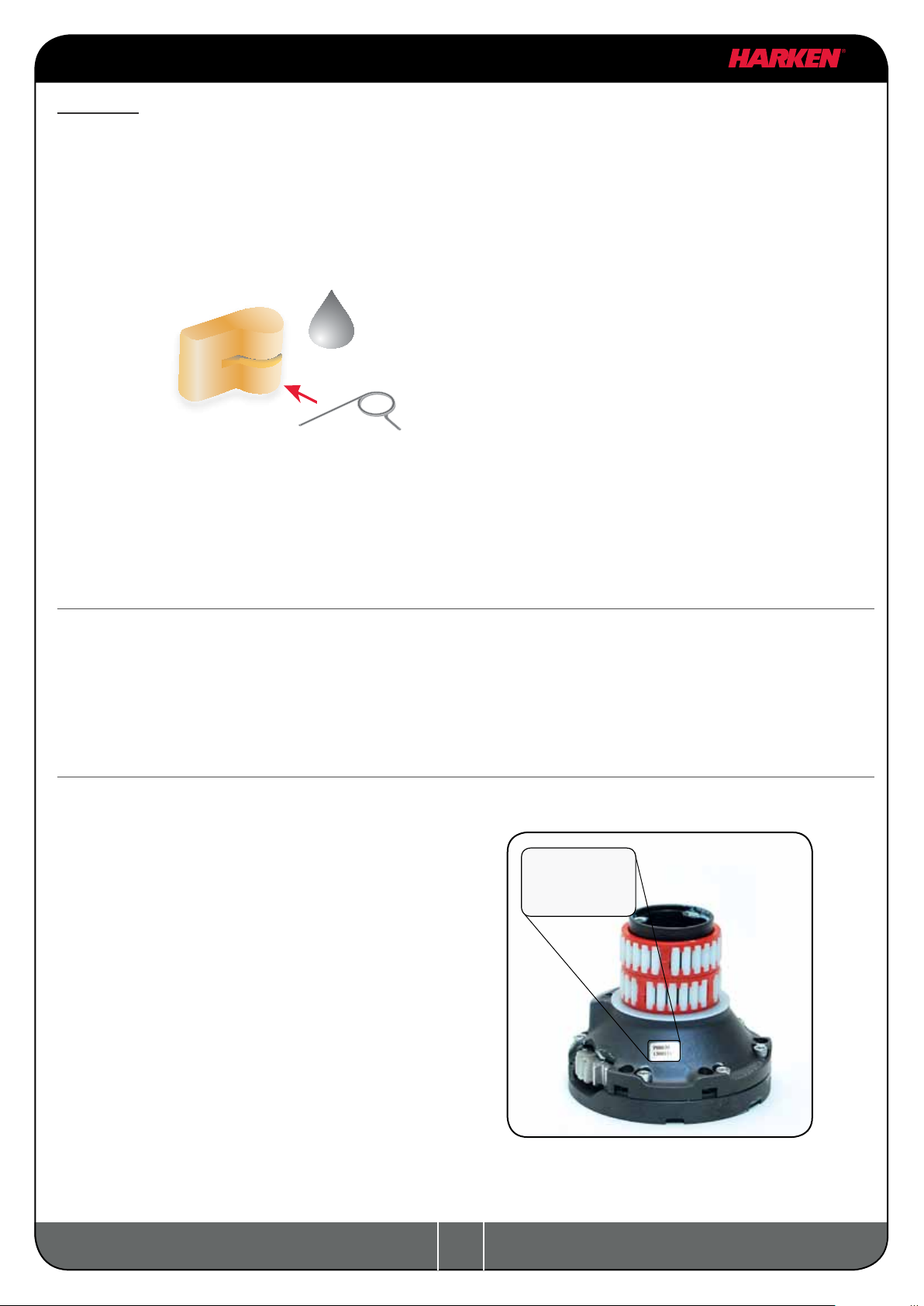

Assembly
Make sure that the holes and drainage channels in the base of the winch are not obstructed.
Assemble the winch in the reverse order of the sequence in the section on disassembly.
To tighten bolts, use the torque indicated in the disassembly procedure.
To assemble the pawls:
correctly position the spring in its housing as
shown at left. Hold the spring closed and slide
the pawl into its housing. Once in position,
check that the pawls can be easily opened and
closed with a nger.
In case of doubt concerning the assembly procedure contact Harken®Tech Service: [e-mail]
Harken®limited worldwide warranty
Refer to the Harken®Limited Worldwide Warranty in the Harken®Catalogue and on the website www.
harken.com
Ordering spare parts
Spare parts can be requested from Harken®as
described in the Harken®Limited Worldwide
Warranty, indicating the part number in the
Parts List and including the serial number of
the winch for which the parts are required.
The serial number of the winch is printed on
a plate on the drum support of the winch.
OIL
Harken®limited worldwide warranty - Ordering spare parts
W XXXXX
XXXXXXXXX

13
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Headquarters
Harken®, Inc.
1251 East Wisconsin Avenue
Pewaukee, Wisconsin 53072-3755 USA
Tel: [phone]
Fax: [phone]
Email: hark[email protected]
Web: www.harken.com
Manufacturer
Harken®Italy S.p.A.
Via Marco Biagi, 14
22070 Limido Comasco (CO) Italy
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.harken.com
Tech Service
Email: tec[email protected]
Customer Service
Tel: [phone]
Email: [e-mail]
Tech Service
Email: tec[email protected]
Customer Service
Tel: [phone]
Email: [e-mail]

14
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Exploded view 1/2
23
18
19
18
30
16
29
28
27
31
26
22
25
24
21
17

15
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
3
11
12
10
7
8
5
4
14
15
20
13
9
7
8
2
1
11
6
Exploded view 2/2

16
Performa™Winch 50.2 PTP
Installation and Maintenance Manual - Mod.C
Parts list
Radial Winch 50.2 PTP
Pos Q.ty Code Description
1 1
1
1
1
1
A96633400
S413350080
S4152300A7
S414890080
S413330085
Performa assy base Winch 50
Performa base W50
Roller Ø6x19
Bushing Ø22xØ25x9.5
Bushing Ø9xØ11x7
Bushing Ø12xØ14x11
2 1 S413020004 Gear Z12
3 1 S416050004 Pin
4 1 S278170002 Washer Ø12.5xØ48x1.5
5 1 S412800041 Gear Z30
6 1 S414260004 Pawls Carrier Ø8xN2
7 6 S000080003 Pawl Ø8*
8 6 S000380001 Pawl Spring Ø8*
9 1 S415590041 Gear Z20
10 1 S415610004 Pinion Z11
11 2 A72821800 Roller Bearing Ø14xØ20x18
12 2 S281340080 Spacer roller bearings
13 1 S413120002 Washer Ø22.5xØ45x1
14 1 S413070004 Pin Ø9xØ12x32.5
15 1
2
A94156000
S414900080
Assy Gear Z11
Gear Z11
Bushing Ø12xØ14x8
16 1
1
1
1
A94134800
S414900080
S413330085
S4133200B3
Assy Housing Winch 50
Housing Winch 50
Bushing Ø12xØ14x8
Bushing Ø12xØ14x11
Bushing for support
17 5 M0606303 Screw M8x25 UNI 5931
Pos Q.ty Code Description
18 2 A74135100 Bearing Ø85xØ97x26
19 1 S413520080 Spacer
20 1 A94152000 Assy Central Shaft W50
21 Winch Serial Number Sticker
22 1 S4151400A0 Socket Support PT
23 1
68
1
A96572400
M0619580
S6573100A3
Performa W50 Drum
Performa Drum W50
Ball 3/16"
Performa Bearing ring W50
Winch Product Sticker**
24 1 S657350153 Performa Plain Top W50
25 4 M0603703 Screw M6x12 UNI 5931
26 3 M0600903 Screw M6x20 UNI5931
27 1 S415180153 Cover W50 PT
28 1 S415220080 PT spacer
29 1
1
1
A94136400
S415130085
M0614303
Assembly Socket W20-80
Socket Handle W20/80
Washer Ø7.7xØ25x5.8
Screw M8x20 UNI 6109
30 1 S657320052 Performa Shim W50
31 1 S678730082 Washer Ø57.5xØ93x1.5
*Available with service kit; see website www.harken.com
**Winch product sticker
