Harken 35.2 PT Manual

Radial Winch 35.2 PT
Installation and Maintenance Manual
MRW-01

2
Radial Winch 35.2 PT
Installation and Maintenance Manual
Introduction
Technical characteristics
Weight
Maximum working load
Outline
Installation
Procedure 1
Procedure 2
Installation procedure
Maintenance
Washing
Maintenance table
Disassembly procedure
Exploded view with maintenance products
Assembly
Harken®limited worldwide warranty
Ordering spare parts
Exploded view
Parts list
Radial Winch 35.2 PTA
3
3
3
3
3
4
5
6
7
8
8
8
9
12
13
13
13
15
17
17
Index

3
Radial Winch 35.2 PT
Installation and Maintenance Manual
Introduction - Technical characteristics - Outline
Introduction
This manual gives technical information on winch installation and maintenance, including
disassembling and reassembling.
This information is DESTINED EXCLUSIVELY for specialised personnel or expert users.
Installation, disassembling and reassembling of the winch by personnel who are not experts may
cause serious damage to users and those in the vicinity of the winch.
Harken®accepts no responsibility for defective installation or reassembly of its winches.
In case of doubt the Harken®Tech Service is at your disposal at [email protected]
This Manual is available only in English. If you do not fully understand the English language, do
not carry out the operations described in this Manual.
Technical characteristics
Power ratio Gear ratio
1st speed 13,50 : 1 2,13 : 1
2nd speed 35,90 : 1 5,65 : 1
The theoretical power ratio does not take friction into account.
Weights
ST A version
Weight (Kg) 3,1
Versions:
A = drum in anodised aluminium
Maximum working load
WARNING!
The maximum working load (MWL) for the 35.2 PT Radial Winch is 650 Kg (1433 lb)
Subjecting the winch to loads above the maximum working load can cause the winch to fail or
pull off the deck suddenly and unexpectedly during high loads causing severe injury or death.
Outline
Line entry height
Ø149 mm
148 mm
Ø80,5
80 mm

4
Radial Winch 35.2 PT
Installation and Maintenance Manual

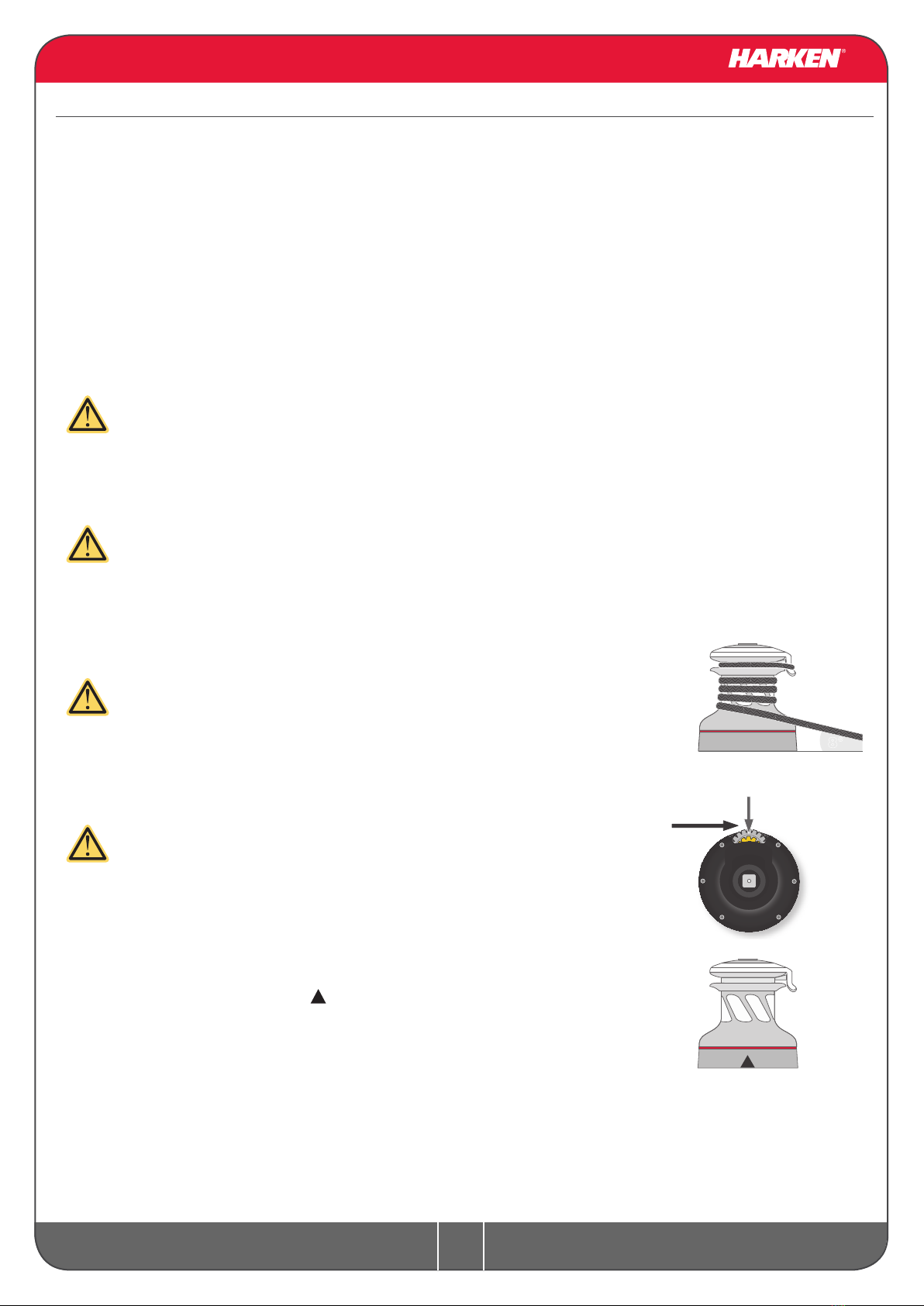

Installation
The winch must be installed on a at area of the deck, reinforced if necessary to bear a load equal
to at least twice the maximum working load of the winch.
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can
bear the load.
Harken®does not supply the screws needed to install the winch since these may vary depending on
the deck on which it is to be installed. It is the installer's responsibility to choose the correct screws
taking account of the loads they will have to bear. Harken®assumes no responsibility for incorrect
installation of its winches or for an incorrect choice of mounting screws.
DANGER!
Incorrect installation of the winch may cause severe injury or
death. Consult the yard that built the boat in the case of doubt
over the correct positioning of the winch.
WARNING!
Failure to use the correct number and type of mounting fasteners
or failure to ensure the correct deck strength can result in the
winch pulling off the deck suddenly and unexpectedly during
high loads causing severe injury or death.
WARNING!
Verify the entry angle of the sheet. This must be 8° with tolerance
of ±2°, to avoid sheet overrides and damaging the winch or
making the winch inoperable leading to loss of control of the
boat which can lead to severe injury or death.
WARNING!
Mount the winch on the deck so that the drive gear is positioned
where the sheet enters the winch drum.
Incorrect position of drive gear can weaken winch leading to failure
which can cause an accident leading to severe injury or death.
NOTICE
You can find the icon on the skirt to identify the drive gear
position.
Once you have chosen the correct mounting position for the winch on the deck proceed with
installation.
Installation
drive gear
SHEET
8°

5
Radial Winch 35.2 PT
Installation and Maintenance Manual
The winch can be installed following one of the two procedures below (Procedure1 or Procedure 2):

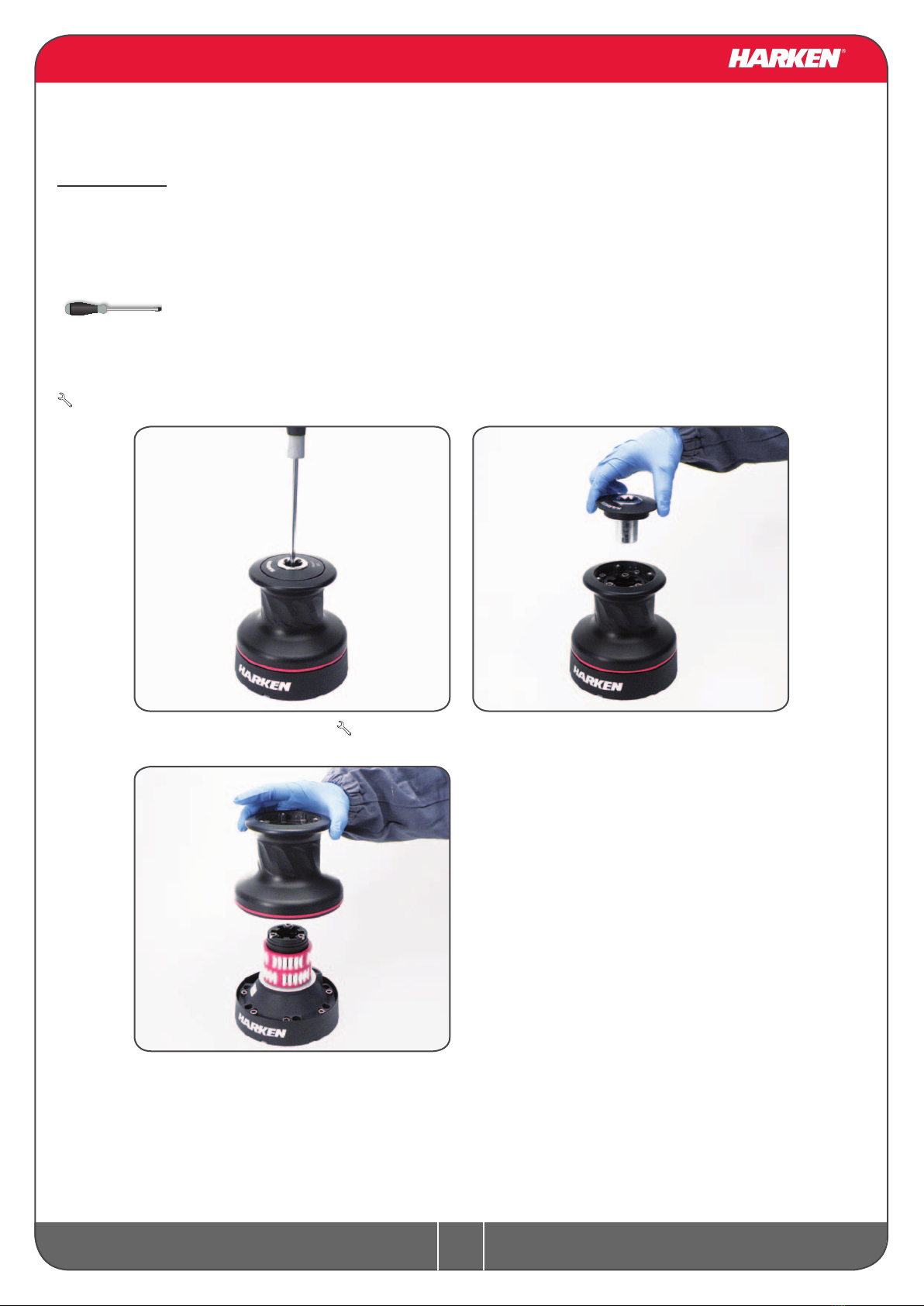

Procedure 1
To install the winch you must remove the drum and use Socket Head (SH) bolts.
Tools needed
One medium at-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
Torque to apply when assembling
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 4 and using socket head (SH) bolts. (See paragraph on installation)
1. Unscrew the central screw ( 2Nm/18 in-lb)
3. Lift off the drum n°22
2. Slide off the hub n°30 and the cover n°27

6
Radial Winch 35.2 PT
Installation and Maintenance Manual

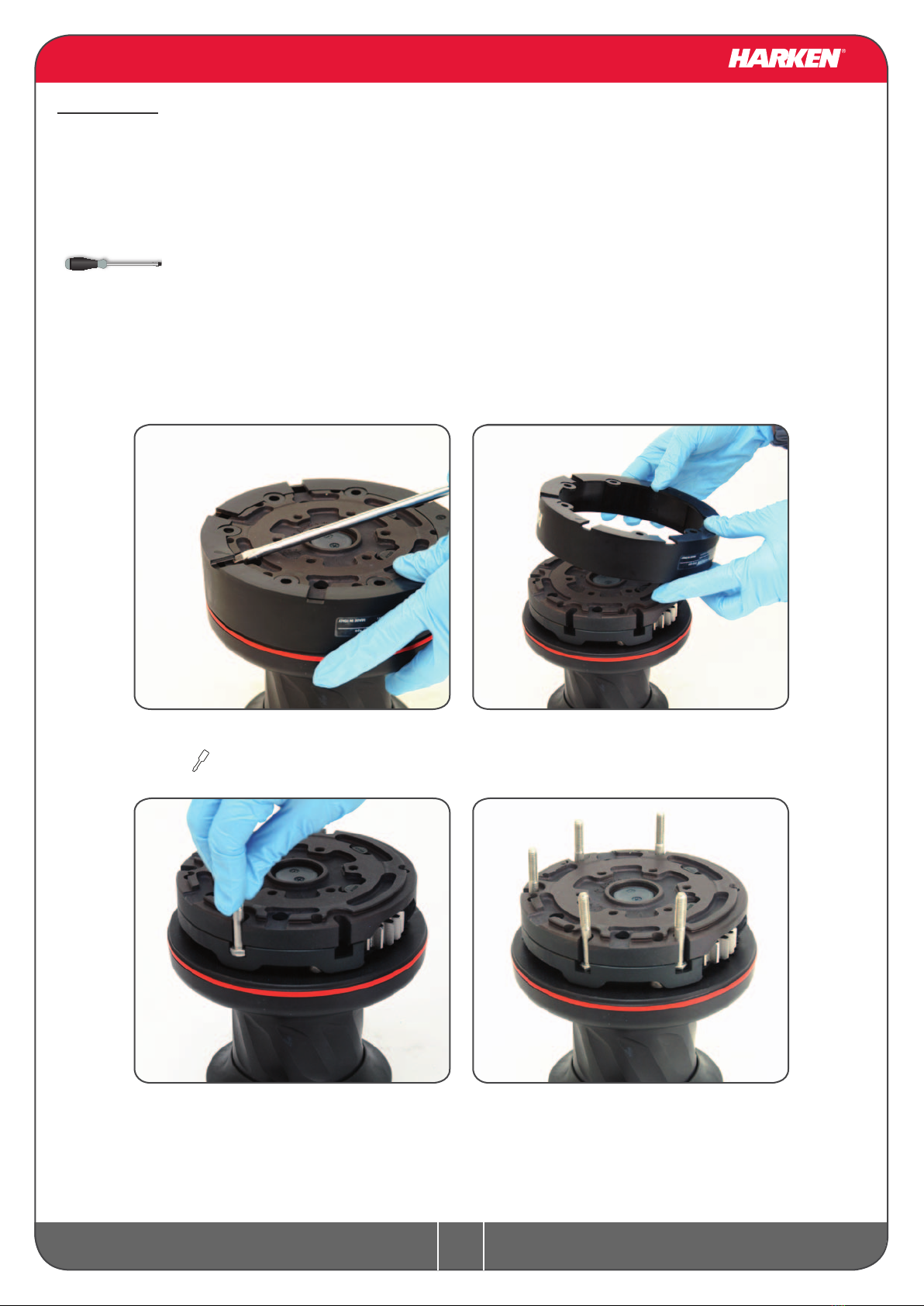

Procedure 2
To install, you must remove the winch skirt and use hexagonal headed bolts.
Tools needed
One medium at-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
1. Remove the skirt n°2 with the help of
the screwdriver placed as shown by the
symbol
2. Take off the skirt n°2
3. Position the 5 M6 hexagonal headed
bolts in their holes

7
Radial Winch 35.2 PT
Installation and Maintenance Manual
NOTICE
Make sure the skirt is correctly clipped on to the base of the winch.
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 4 and using hexagonal headed bolts. (See paragraph on installation)
Installation procedure
Carry out Procedure 1 or Procedure 2, then install the winch on the deck in the chosen position.
A. Position the base of the winch on the deck and mark the position of the holes or use the drilling
cut-out template at the point where you have decided to place the winch.
Below is a reduced scale diagram.
The drilling cut out template is available on the Harken® website, www.harken.com
4. Reposition the skirt n°2 in its housing 5. Press down the skirt to position it correctly

8
Radial Winch 35.2 PT
Installation and Maintenance Manual
B. Remove the winch and drill the ve 6.2 mm diameter holes.
C. Bolt the base of the winch to the deck using ve M6 Socket Head (SH) bolts for Procedure 1 or ve
hexagonal headed M6 bolts for Procedure 2 (neither is supplied by Harken®), correctly chosen for
the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
WARNING!
To install the winch on the deck, use only bolts in A4 stainless steel (DIN 267 part11).
Bolts made of other materials may not have sufcient strength or may corrode which can
result in winch pulling off deck suddenly and unexpectedly during high loads causing
severe injury or death.
NOTICE
To mount winches on the deck, do not use countersunk bolts.
D. Fill the mounting holes with a suitable marine sealant.
E. Remove the excess adhesive/sealant from the holes and base drainage channels
F. Reassemble the winch following the steps in Procedure 1 or Procedure 2 in the reverse
order, and apply the products indicated in the section on maintenance.
NOTICE
Before closing the winch, make sure the holes and drainage channels in the base of the winch
are not obstructed.
Maintenance
Washing
Winches must be washed frequently with fresh water, and in any case after each use.
Do not allow teak cleaning products or other cleaners containing caustic solutions to come into
contact with winches and especially anodised, chrome plated or plastic parts.
Do not use solvents, polishes or abrasive pastes on the logos or stickers on the winches.
Make sure that the holes and drainage channels in the base of the winch are not obstructed so that
water does not collect.
Maintenance table
Winches must be visually inspected at the beginning and end of every season of sailing or racing.
In addition they must be completely overhauled, cleaned and lubricated at least every 12 months.
After an inspection, replace worn or damaged components. Do not replace or modify any part of the
winch with a part that is not original.
Maintenance

9
Radial Winch 35.2 PT
Installation and Maintenance Manual
WARNING!
Periodic maintenance must be carried out regularly. Lack of adequate maintenance
shortens the life of the winch, can cause serious injury and also invalidate the winch
warranty. Installation and maintenance of winches must be carried out exclusively by
specialized personnel.
In the case of doubt contact Harken®Tech Service at [e-mail]

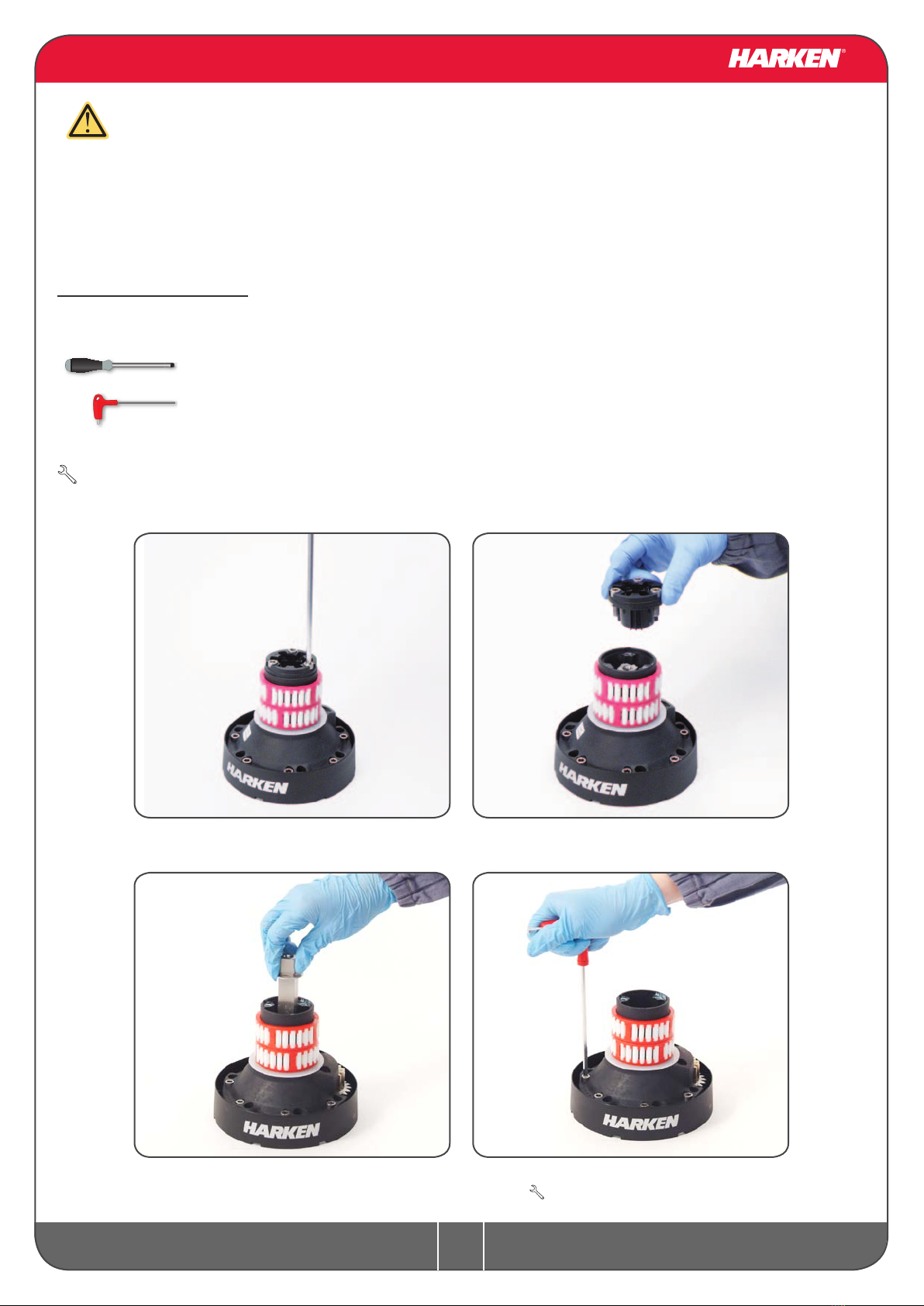

Disassembly procedure
Tools needed
One medium at-bladed screwdriver
A number ve hex key
Rags
To identify the various parts refer to the exploded view at the end of this Manual.
Torque to be applied in assembly phase
Carry out Procedure 1 as shown in the paragraph on winch installation and then do the following:
4. Completely unscrew the three screws n° 29
6. Slide out the central shaft n°19
5. Remove the socket support n°21
7. Unscrew the 6 hex screws n°16
( 8Nm/71 in-lb)

10
Radial Winch 35.2 PT
Installation and Maintenance Manual

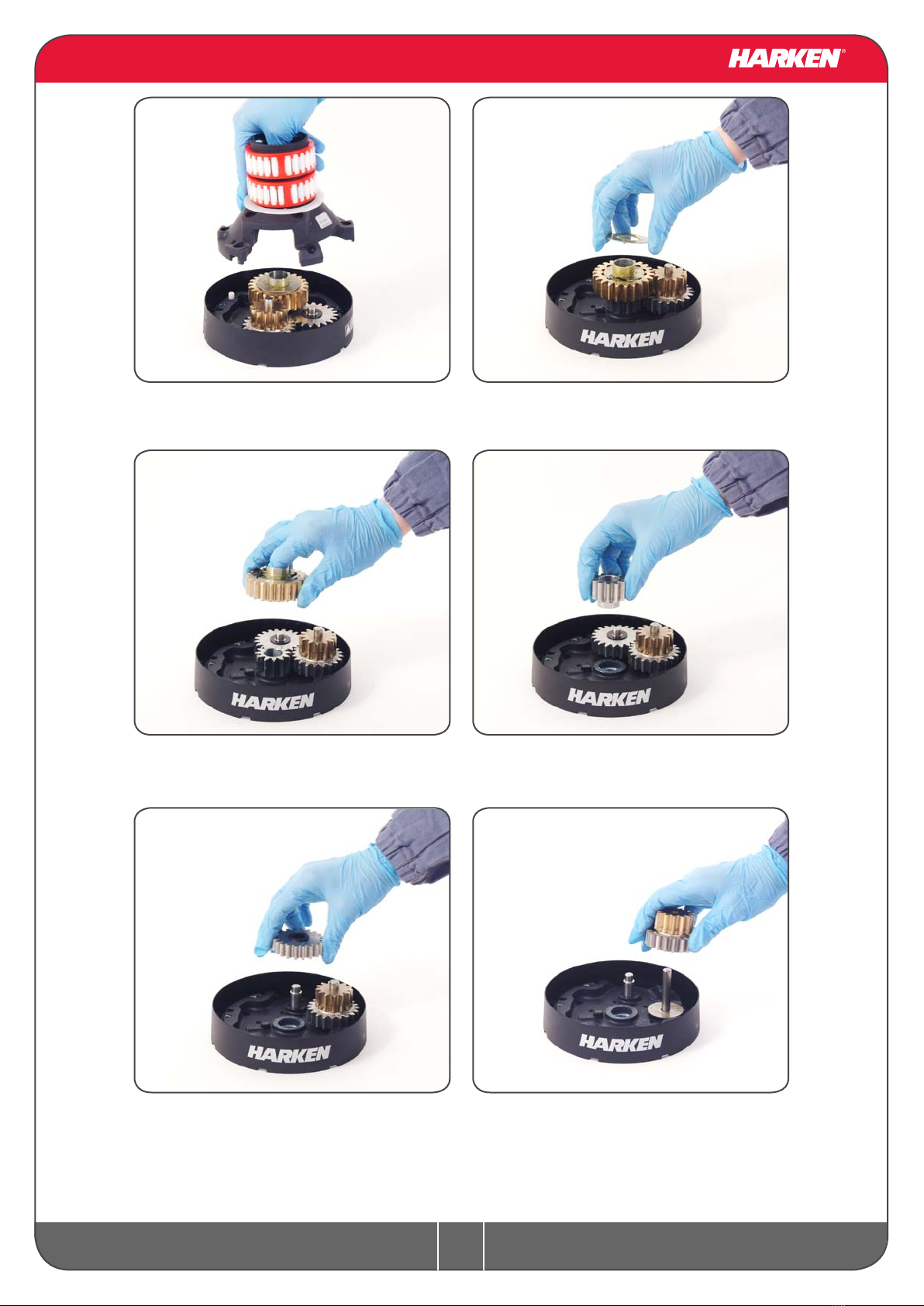

8. Remove the drum support n°15
Important: washer n°12 may remain
inside the drum support!
10. Remove the gearing n°7 and remove the
pawls n°4. To facilitate the operation press
the spring against the pawl with a blade.
12. Slide off gear n°14
9. Remove the washer n°12
11. Slide off gear n°3
13. Slide off gear n°10

11
Radial Winch 35.2 PT
Installation and Maintenance Manual

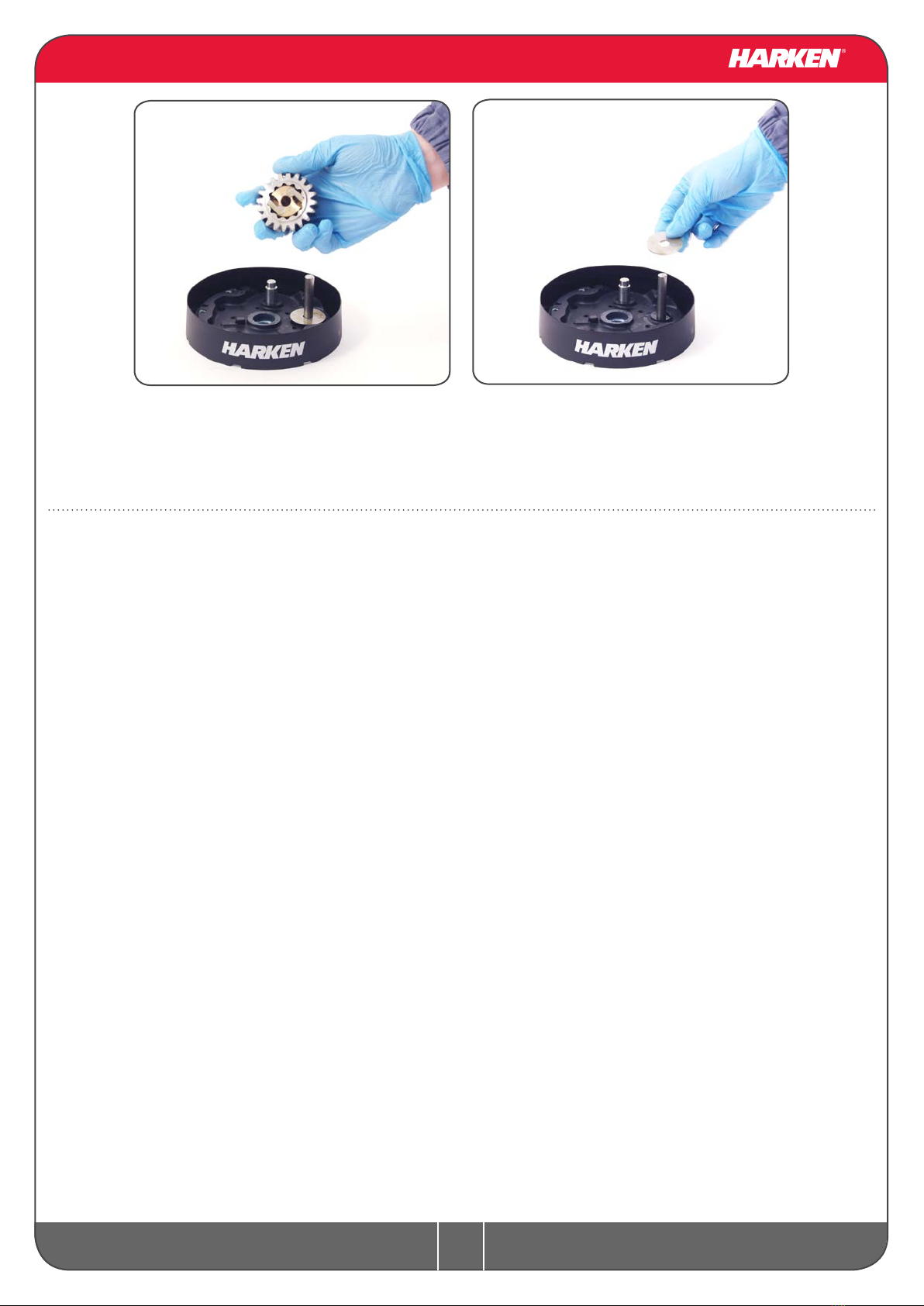

14. Remove the pawls n°5. To facilitate the
operation press the spring against the
pawl with a blade.
15. Remove washer n°9
Once the winch is completely disassembled, clean the parts: use a basin of diesel oil to soak
metal components and rinse plastic parts in fresh water. Once you have done this, dry the parts
with cloths that do not leave residue.
Inspect gears, bearings, pins and pawls for any signs of wear or corrosion.
Carefully check the teeth of gears and ring gears to make sure there are no traces of wear.
Check the roller bearings and check there are no breaks in the bearing cages.
Replace worn or damaged components.
Carry out maintenance on components using the products listed below.
For more information on which products to use where, refer to the exploded diagram below.
Use a brush to lightly lubricate all gears, gear pins, teeth and all moving parts with grease.
Lightly lubricate the pawls and springs with oil. Do not use grease on the pawls!

12
Radial Winch 35.2 PT
Installation and Maintenance Manual

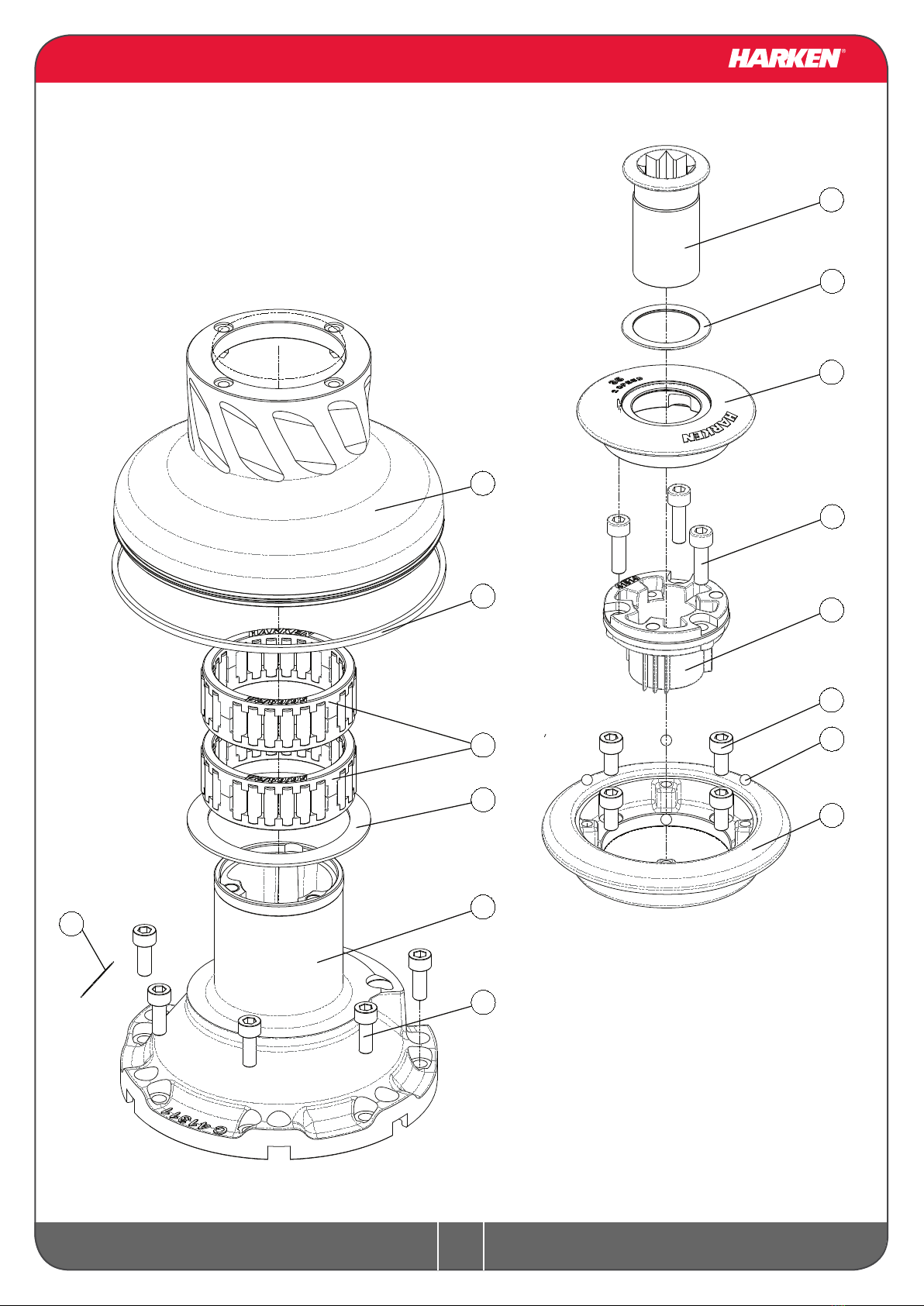

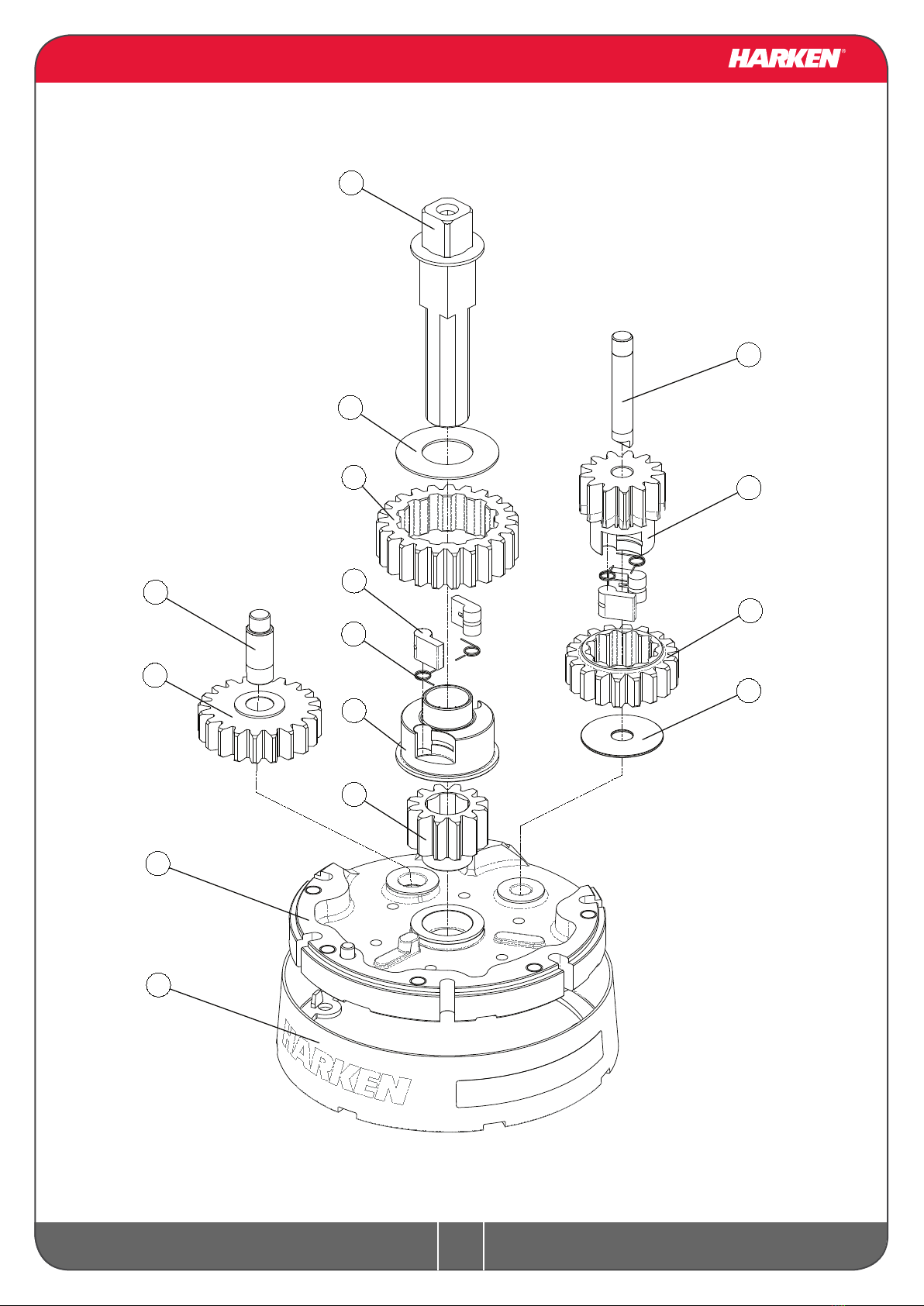

Exploded view with maintenance products
1Apply Harken®grease on assy socket screw
2Apply Harken®grease on drum gear
G
G
A
A
Harken®Grease
G
Harken®Pawl Oil
O
Anti-seize
A
G
A
G
G
G
G
G
G
O
O
G
G
A
1
2

13
Radial Winch 35.2 PT
Installation and Maintenance Manual
Assembly
Make sure that the holes and drainage channels in the base of the winch are not obstructed
Assemble the winch in the reverse order of the sequence in the section on disassembly.
To tighten bolts, use the torque indicated in the disassembly procedure.
To assemble the pawls:
correctly position the spring in its housing as
shown at left. Hold the spring closed and slide
the pawl into its housing. Once in position,
check that the pawls can be easily opened and
closed with a nger.
In case of doubt concerning the assembly procedure contact Harken®Tech Service: [e-mail]
Harken®limited worldwide warranty
Refer to the Harken®Limited Worldwide Warranty in the Harken®Catalogue and on the website
www.harken.com
Ordering spare parts
Spare parts can be requested from Harken®as
described in the Harken®Limited Worldwide
Warranty, indicating the part number in the
Parts List and including the serial number of
the winch for which the parts are required.
The serial number of the winch is printed on
a plate on the drum support of the winch.
OIL
W XXXXX
XXXXXXXXX
Harken®limited worldwide warranty - Ordering spare parts

14
Radial Winch 35.2 PT
Installation and Maintenance Manual
Headquarters
Harken®, Inc.
1251 East Wisconsin Avenue
Pewaukee, Wisconsin 53072-3755 USA
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.harken.com
Manufacturer
Harken®Italy S.p.A.
Via Marco Biagi, 14
22070 Limido Comasco (CO) Italy
Tel: [phone]
Fax: [phone]
Email: [email protected]
Web: www.harken.com
Tech Service
Email: [email protected]
Customer Service
Tel: [phone]
Email: [email protected]
Tech Service
Email: [email protected]
Customer Service
Tel: [phone]
Email: [email protected]

15
Radial Winch 35.2 PT
Installation and Maintenance Manual
Exploded view 1/2
2
1
3
9
14
4
10
13
6
5
11
7
12
8
19

16
Radial Winch 35.2 PT
Installation and Maintenance Manual
Exploded view 2/2
23
22
30
28
27
29
21
26
16
15
18
17
20
25
24

17
Radial Winch 35.2 PT
Installation and Maintenance Manual
*Service kit available; see winch kit section on the website www.harken.com
**Winch product sticker
Parts list
Radial Winch 35.2 PTA
A= drum in anodised aluminium
Pos. Q.ty Code Description
1 1 A 941310 00 Assy Base Winch 35
Winch Serial Number Sticker
2 1 A 941314 00 Assy Skirt Winch 35**
3 1 S 41302 00 04 Gear Z12
4 1 S 41303 00 04 Pawls Carrier Ø8xN2
5 4 S 00008 00 03 Pawl Ø8*
6 4 S 00038 00 01 Pawl Spring Ø8*
7 1 S 41283 00 41 Gear Z23
8 1 S 41300 00 04 Pin ø9x55
9 1 S279090002 Washer 36x9,5x1*
10 1 S 41565 00 04 Rachet Gear Z18
11 1 S 41285 00 41 Pinion Z13
12 1 S 41312 00 02 Washer Ø22.5xØ45x1*
13 1 S 41307 00 04 Pin ø9-ø12x32.5
14 1 A94130500 Assy Gear Z20
15 1 A94131100 Assy Housing Winch 35
16 6 M0635103 Socket head screw M6x16 UNI 5931*
17 1 S 41315 00 82 Washer Ø62xØ80x1.5*
18 2 A74136000 Bearing Ø56xØ68x24*
19 1 A94151900 Assy Central Shaft W35
20 1 S 41876 00 63 Winch Serial Number Sticker
21 1 S 41514 00 A0 Socket Support PT
22 1 S 41316 00 53 Drum W35
23 1 S 28168 00 97 Red line
24 1 S 41515 00 53 Plain Top W35/40
25 4 M0619580 Ball 3/16"
26 4 M 06037 03 Screw M6x12 UNI 5931
27 1 S 41516 00 53 Cover W35 PT
28 1 S 41522 00 80 PT spacer
29 3 M0600903 Screw M6x20 UNI5931
30 1 A94136400 Assy Socket W20-80
Screw M8x20 UNI 6109*
Washer Ø7.7xØ25x5.8*
Socket Handle W20/80*
