WHAT’S IN THE BOX
• DriveRack 260 Processor
• Power Cable
• Null Modem Cable
• Rack Mount Screw Kit
Quick Start Guide
PRODUCT REGISTRATION
Register your product at http://dbxpro.com/en-US/
support/warranty_registration or scan the code to the
right with a QR scanner app on your mobile device.
DriveRack 260 Quick Start Guide
PN: 5059584-A
801.566.8800
dbxpro.com
© 2015 Harman. dbx Professional Products is a registered trademark of Harman. All rights reserved.
1Getting Started
Before making any audio connections, perform the following:
• Ensure power to your mixer, 260, and amplifier(s) are turned off.
• Turn the attenuators on all power amplifiers or powered speakers all the way down.
• Make the audio connections per your application (see the system diagrams inside this
quick start guide for reference).
• Power up the mixer, then the 260, then your amplifiers or powered speakers.
2Run The Setup Wizard
The Setup Wizard will walk you through the configuration process. To run the Setup Wizard,
follow these steps:
A. Press and hold the WIZARD button for
2 seconds.
B. Select the “System Setup” Wizard option
by pressing the SELECT wheel.
C. Follow the on-screen instructions. Use
the NEXT PG and PREV PG buttons
to navigate the Wizard and the SELECT
wheel to make selections. Select the
“Custom” option for amplifier and/or
speaker models not listed in the System
Setup Wizard.
TIP: The “GEQ” option must be selected to use the Auto EQ Wizard and the “AFS”
option must be selected as one of the inserts to use the AFS Wizard.
NOTE: For information on manually configuring the 260 using Configuration mode,
see the “Manual Configuration” section inside this Quick Start Guide.
DOWNLOAD THE OWNER’S MANUAL
Get the owner’s manual at http://dbxpro.com/en-US/
products/driverack-260#documentation or scan the code
to the right with a QR scanner app on your mobile device.

3Auto EQ The System (Optional)
A. When the Auto EQ Wizard is
reached, connect the optional dbx
RTA-M measurement microphone
to the RTA MIC INPUT and place it
in a mic stand.
TIP: If you don’t have the RTA-M
mic, skip Auto EQ and go to step 4.
B. Place the RTA-M mic as shown in
the illustration to the right – the
placement of the microphone
should form an equilateral
triangle with the Front of House
loudspeakers.
C. Press the SELECT wheel to
select the Auto EQ option from the
Wizard Menu list.
Left Speaker Right Speaker
RTA-M Mic
Placement
D. Select the desired Response Curve
using the SELECT wheel then
press the NEXT PG button to
proceed.
TIP: Select the “A” Response
option for a live band PA
application. Select the “D”
Response option for a DJ
application.
E. Turn the SELECT wheel until
the pink noise level reaches
performance level (the display will
read, “SET TO PERFORMANCE
LEVEL” once the level is loud
enough for Auto EQ to run).
F. Press the NEXT PG button to
start Auto EQ.
4Ring Out The System For Feedback (Optional)
A. To run the AFS Wizard, select the option
in the Wizard Menu list by turning then
pressing the SELECT wheel.
TIP: To skip the AFS Wizard, press the
PROGRAM button.
B. Perform a sound check on all
microphones that will be used.
C. Follow the on-screen AFS Wizard
instructions to ring out the system for
potential feedback. All mics should be active, but there should be no signal present at
the microphones during this procedure.
5Store the Preset
A. Press the STORE button
4 times to store the
preset.
6Control The 260 Using The DriveWare Software App (Optional)
A. Connect your computer to the DriveRack 260 using the included RS-232 Null Modem
cable as shown in the below diagram.
260
RS-232 to USB
Serial Adapter
(Required if computer
doesn’t have a serial port)
Computer
w/ RS-232 or USB Port
dbx RS-232 Null
Modem Cable
NOTE: Not all USB to Serial Adapters will work with the 260. Please visit dbxpro.com
for additional information on compatible USB to Serial adaptors.
B. Download the DriveWare software application for Windows®from http://dbxpro.com/
en-US/products/driverack-260#downloads.
C. Install the application.
D. See the 260 owner’s manual for additional information on using the DriveWare
software application.

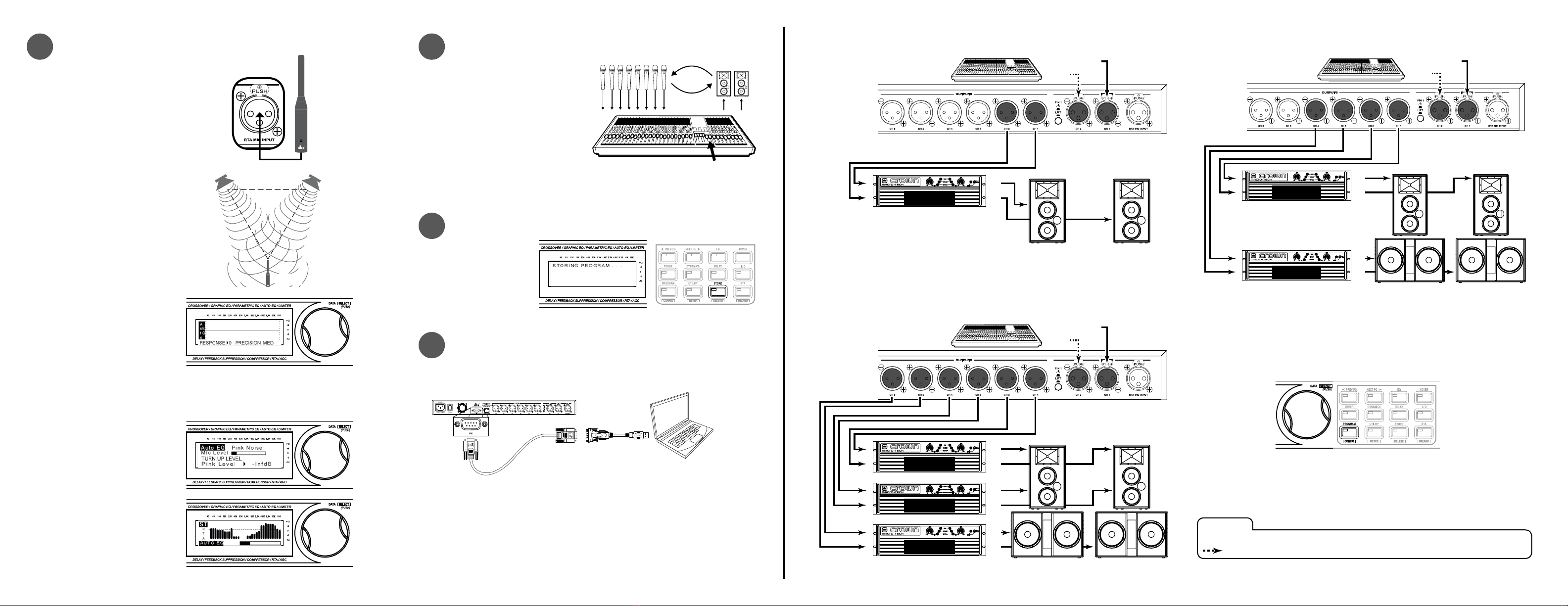

MONO / STEREO FULL RANGE MONO / STEREO 2-WAY
2 1
Right
1
2High Amp
2 1
RH
LH
Left or Mono
2 1
Left or Mono
Right
1
2High Amp
3
4
4 3 2 1
Sub Amp
RH
LH
RS
LS
MONO / STEREO 3-WAY MANUAL CONFIGURATION
2 1
Right
1
2High Amp
3
4
5
6
6 5 4 3 2 1
Low Amp
Sub Amp
RH
LH
RL
LL
RS
LS
Left or Mono
When programming the DriveRack 260 for an application that is more advanced than the
Setup Wizard can create, Configuration mode must be used to manually create the program.
Configuration mode can be entered by pressing and holding the PROGRAM/CONFIG button
for two seconds. For more information on using Configuration mode, see the owner’s manual.
LEGEND
LH = Left High
RH = Right High
LL = Left Low
RL = Right Low
LS = Left Sub
RS = Right Sub
Omit For Mono
NOTE: The LH and RH outputs in this application will pass full-range signal.
NOTE: If any output routing option other than the default is selected at the end of the System Setup Wizard, output connections will differ from those shown above.
