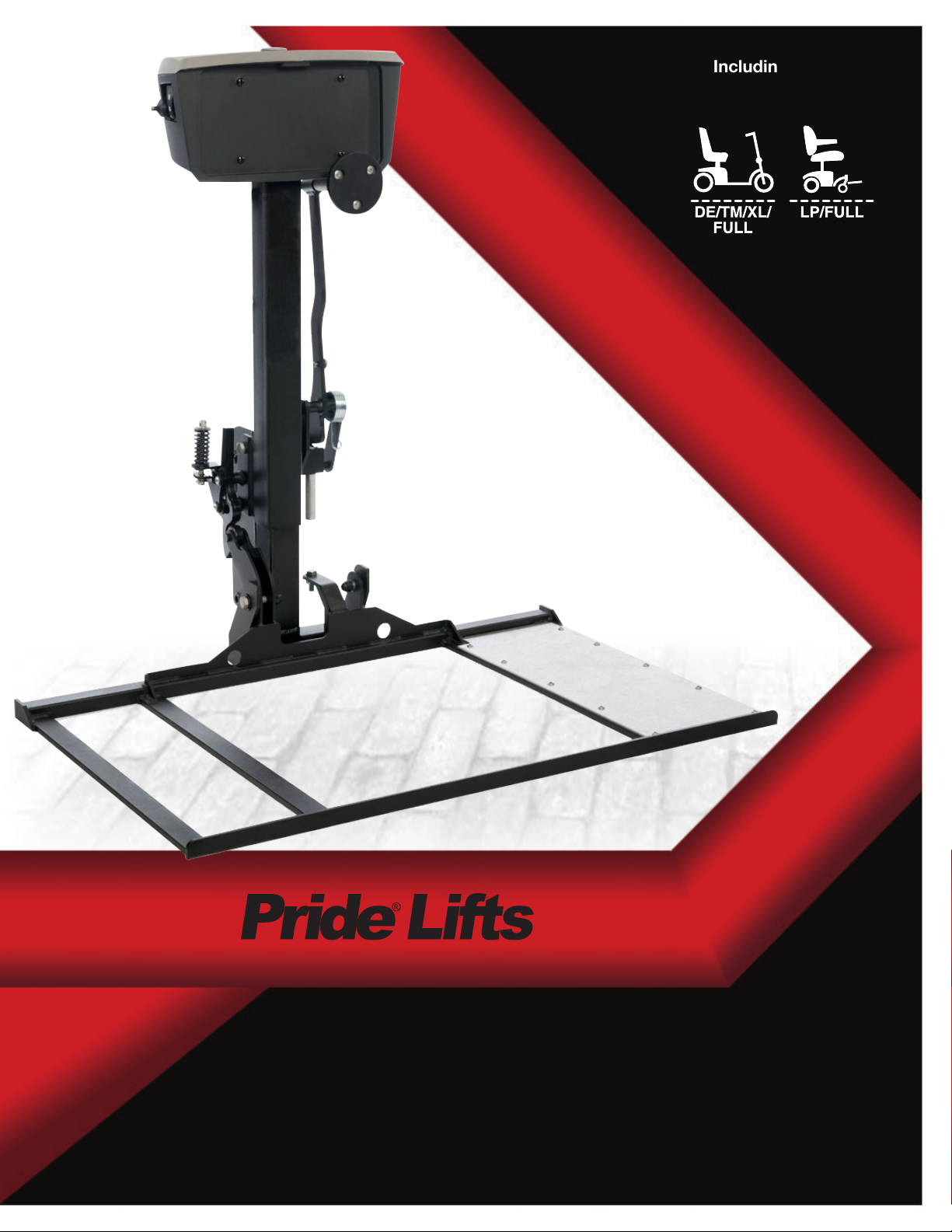

Harmar Mobility Pride Outlander Series User manual

Including Models
Outlander Series
Owner’s Manual

WARNING! A Harmar Dealer or a qualied technician must perform the initial setup of this product and must
perform all of the procedures in this manual.
The symbols below are used throughout this owner’s manual and on the product to identify warnings
and important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated procedures can
cause either personal injury, component damage, or malfunction. On the product, this icon is represented as
a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specied. Failure to perform mandatory actions can
cause personal injury and/or equipment damage. On the product, this icon is represented as a white symbol
on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or in any
circumstances. Performing a prohibited action can cause personal injury and/or equipment damage. On the
product, this icon is represented as a black symbol with a red circle and red slash.
CALIFORNIA PROPOSITION 65 WARNING! This product may contain substances which are known to the state
of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.
P65Warnings.ca.gov.
Intended Use
The intended use of the Harmar Mobility Products device is to aid in the transport of products that provide
mobility to persons limited to a seated position that have the capability of operating a mobility device.
NOTE: This owner’s manual is compiled from the latest specications and product information
available at the time of publication. We reserve the right to make changes as they become
necessary. Any changes to our products may cause slight variations between the illustrations
and explanations in this manual and the product you have purchased. The latest/current version
of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
NOTE: This product meets IPX4 classication (IEC 60529).
NOTE: The Outlander Series Lift System and its components are not made with natural rubber
latex. Consult with the manufacturer regarding any after-market accessories.
Quick Reference Information
Harmar Dealer:
Address:
Phone Number:
Purchase Date:
Copyright © 2019
03JUN19 PN:
SAFETY GUIDELINES
SAFETY GUIDELINESSAFETY GUIDELINES

Outlander Series www.harmar.com 3
CONTENTS
I. INTRODUCTION.......................................................................................................................................4
II. SAFETY ......................................................................................................................................................5
III. INSTALLATION .......................................................................................................................................10
IV. OPERATION ........................................................................................................................................... 15
V. BATTERY CHARGING.......................................................................................................................... 20
VI. CARE AND MAINTENANCE............................................................................................................... 22
VII. TROUBLESHOOTING .......................................................................................................................... 25
VIII. WARRANTY.............................................................................................................................................26

4 www.harmar.com Outlander Series
I. INTRODUCTION
SAFETY
Welcome to Pride Mobility Products by Harmar. Congratulations on the purchase of your new lift
system. The lift system design combines the most advanced state-of-the-art components with
modern, attractive styling. We are certain that the design features and trouble-free operation will add
convenience to your daily living and ensure complete satisfaction.
At Harmar, your safety is important to us. Please read and follow all instructions in this manual
before operating your lift system for the rst time. These instructions were produced for your
benet. Your understanding of these instructions is essential for the safe operation of your new lift
system.
Harmar is not liable for damage to property or personal injury arising out of the unsafe use of a lift
system. Harmar is also not liable for any property damage or personal injury arising out of the failure
of any person and/or user to follow the instructions and recommendations set forth in this manual or
any other instructions or recommendations contained in other lift system related literature issued by
Harmar or contained on the lift system itself.
INTERNET AND PRIVATE PURCHASES
If you purchased your product over the Internet or from a previous owner and you have any questions
about the safe use and/or maintenance of the product, please visit our web site www.Harmar.com or
contact your authorized Harmar Dealer.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product
or remove or render inoperable or unsafe any guards, shields, or other safety features of this product;
fail, refuse, or neglect to install any retrot kits from time to time provided by Harmar to enhance or
preserve the safe use of this product.
SHIPPING AND DELIVERY
Before using your lift system, make sure your delivery is complete as some components may be
individually packaged. If you do not receive a complete delivery, please contact your authorized
Harmar Dealer immediately. Where damage has occurred during transport, either to the packaging or
content, please contact the delivery company responsible.
NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to
send you a new one immediately.

Outlander Series www.harmar.com 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the lift system to identify warnings, mandatory actions, and prohibited
actions. It is very important for you to read and understand them completely.
Do not open the swing-away hitch adapter with a mobility device
on the lift.
Crush Hazard—Pinch/crush points created during assembly and operation. Keep hands clear.
Crush Hazard—Moving lift can crush. Keep feet clear during operation.
Read and follow the information in the owner’s manual.
Maximum lifting capacity.
Do not use as a step.
Lift system intended for use with unoccupied mobility device. Do not use product to lift people.

6 www.harmar.com Outlander Series
II. SAFETY
Removal of grounding prong can create electrical hazard. If necessary, properly install an approved
3-pronged adaptor to an electrical outlet having 2-pronged plug access.
Do not connect an extension cord to the charger cord.
Do not allow unsupervised children to play near the lift system while the batteries are charging.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in
a clean and dry condition.
Keep tools and other metal objects away from battery terminals. Contact with tools can cause
electrical shock.
Battery posts, terminals, and related accessories contain lead and lead compounds. Wear goggles
and gloves when handling batteries and wash hands after handling.
Explosive conditions exist!

Outlander Series www.harmar.com 7
II. SAFETY

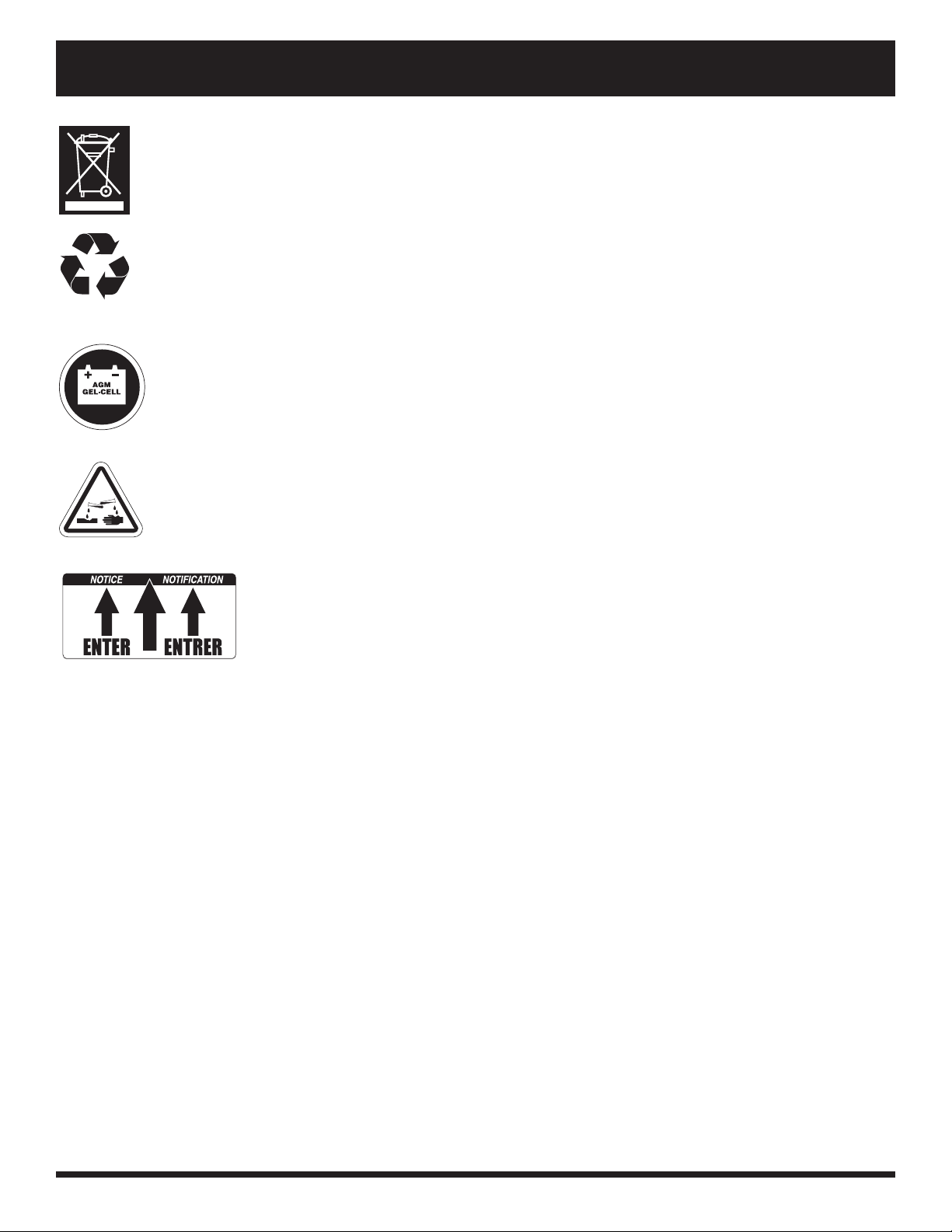

Disposal and recycling - Contact your authorized Harmar Dealer for information on proper disposal of
your Harmar product and its packaging.
Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
Corrosive chemicals contained in battery.
NOTICE! Enter platform where noted.

8 www.harmar.com Outlander Series
II. SAFETY
LIFTING CAPABILITIES
The lift system is an electromechanical device designed to lift and secure various types of mobility
devices for the purpose of vehicle transport. The Outlander is designed for use with Class II, Class III,
or Class IV hitches. Check the hitch weight capabilities of your vehicle (check vehicle’s owners panual
prior to use. Under no circumstances should the lift system and mobility device exceed this weight limit.
Subjecting the lift system to the strain of hoisting more than it is designed to lift may cause it to fail,
resulting in damage to the mobility device and/or injury to the lift operator. Refer to the mobility device
owner’s manual for information on the overall weight of the mobility device and mobility device before
lifting.
WARNING! Adding accessories, oversize batteries, or a dierent seat will increase the weight of your mobility
device. Verify with your authorized Harmar Dealer that the total weight of your mobility device, including
additions, does not exceed the maximum hitch allowance.
INSTALLATION
The lift system is designed to be mounted to a vehicle hitch system. Before lift installation, ensure that
the hitch shows no signs of rust or wear and that the front and rear vehicle suspension is acceptable.
If any vehicle alterations are necessary, make sure that you fully understand the instructions for drilling
or cutting before making any alterations.
WARNING! Before drilling or cutting into the vehicle, make absolutely certain through visual inspection that
there are no obstructions, such as the fuel tank, exhaust pipes, or electrical wires, in the path of the drill bit.
LIFTING NON-HARMAR PRODUCTS
The lift system is an extremely versatile device, which users may employ to lift items other than Harmar
products. Harmar has no control over such use, nor can Harmar anticipate every possible use to which
a lift system may be put. Operating the lift system outside of the safe limits as discussed in this manual
or using the lift system to lift any item deemed by Harmar to be incompatible with the lift system is
done at the operator’s own risk, and Harmar accepts no liability for damage or injury resulting from
such use.
PRELIFT INSPECTION
Before operating the lift system, inspect your surroundings to ensure that the lift system has a clear
path of operation. Remove any possible obstructions before operating the lift and do not allow children
to operate or play near the lift. Ensure that all parts of the lift system are completely fastened before
loading the mobility device onto the lift platform, and make sure the mobility device is properly secured
before operating the lift system.
OPERATOR POSITIONING
The operator of the lift should stand a safe distance from the unit being lifted/lowered to ensure that
his/her feet are never positioned under the raised lift platform. The operator should also keep his/her
hands clear of the lift system to avoid the potential for injury.
TRANSPORT VEHICLE POSITIONING
Be sure your vehicle is parked on at, level ground before attempting to load, lift, or remove a mobility
device with the lift system. Make sure the vehicle emergency park brake is engaged before loading or
unloading a mobility device.

Outlander Series www.harmar.com 9
II. SAFETY
HITCH CLASS INFORMATION
Hitches come in a variety of sizes and are designated
by class. The classes range from Class II to Class IV. A
heavier load requires a larger class, which has a higher
tongue weight. Tongue weight is the amount of weight
(downward force) that the load puts on the hitch. See
gure 1.
The combined weight of your lift and mobility device
gives you the minimum tongue weight for your
application. Exceeding the tongue weight of a hitch
creates an unsafe driving situation and can damage
the hitch and/or the vehicle. See gures 2 and 3.
WARNING! Adding accessories, oversize batteries,
or a dierent seat will increase the weight of your
mobility device. Verify with your authorized Harmar
Dealer that the total weight of your mobility device,
including additions, does not exceed the maximum
weight allowance.
WARNING! Never exceed the maximum lifting
capacity of a lift regardless of the class of hitch
being used. Doing so may cause lift and/or vehicle
damage.
WARNING! Before installing the lift and applicable
hitch systems, check your vehicle owner’s manual
for hitch maximum tongue weight capacity. Do not
exceed the maximum tongue weight capacity of
your vehicle.

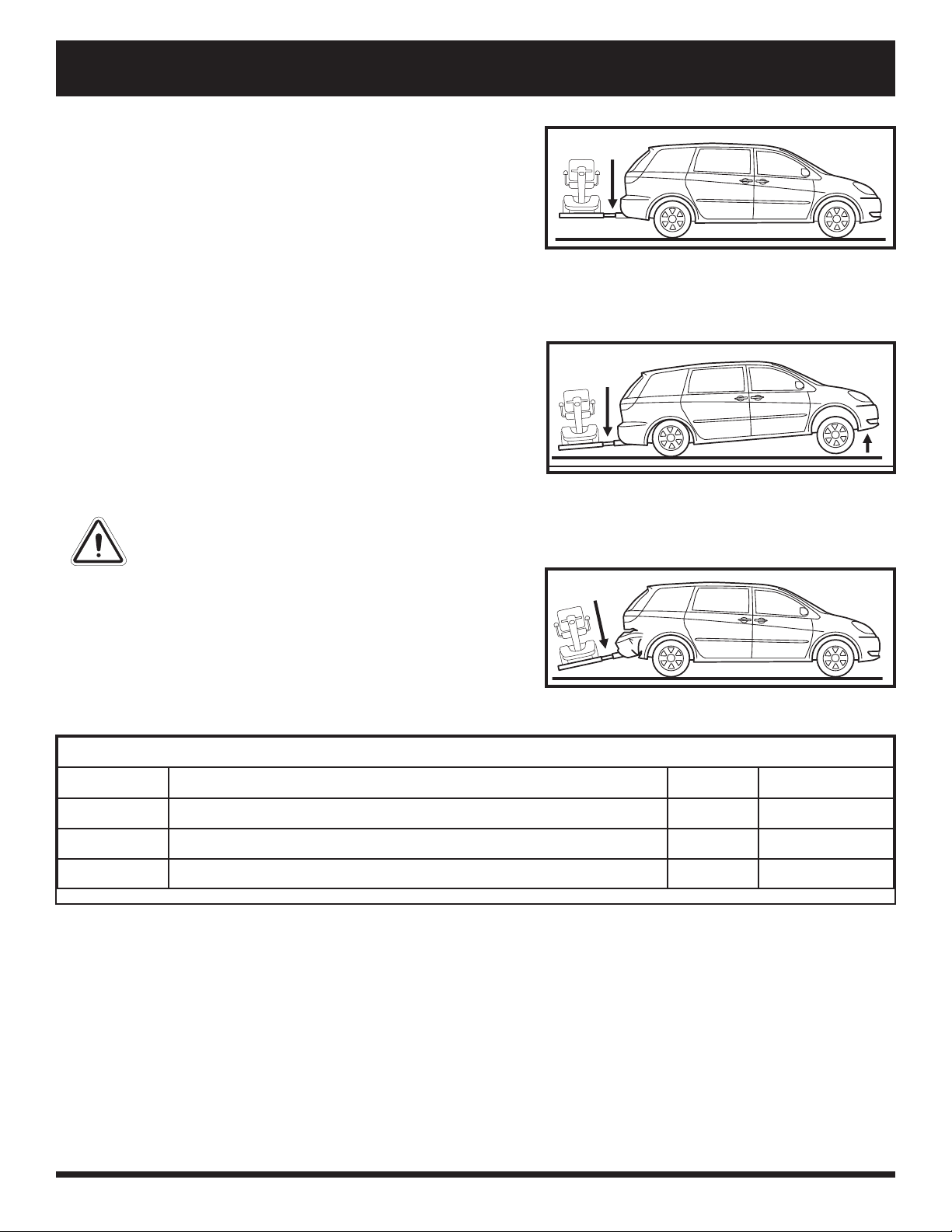

Figure 3. Vehicle Damage
Figure 2. Unsafe Driving Situation
Figure 1. Tongue Weight Pressure Point
NOTE: Check vehicle manufacturer recommended tongue weight capacity prior to lift installation.
HITCH CLASS
Class Lb Kg
Class II Hitch has a maximum tongue weight of 300 lb 136 kg
Class III Hitch has a maximum tongue weight of 500 lb 227 kg
Class IV Hitch has a maximum tongue weight of 1000 lb 455 kg

10 www.harmar.com Outlander Series
III. INSTALLATION
LIFT SYSTEM INSTALLATION
The Outlander is designed to be easily installed into
any vehicle equipped with a Class II or Class III/IV
hitch receiver.
NOTE: For applications above 21 in (53.34 cm),
please call your authorized Harmar Dealer for
special installation instructions.
WARNING! The lift system should be installed
only by an authorized Harmar Dealer or service
technician.
NOTE: Refer to securement installation
instructions that are specic to your application
(i.e. product, vehicle) for further details.

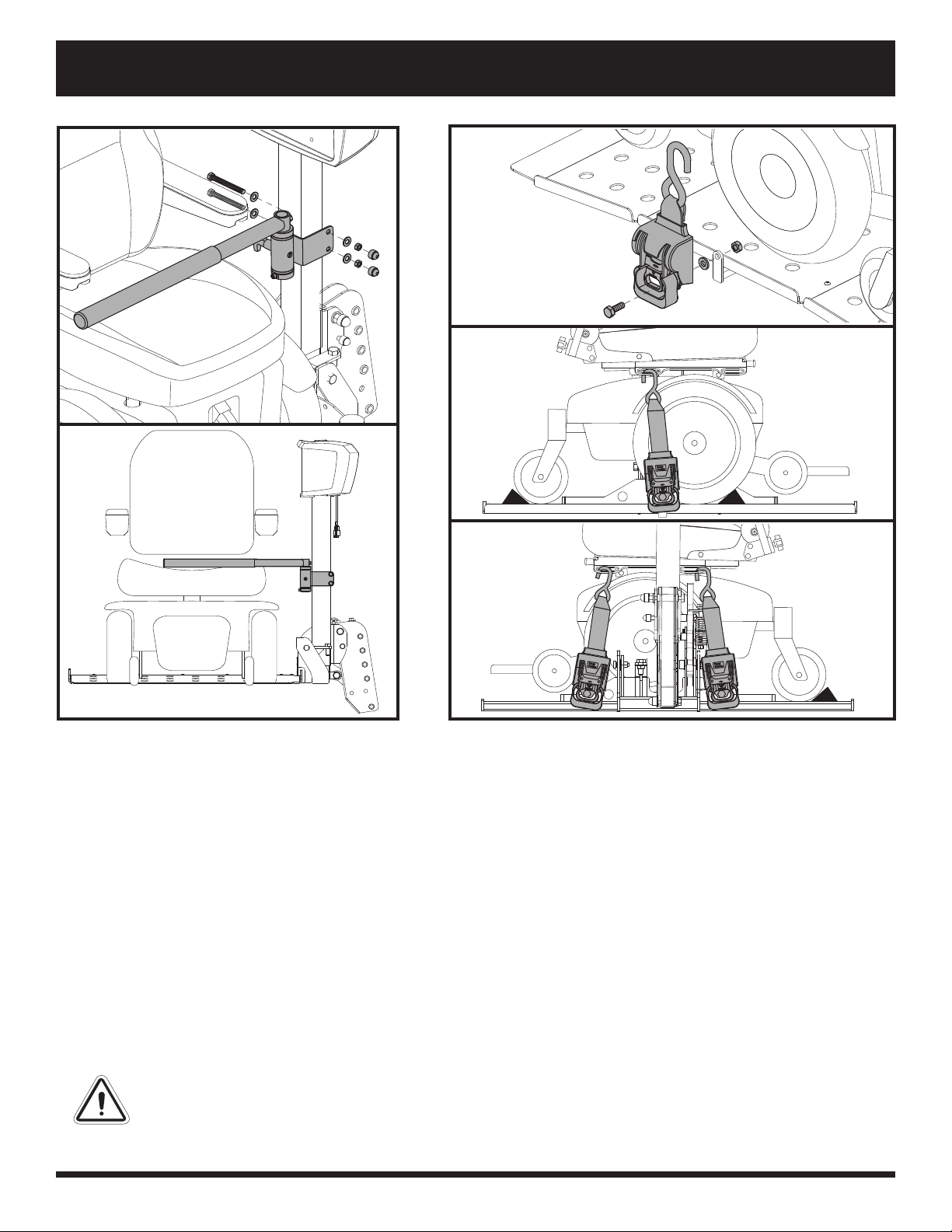

To install the Scooter lock-down arm (Outlander
FP only):
1. Lay the lift system at on the oor.
2. Remove the black caps.
3. Remove hardware. See gure 4.
4. Position the lock-down arm onto the threaded
bolts and align with the two holes. See gure 4.
5. Insert the washer.
6. Reattach hardware.
7. Secure the nut to the securement screw.
8. Reattach the black caps.
NOTE: If you purchase an Outlander TM, DE, or
XL, the lock-down arm is installed.
NOTE: Any nylon insert lock nut removed during
disassembly or adjustment of the lift system
must be replaced with a new nut. Nylon insert
lock nuts should not be reused as it may cause
damage to the nylon insert, resulting in a less
secure t. Replacement nylon insert lock nuts are
available at local hardware stores or through your
authorized provider.
To install power chair hold-down bar:
1. Place the power chair on the lift.
2. Raise lift to the most upward position.
3. Place the power chair hold-down bar on the seat
into the cushion. Once secured, attach to mast
with supplied hardware. See gure 5.
Figure 4. Lock-down Arm Installation

Outlander Series www.harmar.com 11
III. INSTALLATION

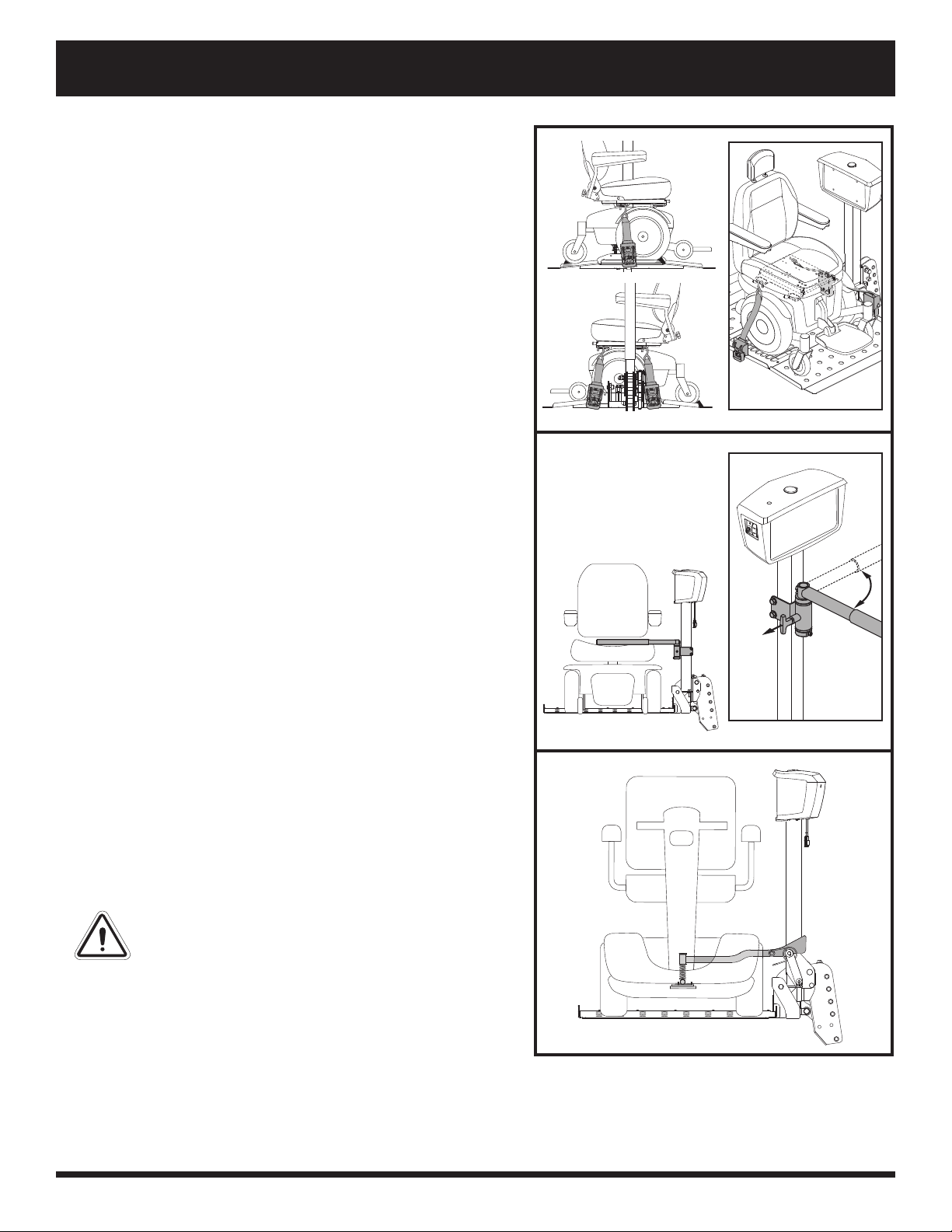

Figure 5. Hold-down Bar Installation Figure 6. Retractable Tie-down Strap Installation
Steps for retractable tie-down strap installation:
1. Remove mounting hardware from strap.
2. Align the meeting position on strap to the desired mounting point hole on the full platform. See
gure 6.
3. Install the hardware. See gure 6.
4. Repeat process for the second and third straps.
To install the lift system:
1. Remove the preassembled mounting hardware from the hitch tube.
2. Ensure that the hitch tube is properly oriented as shown in gure 7, and mount the hitch tube to
the lift frame using the previously removed mounting hardware. Install the hardware in the direction
indicated in gure 7.
3. Slide the hitch tube into the vehicle hitch receiver, aligning the mounting hole closest to the lift with
the mounting hole in the hitch receiver. See gure 7.
WARNING! Lift system components are heavy. Ask for assistance if necessary when attaching the lift frame to
the hitch receiver. Use proper lifting techniques and avoid lifting beyond your capacity.
WARNING! Avoid pinch points! Do not hold the lift frame by the pivot points when mounting the lift frame to
the hitch receiver.

12 www.harmar.com Outlander Series
III. INSTALLATION
MOUNTING
HARDWARE
HITCH RECEIVER
Figure 7. Hitch Tube Assembly
4. Secure the hitch tube with the supplied bolt and
nut, inserting the bolt from the threaded side of
the hitch tube. See gure 7.
WARNING! Threading the bolt from the wrong
side or allowing the bolt to turn while tightening
the nut will dislodge the threaded insert in the
hitch tube.
WARNING! Do not attach a Class II hitch tube to
a Class III hitch receiver.
NOTE: Make sure the hitch bolt is tightened rmly
before securing the nut to the hitch assembly to
minimize the chance that the lift will tilt during
transport.
NOTE: Make sure the hitch tube and lift platform
are parallel to the ground before operating the
lift system. An angled hitch tube may cause
unreliable lift operation and/or damage to the lift
system.
NOTE: Class II Hitch is compatible with swing-
away.
5. Route the lift system wiring harness under the
vehicle. Refer to “Wiring Harness Installation.”
WARNING! Never attach the wiring harness to
a secondary power source. Do not attempt to
use trailer wiring to power the lift system. The
wiring harness must be connected directly to the
vehicle battery.
NOTE: If your lift is equipped with an onboard
battery, refer to “Onboard Battery Installation.”
6. If equipped, install the wheel chocks to the lift
platform. Refer to “Wheel Chock Installation.”
LIFT
VEHICLE
HITCH TUBE

Outlander Series www.harmar.com 13
III. INSTALLATION

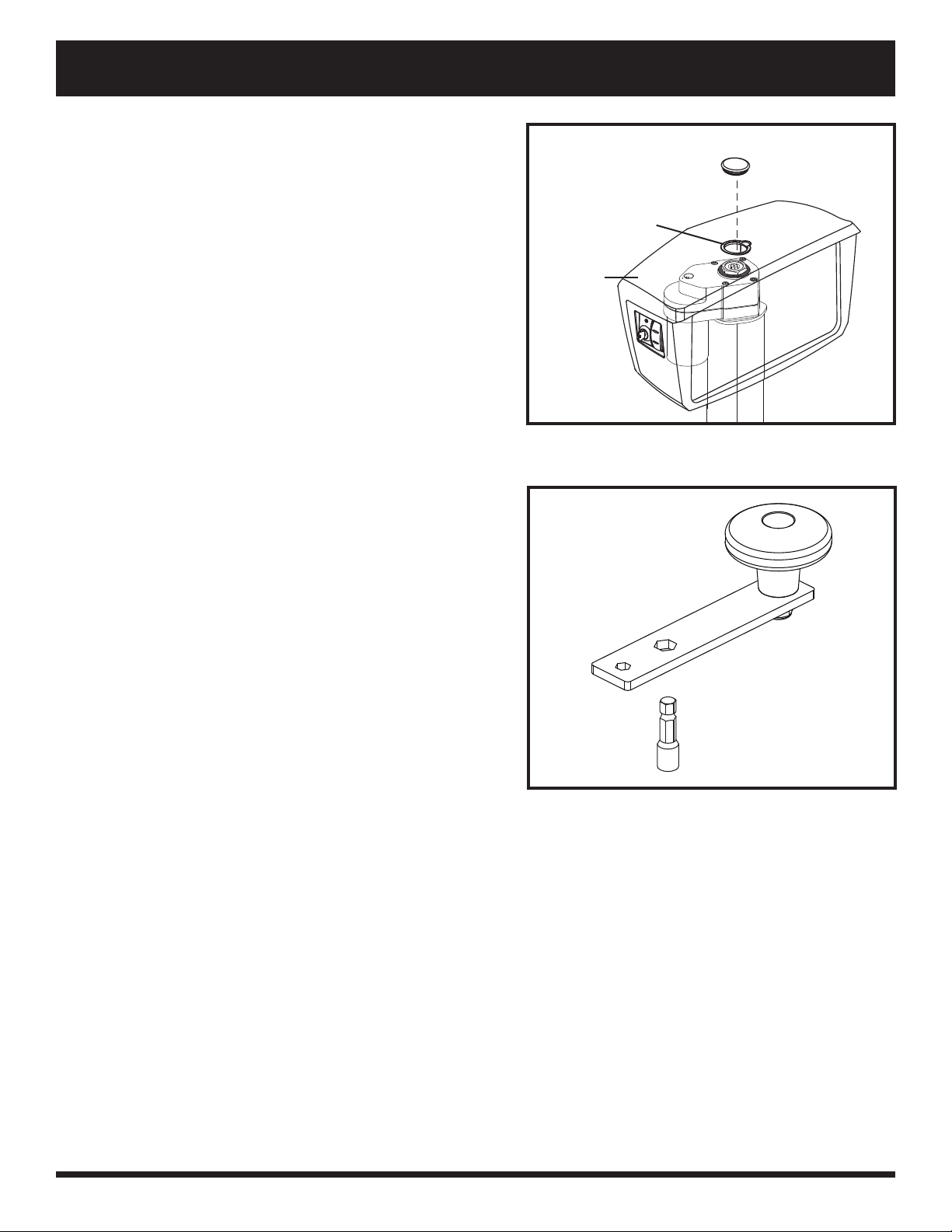

Figure 8. Accessory Bracket
Figure 9. Onboard Battery Installation
Figure 10. Wiring Harness Installation
Onboard Battery Installation
The optional onboard battery is designed for easy
installation as it does not require any wires to be routed
through or under the vehicle.
To install the onboard battery:
1. Position the accessory bracket at desired location on
Outlander mast.
2. Secure with supplied hardware. See gure 8.
3. Align the mounting holes in the battery case bracket
with those in the accessory bracket. See gure 9.
4. Secure the battery case bracket to the accessory
bracket with the supplied hardware. See gure 9.
5. Insert the onboard battery into the battery case,
making sure that the connector on the bottom of
the battery aligns and fully connects with the mating
connector inside the battery case.
6. Plug the battery cord on the bottom of the battery
case into the mating connector running from the
motor. See gure 9.
Wiring Harness Installation
The wiring harness is approximately 25 ft. (7.62 meters)
long and will accommodate most vehicles.
NOTE: You may wish to perform a practice run before
installing the wiring harness. Route a piece of light
rope (equivalent to the gauge of the wiring harness)
along the anticipated path observing contact points,
potential rubbing/chang points, and any sharp edges.
Remove sharp edges with a ne grade le, then treat
the steel with a rust inhibitor or metal sealant.
To route the lift system wiring harness:
1. Route the lift system wiring harness (starting at the
lift) under the interior of the vehicle until you reach the
vehicle battery. See gure 10.
2. Inside the engine compartment, secure the harness
to the rewall with plastic wire ties. Use care not to
cause abrasions to the wiring harness. It is important
to secure the wiring harness at various points along
its run of the vehicle.
BATTERY
CASE
BATTERY
CASE
BRACKET
ACCESSORY
BRACKET
LIFT WIRING
CONNECTION
WIRING HARNESS
LIFT FRAME
GROUNDING WIRE
HARNESS
VEHICLE BATTERY

14 www.harmar.com Outlander Series
III. INSTALLATION
WARNING! Do not cut or shorten the wiring
harness. If the harness is too long, coil the excess
wire and secure it with plastic wire ties.
3. Connect the red wire to the positive (+) terminal
and the black (grounding) wire to the negative (-)
terminal of the vehicle battery.
WARNING! Before operating the lift, inspect the
wiring harness for proper routing and grounding.
Improper routing can cause damage to the harness,
and improper grounding can cause damage to the
electrical system.
Wheel Chock Installation
Your lift will be supplied with four adjustable wheel
chocks that, when installed, aid in centering your
mobility device during loading.
To install the wheel chocks:
1. Drive your mobility device onto the lift platform,
positioning it as near to the center as possible.
2. Position the wheel chocks on the platform.
Scooters: Place a wheel chock in front of the front
wheel(s) and behind the rear wheels or behind the
front wheels and in front of the rear wheels. Power
Chairs: Place a wheel chock in front of and behind
the drive wheels.
3. Take note of the adjustment holes the wheel chocks
align with on the platform and remove the chocks.
4. Remove the mobility device from the lift platform.
5. Raise the platform high enough to be able to install
hardware from under it.
6. Position the wheel chock bottom on the underside
of the platform, aligning it with the wheel chock
top. See gure 11.
7. Secure the wheel chock sections to the platform
using the supplied hardware. See gure 11.
8. Repeat these steps to install the remaining wheel
chocks to the lift platform.
NOTE: The Outlander TM and do not require wheel
chock installation. The platform designs support
the mobilty device wheels so that wheel chocks
are not required. See gure 12.
Figure 11. Wheel Chock Installation
Figure 12. Wheel Placement
WHEEL CHOCK TOP
WHEEL CHOCK BOTTOM
SCREWS

Outlander Series www.harmar.com 15
IV. OPERATION
LIFT SYSTEM OPERATION
WARNING! The lift system is intended for the
transport of only mobility devices. The mobility
device must be unoccupied before operating the
lift.
WARNING! Do not exceed the load limits of your
vehicle or hitch system as specied by the vehicle
manufacturer.
WARNING! Use extreme caution when driving with
the lift installed on your vehicle. Be aware that
the lift extends away from the back of the vehicle
and extra clearance is needed when backing up,
turning, parking, or driving through driveway
entrances/exits. Drive slowly when negotiating pot
holes, road bumps, and railroad tracks.
To operate the lift system:
1. Insert the key into the key switch to turn on and o.
The green light will illuminate when the lift system
is on.
2. Use the toggle switch to raise or lower the lift
system See gure 13.
Loading and Securing Your Mobility Device
1. Set the speed control of the mobility device to the
slowest setting and carefully drive your mobility
device onto the lift platform, being sure to center
the mobility device on the platform to the best of
your ability.
WARNING! Always enter from driver’s side with
scooter lockdown arm.
NOTE: You may wish to load the mobility device
while standing next to it using the manual
freewheel feature. Refer to the mobility device
owner’s manual for more information on manual
freewheel mode.
2. Shut down the power to the mobility device,
remove the key if applicable, and make sure the
unit is in drive mode (drive motors engaged). Refer
to the mobility device owner’s manual for more
information on drive mode.
WARNING! Never leave a mobility device in manual
freewheel mode during lift system transport, as the

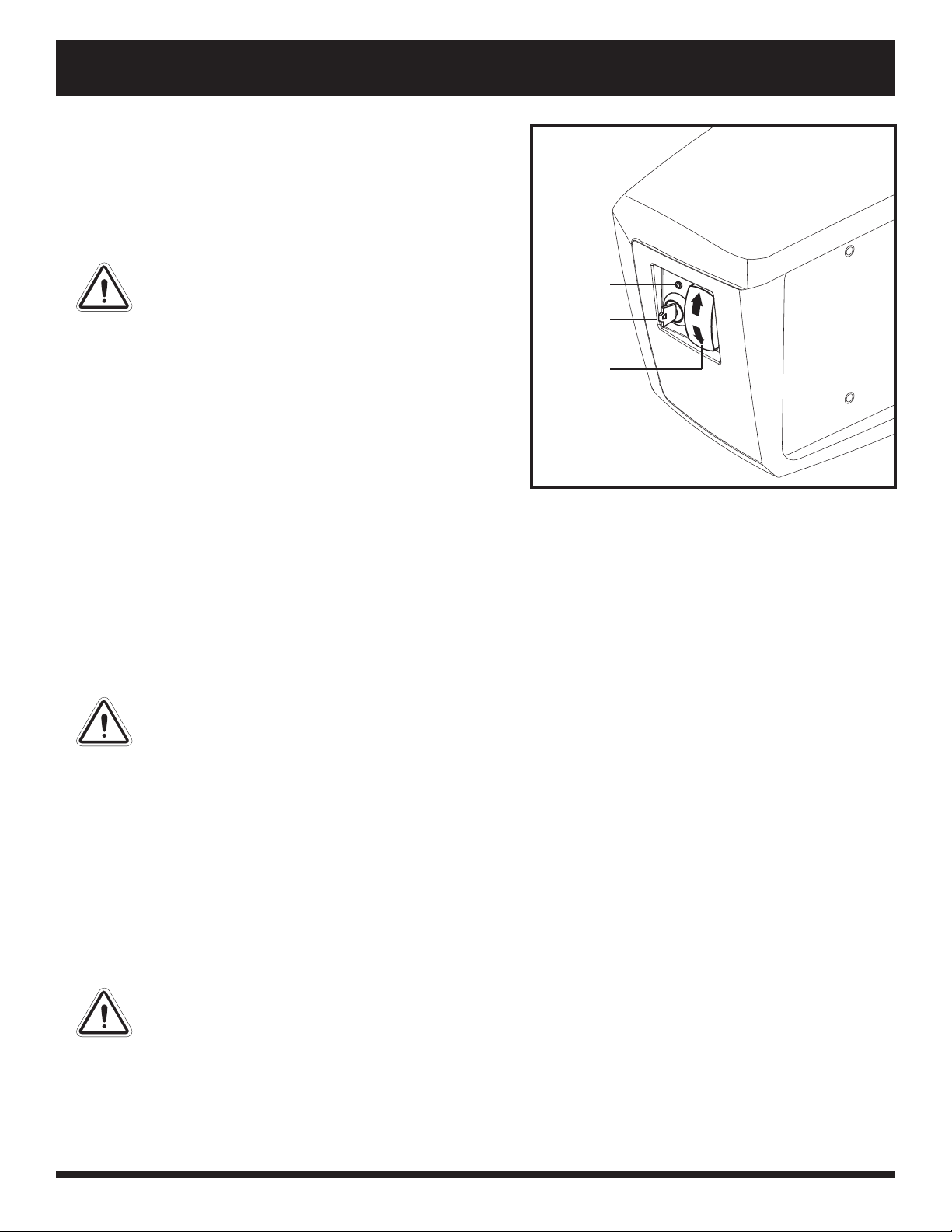

Figure 13. Key Switch and Toggle Switch Operation
LIGHT
KEY
SWITCH
TOGGLE
SWITCH

16 www.harmar.com Outlander Series
IV. OPERATION
mobility device could roll.
3. Secure the mobility device to the platform using
either the retractable tie-down straps or the hold-
down bar for power chairs or either the automatic
lock-down arm or straps for scooters.
■Squeeze together the release and adjustment
levers on the retractable tie-down strap and
simultaneously bring both levers forward to a
90-degree position until they “click” then lock into
place. This will unlock the tie-down strap. See
gures 14 and 15.
■Pull the strap out and secure it to the opposite side
of the platform. Attach straps to the securement
points of the mobility product. See gure 16.
■Once each strap is secured in the proper position,
squeeze together the release and adjustment levers
and simultaneously bring both levers rearward to
their original positions. This will lock the tie-down
strap. See gures 14 and 15.
■To tighten the strap, rotate only the adjustment
lever forward and rearward in a ratcheting motion
until the tie-down strap reaches an adequate level
of resistance for mobility device securement.
NOTE: Inspect the tie-down straps before each
use to ensure there are no signs of fraying or wear.
Ensure that the mobility device is secured properly
before transport. Harmar is not liable for damage or
loss resulting from improper securing of a mobility
device.
WARNING! Never attempt to secure the tie-down
straps over the seatback or armrests of a mobility
device.
WARNING! For lift systems equipped with the
automatic lock-down arm, do not attempt to
adjust the pressure of the arm. This feature has
been congured by your authorized Harmar
Dealer to meet your needs and requires no further
adjustment.
WARNING! If your product is equipped with
pneumatic drive tires, make sure the tires are
inated to the recommended pressure labeled on
the tire sidewall. This will ensure that the product
is at the correct deck height for proper lock-down
arm positioning.

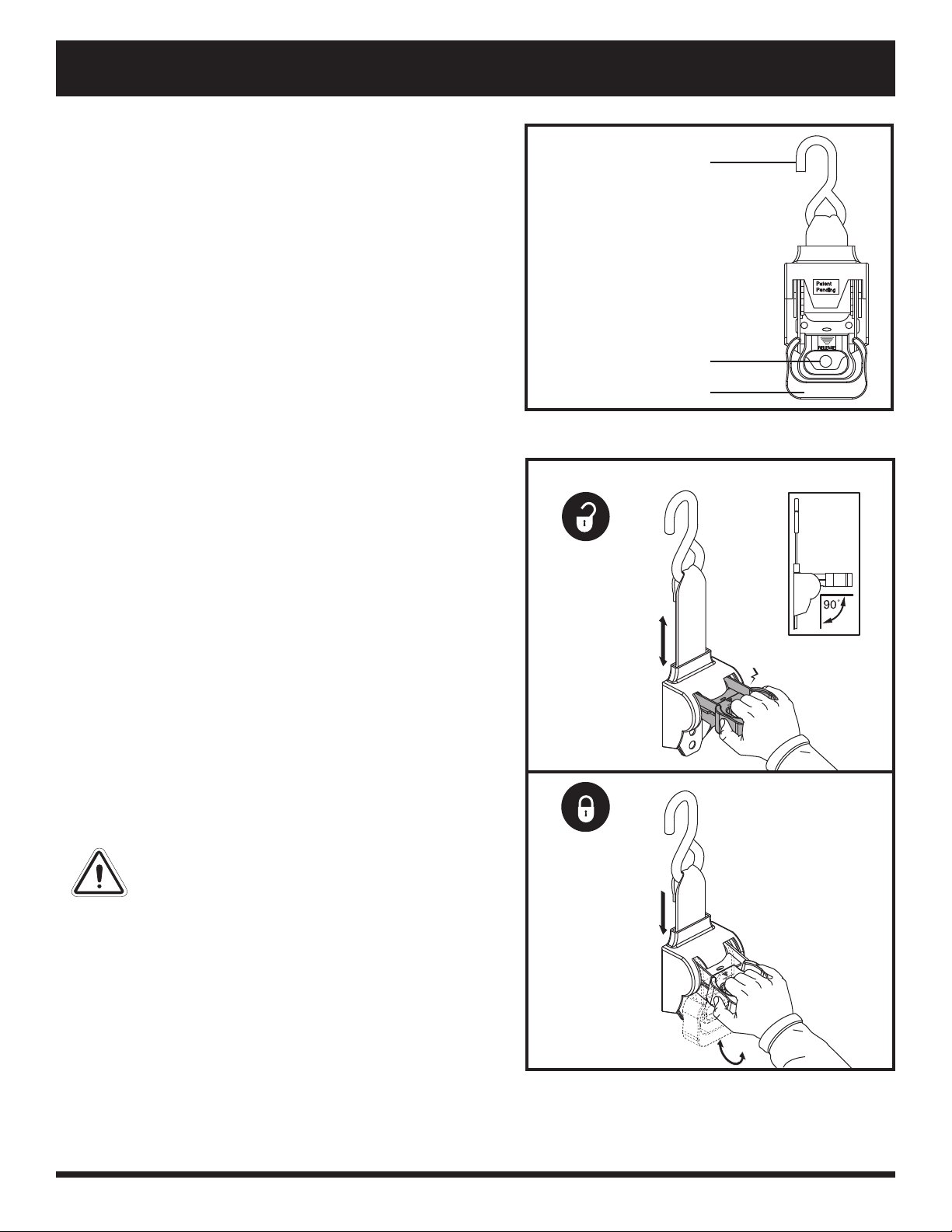

Figure 14. Retractable Tie-down Strap
Figure 15. Unlocking and Locking Retractable Tie-
down Strap
HOOK
RELEASE LEVER
ADJUSTMENT LEVER
CLICK

Outlander Series www.harmar.com 17
IV. OPERATION
4. Raise the lift platform by pressing the toggle up.
Continue to raise the lift until the motor stops, then
release.
NOTE: As the lift platform rises, the automatic lock-
down arm activates to secure the product to the lift
platform. You may need to adjust the product’s tiller
position to prevent interference with the smooth
operation of the automatic lock-down arm.
NOTE: The motor will stop automatically at the top
of its stroke and will emit a clicking sound. Release
the key upon hearing this sound.
5. If equipped with product hold-down bar, position it
into desired location.
NOTE: Ensure mobility device is secure.
NOTE: Pay attention to the path of the lift platform
during operation. Make sure the lift does not rub
against or interfere with the vehicle in any way. If
you notice any contact between the lift platform
and the vehicle, stop lift operation immediately
and contact your authorized Harmar Dealer for
assistance.
To remove a mobility device from the lift system:
1. Lower the lift platform to the ground.
2. Unfasten the tie-down straps or allow the lock-down
arm to automatically return to the vertical position.
■Unlock and loosen the tie-down straps.
■Rotate only the adjustment lever on each strap
forward and rearward in a ratcheting motion until
each strap reaches its original furled position.
3. Unload the mobility device from the lift platform.
WARNING! Do not attempt to manually pull the lift
platform down from the stowed position. Doing
so will result in product damage and will void the
product warranty.
4. Raise the lift platform for storage, noting that it will
automatically fold into a stowed position.
Figure 16. Securement of the Unit

18 www.harmar.com Outlander Series
IV. OPERATION
THE SWING-AWAY ADAPTER
The swing-away adapter allows the lift system to
move away from the vehicle to permit easier access
to vehicle.
To operate swing-away adapter:
1. Remove the safety pin
2. If equipped, place the safety pin in the pin holder.
See gure 17.
3. Lift up the latch to release.
4. Move lift system away from vehicle.
To secure swing-away adapter:
1. Move lift system toward the vehicle.
2. Align swing-away adapter over receiver and latch
as shown in gure 19.
3. Reinstall the safety pin
WARNING! Do not operate the swing-away lift
assembly while the mobility device is on the
exterior lift, or when the platform is in the lowered
position. Do not open the exterior lift into trac.
Do not operate the exterior lift against an incline.
Ensure all hardware is secure.
WARNING! Ensure the safety pin is engaged prior
to using lift system or driving the vehicle.
Figure 17. Operate Swing-away Adapter
Figure 18. Move Lift System Figure 19. Secure Swing-away Adapter
1
3
2

Outlander Series www.harmar.com 19
IV. OPERATION
Figure 20. Manual Crank Operation
MANUAL LIFT SYSTEM OPERATION
The lift system is equipped with a manual crank that
serves as backup in the event of a power failure.
Using the supplied tool, rotate the manual crank
(located on top of the motor housing) clockwise or
counterclockwise to move the platform up or down.
See gure 20.
Figure 21. Manual Override Tool
MANUAL CRANK
MOTOR
HOUSING

20 www.harmar.com Outlander Series
V. BATTERY CHARGING
BATTERY CHARGING
To charge the onboard battery:
1. Remove the onboard battery case from the battery
case bracket and place it near a standard electrical
outlet.
2. Plug the charger cord into the mating socket
located on the bottom of the battery case, then
connect the charger cord to a standard electrical
outlet. See gure 22.
MANDATORY! Read the battery charging
instructions in this manual and in the manual
supplied with the battery charger before charging
the battery.
PROHIBITED! Never use an extension cord to plug
in your charger cord. Plug the charger cord directly
into a properly wired standard electrical outlet.
Figure 22. Battery Charging
PROHIBITED! Removal of the grounding prong can create an electrical hazard. If necessary, properly install an
approved 3-pronged adapter to an electrical outlet having 2-pronged plug access.
PROHIBITED! Do not allow unsupervised children to play near the lift system or battery charger while the
battery is charging.
PROHIBITED! Do not expose the battery charger to rain or other sources of moisture unless it has been tested
for outdoor use. Refer to the manual supplied with the battery charger for more information.
WARNING! Explosive gases may be generated while charging the battery. Keep the battery and the battery
charger away from sources of ignition such as ames or sparks and provide adequate ventilation when
charging the battery.
WARNING! Do not attempt to charge the battery and operate the lift system at the same time.
WARNING! Do not attempt to wire the lift system directly to the vehicle battery if the lift system is equipped
with an onboard battery.
WARNING! You must recharge the lift system battery with the supplied battery charger. Do not use an
automotive-type battery charger.
WARNING! If the battery is exposed to adverse or extreme weather conditions, then it must be allowed to
adjust to the dierence in environmental conditions before being charged.
WARNING! Inspect the battery charger, wiring, and connectors for damage before each use. Contact your
authorized Harmar Dealer if damage is found.
WARNING! Do not attempt to open the battery charger case. If the battery charger does not appear to be
working correctly, contact your authorized Harmar Dealer.
