FLAV-R-SAVOR®
HEATED AIR CURTAINS
Models FSHAC-2, -3, -2PT FSHACH-2, -3, -2PT
The Hatco Flav-R-Savor Heated Air
Curtain effectively and safely holds hot
food hot without the use of doors,
allowing immediate access to product.
Warm air at the front of the cabinet is
forced downward, through ducts above
the opening, forming a “curtain” of
heated air. A portion of the heated air
is drawn toward the rear through special
perforations on the back wall, warming
each pan.
FLEXIBILITY
The patent-pending Heated Air Curtain
is ideal for holding wrapped product like
tortillas, burritos, and ribs, as well as
product on sheet pans like biscuits,
chicken, hamburger patties, pizza, and
baked potatoes. Holding temperatures
range from 80°F to 175°F (27°-79°C).
Choose from 2-pan and 3-pan units,
single opening or pass-through, with
or without humidity. Humidified models
can be filled manually or with the
auto-fill feature.
The standard units hold half-size sheets
pans (one per shelf) and the 2-pan pass-
through model accommodates two full
size sheet pans.
An optional back-to-back mounting for
two units standard units on a single
base is available.
QUALITY
The following features assure the finest
performance for years to come:
• Heated Air Curtain effectively and
safely holds hot food hot without
the use of doors, allowing immediate
access to product.
• 2-pan and 3-pan units available,
with or without humidity.
•
The standard units hold half-size sheets
pans (one per shelf) and the 2-pan
pass-through model accommodates
two full size sheet pans.
METAL SHEATHED AIR HEATING ELEMENTS
GUARANTEED AGAINST BURNOUT AND BREAKAGE
FOR TWO YEARS.
ANSI/NSF 4
Model FSHACH-3
Patent-pending
Model FSHACH-2 with
accessory food pans
Patent-pending
Model FSHACH-2PT
Pass-through with
accessory food pans
Patent-pending

ITEM#
91⁄8"
(232 mm)
41⁄2"
(114 mm)
41⁄2"
(114 mm)
181⁄8"
(460 mm)
201⁄8"
(511 mm)
FSHACH-2 only
207⁄8"
(530 mm)
181⁄4"
(464 mm)
187⁄8"
(479 mm)
FSHACH-2 only
243⁄8"
(619 mm)
227⁄8"
(581 mm)
121⁄2"
(318 mm)
FRONT VIEW
SIDE VIEW
171⁄4"
(438 mm)
PRODUCT SPECS
Heated Air Curtain
The Heated Air Curtain shall be a Flav-R-Savor®Model ....
as manufactured by the Hatco Corporation, Milwaukee, WI
53234 U.S.A.
The Heated Air Curtain shall be rated at ....watts, ....volts, and
be ....inches (millimeters) in overall width. It shall consist of a
powdercoated steel housing, stainless steel front panel, and
metal sheathed heating elements. Heated Air Curtain features
easy-to-use digital controls, a lighted on-off switch, and
6' (1829 mm) cord with plug.
ACCESSORIES
❑ Back-to-Back Mounting on a Single Base (FSHAC-2 and
FSHACH-2 models only) (add 1" (25 mm) to height)
❑ 4" (102 mm) legs (Standard on 2-Pan Pass-Through
and 3-Pan models)
DIMENSIONS
FSHAC-2: 201/8"W x 227/8"D x 181/8"H (511 x 581 x 460 mm).
FSHACH-2: 207/8"W x 243/8"D x 181/8"H (530 x 619 x 460 mm).
FSHAC-3: 201/8"W x 227/8"D x 261/2"H (511 x 581 x 673 mm).
FSHACH-3: 207/8"W x 243/8"D x 261/2"H (530 x 619 x 673 mm).
FSHAC-2PT: 241/8"W x 341/8"D x 18"H (613 x 867 x 457 mm).
FSHACH-2PT: 241/8"W x 355/8"D x 18"H (613 x 905 x 457 mm).
Cabinet Openings:
FSHAC-2, FSHACH-2: 181/4"W x 91/8"H (464 x 232 mm).
FSHAC-3, FSHACH-3: 181/4"W x 181/8"H (464 x 460 mm).
FSHAC-2PT, FSHACH-2PT: 181/4"W x 91/4"H (464 x 235 mm).
Water Tank Capacity (Humidified models only):
FSHACH-2, -3: 21/4gallons (9 liters).
FSHACH-2PT: 3 gallons (11 liters).
VOLTAGE
FSHAC-2, -3: 120/208 volts, 60 Hz, 1877 watts, 9.0 amps
(uses NEMA L14-20P).
FSHACH-2, -3: 120/208 volts, 60 Hz, 2950 watts, 14.2 amps
(uses NEMA L14-20P).
FSHAC-2PT: 120/208 volts, 60 Hz, 3152 watts, 15.2 amps
(uses NEMA L14-20P).
FSHACH-2PT: 120/208 volts, 60 Hz, 4952 watts, 23.8 amps
(uses NEMA L14-30P). 208 volts, 60 Hz, 4952 watts, 23.8 amps
(uses NEMA L6-30P).
CORD LOCATION
FSHAC-2, -3, FSHACH-2, -3: Top of unit towards the back, middle.
FSHAC-2PT, FSHACH-2PT: Top of unit towards the back, left side.
PLUG CONFIGURATIONS
FLAV-R-SAVOR®
HEATED AIR CURTAINS
Models FSHAC-2, -3, -2PT FSHACH-2, -3, -2PT
HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [email protected]
Form No. FSHAC-1006(S)-1 Printed in U.S.A.
WATER QUALITY REQUIREMENTS
Water supply in excess of 3.0 grains of hardness per gallon (GPG)
(.75 grains of hardness per liter) must be treated and softened
before being used. Water containing over 3.0 GPG (.75 GPL) will
decrease the efficiency and reduce the operating life of the unit.
Note: Product failure caused by liming or sediment buildup is not
covered under warranty.
❑ Slant Rack
❑ Rib Rack
❑ Food Pans

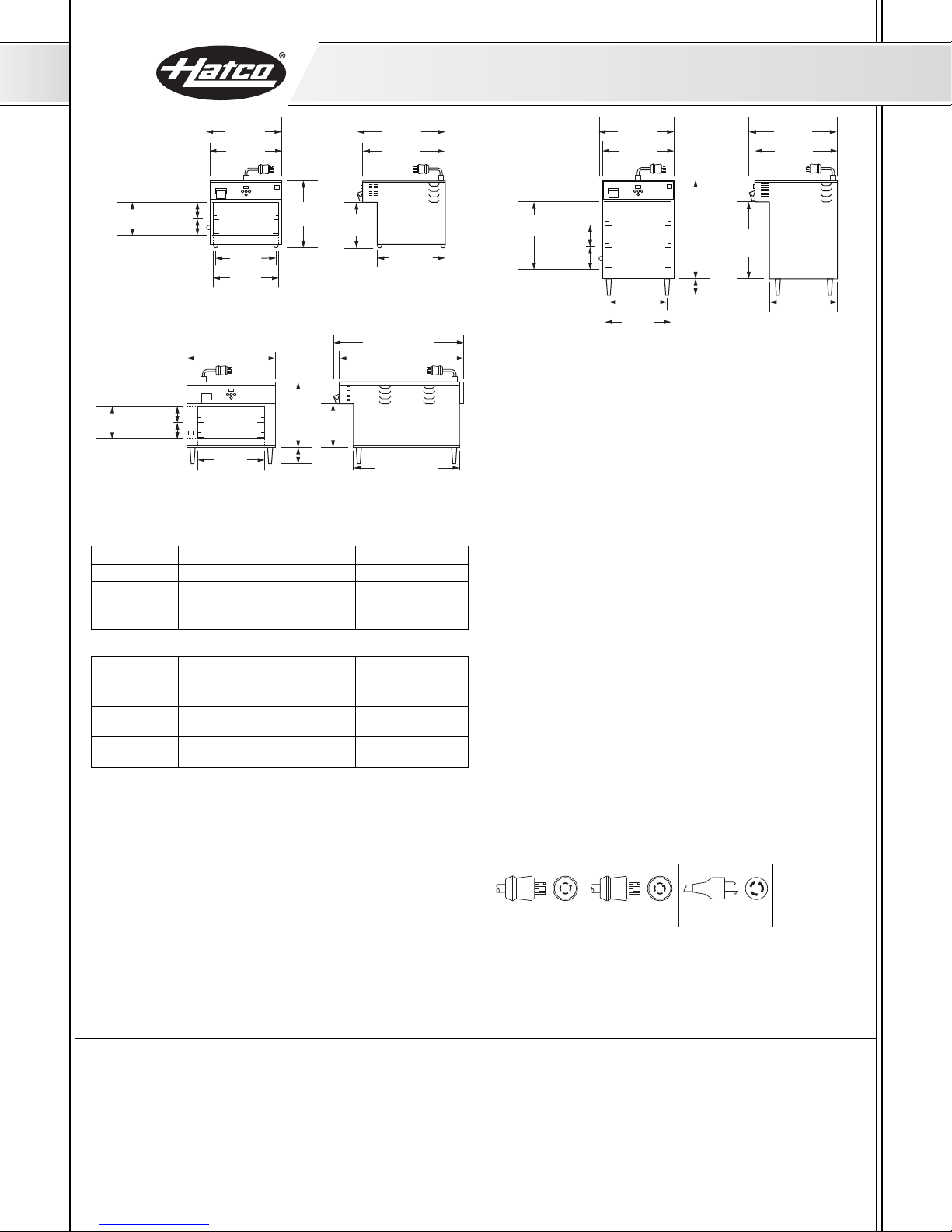

Models FSHAC-2 & FSHACH-2
241⁄8" (613 mm)
181⁄4"
(464 mm)
91⁄4"
(235 mm)
18"
(457 mm) 117⁄8"
(302 mm)
41⁄2"
(114 mm)
41⁄2"
(114 mm)
29" (737 mm)
341⁄8" (867 mm)
FSHACH-2PT only
355⁄8" (905 mm)
FRONT VIEW SIDE VIEW
4" (102 mm)
Models FSHAC-2PT & FSHACH-2PT
181⁄8"
(460 mm) 6"
(152 mm)
6"
(152 mm)
261⁄2"
(673 mm)
4" (102 mm)
201⁄8"
(511 mm)
181⁄4"
(464 mm)
175⁄8"
(448 mm) 187⁄8"
(479 mm)
227⁄8"
(581 mm)
207⁄8"
(530 mm)
FRONT VIEW
SIDE VIEW
FSHACH-3 only
207⁄8"
(530 mm)
FSHACH-3 only
243⁄8"
(619 mm)
Models FSHAC-3 & FSHACH-3
SPECIFICATIONS
Standard Models
Model Type Shipping Weight
FSHAC-2 2-Tier Warmer with Air Curtain 80 lbs. (36 kg)
FSHAC-3
•
3-Tier Warmer with Air Curtain 100 lbs. (45 kg)
FSHAC-2PT
•
2-Tier Pass-Through Warmer 120 lbs. (55 kg)
with Air Curtain
Humidified Models*
Model Type Shipping Weight
FSHACH-2 Humidified 2-Tier Warmer 80 lbs. (36 kg)
with Air Curtain
FSHACH-3
•
Humidified 3-Tier Warmer 100 lbs. (45 kg)
with Air Curtain
FSHACH-2PT
•
Humidified Pass-Through 120 lbs. (55 kg)
2-Tier Warmer with Air Curtain
•NSF requires units over 36" (914 mm) in width or weighing more than
80 lbs. (36 kg) to be either sealed, or raised on the installation surface
with the 4" (102 mm) legs included.
* Standard with autofill.
NEMA L14-20P NEMA L14-30P NEMA L6-30P
