Form No. LFST/WFST Spec Sheet
FLAV-R-SAVOR®
LARGE CAPACITY MERCHANDISING CABINETS
Models LFST-48 WFST-1X, -2X
The Hatco large capacity Flav-R-Savor
Heated and Humidified erchandising
Cabinets hold more product at proper
serving temperatures than standard size
models. Prepare food in advance of peak
periods and place product straight from
the oven into the full-view cabinets to
increase impulse sales. Temperatures
range from 80° to 190°F (27° to 88°C).
FLEXIBILITY
Available with a stationary rack, these
cabinets maintain food quality and proper
serving temperatures.
odel LFST-48 holds wrapped or boxed
products side-by-side on three shelves
for increased product visibility and easy
accessibility.
odel WFST-1X features a chrome-
plated 4-shelf multi-purpose stationary
wire rack capable of holding standard
sheet pans 18" x 26" (457 x 660 mm).
This flexible rack allows the operator to
customize the Flav-R-Savor to fit multiple
foodservice uses with slant or horizontal
shelves. The WFST-2X has an additional
set of French-style doors on the customer
side of the unit for easy pass-thru
convenience. Optional self-closing doors
are available for self-serve applications.
QUALITY
The following features assure the finest
performance for years to come:
• Controlled moisturized heat creates a
“blanket” effect around the food in the
WFST models.
• Tempered glass doors and side panels
provide maximum heat retention and
allow for full cabinet display.
• aintains proper serving temperature
and keeps food at “just-made” taste and
temperatures.
• Shatter-resistant incandescent lights
enhance product displays while
safeguarding food products from
bulb breakage.
• Available in six Designer colors with
French-style doors and 6' (1829 mm)
cord and plug.
• Stacking kit, merchandising signs,
decals, and 4" (102 mm) adjustable legs
are available for the WFST models.
ETAL SHEATHED AIR HEATING ELE ENTS
GUARANTEED AGAINST BURNOUT AND BREAKAGE
FOR TWO YEARS.
WFST-1X with 4-shelf multi-purpose
rack and accessory decals and pans
WFST-2X with 4-shelf
multi-purpose rack, optional
Designer color and sliding doors
and accessory pans
Eye-catching food
decals for the side
panels. aximum
3 decals per unit.
For daily menu
changes, erasable
markers may also be
used.
Custom Food Decals
(WFST models)
ANSI/NSF 4
Expanded
erchandising Systems
Stacking kits are available for
WFST models to create two
separate humidified, heated
cases. This utilizes minimum floor
space and doubles the display
capability by stacking the units.
LFST-48 with 3-shelf multi-
purpose rack, sign holders,
and optional Designer color
(Signs not included)
Printed in U.S.A.
arch 2008

DIMENSIONS
LFST-48: 48 .81 "W x 27 .14 "D x 30.01"H (1240 x 689 x 762 mm).
WFST-1X: 32
.06 "W x 25 .24 "D x 32 .72 "H (814 x 641 x 831 mm).
WFST-2X: 32
.06 "W x 27 .67 "D x 32 .72 "H (814 x 703 x 831 mm).
Cabinet Opening – LFST-48: 44"W x 22"H (1118 x 559 mm).
– WFST-1X, -2X: 28"W x 21
.94 "H (711 x 557 mm).
VOLTAGE
LFST-48: 120/208-240 volts, 2150 watts, 14.6 amps
(uses NE A L14-20P).
WFST-1X, -2X: 120 volts, 60 Hz, 1790 watts, 14.9 amps
(uses NE A 5-15P, NE A 5-20P – Canada).
WFST-1X, -2X: 220 volts, 50/60 Hz, 1750 watts, 8.0 amps
(uses CEE 7/7 Schuko plug configuration).
WFST-1X, -2X: 240 volts, 50/60 Hz, 1790 watts, 7.5 amps
(uses BS-1363 plug configuration).
CORD LOCATION
Facing controls, left-hand side panel, lower right corner.
LUG CONFIGURATIONS
O TIONS (NOT FOR RETROFIT)
❑Designer Colors: Warm Red, Black, Gray Granite,
White Granite, Navy Blue, Hunter Green
❑Self-Closing Sliding Doors (WFST models only, in lieu of
Hinged Doors on one side only for WFST-2X)
❑Self-Closing French Doors
ITEM#

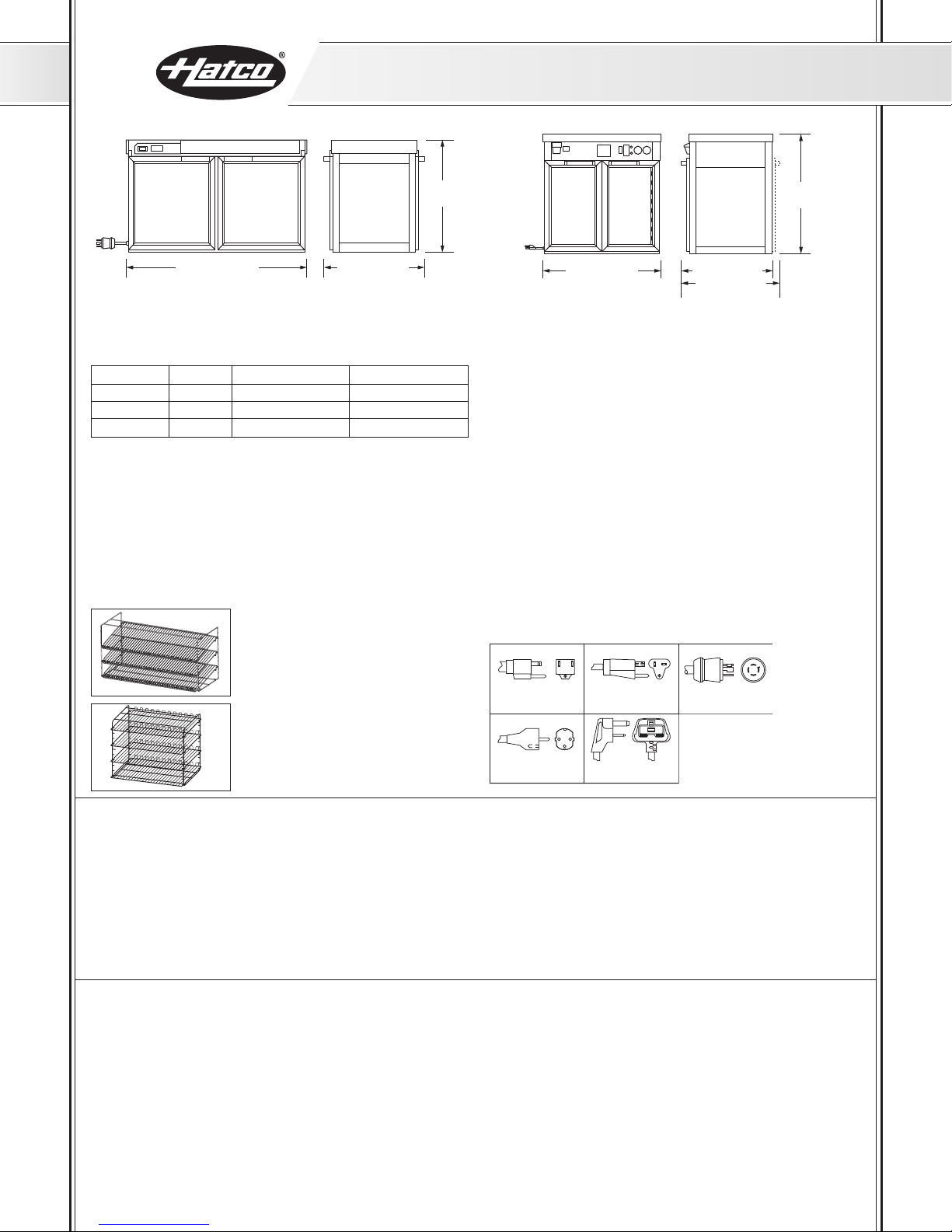

S ECIFICATIONS
32.06" (814 mm) 25.24" (641 mm)
FRONT VIEW
SIDE VIEW
27.67" (703 mm)
32.72"
(831 mm)
Model WFST-2X only
FRONT VIEW SIDE VIEW
27.14" (689 mm)48.81" (1240 mm)
30.01"
(762 mm)
RODUCT S ECS
Large Capacity Holding and Display Cabinet
The Large Capacity Holding and Display Cabinet shall be a
Flav-R-Savor®odel ...., rated at ....volts and ....watts, as
manufactured by the Hatco Corporation, ilwaukee, WI
53234 U.S.A.
With 24/7 service (U.S. and Canada only), the LFST cabinet
shall have ... doors, tempered glass sides, removable stationary
rack, and incandescent display lights. It shall include a
temperature selector dial, on-off switch, indicating lights, and a 6'
(1829 mm) cord with plug attached.
Accessories shall include pans.
With 24/7 service (U.S. and Canada only), the WFST cabinet
shall have ....door(s), tempered glass sides, stationary rack,
and incandescent display lights. It shall include a water
reservoir, humidity selector switch, temperature selector dial, on-
off switch, indicating lights, and a 6' (1829 mm) cord with plug
attached.
Accessories shall include adjustable legs, stacking hardware,
pans, merchandising display sign(s), and food graphic decals.
FLAV-R-SAVOR®
LARGE CAPACITY MERCHANDISING CABINETS
Models LFST-48 WFST-1X, -2X
Model Type Rack Style Shipping Weight
LFST-48 4 Doors 3-Shelf Stationary 190 lbs. (86 kg)
WFST-1X 2 Doors 4-Shelf Stationary 163 lbs. (74 kg)
WFST-2X 4 Doors 4-Shelf Stationary 188 lbs. (85 kg)
3-Shelf Multi- urpose Rack – LFST Models
(Holds max. 413⁄4" x 17" (1060 x 432 mm)
Three Half-size Sheet Pans
4-Shelf Multi- urpose Rack – WFST Models
(Holds max. 18" x 26" (457 x 660 mm)
Full-size Sheet Pans
HATCO COR ORATION .O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [e-mail]
Printed in U.S.A.
Form No. LFST/WFST Spec Sheet arch 2008
WATER QUALITY REQUIREMENTS
Water supply in excess of 3.0 grains of hardness per gallon
(GPG) (.75 grains of hardness per liter) must be treated and
softened before being used. Water containing over 3.0 GPG
(.75 GPL) will decrease the efficiency and reduce the operating
life of the unit.
Note: P oduct failu e caused by liming o sediment buildup
is not cove ed unde wa anty.
Display Racks
ACCESSORIES
❑Stacking Kit in Gray or Black (Includes 6" (152 mm)
Stainless Steel Legs, Top and Bottom Frame)
(WFST models only)
❑4" (102 mm) Adjustable Legs (WFST models only)
❑Sign Holder (Without acrylic window) (WFST models only)
❑Custom Food and Graphic Decals (3 per set) Chicken,
Ribs, or Todayʼs Hot Specials (WFST models only)
❑Full-size Sheet Pans 18" x 26" (457 x 660 mm)
❑Half-size Sheet Pans 18" x 13" (457 x 330 mm)
odels WFST-1X, -2X
odel LFST-48
NE A L14-20PNE A 5-20P
CEE 7/ 7 Schuko
NE A 5-15P
BS-1363
