FLAV-R-SAVOR®
HOLDING & DISPLAY CABINETS
Models FSD-1, FSD-1X, FSD-2, FSD-2X FSDT-1, FSDT-1X, FSDT-2, FSDT-2X
The Hatco Flav-R-Savor offers a unique
concept in food holding and display.
Balancing a precise combination of heat
and humidity, Flav-R-Savor cabinets
increase sales and profits by reducing
waste, maintaining quality, and displaying
food with appealing design. Utilized
in cafeterias, convenience stores,
schools, restaurants, and supermarkets,
Flav-R-Savor cabinets are a perfect way
to merchandise your hot food items.
FLEXIBILITY
A complete range of cabinet sizes, door
options, and rack types allows for perfect
merchandising of food products such as
pizza, fried foods, bakery, and more.
Our quick recovery heating system and
extremely even temperatures throughout
the cabinet eliminate “hot spots” and
ensure consistent product quality and
long hold times (1 to 4 hours).
The Designer color option helps blend
the cabinet into any décor and
powdercoating provides a durable,
easy-to-clean surface.
QUALITY
The following features assure the finest
performance for years to come:
• Fluorescent lights help showcase
food product.
• Tempered glass door and side panels
provide maximum heat retention and
allow for full cabinet display.
• 1-gallon (4-liters) stainless water
reservoir provides all day moisture, is
easily filled through the front mounted
water cup and easily drained and
cleaned through the inside mounted
drain tube.
• Low-water protection prevents heating
element burnout and alerts operator to
low water condition.
• 120-volt operation with attached 15-amp
cord set operates on a standard outlet,
and draws a maximum of 12 amps.
• Large access doors are field reversible
and will accept a 19" (483 mm)
diameter pizza pan.
Single Door Models
FSD-1 (Standard – with revolving rack)
FSD-1X (Standard – without revolving rack)
FSDT-1 (Tall – with revolving rack)
FSDT-1X (Tall – without revolving rack)
Double Door Models
FSD-2 (Standard – with revolving rack)
FSD-2X (Standard – without revolving rack)
FSDT-2 (Tall – with revolving rack)
FSDT-2X (Tall – without revolving rack)
Model FSDT-1X
with 4-tier pan rack and
optional Designer colors
and accessory decals
and food pans
Model FSDT-1 with
4-tier circle rack and
accessory decals and
food pans
Sturdy metal sign holder mounts
to the top of the cabinet using
existing screws. It includes a
plexiglass “window” with either
a PIZZA or CHICKEN sign. Up
to three signs mount to each
unit, adding 1" (25 mm) to its
overall height.
METAL SHEATHED AIR HEATING ELEMENTS
GUARANTEED AGAINST BURNOUT AND BREAKAGE
FOR TWO YEARS.
ANSI/NSF 4
Display Sign Holder and Sign
Eye-catching food
decals for the side
panels. Maximum
3 decals per unit.
Custom Food Decals
Printed in U.S.A.
September 2007

ITEM#
FLAV-R-SAVOR®
HOLDING & DISPLAY CABINETS
Models FSD-1, FSD-1X, FSD-2, FSD-2X FSDT-1, FSDT-1X, FSDT-2, FSDT-2X

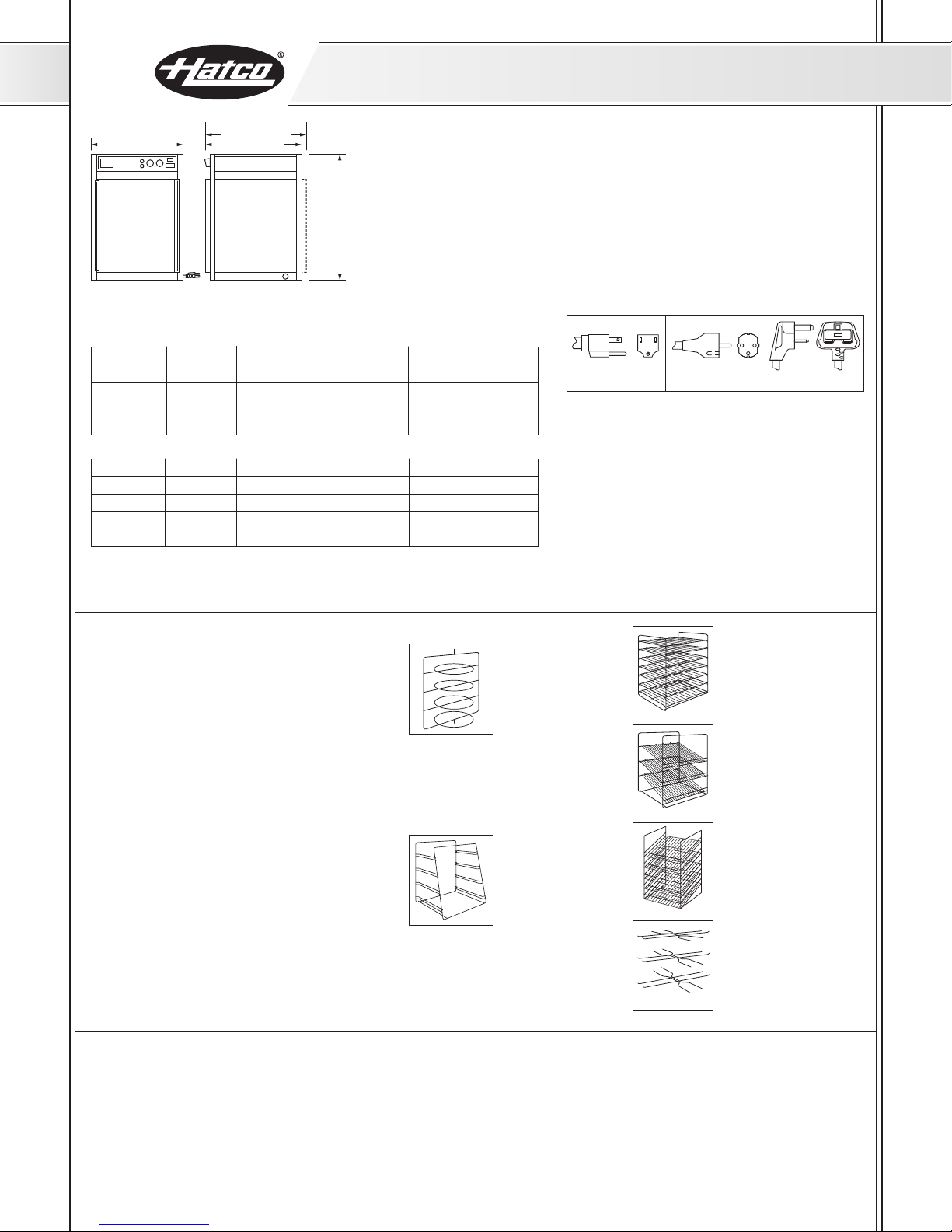

221⁄2" (572 mm) 24" (610 mm)
Models -2 & -2X only
251⁄8" (638 mm)
Models FSD
271⁄2"
(699 mm)*
Models FSDT
321⁄2"
(826 mm)*
SIDE VIEW
FRONT VIEW
OPTIONS (NOT FOR RETROFIT)
❑Designer Colors: Warm Red, Black, Gray Granite,
White Granite, Navy Blue, Hunter Green
❑Three Sided Sign Holder
ACCESSORIES
❑Racks – FSD ONLY
5-Shelf Multi-Purpose Rack Model FSD5SMP
3-Tier Circle Rack Model FSD3TCR
3-Tier Pan Rack Model FSD3TPR
❑Racks – FSDT ONLY
7-Shelf Multi-Purpose Rack Model FSDT7SMP
4-Tier Circle Rack Model FSDT4TCR
5-Tier Circle Rack Model FSDT5TCR
4-Tier Pan Rack Model FSDT4TPR
3-Shelf Angle Rack Model FSDT3SAR
5-Shelf Angle Rack Model FSDT5SAR
3-Tier Pretzel Tree Model FSDT3TPT
❑Merchandising Display Sign Holder with Acrylic Window
❑Merchandising Display Sign: Pizza or Chicken
❑Food Graphic Adhesive Decals (3 per set): Pizza,
Chicken, Pretzel, or Croissants/Biscuits
❑4" (102 mm) Adjustable Legs
❑Perforated Pizza Pans – 14", 15", 16",
or 18" (356, 381, 406, 457 mm) Diameter
❑Half-size Sheet Pan
❑Motorless Rack Coupling (For -X Models only)
* Models FSD-1, FSD-2, FSDT-1, and FSDT-2 include rack display motor. Models with “X”
designator do not have revolving display.
Rack shown is included with unit. Other racks available, see Display Rack Selection .
Mo el* Type Rack Style†Shipping Weight
FSD-1 1 Door 3-Tier Circle Rack w/Motor 113 lbs. (51 kg)
FSD-1X 1 Door 3-Tier Pan Rack w/o Motor 111 lbs. (50 kg)
FSD-2 2 Doors 3-Tier Circle Rack w/Motor 114 lbs. (52 kg)
FSD-2X 2 Doors 3-Tier Pan Rack w/o Motor 112 lbs. (51 kg)
SPECIFICATIONS
Stan ar Mo els
Mo el* Type Rack Style†Shipping Weight
FSDT-1 1 Door 4-Tier Circle Rack w/Motor 120 lbs. (54 kg)
FSDT-1X 1 Door 4-Tier Pan Rack w/o Motor 118 lbs. (54 kg)
FSDT-2 2 Doors 4-Tier Circle Rack w/Motor 122 lbs. (55 kg)
FSDT-2X 2 Doors 4-Tier Pan Rack w/o Motor 120 lbs. (54 kg)
Tall Mo els
DIMENSIONS
FSD-1, -1X: 221⁄2"W x 24"D x 271⁄2"H* (572 x 610 x 699 mm).
FSDT-1, -1X: 221⁄2"W x 24"D x 321⁄2"H* (572 x 610 x 826 mm).
FSD-2, -2X: 221⁄2"W x 251/8"D x 271⁄2"H* (572 x 638 x 699 mm).
FSDT-2, -2X: 221⁄2"W x 251/8"D x 321⁄2"H* (572 x 638 x 826 mm).
Cabinet Openings: FSD – 19"W x 185⁄8"H (483 x 473 mm).
FSDT – 19"W x 233⁄4"H (483 x 603 mm).
* Add 1" (25 mm) to height for display sign.
VOLTAGE
120 volts, 60 Hz, 1440 watts,
12.0 amps standard uses
NEMA 5-15P. Export voltages
available.
5-Shelf Multi-Purpose Rack
Mo el FSD5SMP
Rack Opening:
21/2" (64 mm)
7-Shelf Multi-Purpose Rack
Mo el FSDT7SMP
Rack Opening:
21/2" (64 mm)
3-Shelf Angle Rack
Mo el FSDT3SAR
Rack Opening:
31/2" (89 mm)
Rack shelves slant at
15° angle
5-Shelf Angle Rack
Mo el FSDT5SAR
Rack Opening:
21/2" (64 mm)
3-Tier Pretzel Tree
Mo el FSDT3TPT
Rack Opening:
57/8" (149 mm)
3-Tier Circle Rack
Mo el FSD3TCR
Rack Opening:
45/8" (117 mm)
4-Tier Circle Rack
Mo el FSDT4TCR
Rack Opening:
45/8" (117 mm)
5-Tier Circle Rack
Mo el FSDT5TCR
Rack Opening:
35/8" (92 mm).
3-Tier Pan Rack*
Mo el FSD3TPR
Rack Opening:
31/2" (89 mm)
4-Tier Pan Rack*
Mo el FSDT4TPR
Rack Opening:
31/2" (89 mm)
Display Rack Selection
PRODUCT SPECS
Hol ing an Display Cabinet
The humidity controlled Holding and Display Cabinet shall be
a Flav-R-Savor®Model ...., rated at ....volts and ....watts, as
manufactured by the Hatco Corporation, Milwaukee, WI 53234 U.S.A.
With 24/7 parts and service assistance (U.S. and Canada only),
the
cabinet shall have ....door(s), tempered glass sides, stationary
rack (or revolving display), and fluorescent display lights. It shall include
a water reservoir, humidity selector switch, temperature selector dial,
on-off switch, indicating lights, and a 6' (1829 mm) cord with
plug attached.
Accessories shall include adjustable legs, display racks, pans,
merchandising display sign(s), and food graphic decals.
* Accommodates half-size
sheet pans (not included).
BS-1363 CEE 7/ 7 Schuko NEMA 5-15P
HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-Mail: [e-mail]
Form No. FSD Spec Sheet
WATER QUALITY REQUIREMENTS
Water supply in excess of 3.0 grains of hardness per
gallon (GPG) (.75 grains of hardness per liter) must
be treated and softened before being used. Water
containing over 3.0 GPG (.75 GPL) will decrease the
efficiency and reduce the operating life of the unit.
Note: P oduct failu e caused by liming o sediment
buildup is not cove ed unde wa anty.
CORD LOCATION
Facing controls, right-hand side panel,
lower right corner.
PLUG CONFIGURATIONS
Printed in U.S.A.
September 2007
