Form No. FSHCT Spec Sheet
FLAV-R-SAVOR®
TALL HUMIDIFIED HOLDING CABINETS
Models FSHC-12W1, -12W2, -17W1, -17W1D, -17W2, -17W2D
The Hatco Flav-R-Savor®Tall Humidified
Holding Cabinets are capable of holding
all types of hot foods at optimum
serving temperatures. Thermostatically-
controlled heat and humidity safely
keeps food at uniform temperatures and
ideal environment. Foods stay fresh
longer with less waste.
FLEXIBILITY
The expanded capacity of the Tall
Humidified Cabinets provide flexibility to
hold a greater variety of menu items, or
to prepare larger quantities of proven
favorites ahead of time and hold it for
hours.
Models are available with a solid back or
a pass-through design, with a full view
Lexan®door full perimeter gasket and 5"
(127 mm) casters (two swivel with wheel
locks and two rigid).
Options include stainless steel doors, or
Dutch doors (FSHC-17W only), a deluxe
package containing flush mount handles
and full perimeter bumpers, and a
transport package including stand-off
handles, full perimeter bumper, heavy-
duty 5" x 2" (127 x 51 mm) swivel
casters (two swivel with wheel locks and
two rigid) and flush mount transport
latch.
QUALITY
The following features assure the finest
performance for years to come:
• Separate heat and humidity controls
are easily accessible.
• FSHC-12W models have 12-tray
capacity on 3" (76 mm) centers,
adjustable on 1.5" (3 mm) centers,
with 12 universal tray slides, designed
to accommodate up to 12 sheet or
Gastronorm pans, or up to 24 steam
table pans.
• FSHC-17W models have 17-tray
capacity on 3" (76 mm) centers,
adjustable on 1.5" (3 mm) centers,
with 17 universal tray slides designed
to accommodate up to 17 sheet or
Gastronorm pans, or up to 34 steam
table pans.
• Temperature range of 90°-1 0°F
(32°- 2°C) will accommodate proofing.
• Fully insulated doors, sidewalls, top,
bottom, and control panel assist in
retaining heat.
• Right- or left-hand hinged doors with
magnetic latch and heavy-duty plated
hinges can be reversed in the field.
• Tubular stainless steel frame for
strength and support.
• Wire pan holding racks to allow better
air and moisture circulation.
METAL SHEATHED AIR HEATING ELEMENTS
GUARANTEED AGAINST BURNOUT AND BREAKAGE
FOR TWO YEARS.
Model FSHC-17W1 with
accessory food pans
Model FSHC-12W1 with
accessory food pans
Printed in U.S.A.
April 200
Pan Capacity
FSHC-12W: 12-tray capacity on 3" (76 mm)
centers, adjustable on 1.5" (3 mm) centers, with
universal slides designed to accommodate up to
12 sheet or Gastronorm pans, or up to 24 steam
table pans.
FSHC-17W: 17-tray capacity on 3" (76 mm)
centers, adjustable on 1.5" (3 mm) centers, with
universal slides designed to accommodate up to
17 sheet or Gastronorm pans, or up to 34 steam
table pans.
12" x 20" (305 x 508 mm)
Pans – two per shelf
18" x 26" (457 x 660 mm)
Pans – one per shelf
or

ITEM#
PRODUCT SPECS
Tall Humidifi d Holding Cabin t
The Tall Humidified Holding Cabinet shall be a Flav-R-Savor
®
Model …., rated at ….volts, and ….watts, by the Hatco
Corporation, Milwaukee, WI 53234 U.S.A.
With 24/7 service (U.S. and Canada only), the Cabinet shall consist
of stainless steel construction with ….door(s), universal slides on
3" (76 mm) centers (adjustable on 1.5" (3 mm) centers), insulated
walls, 5" (127 mm) casters (two swivel with wheel locks and 2 rigid)
and a 10' (304 mm) cord with plug attached. It shall include a water
reservoir, indicating temperature control, humidity selector switch,
temperature selector dial, on-off power switch, and indicating lights.
Accessories shall include additional slides and food pans. Options
include upper cord location, stainless steel door(s), dutch doors
(FSHC-17W only), full perimeter bumper, Transport Package
including stand-off handles, full perimeter bumper, heavy-duty
casters (two swivel with wheel locks and two rigid), and flush mount
transport latch, or Deluxe Package including flush mount handles
and full perimeter bumper.
DIMENSIONS
FSHC-12W1: 25.3 "W x 34.91"D x 57"H (645 x 7 x 144 mm).
FSHC-12W2: 25.3 " W x 35 .36 "D x 57"H (645 x 9 x 144 mm).
FSHC-17W1, -17W1D: 25.3 ""W x 34.91"D x 73 .3 "H
(645 x 7 x 1 62 mm).
FSHC-17W2, -17W2D: 25.3 ""W x
35 .36 " D x 73 .3 "H
(645 x 9 x 1 62 mm).
Cabinet Opening: FSHC-12W 22"W x 41"H (559 x 1041 mm).
FSHC-17W 22"W x 59"H (559 x 1499 mm).
Water Reservoir Capacity: 2 gallons ( liters).
VOLTAGE
120 volts, 60Hz, 1750 watts, 14.6 amps (NEMA 5-15P,
NEMA 5-20P Canada).
20 and 240 volts available.
Export voltages available.
CORD LOCATION
Facing controls, right-hand side panel, lower right corner.
PLUG CONFIGURATIONS
FLAV-R-SAVOR®
TALL HUMIDIFIED HOLDING CABINETS
Models FSHC-12W1, -12W2, -17W1, -17W1D, -17W2, -17W2D
HATCO CORPORATION P.O. Box 340500 Milwauk , WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: quipsal [e-mail]
Printed in U.S.A.
Form No. FSHCT Spec Sheet April 200
WATER QUALITY REQUIREMENTS
Water supply in excess of 3.0 grains of hardness per gallon (GPG)
(.75 grains of hardness per liter) must be treated and softened
before being used. Water containing over 3.0 GPG (.75 GPL) will
decrease the efficiency and reduce the operating life of the unit.
Note: Product failure caused by liming or sediment buildup is not
covered under warranty

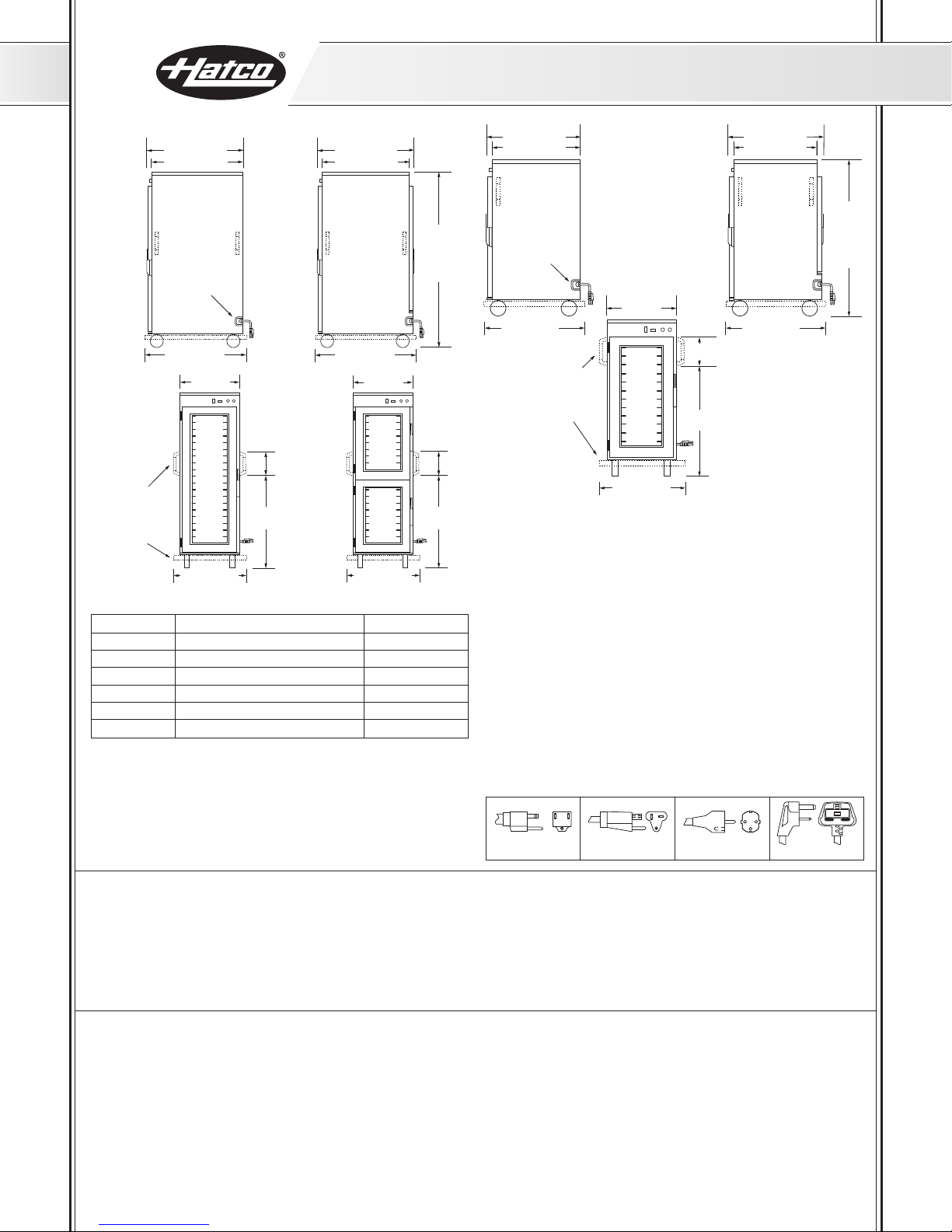

73.3"
(1862 mm)
includes
5" (127 mm)
diameter
casters
38.73"
(984 mm)
10"
(254 mm)
38.73"
(984 mm)
10"
(254 mm)
32.61" (828 mm)
34.91" (887 mm)
Single Door
RIGHT SIDE
36.5" (927 mm)
25.38"
(645 mm)
31.5" (800 mm)
Single Door
OPERATOR
SIDE
Optional transport
package features
include push-pull
standoff handles
and full perimeter
bumper
25.38"
(645 mm)
31.5" (800 mm)
Single Opening
w/ 2 Dutch Doors
OPERATOR
SIDE
Unique notched cord
inlet allows
wall hugging
30.83" (783 mm)
35.36" (898 mm)
FSHC-17W1 Seriesonly FSHC-17W2 Seriesonly
Pass-Through
RIGHT SIDE
36.5" (927 mm)
SPECIFICATIONS
Model Type* Shipping Weight
FSHC-12W1 S ngle Door 265 lbs. (120 kg)
FSHC-12W2 2 Doors – Pass-Through 295 lbs. (134 kg)
FSHC-17W1 S ngle Door 295 lbs. (134 kg)
FSHC-17W1D S ngle Open ng w/ 2 Dutch Doors 305 lbs. (138 kg)
FSHC-17W2 2 Doors – Pass-Through 325 lbs. (147 kg)
FSHC-17W2D 4 Dutch Doors – Pass-Through 340 lbs. (154 kg)
CEE 7/ 7 SchukoNEMA 5-20PNEMA 5-15P BS-1363
Single Door
RIGHT SIDE
36.5" (927 mm)
Pass-Through
RIGHT SIDE
36.5" (927 mm)
57"
(1448 mm)
includes
5"
(127 mm)
diameter
casters
32.61" (828 mm)
FSHC-12W1 only
34.91" (887 mm)
Unique notched
cord inlet allows
wall hugging
30.83" (783 mm)
FSHC-12W2 only
35.36" (898 mm)
38.73"
(984 mm)
10"
(254 mm)
25.38"
(645 mm)
31.5" (800 mm)
OPERATOR
SIDE
Optional transport
package features
include push-pull
standoff handles
and full perimeter
bumper
Mod l FSHC-12W S ri sMod l FSHC-17W S ri s
OPTIONS (NOT FOR RETROFIT)
❑ Deluxe Package (Includes Flush Mount Handles and
Full Perimeter Bumper
❑ Transport Package (Includes Stand-off Handles, Full Perimeter
Bumper, Heavy-duty 5" x 2" (127 x 51 mm) Casters (two swivel
with wheel locks and two rigid), and Flush Mount Transport
Latch
❑ Cord Wind (for Transport Package only)
❑ Full Perimeter Bumper
❑ Stainless Steel Door (In lieu of Lexan®Door)
❑ Stainless Steel Dutch Doors (In lieu of Lexan®Dutch Doors)
(FSHC-17W models only)
❑ Upper Cord Location
ACCESSORIES
❑ Additional Slides
❑ Sheet Pans – Full- and Half-size
* Full view Lexan®doors with full perimeter gaskets.
