THE INDUSTRY LEADER IN ELECTRIC BOOSTER WATER HEATERS

Q UALITY
THE LEADER IN…
Q UALITY
#1 IN QUALITY
AND RELIABILITY
•50 years as the proven industry
leader, providing foodservice
operators with Booster Water
Heaters that are essential to clean
and sanitize dishware.
•Castone®lined steel tanks
are non-toxic and non-corrosive,
meeting and exceeding UL and
NSF standards, and include a
full 10-year warranty.
•Lifetime warranty against
perforation on the heavy-duty
stainless steel front panel and the
hammertone (powdercoated steel)
jacket and base.
•Utilization of exclusive
multi-element design and the
lower watt density (watts per
square inch) provide maximum
element life and increased reliability.
•New ambient compensating
thermostats accurately maintain
the water rinse temperature in
any dishroom environment
•Heavy-duty four-bolt flanges
and flat fiber gaskets provide
elements with an extremely
reliable seal to the tank, and
are also easy to service.
#1 IN PERFORMANCE
•Over 100 Imperial and Compact
models and configurations available
to ensure that your booster water
heater is perfectly sized to match
with your warewasher. (Models from
4kW to 58.5kW)
•Complete confidence that 180°F
(82°C) sanitizing rinse water is
always available when you need it
to kill dangerous bacteria and remove
unsightly residue from dishware.
•Step Loading – a Hatco exclusive!
Large Imperial models offer three
banks of elements with separate
thermostats for each bank. The
multiple thermostats provide step
loading for quick response to peak
dishwashing demands while
conserving energy and reducing cost.
WHY ARE
BOOSTER WATER
THE BEST IN THE
THE INDUSTRY LEADER IN ELEC
WHEN IT COMES TO FOODSERVICE
SANITATION, NO ONE CAN AFFORD TO TAKE
RISKS. WHEN IT COMES TO SELECTING A
HOT WATER BOOSTER HEATER FOR YOUR
DISHWASHER, HATCO IS THE BEST CHOICE
YOU CAN MAKE.
2
S ERVICE
THE LEADER IN…
S ERVICE

R ELIABILITY
THE LEADER IN…
R ELIABILITY
P ERFORMANCE
THE LEADER IN…
P ERFORMANCE
•Every Hatco Booster Water Heater
is internally pre-plumbed, pre-wired,
individually calibrated for low-temp
or high temp applications, and fully
factory-tested to our rigid quality
control standards.
•New enhanced low-water probe
design that is more resistant to
false signals due to liming.
•New time delay low-water cut-off
eliminates chattering of contactor
controls and increases component life.
#1 IN SERVICE
AND DELIVERY
•Quick-Ship inventory –dozens of
models available for immediate
shipment, all of the time. When your
warewasher goes down –you need
help NOW! With Hatco’s Midwest
manufacturing location, we can
quickly ship coast-to-coast and at
the best rates available.
HEATERS
INDUSTRY?
TRIC BOOSTER WATER HEATERS
•Personalized customer service.
Hatco prides itself on being easy
to do business with and we strive
for 100% customer satisfaction.
An established network of Sales
Representatives, Dealers,
Distributors, and Service Agencies
ensure customer care is available
anywhere in the world.
•24/7 service assistance in U.S. and
Canada. Hatco’s 24/7 factory support
is backed by a network of over 500
authorized Service Agents and more
than 90 Parts Distributors in the
U.S.A. and Canada.
•An industry-leading warranty that
offers “bumper-to-bumper”coverage
for the first year, a ten-year tank
warranty and a lifetime jacket, front
cover, and base warranty.
•All Hatco Booster Heaters are UL,
NSF, and cUL or CSA approved.
Many Compact models are also
CE approved.
Other booster manufacturers may
try to imitate Hatco, but only a Hatco
booster heater provides the most
cost-effective solutions to hot water
sanitizing, while keeping the highest
quality paramount. Our commitment
to excellence is supported by our
decades of proven reliability as the
brand you can trust.
If you buy, sell, or specify a dishware
sanitizing system, choose the best
hot water booster available…
choose Hatco.
3

Q UALITY
THE LEADER IN…
Q UALITY
* 24kW and larger Imperial models feature Hatco’s
exclusive Step Loading. Three banks of elements
with separate thermostats for each bank provide
a quick response for peak dishwashing demands.
4

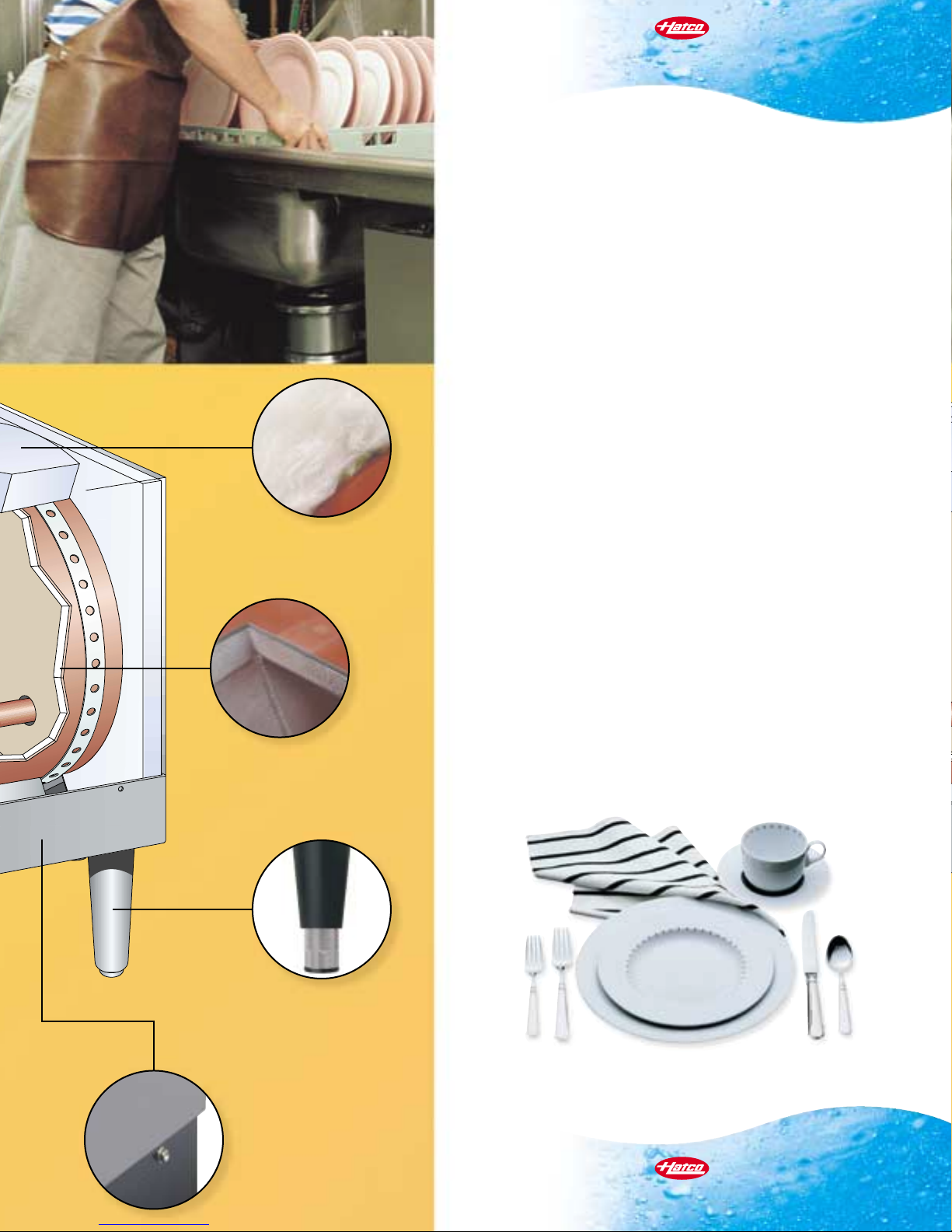

Rugged cabinet
construction
to withstand
dishroom abuse.
Thick energy-saving
insulation minimizes
heat loss.
Castone®lined steel
tank with 10-year
parts warranty –
non-toxic and
non-corrosive.
Metal sheathed heating
elements with four-bolt
flange provides water
tight seal to tank.
Replaceable with
common tools.
Heavy-duty 6" (152 mm)
adjustable legs
accommodate uneven
dishroom floors.
Powdercoated
body and base
with lifetime
perforation
warranty.
S ERVICE
THE LEADER IN…
S ERVICE
Power
connection
through
trade size
knockouts.

P ERFORMANCE
THE LEADER IN…
P ERFORMANCE
Indicator light shows
operator when booster
is in operation. On/off
toggle switch enables
booster to be turned off
in periods of non-use.
IMPERIAL... Hatco’s largest electric booster water
heater provides up to 600 gph (2226 lph) of hot
sanitizing rinse water. Models are available from
6kW to 58.5kW with a storage capacity of 16 gallons
(60 liters). All models feature the exclusive Hatco
Castone®tank, low-water cut-off to prevent element
burnout, temperature/pressure relief valve, cast iron
pressure reducing valve, two temperature/pressure
gauges, indicator light, and on/off switch. Options
available include stainless steel body and base, blended
phosphate water treatment system, shock absorber to
prevent water hammer, brass pressure reducing valve,
stainless steel adjustable legs, and deck mounting legs.
GIVE YOUR OPERATION
A REALLY BIG BOOST.
5
Factory pre-set ambient compensating
thermostats maintain accurate water
rinse temperature in any dishroom
environment.*
Stainless steel
front cover with
drip-proof design.
Time delay
low-water cut-off
system prevents
element burnout.
Over current
circuit protection
when required.
Easy access to
resettable safety
high limit control.
R ELIABILITY
THE LEADER IN…
R ELIABILITY

Q UALITY
THE LEADER IN…
Q UALITY
Metal sheathed heating
elements with four-bolt
flange provides water tight
seal to tank. Replaceable
with common tools.
Ambient
compensated
thermostat
maintains
accurate water
rinse temperature
in any dishroom
environment.
6

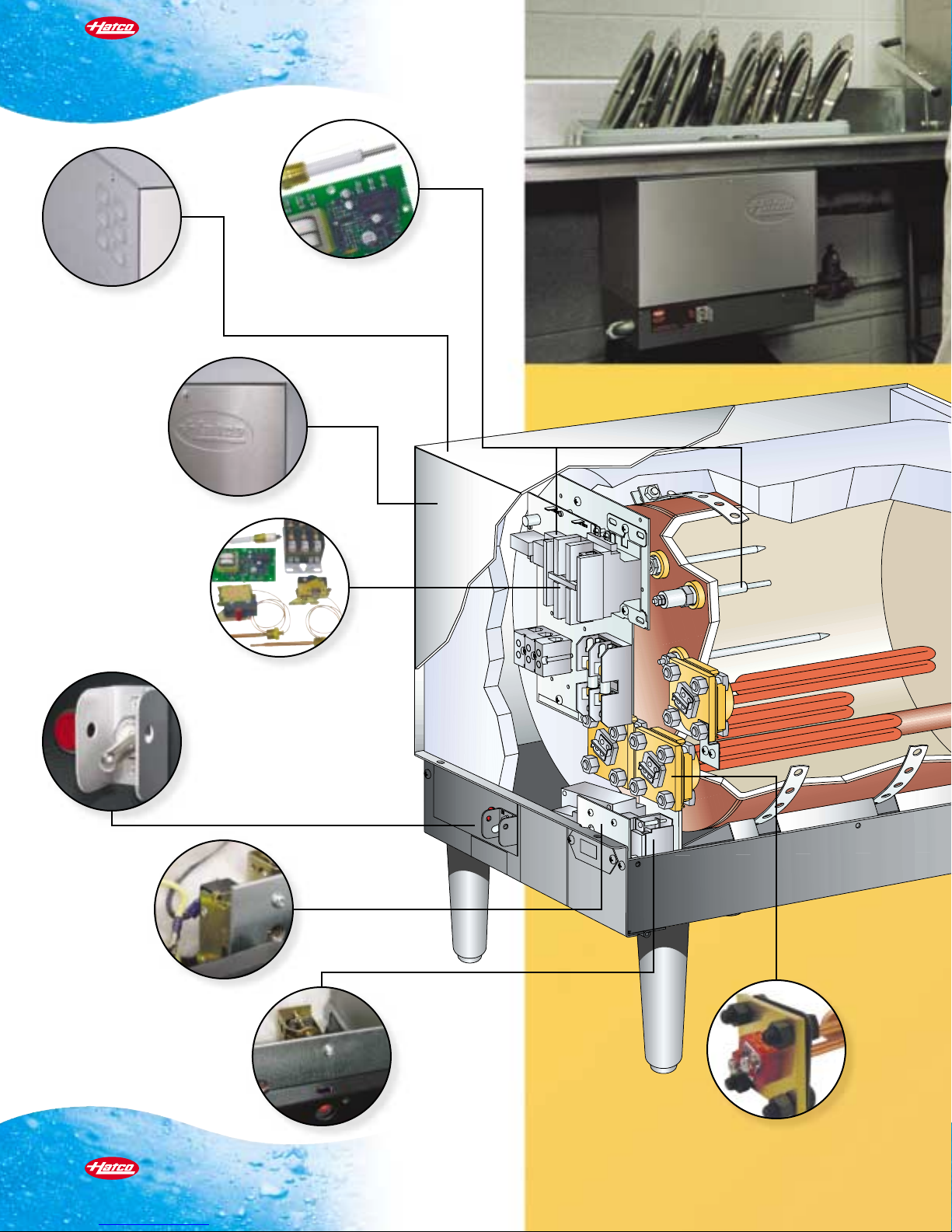

Time delay low-water
cut-off system prevents
element burnout.
Rugged cabinet
construction
to withstand
dishroom abuse.
Stainless steel
front cover
with drip-proof
design.
Individual controls
(thermostat, high
limit, low-water
cut-off system,
contactors)
provide low cost
repairs in the
event of a failure.
Indicator light shows
operator when booster
is in operation. On/off
toggle switch enables
booster to be turned off
in periods of non-use.
S ERVICE
THE LEADER IN…
S ERVICE
Easy access
to resettable
safety high
limit control.

COMPACT... space-saving models easily fit under
a dishtable or on the floor next to the dishwasher.
Available in sizes ranging from 4kW to 58.5kW with
a storage capacity of 6 gallons (23 liters). Features
include the exclusive Hatco Castone®tank, low-water
cut-off to prevent element burnout, temperature/
pressure relief valve, cast iron pressure reducing valve,
two temperature/pressure gauges, indicator light, and
on/off switch. Options available include slide brackets
for mounting under a dishtable, stainless steel body
and base, blended phosphate water treatment system,
shock absorber to prevent water hammer, brass
pressure reducing valve, stainless steel adjustable legs,
and deck mounting legs.
OUR COMPACT MODELS
WILL FIT RIGHT IN.
7
Powdercoated body
and base with lifetime
perforation warranty.
Heavy-duty 6" (152 mm)
adjustable legs
accommodate uneven
dishroom floors.
Castone®lined steel
tank with 10-year parts
warranty –non-toxic
and non-corrosive.
Thick energy-saving
insulation minimizes
heat loss.
R ELIABILITY
THE LEADER IN…
R ELIABILITY
P ERFORMANCE
THE LEADER IN…
P ERFORMANCE

Slide Bracket
for mounting
the booster heater
under a dishtable.
(Available on COMPACT
models only).
Stainless Steel
Body & Base
provides extra
durability and
excellent corrosion
resistance for years
of dependable
service.
Stainless Steel Leg
adjustable from
6" to 71⁄2" (152 to
191 mm). Gives unit
a clean appearance.
Heavy-duty
construction for
long wear.
Floor Mounting
Hardware
6" (152 mm)
corrosion-resistant
stainless steel legs
for deck mounting
are available.
Blended Phosphate
Water Treatment
System
stops mineral scale
by introducing a
measured amount
of polyphosphate
into the water.
SINGLE BOOSTER INSTALLATION
DUAL BOOSTER INSTALLATION
Compact Imperial
Model Model kW 40°F (22°C) Rise 70°F (39°C) Rise
C-4 –4 40 gph ( 151 Iph) 23 gph ( 87 Iph)
C-5 –5 50 gph ( 189 Iph) 29 gph ( 110 Iph)
C-6 S-6 6 60 gph ( 227 Iph) 34 gph ( 129 Iph)
C-7 S-7 7 70 gph ( 265 Iph) 40 gph ( 151 Iph)
C-9 S-9 9 90 gph ( 341 Iph) 52 gph ( 197 Iph)
C-12 S-12 12 120 gph ( 454 Iph) 69 gph ( 261 Iph)
C-13 S-13 13.5 135 gph ( 511 Iph) 77 gph ( 292 Iph)
C-15 S-15 15 151 gph ( 572 Iph) 86 gph ( 326 Iph)
C-17 S-17 17.25 173 gph ( 655 Iph) 99 gph ( 375 Iph)
C-18 S-18 18 181 gph ( 685 Iph) 103 gph ( 390 Iph)
C-24 S-24 24 241 gph ( 912 Iph) 138 gph ( 522 Iph)
C-27 S-27 27 271 gph (1026 Iph) 155 gph ( 587 Iph)
C-30 S-30 30 301 gph (1139 Iph) 172 gph ( 651 Iph)
C-36 S-36 36 361 gph (1367 Iph) 206 gph ( 780 Iph)
C-39 S-39 39 391 gph (1480 Iph) 224 gph ( 848 Iph)
–S-40 40.5 407 gph (1541 Iph) 232 gph ( 878 Iph)
C-45 S-45 45 452 gph (1711 Iph) 258 gph ( 977 Iph)
C-54 S-54 54 542 gph (2052 Iph) 310 gph (1174 Iph)
C-58 S-58 58.5 588 gph (2226 Iph) 335 gph (1268 Iph)
WATER TEMPERATURE RECOVERY TABLE
NOTE: Minimum differential temperature between outlet and inlet
temperatures should never be less than 20°F (7°C).
NOTE: Thermostat calibration, or adjustment, must be performed at
time of installation and is excluded from warranty coverage.
Thermostat adjustments for Low-Temp applications are the
responsibility of the installer.
WATER QUALITY REQUIREMENTS
Incoming water in excess of 3.0 grains of hardness per gallon (GPG)
(.75 grains of hardness per liter) must be treated and softened before
being supplied to booster heater(s). Water containing over 3.0 GPG
(.75 GPL) will decrease the efficiency and reduce the operating life
of the unit.
NOTE: Product failure caused by liming or sediment buildup is not
covered under warranty.
Just look at what you get inside a quality
Hatco electric booster water heater.
The standard features others make optional...
the built-in quality others don’t have. Engineered
with your operation in mind, Imperial and
Compact models include the exclusive Hatco
Castone®tank with its standard 10-year parts
warranty and the low-water cut-off control,
designed to prevent element burnout. Notice the
rugged construction that includes an easy-access
stainless steel front panel and hammertone
powdercoated silver gray body. It all adds up
to the most dependable long-life booster water
heater you can buy... only from Hatco.
THE QUALITY IS BUILT-IN
THE FEATURES STAND OUT.
ALL THE
EXTRAS...
3⁄4" Gate or Ball Valve* Temperature/Pressure Gauge Pressure Reducing Valve with By-Pass
Blended Phosphate Water Treatment System Relief Valve (must have discharge pipe to floor drain)
Shock Absorber Union* Drain Pipe Valve* *Supplied by installer
21
7 8
3
6
45
CONSULT LOCAL CODES
INLET INLET OUTLET
Maximum
160°F (71°C)
Inlet Temperature
23
2
17
7 77 2 7
7
4
6
5 5
8 8
IMPERIAL MODEL
FRONT VIEW IMPERIAL MODEL FRONT VIEW
FLOOR DRAIN
140°F-160°F
(60°-71°C)
INLET OUTLET
OUTLET
DISCHARGE PIPE
TO FLOOR DRAIN
INLET
Maximum
160°F (71°C)
Inlet Temperature
OUTLET
23
17 7
4
2
76
8
PIPE TO
OPEN
DRAIN
5
COMPACT
REAR VIEW
FLOOR DRAIN
8
Shock Absorber
is recommended
between the
booster and
dishwasher on
all installations
to prevent water
hammer.
Pressure
Reducing Valve
with built-in by-pass
for installation on the
booster supply line.
Made of brass.

MC-10
3CS2
3CS
SPECIALTY HEATERS
R ELIABILITY
THE LEADER IN…
R ELIABILITY
P ERFORMANCE
THE LEADER IN…
P ERFORMANCE

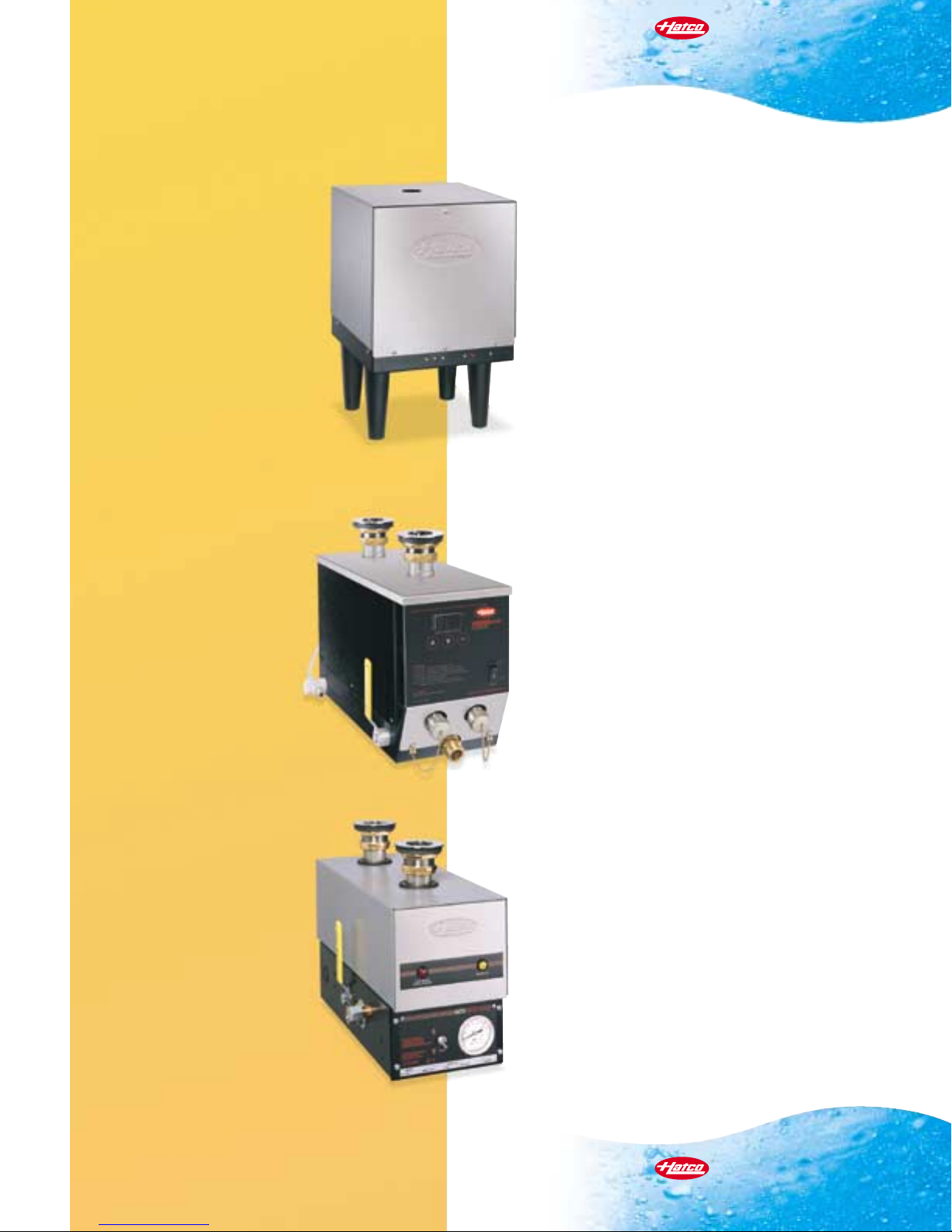

MC-10 MINI-COMPACT
A small speciality heater that can be installed
almost anywhere. Ideal for either hot water
sanitizing or point- of-use hot water
dispensing. Available in two models: 10kW
and 11kW, both with a storage capacity of
3.2 gallons (12 liters). Features include a
stainless steel tank and fast recovery. Options
include all stainless steel body and base,
blended phosphate water treatment system,
brass pressure reducing valve, stainless steel
adjustable legs, and deck mounting legs.
3CS2 HYDRO-HEATER
Fitting under the center of the sink, the
3CS2 is perfect for 3 or 4 compartment sinks,
pot and pan sinks and bar sinks with 180°F
to 190°F (82°-88°C) controls. The Hatco
Hydro-Heater is a state-of-the-art, high
efficiency circulation water heater, using a
combination of “free-flow” technology and
advanced electronic controls for circulating
hot water by natural convection in a sanitizing
sink. Hydro-Heater features a tubular water
chamber with heating elements uniquely
wrapped outside the flow tube so elements
do not come in direct contact with the water.
3CS SINK HEATER
For 3 or 4 compartment sinks, pot and pan
sinks, and bar sinks. The 3CS Sink Heater
makes manual warewashing safe and
sanitary. Maintaining a continuous supply
of sanitizing hot rinse water without taking
up valuable sink space, there are models
available from 3kW to 9kW. The 3CS Sink
Heater features a unique dual reservoir
system…one with heating element;
the other traps and collects soil.
9

Form No. EWHB-2004
Printed in U.S.A. February 2004

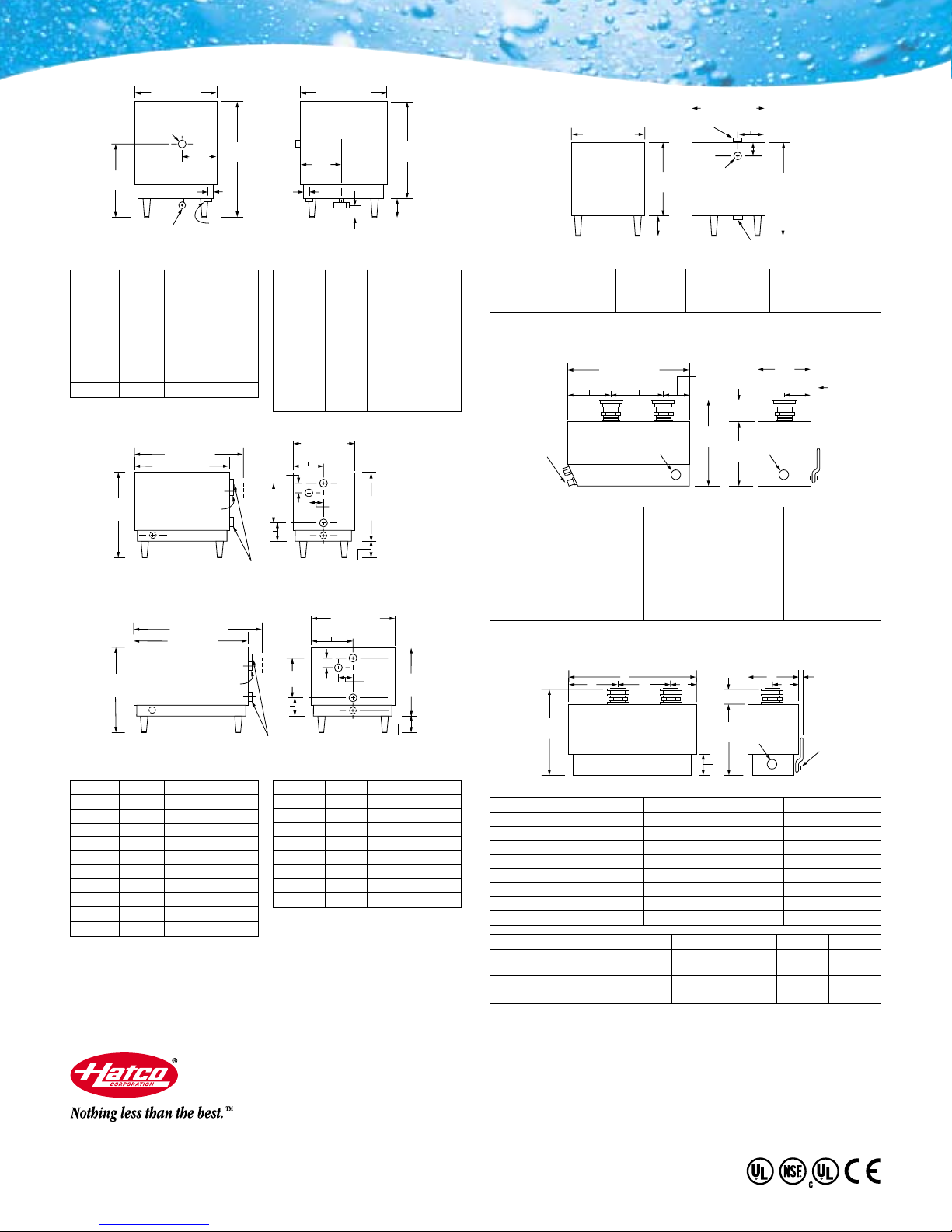

ELECTRIC BOOSTER WATER HEATER SPECIFICATIONS
127⁄8" (327 mm)
181⁄2"
(470 mm)
FRONT VIEW SIDE VIEW
113⁄4" (298 mm)
6" (152 mm)
121⁄2"
(318 mm)
57⁄16"
(138 mm)
213⁄16"
(71 mm)
Electical connection
from below 3⁄4" NPT Nipple
3⁄4"
NPT
Nipple
3⁄4" NPT
Coupling for
Temperature/
Pressure
Relief Valve
INLET
OUTLET
193⁄4"
(502 mm)
133⁄4"
(349 mm)
3⁄4" NPT
Coupling for
Temperature/Pressure
Relief Valve
26" (660 mm)
203⁄4" (527 mm)
INLET
REAR VIEW
OUTLET
SIDE VIEW
Electical connection
from side or below 3⁄4" NPT Nipple
21⁄4
"
(6 cm)
31⁄2"
(89 mm)
3⁄4"
(19 mm)
77⁄8"
(200 mm)
13" (330 mm)
61⁄2" (165 mm)
21⁄4"
(57 mm)
6" (152 mm)
18"
(457 mm) 12"
(305 mm)
3⁄4" NPT
Coupling for
Temperature/Pressure
Relief Valve
301/2" (775 mm)
24" (610 mm)
INLET
REAR VIEW
OUTLET
SIDE VIEW
Electical connection
from side or below 3⁄4" NPT Nipple
21⁄4
"
(6 cm)
31⁄4 "
(8 cm)
2"
(51 mm)
77⁄8"
(200 mm)
18" (457 mm)
6"
(152 mm)
6" (152 mm)
21/4"
(57 mm)
31/4"
(83 mm)
SIDE VIEW REAR VIEW
A
B C D E
93⁄4"
(248 mm)
F
4" (102 mm)
3⁄4"
Conduit
K.O.
3⁄4" hose
connection
to drain
1"
(25 mm)
125⁄8"
(321 mm)
27⁄8" (73 mm)
MINI-COMPACT
SPECIALTY HEATER
COMPACT (4-18kW) BOOSTER HEATER
COMPACT (24-58kW) BOOSTER HEATER
3CS THIRD COMPARTMENT SINK HEATER
VOLTAGE: Available in 208 and 240 volts, 50/60 Hz. 480 volt and CSA wiring for Canada
available. Export voltages available.
Model A B C D E F
1- or 3-phase 167⁄8"5
1⁄2"8 1⁄2"2 7⁄8"6 3⁄4"3 3⁄8"
(429 mm) (140 mm) (216 mm) ( 73 mm) (171 mm) ( 86 mm)
Bal. 3-phase 171⁄8"4
5⁄8"8 1⁄2"4" 8" 4"
(435 mm) (117 mm) (216 mm) (102 mm) (203 mm) (102 mm)
231⁄2" (597 mm)
3⁄4" NPT TEE FOR
140ºF (60ºC) WATER INLET,
INSTALL DRAIN VALVE OTHER END
3⁄4" NPT NIPPLE
180ºF (82ºC) OUTLET
253⁄8"
(645 mm)
2"
(51 mm)
6" (152 mm)
4" (102 mm)
Electical connection
from below
SIDE VIEW REAR VIEW
313⁄8"
(797 mm)
3⁄4" NPT
Coupling for
Temperature/
Pressure Relief Valve
221⁄16"
(560 mm)
2" (51 mm)
23" (584 mm)
911⁄16"
(246 mm)
93⁄4"
(248 mm)
Model kW Shipping Weight
S-24 24 214 lbs. ( 97 kg)
S-27 27 214 lbs. ( 97 kg)
S-30 30 214 lbs. ( 97 kg)
S-36 36 214 lbs. ( 97 kg)
S-39 39 214 lbs. ( 97 kg)
S-40 40.5 224 lbs. (102 kg)
S-45•45 224 lbs. (102 kg)
S-54•• 54 224 lbs. (102 kg)
S-58•• 58.5 224 lbs. (102 kg)
Model kW Shipping Weight
C-4▲4 105 lbs. (48 kg)
C-5▲5 105 lbs. (48 kg)
C-6* 6 118 lbs. (54 kg)
C-7* 7 118 lbs. (54 kg)
C-9* 9 118 lbs. (54 kg)
C-12 12 120 lbs. (54 kg)
C-13 13.5 120 lbs. (54 kg)
C-15 15 120 lbs. (54 kg)
C-17★17.25 120 lbs. (54 kg)
C-18§18 120 lbs. (54 kg)
COMPACT (4-18kW)
Model kW Shipping Weight
C-24 24 142 lbs. (64 kg)
C-27 27 142 lbs. (64 kg)
C-30 30 142 lbs. (64 kg)
C-36 36 142 lbs. (64 kg)
C-39 39 142 lbs. (64 kg)
C-45•45 142 lbs. (64 kg)
C-54•• 54 142 lbs. (64 kg)
C-58•• 58.5 142 lbs. (64 kg)
COMPACT (24-58kW)
Model kW‡Phase Voltage Shipping Weight
MC-10 9.9 1 or 3 208 volts 48 lbs. (22 kg)
MC-11 11.4 1 or 3 240 volts 48 lbs. (22 kg)
VOLTAGE: Available in 208, 240, and 480 volts.
Model kW Phase Sink Area Shipping Weight
3CS-3 3 1 15" (381 mm) Square or less 24 lbs. (11 kg)
3CS-4 4.5 1 16"-18" (406-457 mm) Sq. 24 lbs. (11 kg)
3CS-6 6 1 or 3■19"-21" (483-533 mm) Sq. 27 lbs. (12 kg)
3CS-9 9 1 or 3■21"-25" (533-635 mm) Sq. 27 lbs. (12 kg)
3CS-3B†3 3 15" (381 cm) Square or less 30 lbs. (14 kg)
3CS-4B†4.5 3 16"-18" (406-457 mm) Sq. 30 lbs. (14 kg)
3CS-6B†6 3 19"-21" (483-533 mm) Sq. 30 lbs. (14 kg)
3CS-9B†9 3 21"-25" (533-635 mm) Sq. 30 lbs. (14 kg)
Model kW Shipping Weight
S-6* 6 200 lbs. (91 kg)
S-7* 7 200 lbs. (91 kg)
S-9* 9 200 lbs. (91 kg)
S-12 12 200 lbs. (91 kg)
S-13 13.5 200 lbs. (91 kg)
S-15 15 200 lbs. (91 kg)
S-17★17.25 200 lbs. (91 kg)
S-18§18 200 lbs. (91 kg)
P.O. Box 340500
Milwaukee, WI 53234-0500 U.S.A.
[phone] [phone]
Fax: [phone] Int‘l. Fax: [phone]
www.hatcocorp.com
E-mail: [email protected]
IMPERIAL BOOSTER HEATER
SIDE VIEW REAR VIEW
93⁄4"
(247 mm)
1⁄2" & 3⁄4"
Conduit K.O.
1⁄2" & 3⁄4" Conduit K.O.
3⁄4" hose
connection
to drain
1"
(25 mm)
123⁄8"
(314 mm)
51⁄2"
(140 mm) 81⁄2" (216 mm) 33⁄8" (86 mm)
63⁄4"
(171 mm)
31⁄16"
(78 mm)
171⁄16" (433 mm)
25⁄8"
(67 mm)
Model kW Phase Sink Area Shipping Weight
3CS2-3 3 1 15" (381 mm) Sq. or less 24 lbs. (11 kg)
3CS2-4 4 1 16"-18" (406-457 mm) Sq. 24 lbs. (11 kg)
3CS2-6 6 1 19"-21" (483-533 mm) Sq. 27 lbs. (12 kg)
3CS2-3B†3 3 15" (381 mm) Sq. or less 24 lbs. (11 kg)
3CS2-4B†4 3 16"-18" (406-457 mm) Sq. 24 lbs. (11 kg)
3CS2-6B†6 3 19"-21" (483-533 mm) Sq. 27 lbs. (12 kg)
3CS2-9B†9 3 21"-25" (533-635 mm) Sq. 27 lbs. (12 kg)
VOLTAGE: 208 or 240 volts, 50/60 Hz standard.
3CS2 HYDRO-HEATER SANITIZING SINK HEATER
* Only 6, 7, & 9kW Models, 208 and 240V only,
can be field converted to single phase (units are
shipped 3-phase open delta). Larger branch circuit
required than for balanced 3-phase of equal kW.
(Balanced 3-phase available, consult factory.)
★17.25kW models available in 208V 3-phase only.
§18kW models not available in 208V 3-phase.
•Not available in 208V single phase.
•• Not available in 208V or 240V single phase.
▲480V available in single phase only.
‡Available in 10.5kW, consult factory for details.
†Balanced 3-phase.
■Open delta on 3-phase. Larger circuit required
than for balanced 3-phase of equal kW.
VOLTAGE: Available in 208, 240, and 480 volts. Export voltages available, consult factory.
