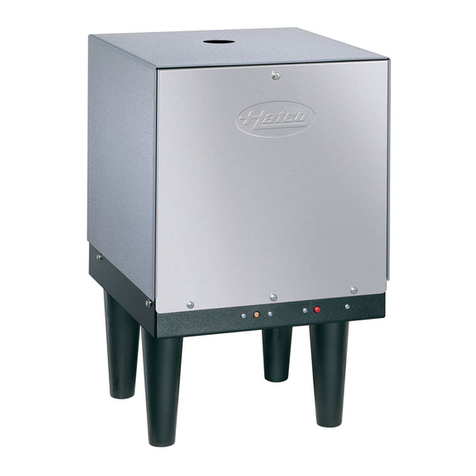

Hatco MC-10 Application guide

REPLACEMENT
PARTS LIST
MC-10
MC-11
MC Series
MINI-COMPACT
BOOSTER
Electric Water Heater

HATCO MINI-COMPACT ELECTRIC BOOSTER HEATER MC SERIES
Model Designation MC-XX
MC=Mini-Compact
X =Kilowatts
Form No. MCRP-0903 2 Printed in U.S.A.
CAUTION - Use of replacement parts other
than those supplied by Hatco Corporation may result in damage to the unit or injury to personnel.
24
9
87
19, 20
1
17
18 3
6
11, 12
10
13
28
26
16 15
14
23
27
2
4
25
5
21, 22

Form No. MCRP-0903 3 Printed in U.S.A.
PARTS COMMON TO ALL MINI-COMPACT
MODELS
ITEM DESCRIPTION PART NO. QTY.
MINI-COMPACT BOOSTER
SHEET METAL BODY PARTS
ITEM DESCRIPTION PART NO. QTY.
19 Jacket, Painted 04.01.124.00 1 20 Jacket, S.S.* (Optional) 04.01.126.00 1
21 Base, Painted 04.01.125.00 1 22 Base, S.S.* (Optional) 04.01.127.00 1 23 Front Cover, S.S.*04.01.128.00 1
1 Tank with Gaskets R01.05.001.00 1 2 High Limit, Thermostat 02.16.116.00 1 3 Thermostat Control 02.16.024.00 1 4 Gasket, Heating Element 02.11.001.00 3 5 On/Off Toggle Switch
(Optional) R02.19.008A.00 1
6 Indicator Light, Red (Optional) 02.19.154.00 1 7 Chasis Grounding Lug 02.14.058.00 1 8 Low Water Cut-Off Board R02.01.210.00 1 9 Probe, Low Water Cut-Off 02.40.001.00 1
10 Temperature/Pressure Gauge 03.01.003.00 2
11 Pressure Reducing Valve, Iron 03.02.004.00 1
12 Pressure Reducing Valve, Brass 03.02.015.00 1 13 Temperature/Pressure
Relief Valve 03.02.020.00 1
14 Shock Absorber (Optional) 03.40.057.00 1 15 Water Treatment Canister
and Cartridge 03.05.061.00 1
16 Cartridge Only 03.05.061A.00 1 17 Leg, Plastic 05.30.069.00 4 18 Leg, S.S.*05.30.070.00 4
*Note:
S.S. is an abbreviation for stainless steel.

24 Heating Element with Gasket 25 Contactor, 50 Amp 26 Transformer, Step Down 27 Control Fuse Block 28 Control Fuse (2 Pack)
Wiring Diagram
Form No. MCRP-0903 4 Printed in U.S.A.
R02.04.101.00
02.01.040.00 02.17.006.00 02.03.022.00
R02.03.014.02
HS1-1493
R02.04.101.00
02.01.168.00 02.17.006.00 02.03.022.00
R02.03.014.02
HS1-1413
--- --- --- --- --- ---
--- --- --- --- --- ---
--- --- --- --- --- ---
PARTS SPECIFIC TO MODEL MC-10
208V
Single Phase
208V
Three Phase
240V
Single Phase
240V
Three Phase
480V
Three Phase
ITEM DESCRIPTION

Form No. MCRP-0903 5 Printed in U.S.A.
24 Heating Element with Gasket 25 Contactor, 50 Amp 26 Transformer, Step Down 27 Control Fuse Block 28 Control Fuse (2 Pack)
Wiring Diagram
--- --- --- --- --- ---
--- --- --- --- --- ---
R02.04.102.00
02.01.040.00 02.17.006.00 02.03.022.00
R02.03.014.02
HS1-1493
R02.04.102.00
02.01.168.00 02.17.006.00 02.03.022.00
R02.03.014.02
HS1-1413
R02.04.103.00
02.01.168.00 02.17.007.00 02.03.016.00
R02.03.021.02
HS1-1492
PARTS SPECIFIC TO MODEL MC-11
208V
Single Phase
208V
Three Phase
240V
Single Phase
240V
Three Phase
480V
Three Phase
ITEM DESCRIPTION

Form No. MCRP-0903 6 Printed in U.S.A.
NOTES

Form No. MCRP-0903 7 Printed in U.S.A.
NOTES

HATCO CORPORATION
P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.
[phone] [phone]
Parts & Service Fax [phone] Int’l. Fax [phone]
www.hatcocorp.com
