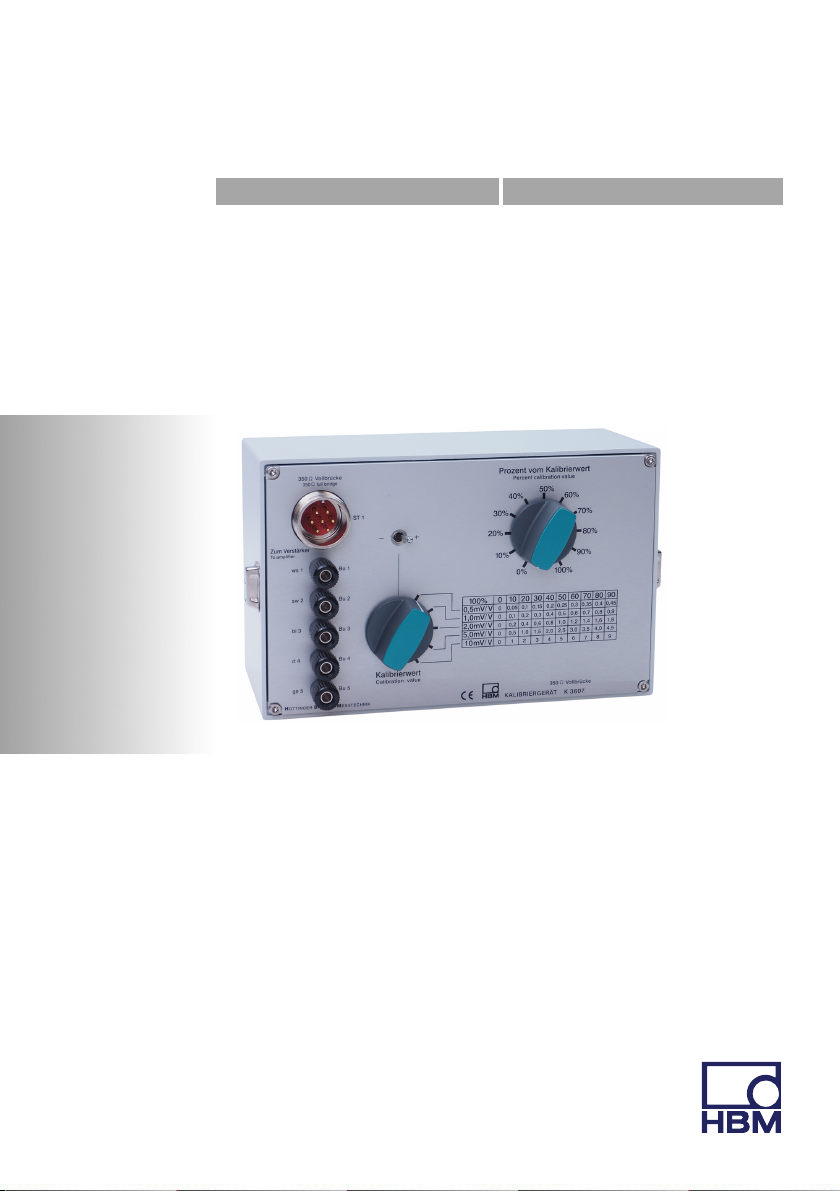

K3607
Calibration instrument
Bitte hier ein
farbiges FOTO des Geräts/Produkts
zentriert
einfügen und diesen Hinweis löschen!

Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64239 Darmstadt
Tel. [phone]
Fax [phone]
[email protected]
www.hbm.com
Mat.: 7-2001.0833
DVS: A0833-3.1 HBM: public
03.2018
EHottinger Baldwin Messtechnik GmbH.
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
Änderungen vorbehalten.
Alle Angaben beschreiben unsere Produkte in allgemeiner
Form. Sie stellen keine Beschaffenheits- oder Haltbarkeits
garantie dar.

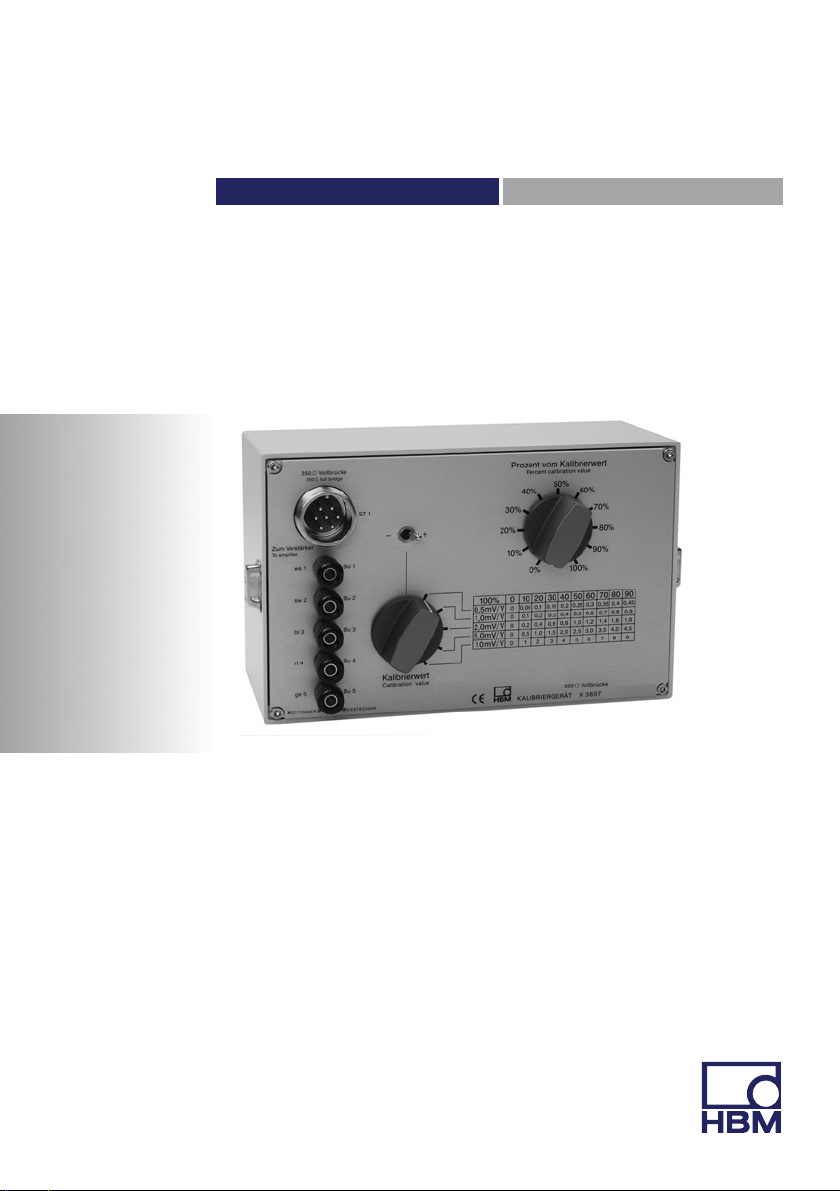

Operating Manual
English Deutsch
K3607

2A0833-3.1 HBM: public K3607
1 Safety instructions 3........................................
2 Symbols on the product 6...................................
3 Fields of application 7......................................
4 Connections 8..............................................
5 Calibrating the measurement chain 9........................
6 Works calibration of the K3607 10............................
7 Effect of cable resistance 11..................................
8 Pin assignement 12..........................................

Safety instructions
K3607 A0833-3.1 HBM: public 3
1 Safety instructions
Approbiate use
The K3607 calibration instrument is to be used exclusively for measurement
tasks and directly related control tasks. Use for any purpose other than the
above shall be deemed to be not in accordance with the regulations.
In the interests of safety, the instrument should only be operated as described
in the Operating Manual. It is also essential to comply with the legal and safety
requirements for the application concerned during use. The same applies to
the use of accessories.
Conditions on site
SProtect the device from direct contact with water.
SProtect the device from moisture and humidity or weather conditions such
as rain, snow.
SDo not expose the device to direct sunlight.
SPlease observe the permissible maximum ambient temperatures and
humidity stated in the specifications.
SThe device must not be modified from the design or safety engineering
point of view except with our express agreement. Any modification shall
exclude all liability on our part for any damage resulting therefrom.
In particular, any repair or soldering work on motherboards is prohibited.
When exchanging complete modules, use only original parts from HBM.
SInstall the device so that it can be disconnected from the supply voltage at
any time without difficulty.
SThe device is maintenance-free.
SBefore cleaning, disconnect all connections.
SClean the housing with a soft, slightly damp (not wet!) cloth. You should
never use solvents, since these could damage the labeling.
SWhen cleaning, ensure that no liquid gets into the module or connections.
SIn accordance with national and local environmental protection and material
recovery and recycling regulations, old equipment that can no longer be

Safety instructions
4A0833-3.1 HBM: public K3607
used must be disposed of separately and not with normal household
garbage.
Qualified personnel
Qualified personnel means persons entrusted with the installation, assembly,
commissioning and operation of the product, who possess the appropriate
qualifications for their function.
This includes people who meet at least one of the three following requirements:
SKnowledge of the safety concepts of automation technology is a require
ment and, as project personnel, you must be familiar with these concepts.
SAs automation plant operating personnel, you have been instructed how to
handle the machinery. You are familiar with the operation of the equipment
and technologies described in this documentation.
SAs commissioning engineers or service engineers, you have successfully
completed the training to qualify you to repair the automation systems. You
are also authorized to activate, ground and label circuits and equipment in
accordance with safety engineering standards.
It is also essential to comply with the legal and safety requirements for the
application concerned during use. The same applies to the use of accessories.
The device must only be installed by qualified personnel, strictly in accordance
with the specifications and with the safety requirements and regulations listed
below.
Maintenance and repair work on an open device with the power on may only
be carried out by trained personnel who are aware of the dangers involved.
Working safety
SMaintenance and repair work on an open device with the power on may
only be carried out by trained personnel who are aware of the dangers
involved.

Safety instructions
K3607 A0833-3.1 HBM: public 5
SAutomation equipment and devices must be installed in such a way that
adequate protection or locking against unintentional actuation is provided
(e.g. access checks, password protection, etc.).
Additional safety precautions
Additional safety precautions must be taken in plants where malfunctions could
cause major damage, loss of data or even personal injury. In the event of a
fault, these precautions establish safe operating conditions.
The scope of supply and performance of the device only covers a small area of
measurement technology. In addition, equipment planners, installers and
operators should plan, implement and respond to the safety engineering
considerations of measurement technology in such a way as to minimize
remaining dangers. On-site regulations must be complied with at all times.
There must be reference to the remaining dangers connected with
measurement technology.
General dangers of failing to follow the safety instructions
The device is a state of the art unit and as such is reliable. The module may
give rise to dangers if it is inappropriately installed and operated by untrained
personnel.

Safety instructions
6A0833-3.1 HBM: public K3607
2 Symbols on the product
CE mark
The CE mark enables the manufacturer to guarantee that
the product complies with the requirements of the rele
vant EC directives (the declaration of conformity is avail
able at http://www.hbm.com/HBMdoc).
Statutory marking requirements for waste disposal
National and local regulations regarding the protection of
the environment and recycling of raw materials require
old equipment to be separated from regular domestic
waste for disposal.
For more detailed information on disposal, please contact
the local authorities or the dealer from whom you pur
chased the product.

Fields of application
K3607 A0833-3.1 HBM: public 7
3 Fields of application
The K 3607 calibration instrument can be used to calibrate measuring ampli
fiers or measurement chains without imposing a mechanical quantity on the
SG transducers belonging to the measurement chain.
For this purpose the calibration instrument is equipped with a high‐precision
resistance network in star configuration, designed to simulate 350‐SG
full‐bridge transducers.
The extremely low self‐capacitance and self‐inductance of the inbuilt precision
resistors place the calibration instrument in accuracy class 0.025.
When an appropriate measuring amplifier is used, the calibration instrument
can be operated in six‐wire circuit for balancing the ohmic and capacitive
effects of long measurement cables.

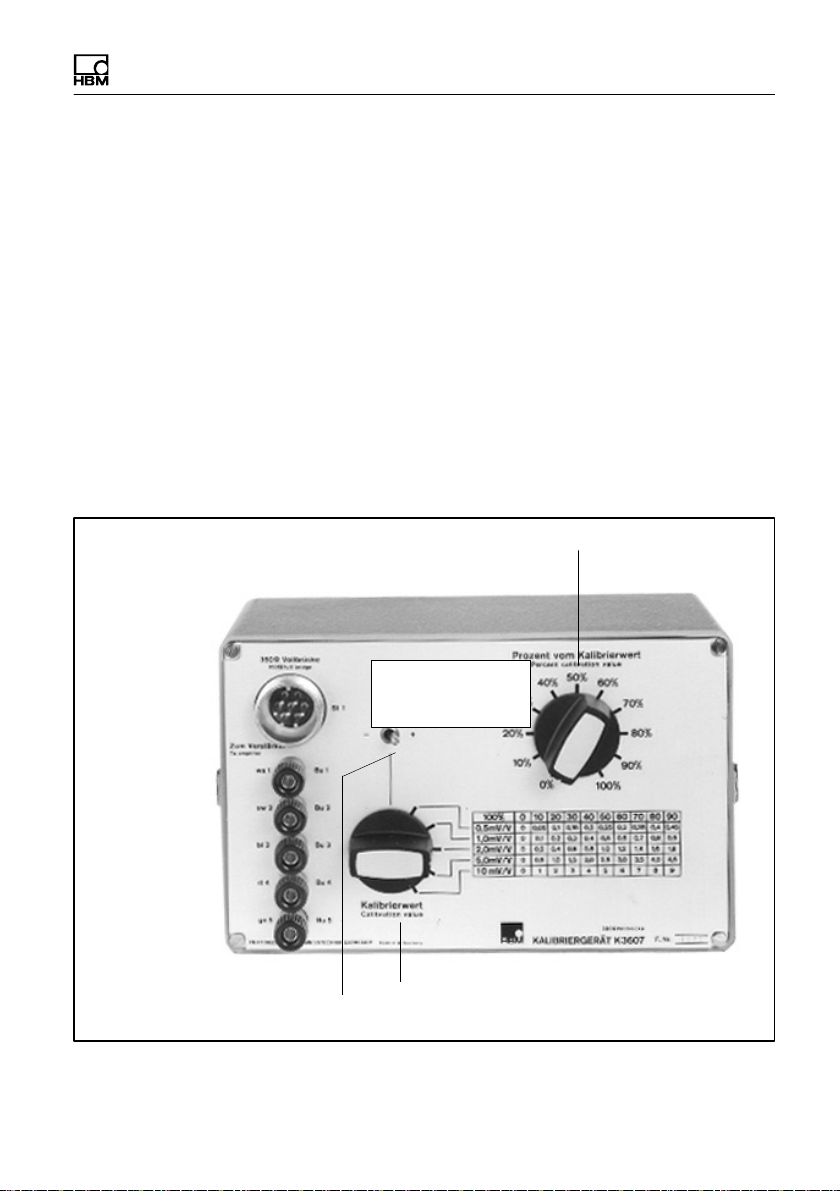

K 3607 Front panel
S1
S2
S3
Calibration valid at
end of cable
(KAB0238A−3).
S1 = polarity switch
S2 = calibration step switch
S3 = calibration value switch

Connections
8A0833-3.1 HBM: public K3607
4 Connections
The connector cable between the calibration instrument and the measuring
amplifier is connected either to the 7‐pin Amphenol connector MS 3102
A16S‐1P (St1) or to the 5‐pin S3 (Bu 1 . . . Bu 5).
The contact assignment is shown in Fig. 6.1. The Amphenol connection is pro
vided for a six‐wire circuit. If the intention is to connect a six‐wire circuit to the
pin terminals, connections C and F on the measuring amplifier must both be
connected to Bu3 on the calibration instrument, and connections B and G must
both be connected to Bu2.

Calibrating the measurement chain
K3607 A0833-3.1 HBM: public 9
5 Calibrating the measurement chain
SConnect the calibration instrument to the measurement chain you wish to
calibrate in place of the 350‐SG transducer. If there is an extension cable
on the measuring amplifier, leave it in place in order to capture the ohmic
and capacitive cable effects.
SUse S1 to preselect the desired polarity of the measurement signal.
SSet S2 (calibration step switch) to zero.
SIf necessary switch the measuring amplifier to full bridge (K 3607 operates
as a full bridge).
SBalance the measuring amplifier and subsequent instruments to zero in
accordance with their operating manuals and if necessary carry out capaci
tance adjustment.
SUse the calibration value switch S3 and the calibration step switch S2 to set
the desired calibration signal:
S
SSet the measuring amplifier to the desired output signal in accordance with
its operating manual. In principle the measuring amplifier should be cali
brated in the measuring range you intend to use for measurement. If the
measuring range of the amplifier is changed, the switching error needs to
be taken into consideration.
1) *Effect of the calibration step switch (S2):
2) The grading error for the percentage steps as set out in the specifications will be maintained for
every step if the internal resistance Ri of the bridge excitation source plus cable is v1. For an
internal resistance Ri v4the error in the calibration steps is kept at between 0 and 50 %.
For a six‐wire circuit the tolerances are maintained if the excitation voltage to the K 3607 is
readjusted precisely enough.

Works calibration of the K3607
10 A0833-3.1 HBM: public K3607
6 Works calibration of the K3607
The K 3607 is calibrated in the factory under the following conditions:
- Ambient temperature: + 23 oC
- Connector cable:
- KAB0238A-3 (included in the list of components supplied), cable length
= 3 meters
- Cross‐section of each bridge excitation wire 1.5mm2
- Internal excitation voltage resistance: v1

Effect of cable resistance
K3607 A0833-3.1 HBM: public 11
7 Effect of cable resistance
The cable effect for KAB0238A‐3 cable is calibrated in at the factory. This
applies to four‐ and six‐wire circuit at the end of the 3‐meter long cable.
On subsequent connection in four‐wire circuit, the output signal is reduced by
the K factor due to the resistance of the excitation wires.
The K factor is calcultated as follows:
Bridge resistance)
The resistance value of an excitation wire is used for the r term. In the case of
KAB0238A‐3 cable this resistance r = 0.0118 . According to the formula (1)
this gives a value of 0.99993 for the K factor. This means an absolute calibra
tion error of 0.007% if KAB0238A‐3 is not used.
A switching step error also occurs. Depending on the position of switch S2 the
internal resistance of the K 3607 alters slightly, as does the effective excitation
voltage due to the cable resistance r.
The grading error of the percentage steps increases by some 0.02% at 10 of
cable conductor resistance.
When connecting a six‐wire circuit the cable effect is corrected and the K factor
= 1. No additional grading error occurs (internal excitation voltage resistance <
1 ).
If KAB0238A‐3 cable is not used, an absolute calibration error of the corre
sponding size occurs. This means the output signal is increased by a factor of
K = 1.00007.

Pin assignement
12 A0833-3.1 HBM: public K3607
8 Pin assignement
A
B
C
D
E
F
G
MS3102A 16S-1P MS3106A 16S-1S MS3106A 16S-1P
8
5
6
15
Hsg.
13
12
Cable to measuring amplifier:
Amphenol connector - D sub connector
MS3102A 16S-1P MS3106A 16S-1S D-Sub 15p
St1
St1
To the amplifier input
Sensor circuit to the
measuring amplifier,
six‐wire circuit only
Connection to 7‐pin Amphenol connector St1
To the amplifier
input
Sensor circuit to the
measuring amplifier,
six‐wire circuit only
Cable to measuring amplifier:
Amphenol connector - D sub connector
Fig. 8.1 Pin assignment Amphenol

Pin assignement
K3607 A0833-3.1 HBM: public 13
A
B
C
D
E
F
G
To the amplifier input
Sensor circuit to the
measuring amplifier,
six‐wire circuit only
Cable to measuring amplifier:
Pigtails - Amphenol connector
MS3102A 16S-1P
MS3106A 16S-1P
Connecting to pin terminals
St1
Fig. 8.2 Pin assignment pin terminals

Pin assignement
14 A0833-3.1 HBM: public K3607

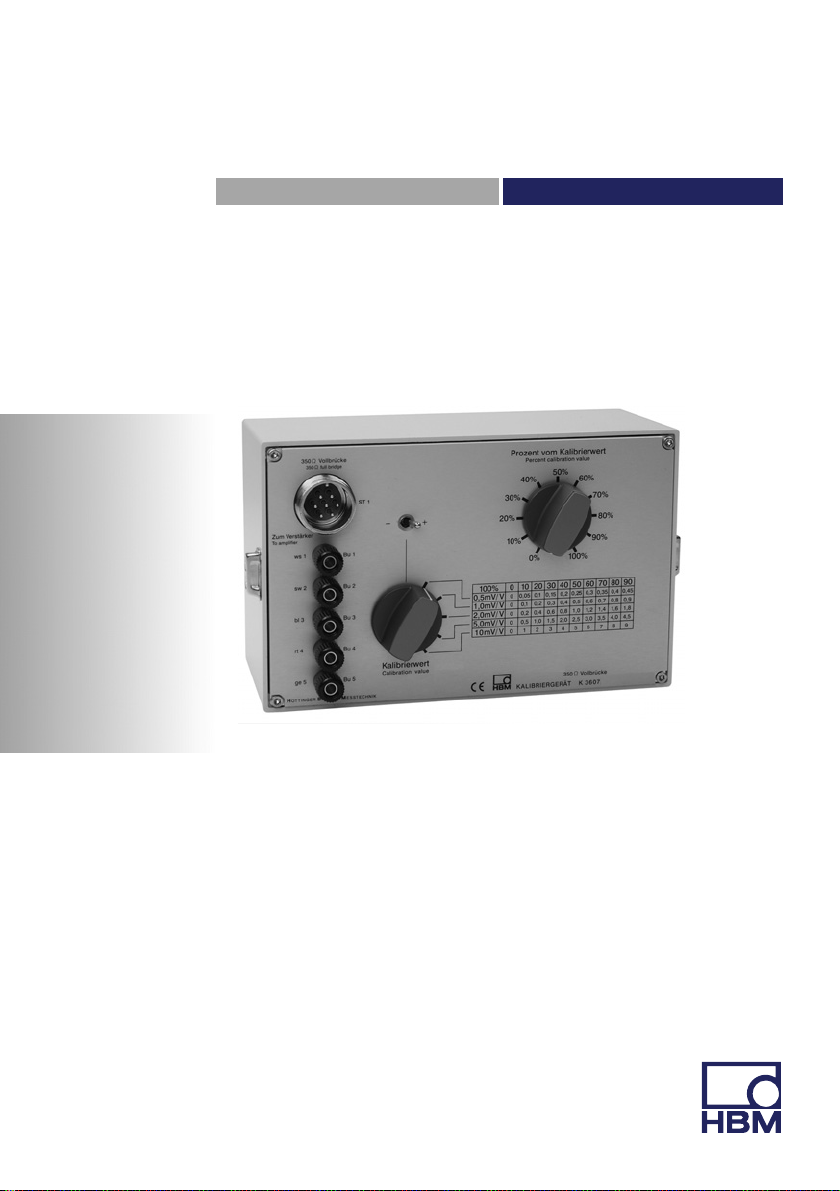

Bedienungsanleitung
English Deutsch
K3607

2A0833-3.1 HBM: public K3607
Deutsch
1 Sicherheitshinweise 3......................................
2 Auf dem Gerät angebrachte Symbole 6.......................
3 Anwendungsbereiche 7.....................................
4 Anschliessen 8.............................................
5 Kalibrieren der Messkette 9.................................
6 Werkskalibrierung des K3607 10..............................
7 Einfluss des Kabelwiderstandes 11...........................
8 Anschlussbelegung 12.......................................

Sicherheitshinweise
K3607 A0833-3.1 HBM: public 3
1 Sicherheitshinweise
Bestimmungsgemäße Verwendung
Das Kalibriergerät K3607 ist ausschließlich für Messaufgaben und direkt damit
verbundene Steuerungsaufgaben zu verwenden. Jeder darüber hinausge
hende Gebrauch gilt als nicht bestimmungsgemäß.
Zur Gewährleistung eines sicheren Betriebes darf das Gerät nur nach den
Angaben in der Bedienungsanleitung betrieben werden. Bei der Verwendung
sind zusätzlich die für den jeweiligen Anwendungsfall erforderlichen Rechts‐
und Sicherheitsvorschriften zu beachten. Sinngemäß gilt dies auch bei
Verwendung von Zubehör.
Betriebsbedingungen
SSchützen Sie das Gerät vor direktem Kontakt mit Wasser.
SSchützen Sie das Gerät vor Feuchtigkeit und Witterungseinflüssen wie bei
spielsweise Regen oder Schnee.
SSchützen Sie das Gerät vor direkter Sonneneinstrahlung
SBeachten Sie die in den technischen Daten angegebenen maximal zuläs
sigen Umgebungstemperaturen und die Angaben zur maximalen Luft
feuchte.
SDas Gerät darf ohne unsere ausdrückliche Zustimmung weder konstruktiv
noch sicherheitstechnisch verändert werden. Insbesondere sind jegliche
Reparaturen, Lötarbeiten an den Platinen (Austausch von Bauteilen) unter
sagt. Bei Austausch gesamter Baugruppen sind nur Originalteile von HBM
zu verwenden.
SDas Gerät ist wartungsfrei.
STrennen Sie das Gerät von allen Strom‐ bzw. Spannungsversorgungen.
SReinigen Sie das Gehäuse mit einem weichen und leicht angefeuchteten
(nicht nassen!) Tuch. Verwenden Sie auf keinen Fall Lösungsmittel, da
diese die Beschriftung oder das Gehäuse angreifen könnten.
SAchten Sie beim Reinigen darauf, dass keine Flüssigkeit in das Gerät oder
an die Anschlüsse gelangt.

Sicherheitshinweise
4A0833-3.1 HBM: public K3607
SNicht mehr gebrauchsfähige Geräte sind gemäß den nationalen und örtli
chen Vorschriften für Umweltschutz und Rohstoffrückgewinnung getrennt
von regulärem Hausmüll zu entsorgen.
Qualifiziertes Personal
Qualifizierte Personen sind Personen, die mit Aufstellung, Montage, Inbetrieb
setzung und Betrieb des Produktes vertraut sind und über die ihrer Tätigkeit
entsprechende Qualifikationen verfügen.
Dazu zählen Personen, die mindestens eine der drei folgenden Voraussetzun
gen erfüllen:
SIhnen sind die Sicherheitskonzepte der Mess‐ und Automatisierungstechnik
bekannt und sie sind als Projektpersonal damit vertraut.
SSie sind Bedienpersonal der Mess‐ oder Automatisierungsanlagen und sind
im Umgang mit den Anlagen unterwiesen. Sie sind mit der Bedienung der in
dieser Dokumentation beschriebenen Geräte und Technologien vertraut.
SSie sind Inbetriebnehmer oder für den Service eingesetzt und haben eine
Ausbildung absolviert, die sie zur Reparatur der Automatisierungsanlagen
befähigt. Außerdem haben sie die Berechtigung, Stromkreise und Geräte
gemäß den Normen der Sicherheitstechnik in Betrieb zu nehmen, zu erden
und zu kennzeichnen.
Bei der Verwendung sind zusätzlich die für den jeweiligen Anwendungsfall er
forderlichen Rechts‐ und Sicherheitsvorschriften zu beachten. Sinngemäß gilt
dies auch bei Verwendung von Zubehör.
Das Gerät ist nur von qualifiziertem Personal ausschließlich entsprechend der
technischen Daten in Zusammenhang mit den Sicherheitsbestimmungen und
Vorschriften einzusetzen.
Wartungs‐ und Reparaturarbeiten am geöffneten Gerät unter Spannung dürfen
nur von einer ausgebildeten Person durchgeführt werden, die sich der vorlie
genden Gefahr bewusst ist.
Sicherheitsbewußtes Arbeiten
SWartungs‐ und Reparaturarbeiten am geöffneten Gerät unter Spannung
dürfen nur von einer ausgebildeten Person durchgeführt werden, die sich
der vorliegenden Gefahr bewusst ist.
