REED R2810 User manual

reedinstruments
www com
Model
Instruction
Manual
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Thermocouple Calibrator
R2810
[e-mail] REED-Direct.com

reedinstruments
www com
2
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Table of Contents
Safety Information ......................................................................... 3
Features......................................................................................... 3
Specications.............................................................................4-5
Instrument Description ...............................................................6-7
Operating Instructions..............................................................8-11
Power ON/OFF........................................................................... 8
Auto Power-Off ........................................................................... 8
Output Function.....................................................................8-10
Simulating output DC voltage...................................................... 9
Simulating output from thermocouple ....................................9-10
Measure Function ................................................................10-11
Measuring DC voltage............................................................... 11
Measuring thermocouple .......................................................... 11
Battery Replacement..............................................................11-12
[e-mail] REED-Direct.com

reedinstruments
www com
3
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Safety Information
To avoid injury to the user or damage to the instrument, please read the
safety information below before initial use:
Warning
• Donotoperatetheinstrumentaroundammableorexplosivegas,
vapor or dust.
• Neverapplymorethan30Vbetweenanytwoterminals,orbetweenany
terminal and ground terminal.
Caution
• Themetercaseisnottobeopened,unlessbyaqualiedtechnician.
• Useadampclothwithneutraldetergentforcleaningthemeterperiod-
ically. Do not use abrasives or solvents.
Note
• Foroptimalaccuracy,allowtheinstrumenttowarmup5minutes
before operating.
• If the automatic reference-junction temperature compensation of the
instrumentdeviatesfromitsdesignedaccuracy,contactaqualiedREED
technician.
Features
• Sourceandmeasure8thermocoupletypesincludingR,S,B,E,K,J,
T,N,plusvolts
• Basicaccuracyof0.05%
• Internal cold junction compensation
• Quick reset with zero button
• 6-digit LCD readout, selectable °C or °F
• Includes protective holster with tilt stand
[e-mail] REED-Direct.com

reedinstruments
www com
4
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Specifications - Source Function
Accuracyspeciedat23°C±5°C&75%RHforaperiodofoneyearafter
calibration.
Output Range Output Range Resolution Accuracy
DCV
100mV -10.00mVto110.00mV 0.01mV 0.05%rdg.+30mV
1V -0.1000Vto1.1000V 0.1mV 0.05%rdg.+0.3mV
TC
R-40to1760°C 1°C ±0.05%rdg.+3°C
(≤100°C)±0.05%rdg.
+2°C(>100°C)
S-20to1760°C 1°C
B400to1800°C 1°C
±0.05%rdg.+3°C
(≤600°C);±0.05%rdg.
+2°C(>600°C)
E -200.0to1000.0°C 0.1°C
±0.05%rdg.+2°C
(≤-100°C)±0.05%rdg.
+1°C(>-100°C)
K -200.0to1370.0°C 0.1°C
J -200.0to1200.0°C 0.1°C
T-200.0to400.0°C 0.1°C
N -200.0to1300.0°C 0.1°C
Measure Function
Output Range Output Range Resolution Accuracy
DCV 100mV -10.00mVto110.00mV 0.01mV 0.05%rdg.+30mV
TC
R-40to1760°C 1°C ±0.05%rdg.+3°C
(≤100°C)±0.05%rdg.
+2°C(>100°C)
S-20to1760°C 1°C
B400to1800°C 1°C
±0.05%rdg.+3°C
(≤600°C);±0.05%rdg.
+2°C(>600°C)
E -200.0to1000.0°C 0.1°C
±0.05%rdg.+2°C
(≤-100°C)±0.05%rdg.
+1°C(>-100°C)
K -200.0to1370.0°C 0.1°C
J -200.0to1200.0°C 0.1°C
T-200.0to400.0°C 0.1°C
N -200.0to1300.0°C 0.1°C
continued
[e-mail] REED-Direct.com

reedinstruments
www com
5
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
General Specifications
Max.AllowableVoltage: 30V(betweenanytwoterminalsorbetween
 anyterminalandground)
TemperatureCoefcient: 0.1×(dedicatedaccuracy)%/°C(5to18°C,
 28to40°C)
OperatingTemperature: 0°Cto50°C
OperatingHumidity: ≤80%RH
StorageTemperature: ≤-10°Cto55°C
StorageHumidity: ≤90%RH
PowerSupply: Two1.5Valkalinebatteries(LR6)
Dimensions: 180(L)×90(W)×47(D)mm(withholster)
Weight: 500g(withholster)
Includes: Set of industrial test leads, alligator clips,
thermocouple adapter, protective holster,
batteries and user manual
Safety: CertiedcomplianttoIEC1010provisions
[e-mail] REED-Direct.com

reedinstruments
www com
6
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS

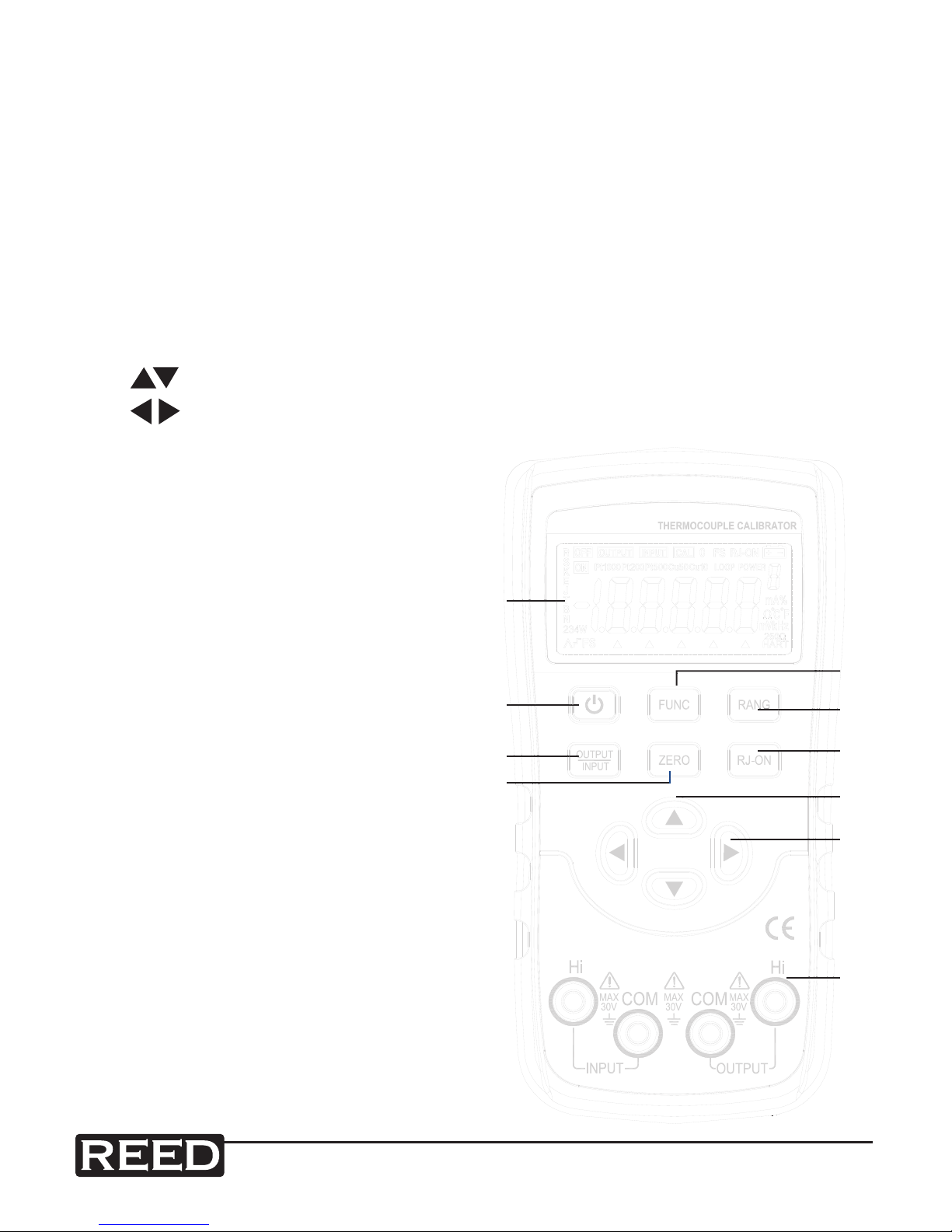

Instrument Description
1. LCD screen
2. ON/OFFbutton
3. Input/Outputbutton
4. Zero Reset button
5. Function Selection Output button
6. Range Selection button
7. RJ-ONbutton(T/Ccoldjunctioncompensation)button
8. OutputValueSettingbutton
9. Output Digit Selection button
10. Input/Outputterminal
continued ...
5
6
8
9
10
1
2
3
4
7
continued ...
continued ...
continued ...
[e-mail] REED-Direct.com

reedinstruments
www com
7
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS

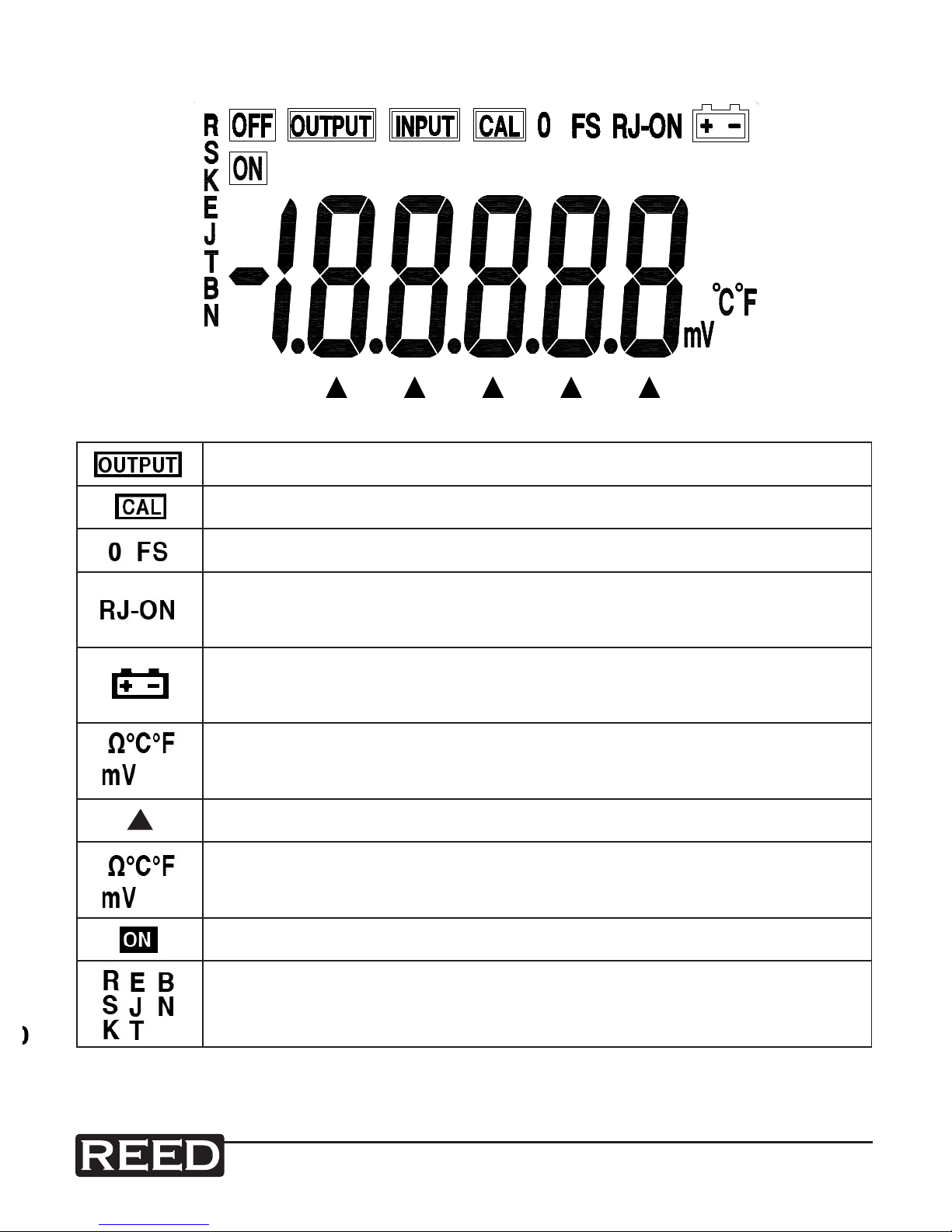

Display Description
Indicates that the instrument is in an output state
Indicates that the instrument is in an input state
Indicates that the instrument is in a calibration state
Indicates that the instrument is in a calibration state, denoting
that the zero point or the full scale point is now in calibration
Indicates that the instrument is performing its reference-
cold junction compensation
Indicates that the battery power is low and needs to be
replaced
Indicates current output value
Indicates unit of measure of current output value
IndicatesthattheoutputsignalisONorOFF
Indicates thermocouple type
[e-mail] REED-Direct.com

reedinstruments
www com
8
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Operating Instructions
Power ON/OFF
Press the ON/OFFbuttonto turn the instrument on. Press and hold the
powerbuttontoturntheinstrumentoff.Whentheinstrumentison,itwill
begin an internal self-diagnosis at which time the full screen will be dis-
played. Once complete, the instrument is ready to take measurements.
Auto Power-Off
As a default the instrument will automatically turn off after 15 minutes of
inactivity. To turn off this feature:
1. Turn the instrument off.
2. PresstheON/OFFbutton(todisplaythefullscreen).
3. PresstheRANGbuttonwhentheinstrumentisinthemaintenance
state. AP-XX will appear on the display.
4. Press the buttonwhenAP-ONisdisplayed.AP-OFwillnow
appear, indicating that the automatic power-off is turned off.
5. PresstheON/OFFbuttontoexitthemaintenancestateandturn
the instrument off.
Output Function
Caution: Do not apply any voltage to the output terminal during the opera-
tion. If any improper voltage is applied to the output terminal, it will cause
damage to the internal circuit.
Note: The output terminal of the instrument can produce DC voltages or
can simulate thermocouple temperature set by the user.
continued ...
[e-mail] REED-Direct.com

reedinstruments
www com
9
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS

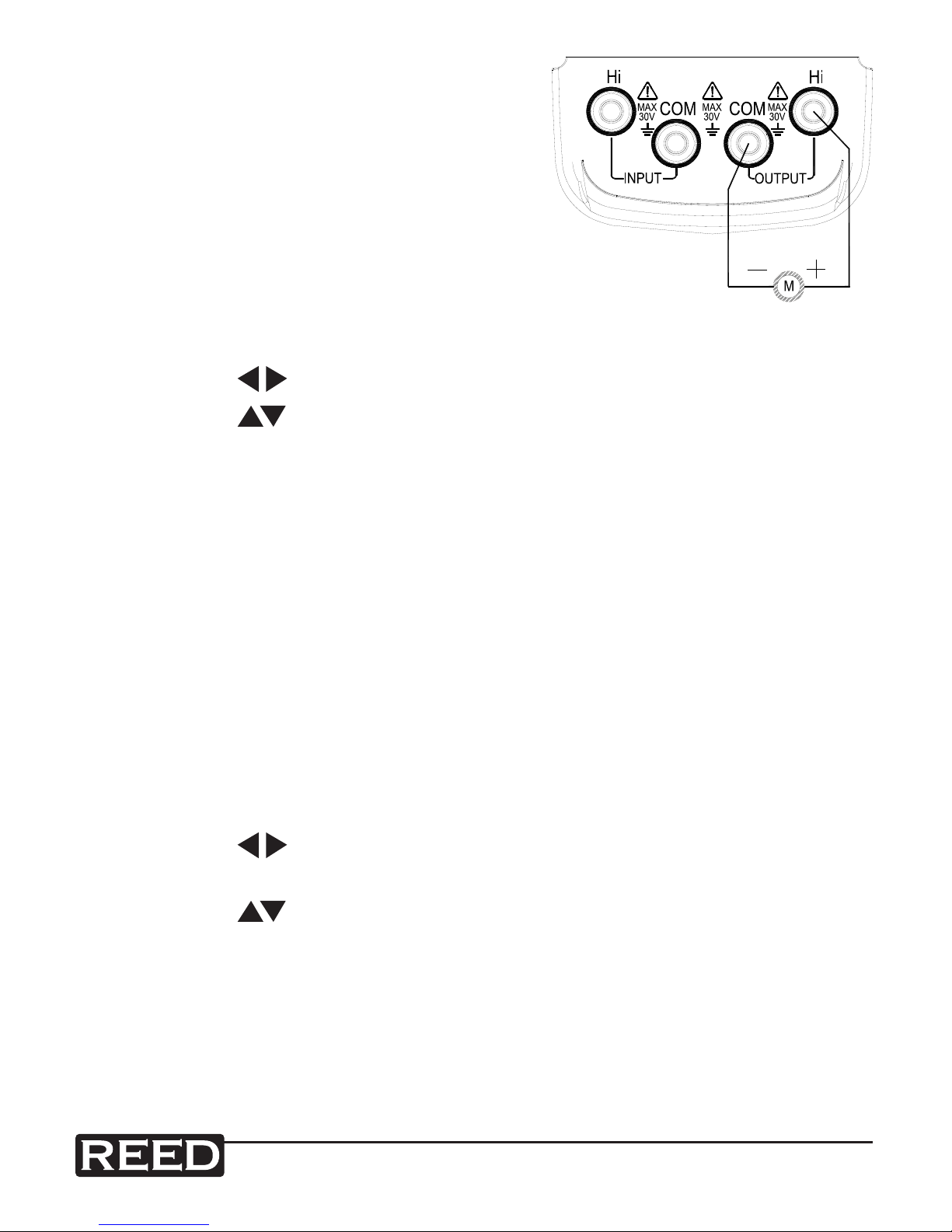

Simulating DC voltage output
1. Insert one end of the test lead into the
output(OUTPUT)terminalofthemeter
and connect the other end to the input
terminal of the instrument under test.
See diagram on right.
2. PresstheFUNC(function)buttontoselectthe
VDCfunction.‘mV/V’appearsinthedisplay.
3. PresstheRANG(range)buttontoselect
therangeof1.0000Vor100.00mV.
4. Press the button to select the set digits for output.
5. Press the button to change the numerical value of the set digits.
Holdthebuttonforonesecondandthevaluewillkeepvarying.
6. PresstheZERObuttonandtheoutputwillbesetto00.00mVor
0.0000V.
Simulating thermocouple (TC) output
1. InsertoneendofthetestleadintotheOUTPUTterminalofthe
calibrator and connect the other end to the input terminal of the
instrument under test. See diagram above.
2. PresstheINPUT/OUTPUTbuttontoselecttheOutputfunction.
3. PresstheFUNC(function)buttontoselectThermocoupleoutput.
‘R’and‘°C’willappearonthedisplay.
4. PresstheRANG(range)buttontoselectthetypeofthermocouple.
5. Press the button to move the on-screen cursor in order to
select the desired digit on the display.
6. Press the button to change the numerical value of each digit.
(Numericalvaluecannotbechangedbeyondrangemaximum.)
7. Automatic compensation for cold junction temperature.
8. PresstheZERObuttonandtheoutputwillbedirectlysetto0000°C
(RorStype),400°C(Btype)or0000.0°C(othertypes).
9. Pressthe°C/°Fbuttontoselect°Cor°Funitofmeasure.
continued ...
[e-mail] REED-Direct.com

reedinstruments
www com
10
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Note: Whilecalibratinganinstrumentwithcoldjunctiontemperature
compensation,presstheRJ-ONbuttonsothatthemetercanstartthe
function of automatic cold junction compensation. The meter will output
thenecessarytemperaturethermoelectricforce,anddisplay‘RJ-ON’:
Output thermoelectric force = corresponding thermoelectric force
of set temperature – thermoelectric force of room temperature
• Ittakestwosecondsfortheinstrumenttostartitsinternalreference-
junction temperature. After this, each automatic compensation occurs
at10secondintervals.
• Ifthereisachangeintheoperatingambienttemperature,donotstart
the operation until the built-in compensating sensor has become stable
(about10minutes).
• Ifthereisnoneedforthecalibratortoperformthefunctionofautomatic
reference-junctioncompensation,presstheRJ-ONbuttonandthe
symbolRJ-ONwillnolongerappearinthedisplay.
Measure Function
Warning: Themaximumvoltageallowedbetweentheterminalsand
betweentheterminalsandthegroundis30V,allvoltagesexceedingthe
specified voltage may cause damage to the meter and injury to the user.
Caution: Donotapplyanyvoltageexceedingthemaximumallowedtothe
input terminals, as this may cause damage to the meter.
Caution: Please power off instrument under test when connecting to the
input terminal. Connection to the instrument under test with power may
cause damage to this meter.
Caution: Pay particular attention not to connect the current signal to the
input terminal. Incorrect connection may cause damage to this meter and
the instrument under test.
continued ...
[e-mail] REED-Direct.com

reedinstruments
www com
11
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Measuring DC voltage
1. Insert one end of the test lead into the
input(INPUT)terminalofthemeterand
connect the other end to the output
terminal of the instrument under test,
as shown in the diagram to the right.
2. PressINPUT/OUTPUTbuttontoselect
theInputfunction.‘INPUT’,‘ON’,‘mV’
will be displayed.
3. Starts the measurement process by
displaying‘000.00’whichindicates
waiting and then displays measurement result. (Refresh rate is twice
asecond,andifthemeasuredvalueexceedsthemeasurement
range,theLCDdisplays‘OL’.)
Measuring thermocouples
1. Insertoneendofthetestleadintotheinput(INPUT)terminalofthe
meter and connect the other end to the output terminal of the instru-
ment under test, as shown in the diagram above.
2. PressINPUT/OUTPUTbuttontoselecttheInputfunction.
3. PresstheFUNC(function)buttontoselectThermocouplefunction.
‘R’and‘°C’willappearonthedisplay..
4. PresstheRANG(range)buttontoselectthetypeofthermocouple.
5. Startsthemeasurementprocessbydisplaying‘000.00’whichindi-
cates waiting and then displays measurement result. (Refresh rate is
twiceasecond,andifthemeasuredvalueexceedsthemeasurement
range,theLCDdisplays‘OL’.)
6. Pressthe°C/°Fbuttontoselect°Cor°Funitofmeasure.
Battery Replacement
Note: ThemeterispoweredbytwoAAalkalinebatteries(LR6).
Note: Ensurethatthebattery’spositiveandnegativeterminalsmirrorthe
illustration in the battery compartment when replacing them.
Note: Newandoldbatteriescannotbemixed. continued ...
[e-mail] REED-Direct.com

reedinstruments
www com
12
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Only if you REALLY need them:
Pantone 534 Blue - 100/80/30/5
Pantone 485 Red - 10/100/100/5
Pantone 123 Yellow - 0/27/100/
INSTRUMENTS
Note: Dispose of old batteries in accordance with local regulations.
Note: Remove batteries if the meter will not be used for a long time.
Whenthebattery symbol appears in the display it indicates that the
battery power is low and that the battery needs to be replaced.
1. EnsurethatthemeteristurnedOFFand
remove any test leads from the meter
terminals
2. Lift the tilt stand on the back of the unit
to reveal the battery compartment door
which can be removed using a Phillips
head screwdriver
3. Replace the batteries in the lid of the
battery compartment
4. Reinstall the compartment lid by ensuring that battery terminals
touchtheunit’scontactpointsandsnapintoplace.
Note: Ensurebatterydoorisclosedandlatchedbeforeusingthemeter.
To ensure proper operation, please wait 5 seconds before turning meter
on after changing batteries.
Notes
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
ForserviceonthisoranyotherREEDproductorinformationonother
REEDproducts,contactREEDInstrumentsat[e-mail]
[e-mail] REED-Direct.com
