Heat Outdoors 902111 Operation and maintenance manual

Shadow Diffusion
Floor Lamp Patio Heater
Safety Instructions and Operation Manual
902111
Heat Outdoors
Unit 9, Stort Valley Industrial Estate
Stansted Road, Bishop’s Stortford
Hertfordshire, United Kingdom
CM23 2TU
www.heat-outdoors.co.uk
01279 466500
[email protected]

2Contents
Contents
Brief Introduction . . . . . . . . . . . . . . . . . 3
Important Information . . . . . . . . . . . . . . . 3
Safety Instructions . . . . . . . . . . . . . . . . . 4
Assembly Instructions . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . 9
Cleaning & maintenance . . . . . . . . . . . . . 10
Storage . . . . . . . . . . . . . . . . . . . . . 11
Technical Specication . . . . . . . . . . . . . . 11
Customer Service . . . . . . . . . . . . . . . . 11

3
Brief Introduction
Brief Introduction
Thank you for choosing our Shadow Diffusion Floor Lamp Patio Heater. This instruction
manual will provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly read the
instructions and familiarise yourself with all the operational aspects of your new heater.
Important Information
Please carefully read all instructions provided before using this appliance. This heater
must be installed in accordance with the instructions and local regulations.
This Operation Manual contains the important information on your safety, as well as
some recommendations on the correct use, installation and maintenance of
the appliance.
When operating this infrared heater be sure to observe necessary precautions as
improper operation with disregard of these precautions may result in harm to health of
the user, other people or objects.
Ensure to keep this manual along with your sales receipt, and if possible, cardboard
package and packing material in case return of the unit is necessary.
• Unpack the halogen heater making sure that all the items are
present, there are no components left in the box and the heater head
is free from any packing material.
• Using the detailed diagrams follow the steps to assemble your
halogen heater.
• Do not connect the halogen heater to the electrical supply until the
assembly is complete.
• Do not connect the halogen heater to the electrical supply if any of
the components or the power cord is damaged in any way.

4Safety Instructions
Safety Instructions
Read these instructions before using.
WARNING
Potential re risk if the heater is covered by any material or positioned close to curtains
or other ammable materials.
• Only use the halogen heater on a rm solid horizontal area where all the feet on the
base are in contact with the oor. (Should the heater be tilted or fall over the auto
cut off switch will activate).
• Site the heater outside or in a large open area and well away from any obstructions
such as branches or where the heater is near any objects that can be affected by
heat, such as furniture, curtains or other inammable objects (minimum distance 1
metre).
• DO NOT use near bath tubs, wash areas or swimming pools.
• DO NOT use in unventilated areas
• DO NOT use where gas, petrol, paint or other inammable goods are stored.
• DO NOT push any items through, obstruct or cover the grill of the heater head.
• DO NOT position immediately above or below an electrical socket.
• DO NOT move when connected to an electrical supply and always wait for the patio
heater to cool down before storing away.
• DO NOT touch the heater head when in use.
• DO NOT leave turned on and unattended especially when children and or animals
are in the vicinity.
• The indication of the different positions of switches shall be visible from a distance
of 1m.
• The marking concerning covering should be visible after the heater has been
installed. It should not be placed on the back of portable heaters.
• The unit must be placed with a minimum clearance of 100cm to a wall and 30cm to
the ceiling.
• The unit must be correctly installed according to the instructions. Make sure the
head is at least 1.8m from the oor.
• The unit must be securely placed on a horizontal and at surface.
• The unit operates at high temperature during operation. The unit stays hot for a
period after shut down. Potential danger will occur when touching it during
this period.
• Don’t place the unit close to curtain and/or other ammable objects. Otherwise,
there will be a danger of catching re.

5
Safety Instructions
• Don’t cover the unit with anything during operation or a short time after it’s
shut down.
• Don’t wrap the power supply cord on the unit.
• The unit must be handled with care, and avoid vibration or sudden impact.
• The unit must be securely grounded during operation.
• If the unit gets damaged, it must be repaired by professional electricians.
• When the power supply cord is damaged, it must be replaced by an authorized
agent or other professional to avoid danger.
• The unit must not be positioned under a socket.
• When assembling, keep clear from any board or ammable material.
• The unit must be not be operated by children or vulnerable people.
• Children and vulnerable people must be supervised at all times.
• It is not safe to install the unit by a swimming pool, in a bathroom or shower area.
• The unit is for household use only. It is not safe to use on a building site,
greenhouse, barn or stable where there’s ammable dust.
• The head of the unit is at high temperature during operation. Unplug the unit and
wait till it cools before cleaning.
• Don’t use this unit in place where causticity or volatile air exists, i.e. dust, steam,
gas, etc.
• Don’t use this unit as a cloth, textile material or towel drier.
• Don’t use this unit as a sauna heater.
• Don’t use this unit as a room heater.
• Don’t use this unit in a place of animal propagating and raising.
• Don’t immerse this unit into water for cleaning.
• The unit should be plugged in a socket, which is easily visible and reachable.
• Two dark points may exist on the surface of the heating elements during the rst
few minutes after it is turned on. This is normal, and will not affect the performance
of the unit.
• A tilt switch is tted inside the unit for safety purpose.

6Assembly Instructions

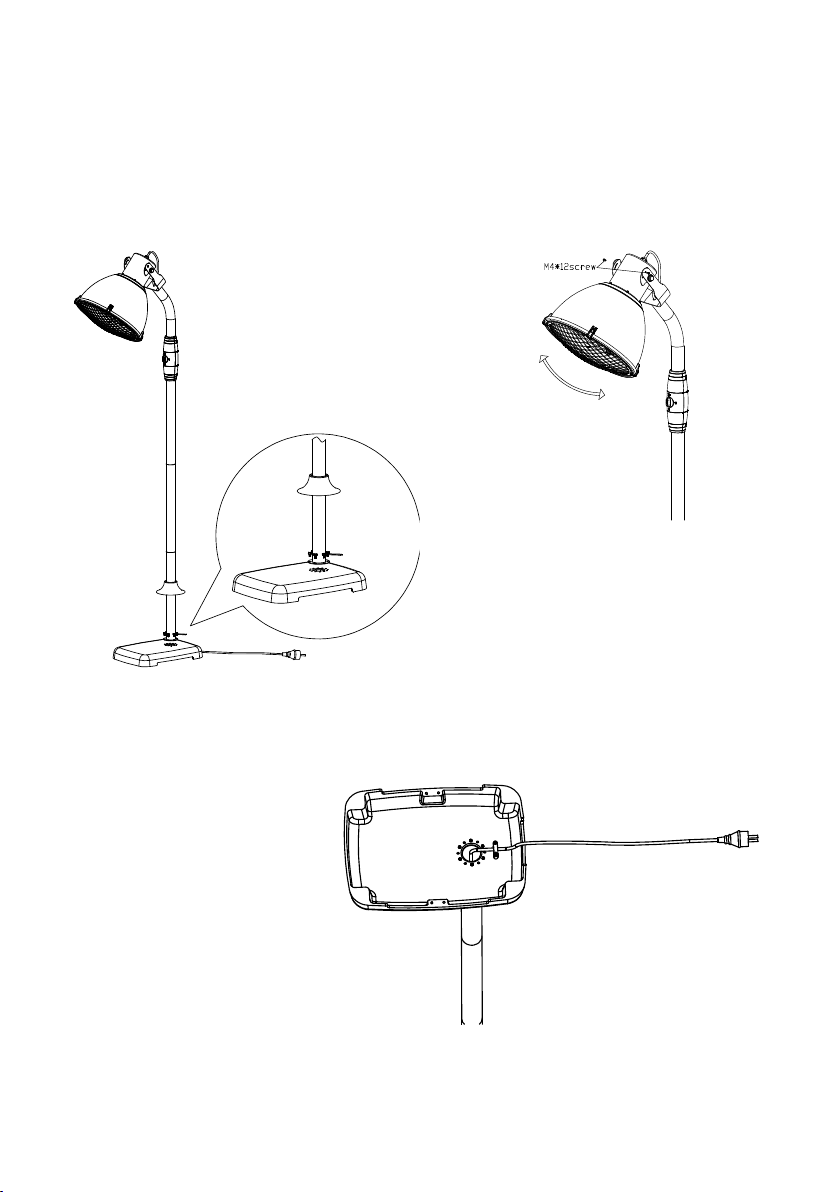

1. Connect 2 pcs of the middle tubing
onto the heater by screwing together.
Assembly Instructions
2. Place the cover through the bottom
tube. Then connect the heater by
screwing them together.

7
Assembly Instructions
3. Fix the heater on the base by 6pcs
M6 *10mm screws with M6 spanner.
4. Swing the heater to the angle
you need, Then lock it with 2pcs
M4*12mm screws.
5. Pull the power cord gently out of the
base as much as possible. Fix the
power cord under the base using the
supplied 2 pcs of M4*16mm screws.

8Assembly Instructions
6. Fix 2pcs xing part on the base with
4pcs M6*10mm screws, then Fix the
heater on the oor. Bore two holes
in the oor, x the heater by two
expanding bolts on the oor.
7. Complete!

9
Operation
Operation
• Place the heater on a rm, level surface and plug into a grounded 230V 50Hz
power outlet. Only operate the heater when it is in the upright position and the
base is rmly secured to the oor.
• Electric halogen patio heater is equipped with 3 heating settings: Low, Medium
and High.
1. Turn the switch to “1”, means the heater is working
and on the minimum heating position (900W).
2. Turn the switch to “2”, means the heater is working
and on the medium heating position (1200W).
3. Turn the switch to “3” means the heater is working
and on the maximum heating position (2100W).
4. Turn the switch to “OFF”, the heater is in off mode.
• Although the heater is shower proof, DO NOT
use when raining or in wet conditions.
• Always disconnect the power cable from the
electrical supply when the patio heater is not
in use.

10 Cleaning & maintenance
Cleaning & maintenance
Heater housing, grills and internal reector
• Disconnect the appliance from the power supply system.
• After the appliance has cooled down, the housing can be wiped clean with a
damp cloth.
• Do not touch the bulb element with your ngers, since stains could build up from
such a contact and may cause malfunction of the blub.
• Do not use any abrasive or hard cleaning products on any part of this heater.
• Do not immerse the appliance in water.
• Wait until the unit is completely dry before use.
Cleaning of heater lamp
• Disconnect the appliance from the power supply system.
• Wipe the lamp over with a damp cloth ensure no detergents or cleaning uids are
used as they may cause damage to the lamp coating.
https://www.heat-outdoors.co.uk/help-desk/useful-articles/heater-and-lamp-
maintenance.html
Any maintenance or repairs should only be carried out by a qualied electrician if you’re
unsure how to do so. For further information and guidance, visit our online help articles
and videos.
Disposal
In accordance with European Directive 2001/96/EG concerning used
electrical and electronic appliances (waste electrical and electronic
equipment – WEEE), please return any electrical equipment that you will no
longer use to the collection points provided for their disposal.
This symbol indicates that the appliance cannot be treated as normal
domestic trash, but must be handed to a collection point for recycling electric and
electronic appliances.
Information concerning where the equipment can be disposed of can be obtained from
your local authority.

11
Storage
Storage
If the heater will not be used for a long period of time, store it in a cool, dry location. To
prevent dust and dirt build-up, use the original packaging to repack the heater.
Technical Specication
Ratings: 220-240V AC 50-60Hz
Power consumption: 900/1200/2100W
Height: 230CM
Net weight: 18.9 kg
Insulation: Class 1
Ingress Rating: IP54
Customer Service
• Repairs must be carried out by authorized specialists, thus ensuring electrical safety.
• Please contact us or a suitably qualied electrician.
• Improper repairs could lead to danger to the user.
Warranty does not cover damage of failure which results from alteration, accident,
misuse, abuse, neglect, commercial use or improper maintenance. In line with our policy
of continuous product development we reserve the right to change the product and
documentation specications without notice.

Heat Outdoors
Unit 9, Stort Valley Industrial Estate
Stansted Road, Bishop’s Stortford
Hertfordshire, United Kingdom
CM23 2TU
www.heat-outdoors.co.uk
01279 466500
[email protected]
