Heinner VITG007 User manual

1
Instruction Manual
Electric Patio Heater
VITG007
Thank you for choosing our Electric Patio Heater. This owner’s manual will
provide you with valuable information necessary for the proper care and
maintenance of your new product. Please take a few moments to thoroughly
read the instructions and familiarize yourself with all the operational aspects of
your new heater.
WARNING: This heater is not equipped with a device to control
the room temperature. Do not use this heater in small rooms when
they are occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
CAUTION —Some parts of this product can become very hot
and cause burns. Particular attention has to be given where children
and vulnerable people are present.
IMPORTANTINSTRUCTIONS
When using this electric unit, basic safety precautions should be
followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
1. Mount the heater outside or in a large open area and well
away from any obstructions such as branches or where the
heater is near any objects that can be affected by heat, such
as furniture, curtains or other inflammable objects (minimum
distance 1 meter).
2. Do not position immediately above or below an electrical
socket.

2
3. The unit must be placed with the clearance of 180cm to the
floor and 50cm to the ceiling.
4. When the power supply cord is damaged, it must be replaced
by authorized agent or other professional people to avoid
danger.
5. This appliance is not intended for use by persons (including
children) with reduced physical. Sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Read ALLinstructions before using this unit.
8. CAUTION: Risk of Electric Shock. DO NOT open or
try to repair the heater yourself.
9. This heater may get hot when in use. To avoid burns, DO
NOT let bare skin touch hot surfaces. If provided, use
handles when moving this heater.
10.Keep combustible materials, such as furniture, pillows,
bedding, paper, clothes, and curtains at least 3 ft from the
front of the heater and keep them away from the sides, top,
and rear. DO NOT place towels or other objects on the
heater.
11.Extreme caution is necessary when any heater is used by or
near children or the disabled, or when the heater is left
operating and unattended.
12.DO NOT operate any heater with a damaged cord or after
the heater malfunctions, has been drooped or damaged in
any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
13.This heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. NEVER locate heater
where it may fall into a bathtub or other water container. To
protect against electrical hazards, DO NOT immerse in
water or other liquids.
14.DO NOT touch the control panel or plug with a wet hand.
15.DO NOT run cord under carpeting. DO NOT cover cord
with throw rugs, runners or similar coverings. Arrange cord
away from traffic area and where it will not be tripped over.
16.DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an electric
shock or fire, or damage the heater.

3
17.To prevent a possible fire, DO NOT block the air intakes or
exhaust in any manner. DO NOT use on soft surfaces, like
a bed, where openings may become blocked.
18.A heater has hot and arcing or sparking parts inside. DO
NOT use in areas where gasoline, paint, explosive and/or
flammable liquids are used or stored. Keep unit away from
heated surfaces and open flames.
19.Avoid the use of an extension cord because the extension
cord may overheat and cause a risk of fire. However, if you
have to use an extension cord, the cord shall be 2.5mm2
minimum size。
20.To avoid fire or shock hazard, plug the unit directly into a
220-240 V and 15A electrical socket outlet.
21.To disconnect heater, turn controls to OFF, then remove plug
from outlet. Pull firmly on plug, DO NOT unplug by pulling
on the cord.
22.Always unplug the unit before moving or cleaning, or
whenever the heater is not in use.
23.Use only for intended household use as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to
persons. The use of attachments not recommended or sold
by unauthorized dealers may cause hazards.
24.Always use on a dry, level surface. Use on ceiling only.
25.WARNING: To reduce the risk of fire or electric shock,
DO NOT use this unit with any solid-state speed control
device.
26.DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void your
warranty. The inside of the unit contains no user serviceable
parts. Qualified personnel should perform all servicing only.
27.Connect to properly grounded outlets only.
28.The heater must not be located in front of a socket outlet。
29. SAVE THESE INSTRUCTIONS.

4
PRODUCTDIAGRAM
Power
cord &
Plug
Heater
Element
LED
Light
Stainless steel chain
Heater cover
Heater mesh

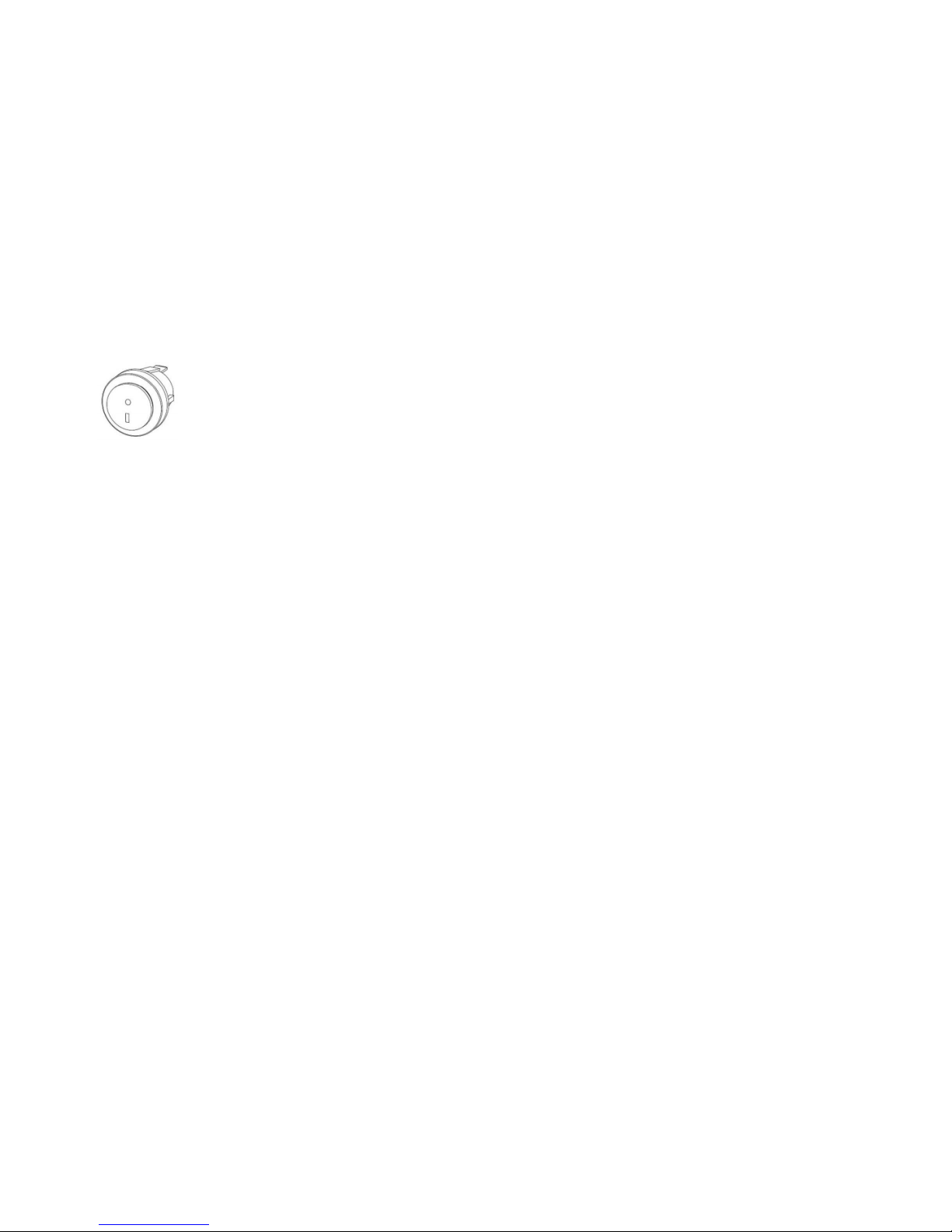

ON/OFF Switch
Floor must be over1.8M.
F. Plug the Patio Heater into a grounded 220-240V 50-60Hz
15A power outlet.
G. Only operate the heater when it is in the upright position.
Minimum Required Distances:
•25cm from the side wall
•50cm from the ceiling
•Installation height above 180cm
INSTALLATIONINSTRUCTIONS
A. Heater must be installed by a qualified electrician.
B. Place the heater on a firm, level ceiling surface; level ceiling
surface; installation of the heater on a strong rigid support
(such as strong wooden beams or metal rails etc).
C. The Hook on the ceiling hanging the Patio Heater must be
able to take a weight 3 or 4 times that of the Patio Heater
itself.
D. Place the HookA around the Ceiling Hook and clip on any
Ring of the Chain to adjust the height of the Patio Heater to
the Floor.
E. The distance between the bottom of the Patio Heater to the
OPERATINGINSTRUCTIONS
WANRING: The heater must be properly installed before it is used

5
This unit is equipped with one heat setting On I Off.
A. Plug the Patio Heater into a grounded 220-240V 50-60Hz
power outlet.
B. Only operate the heater when it is in the upright position.
C. Our Electric Patio Heater is equipped with Three heat
settings.
D. The ON-OFF switch on the heater is used to control the power
of the heater.
E. Press on the On/Off switch to activate the heater.
F. To operate the heater on 1000 W,press on the left or right
side button of the remote control.
G. To operate the LED light, press the top button of the remote
control.
MAINTENANCE
Unplug the unit and let it cool completely.
To keep the heater clean, the outer shell may be cleaned with a
soft, damp cloth. You may use a mild detergent if necessary. After
cleaning, dry the unit with a soft cloth.
DO NOT use alcohol, gasoline, abrasive powders, furniture polish,
or rough brushes to clean the heater. This may cause damage or
deterioration to the surface of the heater.
Although this heater is outdoor approved, DO NOT immerse the
heater in water for your safety. Wait until the unit is completely dry
before use.
STORAGE
If the heater will not be used for a long period of time, store it in a cool,
dry location when not in use. To prevent dust and dirt build-up, use
the original packaging to repack the unit.
TROUBLESHOOTING
If the heater will not operate, please check the following before
seeking repair of service:
Check if the power cord is plugged into an electrical outlet, if not
plug in.
Check if electricity to the main fuse is working.
Make certain the power switches are turned on. If not, choose a
setting.
Technicalspecification
•Model:VITG007
•Power supply 220-240V 50-60Hz
•Wattage max 2000w
•Net weight 3 kg
•Insulation class I
•Height 30cm

6
RECYCLING
Electrical and electronic equipment waste (WEEE) might contain
dangerous materials which can have a negative impact on the
environment and human health if not collected separately.
This item is in conformity with the European Directive EU WEEE
(2012/19/EU) and is marked with an electronic and electrical
waste logo graphically represented in the image below.
This icon shows that WEEE should not be collected with
household waste but separately.
We recommend you to consider the following:
- Materials and components used when manufacturing this
item are high quality materials which can be reused and recycled;
- Do not throw away the item with household waste at the
end of life;
-Take the item to a collecting point where it will be collected
for free;
-Please contact the local authorities for details on the
collecting centers.
Conformity with the RoHS Directive: the item you purchased is in
conformity with the EU Directive RoHS (2011/65/UE). It does not
contain materials listed as harmful or prohibited in the Directive.
Thank you for helping us protect the environment and our health!
Manufactured for
Network One Distribution
Marcel Iancu St., no. 3-5, Bucharest, 020757
2017
