Henny Penny auto lift open fryers
offer high-volume, integral multi-well
frying with auto lift capabilities. Auto
lift open fryers automatically raise
loads out of the fry pot when cooking
program is complete. This feature
promotes perfect results without
constant monitoring and can
significantly increase productivity in
lightly staffed operations.
The quiet, dependable auto lift
mechanism is designed into the high-
quality, high-efficiency Henny Penny
320 Series open fryer without adding
one square inch to the footprint.
Henny Penny’s unique high-
efficiency heat-exchange design
produces extremely fast temperature
recovery—typically in seconds—
while requiring less than 2kW per
gallon of shortening. Fast recovery
speeds up production, saves energy,
and preserves frying oil quality by

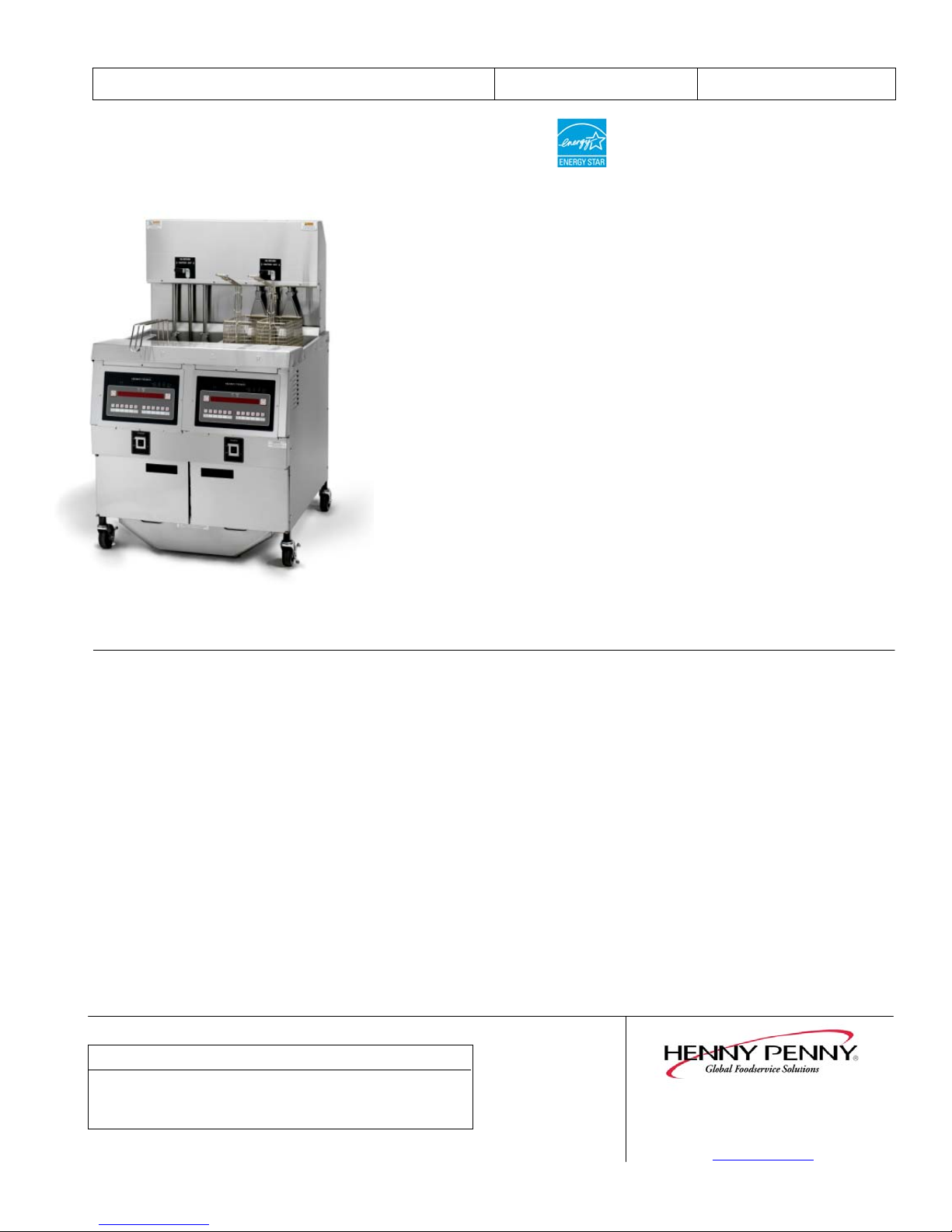

Two-well auto lift open fryer,
model OEA-322
Henny Penny Corporation
PO Box 60 Eaton OH 45320 USA
+1 937 456.8400 800 417.8417
+1 937 456.8434 Fax [phone] Fax
www.hennypenny.com
Auto lift open fryers
Standard Features
•Stainless steel construction for
easy-cleaning and long life.
•2 heavy-duty stainless steel
rectangular fry pots with 7 year
warranty.
•Computron®8000 control with 10
programmable cook cycles for
each well, melt mode, load
compensation, proportional control,
idle mode, optional filter prompt
and customizable filter tracking,
clean-out mode.
•Each well can be programmed to
operate half baskets independently
or together at the touch of a button.
•16-character digital display with
multiple language settings.
•Fry pot protection system.
•Built-in filtration with stainless steel
Max filtering screen and filter
envelope.
•Rugged direct drive lift mechanism
powered by quiet, low-voltage
motor.
•Motor and drive built into existing
cabinet—footprint is NOT
increased.
•Easy basket set and release.
•Specially designed cold zone
prevents scorching.
•Four heavy-duty casters, two
locking.
Accessories shipped with unit
•Fry baskets—please select one
(2) full baskets
(1) full and (2) half baskets
(4) half baskets
•(2) basket supports
•Max shortening filtration system
and (2) PHT filter envelopes.
Accessories and options available
separately
Shortening shuttle
Filter rinse hose
Fry well covers
APPROVED APPROVED AS NOTED RESUBMIT
AUTHORIZED SIGNATURE DATE
reducing temperature fluctuations.
Built-in filtration system filters hot
frying oil in under 4 minutes, with no
separate pumps or pans required. Hot
filtered oil returns directly to each well.
Quick, easy and frequent filtering
extends shortening life and can result
in significant savings in time and
direct shortening costs.
The OEA/OGA-322 auto lift open
fryer features two integral fry wells
with two lifters at each well for full or
half-basket loads. Henny Penny’s
heavy-duty stainless steel rectangular
fry pots promote fast even cooking
and come with a 7-year warranty—the
best in the business.
The standard Computron®8000
controller provides fully automatic,
programmable operation, as well as
energy-saving, filtration and load
management features.

© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 11/01/07
Laboratory certifications
Continuing product improvement may subject specifications to change without notice.
PROJECT ITEM NO
www.hennypenny.com
Bidding Specifications
•Provide Henny Penny model OEA-322 two-
well electric open fryer or model OGA-322
two-well gas open fryer, 30 lbs. (13.6 kg)
capacity per load, with auto-lift feature,
Computron®8000 control, and built-in
filtration system standard.
•Materials—cabinet, deck, exhaust stack,
filter drain pan and various fittings are
stainless steel. Fry pots are heavy duty
stainless steel.
•Units shall incorporate high-efficiency heat-
exchange design for extremely fast recovery.
•Units qualify for the ENERGY STAR®mark.
•Heating elements encircle the fry pot part-
way up the side, and are not located at the
bottom or below the pot. This design
produces a “cold zone” that extends oil life.
•Units shall have two auto lift mechanisms
and timers per well.
•Unit’s controller provides for programmable
or manual operation with press-key controls
and LED digital display. Control offers idle and
melt modes, load compensation, filtration
tracking and 7-day history.
•Units will include four heavy-duty casters, two
locking.
•Units ship with stainless steel Max filtration
screen and 2 PHT filter envelopes, (2) full
baskets, (1) full and (2) half baskets, or (4) half
baskets.
FRONT
MODEL OEA-322 2-well electric
OGA-322 2-well gas
Auto lift open fryers
Capacity
Product 30 lbs. (13.6 kg)
Oil 130 lbs. (59 kg)
Fryer throughput: fries/hr.
Electric 126 lbs. (57.2 kg)
Gas 144 lbs. (65.4 kg)
Electrical
33 3/8 in. (847 mm)
37 3/8 in. (949 mm)
54 5/8 in.
(1387 mm)
Height includes
casters
Dimensions
Width 33 3/8 in. (847 mm)
Depth 37 3/8 in. (949 mm)
Height 54 5/8 in. (1387 mm)
Required clearances
Sides: 6 in. (152 mm) air flow
Back: 6 in. (152 mm) air flow, connections
Front: 30 in. (762 mm) filter pan removal
Crated dimensions
Length 40 in. (1016 mm)
Depth 39 in. (991 mm)
Height 65 in. (1651 mm)
Volume 58.7 cu. ft. (1.66 m³)
Net weight N/A
Crated weight
Electric 469 lbs. (213 kg)
Gas 529 lbs. (240 kg)
Heating
Electric Immersed elements, 28.8 kW
Gas
Natural or liquid petroleum (4) burners,170,000 BTU/hr (50 kW)
(1) ¾ in. connection
Watts Amps
Volts Phase Cycle/Hz
Per well Total Per well Total
Wire
208 3 60 14400 28800 39.9 79.8 3+G
240 3 60 14400 28800 37.2 74.4 3+G
480 3 60 14400 28800 17.5 35.0 3+G
Two electrical connections required, one for each well. Power cord and plug must be
installed on site by a qualified electrician.
Gas models
120 1 60 N/A 12.0 24.0 2+G
230 1 50 N/A 2.5 5.0 1NG
PLAN
Electric units:
(2) electrical connections,
one per well
Gas units:
(1) ¾ in. gas connection
