General Information
Henny Penny open fryers offer high-
volume frying with programmable
operation, oil management functions
and fast, easy filtration.
The OFE-323 open fryer is available
in full vat and split vat configurations.
The split vat choice in a multi-well
fryer gives you the flexibility to fry
smaller batches of different products
in completely separate environments
at the same time—a great way to
multiply your profits with one fryer.
Henny Penny 320 series open
fryers recover temperature very
quickly and have earned the
ENERGY STAR®mark for energy
efficiency. Fast recovery translates
into higher throughput, lower energy
costs and longer frying oil life.
A built-in filtration system filters and

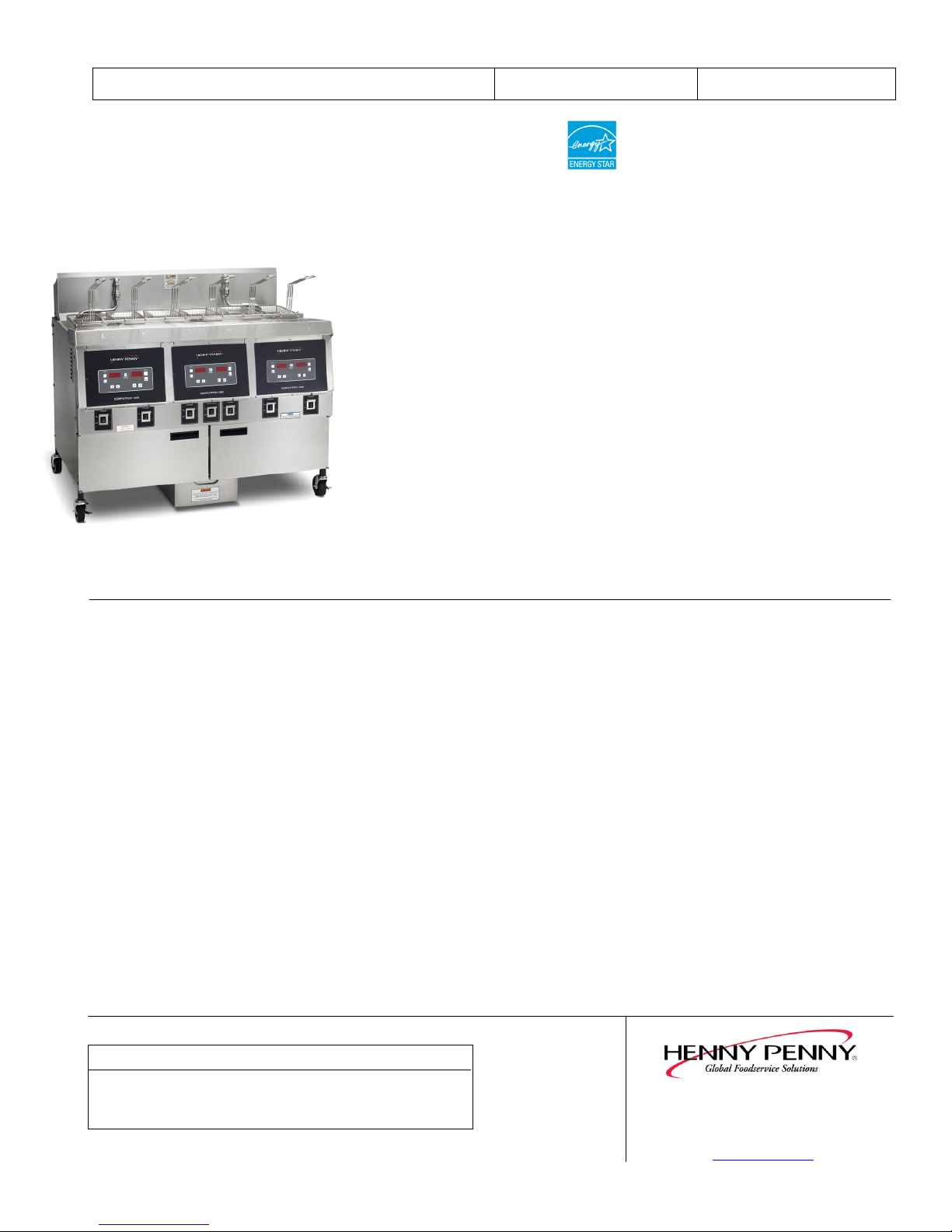

Three-well split vat open fryer model
OFE-323 with COMPUTRON™ 1000
control
Henny Penny Corporation
PO Box 60 Eaton OH 45320 USA
+1 937 456.8400 800 417.8417
+1 937 456.8434 Fax [phone] Fax
www.hennypenny.com
APPROVED APPROVED AS NOTED RESUBMIT
AUTHORIZED SIGNATURE DATE
returns hot frying oil in less than four
minutes, with no separate pumps or
pans required. Frequent filtering
extends frying oil life, improves
product quality and reduces oil costs.
The OFE-323 electric open fryer
features Henny Penny’s heavy-duty
stainless steel rectangular fry pot that
promotes fast even cooking and
comes with a 7-year warranty.
The COMPUTRON™8000 control
provides fully automatic,
programmable operation, as well as
energy-saving, filtration and cook
management features.
The COMPUTRON™1000 control
offers programmability in a simple,
easy to use digital control panel with
LED display.
Open fryers
MODEL OFE-323 3-well electric
Standard Features
•Stainless steel construction for
easy-cleaning and long life.
•3 heavy-duty stainless steel
rectangular fry pots with 7-year
warranty.
•COMPUTRON™8000 control
(additional charge.)
12 programmable cook cycles
Melt mode
Idle mode
Load compensation
Proportional control
Optional filter prompt and
customizable filter tracking
Clean-out mode.
16-character digital display with
multiple language settings.
•Split vat model available.
Left well: full split
Middle well: full split
Right well: full split
•COMPUTRON™1000 simple digital
control
▪Programmable
▪LED Time/Temp display
▪Simple UP/DOWN arrows
•Built-in filtration (additional charge.)
Single well/sequential filter pan
Three-well filter pan
•Easy basket set and release.
•Specially designed cold zone
prevents scorching.
•4 heavy-duty casters, two locking.
Accessories shipped with unit
•Fry baskets—please select one
3 full baskets
2 full and 2 half baskets
1 full and 4 half baskets
6 half baskets
•1 basket support for each vat
Options available separately
Direct Connect shortening disposal
(filtration equipped units, only)
Shortening shuttle
Filter rinse hose
Fry well cover

Capacity
Vat Product Oil
Per full 12.5 lbs. (5.7 kg) 65 lbs. (30.3 l)
Total (3) 37.5 lbs. (17 kg) 195 lbs. (90.9 l)
Per split 6.25 lbs. (2.8 kg) 25 lbs. (11.7 l)
Total (6) 37.5 lbs. (17 kg) 150 lbs. (69.9 l)
Totals will vary with combinations of full and split vats
Electrical
Dimensions
Width 49 3/8 in. (1254 mm)
Depth 37 3/8 in. (949 mm)
Height 44 in. (1118 mm)
Required clearances
Sides: 6 in. (152 mm) air flow
Back: 6 in. (152 mm) air flow, connections
Front: 30 in. (762 mm) filter pan removal
Crated dimensions
Length 55 in. (1397 mm)
Depth 39 in. (991 mm)
Height 54 in. (1372 mm)
Volume 67.0 cu. ft. (1.90 m³)
Net weight N/A
Crated weight: 523 lbs. (237 kg)
Heating
Immersed elements, maximum output: 43.2 kW
Laboratory certifications
49 3/8 in. (1254 mm)
37 3/8 in. (949 mm)
44 in. (1118 mm)
Height includes
casters
PLAN
3 electrical connections, one per well
FRONT
PROJECT ITEM NO
MODEL OFE-323 3-well electric
Open fryers
© 2008 Henny Penny Corporation, Eaton, OH 45320 USA 09/10/08
Continuing product improvement may subject specifications to change without notice.
www.hennypenny.com
Bidding Specifications
•Provide Henny Penny model OFE-323
three-well electric open fryer, 37.5 lbs. (17
kg) capacity per load and available built-in
filtration system (additional charge.)
•Units can be ordered in any combination of
full or split vats.
•Units shall incorporate either
COMPUTRON™1000 simple digital controls
or COMPUTRON™ 8000 control system
(additional charge.)
•Units qualify for the ENERGY STAR®mark.
•Materials—cabinet, deck, exhaust stack,
filter drain pan and various fittings are
stainless steel. Fry pots are heavy duty
stainless steel.
•Immersed fixed heating elements provide for
a “cold zone” that extends oil life.
•Unit’s controller provides for programmable
or manual operation with press-key controls
and LED digital display. COMPUTRON™
8000 control offers idle and melt modes,
load compensation, filtration tracking and 7-
day history.
•
Units will include four heavy-duty casters, two
locking.
•Units can be ordered with three-well or single
well/sequential filter pan.
•Units with filtration system ship with stainless
steel Max filtration screen and 2 PHT filter
envelopes. All units ship with choice of 3 full
baskets, 2 full and 1 half baskets, 1 full and 2
half baskets, or 6 half baskets.
Well Volts Phase Cycle/Hz Watts
(per well)
Amps
(per well) Wire
208 3 60 14400 39.9 3+G
240 3 60 14400 37.2 3+G
400 3 50-60 14400 20.9 3NG
Full
vat
480 3 60 14400 17.5 3+G
208 3 60 14000 38.9 3+G
240 3 60 14000 33.7 3+G
Split
vat 400 3 50-60 14000 20.4 3NG
NOTE: All watts and amps listed are per well. OFE-323 has three wells and requires
three electrical connections, one for each well. Power cord and plug must be
installed on site by a qualified electrician.
