SECTION 3. PARTS INFORMATION
3-1. INTRODUCTION This section list the replaceable parts of the Henny Penny
OFE/OFG- 32X Open Fryers.
3-2. GENUINE PARTS Use only genuine Henny Penny parts in your fryer. Using a part of
lesser quality or substitute design may result in damage to the unit
or personal injury.
3-3. WHEN ORDERING
PARTS Once the parts that you want to order have been found in the parts
list; write down the following information:
Item number 3
Part number 60783 example:
Description Vacuum Switch
From the data plate, list the following information:
Product number OFG341.0
Serial number 0001 example:
Voltage 120
3-4 PRICES Your distributor has a price parts list and will be glad to inform
you of the cost of your parts order.
3-5 DELIVERY Commonly replaced items are stocked by your distributor and will
be sent to you when your order is received. Other parts will be
ordered, by your distributor, from Henny Penny Corporation.
Normally, these will be sent to your distributor within three
working days.
3.6 WARRANTY All replacement parts (except lamps and fuses) are warranted for
90 days against manufacturing defects and workmanship. If
damage occurs during shipping, notify the carrier at once so that
a claim may be properly filed. Refer to warranty in the front of this
manual for other rights and limitations.
3.7 RECOMMENDED Recommended replacement parts, stocked by your distributor, are
SPARE PARTS FOR indicated with in the parts lists. Please use care when ordering
DISTRIBUTORS recommended parts, because all voltages and variations are
marked. Distributors should order parts based upon common
voltages and equipment sold in their territory.
106 3-1

Model OFE/OFG/OEA/OGA-341, 342

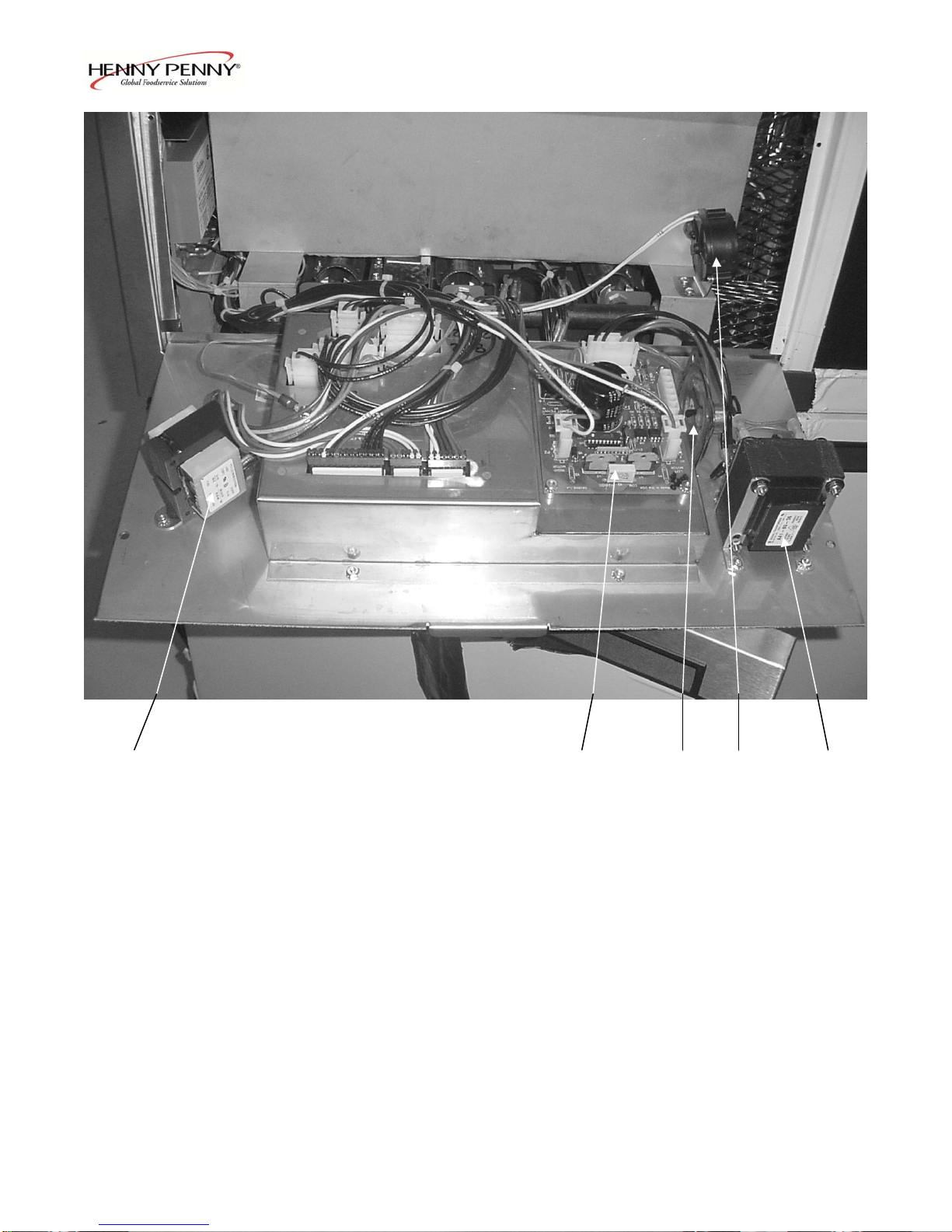

1 2 3 4 5
Item No. Part No. Description Qty. per Well
1 60207 Transformer – 120-24V 1
1 60536 Transformer – 230-24V 1
2 50290 Autolift PC Board 1
3 54561 Speaker Assy. 1
4 72514 Vacuum Switch (Gas Only) 1
5 TS22-012 Transformer-Autolift 1
recommended parts
3-2 807

Model OFE/OFG/OEA/OGA-341, 342

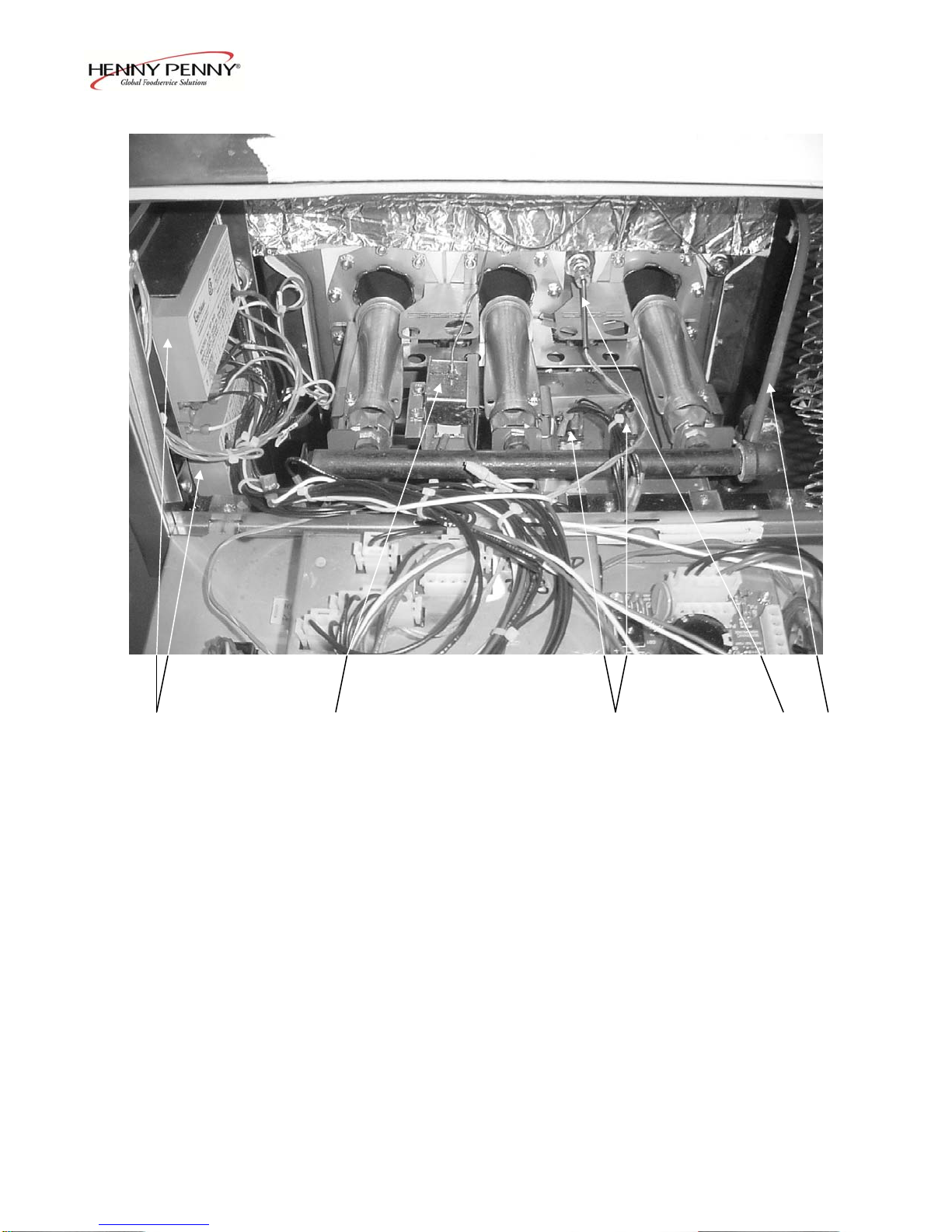

Gas Components
1 2 3 4 5
Item No. Part No. Description Qty. per Well
1 77602
Ignition Module – CE (OFG-SN: BR0804001 & Above) 2
(OGA-SN: BS0805001 & Above)
1 77839 Ignition Module – Non -CE 2
(OFG-SN: BR0804001 & Above)
(OGA-SN: BS0805001 & Above)
1 14933 Kit - Ignition Module – Non-CE 1
(OFG-SN: BR0803010 & Below)
(OGA-SN: BS0804002 & Below)
1 14920 Kit - Ignition Module – CE 1
(OFG-SN: BR0803010 & Below)
(OGA-SN: BS0804002 & Below)
2 60241 High Limit 1
3 60818 Relay – 10A-24V 2
4 14849 Temperature Probe Assy. 1
5 60202 Vacuum Switch Hose 1
6* 32792 Assy – Gas Line (Flex) – 342 1
recommended parts/*not shown
1109 3-3

Model OFE/OFG/OEA/OGA-341, 342
Gas Burner Assembly

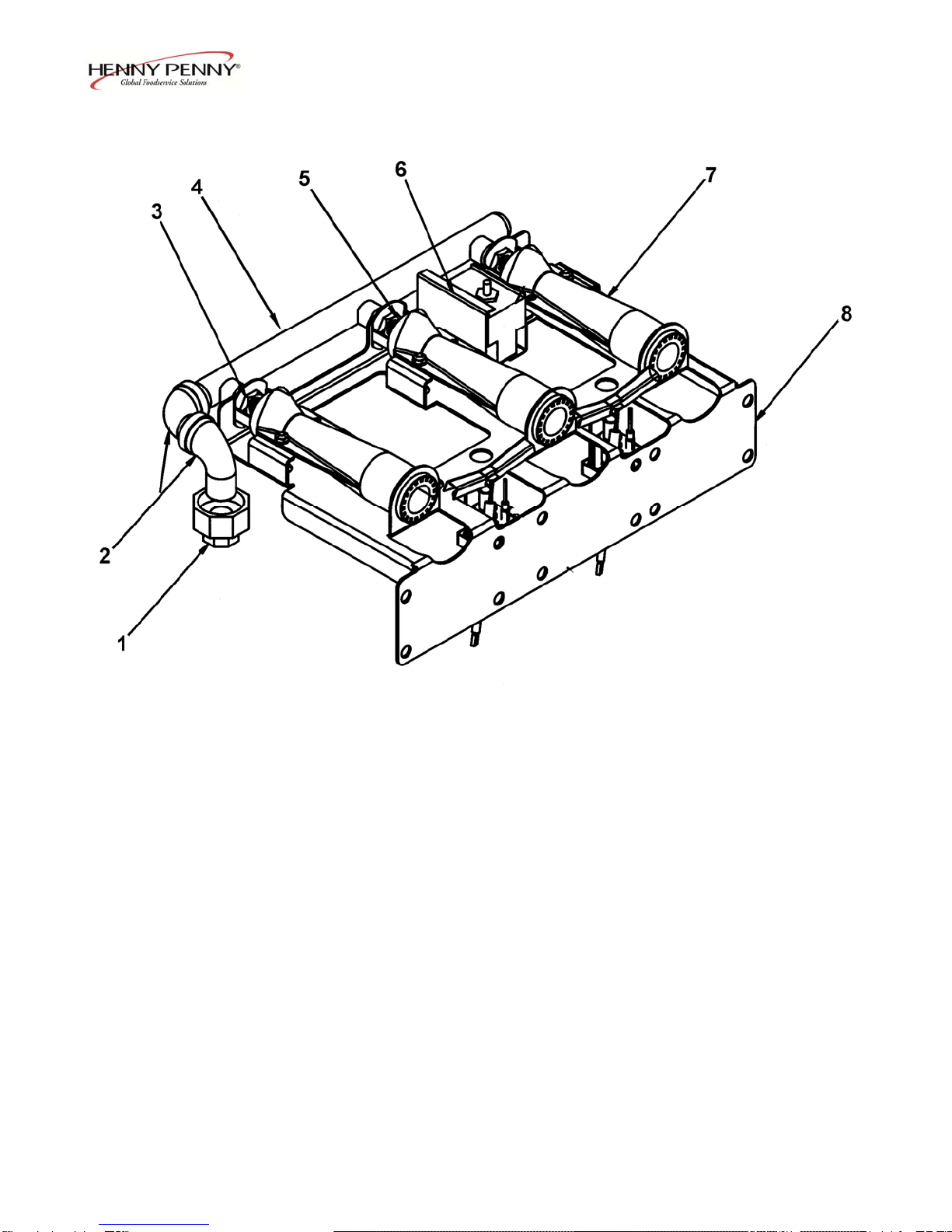

Item No. Part No. Description Qty. per Well
1 FP01-091 Union – ½ NPT Female - BI 1
2 FP01-088 Elbow – Street ½ x 90 BI 2
3 NS03-067 Nut – Locking ½-20 x 3/16 LON 3
4 23389 Weldment - Manifold 1
5 64055-03 Orifices – Burner - LP 3
5 64055-16 Orifices – Burner – Nat. 3
6 21629 Bracket – High Limit Mounting 1
7 60032 Burner – Inshot 3
8 23118 Stud Assy – Burner Bracket – 34X 1
3-4 106

Model OFE/OFG/OEA/OGA-341, 342

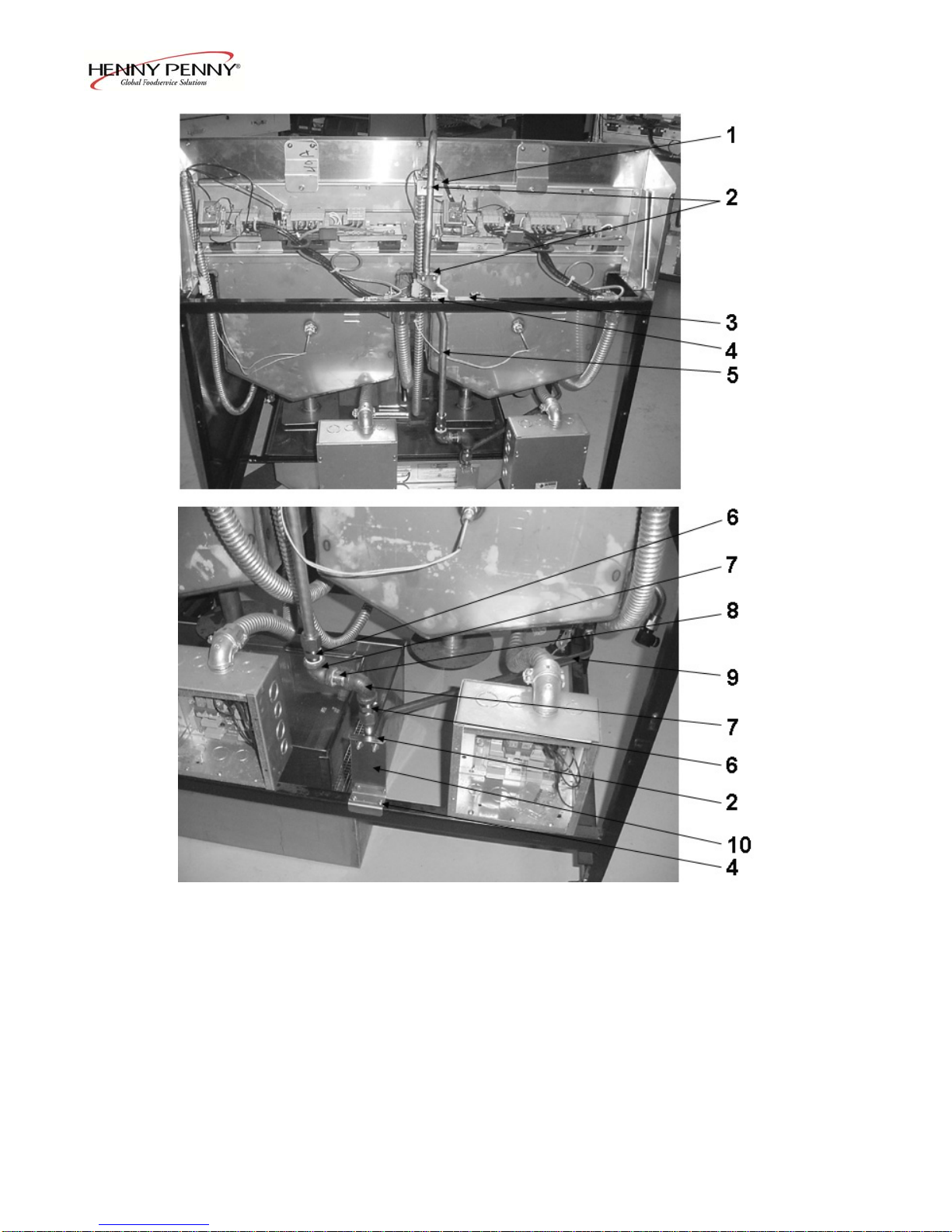

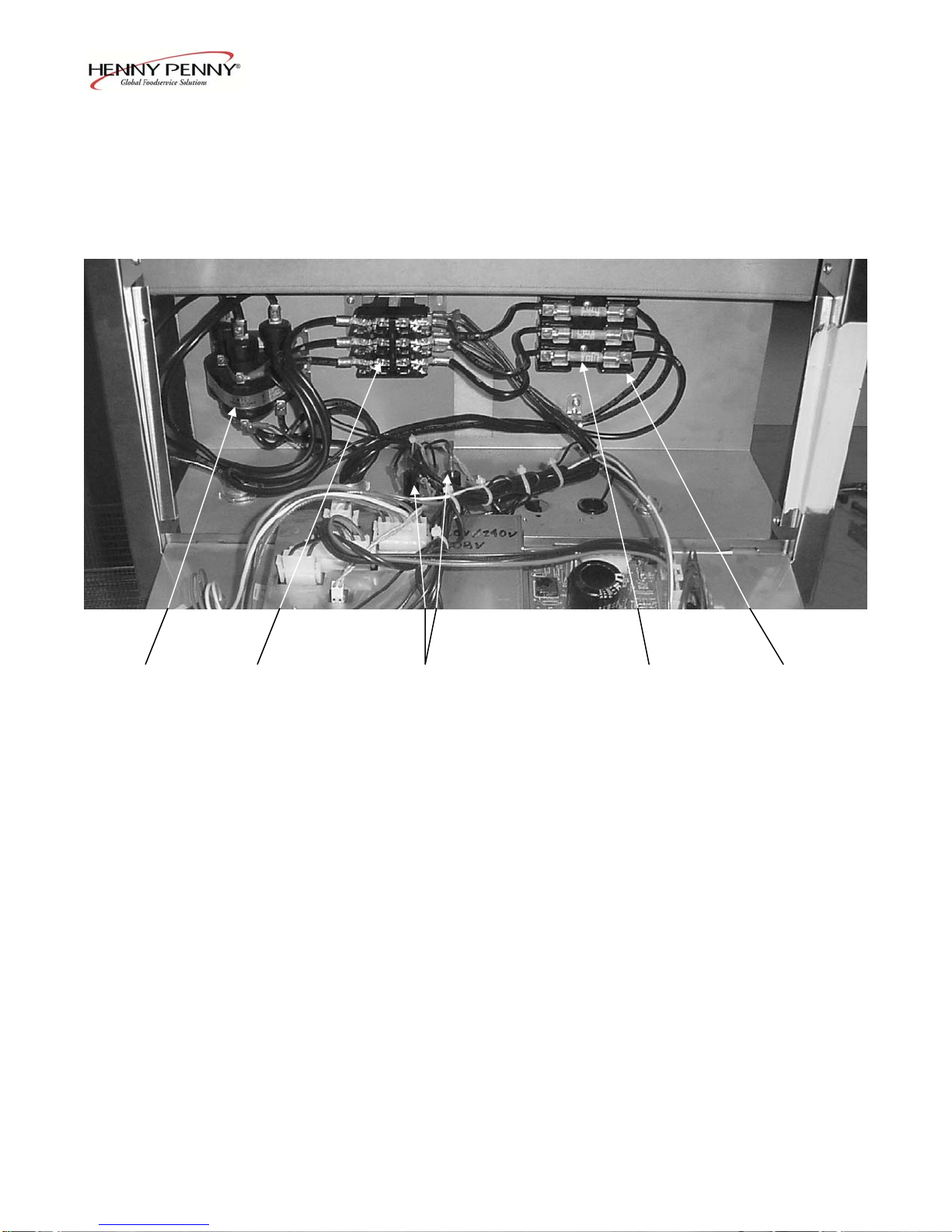

Electric Components
1 2 3 4 5
Item No. Part No. Description Qty. per Well
1 29510 Mercury Contactor – 24V 1
2 51795 Standard Contactor – 24V 1
2 65075 Assy.-240v E/M Heat Contactor-CE-240V (UK) 1
2 65074 Assy.-240v E/M Heat Contactor-CE-230V 1
3 18364 Fuse and Holder Assembly (SN: BC0707002 & below) 2
3 EF02-007 Fuse – 15 Amp 2
3 EF02-006 Fuse Holder – 15 Amp 2
3 EF02-125 Breaker – Push Button Reset (SN: BC0707003 & above)2
3 EF02-105 Fuse – 15 Amp – CE 2
3 EF02-104 Fuse Holder – 20 Amp – CE 2
4 14970 Fuse-Class “G” – 60 Amp (Set of 3) 1
5 60722 Block-Fuse – 60 Amp 1
6* 19923 Transformer – Large – 480V 1(per unit)
7* 60838 Transformer-.05 KVA, 480-240V 1(per 342)
recommended parts/*not shown
707 3-5

Model OFE/OFG/OEA/OGA-341, 342
1 2
Item No. Part No. Description Qty. per Well
1 60367 Guard - High Limit 1
2 14849 Temperature Probe Assembly (Gas units) 1
recommended parts
3-6 806

Model OFE/OFG/OEA/OGA-341, 342
806 3-7

Model OFE/OFG/OEA/OGA-341, 342

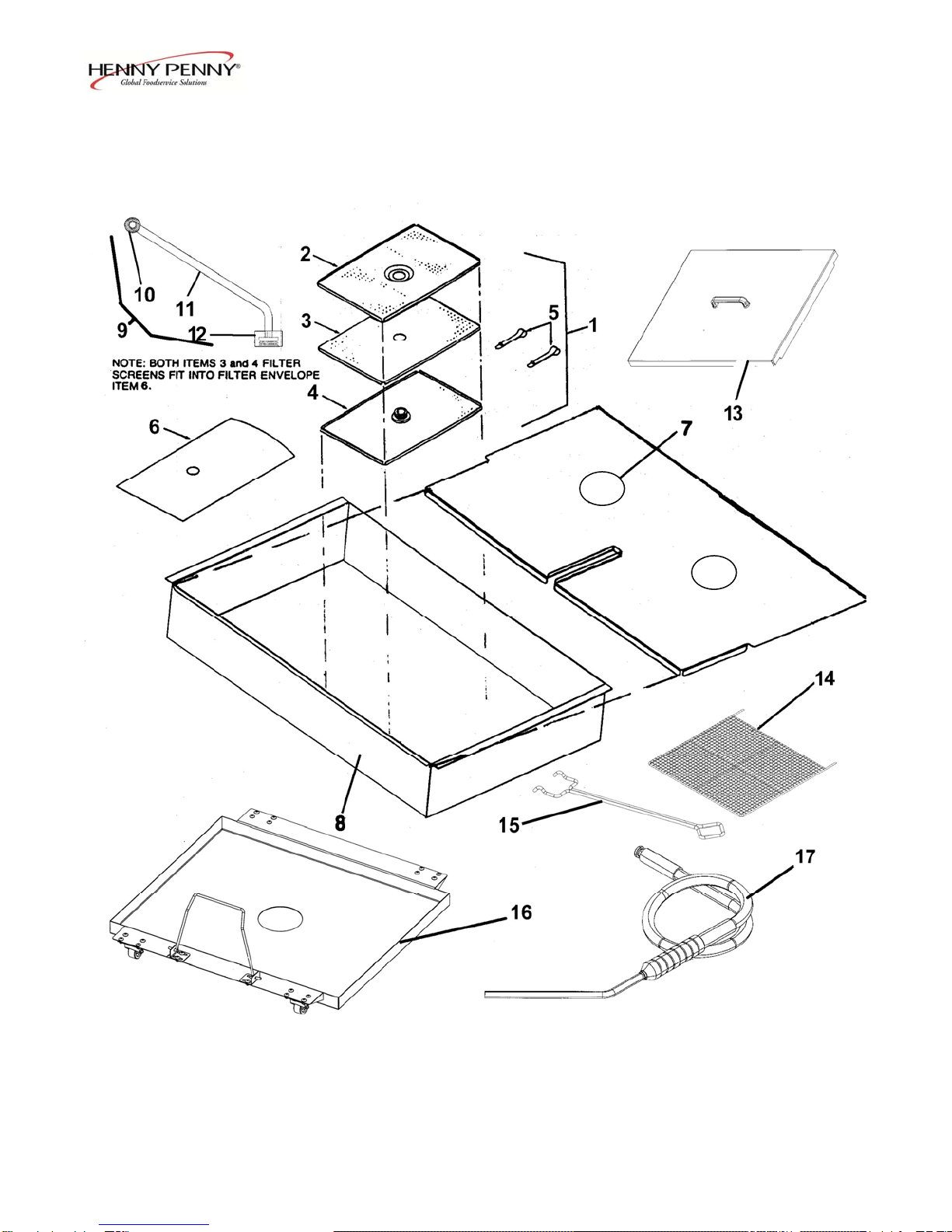

Item No. Part No. Description Qty. per Unit
1 14671 Screen Assembly, Filter 1
2 65211 Crumb Catcher 1
3 use 14671 Top Filter Screen 1
4 use 14671 Bottom Filter Screen - SN: BR0502006 & below) 1
4 65447 Bottom Filter Screen - SN: BR0502007 & above) 1
5 17505 Filter Envelope Clips 2
6 12102 Filter Envelope Paper (100 per Carton) 1
7 24769 Drain Pan Cover - 341-Before Jan. 1, 2006 1
7 70491 Drain Pan Cover - 341-Jan. 1, 2006 & After 1
7 24770 Drain Pan Cover - 342-Before Jan. 1, 2006 1
7 70493 Drain Pan Cover - 342-Jan. 1, 2006 & After 1
7 36223 Cover-Single Capacity Pan-342-Before Jan. 1, 2006 1
7 70587 Cover-Single Capacity Pan-342-Jan. 1, 2006 & After 1
8 24297 Drain Pan/Handle Assy. - 341-Before Jan. 1, 2006 1
8 70378 Drain Pan/Handle Assy. - 341-Jan. 1, 2006 & After 1
8 24298 Drain Pan/Handle Assy. - 342-Before Jan. 1, 2006 1
8 70245 Drain Pan/Handle Assy. - 342-Jan. 1, 2006 & After 1
8 36225 Assy.–342 Single Well Capacity Pan-Before Jan. 1, 2006 1
8 70581 Assy.–342 Single Well Capacity Pan-Jan. 1, 2006 & After 1
9 14656 Kit - Tube - Pick-up - 341-Before Jan. 1, 2006 1
9 14726 Kit-Tube-Pick-up-341-Short-Jan. 1, 2006 & After 1
9 14657 Kit - Tube - Pick-up - 342-Before Jan. 1, 2006 1
9 14727 Kit-Tube-Pick-up-342-Short-Jan. 1, 2006 & After 1
10 use 69289 Union - Female Fitting 1
11 67799 Tube - Pick-up - 341-Before Jan. 1, 2006 1
11 70382 Tube - Pick-up - 341-Short-Jan. 1, 2006 & After 1
11 21044 Tube - Pick-up - 342-Before Jan. 1, 2006 1
11 70384 Tube - Pick-up – 342-Short-Jan. 1, 2006 & After 1
12 65208 Nut - Filter 1
13 74320 Cover - Frypot – Gas & Electric 1(per well)
14 21039 Rack - Electric 1(per well)
14 21040 Rack - Gas 1(per well)
15 32794 Handle – Wire Rack Removal 1
16 03498 Filter Pan Dolly – 341 - Before Jan. 1, 2006 1
16 03551 Filter Pan Dolly – 341-Short - Jan. 1, 2006 & After 1
16 03499 Filter Pan Dolly – 342 - Before Jan. 1, 2006 1
16 03552 Filter Pan Dolly – 342-Short - Jan. 1, 2006 & After 1
17 03003 Assy - Filter Rinse Hose 1
recommended parts
3-8 607

Model OFE/OFG/OEA/OGA-341, 342

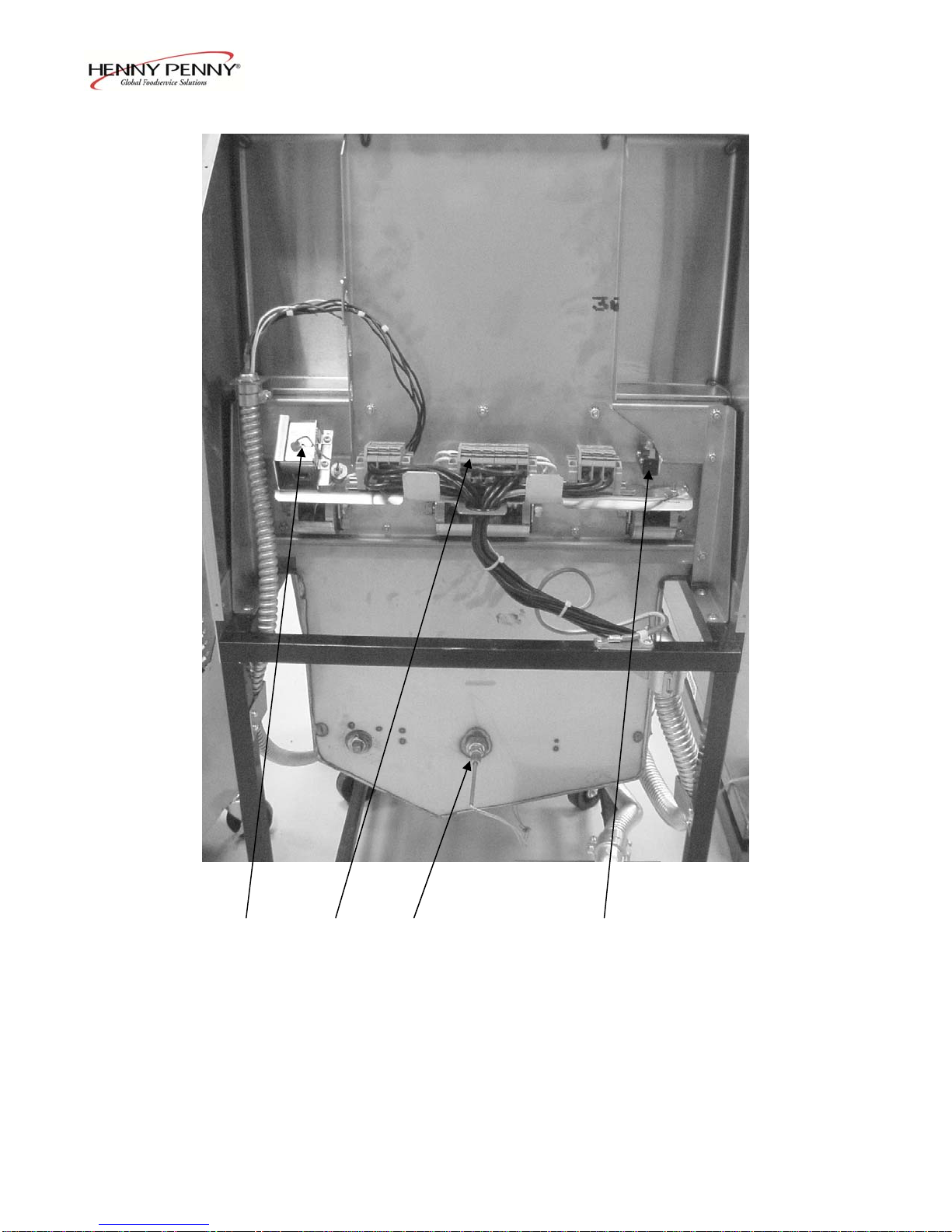

1 2 3 4 5 6 7 8 9 15 10 14 11 12 13

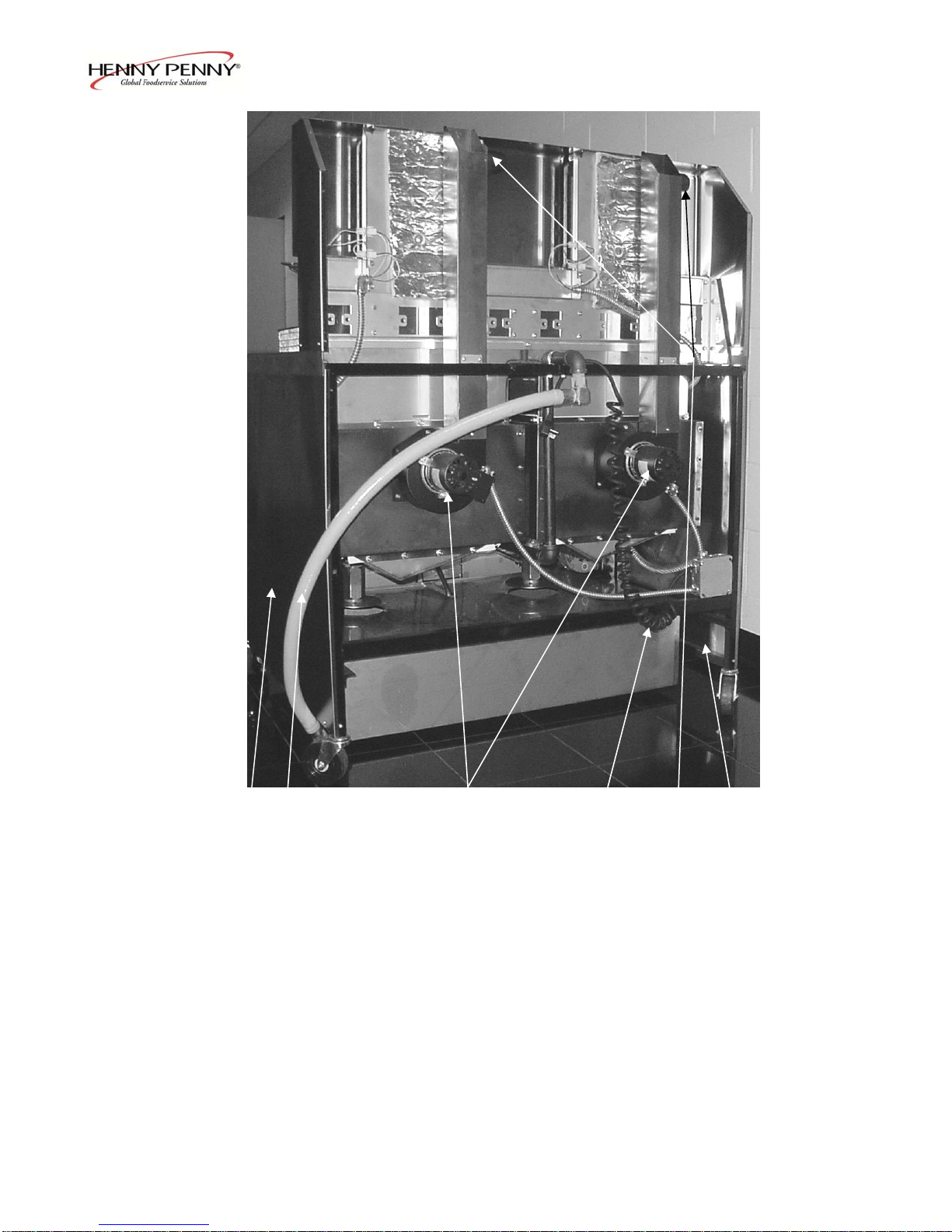

Item No. Part No. Description Qty. per Unit
1 52064 Caster-4 inch – swivel w/brake 2
2 43768 Switch - Power DPST 125-250V (Filter) 1
2 52224 Covered Power Switch - CE 1
3 17334 Quick Disconnect – Male - 341 1
3 17333 Quick Disconnect – Female - 342 1
4 21800 Valve-3/4 inch Check 1
5 67589 Assy. - 5 GPM Pump & Motor - 4/1/06 & After 1
5 69357 Assy. - 8 GPM Pump & Motor - Before 4/1/06 1
5 64218 Filter Pump Assy. – 8 GPM - Before 4/1/06 1
5 17437 Filter Pump Assy. – 5 GPM - 4/1/06 & After 1
6 67583 Filter Pump Motor – ½ hp 1
* 17476 Seal Kit 1
7 21816 Rod - Drain Valve (normally closed) 1
7 66124 Rod - Drain Valve - Elec. (normally open) 1
7 68558 Rod - Drain Valve - Gas (normally open) 1
7 70963 Rod - Drain Valve - Gas (normally open) - CE 1
8 18227 Microswitch – Drain (behind bracket) 1 (per well)
9 60312 Caster-4 inch 2
10 17432(use 69289) Union - Handle Fitting 1
11 55152 Drain Valve and Coupling Assy. 1 (per well)
recommended parts/*not shown (Continued)
607 3-9

Model OFE/OFG/OEA/OGA-341, 342
Item No. Part No. Description Qty. per Unit
12 52129 Gas Valve - 24V - Nat. 1 (per well)
12 60632 Gas Valve - 24V - Nat. - CE 1 (per well)
12 21332 Gas Valve - 24 V - LP 1 (per well)
12 60633 Gas Valve - 24V - LP - CE 1 (per well)
13 23443 Weld Assy. – Drain Extension – Elec. 1 (per well)
13 24420 Weld Assy. – Drain Extension – Gas 1 (per well)
14 17431(use 69289) Union - Male Fitting 1
15 32734 Flexible Hose (before 4-26-04) 1
15 67621 341 Pump Tube (SN: BR0406001 & after) 1
15 67622 342 Pump Tube (SN: BR0405001) 1
15 68378 342 Pump Tube (SN: BS0406002 & after) 1
16* 14416 Kit – Nat. to LP Conversion 1 (per well)
16* 14417 Kit – LP to Nat. Conversion 1 (per well)
recommended parts
*not shown
3-10 707

Model OFE/OFG/OEA/OGA-341, 342

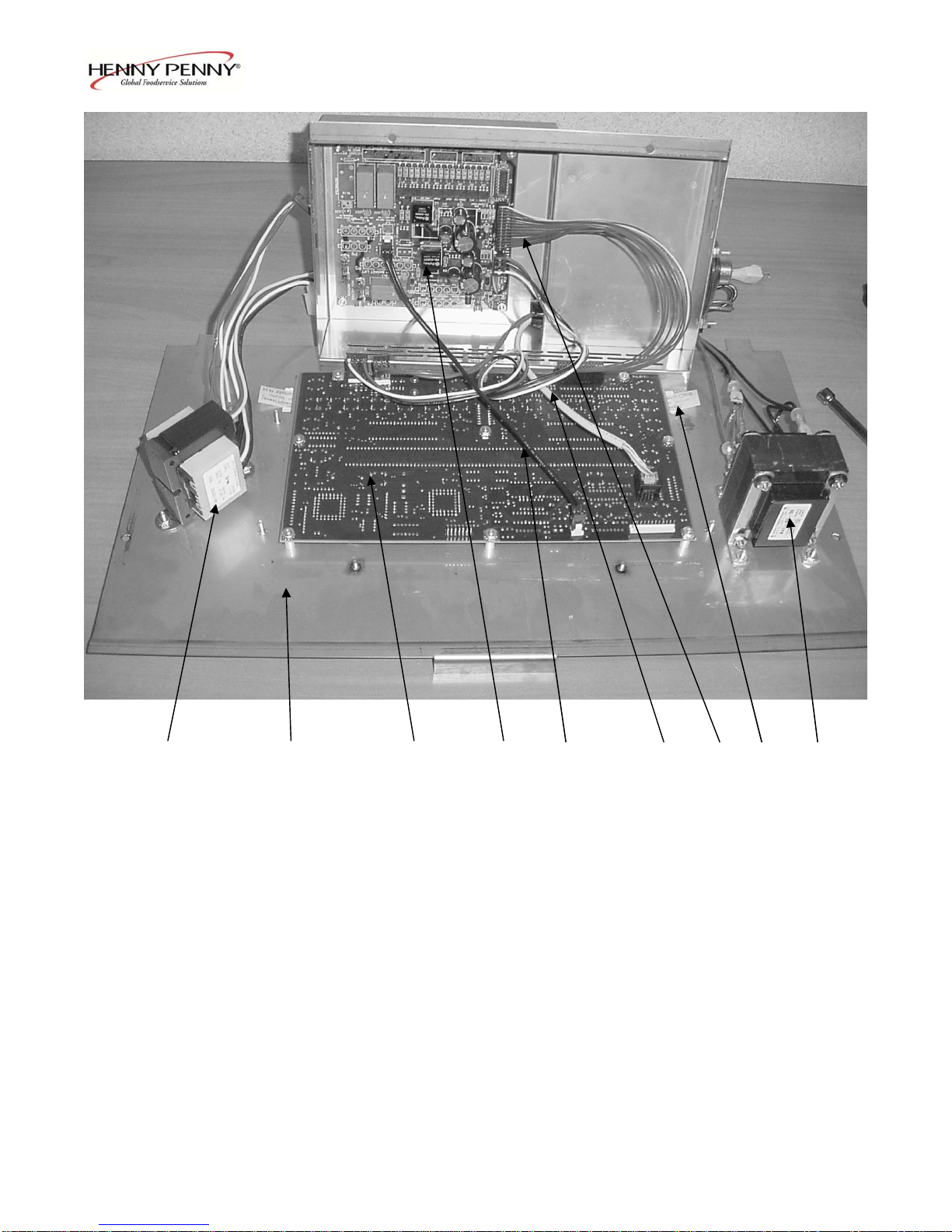

1 2 3 4 5 6 7 8 9
Item No. Part No. Description Qty. per Well
1 60207 Transformer – 120-24V 1
1 60536 Transformer – 230-24V 1
2 14950 C1000 Control Panel Assy 1
2 74127RB Control Panel Assy. less transformers 1
3 71029RB Control Board Assy – China 1
4 58790RB I/O Board w/Power Supply Assy. 1
5 21645 Assy -Wire-Temp Interconnect - 2 pin 1
6 60810 Power Cable - I/O to Control - 4 pin 1
7 21643 Wire Assembly - I/O to Control - 14 pin 1
8 59565 Menu Card 1
9 TS22-012 Transformer-Autolift (when applicable) 1
recommended parts
607 3-11

Model OFE/OFG/OEA/OGA-341, 342
6 1 2 3 4 5
Item No. Part No. Description Qty. per Unit
1 33501 Gas Line – ¾ in. w/Double Swivel – 341 1
1 33167 Gas Line – 1 in. w/Double Swivel – 342 1
2 64197 Blower Motor Assy – 120V 1 (per well)
2 21037 Blower Motor Assy – 220V-50 Hz 1 (per well)
3 33353 120V Coiled Power Cord 1
4 63602 Actuator-Auto-lift (when applicable-Below SN: BS0812001) 2(per well)
4 80091 Actuator-Auto-lift (when applicable-SN: BS0812001 & Above) 2(per well)
5 21006 Panel – Left Side - before 4/27/05 1
5 67854 Panel – Left Side - 4/27/05 to Dec. 31, 2005 1
5 70225 Panel – Left Side - Jan. 1, 2006 & After 1
6 21005 Panel – Right Side - Before Jan. 1, 2006 1
6 70226 Panel – Right Side -Jan. 1, 2006 & After 1
7* 31421 Bearing – Auto-Lift (when applicable) 4(per well)
recommended parts/*not shown
3-12 1209

Model OFE/OFG/OEA/OGA-341, 342
5 6 1 2 3 7 4 10 8 9

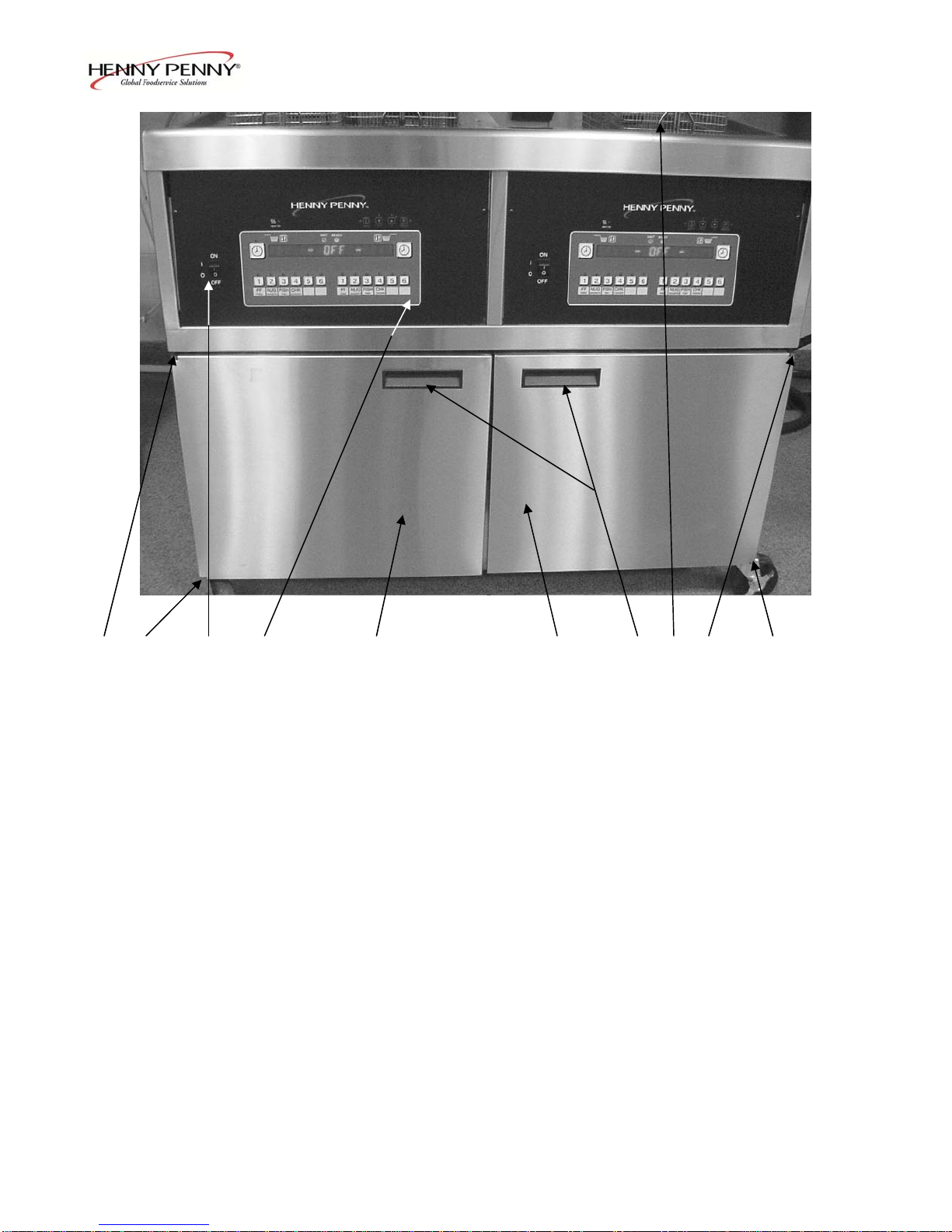

Item No. Part No. Description Qty. per Well
1 43768 Power Switch 1
1 52224 Covered Power Switch - CE 1
2 21687 Decal - Control - 34X 1
3 21008 Door Assembly - 341- Before Jan. 1, 2006 1
3 70207 Door Assembly - 341-Jan. 1, 2006 & After 1
3 21086 Door Assembly - LH - 342 - Before Jan. 1, 2006 1 (per unit)
3 70238 Door Assembly - LH - Jan. 1, 2006 & After 1 (per unit)
4 41836 Pocket Pull 1
5 17618 Hinge Assembly - Top - LH 1
6 21034 Hinge Assembly - Bottom - LH 1
7 21426 Door Assembly - RH - 342 - Before Jan. 1, 2006 1 (per unit)
7 70240 Door Assembly - RH-342-Jan. 1, 2006 & After 1 (per unit)
4 41836 Pocket Pull 1
8 17620 Hinge Assembly - Top - RH 1
9 21433 Hinge Assembly - Bottom - RH 1
10 21036 ½ Size Basket 2
10 21038 1/3 Size Basket 3
10 64211 Full Size Basket 1
10 81584 Basket, 1/2 Size, Reduced Weight 2
11* 23850 Skimmer - Square Mesh 1
12* 14784 Kit – Joining (Non-Auto-Lift fryers only!) 1
recommended parts/*not shown
410 3-13

Model OFE/OFG/OEA/OGA-341, 342

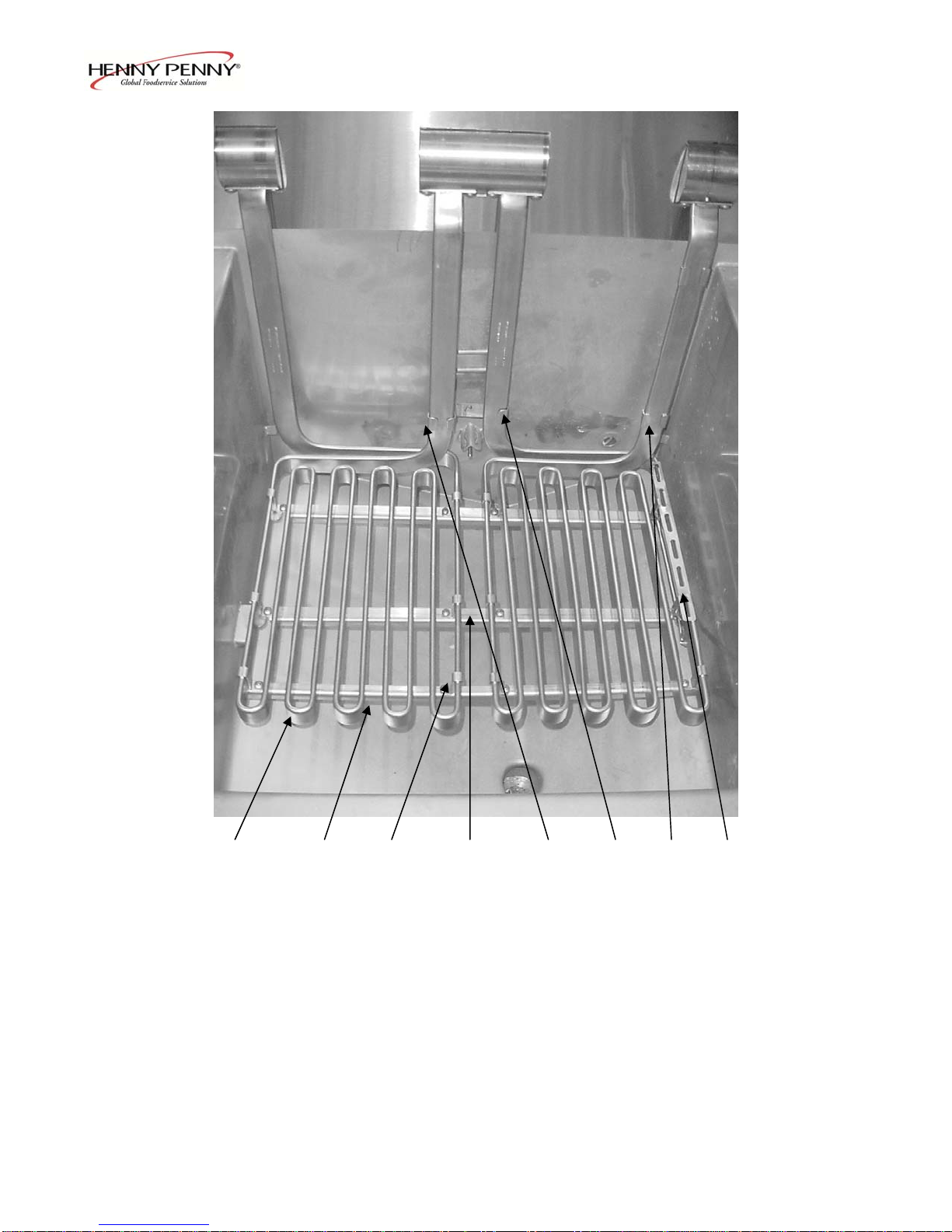

1 2 3 4 5 6 7 8
Item No. Part No. Description Qty. per Well

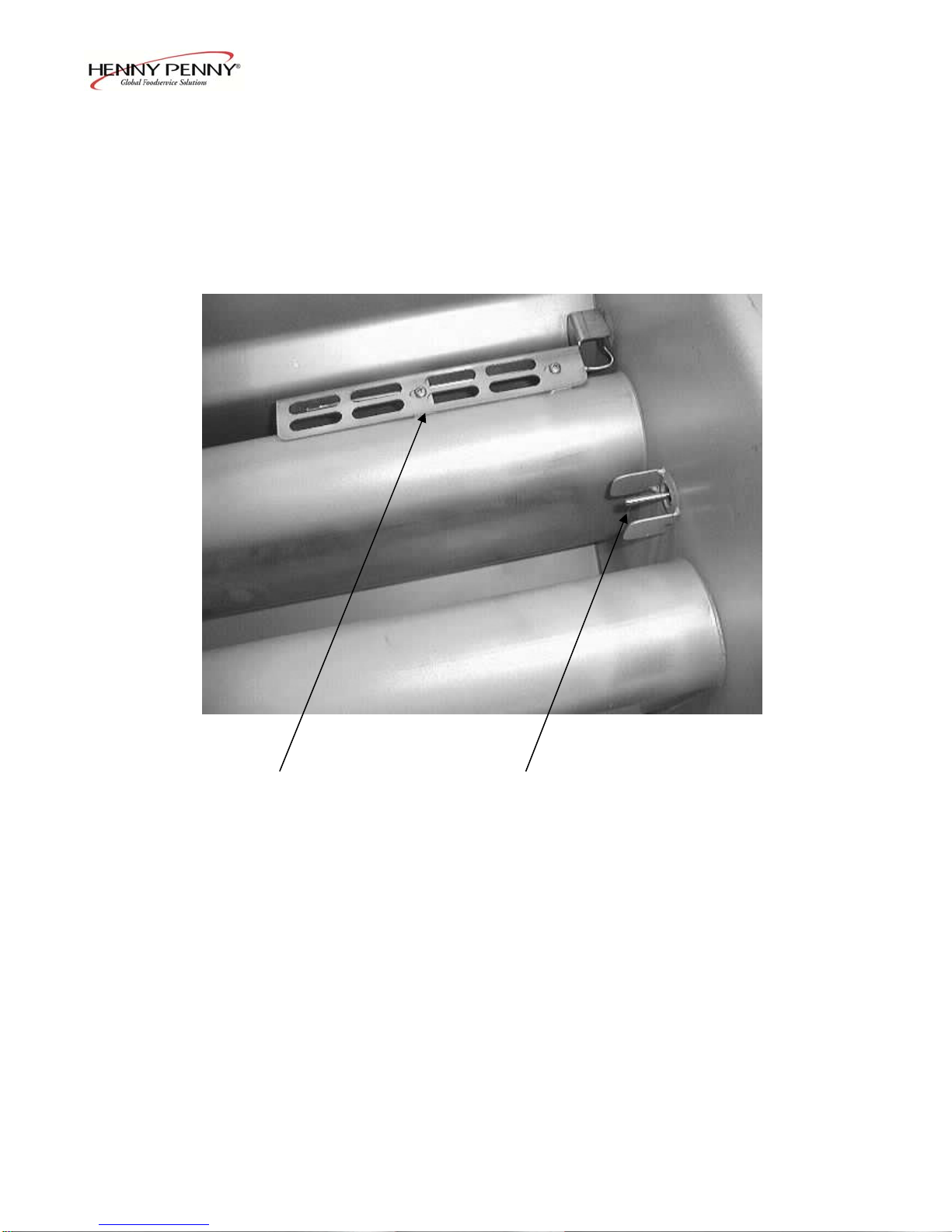

1 64210-01 Element – OFE34X – 208V 2
1 64210-02 Element – OFE34X – 220V 2
1 64210-03 Element – OFE34X – 230V 2
1 64210-04 Element – OFE34X – 240V 2
1 64210-07 Element – OFE34X – 480V 2
2 24194 Spreader - Front - 34X 1
3 21978 Strap - Spreader - 34X 10
4 24176 Weldment - Spreader - 34X 2
5 23929 Strap - Vertical - Rear 1
6 23928 Strap - Brace Vertical - Rear 1
7 23507 Strap - Capillary Tube 2
7 23854 Guard - Position Hi Limit 1
recommended parts
3-14 106

Model OFE/OFG/OEA/OGA-341, 342
1 3 2
Item No. Part No. Description Qty. per Well

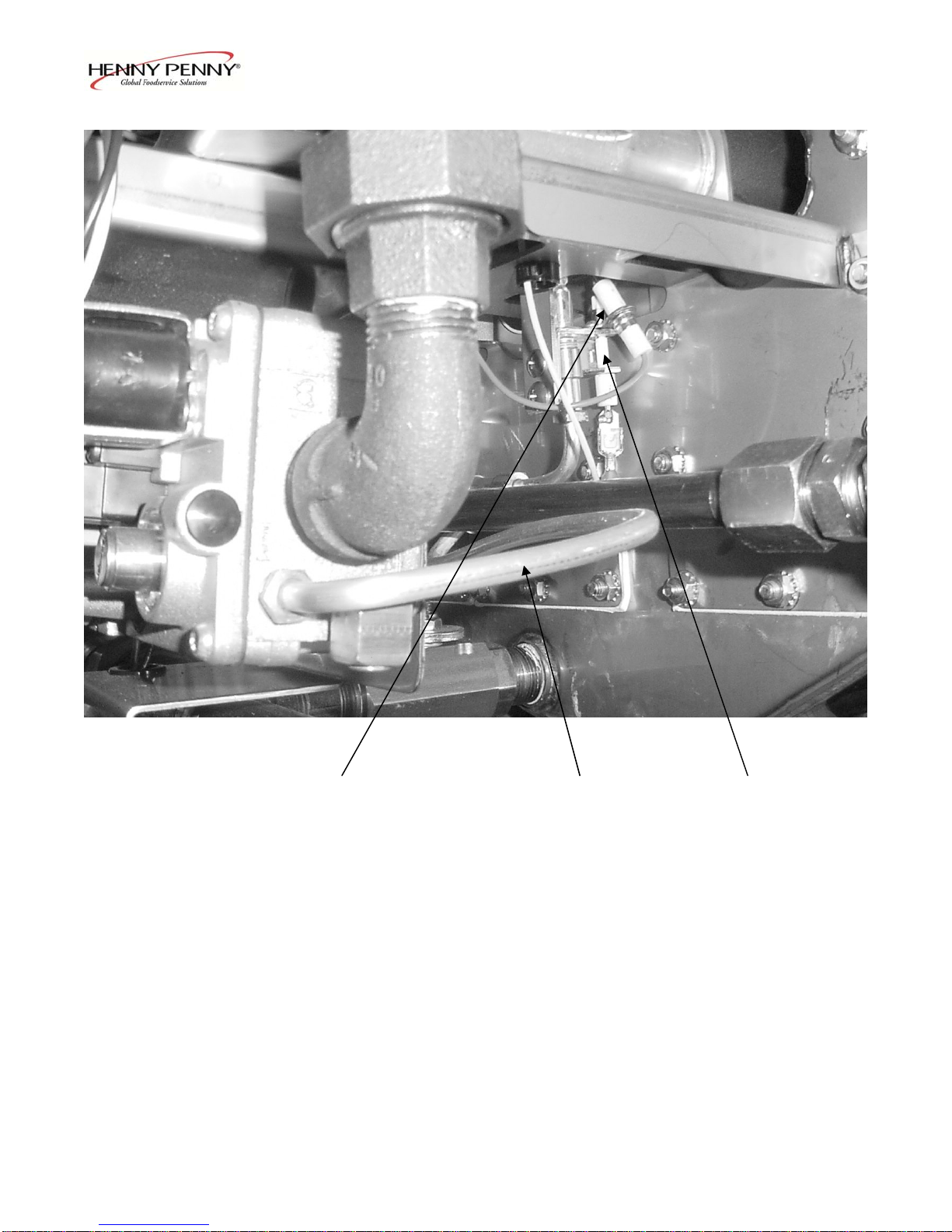

1 60266 Pilot - Tee Style & Ignitor Assy. 1
23735 Orifice – Pilot – Nat. 1
60614 Orifice – Pilot – LP 1
2 60292 Sensor - Flame - Pilot 1
3 21827 Tube – Pilot 1
3 67817 Tube – Pilot – CE 1
recommended parts
106 3-15

Model OFE/OFG/OEA/OGA-341, 342
Electric Components
1 2 3 4
Item No. Part No. Description Qty. per Well
1 60241 High Limit - 425º F 1
2 23823 Assy-Heater Terminal Block 1
3 14973 Temperature Probe Assembly 1
4 18227 Microswitch 1
5* 32497 EMC Filter Board - CE 1
6* 32498 Assy – 4 Inch Terminal Block 1
recommended parts/*not shown
3-16 607

Model OFE/OFG/OEA/OGA-341, 342
Item No. Part No. Description Qty. per Unit
1 16336 Elbow – Male 1
2 FP02-050 Nipple – ½ x 24 LG BI 1
3 FP01-090 Elbow – ½ NPT x 90 Female - BI 4
4 FP02-051 Nipple – ½ x 17 LG BI 1
5 FP02-052 Nipple – ½ x 4 LG BI 1
6 16335 Male Connector – 37 Flare 2
7 FP01-089 Bushing – Reducing – 3/4M to 1/2F BL 2
8 FP01-097 Tee – ¾ NPT – Female Pipe – BI 1
9 FP01-100 Elbow – Street – ¾ NPT BI 1
10 FP02-040 Nipple – ¾ x 24 LG BI 1
11 FP02-032 Nipple – ¾ x 17 LG BI 1
12 FP01-098 Elbow – ¾ NPT x 90 Female - BI 3
13 FP02-023 Pipe – ¾ NPT x 19-1/4 LG BI 1
14 21801 Tube Assy – Valve Inlet – 34X 341- 1 342- 2
15* FP01-200 Fitting – Gas Inlet BSPT 1
*not shown
607 3-17
OFG/OGA-341 OFG/OGA-342

Model OFE/OFG/OEA/OGA-341, 342
Item No. Part No. Description Qty. per Well
1 24809 Hook – Basket Hanger – ½-Size (before 06/01/05) 1
1 70102 Hook – Basket Hanger – ½-Size (06/01/05 & after) 1
2 36030 Bracket – 1/3-Size Basket 1
3 38912 Bracket – 1/2-Size Basket (before 06/01/05) 1
3-18 106

Model OFE/OFG/OEA/OGA-341, 342
OFG/OFE ELECTRO MECHANICAL PARTS LIST
PART NUMBER DESCRIPTION
60816 Adjustable Relay Base
60817 Adjustable Time Delay Relay
60818 24VAC Coil Relay
60765 24V Dual Face Timer
14851 Thermostat Kit
60814 E/M Bulb Mounting Clip (Gas)
35916 Transformer 120V to 24V (Gas)
60536 Transformer 24V/230V (Electric)
60792 Indicator Light – 24 V
51795 24v Mechanical Contactor (Elec. Only)
65098 Assy. - Heat Contactor – 24V - CE
65567 Assy. – Timer Buzzer Coil-24V
36224 Decal – E/M Controls – 34X
607 3-19

Model OFE/OFG/OEA/OGA-341, 342
OVER-THE-TOP PUMBING W/O D.C. PARTS (March 1, 2006 & After)
Item No. Part No. Description Qty.
1 73370 HANGER-ACTUATOR CONDUIT 1
2 SC06-013 U BOLT 1/4-20 FOR 3/4 DIA 3
3 71185 BRACKET-TUBE 1
4 SC03-001 SCREW #10 X 1/2 PH PHD TEK 2 C 4
5 71139 ASSY-TUBE RETURN LINE 1
6 16807 FITTING CONNECTOR MALE 2
7 FP01-090 ELBOW-1/2NPT X 90 FEMALE BI 2
8 FP02-018 NIPPLE-1/2 NPT X 2.00L BI 1
9 71063 ASSY-PUMP RETURN TUBE 1
10 71142 BRACKET-TUBE REAR SUPPORT 1
3-20 806
