Henny Penny Model OE-100
SECTION 2. MAINTENANCE
2-1. INTRODUCTION This section provides procedures for checking and replacement of the
various parts used within the unit. Before replacing any parts, refer to
Section 1, Troubleshooting. It will aid you in determining the cause of a
particular malfunction.
2-2. TEST INSTRUMENTS You may use two test instruments to check the electric compo-
nents.
• A continuity light.
• An ohmmeter.
When the manual refers to the circuit being closed, the continuity
light will be illuminated or the ohmmeter should read zero (0)
unless otherwise noted.
When the manual refers to the circuit being open, the continuity
light will not illuminate or the ohmmeter will read one (1).
NOTE
A continuity light cannot be used to check coils or motors.
2-3. REMOVING THE
CONTROL PANEL

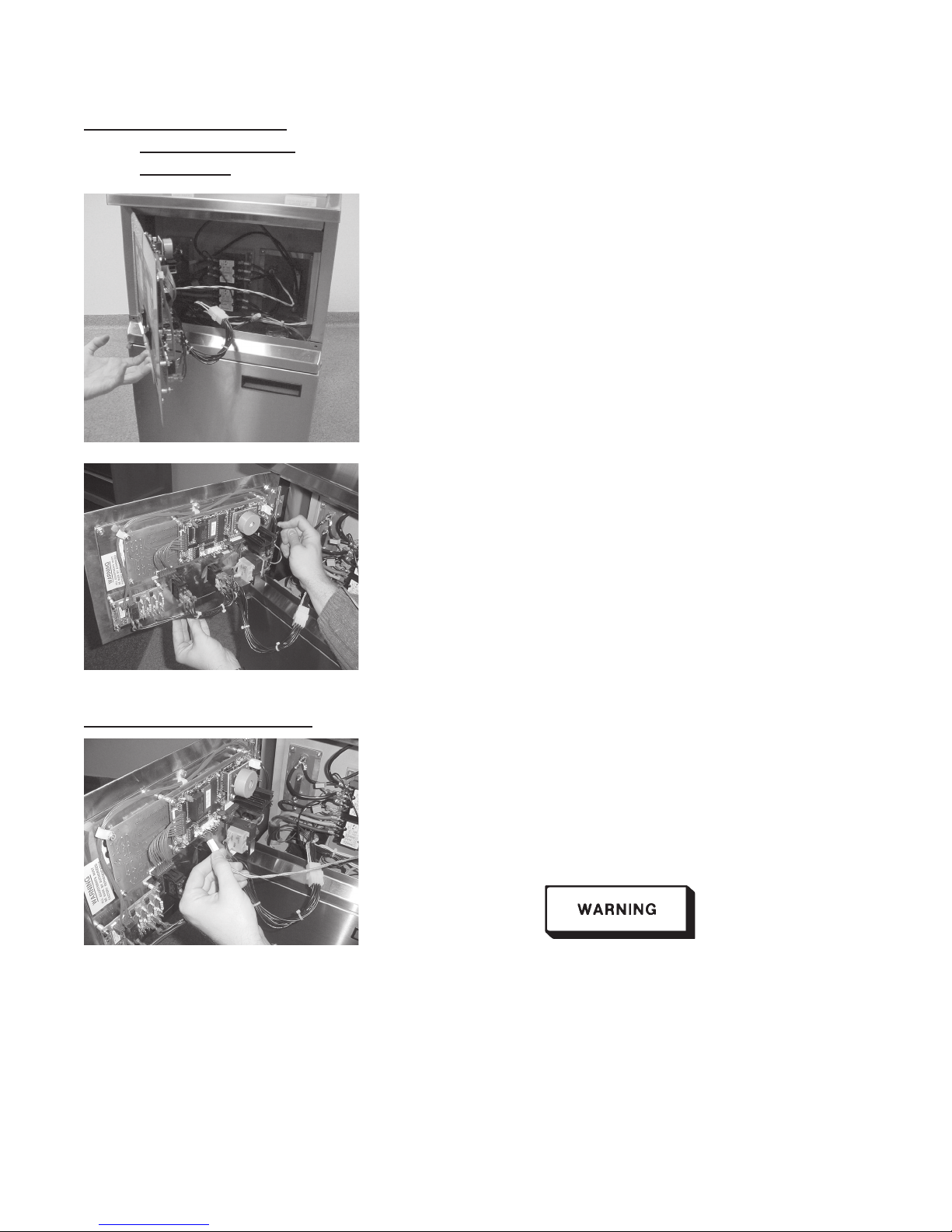

To replace parts located inside the fryer, you will need to remove the
control panel. The following steps provide the correct procedure.
1. Place the power switch in the OFF position.
Disconnect the power cord from the wall receptacle or
power at the fuse or breaker box, or electrical shock could
result.
2. Remove the decorative strip, one located on each side of the
control panel, by removing the screw located on the bottom
of the decorative strip.
593

Henny Penny Model OE-100
2-2
2-4. THERMAL SENSOR The thermal sensor determines the shortening temperature. If a mal-
function does occur, an E6 will be displayed on the digital readout.
Turn unit to OFF position, then back to COOK position. If E6 is still
displayed, the thermal sensor must be replaced by following these
steps:
1. Remove electrical power supplied to fryer.
Place POWER switch in the OFF position and unplug the
power cord or remove power from the fuse or breaker box.
2. Drain the shortening from frypot.
3. Remove two decorative strips located on each side of control
panel and let control panel swing out.
593
2-3. REMOVING THE
CONTROL PANEL
(Continued)
3. Panel will now swing out with hinge located on left side of panel.
4. Pulling down on the spring loaded hinge pin, pull control panel
straight out to completely remove.
NOTE
When completely removing control panel, all wiring must be
unplugged from control panel. Be sure to mark wires before
removing.
5. Install panel board by reversing order.

2-3
Henny Penny Model OE-100
2-5. HIGH TEMPERATURE
LIMIT CONTROL
The high temperature limit control is a manual reset control which
senses the temperature of the shortening. If the shortening temperature
exceeds the safe operating limit, this control will open and shut off the
heat to the frypot.
The high limit light will then illuminate and control must manually be
reset.
Disconnect the two wires from the high limit temperature control.
Check for continuity between the two terminals after resetting the
control. If the circuit is open, replace the control following these
procedures. If the circuit is closed, the high limit is not defective.
Reconnect the two electrical wires.
1091
2-4. THERMAL SENSOR
(Continued)
4. Unplug electrical wires from control panel board that are attached
to thermal sensor.
5. Using a 1/2" wrench, loosen screw nut from pot fitting and pull
thermal sensor bulb straight out from pot fitting.
6. Install new thermal sensor, making sure the thermal sensor ex-
tends through pot wall, up to the outer diameter of the heating
element.
Care must be taken not to extend the thermal sensor
beyond this point or damage of sensor could result. Also,
when installing new thermal sensor, you must use a new
locking ferrule in screw nut. Do not overtighten screw nut.
Snug screw nut up and tighten 1/4 turn past this point.

2-4
Model OE-100
409
2-5. HIGHTEMPERATURE
LIMITCONTROL
(Continued) Before following these steps, place POWER switch in the
OFF position and unplug the power cord or open the wall
circuit breaker.
1. Ifthe tubeisbroken orcracked,the controlwillopen,shutting off
electricalpower.Thecontrolcannot bereset.
Usereplacement highlimit,part no.16337,420degree.
2. Drainshorteningfromthefrypot.
3. Removecontrol panelperSection2-3.
4. Removetheretainersecuringthesiliconegasket.
5. Loosensmall insidescrewnutoncapillarytube.
6. Removecapillarybulb frombulbholderinsidethefrypot.
7. Straightenthecapillarytube.
8. Removelarger outsidenutthatthreads intopotwall.
9. Removethe twonutsthatholdthehigh limitbracketfromcontrol
panelarea.
10. Liftdefectivecontrol fromcontrolpanelarea.
11. Insert newcontrol andreplace nutsto bracket.
12. Uncoilcapillaryline,startingatcapillarytube,andinsertthrough
frypotwall.
To avoid electrical shock or other injury, the capillary line
must run under and away from all electrical power wires
and terminals. The tube must never be in such a position
where it could accidentally touch the electrical power
terminals.
13. Carefullybendthe capillarybulbandtube towardbulbholderon
heatingelements.
14. Slipcapillarybulbintobulbholderlocatedonheatingelements.
Pullexcesscapillarylinefrompotandtighten nutintofrypotwall.

2-5
Henny Penny Model OE-100
2-6. HEATING ELEMENTS NOTE
Heating elements are available for 208 and 480 voltage.
Check the data plate to determine the correct voltage.
If the shortening's temperature recovery is very slow or at a
slower rate than required, this may indicate defective heating
element(s). An ohmmeter will quickly indicate if the elements are
shorted or open.
1. Remove electrical power supplied to unit.
Place POWER switch in the OFF position and unplug the
power cord or open the wall circuit breaker.
2. Remove the control panel. Refer to Section 2-3.
3. Perform an ohm check on one element at a time, with wires
disconnected from element. If the resistance is not within
tolerance, replace the element.
Resistance
Voltage Wattage in Ohms (Cold)
480 7333 27.5
415 7333 6.9
380 7333 18.8
240 7333 6.9
208 7333 5.6
480 4500 51.2
415 4500 11.75
380 4500 N/A
240 4500 11.75
208 4500 9.61
593
2-5. HIGH TEMPERATURE
LIMIT CONTROL
(Continued)
15. With excess capillary line pulled out, tighten smaller nut.
NOTE
Tighten nut to snug only. Too tight will damage
capillary line.
16. Replace front panel.
17. Refill with shortening.

Henny Penny Model OE-100
2-6

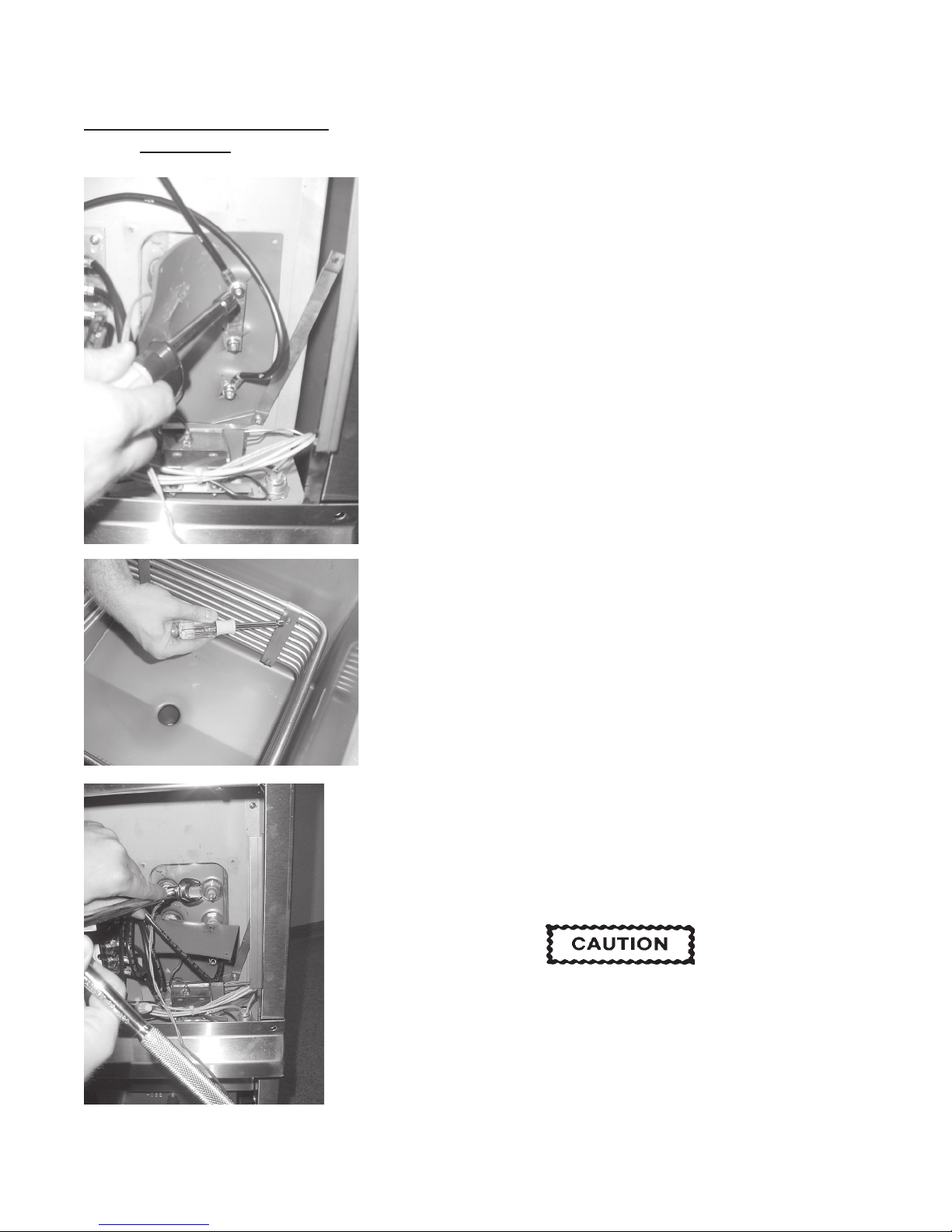

2-6. HEATING ELEMENTS
(Continued)
1091
Replacement
1. Drain the shortening from the frypot.
2. Remove the heating element wire from the terminals by removing
the nuts and washer. Label each so it can be replaced in the same
position on the new element.
3. Remove the retainer securing the silicone gasket.
4. Loosen the bolts on the four element spreaders.
5. Slide the element spreaders to the center of the heating element.
6. Remove the brass nuts (4) and washers (3) which secure the ends
of the elements through the frypot wall.
7. Remove the heating elements from the frypot as a group by lifting
the far end and sliding them up and out toward the rear of the
frypot.
8. Install new heating elements with new "0" rings (2) mounted on
terminal ends and spreaders loosely mounted in the center of the
heating elements.
9. Replace the heating elements, terminal end first, at approximately
450 angle, slipping the terminal ends through the front end of the
frypot.
10. Replace the brass nuts (4) and washers (3) on the heating element
terminals. Tighten the brass nuts to 30 foot pounds of torque.
11. Move the element spreader from the center of the element into a
position which will spread each element apart evenly on all four
sides and tighten.
12. Reconnect the wires to the appropriate terminal as labeled when
they were removed.
13. Replace the front control panel.
14. Connect the power cord to the wall receptacle or close wall
circuit breaker.
Heating elements should never be energized without short-
ening in frypot.
15. Replace the shortening in the frypot.

2-7
Henny Penny Model OE-100

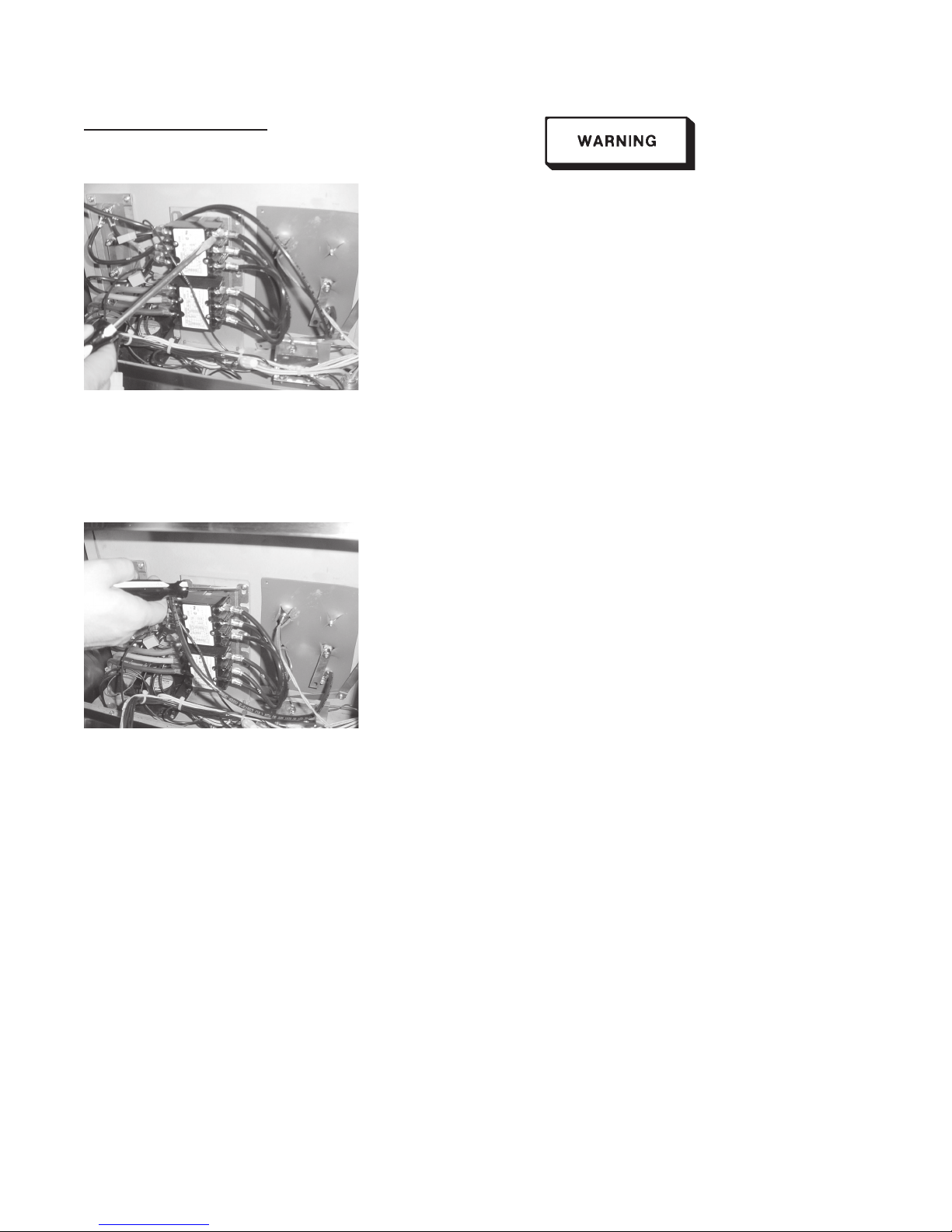

2-7. CONTACTORS
The following checks are performed with the wall circuit
breaker closed and the Power switch in the ON position.
Extreme caution should be taken. Make connections before
applying power, take reading, and Remove power before
removing meter leads.
1. With power applied, increase setpoint temperature setting allow-
ing heat contactor to activate.
Test Points Results
Heat Contactor The voltage
from terminal 34 to 35 should read the
from terminal 35 to 36 same at each
from terminal 34 to 36 terminal.
Test Points Results
Primary Contactor It should
from terminal 27 to 28 correspond to
from terminal 28 to 29 the voltage
from terminal 27 to 29 rating stated on
the data plate.
If either contactor is defective, it must be replaced as follows:
1. Remove electrical power supplied to the fryer by unplugging
or opening the wall circuit breaker.
2. Remove only those wires directly connected to the contactor
being replaced. Label the wires.
3. Remove the two mounting screws on the base plate and
remove contactor.
4. Install the new contactor and tighten the two mounting
screws.
5. Connect the labeled wires to their respective positions.
6. Install the control panel.
7. Reconnect power to the fryer and test the fryer for proper
operation.
593

Henny Penny Model OE-100
2-8
2-8. FAN The Henny Penny OE-100 has a fan in the circuit which operates only
when the power switch is in the COOK position. The fan helps keep
the control panel cool by pulling out heat from between the control
panel and frypot.
The replacement of a faulty fan is as follows:
To avoid electrical shock or other injury, before starting this
procedure, move power switch to OFF position. Disconnect
main circuit breaker or unplug cord at receptacle.
1. Remove control panel per Section 2-3.
593
2-7. CONTACTORS
(Continued)
The Henny Penny OE-100 requires two switching contactors. Lo-
cated on the bottom is the primary contactor with the heat contactor
stacked to the top of the primary. When closed, the primary contactor
completes the heat circuit. It also supplies power to the heat contactor.
1. Remove electrical power supplied to the fryer.
Place ON/OFF switch to the OFF position and unplug the
power cord to open the wall circuit breaker.
2. Remove the control panel. Refer to Section 2-3.
3. Perform a check on the contactor as follows:
Test Points Results
from 23 to 29 open circuit
from 24 to 28 open circuit
from 25 to 27 open circuit
from 30 to 34 open circuit
from 31 to 35 open circuit
from 32 to 36 open circuit
from 22 to 26 ohm reading 415
from 33 to 37 ohm reading 415

2-9
Henny Penny Model OE-100
2-8. FAN (Continued) 2. Label and disconnect fan motor wires.
3. Remove the four screws, washers, and nuts securing the fan to the
heat shield.
4. Remove the fan from the heat shield.
5. Install the new fan on the heat shield and secure with the four
screws, washers, and nuts.
6. Reconnect the fan motor wires.
7. Install control panel.
2-9. COOK/PUMP SWITCH
Checkout
The Cook/Pump Switch is a three way rocker switch with a center
"OFF" position. With the switch in the COOK position the fryer will
operate. With the switch in the PUMP position the filter pump will
operate, but the unit will not heat.
1. Remove Control Panel, but leave hinged on unit.
Remove electrical power supplied to the fryer by unplug-
ging the unit, or turning off the wall circuit breaker or
electrical shock could result.
2. Remove and label wires from Cook/Pump Switch.
3. "OFF" Position - should be open circuit anywhere on the
switch.
4. "COOK" Position
Check from:
#5 to #6 closed circuit
#1 to #2 closed circuit
5. "PUMP" Position
Check from:
#4 to #5 closed circuit
#3 to #2 closed circuit
Replacement
1. With control panel removed and wires off the switch, push in on
tabs on the switch to remove from the panel.
2. Replace with new switch, and reconnect wires to switch following
the wiring diagram.
3. Replace the control panel.
593

Henny Penny Model OE-100
2-10
2-10. FUSES
To avoid electrical shock or other injury, before starting
this procedure, move power switch to the OFF position.
Disconnect main circuit breaker at the circuit breaker box
or unplug cord from wall receptacle.
Each unit is provided with two fuses to protect the internal cir-
cuitry. These fuses are rated 15 amps at 300 volts. Unthread screw
cap to allow access to fuses located on panel behind door.
2-11. DRAIN SWITCH
To avoid electrical shock or other injury, before starting
this procedure, move power switch to the OFF position.
Disconnect main circuit breaker at the circuit breaker box
and/or unplug cord from wall receptacle.
1. A continuity check should be made to determine if the drain
switch is defective. Check between the two outer terminals with
actuator in groove of the drain valve extension rod. Circuit should
be closed. If drain valve extension rod is turned, actuating drain
switch, circuit should be open.
Replacement
1. To replace drain switch, remove two screws and nuts secur-
ing switch and switch cover.
2. Label and disconnect wires.
3. Connect wires to new drain switch.
4. Position actuator and attach drain switch and switch cover
with the two screws and nuts.
5. Test to see if drain valve extension rod actuates the switch.
NOTE
Listen for click of switch while rotating drain valve extension
rod.
1091

2-11
Henny Penny Model OE-100
2-12. FILTER HEATER
SWITCH
Checkout
The Filter Heater Switch is a rocker type switch. With the switch
in the "ON" position, the filter heater will operate, melting any
solidified shortening in the filter lines.
1. Remove electrical power supplied to unit.
Remove electrical power supplied to the fryer by unplug-
ging the unit, or turning off the wall circuit breaker, or
electrical shock could result.
2. Remove Control Panel, but leave hinged on unit.
3. Remove and label wires from the switch and check across from
top to bottom for continuity. With the switch in the "ON" position,
the circuit should be closed. If the switch is defective, replace it
by following the next step.
Replacement:
593
4. Push in on tabs on the ends of the switch and pull switch from the
front of the control panel.
5. Replace new switch, replace wires, and install controlpanel.

Henny Penny Model OE-100
2-12
2-13. FILTER HEATER
593
This unit is equipped with a strip heater in the event solidified shorten-
ing accumulates in the filter pump lines. If this heater becomes defec-
tive, replace by following these steps.
Remove all power from unit. Failure to do so could result
in electrical shock.
1. Open panel board and cut wires at the connectors which go to
the heaters.
2. Remove two screws that mount the strip heater to insulation box
and pull wires through heat shroud.
3. Install new strip heater in reverse order.
NOTE
When installing new heater wires into wire nut, be sure wires
are secure. Use electrical tape to secure wire nut.

2-13
Henny Penny Model OE-100
2-14. FILTERING SYSTEM The filtering system consists of the filter valve, motor and filter pump
assembly, filter screen assembly, and tubing.
Shortening with temperature in excess of 200 OF flows
through this filter rinse hose. Heat causes the rubber hose
to age and deteriorate. The hose and fittings should be
checked daily. If aging or discoloration is seen the hose
should not be used. Severe burns may result if this rinse
hose assembly leaks or ruptures.
1. Close the filter valve.
2. Turn the pump switch to the OFF position.
3. Detach the hose BEING CAREFUL, AS THE HOSE AND
FITTINGS WILL BE HOT, USE A COLD WET CLOTH.
NOTE
This hose is not connected to the fryer during normal opera-
tion.
Installation
593
1. Attach the filter rinse hose with its quick disconnect female fitting
to the other half male fitting inside the door, next to the filter valve
handle.
2. To do this slide back the spring ring on the female end of the
quick disconnect fitting and let it snap into place over the
other half male fitting.
3. With a quick tug on the hose, insure the quick disconnect is
locked into position.

Henny Penny Model OE-100
2-14
2-15. FILTER VALVE The filter valve is a 3/8 inch two-way stainless steel ball valve. If this
valve should develop leaks the entire valve must be replaced.
To avoid electrical shock or other injury before starting this
procedure move COOK/PUMP SWITCH to OFF position.
Disconnect main circuit breaker at the circuit breaker box
and unplug service cord from wall receptacle.
1. Drain the shortening from the frypot.
2. Remove the filter drain pan from the fryer.
3. Remove the cotter pin, handle, and extension rod.
4. Remove the pipe from between the filter pump and valve.
5. Remove tee and nipple from valve.
6. Use an adjustable wrench and remove the valve.
7. Replace the valve and reassemble in reverse order.
2-16. FILTER PUMP
REPAIR
The two most common causes for a fryer's inability to pump shortening
is that the pump is clogged with breading or solid shortening has
cooled and solidified in the lines and pump. This then could cause the
thermal reset to kick the motor out and the reset button on the back of
the motor needs reset.
To avoid electrical shock or other injury before starting this
procedure move COOK/PUMP SWITCH to OFF position.
Disconnect main circuit breaker at the circuit breaker box
and unplug service cord from wall receptacle.
1. Loosen the four allen head screws on the end of the pump and
remove the cover.
2. The inside is now exposed leaving a rotor and five teflon rollers.
Clean the rotor and rollers.
593

2-15
Henny Penny Model OE-100
2-16. FILTER PUMP
REPAIR (Continued)
3. To reassemble, place rotor on drive shaft, and place rollers into
rotor.
NOTE
A small amount of shortening might be needed to hold the
bottom roller into place until cover plate is put on. Make sure
O-ring is in proper position on plate.

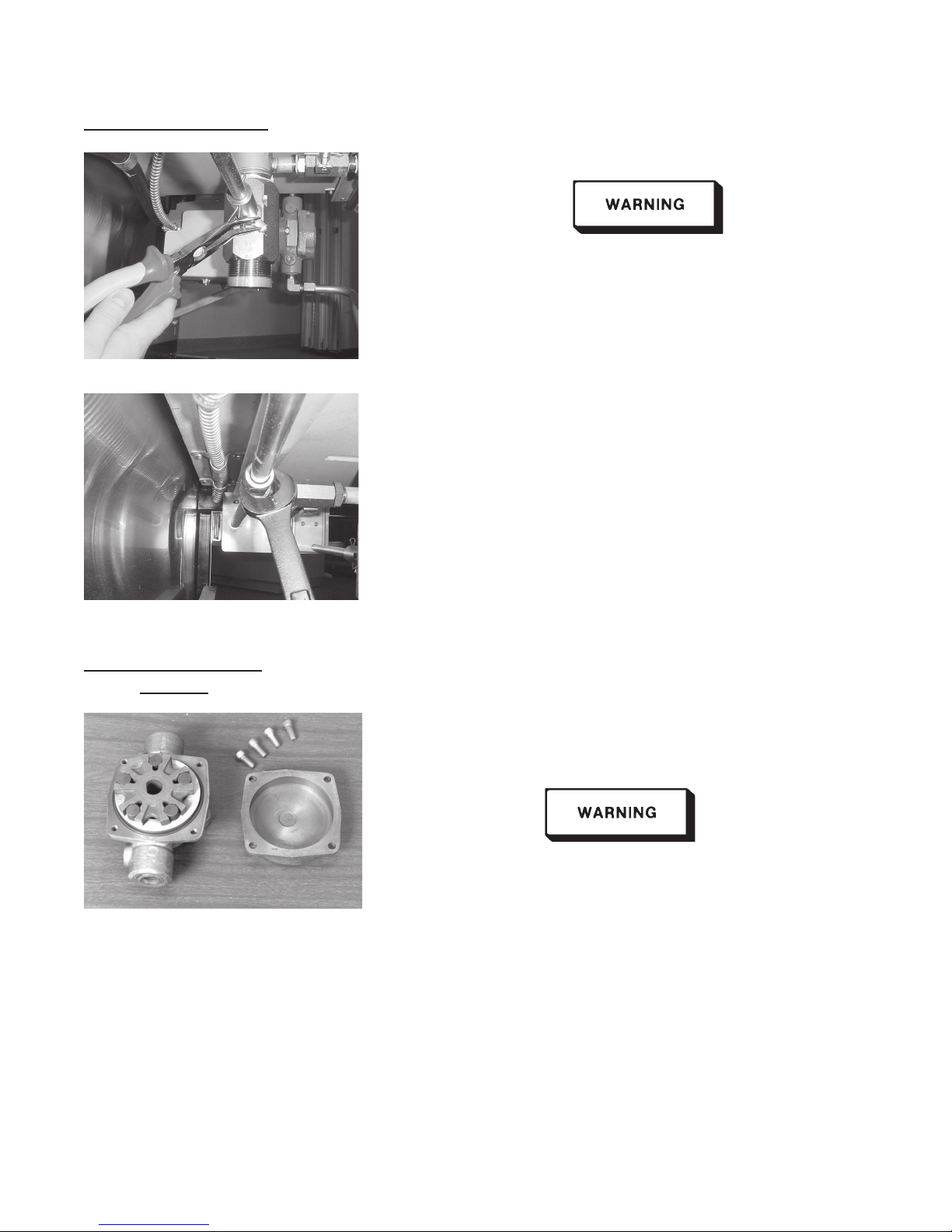

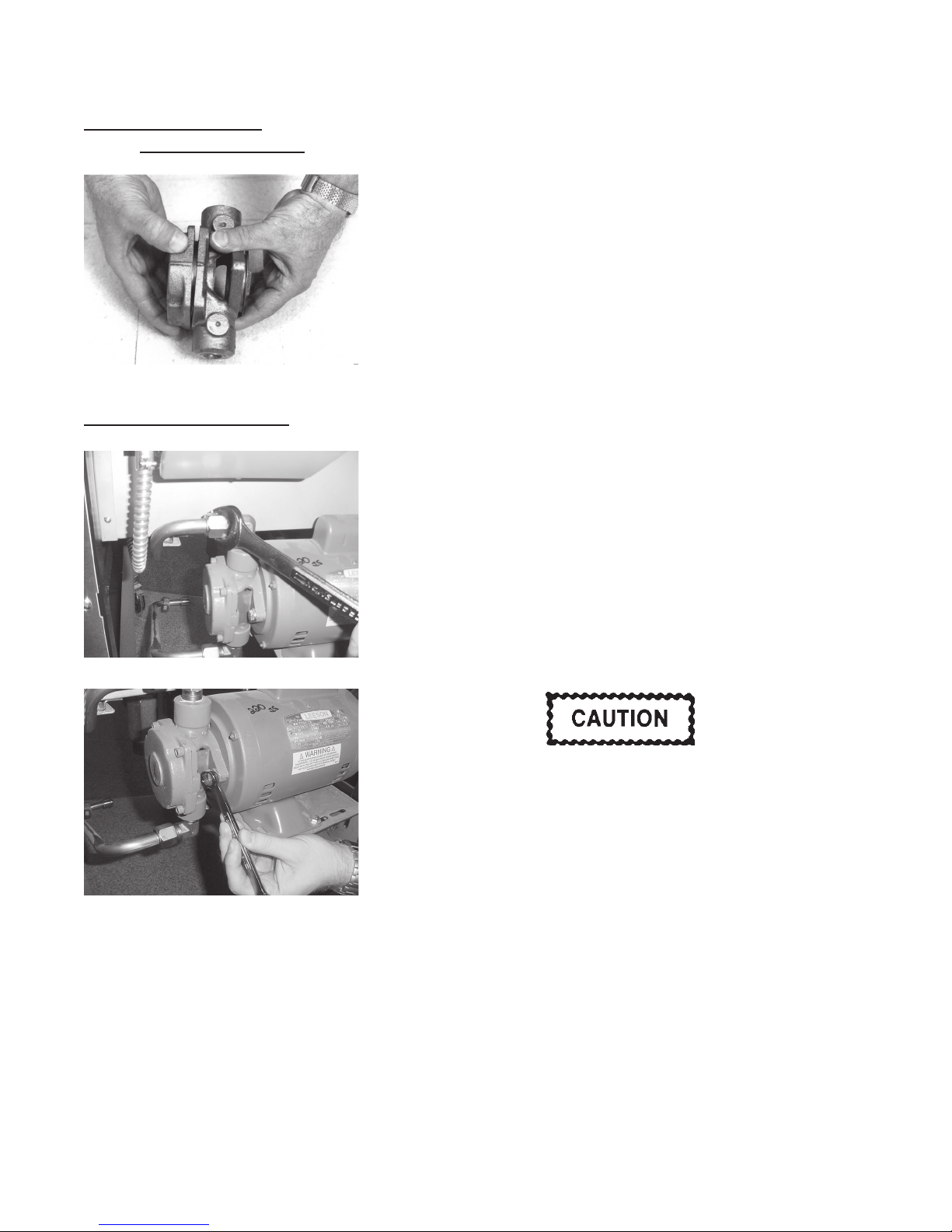

2-17. PUMP REMOVAL 1. If the pump needs to be replaced, loosen one inch nuts from the
outflow and inflow lines. Then remove the two bolts holding the
pump to the motor with a 1/2 inch wrench.
2. The shaft seal should remain on the motor shaft, or if leaking,
should be replaced at this time.
3. To replace the pump, remove the four allen screws, front plate,
rotor, and rollers from pump (see Section 2-18). Place the pump
onto shaft and against the shaft seal. Place the two 1/2 inch bolts
through the pump and into the motor and tighten. Then replace the
rotor, rollers, front plate and tighten the allen screws.
When removing a pump from a motor note the positions of
the INLET and OUTLET parts. Installation of the pump on
the motor in any other position could cause damage to the
fryer. There is an indicator on the side of the two halves of
the pump, this mark must be together and face to the front
of the fryer.
593

Henny Penny Model OE-100
2-16

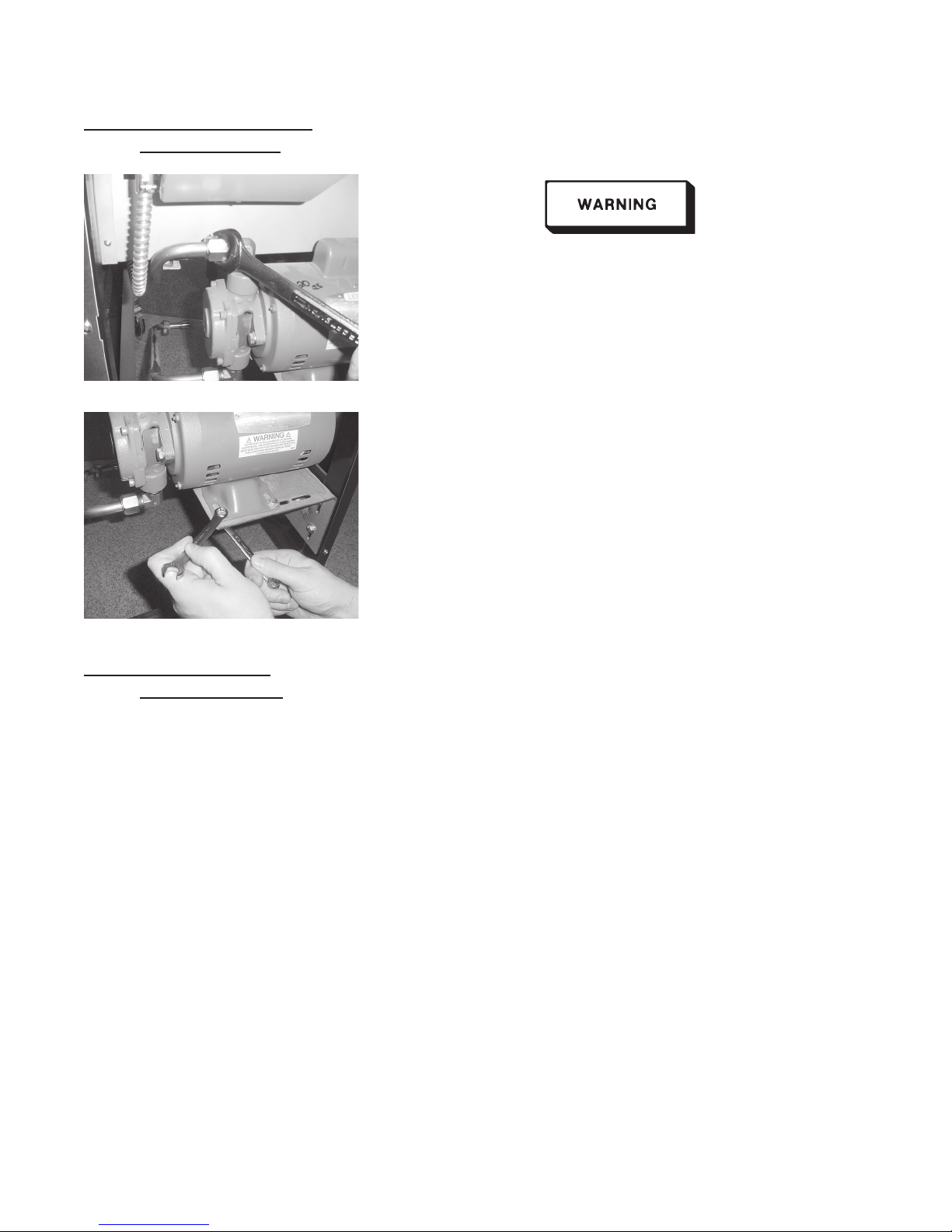

2-18. PUMP AND MOTOR
REPLACEMENT
1. To replace the pump and motor assembly, insure the main power
has been removed from the fryer.
To avoid electrical shock, injury or burns before starting
this procedure move COOK/PUMP SWITCH to OFF
position. Disconnect main circuit breaker at the main
circuit breaker box and unplug service cord from wall
receptacle.
2. Remove the cover from the junction box and remove the wire
nuts attaching wires leading into the flexible conduit going to
the motor.
3. Loosen the two screws securing the flexible conduit going to
the motor.
4. Remove tubing to the pump.
5. Remove hardware attaching the motor to the motor hase
bracket and remove motor and pump assembly.
2-19. COOLING FAN
MAINTENANCE
The cooling fan on the OE-100A open fryer reduces the amount
of heat behind the panel, and if the heat does become excessive,
"E-4" will show on the display.
The PC boards on the control panels can be damaged by exces-
sive amount of heat so it is important that the cooling fan is
operating properly and has good air flow.
To prevent an "E-4" reading, which will shut the heat off to the
fryer, follow the following steps.
ONCE A MONTH:
1. Turn power switch to the "OFF" position.
2. Open door to bottom of fryer.
3. Locate metal fan guard situated in the left front, under the
control panel.
4. Clean any lint and dirt from fan guard.
294

2-17
Henny Penny Model OE-100
2-19. COOLING FAN
MAINTENANCE
(Continued)
5. Close door and turn power switch on. Unit is now ready for
operation.
If the fan needs a more thorough cleaning, or E-4 persists after
cleaning the fan guard, follow the following steps.
1. With power on, open door to drain pan and look up at fan to
make sure fan is operating.
2. If fan is not operating, it needs replaced; if fan is operating
continue onto step 3.
3. Remove electrical power supplied to the unit.
Place the power switch to the OFF position. Disconnect the
power cord from the wall, or turn off wall circuit breaker or
fuse, or electrical shock could result.
4. Remove the screws securing decorative strips on both sides
of the control, and remove decorative strips.
5. Swing panel out to the left and locate fan on the left behind
panel.
6. Thoroughly clean fan, plus check fan guard per above in-
structions.
7. Replace panel and decorative panels.
8. Restore power to unit and unit is now ready for operation.
294

Henny Penny Model OE-100
2-18
994

2-19
Henny Penny Model OE-100
1197

Henny Penny Model OE-100
2-20
1197
